1920 (Ca) OPTIMUS 'SIRIUS' lantern

Discussion in 'Other models' started by dowdy2, Apr 12, 2012.

  1. dowdy2

    Offline
    Joined:
    Jan 20, 2011
    Messages:
    66
    Hi all.

    Introduce my optimus(or lux)sirius lantern.
    unfortunely niddle was broken.
    so i have to make new niddle . all is good working .
    thanks .

    sirius lantern light

    full detail.


    sirius mark in hood cap.


    optimus mark on the fuel cap

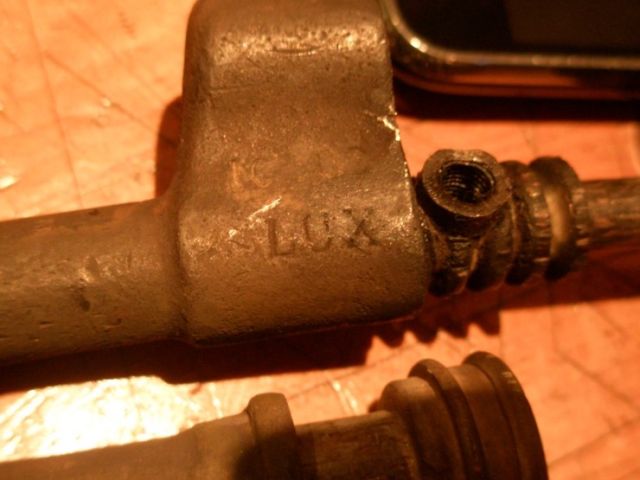

    lux words with vaporiser.


    control knob is similiar coke coka bottle cap


    sirius lantern niddle part. i use with vice.


    use 0.5mm small hand drill with make new hole.


    use acupuncture needle


    make another needle.

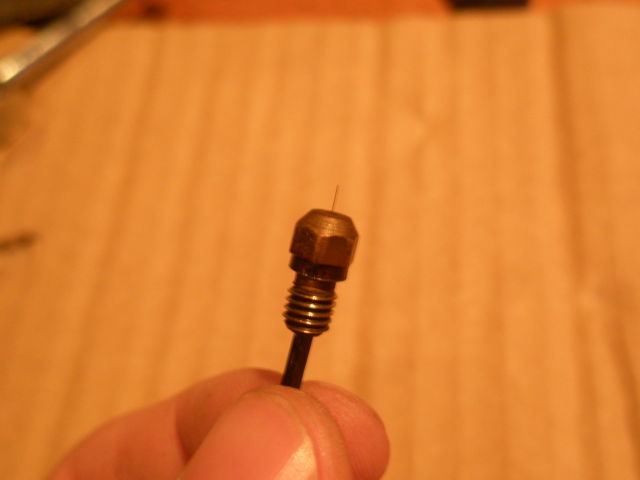

    nozzle and repair needle


    left: radius 143 lantern repair needle
    middle: petromax little baby 900 repair needle
    right: sirius lantern rpair needle


    you can see new needle

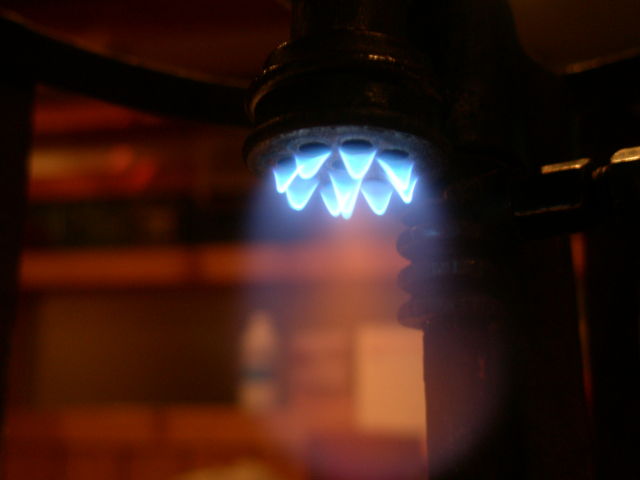

    fire flame .

    Gunsoo

    Last edited by a moderator: Mar 31, 2017
  2. Superman

    Offline
    Joined:
    May 9, 2011
    Messages:
    155
    :clap: :clap: :clap:

    WOW.....!!!

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    7,712
    Location:
    Shetland Islands UK..
    An excellent addition to any collection and that is an impressive needle fettling job! :thumbup: :clap:

  4. hmamahahma

    Offline
    Joined:
    Apr 5, 2012
    Messages:
    25
    :thumbup: excellent

    Last edited by a moderator: Mar 31, 2017
  5. mr optimus

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    360
    Hi dowdy brilliant work on the cleaning needle

  6. dowdy2

    Offline
    Joined:
    Jan 20, 2011
    Messages:
    66
    Thanks all good word.

    :)

  7. longilily

    longilily United Kingdom Subscriber

    Offline
    Joined:
    Jan 25, 2011
    Messages:
    1,449
    Location:
    Dungeness
    Good work Gunsoo :thumbup: :thumbup:

  8. raftrask

    Offline
    Joined:
    Jan 24, 2012
    Messages:
    28
    "use acupuncture needle" That is a Great Idea! Those needles have to be strong, well made and have precise dimensions. I think a trip to China Town is in my near future. And a super nice lantern as well. thanks!

  9. wwhcfy

    Offline
    Joined:
    Oct 21, 2016
    Messages:
    10
    Hi

    Wish you are good.

    I just have chance to have this Sirius lantern. I was going to clean it but the problem is I don't know how to separate the main part which are the burner and the generator.

    I tried many different way but still can't separate the parts, I am not sure it is too tight... as I don't have the digram and the part list so not sure which parts can be separated.

    Could you please guide me to the good way to separate the parts in order I can clean the lantern.

    Thanks


    Last edited by a moderator: May 17, 2017
  10. Lundo007

    Lundo007 Subscriber

    Offline
    Joined:
    Apr 15, 2017
    Messages:
    164
    That looks"serious". You must have steady hands!!!

  11. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,310
    Hi wwhcfy.

    Check this out. I answered the same question you made there. Atleast as good as I could from memory.
