1920's Tilley TL10

Discussion in 'Table & Vase Lamps (TL & VL)' started by Niko, Jul 9, 2017.

  1. Niko

    Niko Subscriber

    Offline
    Joined:
    Sep 7, 2014
    Messages:
    28

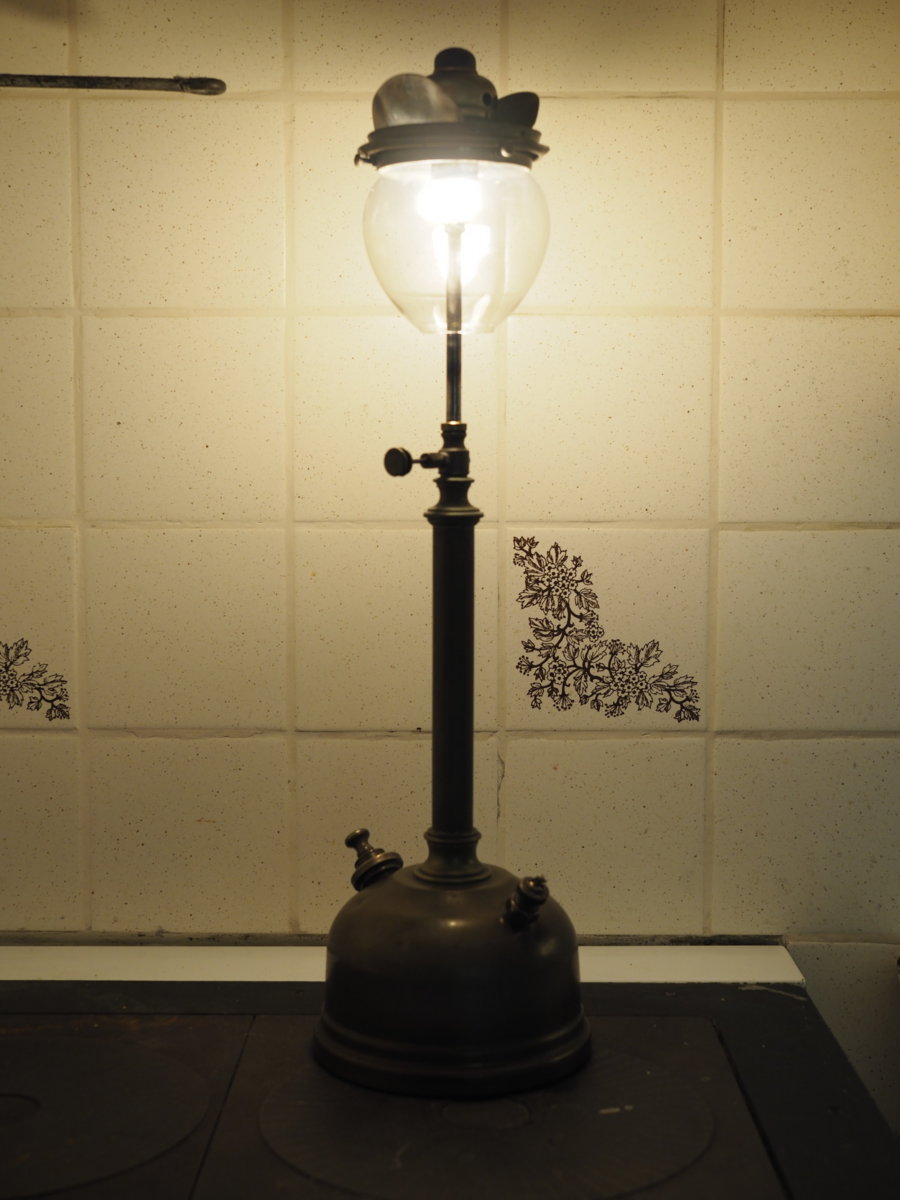

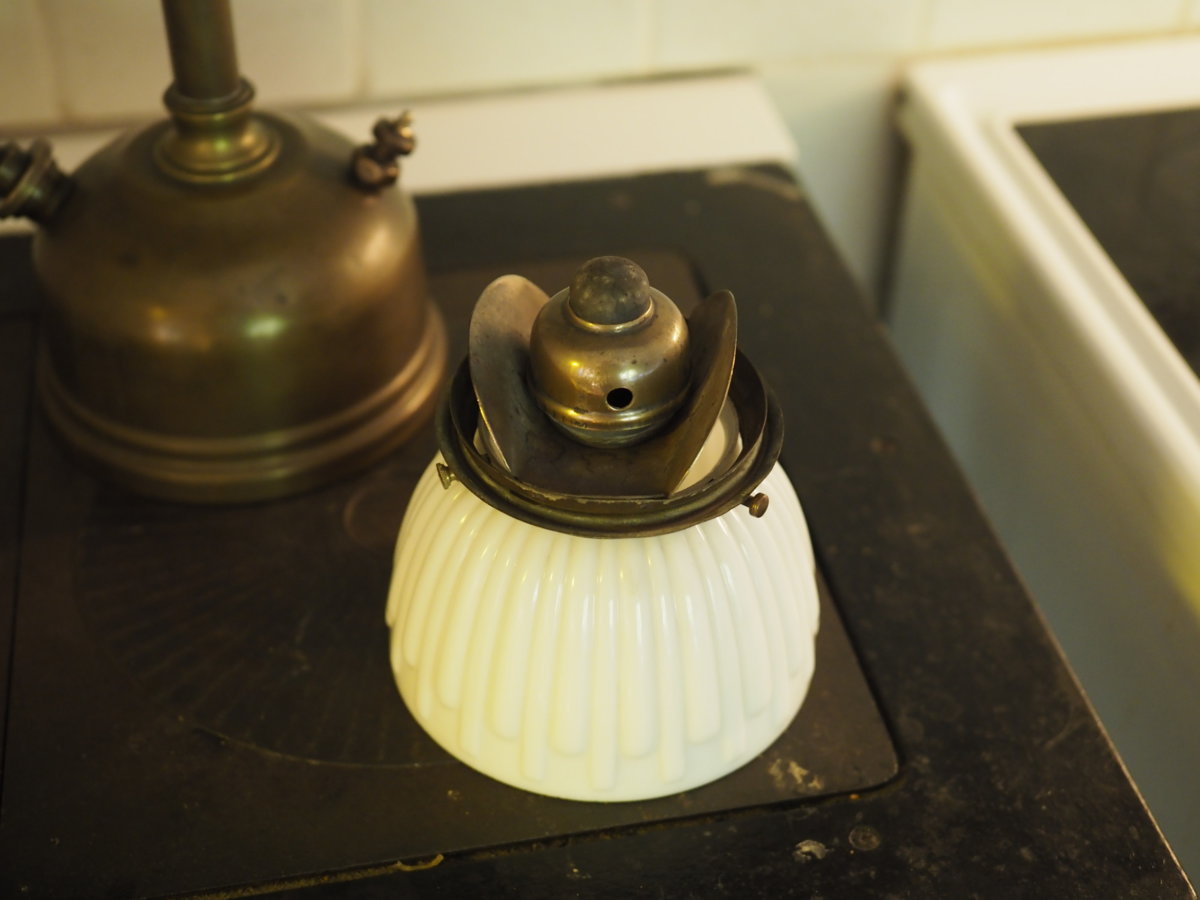

    Tilley TL 10 tank around 1922-1924 Similar tank than Latest Tilley TL 5, Burner and Shade from Tilley TL10 about 1926.Some parts missing one gallery Pin and Hexagon Control cock.



    _7090165.jpg _7090157.jpg _7090161.jpg _7090168.jpg _7090163.jpg _7090167.jpg 1294073661-1923 (2).jpg _7090155.jpg

  2. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,923
    Beautiful! I like the inscription on the pump knob. Thanks for posting, and for the paperwork!

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,230
    Location:
    Shetland Islands UK..
    An excellent find indeed!:thumbup::clap::D/:D/:clap::thumbup:

  4. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    5,329
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Niko

    Very nice! Where did you find it?

    Tony

  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,632
    Location:
    Somersby, New South Wales, Australia
    Very Elegant with the bat wing vents
    Congratulations :clap::clap:

  6. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,130
    Location:
    Hertfordshire
    What a nice find. I still don't have one of these with the fount mounted valve. I think I have seen maybe four over the years. You might like this though. One of the few had the base plate removed and re soldered and here is a picture of the inside. ::Neil::


  7. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,068
    Location:
    Toowoomba Australia
    Wow, what a find, well done on the fettle.

  8. KAB

    KAB Subscriber

    Offline
    Joined:
    Mar 27, 2016
    Messages:
    456
    Location:
    South East England

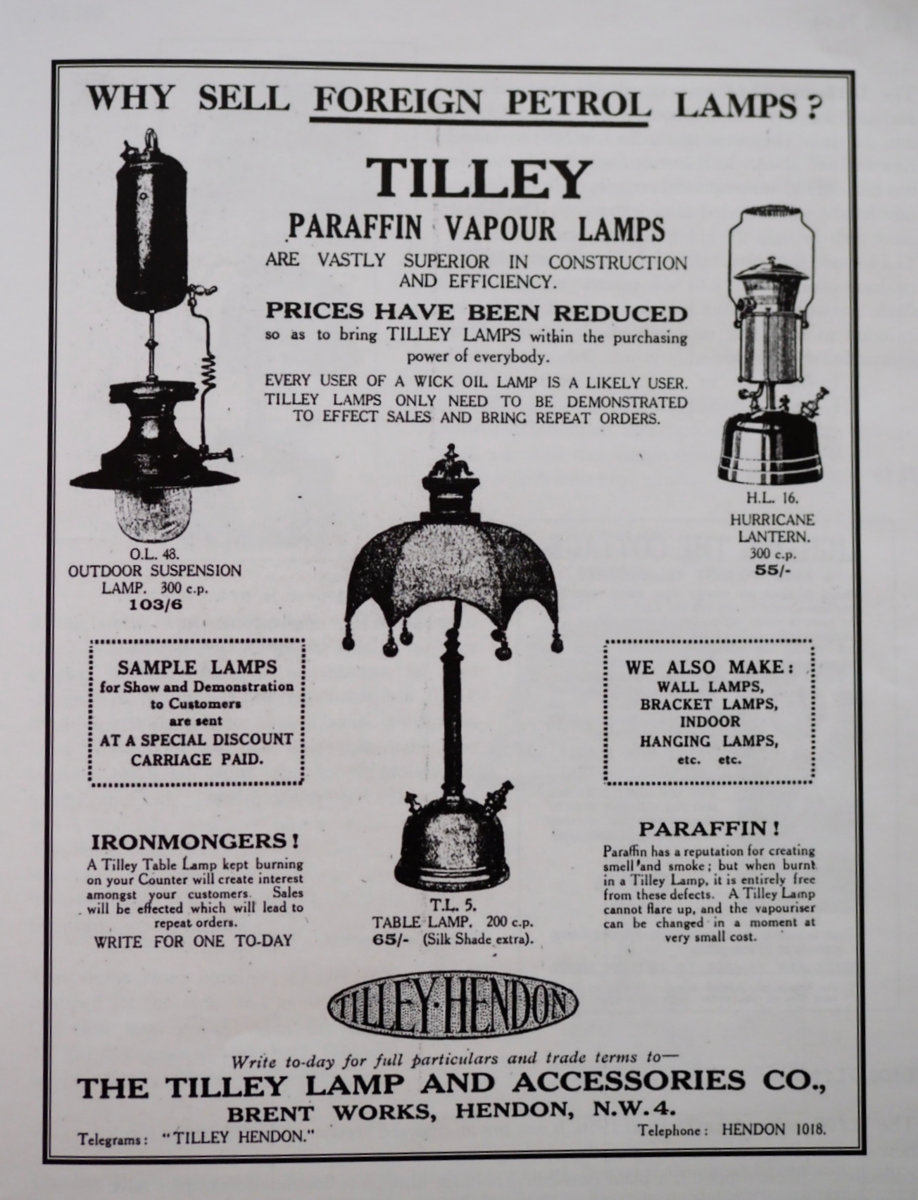

    Thank you for sharing. Interesting the a number of lamps shown in the sales leaflets aren't listed in the gallery - HL16, TL5 and the OL48 and the PL with the different top for 55/- ??

  9. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    1,521
    Location:
    N E Scotland
    That would be because they're as rare as hens' teeth. (Apostrophe police, hope I've got that one in the right place).

  10. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    5,329
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Jean J

    “Hen’s teeth” = the teeth of one hen;

    “Hens’ teeth” = the teeth of hens (plural).

    It works both ways and I’m uncertain whether the expression refers to a singular hen, or all hens.

    I have many hens, but have found no teeth yet. :lol:

    Cheers

    Tony

  11. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    809
    kab said

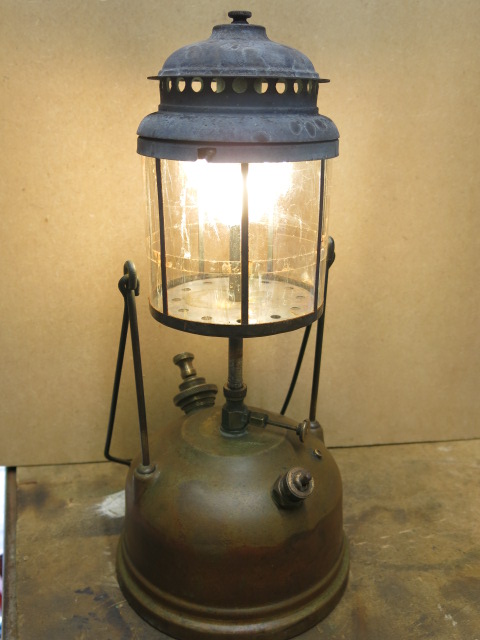

    here you are kab this is the PL 52 for 55/-


    cheers pete

  12. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Jul 17, 2011
    Messages:
    647
    @Mackburner, how does the valve work? It seems to me the pressurized fuel gets up the pipe to the valve and then into the vaporizer? Will the valve leak fuel if the pressure is too high?

  13. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,230
    Location:
    Shetland Islands UK..
    That's a fine old lantern Pete!:thumbup::thumbup:

  14. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,130
    Location:
    Hertfordshire
    The valve is a diaphragm type and I don't think it will leak under pressure. I have never examined one of these myself but I do have these images from Greg McCourt who owned one. ::Neil::

    20s_TL10_valve_01.jpg 20s_TL10_valve_02.jpg 20s_TL10_valve_03.jpg

  15. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,684
    Location:
    North-East England
    Now there's a name I haven't heard for a long time. We swopped emails occasionally and I bought a few lanterns from Greg - but not for many years...

  16. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Jul 17, 2011
    Messages:
    647
    Thank you Neil for the photos.

    So the valve is used to control/shut off the fuel flow as an addition to the control cock only operating the cleaning needle?

    My first impression as I saw the lamp was that it is a valve that releases air from an over pressurized fount.

  17. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,130
    Location:
    Hertfordshire
    Yes the cock only operates the pricker. First time I saw one of these I also thought pressure release but it is a main control valve. Bit over engineered perhaps though. ::Neil::

  18. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Jul 17, 2011
    Messages:
    647

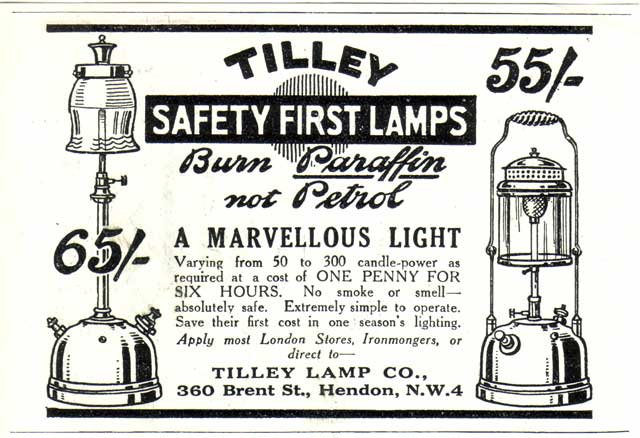

    The advertising statement "Varying from 50 to 300 candle power..." is then owed to the function of the valve?
