1921/? Guenet & Abbat n° 112 swan neck lamp

Discussion in 'Guenet & Abbat' started by Michel, Oct 11, 2014.

  1. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    979
    Location:
    56 France
    Hi all

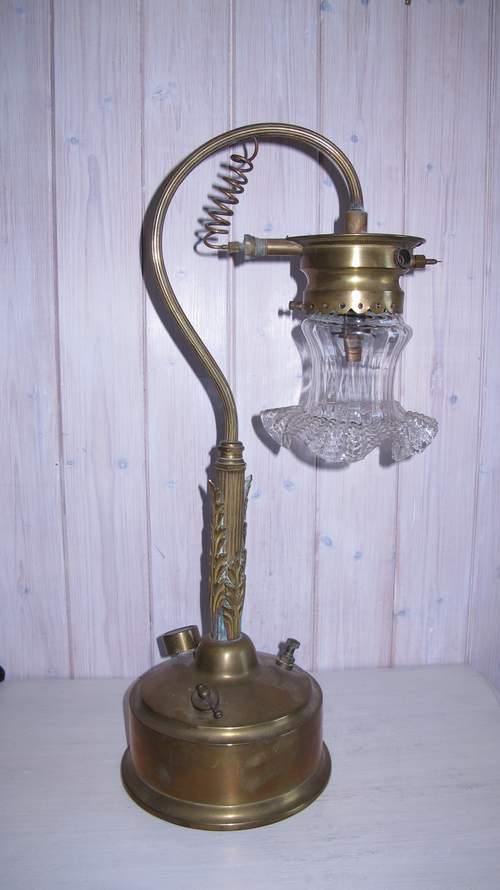

    Here is my last restauration project : A model 112 swan neck lamp from Guenet et Abbat (or Louis Compain ?). Production year ? After 1921 because this burner was patented in 1921. This burner is in a 1926 G&A catalogue, after, I don't know ??
    I am not sure who is the owner of the "Succès" brand . I guess this was G&A because all patents are from Guenet et Abbat from 1909 to around 1947.
    second hint : I have never found a patent claimed by Compain (who was also a seller of bicycles and motorcycles in Paris in the 30's)
    Third hint : The "Comptoir Culmen" was the "syndicat des commissionnaires négociants en gros du cycle, de l'aviation, de l'automobile, des sports, 10 rue de Lancry, Paris)
    this can be translated by " commissioners wholesalers trade union "
    My guess is that louis Compain was only a retailer, until the proof of contrary ;-)

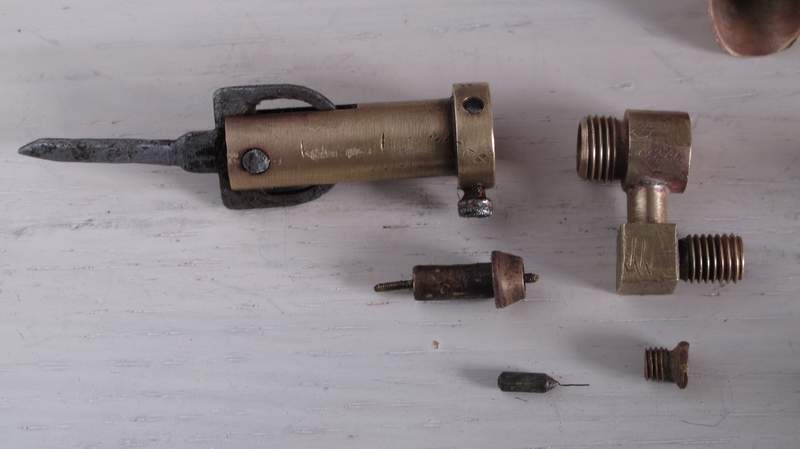

    For this hour, I am fighting with the 101 burner. All spares seems to be present although the needle is a little poor in quality and the needle system completely jammed.

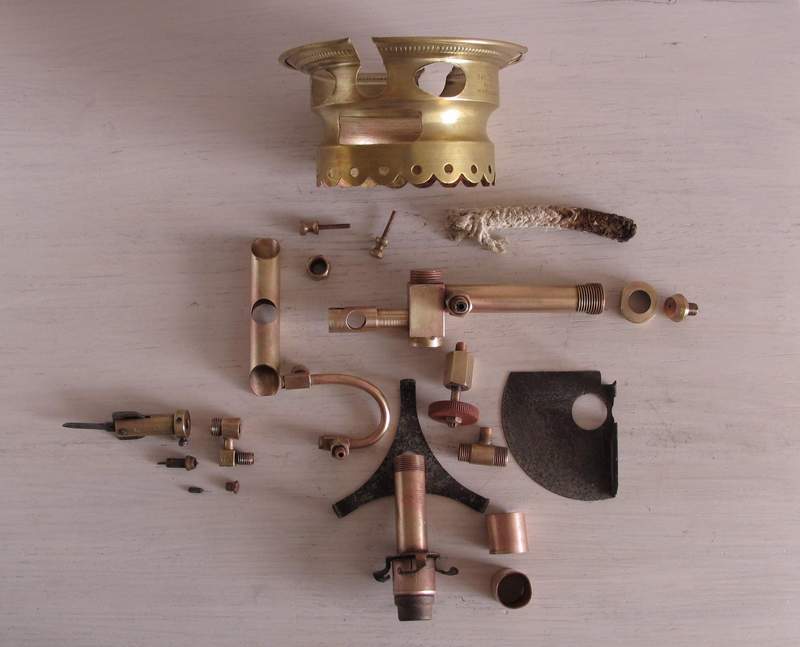

    here is the dismantled burner ; funny puzzle, don't you think ?

    1413034979-IMG_3405.JPG 1413034994-IMG_3399.JPG

    Last edited by a moderator: Mar 31, 2017
  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,737
    Location:
    Shetland Islands UK..
    A fine fettling project!

  3. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    Absolutely stunning lamp, gratulation Michel. :D/ With ýour knowledge and experience it will be up running yesterday :lol:
    This must be as rare to find as tears from a seahorse - even for you Michel O:)

    Claus C

  4. Conny C

    Conny C Sweden Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    653
    Hi Michel! A nice find :thumbup: and the 101 burner looks almost identical to the burner on my "101 bis" hollow wire lamp [url=http://0flo.com/index.php?threads/3381 .
    I think this burner, though very interesting, is way too complicated to be of good engineering; too many small parts that could get jammed. My Succes 156 parabolic heater has the same disease. At least 70 parts to assemble for a working heater.

    /Conny

  5. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    979
    Location:
    56 France
    Yes Claus, very rare, in fact the only one I have ever seen. I could not let go this old lady.

    Conny, Too complicated ! I don't think. This burner is almost the same as my other Succès lamp burner although the opening knob is not exactly at the same place, but it works fine.
    in fact, almost the same lamp although this one have an outdoor burner
    http://0flo.com/index.php?threads/5740

    I think my problem will be the thinness of the needle which is eaten by the rust and therefore is too flexible.

  6. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    979
    Location:
    56 France
    Very bad weather in Brittanny today : a lot of wind and rain ;-))
    Impossible to go out, so .....
    reassembling the burner in 8 pictures

    1413130158-1.JPG 1413130180-2.JPG 1413130191-3.JPG 1413130204-4.JPG 1413130218-5.JPG 1413130236-6.JPG 1413130257-7.JPG 1413130297-8.JPG


    Yesssss, it's still raining tomorrow. I'll take care of the needle's system ;-)

    Last edited by a moderator: Apr 1, 2017
  7. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    979
    Location:
    56 France
    hum the needle system is reassembled but this old lady is much more ill than I thought.
    While trying to inflate the lamp up to 500 gr, I heard a "pop" and seen the bottom of the fount making a bulge. My Succès was a rocking lamp.
    The bottom is brass made and if this alloy is not attacked by the rust, this is not so strong than iron.
    I had to push back the bottom with a rubber hammer and now I must strengthen the sheet metal, I think with solder and epoxy resin.

  8. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    Nightmarish :shock:

    Hope you make it turn out well and the idea sounds solid. :thumbup:

    Claus C

    Last edited by a moderator: Mar 31, 2017
  9. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    979
    Location:
    56 France
    A little update
    the resin has done its job, the fount no longer swells

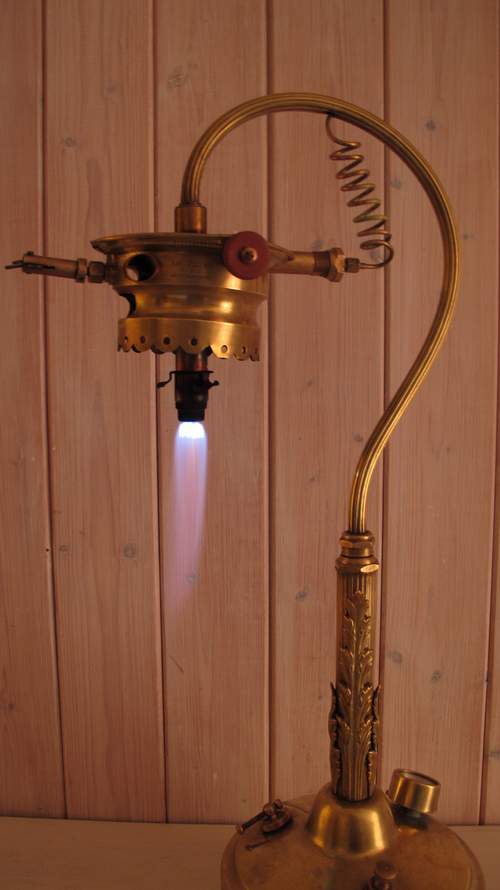

    I did a test without glass or sleeve
    the lamp is running for 1 hour without any problem with 4/500 gr pressure
    1414256713-IMG_3495.JPG 1414256813-IMG_3503.JPG 1414256824-IMG_3487.JPG

    I don't want to risk a globe or a tulip right now because the brass screw does not hold correctly in the glass holder. the threads are enlarged. And more, I have only 2 screws.
    The thread is 3/70 in metric. Untraceable !! I will be obliged to redo the screws

    Last edited by a moderator: Apr 1, 2017
  10. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,737
    Location:
    Shetland Islands UK..
    Hello Michel, that's good news! :thumbup:

  11. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    979
    Location:
    56 France
    little update

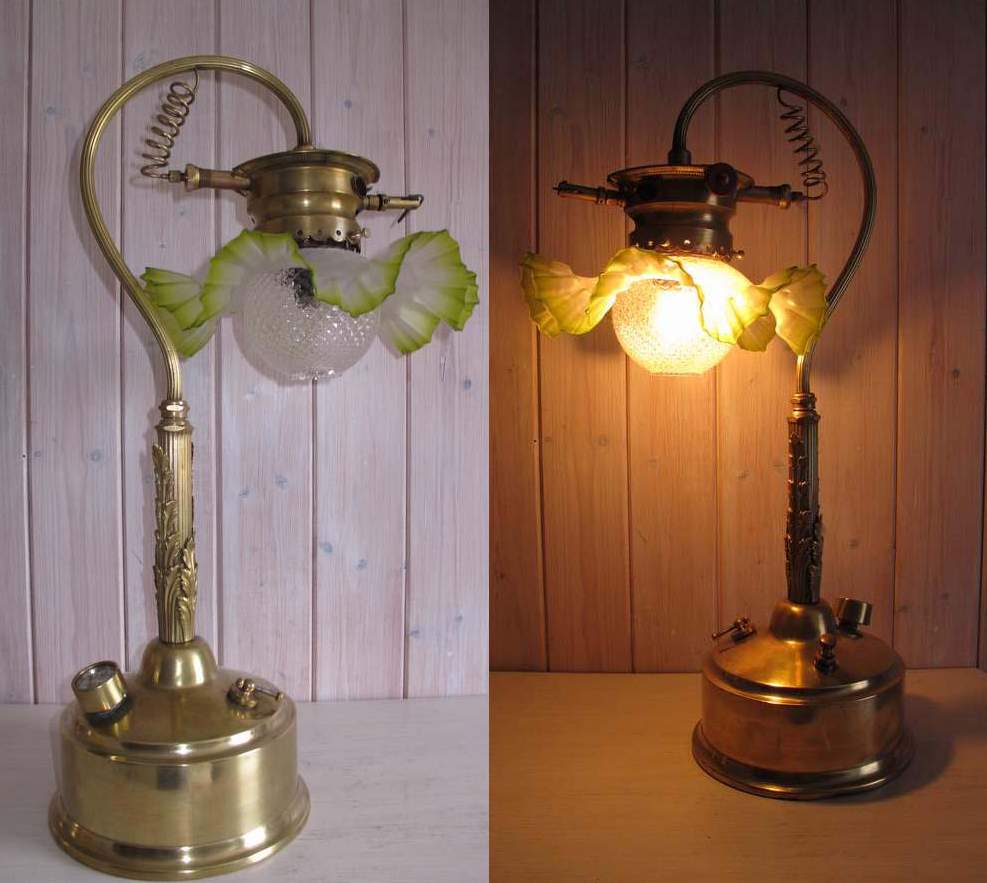

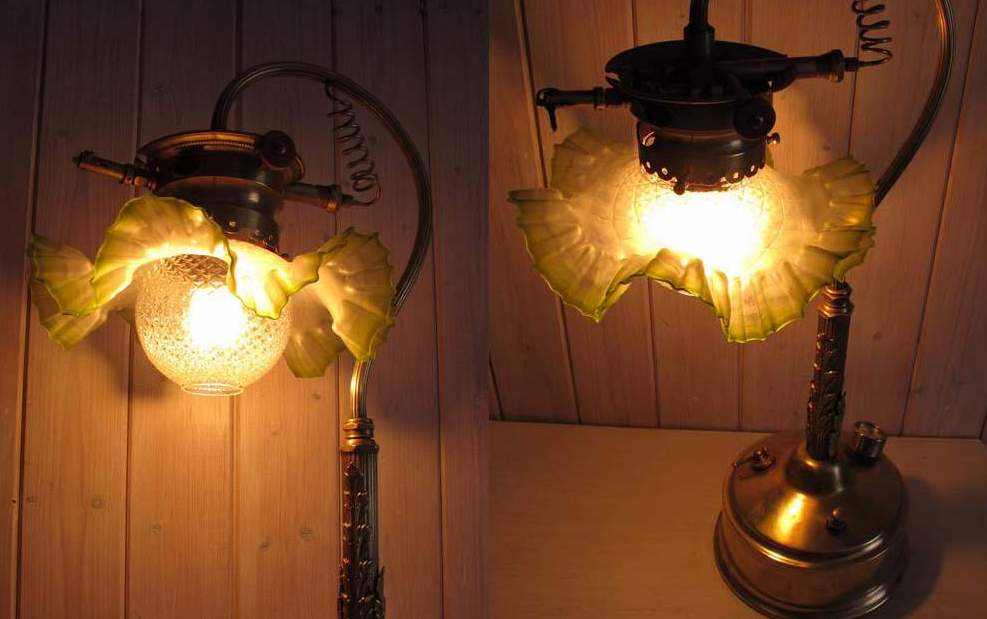

    the globe holder is repared and the lamp runs fine with its new green shade and a 500 gr pressure. This green shade is sold as an option in the 1920's.

    1415367642-succes112.jpg 1415367653-succes112abatjour.jpg

    Last edited by a moderator: Mar 31, 2017
  12. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,737
    Location:
    Shetland Islands UK..
    It looks splendid! :thumbup:

  13. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    It is beautyfull Michel.
    Thinking on Petromax-, Optimus- or Tilleyshades, then it must be just as difficult to find the shades you find, as the lamps themself.
    Welldone Michel :thumbup:

    Claus C

  14. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    1,384
    Location:
    N E Scotland
    What a beautiful lamp Michel and that green shade is to die for!

  15. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    979
    Location:
    56 France
    Thanks to all, but you must thank Guenet & Abbat, not me :^o
    Yes, this is very difficult to find because those lamps and lampshades have not been produced in great quantity, not as much as Petromax or Optimus anyway.

  16. Gerard

    Gerard Netherlands Subscriber

    Offline
    Joined:
    Aug 28, 2014
    Messages:
    62
    Really amazing lamp and fettling..... Congratulations.
