1922 Blanchard hanging lamp

Discussion in 'Blanchard & Barnard' started by pete sav, Jan 29, 2013.

  1. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    810

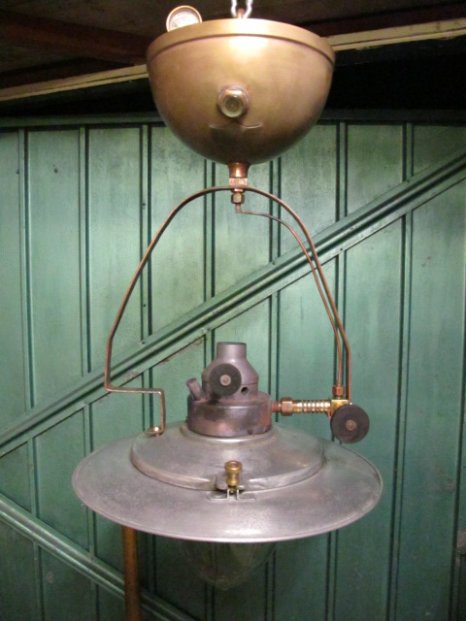

    Here is a Blanchard hanging lamp burner is dated as may 1922 what is unusual about the lamp is the flat bar arms instead of the usual tubes we see on their other lamps, it also has alloy reflectors again not the normal green\white enamel ones. The top reflector is a die cast alloy one while the bottom one is spun as they usually are. It is missing the top two cowls but i bet they was also alloy. This lamp has a serial number 35 in the usual place just under the tank and i do know of another example of this lamp but that one has the green reflectors.
    The pipe work and fittings are of the same size and type as what we see on the Blanchard handlamps so maybe these were for a special contract possibly army this is just a guess no proof or paperwork has been found on this model as yet.
    Burner was excellent so its had little use but loads of leaks in the pipework all sorted now and runs fine. The steel flatbar arms have traces of a bronze enamel on so maybe this was the original colour


    1359497735-Img_2820.jpg 1359497746-Img_2839.jpg 1359497755-Img_2840.jpg 1359497763-Img_2972.jpg 1359497786-IMG_2974.JPG 1359497798-Img_2993.jpg 1359497848-Img_2994.jpg 1359497858-IMG_3009.JPG 1359497868-IMG_3011.JPG 1359497887-IMG_3016.JPG 1359497900-IMG_3017.JPG 1359497912-Img_3019.jpg 1359497923-IMG_3497.JPG

    cheers pete

    Last edited by a moderator: Apr 1, 2017
  2. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    Lovely lamp, good looking and lets you see all the gadgets - nice :thumbup: =P~

    Claus C

  3. Matthew92

    Matthew92 Subscriber

    Offline
    Joined:
    Feb 13, 2012
    Messages:
    2,000
    Well you've done it again Pete, perhaps it was the garage door in the background but as soon as I saw the picture in the side bar I knew it was yours. :lol: It's no wonder Blanchard's are so rare, you've got them all locked away in your collection. :mrgreen:

    I'm sure you'll manage to make those cowls for the burner. Are they the same as the ones you made for your other lamp, just in alloy?

    Well done, nice one. :thumbup: :thumbup: :thumbup:

  4. Dan D

    Dan D Subscriber

    Offline
    Joined:
    Feb 13, 2011
    Messages:
    374
    Location:
    USA
    A fine restoration. :thumbup: :thumbup:
    I especially like the way you've managed to preserve the patina; clean, but looks just like it should after all these years. And like Claus, I do like all the gadgets.

    Dan

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,862
    Location:
    Shetland Islands UK..
    Hello Pete, another fine old Blanchard restored! :thumbup: :clap: :D/ :clap: :D/ :thumbup:

  6. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    810
    Now matt there are still a few i dont have and would love to have so if anyone has any they dont want please get in touch can pay cash or trade tilleys !!

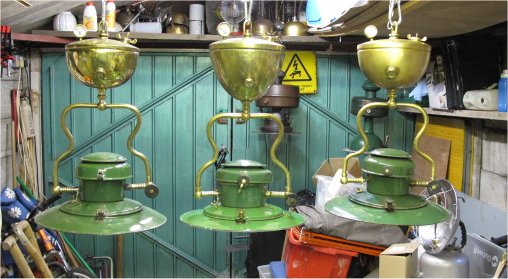

    Now just for you matt another picture of my garage door :lol:


    Still room for a few more in there :content:

    Thanks for the comments lads i did polish this lamp but these tanks over the burner type of lamps soon build a covering of soot one i did a couple of years back is nearly black now

    cheers pete
