1926 Evening Star R92077

Discussion in 'The Evening Star' started by Mackburner, May 28, 2013.

  1. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,969
    Location:
    Hertfordshire
    I found this one on the Bay a while back but it was missing the hood, filler cap and the plate and collar under the globe cage. So I bought a Kildark lantern to canibalise for the missing bits. So whilst the incomplete lamp was cheap by the time I add in the lantern it came out a tad expensive. Worth it though because I have never seen another table lantern. Odd thing though was the Kildark filler cap does not fit and I had always assumed KD and ES product to be identical. No matter I robbed the outer cap from the wall lamp to make it run. In the paper I have for ES they show this model without the collar but with a shaped shallow conical lower plate. However this one has the fitting under the valve which dictates a collar. The paper shows this burner head arrangement for the wall lamp though so I assume both can be correct. A bonus from the Kildark lantern was a near new generator which works very well in this lamp. ::Neil::


    1369704692-Evening-Star_R92077_04.jpg 1369704716-Evening-Star_R92077_05.jpg 1369704735-Evening-Star_R92077_06.jpg 1369704754-Evening-Star_R92077_07.jpg 1369704773-Evening-Star_R92077_08.jpg

    Last edited by a moderator: Apr 1, 2017
  2. James

    James Subscriber

    Offline
    Joined:
    Jan 5, 2011
    Messages:
    1,037
    Nice looking lamp. Did Evening Star just add the lantern parts to the [url=http://0flo.com/index.php?threads/4383 table lamp or are there any other differences?

  3. Conny C

    Conny C Sweden Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    653
    A neat good looking lamp there Neil, and a nice job too. Looks like lantern parts put onto the table lamp P92066 as James suggest.

    /Conny

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,756
    Location:
    Shetland Islands UK..
    Hello Neil, it's fine looking table lantern once again! :thumbup:

  5. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,969
    Location:
    Hertfordshire

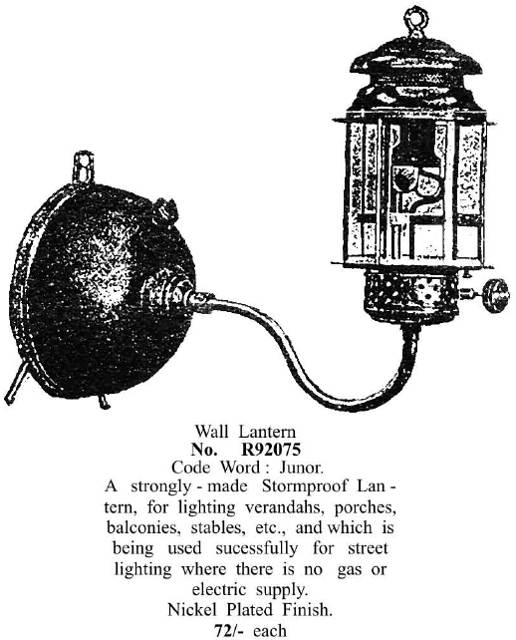

    Yes but there is an odd thing here. In the same ES catalogue they show the bracket lantern with this configuration but the table lantern has a different globe frame rest. My lantern has to be this way because there is an adaptor fitting under the valve which makes up the space required for the standard lantern collar. I am assuming this is a variation rather than a different model.

    ::Neil::

    1370435593-ES_Cat_image_bracket.jpg 1370435638-ES_Cat_image_Table.jpg

    Last edited by a moderator: Mar 31, 2017
