1928 Primus 1001 rescue.

Discussion in '1001' started by Sellig33, Jan 22, 2023.

  1. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France

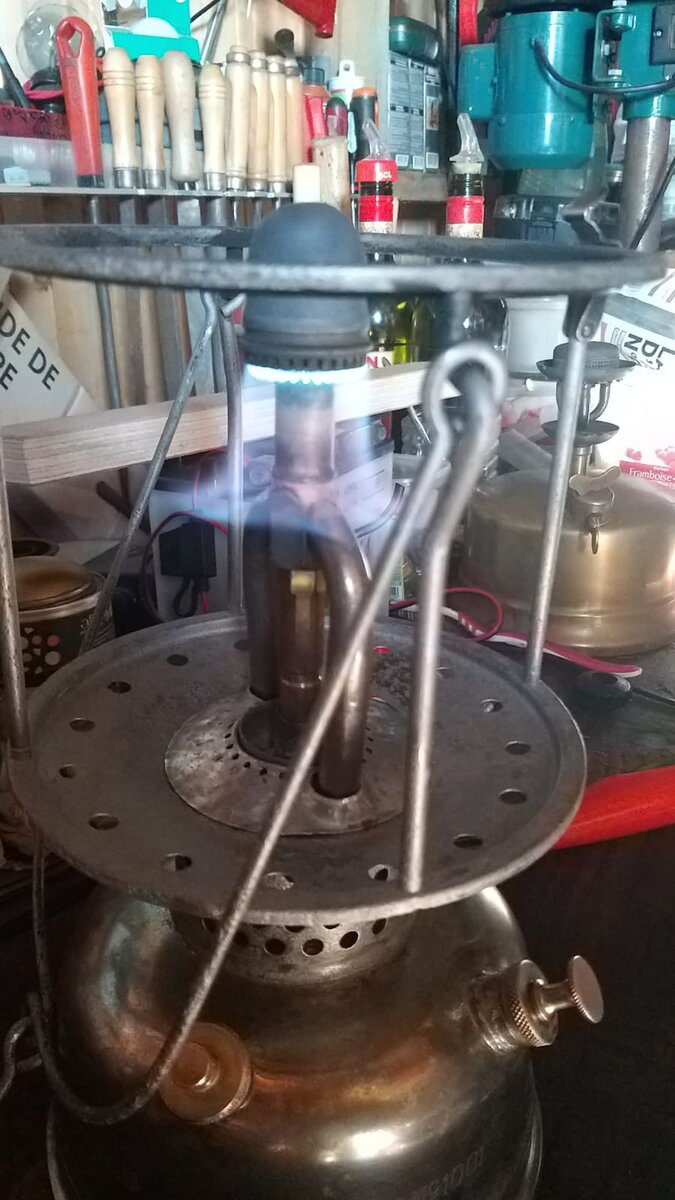

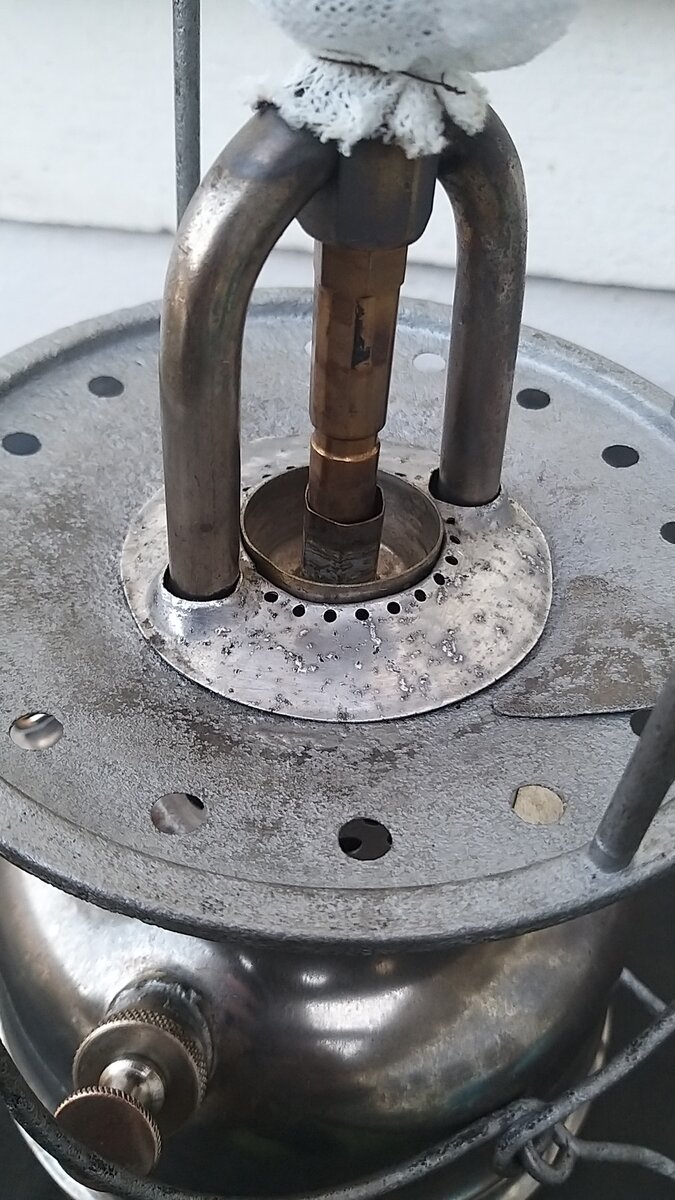

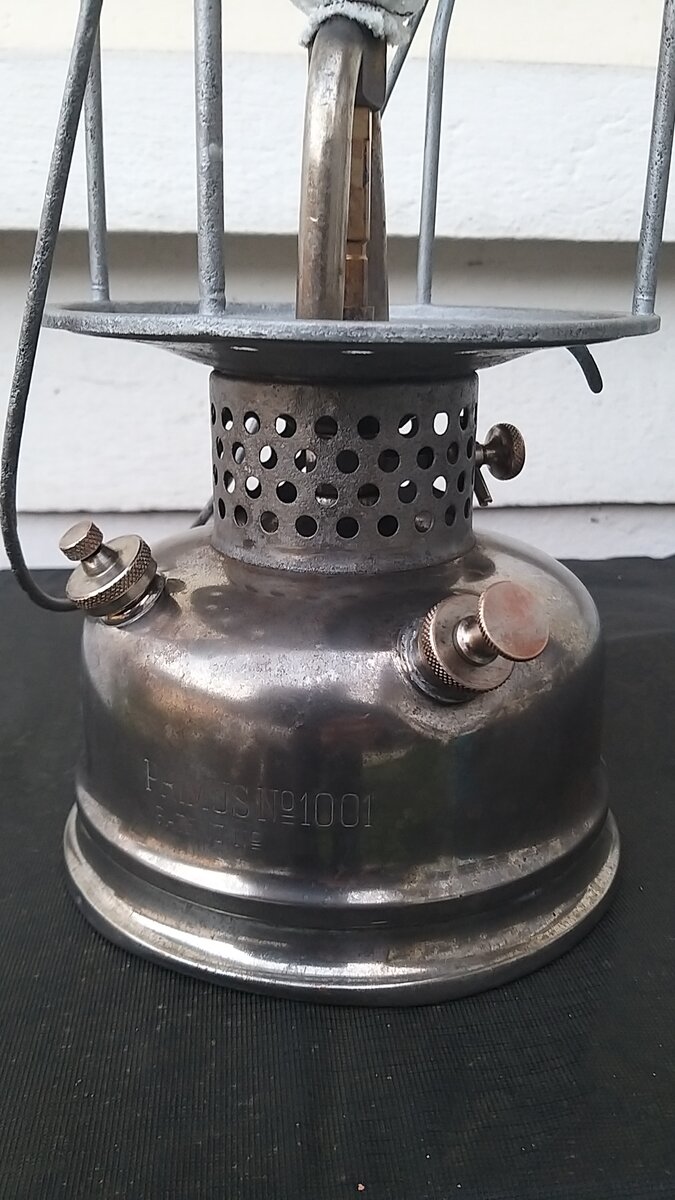

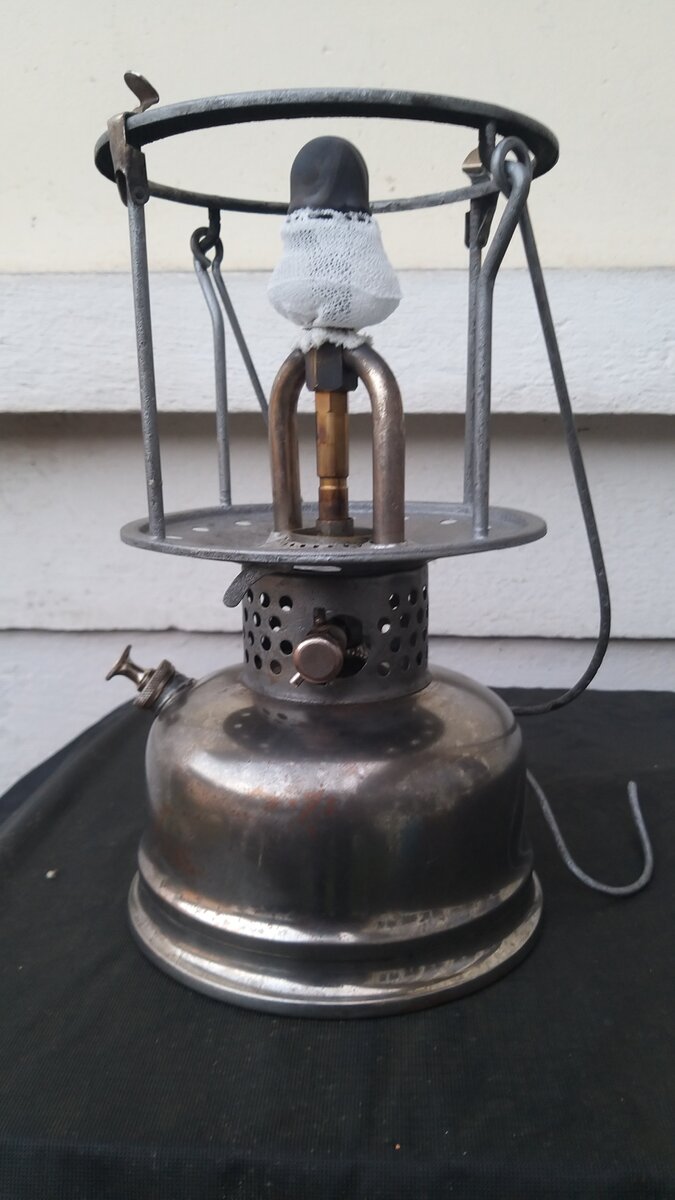

    Stamped S 29. A friend of mine give me this lamp. She was in a pitty state. See the pictures.
    IMG-20220929-WA0003.jpg IMG-20220930-WA0003.jpg IMG-20221005-WA0003.jpg IMG-20221011-WA0004.jpg IMG-20221014-WA0006.jpg IMG-20221014-WA0008.jpg IMG-20230121-WA0001.jpg IMG-20230121-WA0003.jpg 20230122_174412.jpg 20230122_174447.jpg 20230122_174426.jpg 20230122_174439.jpg
    I've to find/create a ventilator, and also make a mica or a stainlessmesh globe.

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    14,500
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::clap::clap::thumbup:

  3. Rangie

    Rangie United Kingdom Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    488
    Location:
    Caithness, Far North of Scotland
    Nicely done! :thumbup::thumbup:

    Alec.

  4. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France
    Thanks @JEFF JOHNSON & @Rangie
    But there is still a lot of work and research !

    One question, which Coleman ventilator is 155mm diameter ?
    I'm thinking of fitting one on this lamp, the original Primus one being untraceable.
    Same for glass :cry:

  5. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,178
    Location:
    Copenhagen, Denmark
    That was an ingenious solution for the frame. What did you use? I have a 1001 that is almost as bad and have wondered how to fix it.

    A Coleman R55 generator will fit and work on these lanterns. A glass is more a of a problem. I don't know of a suitable replacement and I have been looking for a while. The only option is a mica reproduction.

  6. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    2,982
    Location:
    .. next to the Chester & Birkenhead Rlwy
    I agree, a great idea to use the top of the can in that way! :thumbup:
    But everything is so super thin ?!?
    Have you got a tig welder?

    top fettle marks there :clap:

    I thought I saw a thread where someone had used a Veritas cap ventilator but I don’t know the size of your resurrected lantern, I’m afraid

    great work !

    regards,
    pb

  7. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    638
    What a lovely gift! You are very lucky.
    Splendid fettling and ingenious use of the spray can.

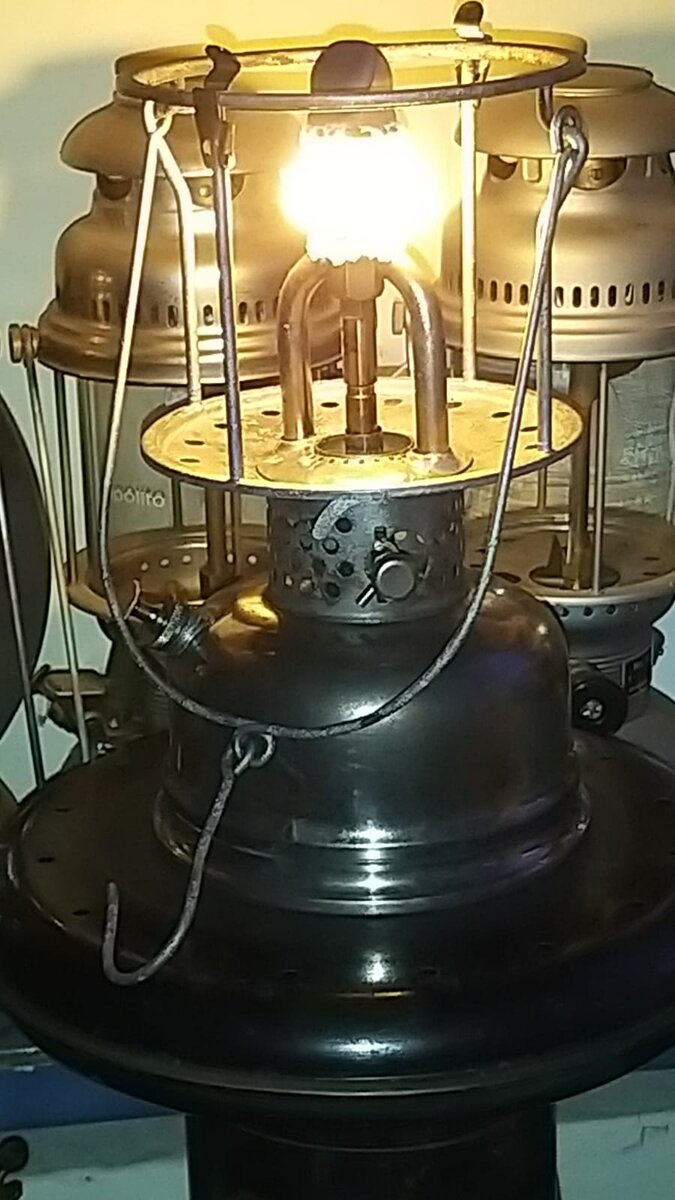

    I have been testing available hoods on a primus 1050 cage, aladdin and veritas are to small, Hasag was close but no good as top cap attaches to burner.
    I don't have any suitable Coleman's here but an AGM 2571 was slightly to big.
    For a snug fit you would need to grind some notches for the clips, it looked good though.

    20230123_024944.jpg 20230123_025159.jpg

  8. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France
    Thanks for the informations, James !

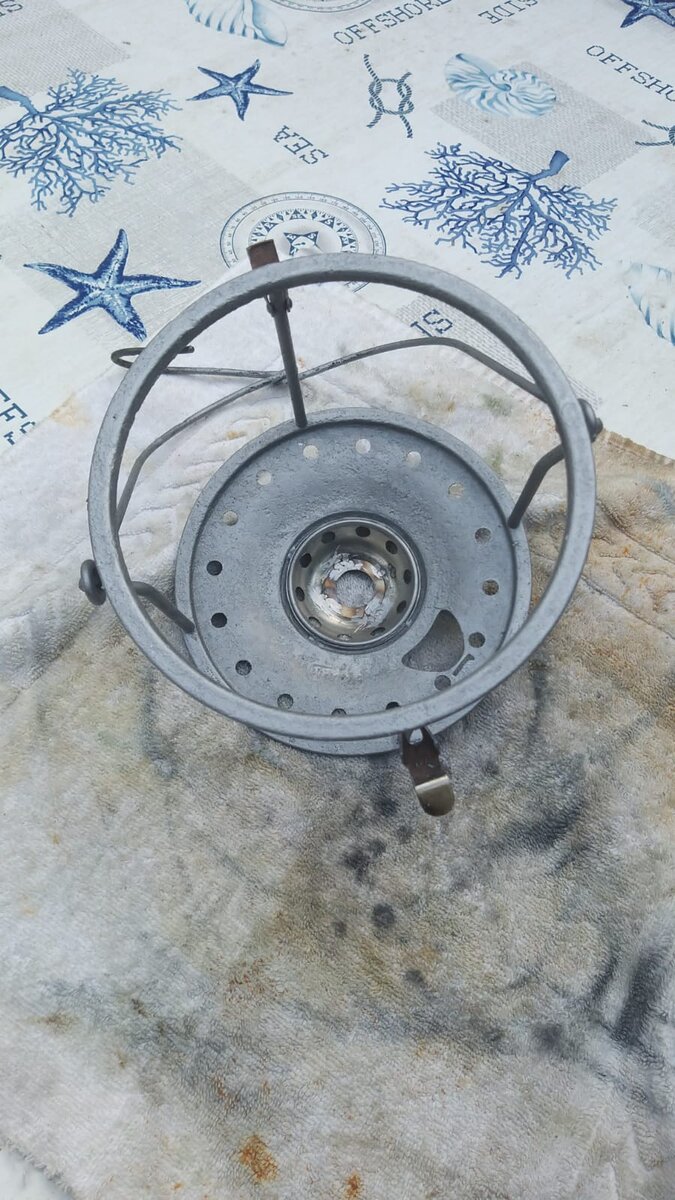

    I use the top of a spray can and a 30mm steel washer.
    I had to make two notches to allow passage for the air intake tubes (pictures soon)


    I'm working in a shipyard, and I have welding colleagues :D/

    Last edited by a moderator: Jan 23, 2023
  9. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    638
    Another possibility is a veritas superb hood, it was to small but only by 1-2 mm it felt like you could almost force it on, one might grind out to a perfect fit.


  10. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France
    @Nils Stephenson ,
    I use a 65mm spray can.

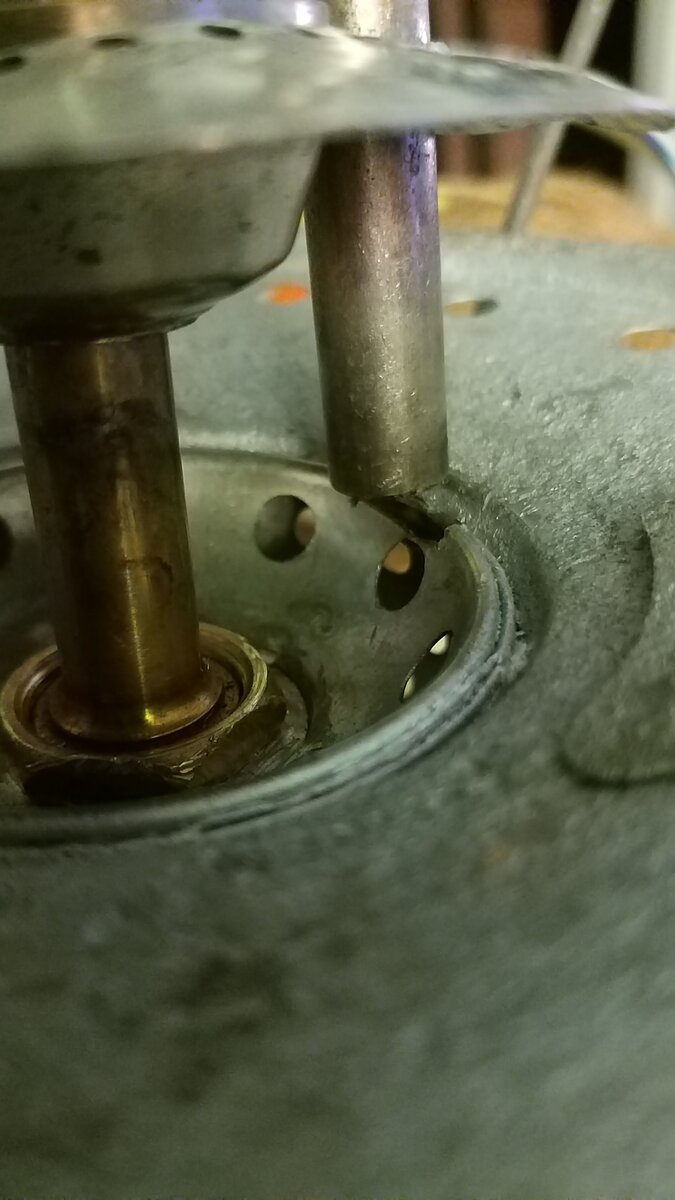

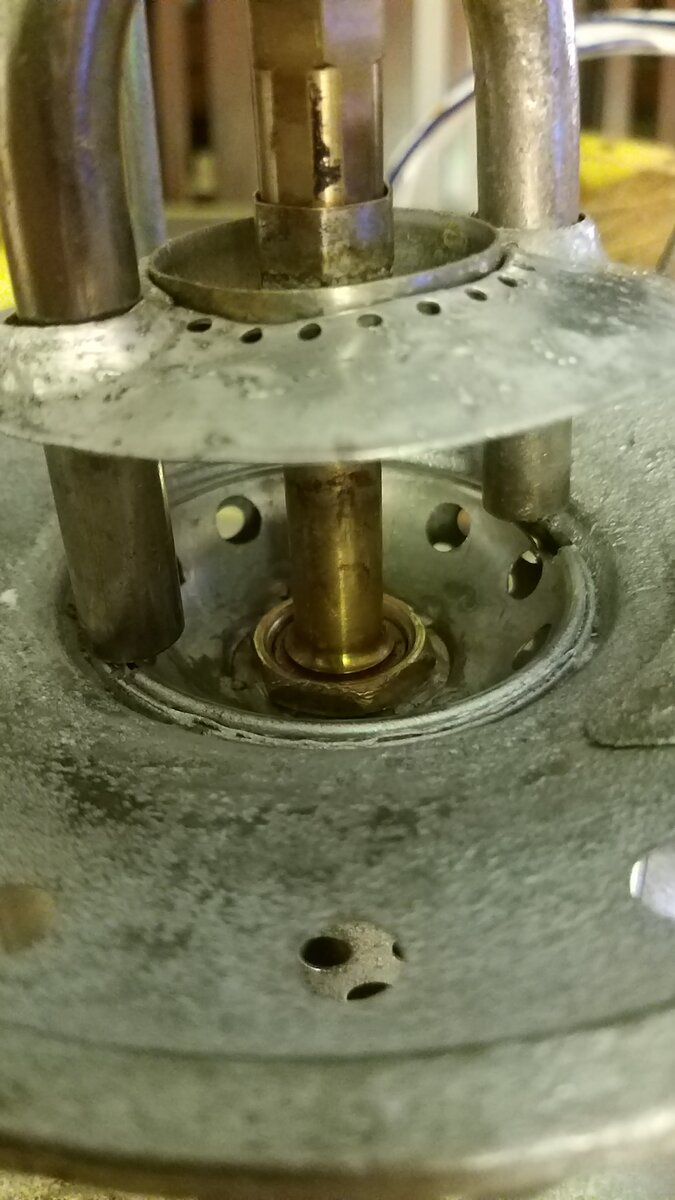

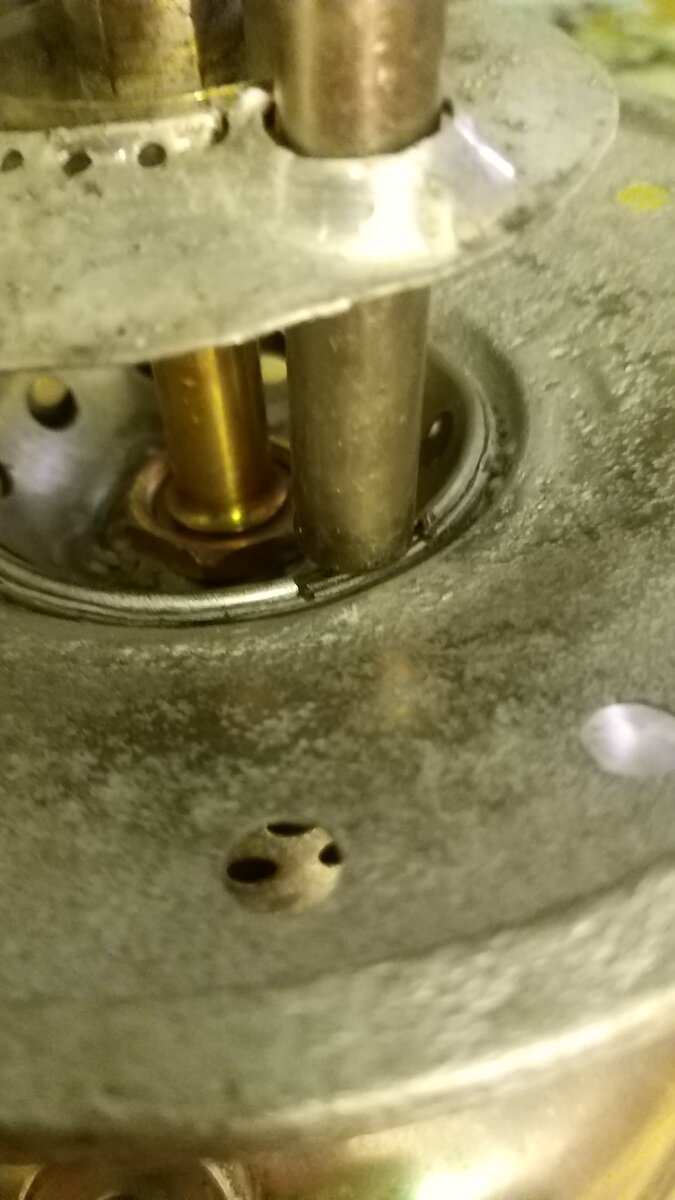

    The adjustments to be made, provide 2 notches for the passage of the air intake tubes. The detail pictures below.
    20230123_173511.jpg 20230123_173519.jpg 20230123_173554.jpg

    it requires rotating the cage/frame with the burner, and fixing with the screw on the collar in the end.

  11. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,178
    Location:
    Copenhagen, Denmark
    Now I see. Thanks for the pictures.

  12. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France
  13. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France
    Hi @James K
    Can you let me know the main dimensions of a veritas superb hood, Hasag and AGM ?
    I'll try to build one, not a faithful reproduction, but something close.
    Thanks in advance.

  14. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    638
    @Sellig33
    I am away from the the workshop for a week or so but I will get you any dimensions I can help you with.
    Meanwhile, have you seen the good photos of the blue two piece primus hood on the 1051 from Tony press in the reference galley?
    Given your great ingenuity and ability to weld what could you do with a steel enamel camping plate, a Tilley guardsman hood and a repro Hasag / primus top cap?
    James

  15. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France
    Hi @James K
    Very good idea, i'll try it

  16. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    751
    Location:
    Gujan-Mestras - Gironde - France
    Some news...

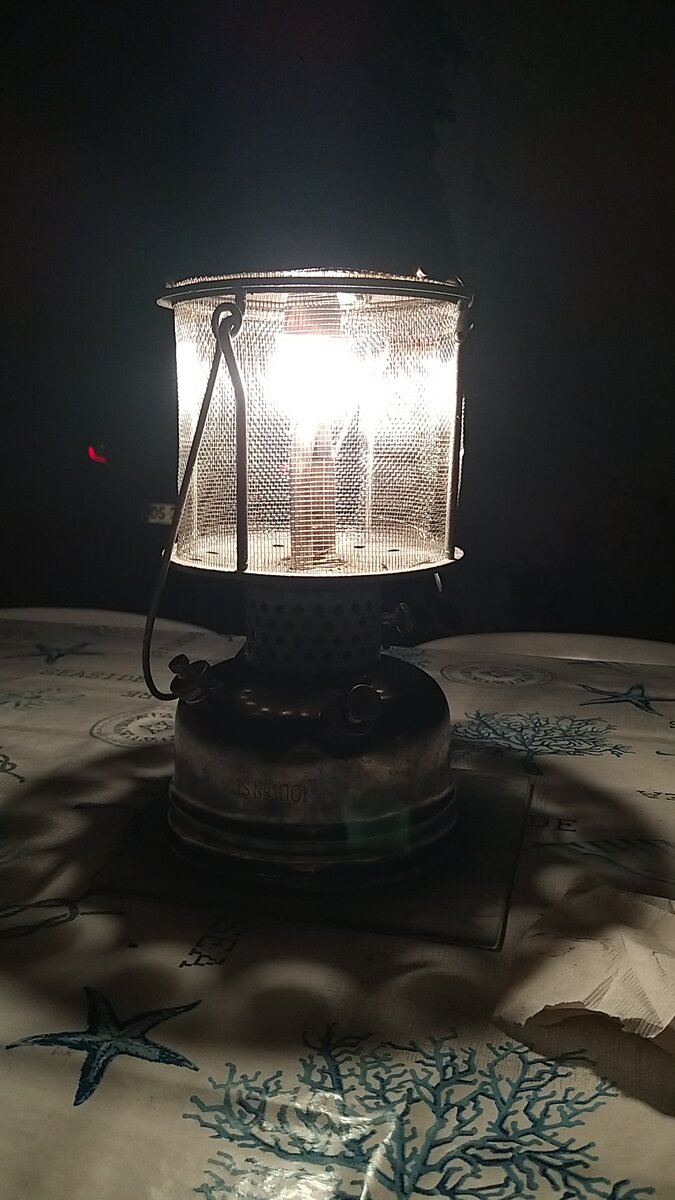

    I make a mesh stainless steel globe, it run well !

    Next step, rebuild a hood !
    A big job ....

  17. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    14,500
    Location:
    Shetland Islands UK..
    A neat job!:thumbup::thumbup:

  18. Francisc Masec

    Francisc Masec Sweden Subscriber

    Offline
    Joined:
    Jul 16, 2019
    Messages:
    191
    Location:
    Sweden
    @Sellig33 are you still in the chase for a top and a glass? I may have some, at least a part of them.
    Cheers, Francisc
