1930 Primus 1001

Discussion in '1001' started by Rangie, Aug 22, 2021.

  1. Rangie

    Rangie United States Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    320
    Location:
    Caithness, Far North of Scotland
    A 1930 U30 Primus 1001
    All Nickle-Plated Hood, Solid Control Cock, Gauze Burner, so its on the early side of the 1930 "transition" year.

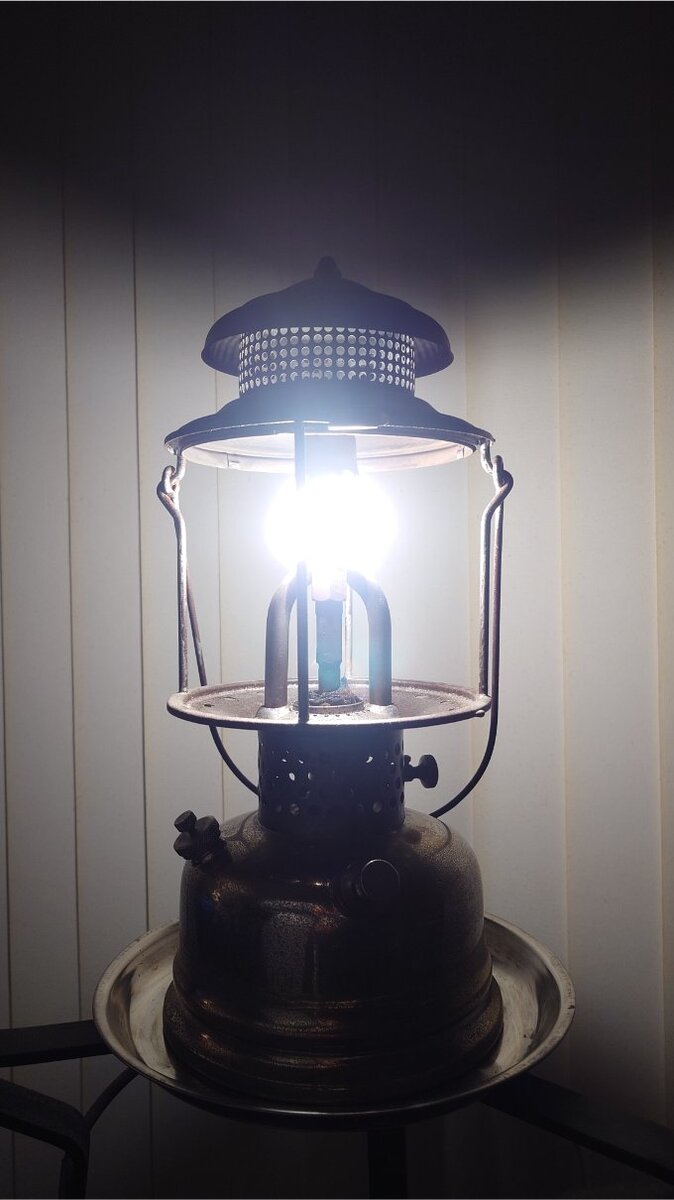

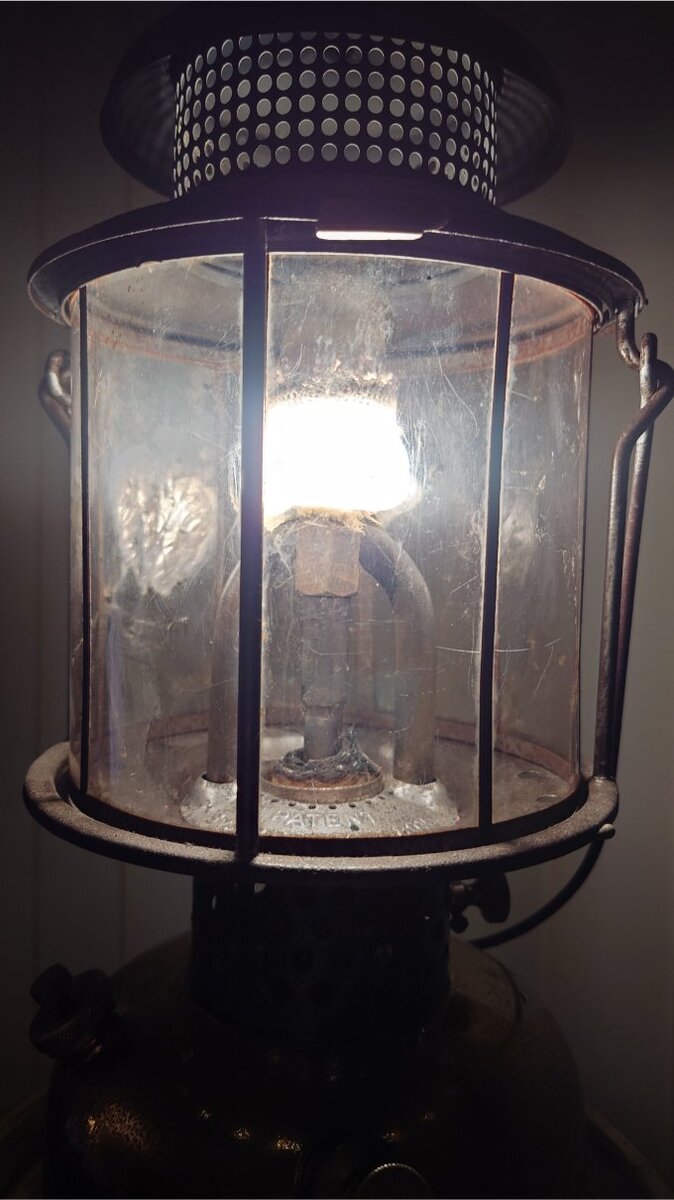

    Running lovely! :D/

    This lamp was in a horrible, rusty seized condition but has cleaned up to a very acceptable standard!

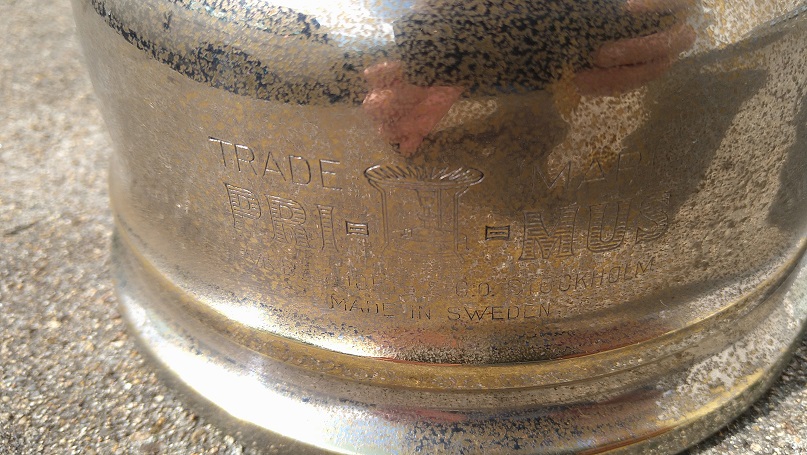

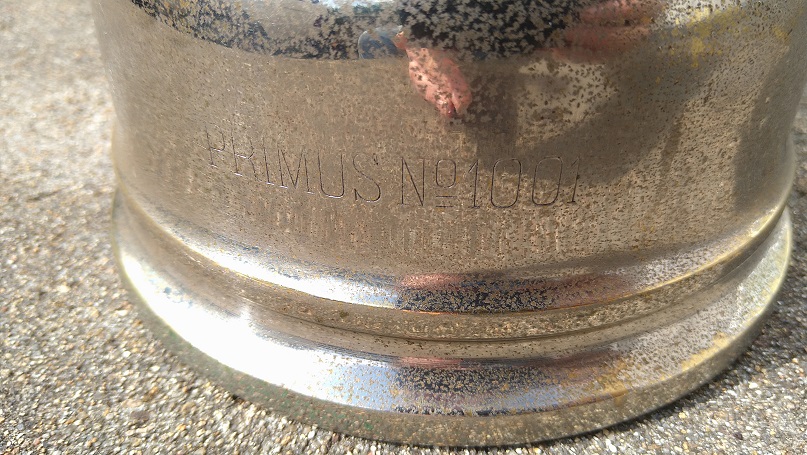

    The fount has lost most of its nickle, the resulting surface being like the surface of the moon. It had a session of autosol and wire wool to remove the corrosion and a light polish to preserve the surface.
    The only proper way to do it would be to strip the nickle off completely and have it re-plated or polished brass. The overall condition however didn't lend itself to such extravagance...:whistle:
    oDSC_2666.jpg oDSC_2667.jpg

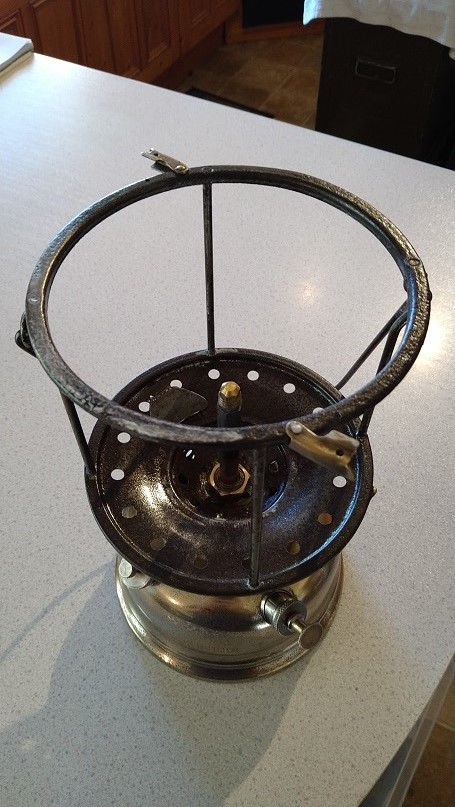

    The cage and collar were rusty under a layer of silver spray-paint. They went in the electrolysis tank to remove the rust and paint. Traces of the original (tinned?) coating remain here and there, quite a lot on the collar. It was a toss-up between VHT silver or VHT clear-coat, I went with clear-coat as it matched the overall patina.

    The hood was a blackened mess, it was lightly boiled for a while in a tartaric acid solution to remove the bulk of the filth and then given a light polish to protect it.

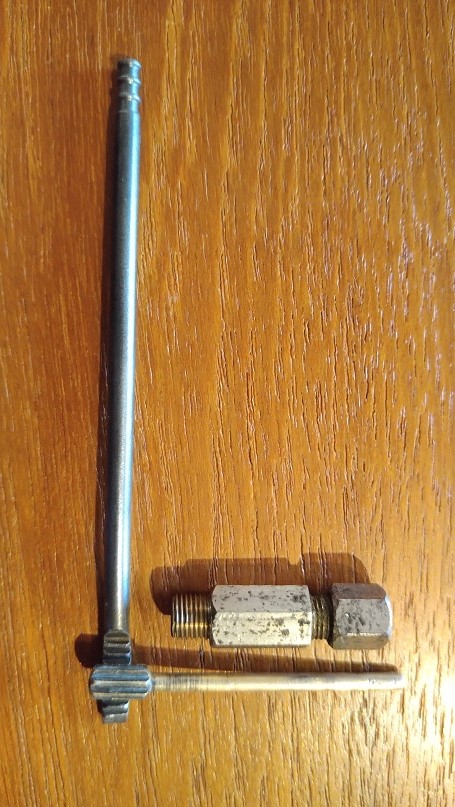

    The spindle was seized and the pricker rod missing, it was gently coaxed/lapped out and the shaft cleaned/straightened. I managed to source a pricker rod.

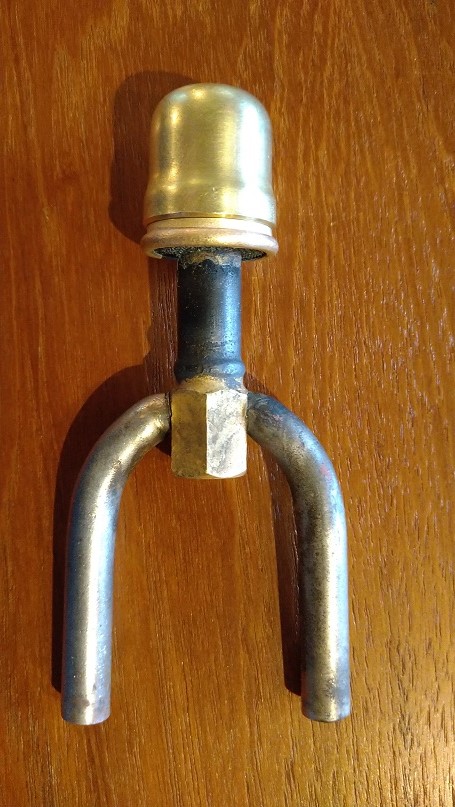

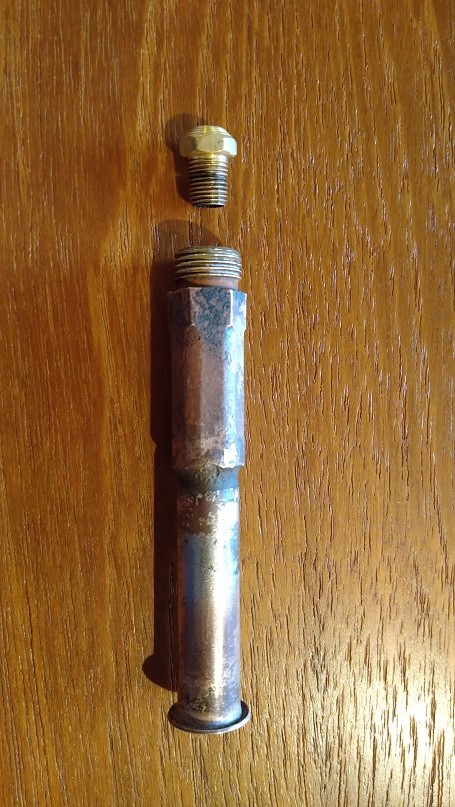

    The burner was full of spider carcasses and the gas mixing dome missing. An email to Fogas later and a mixing dome, nipple and cleaning needles were on their way. The threads on the spigot for the mixing dome are quite worn/burnt so I gave them a wipe with exhaust paste on assembly, seems to have sealed it all nicely.
    oDSC_2577.jpg oDSC_2578.jpg

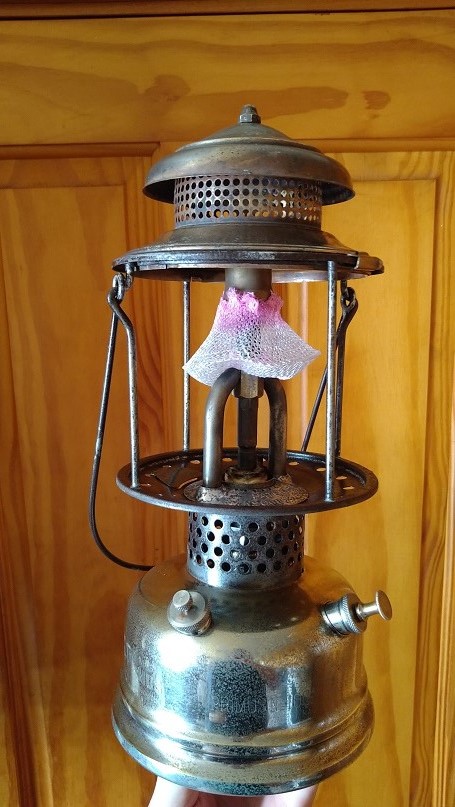

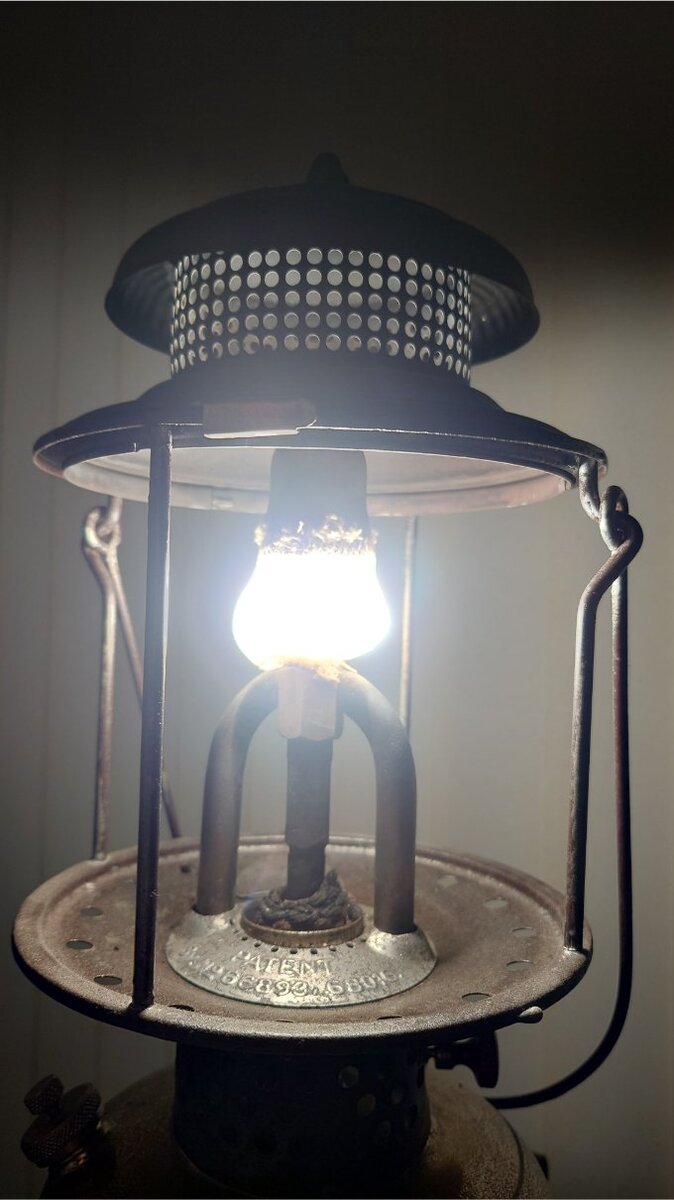

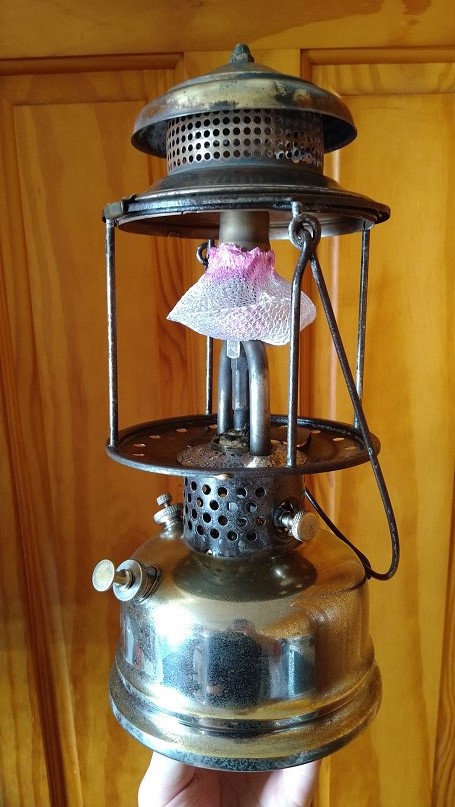

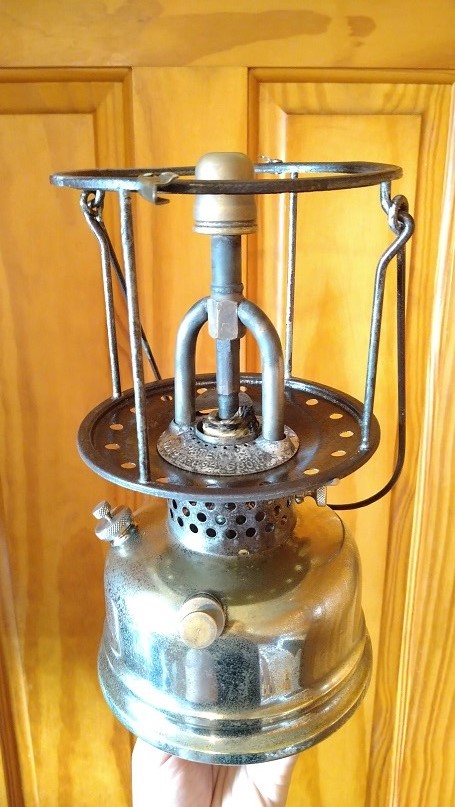

    I assembled it and gave it a test fire to make sure everything was OK.

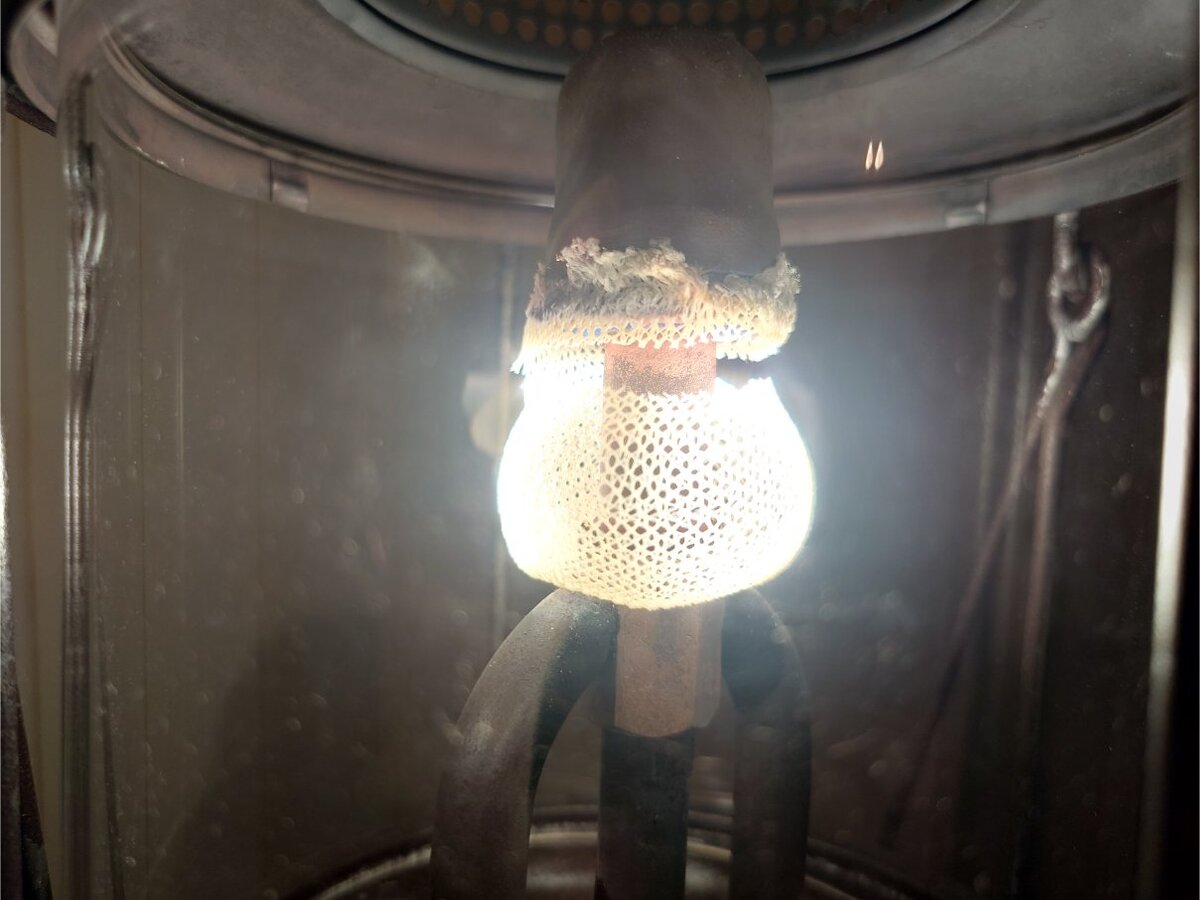

    That bloody mantle was a swine to fit, what a pig of an idea :lol:

    oDSC_2649.jpg oDSC_2653.jpg oDSC_2654.jpg

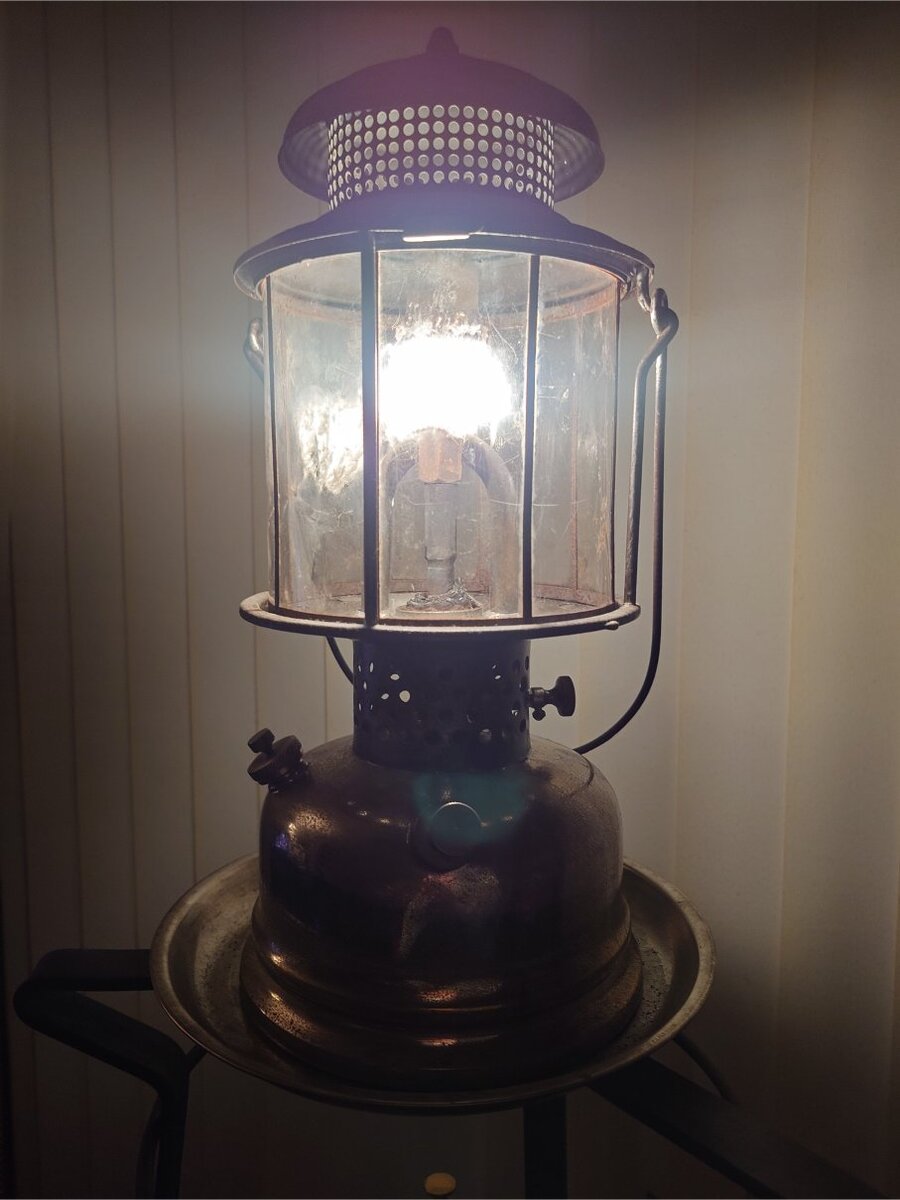

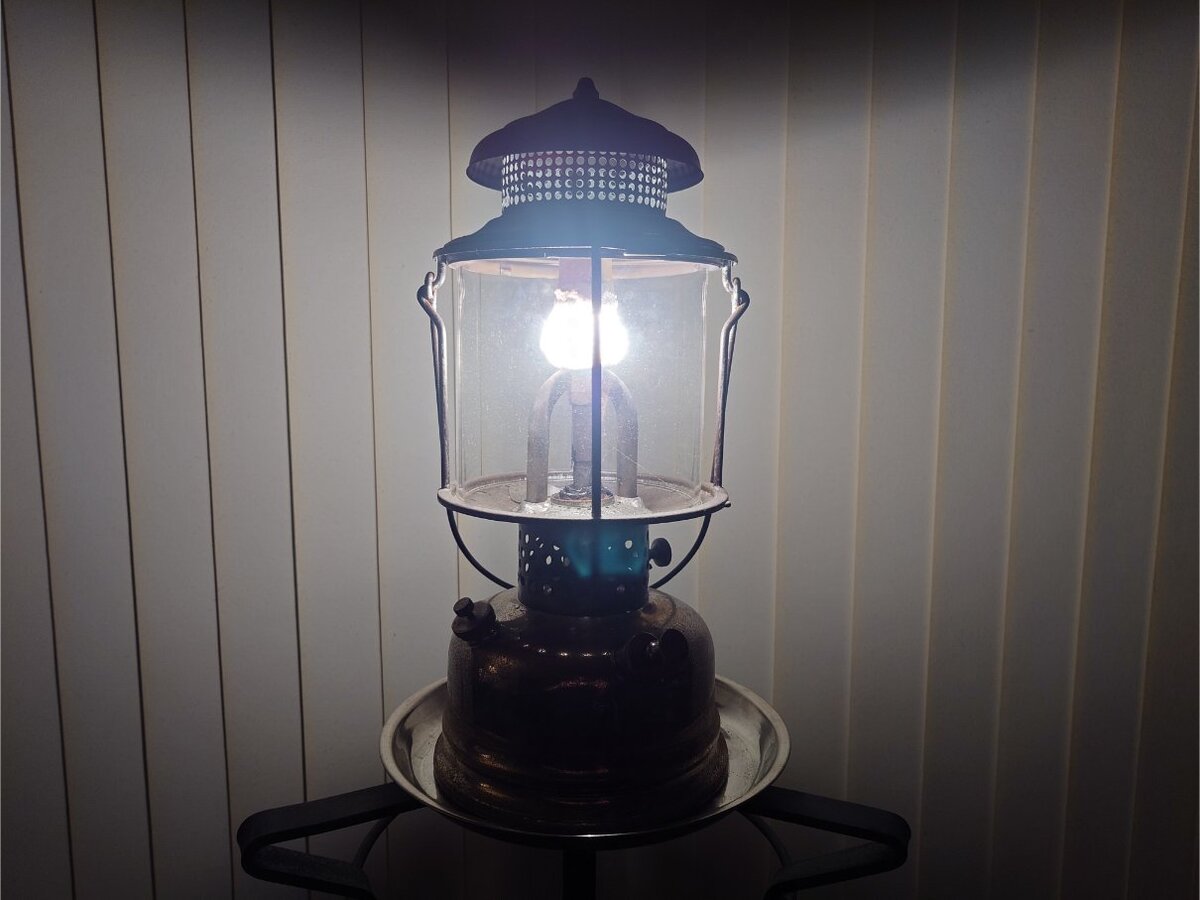

    I got globes which appear to be 130x130mm, advertised to fit 1001/1050 lanterns but it is a very sloppy fit in this cage. I lan to get a couple of Mica ones made up slightly larger to suit it.

    Alec.

    Last edited by a moderator: Aug 23, 2021
  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,370
    Location:
    Shetland Islands UK..
    Well fettled.:thumbup::thumbup:

  3. Rangie

    Rangie United States Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    320
    Location:
    Caithness, Far North of Scotland
    @spiritburner I'm not sure why the burner image has popped up as the main image, I hoped the running one would? :doh:

    Alec.

  4. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    2,134
    Location:
    ..here
    A lot of work and I would be pleased to have something as nice as that

    I like the steel work finish!

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,938
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Nice work, @Rangie.

    I always set the main image by loading it first, and clicking “full size”, then loading the rest of the images.

    Cheers

    Tony

  6. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,680
    Location:
    Brighton UK
    A job well jobbed - and it wears its age well !

  7. Rangie

    Rangie United States Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    320
    Location:
    Caithness, Far North of Scotland
    That usually works, yes.
    Alec.

  8. Jacques Van Der Rijst South Africa

    Offline
    Joined:
    Mar 2, 2020
    Messages:
    27
    Location:
    Pretoria, South Africa
    Hi Alec,

    I have one in more or less the same condition. Well done on your fettle she certainly looks nice!

    Cheers

    Jacques
