1938 D Coleman 236

Discussion in '236, 236A' started by Juan, May 29, 2020.

  1. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    844
  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,341
    Location:
    Shetland Islands UK..
    A splendid restoration project!:thumbup:

  3. MikeO

    MikeO Subscriber

    Offline
    Joined:
    Jan 14, 2014
    Messages:
    153
    First year of 236 production! I'm in Canada and I've never found one that early, and looks to be in excellent condition.

    Congrats!

    Mike.

  4. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,607
    Location:
    Malaysia
    That's a fine old lantern.
    Could it be that the early ones(1930s) 236s and 237s were mostly exported?
    I have a 1938 or 39? (the stamping's faint due to a PO abraded off the nickel plating) Canadian 237. Unfortunately, its missing quite a lot of parts.

  5. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,459
    Location:
    USA
    It always appeared to me that the majority of the Coleman 236 lanterns were made in the Taranto plant. I think they were also made in San Palo, too. The ones made at the Wichita plant hard to find.

  6. MikeO

    MikeO Subscriber

    Offline
    Joined:
    Jan 14, 2014
    Messages:
    153
    236's were being made in Toronto, Ontario, Canada, 2 years before production of a US 236 started. Canada kept churning them out until 1970 as the 236A which was essentially the 236 with a new style vent and aluminum collar. I kind of think Coleman Canada decided that the 500CP single mantle 236 was a better model than the double mantle 220 (and it is...), and went that route. They are incredibly common in Canada. But no wonder--they are bright, reliable, and Juan's example with the seafoam vent shows off the good looks, too.

    Always great to see these first-of-the-line lanterns!

    Mike.

  7. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    844
    Coleman lanterns are very hard to find here, of any year.

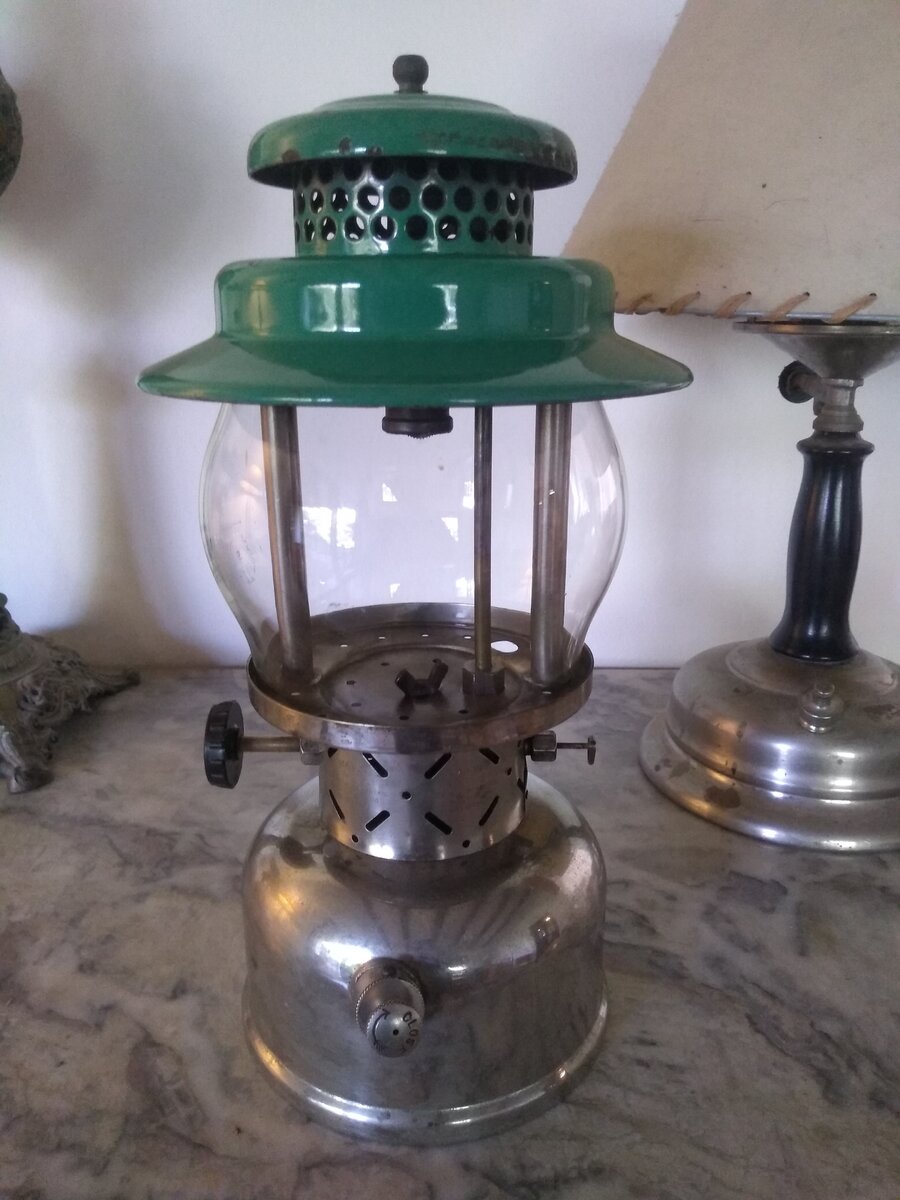

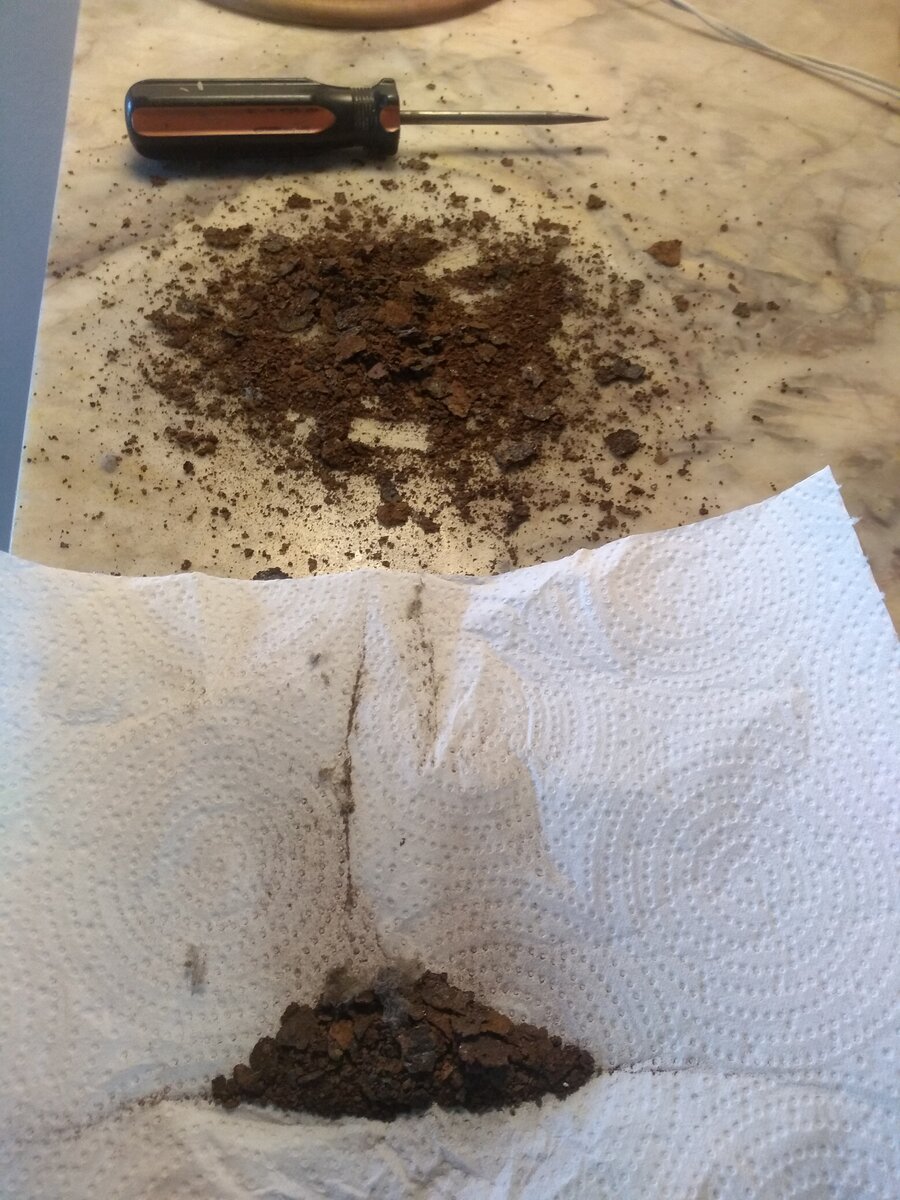

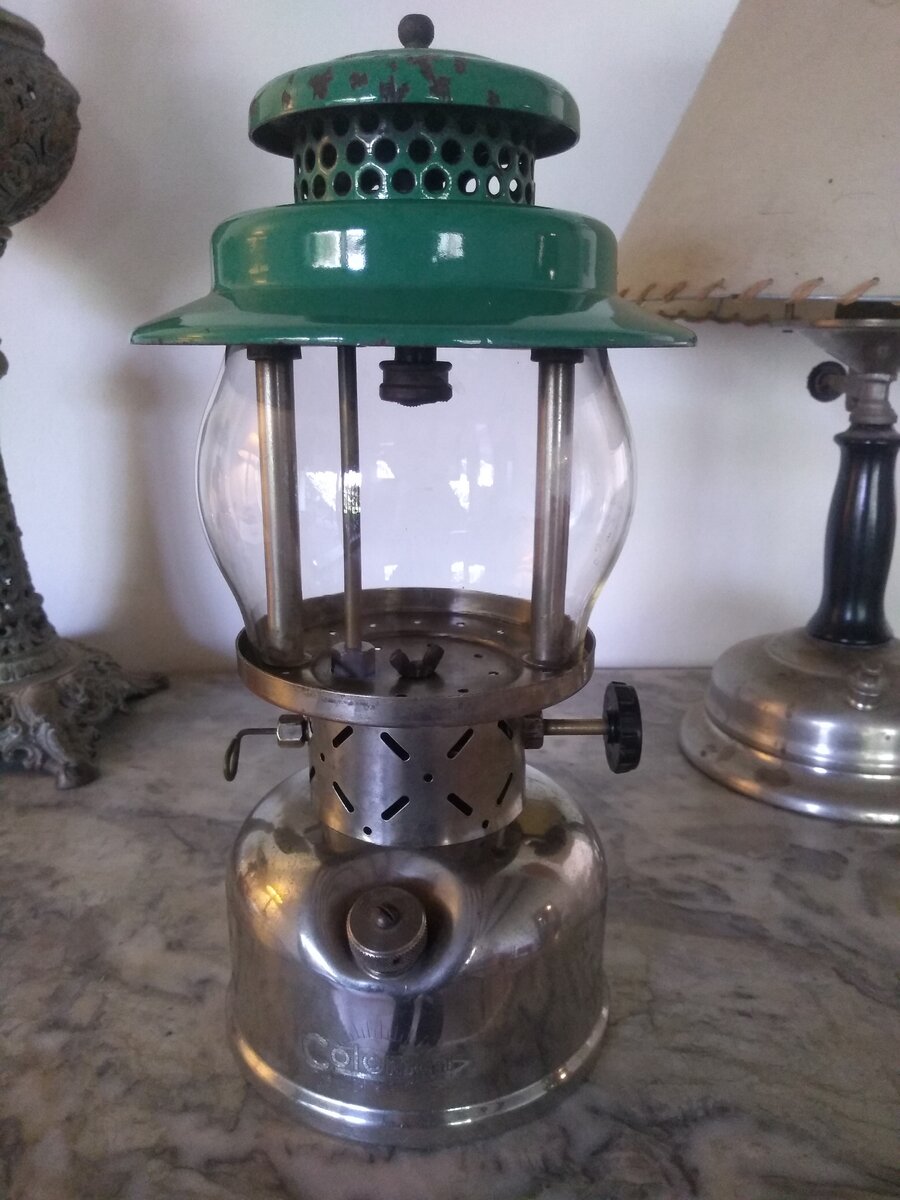

    The lantern is in great condition, only missed the hand bail. The quality is amazing but I wonder why the bottom is steel: I found a lot of rust inside and I hop it will keep pressure. See the pictures.
    15908477396636845104722903152747.jpg 15908479454211630803817460027310.jpg 15908479920641063160007267139044.jpg

  8. MikeO

    MikeO Subscriber

    Offline
    Joined:
    Jan 14, 2014
    Messages:
    153
    That's a lot of chunky, flaky rust! Before you go any further, I'd check the bottom and any areas that look suspect, I'd poke at with a sharp awl. If it still seems solid, I'd do a pressurize and dunk test.

    Coleman used steel baseplates on all of their lamps and lanterns, and while they won't bulge out like a Tilley from over-pressuring, they do rust. Water from condensation sinks in naphtha and this is the result.

    Good luck as you press on. I know your pain.

    Mike.

  9. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,858
    Location:
    Toowoomba Australia
    @Juan
    A steel base doesn’t bulge under pressure as easily as a brass base. Of coarse brass, if used, is sometimes ribbed or thicker to provide structural strength with some manufacturers making allowances for bulging by a thicker base rim. I guess Coleman weighed up these methods and went down the cheaper steel base path.
    As @MikeO has said, check the base carefully for pin holes and do the dunk test.
    Good luck.
    Cheers
    Pete

  10. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    844
    I did a good pressure test and no problem with the tank! But I haven't got success on lighting it fine.
