1946-49 "Austramax "

Discussion in 'Early Austramax' started by Colin M, May 2, 2014.

  1. Colin M

    Offline
    Joined:
    Dec 4, 2010
    Messages:
    235
    Been looking for years for this one.

    There has been speculation about the 1/300, if it existed or not.

    I'm not saying this is the 1/300 but appears to be manufactured before the takeover of Austramax. If it was Austramax at all.

    But it is a little bit different. ie Hood and Hood retaining nut. The nut is longer than the 2/300. [ about 25 mm all up " Obviously to facilitate the hood.

    Also has Coleman style Filler Cap with screw pressure release.

    In any case one more off the " Bucket List "



    Structurally the same as 2/300.

    1398991644-Austramax_1.jpg 1398991659-Austramax_2.jpg

    Colin


    Attached Files:

    Last edited by a moderator: Mar 31, 2017
  2. outback boy

    Offline
    Joined:
    Nov 15, 2011
    Messages:
    143
    Location:
    Gowrie Junction Queensland Australia
    Hi Colin, what approx year do you think it was from? i am also wondering if they originally came with a strait or bulge globe, looks in good shape, nice score, Frank

  3. Colin M

    Offline
    Joined:
    Dec 4, 2010
    Messages:
    235
    Hi Frank,

    Hard to put a year but there are Au Patents for the Burner etc mid 40's I think.

    Austramax as we know it dates from '49 when the Hungarian Immigrant to Australia took it over. As to whether it was Austramax or he started the Austramax line who knows.

    Early 2/300's came with the straight mica so have gone for a straight sided glass for originality.

    Colin

  4. Graham P

    Graham P Australia Subscriber

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    943
    Location:
    Albury area NSW AUstralia
    That is an unusual one must be more ???

  5. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,791
    Location:
    Copenhagen, Denmark
    You lucky SOB. I'm very jealous. :mrgreen: :)

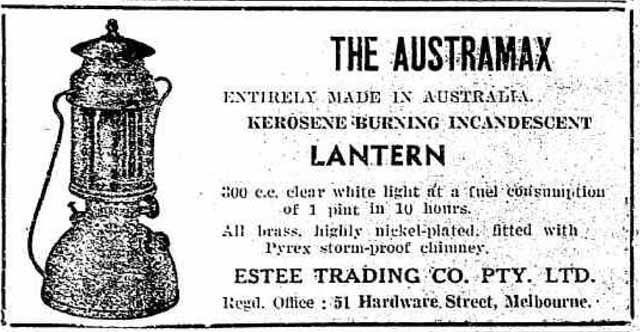

    This ties in with the first adverts I've found from 1940/41. Here is an example of an ad from March 1941.

    The picture is not the best but it shows the top with no rim and a straight glass (or mica).

    I really think this should go in the reference library.


    Attached Files:

    Last edited by a moderator: Mar 31, 2017
  6. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,414
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Great find, Colin.

    Just looking at the ad posted by Nils, the filler/release valve looks as though it has a long release valve rather than the screw that is on Colin's lamp: or maybe I've confused the pump with the filler release in the ad. What do you think, Nils?

  7. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,791
    Location:
    Copenhagen, Denmark
    Unfortunately you can't trust pictures in advertising. Otherwise I would say you are correct if you compare the alignment of the filler, wheel and pump on Colin's lamp and the picture in the ad. I'm guessing that they have reversed the picture in the ad.

    Another possibility is that the filler cap on Colin's lamp has been changed at some ppoint in time. An old 2/300 that I have has a different style of filler cap with two bars on each side.

    Last edited by a moderator: Mar 31, 2017
  8. outback boy

    Offline
    Joined:
    Nov 15, 2011
    Messages:
    143
    Location:
    Gowrie Junction Queensland Australia
    hi Nils, the lamp you have is identical to the one i have, i wondered about the filler cap with the bars for tightening, seems they were original for the period, don't think they pre date Colin's though?Frank

  9. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,791
    Location:
    Copenhagen, Denmark
    They can't pre-date Colin's, but if they are the earliest type found on the 2/300 then it might be the same type originally found on Colin's. It's a theory.

    Another thing. It's possible that red was the first hood colour they used. Any thoughts?

    Last edited by a moderator: Mar 31, 2017
  10. Colin M

    Offline
    Joined:
    Dec 4, 2010
    Messages:
    235
    Often wondered how far back Austramax went, but could never find the paperwork.

    Now I know, Thanks Nils.

    Lantern is as found, warts and all. Bits get lost and replaced with whatever does the job.

    Colin

  11. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Online
    Joined:
    Nov 28, 2010
    Messages:
    11,751
    Location:
    Shetland Islands UK..
    A great find Colin! :thumbup:

  12. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    Nice lamps Colin and Nils. I like those lamps where there is no supporting outer Cage. They just look less heavy.
    I still need just to get my first Austramax though :roll:

    Claus C

  13. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    8,069
    Location:
    North-East England
    Leaves the glass very exposed, though - swings and roundabouts...

    Last edited by a moderator: Mar 31, 2017
  14. outback boy

    Offline
    Joined:
    Nov 15, 2011
    Messages:
    143
    Location:
    Gowrie Junction Queensland Australia
    saw two lamps exactly like Colin's a few months ago for sale on a site in OZ, one black top one red, i thought over 200 dollars a it rich for me, but now, maybe not,Frank

  15. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,443
    Location:
    Hertfordshire
    We can take the date back a little with this ad from Deember 1940.

    The company may have been sold in 1949-1950 but the name was still Estee-Austramax in 1953 from this advert.

    I did try to trace the owners but no searches in Aus genealogy gave me any hits. I have the brief history which gives Anne Faiman as wife of the current owner in 2002 but I assume that is her married name so not the name of the guy who bought the company in the early 1950s. We also have a note that a Norman Grummet applied for a patent in 1946 and I have an advert that has a Mr Grummet donating a lamp for some event in May 1945 but that just says Mr Grummet and his company. So was he the owner? What was the name of the Hungarian or Polish guy who bought Austramax? Come to that what is the name his son in law who was running the company in 2002?

    Questions questions? ::Neil::

    Last edited by a moderator: Mar 31, 2017
  16. Colin M

    Offline
    Joined:
    Dec 4, 2010
    Messages:
    235
    There was an article on Austramax in a Melbourne paper, I think it was the Age. This will answer most questions. I did have it but another one gone to Windows Heaven

    Mr Grummet .... Pre 53 Austramax " Norman " that answers another hypothesis.

    Colin

    Last edited by a moderator: Dec 21, 2018
  17. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,414
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I note that the collar on this Austramax of Colin Mills has two holes that may have accommodated an Austramax name plate like the one shown in the post of @Nils Stephenson here:

    Austramax 2/300 (early?)


    Cheers

    Tony

  18. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,791
    Location:
    Copenhagen, Denmark
    @Tony Press

    The one you posted also has these holes. I assume it is for a similar badge/label, just without the 2/300 number. The badge on the 2/300 I have is only held on with solder, so maybe they had a tendency of loosening and falling off. I have another 2/300 that only has the holes as well.

  19. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,414
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

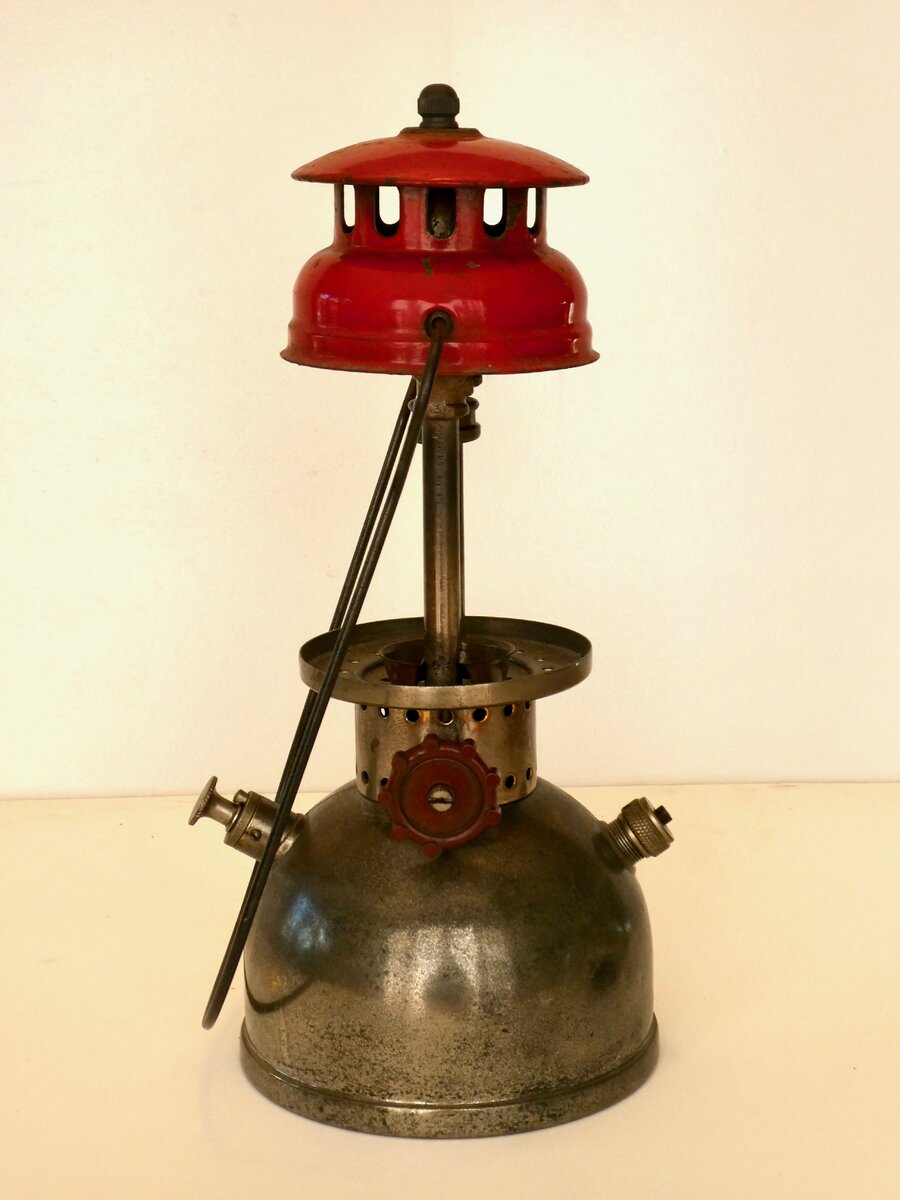

    I now have Collin Mills’ Austramax (the lantern shown in this thread).

    I am posting these additional photographs for extra information and discussion.


    The hood is the same as on my early Austramax here.

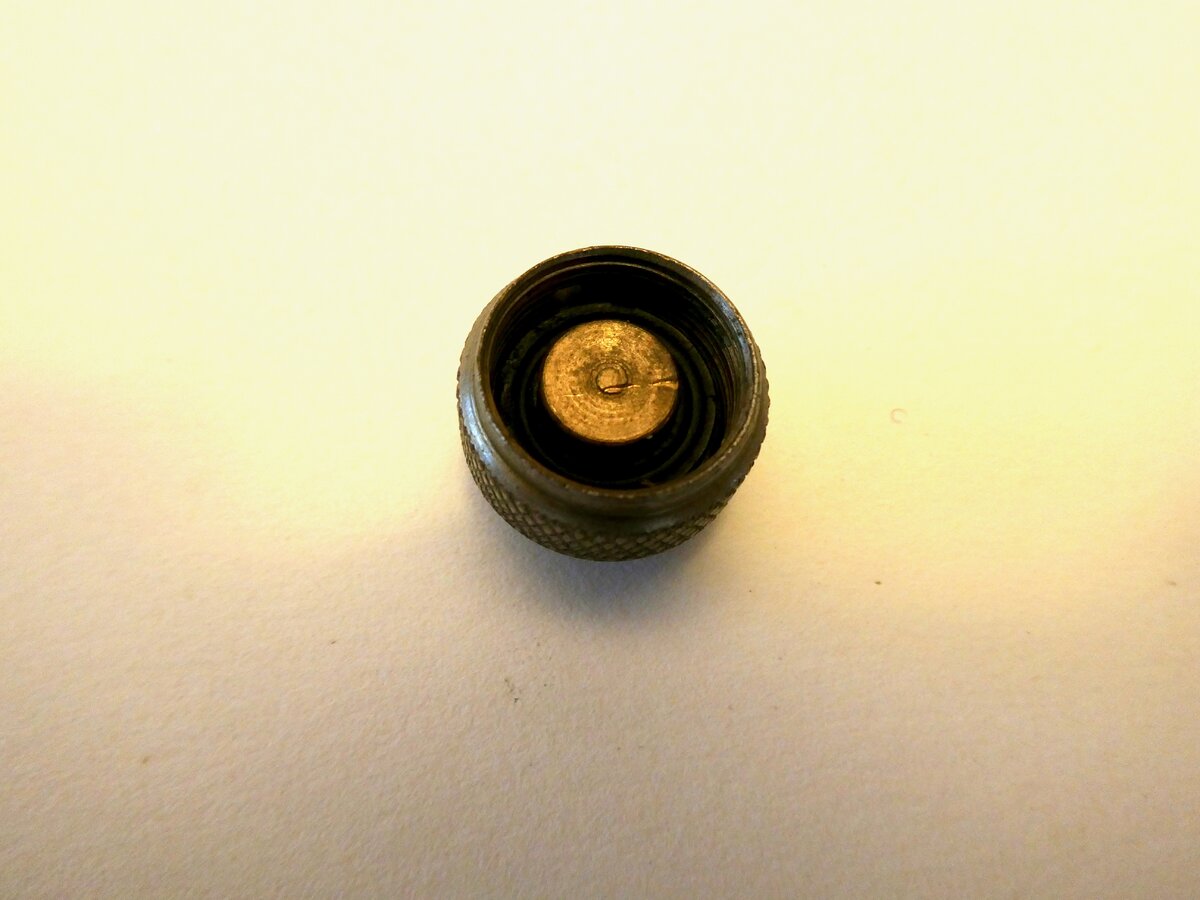

    I am uncertain whether the filler cap, pressure release is original to the lantern. It is made as a Coleman filler cap where the screw locks the part that seats the rubber washer.



    Collin’s lantern has the two holes for the lost Austramax plate, as does mine, here, and one of @Nils Stephenson here.

    The pump is found on early Austramax 2/300s, and the same as mine here.

    Ignoring the burner cap, the cast burner is the same, except for the mould cast 3 as early Austramax 2/300s and my early Austramax (that is cast mould 1).

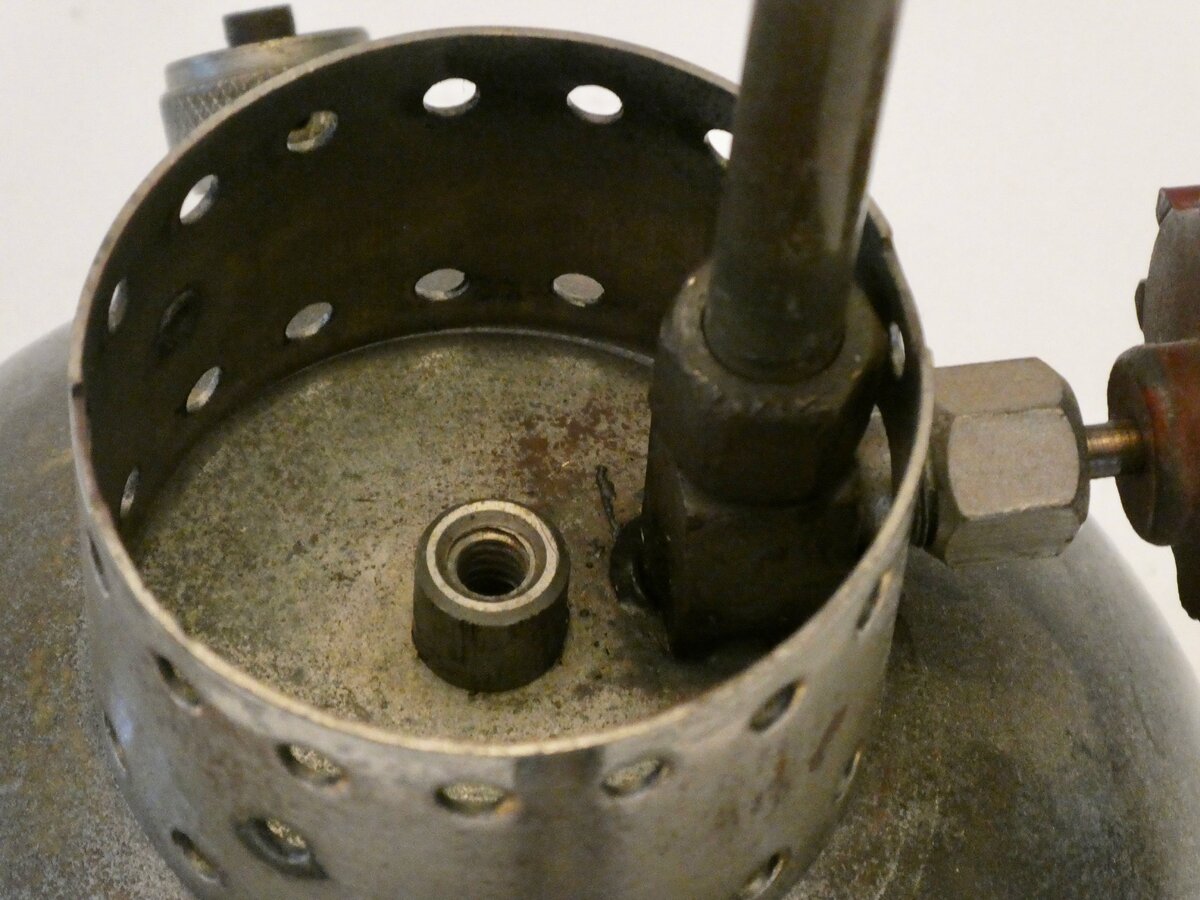

    The hole to take the bail is smaller in diameter than Austramax 2/300s and is the same as my early Austramax.

    Here next to a 2/300 on the left.





    Here is Collin Mills’ lantern (on the right) next to mine. Note the different shape of the tank.



    Here is Collin Mills’ lantern next to a bog standard 2/300.


    I am posting this for discussion and observation.


    Cheers

    Tony

    Last edited: Oct 6, 2020
  20. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Online
    Joined:
    Nov 28, 2010
    Messages:
    11,751
    Location:
    Shetland Islands UK..
    A good find!:thumbup:

  21. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,791
    Location:
    Copenhagen, Denmark
    By the looks of things, there are only three things that differentiate this lamp from the first variant of the 2/300 (here). That is the hood, the top nut and the filler cap. Maybe this was a chance to use up stock of the old hood. The filler cap is strange and I have never seen one like it on an Austramax. It looks like it doesn't attach with many threads. Could it be home made? The top nut could be a later replacement.

  22. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,414
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson

    I think it’s worth also checking early 2/300 lanterns for the size of the holes that accept the bail, and the cast mould number. It could be that the early Austramax 2/300s used a thinner steel for the bail as this one does (as does my early Austramax).

    I don’t think the filler cap is home made. I don’t think it’s original to the lantern, either. I suspect it’s a replacement from a different lantern.

    Tony

  23. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,791
    Location:
    Copenhagen, Denmark
    @Tony Press
    It's quite likely that one of the improvements in the change to the 2/300 was a heavier gauge wire for the bail. It's easy enough to drill a larger hole. Unfortunately I don't have any photos of my 2/300 burner castings from the side to show the bail hole. I do have one 2/300 V2 with me over here and the hole has a diameter of 4.3mm. There is no visible number in the burner casting.

    The filler cap looks a lot like a Coleman, but I don't have anything on hand to compare with.

  24. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,414
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson

    The filler cap does have one of the the Coleman configurations, being three piece (screw, brass plate, cap) with a washer.

    As you’ve noted it does not screw down far, but that is because of the plate/washer inside the cap. Without the plate and washer it screws down through all its threads comfortably.




    All variations of the Austramax caps that I have fit Collin’s lantern.

    The wire for the bail is 3.7mm Ø, while the later 2/300 bails are 4.1mm Ø.

    My conclusion is that it sits between the early Austramax in my thread, and the early Austramax 2/300 you have linked to.

    Best regards

    Tony
