1956 Primus 1020

Discussion in '1020' started by Rangie, Aug 13, 2021.

  1. Rangie

    Rangie United Kingdom Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    495
    Location:
    Caithness, Far North of Scotland
    An AV2 1956 Primus 1020 Straight-Vapouriser Storm Lantern.
    The last variant near the end of production of these workhorses :content:

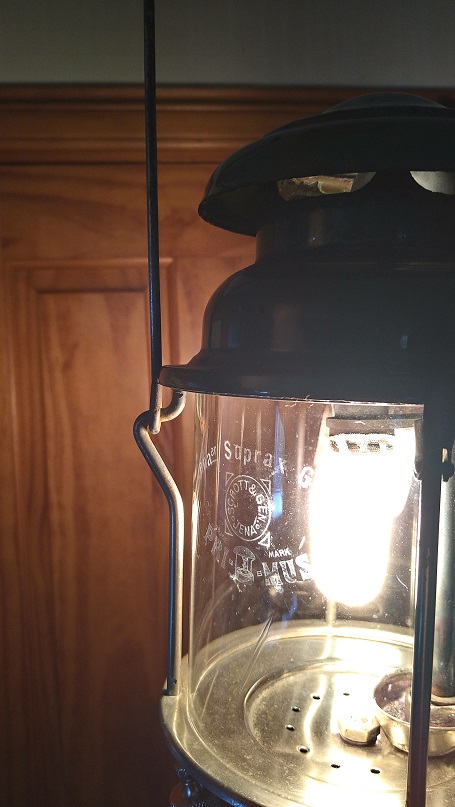

    Came as a runner (just), using a tilley preheater which was very effective. the mica has bad cataracts so a Suprax glass has been substituted for now (would Mica still have been an option in 1956?)
    oPrimus 1020 Seller Photo 01.jpg

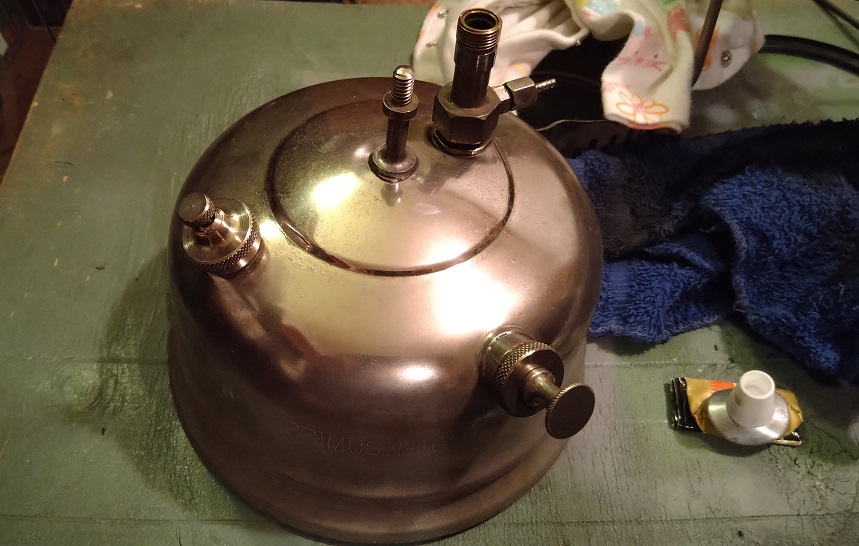

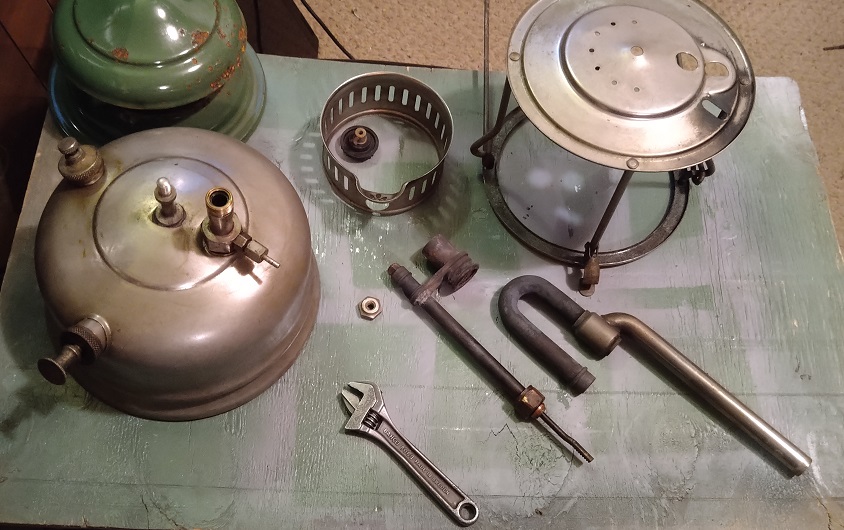

    Stripped for a thorough clean-out. Lots of carbon in the vapouriser, it cleaned up nicely and easily! :D

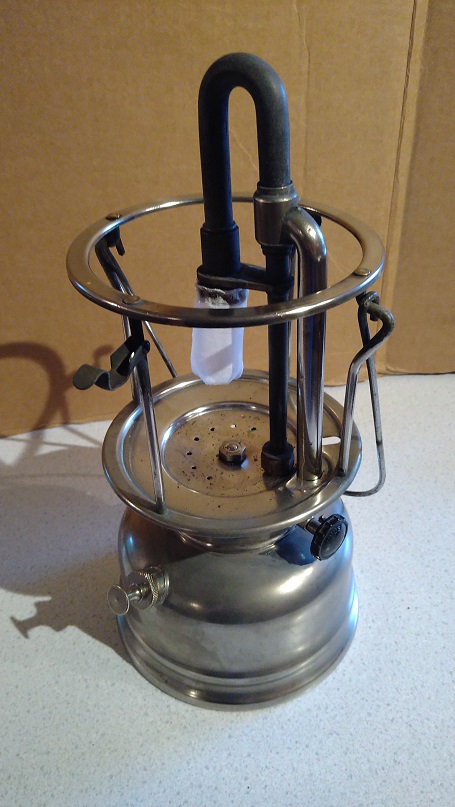

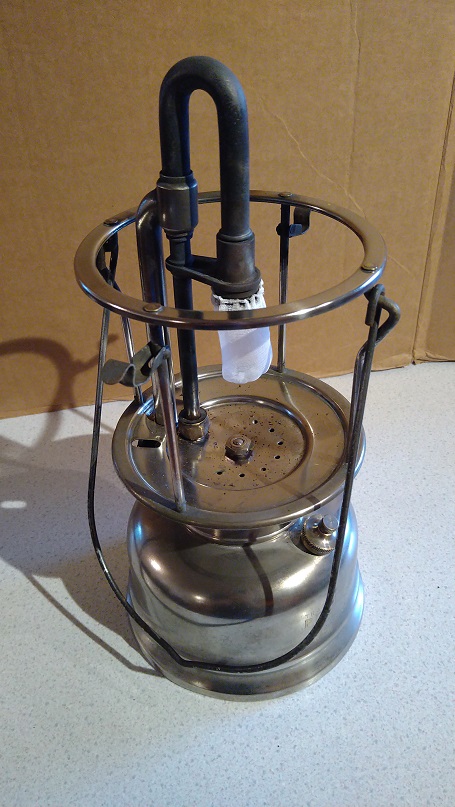

    Reassembled and fitted with a Peerless 24A.

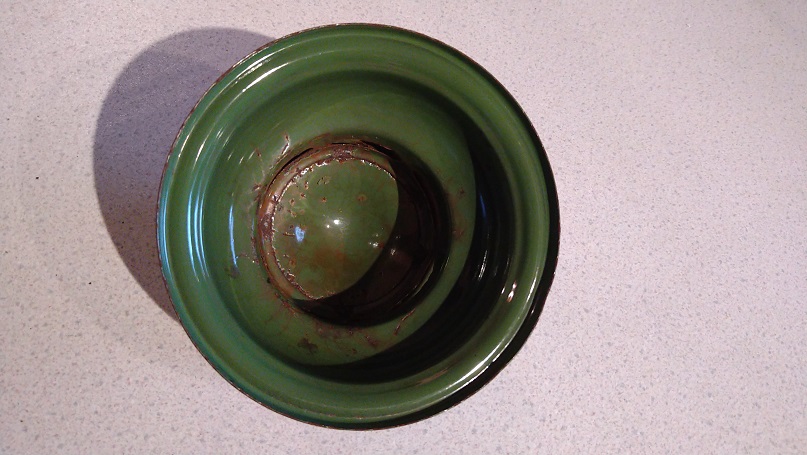

    Hood in very good condition!

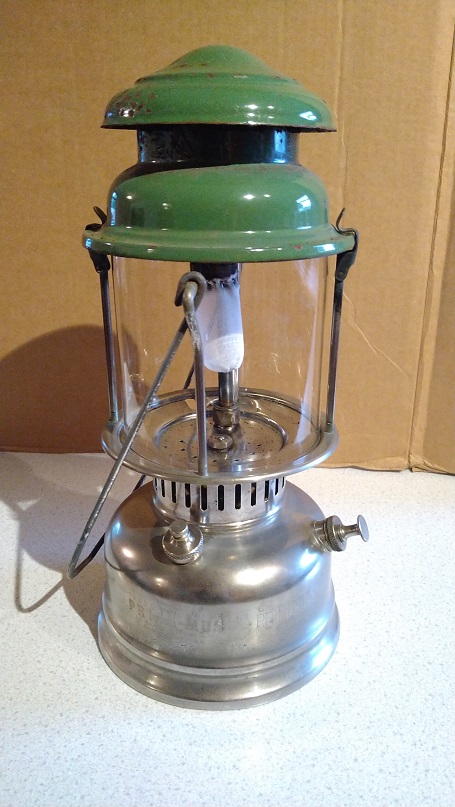

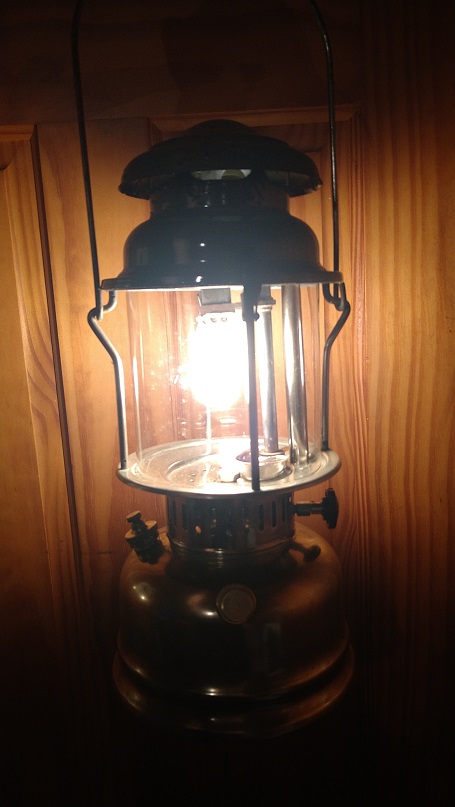

    New mantle burned-in and running well.


    I have around 10 hours running on this lamp so far and I'm impressed with its light output and stable running, easy to see why they are so common/favoured :content::thumbup:

    Alec.

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,593
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent! :thumbup::thumbup::thumbup:


    Cheers

    Tony

  3. AussiePete

    AussiePete United States Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,643
    Location:
    Toowoomba Australia
    Well done, you’ve done an excellent job of restoration.
    I can’t help but see a parallel in this Primus lantern and the Veritas 350 lantern. Both excellent lanterns.
    Enjoy
    Pete

  4. Nils Stephenson

    Nils Stephenson Founder Member

    Online
    Joined:
    Sep 9, 2010
    Messages:
    3,215
    Location:
    Copenhagen, Denmark
    Nice restoration Alec and working well (as it should :) ).

    Is the nut holding the glass cage to the tank the original (for you)? This is the nut used on the 1060 and it is the first time I have seen one on a 1020. Maybe at the end of the 1020 production they ran out of the correct one and used what was at hand.

  5. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    2,209
    Location:
    Scottish Highlands
    Looking good Alec!

  6. Rangie

    Rangie United Kingdom Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    495
    Location:
    Caithness, Far North of Scotland
    Well Spotted Nils, I noticed this anomaly as well :-k
    Its certainly the one from this lantern. I checked the others I have (X, Z, AC) and they have the usual "Dome Nut" for want of a better phrase.

    Feel free to send me a 1060 for comparison purposes, I'll cover the postage, its a hole in my line-up anyway ;) :lol: :mrgreen:

    Alec.

  7. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,013
    Location:
    Shetland Islands UK..
    Well fettled.:thumbup:
