1A Aladdin restoration

Discussion in 'Aladdin' started by Darryl Durdin, May 13, 2019.

  1. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    342
    Location:
    Whyalla. South Australia. Australia
    I bought this lantern from a service man who said it was his grandfathers, so I thought I would restore it to its former glory.
    IMG_0673.JPG IMG_0674.JPG IMG_0675.JPG

    I had not come across a 1A Aladdin with a hood. very cool

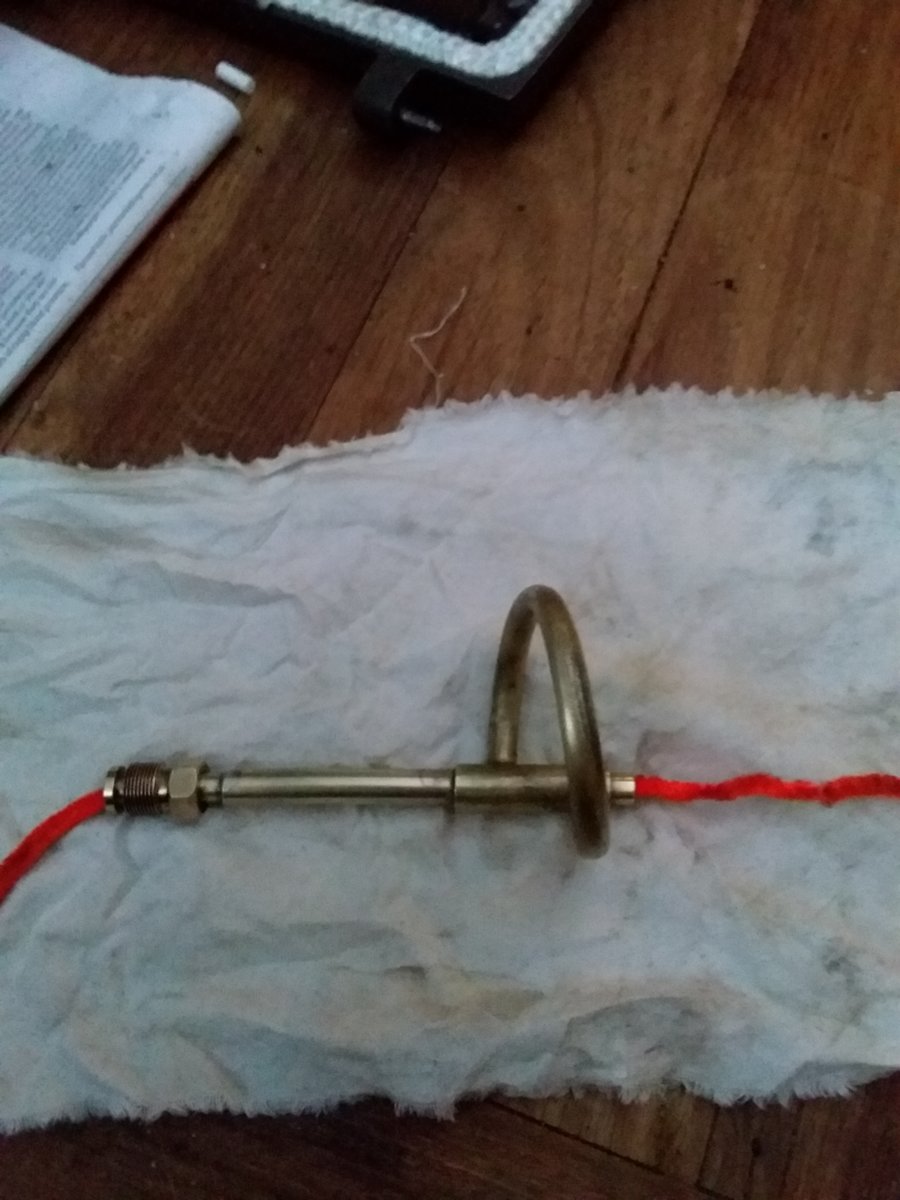

    I set about stripping down and cleaning up parts
    20190506_135348.jpg 20190507_110654.jpg
    20190507_110723.jpg 20190507_111216.jpg 20190509_214654.jpg

    20190506_135705.jpg 20190506_135712.jpg 20190506_135728.jpg

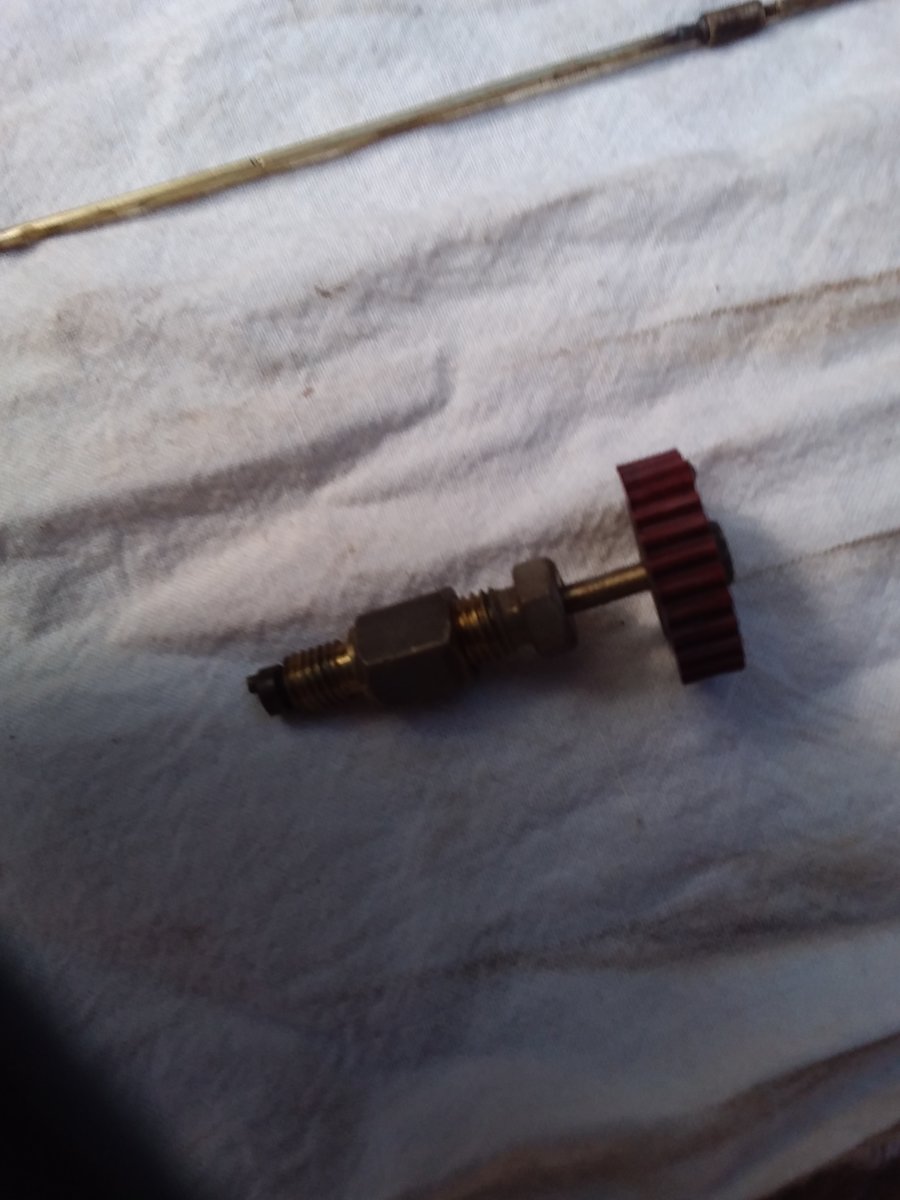

    I have up graded the jet and needle, I replaced the old original with a Radius 119 jet and needle I bought from Korea . a fine bit of machining , I also cut a new thread in the top of the generator to suit the new jet, the threads are similar but I could not screw the new jet into the old generator all the way 20190509_214629.jpg

    I cleaned and shined everything
    20190508_141758.jpg 20190509_214349.jpg 20190507_123054.jpg 20190507_122159.jpg
    its looking good, I etched primed the tank and hood, spray painted them as close to olive drab as possible
    20190509_215352.jpg 20190509_220235.jpg 20190509_220255.jpg
    20190509_220809.jpg 20190509_220838_080.jpg 20190509_221209.jpg 20190509_221245.jpg 20190509_221320.jpg
    its all coming together
    20190509_221603.jpg 20190509_221656.jpg

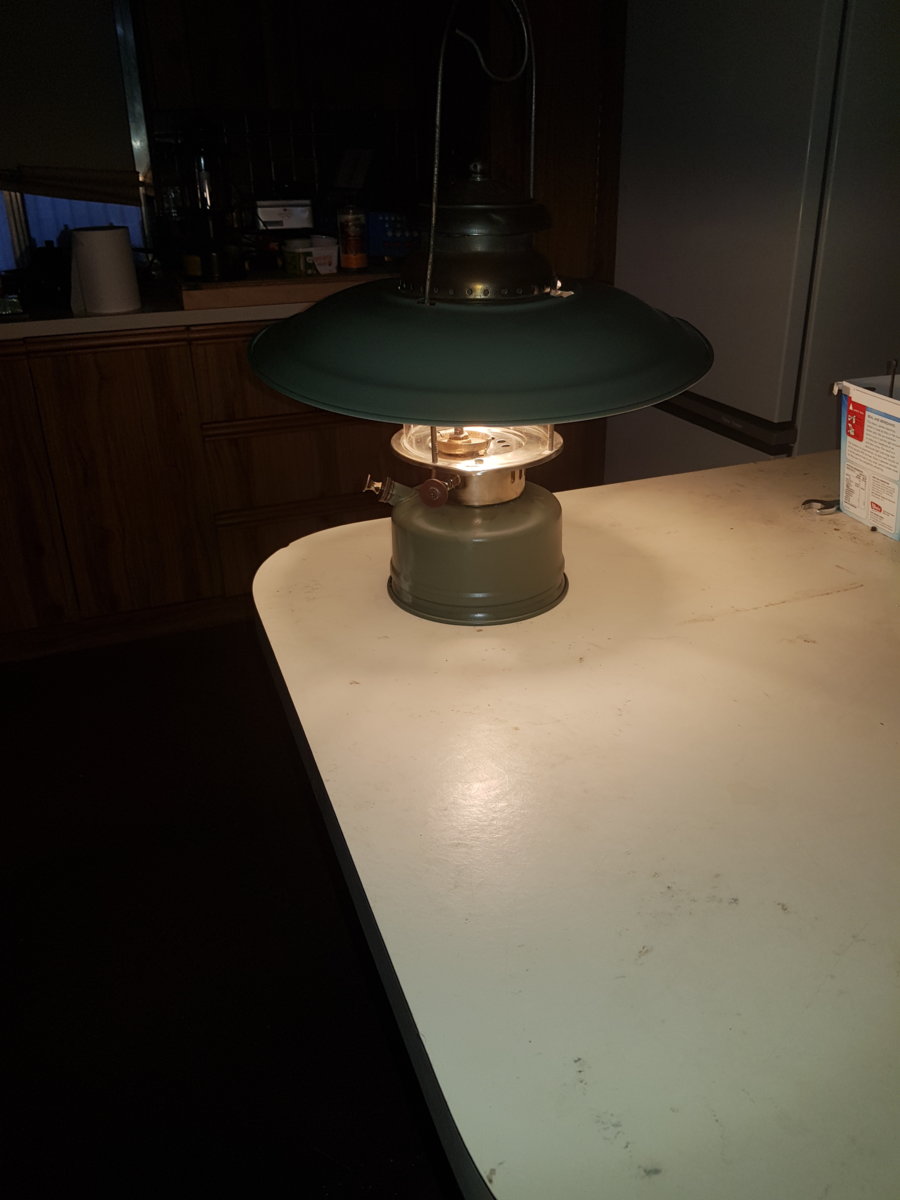

    the finished lantern
    20190509_221900.jpg 20190510_173453.jpg 20190510_173545.jpg 20190510_173712.jpg 20190509_223714.jpg

    I hope you all enjoy , as much as I do.


    Attached Files:

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,480
    Location:
    Somersby, New South Wales, Australia
    Nice work Darryl. The old girl looks fantastic. :thumbup::thumbup:

  3. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,845
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Great work, Darryl. :thumbup:

    Is that hood steel or aluminium?

    Tony

    @Darryl Durdin

    Last edited: May 13, 2019
  4. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    342
    Location:
    Whyalla. South Australia. Australia
    It looked mor like copper, it had some almost like chrome patches come streaking, on both sides.

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,845
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Darryl

    Try a magnet... it could be “coppered” steel (I’ve seen a few of these recently for Kayen).

    Tony

  6. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,744
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::clap::clap::thumbup:

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,480
    Location:
    Somersby, New South Wales, Australia
    @Darryl Durdin

    Darryl, TW Sands in Melbourne sell replacement jet and needle for the Aladdin 1A which are the correct thread and length (119 needles are shorter than Aladdin).

    Kerosene Lighting Melbourne – T W Sands & Co

  8. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    342
    Location:
    Whyalla. South Australia. Australia
    Ive ordered some from them before end of last year and still waiting, i ordered some other bits and still waiting.ive basically given up on them, i had ordered parts before and they came through. Since them mo ing ive had nothing.

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,845
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I'll pass that info on, Darryl.

    Cheers

    Tony

  10. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,127
    Location:
    USA
    Great job! Really nice restoration!:content:

  11. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    Lookin good there Daryl.

  12. James K

    James K Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    136
    Good work Darryl, it's looking good.
    I have one of these to build and your pictures will be a handy reference.
    James
