250-250A

Discussion in 'Indoor Lamps' started by Bo Ryman, Mar 27, 2011.

  1. Bo Ryman

    Bo Ryman Founder Member Subscriber

    Offline
    Joined:
    Sep 13, 2010
    Messages:
    320

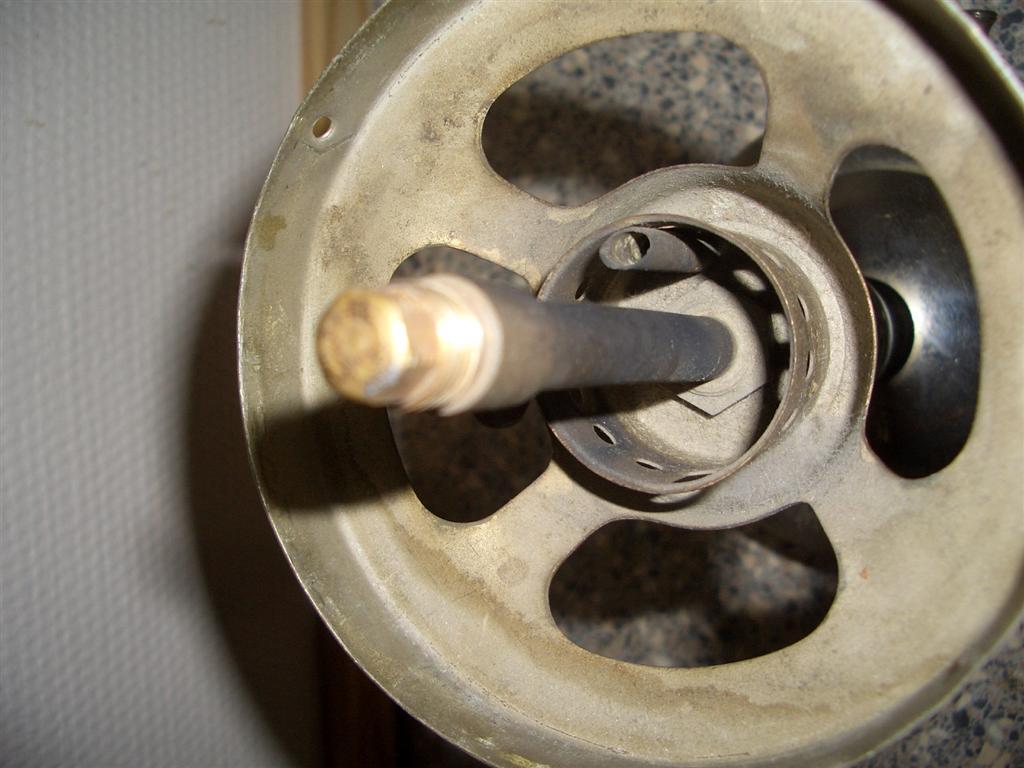

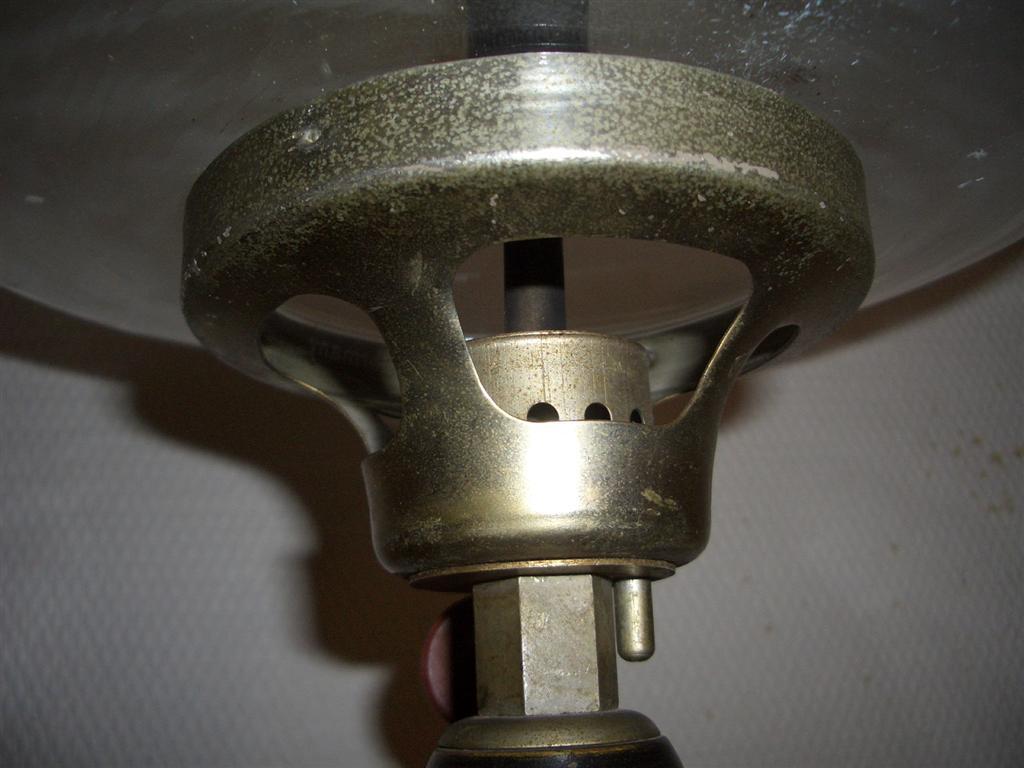

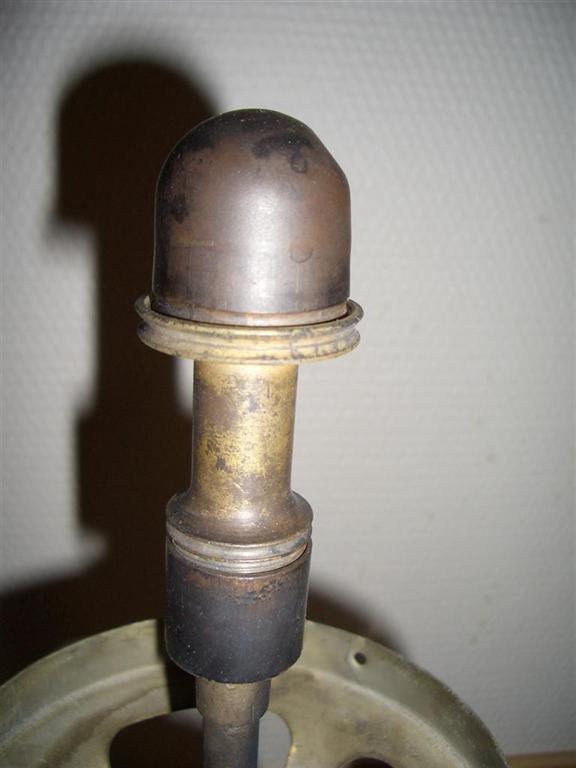

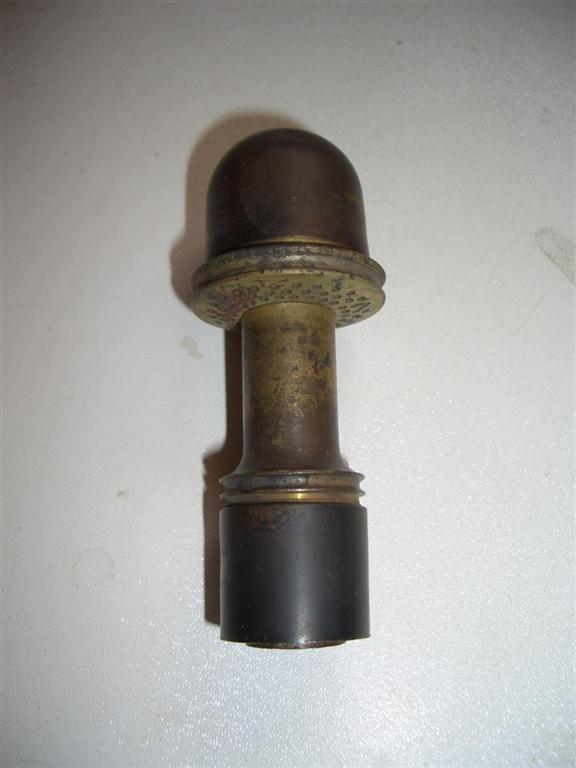

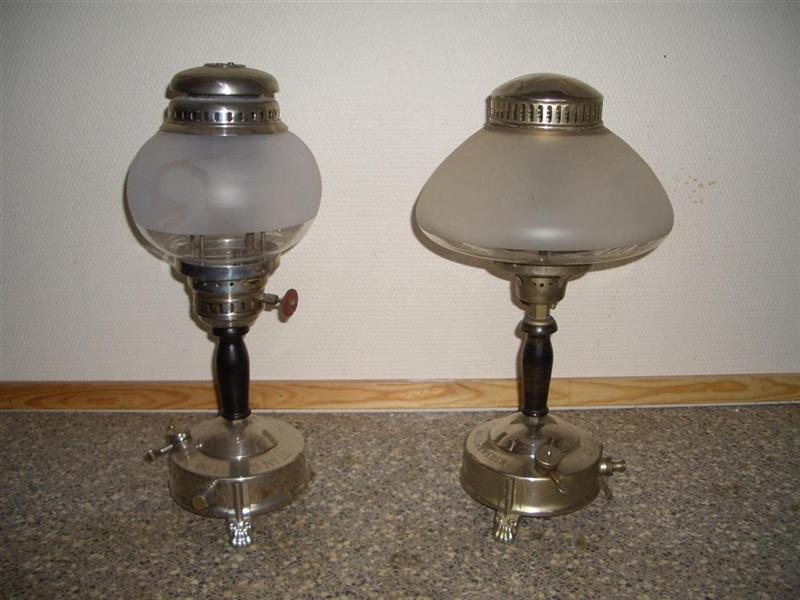

    Here, to the right, is a very early model of the conversion lamp 250A. Compared to the later 250 model. Though the model numbers are the same, there is a big difference in design of the generator and the burner. As most of you probably know, the burner is fitted into the hood on the later model. But the earlier on has a generator that is looking more like on Primus 1001 with the bell shaped top and using a "Tilley mantle".

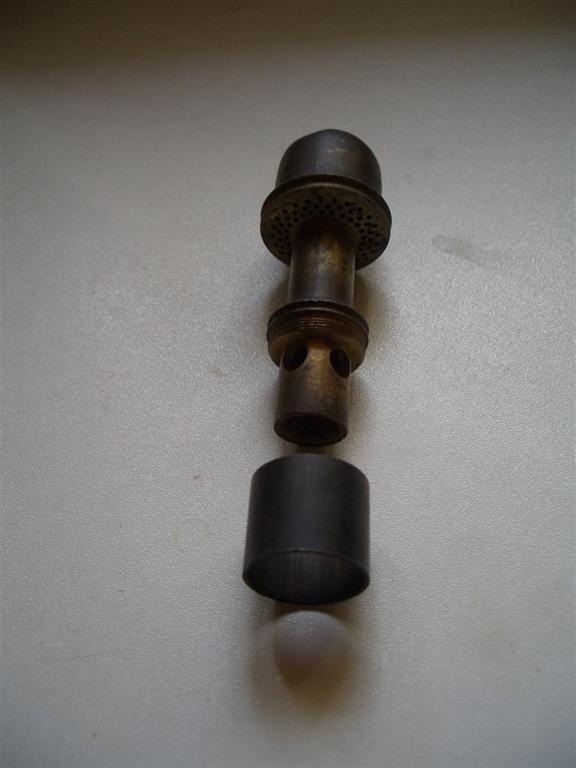

    The difference from 1001 burner is the air inlet. On this one a short tube is threaded over the generator, covering the inlet holes. So air in coming from beneath, not via separate tube like on Tilley and Primus burners.

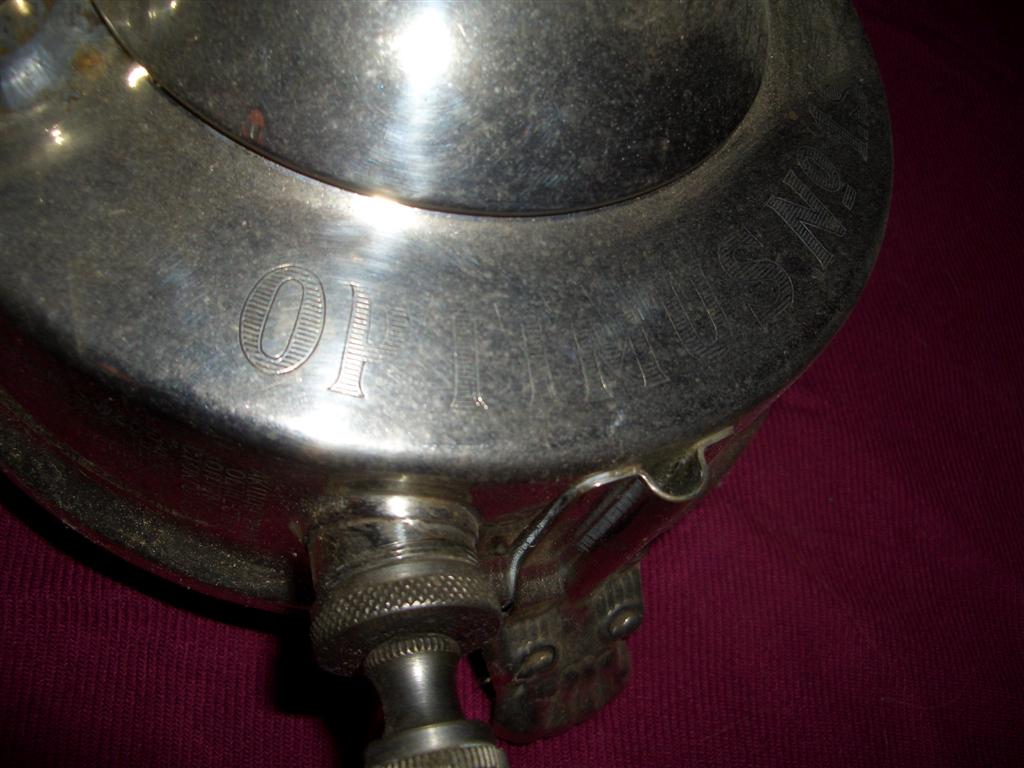

    3 images addes 14:t of April to show the difference in the text font Optimus between the two lamps. The earlier has concav O while the later has a convex.

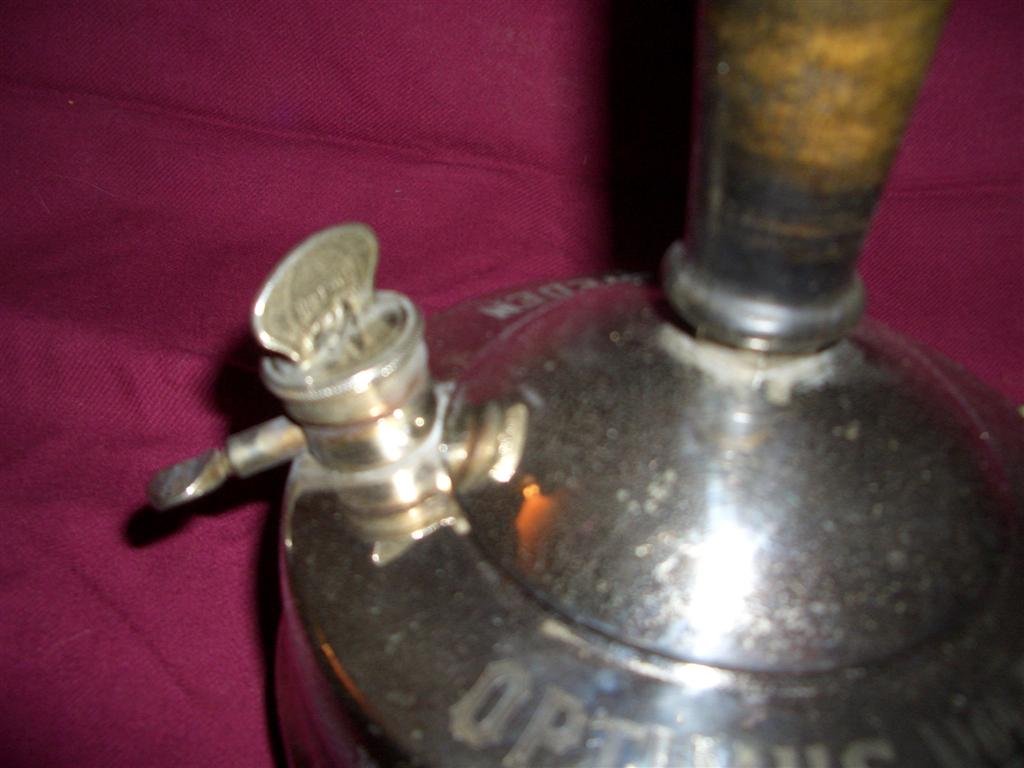

    A difference in style of filler caps is also shown.
    Maybe a way to date old lamps.


    1301234858-CIMG6480.JPG 1301234868-CIMG6481.JPG 1301234877-CIMG6482.JPG 1301234887-CIMG6483.JPG 1301234898-CIMG6484.JPG 1301234907-CIMG6485.JPG
    1302626662-CIMG6489.JPG 1302626738-CIMG6490.JPG 1302626749-CIMG6504.JPG

    Last edited by a moderator: Mar 31, 2017
  2. Doron Papo

    Doron Papo

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    255
    Very nice indeed and very interesting burner.
    I really like those globes.

  3. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,431
    Wow! I didn't knew that this kind of burner actually existed on any lamp.
    I posted a patent from Tilley on behalf of Jeff a while ago, where this odd way of air supply was described.
    Check it out https://classicpressurelamps.com/index.php?threads/1833

    The patent from Tilley was applied for in 1933.
    Does anyone know when this was first used on the Optimus? The 1932 catalogue shows a central positioned vaporiser like this, but you can't see what kind of burner it use.

    Last edited by a moderator: Dec 18, 2017
  4. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,282
    Location:
    Copenhagen, Denmark
    Very very nice Bo. Now I'm extremely jealous. :mrgreen: ;)

    Where did this one come from? Any guess at age? I'm pretty sure the 'new' one was being made by 1931, so it must be from before then.

    How does the cleaning needle mechanism work? I've got lots of questions but I'll leave it at this for now.

  5. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,431
    Ah. That definately means that the similar patent Tilley applied for is later.

    Last edited by a moderator: Mar 31, 2017
  6. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,748
    Location:
    Shetland Islands UK..
    Hello Bo, that's a very interesting burner and in my opinion it warrants some research, Jeff.

  7. spiritburner

    spiritburner Admin

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    1,249
    Location:
    N.E. England
    Never mind the burner - that's a nice tank. Send it to me & I'll convert it to a stove! :lol:

  8. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,431
    You heretic, you! [-X :lol:

  9. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,652
    Location:
    North-East England
    Philistine stovie. [-X ](*,)

    Tree, rope, branch - not necessarily in that order...

  10. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,431
    I think we can settle for the old tar and feather... ;)

  11. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,748
    Location:
    Shetland Islands UK..
    Great stuff! :thumbup:

  12. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,967
    Location:
    Hertfordshire
    That Tilley patent is an odd one. I had seen it before but as far as I am aware Tilley never used it in a lamp. You have to wonder why Fred bothered to patent something he did not subsequently use. It is a neat elegant way of making a burner as it does away with any protruding air intake tubes. Trouble is I guess it means finding another way of supporting a shade on a table lamp. Maybe a design solution too far for Tilley? ::Neil::

  13. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,748
    Location:
    Shetland Islands UK..
    Using that burner would have meant investing in some new tooling to make the shade carriers, once the carriers had been designed that is.

  14. Doron Papo

    Doron Papo

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    255
    are these globes still available?
    I have a chance to purchase a primus lamp but without the glass its a sad thing
