Aida 1500 Progress Report

Discussion in 'Fettling Forum' started by Paul Wright, Aug 28, 2021.

  1. Paul Wright United States

    Offline
    Joined:
    Nov 30, 2020
    Messages:
    8
    Location:
    FL, USA
    Greetings,

    The tank is cleaned for the most part and the seals are replaced. A leak revealed itself during a pressure test and has been fixed. I would have like to have seen the soldering job a bit more tidy but torch was being temperamental. I did get good fillets on the nut all the way around. The tank is on the 2nd pressure test and seems good so far. I'm waiting on parts and the globe cage needs a lot of cleaning. I also painted the in burner casing with VHT header paint. I thought "cast iron" was a black color but no, it's not. Probably a mistake but it is what it is.

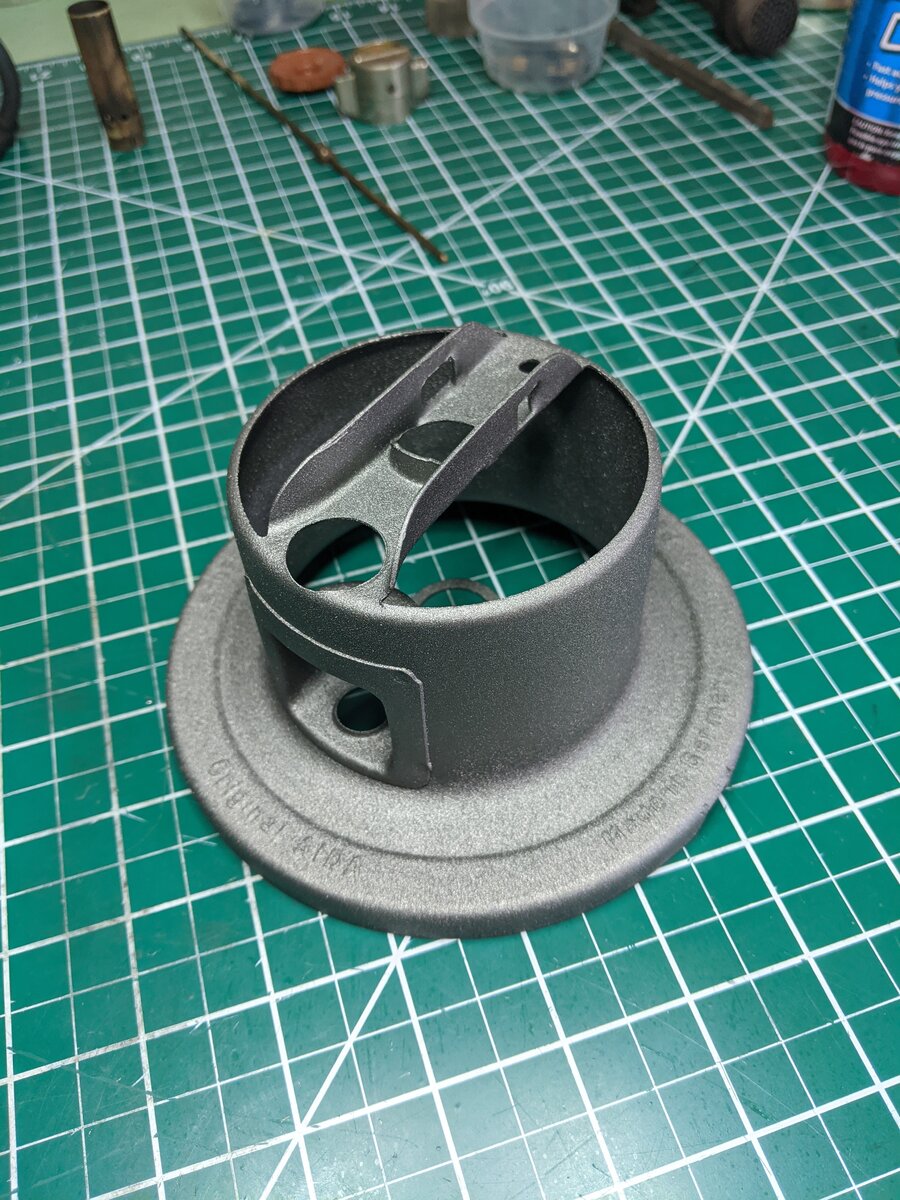

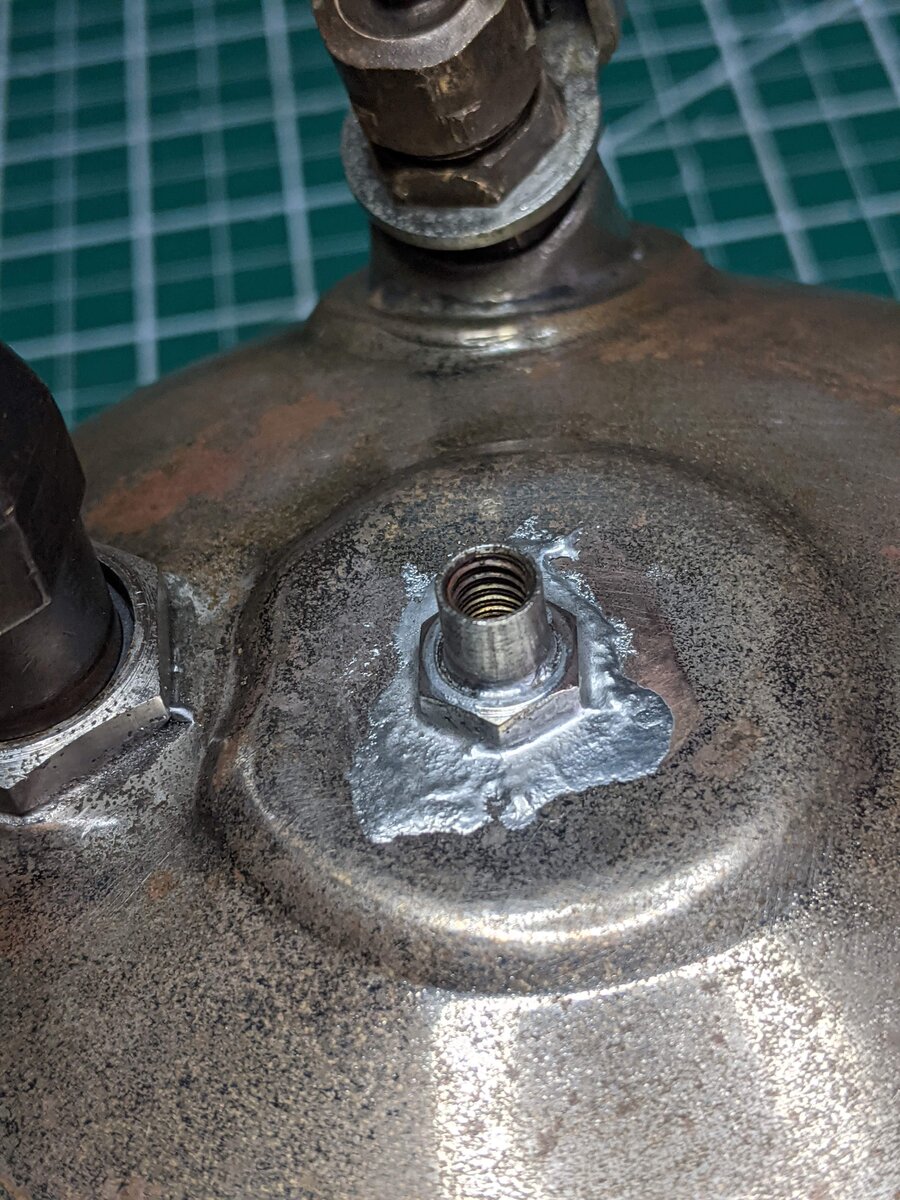

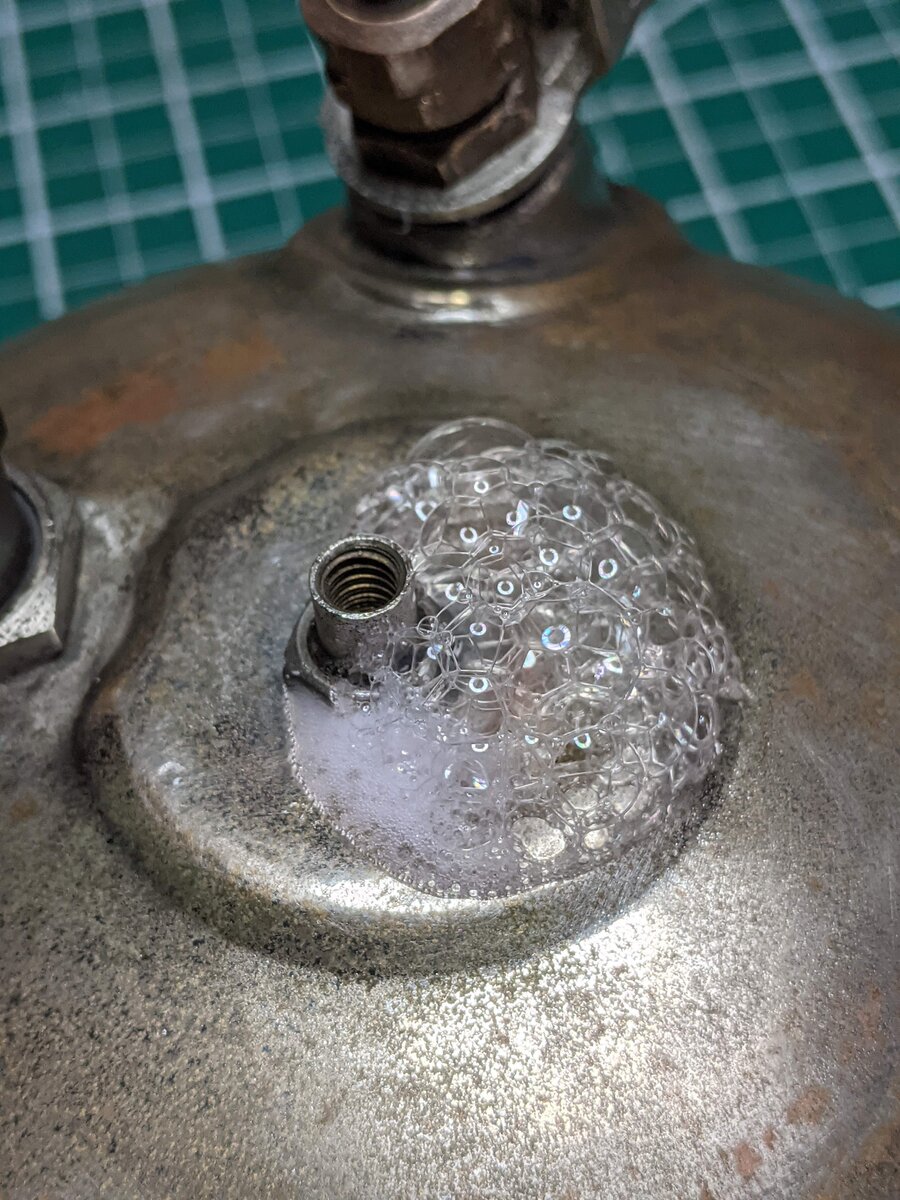

    AidaLeak.jpg AidaLeakFixed.jpg AidaInterBurnerCasing.jpg

    Cheers

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,160
    Location:
    Shetland Islands UK..
    It's progressing.:thumbup:

  3. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    2,094
    Location:
    .
    I think that looks fine.. solder and paint will weather and I don’t think they will be visible?
    The main thing is you have fixed the leak and really tidied things up and prevented further corrosion :thumbup:

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,585
    Location:
    Somersby, New South Wales, Australia
    Nice work :thumbup:

  5. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    2,043
    Location:
    Scottish Highlands
    It’s on its way back to giving light!

  6. Paul Wright United States

    Offline
    Joined:
    Nov 30, 2020
    Messages:
    8
    Location:
    FL, USA
    Here it is, before and after shots. I would have like to seen a bright a shiny Aida but this has its charm and a legit patina. The top ventilator is fixed, the vertical supports are still a little crinkled, all of the seals have been replaced, leak fixed and it is mostly smooth the touch. I also added a alcohol preheater and I don't know if that's to spec. The last thing to to complete is the pressure gauge. The hole for the release screw was swaged over top and I had to forced it out and the threads are a bit damaged. I'm trying to find a tap to clean up the threaded hole. The plan is to try lighting it up this weekend if it'll stop raining and maybe a few beauty shoot when it's burning.

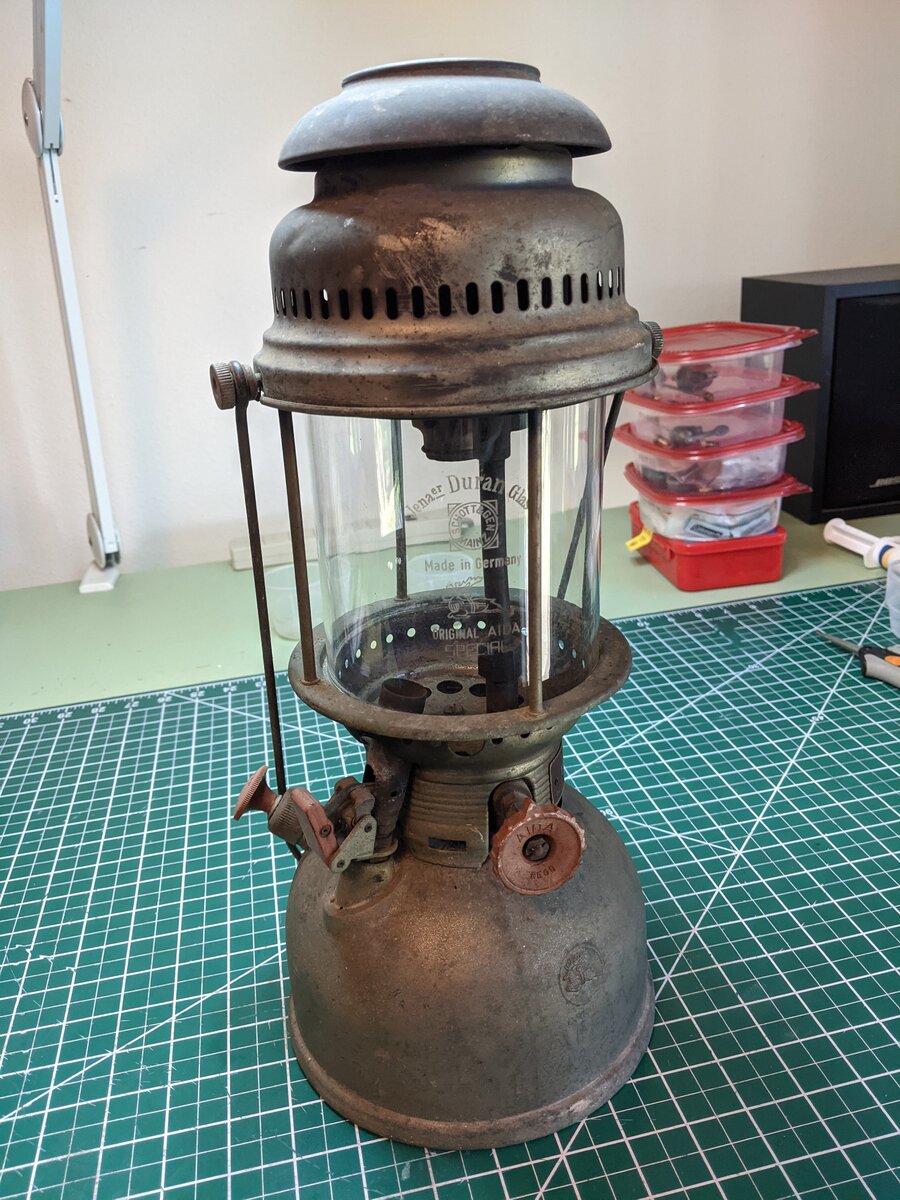

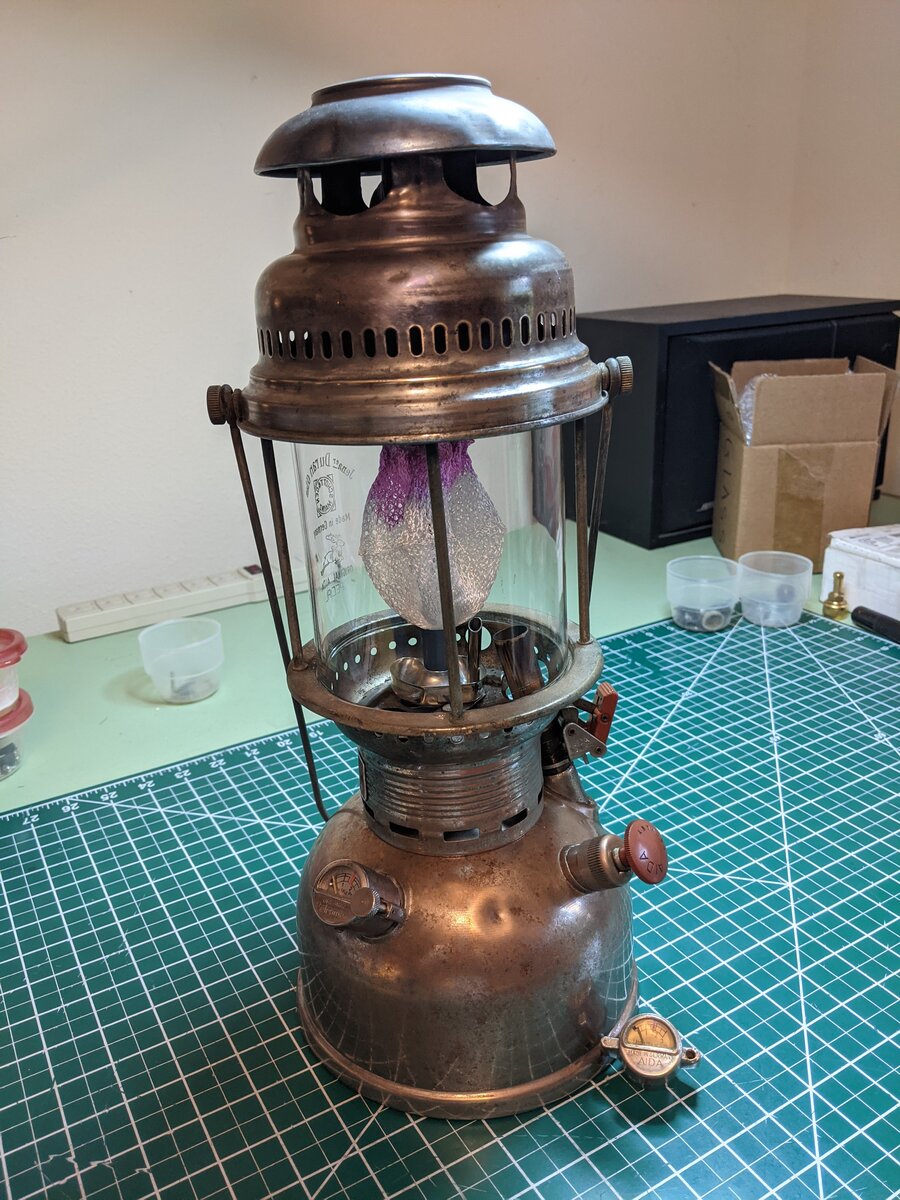

    Before.jpg After.jpg


    Cheers

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,585
    Location:
    Somersby, New South Wales, Australia
    Paul, it's certainly looking better. Good luck with the lighting. :thumbup:

  8. Paul Wright United States

    Offline
    Joined:
    Nov 30, 2020
    Messages:
    8
    Location:
    FL, USA
    Here you go - some beauty shots. The camera on the phone doesn't have the dynamic range for night time pics. The first light attempt was not a winner. The lamp blew through 2 mantles, one Petromax old stock and one new stock with less than 5 minutes of burn time on each before the mantles were shredded. I replaced the OEM jet with a new Petromax and everything is good. It's a shame because the jet was marked Aida Germany. The only other parts that were replaced were seals and such. And the pressure gauge. The original may or may not work. (Note to self -just go ahead and replace the jet going forward)

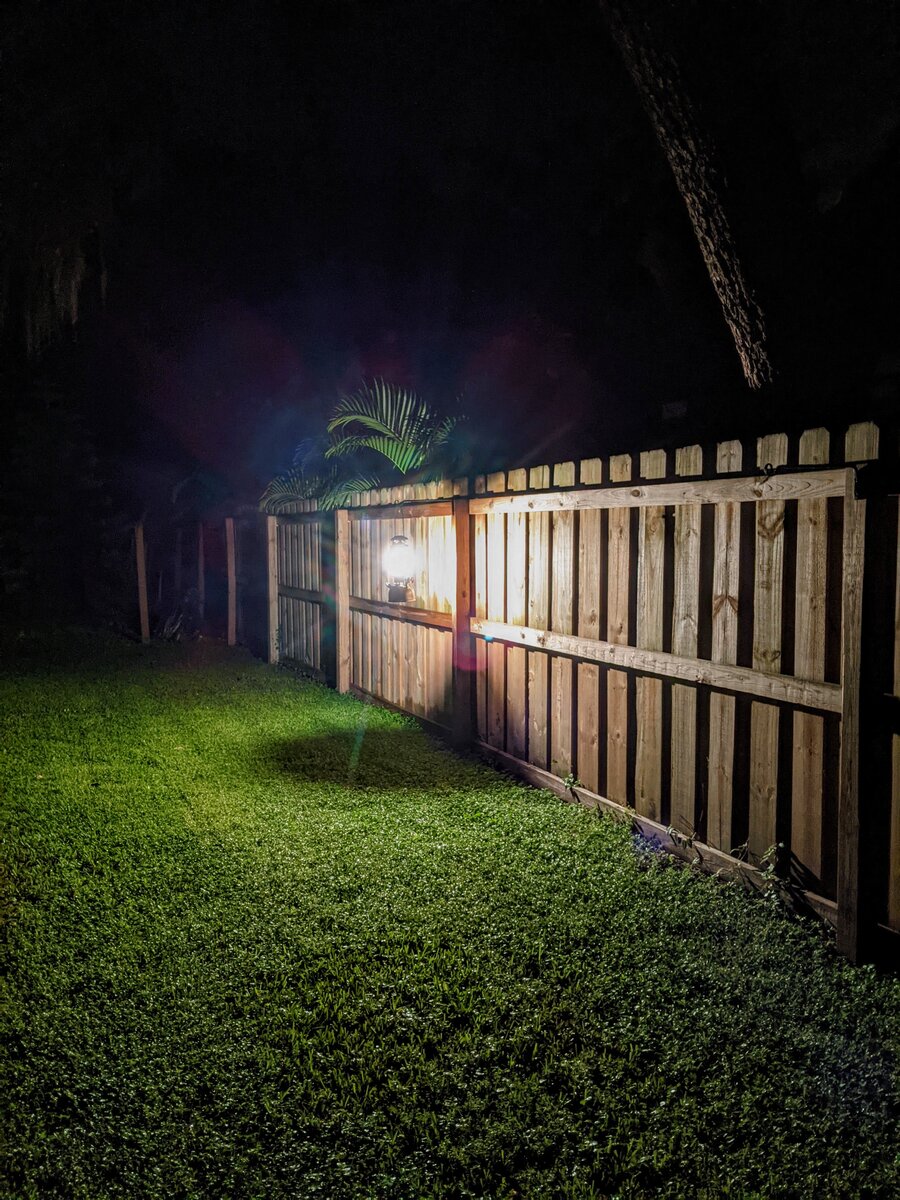

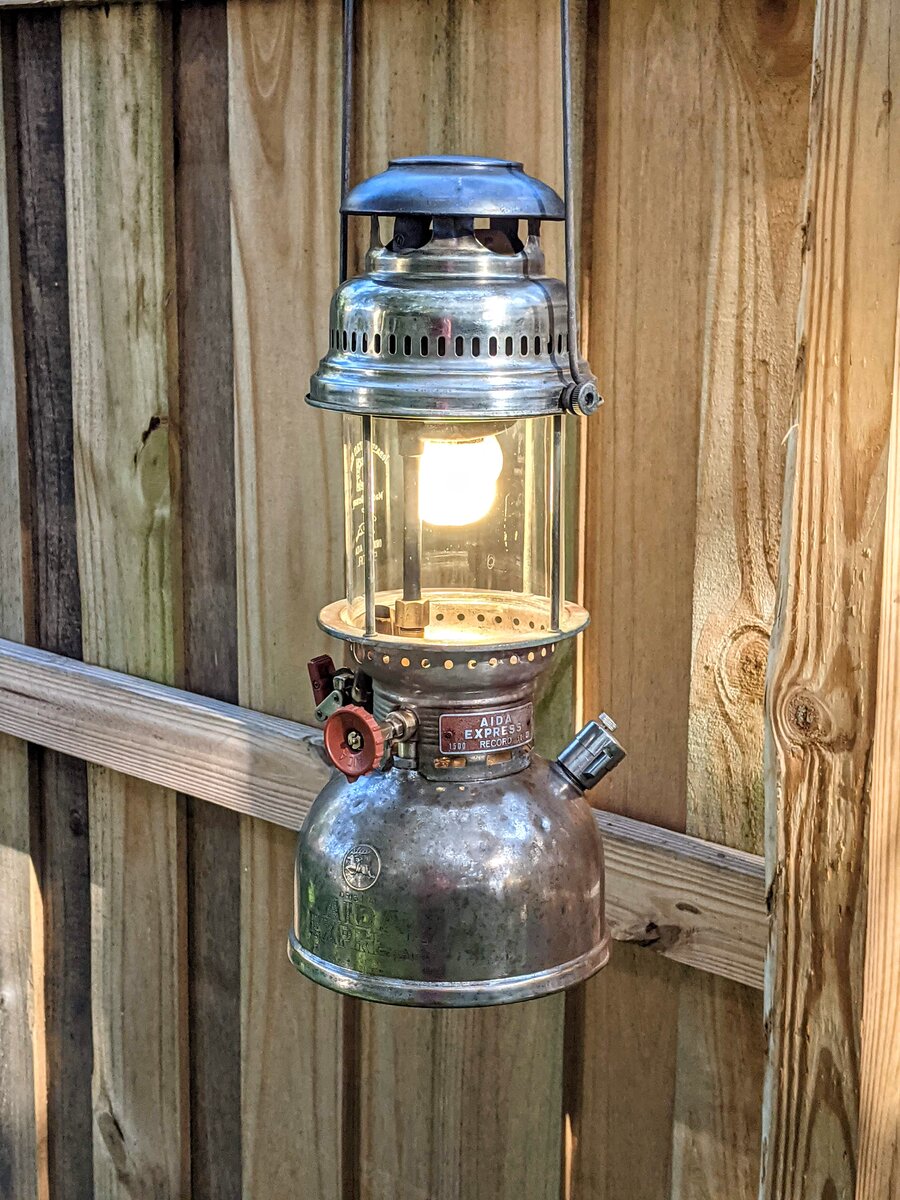

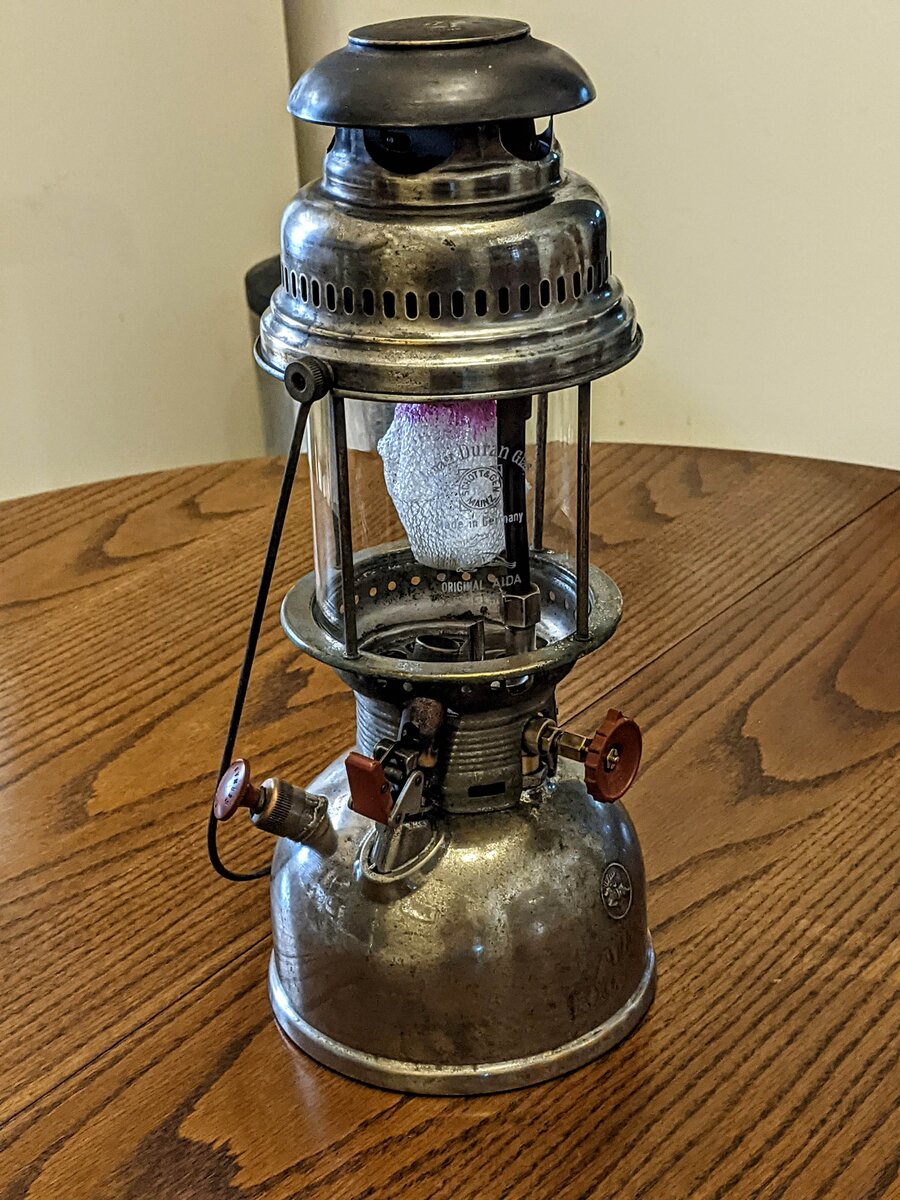

    Aida1500.jpg Aida1500Morning.jpg Aida1500AtNight.jpg

    Fargo mantle by the way.

    Cheers and thanks for all of the support. I have a possible basket case Petromax lantern coming in this week. Whee!

  9. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,585
    Location:
    Somersby, New South Wales, Australia
  10. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    2,094
    Location:
    .
    Looking good !

  11. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Online
    Joined:
    Jun 13, 2020
    Messages:
    1,510
    Location:
    Brighton UK
    Happiness is a good fettle ! Yours is no exception. Well done sir

  12. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    2,043
    Location:
    Scottish Highlands
    Excellent result, well fettled!

  13. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    2,432
    Well done !

  14. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    3,072
    Location:
    USA
    Absolutely!! :D/
