    Preamble
    Some time ago, whilst travelling in South Australia, I found this Australian made Aladdin 1A.
    I found the Aladdin 1A in a junk/bric-a-brac stall in a Port Adelaide under-cover market. The asking price was AU$70 however the proprietor was kind enough to let it go for AU$50. The proprietor didn’t know the history of the lantern other than it had been for sale for a couple of months.

    You will note that the lantern has been fitted with a mica chimney and by all appearances it’s original to the lantern. Perhaps at the lantern's original sale, mica was an option to glass.


    The lantern was found in a filthy condition however, on a closer inspection the lantern has a green painted fount and the frame, hood and hood cap appear to be nickel or chrome plated. The mica chimney is dirty and creased but completely intact.

    The Fettle
    The lantern was dismantled into its various components and cleaned. Excepting the mica chimney and fount, all parts were immersed into vinegar bath for about 1 hour, removed, rinsed and brass brushed clean. The little used Preston Loop generator was stripped and heat/quenched three times removing built up carbon deposits.

    The parts were then rinsed in clean water and put into a sonic cleaner to remove any rubbish and dirt from inside of the generator, jet and other related parts.

    The mica chimney was gently washed in warm soapy water, dried and the metal frame parts treated with Evapo-Rust.

    All the lantern’s parts were magnetically test and the following parts were determined to be ferromagnetic, in this case steel:
    The frame and its base.
    The burner’s “J” tube holder / bracket.
    The Preston Loop generator assembly.
    The complete bail and hook assembly.
    The air pump’s shaft.

    The Fount (Tank)
    To preserve the original paint, the brass fount was carefully cleaned with a hand detergent using a soft brush. The gentle cleaning exposed the original green paint work in quite good condition with just a few blemishes caused by use.

    The top of the fount and showing the fuel pickup outlet with its fine mesh filter.


    This mesh filter is an interference fit and was coached out using a small sowing needle. It was placed in a sonic cleaner, cleaned and reinstalled.

    Paint
    The fount’s paintwork was in quite good condition and I decided to retain the original finish with no paint touch-up or repair.

    NRV (Non-Return Valve)
    The sealing pip in the NRV was too hard and needed to be replaced. A new seal pip was punched out of 3mm thick Viton sheet and installed into the NRV.


    Jet Pricker

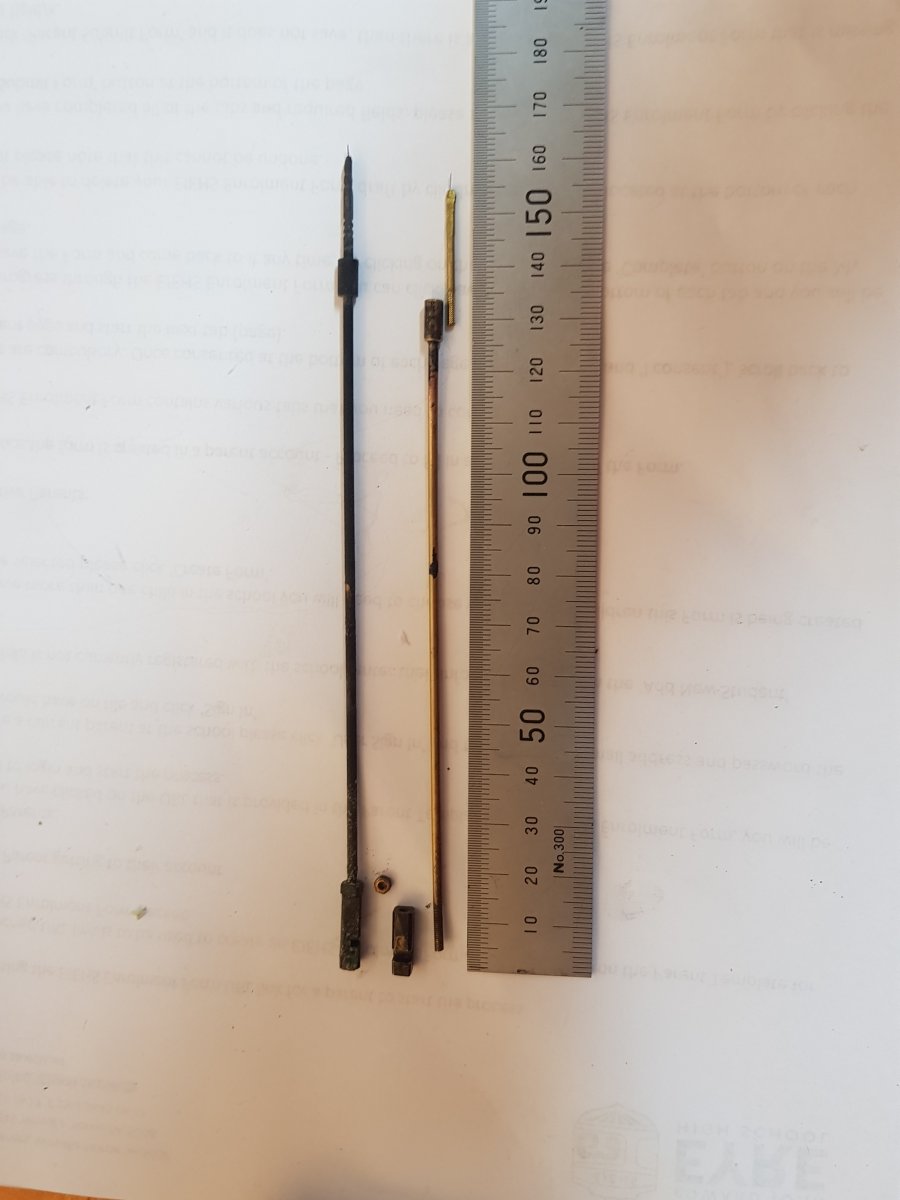

    The jet’s pricker mechanism, although operational had the actual pricker wire missing. I manufactured a new pricker from 1/16” brass tube threading one end with a M2.0 die.

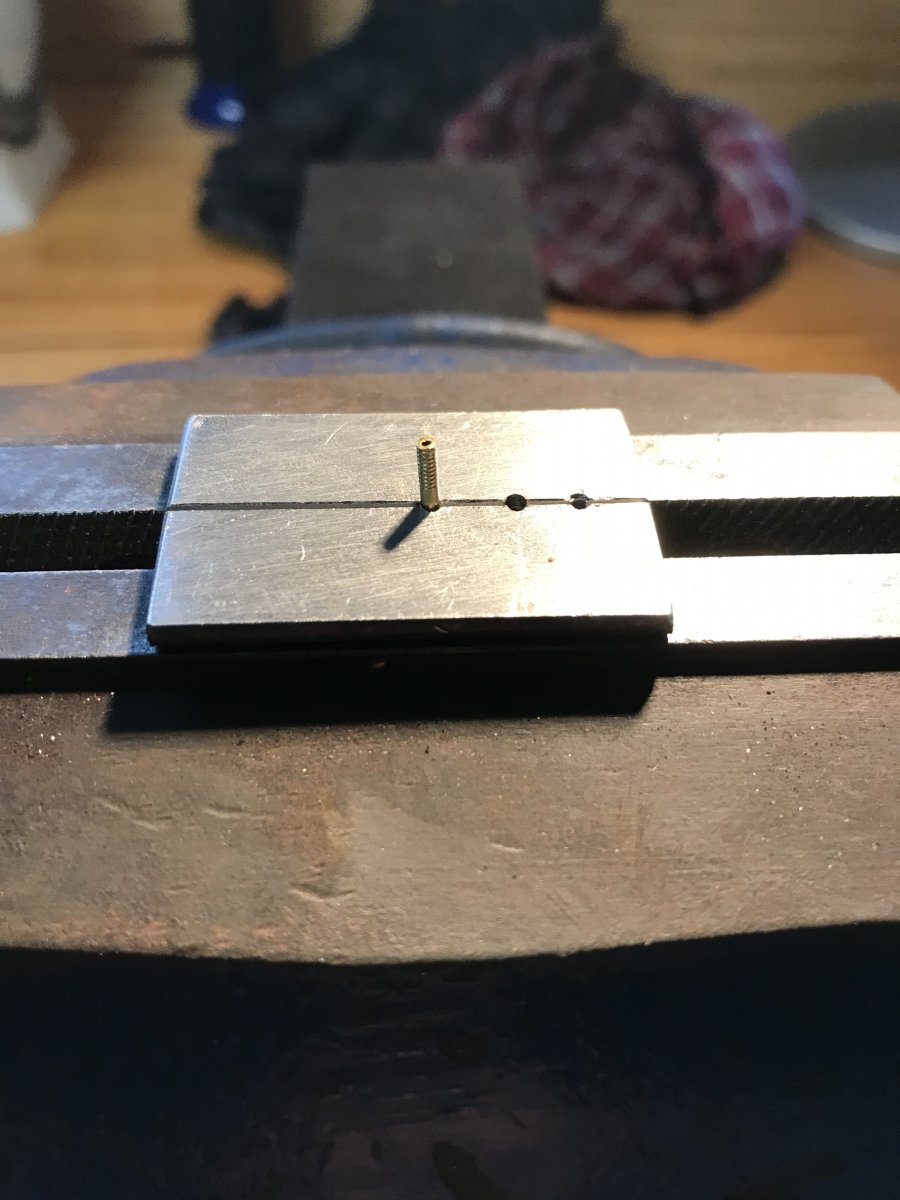

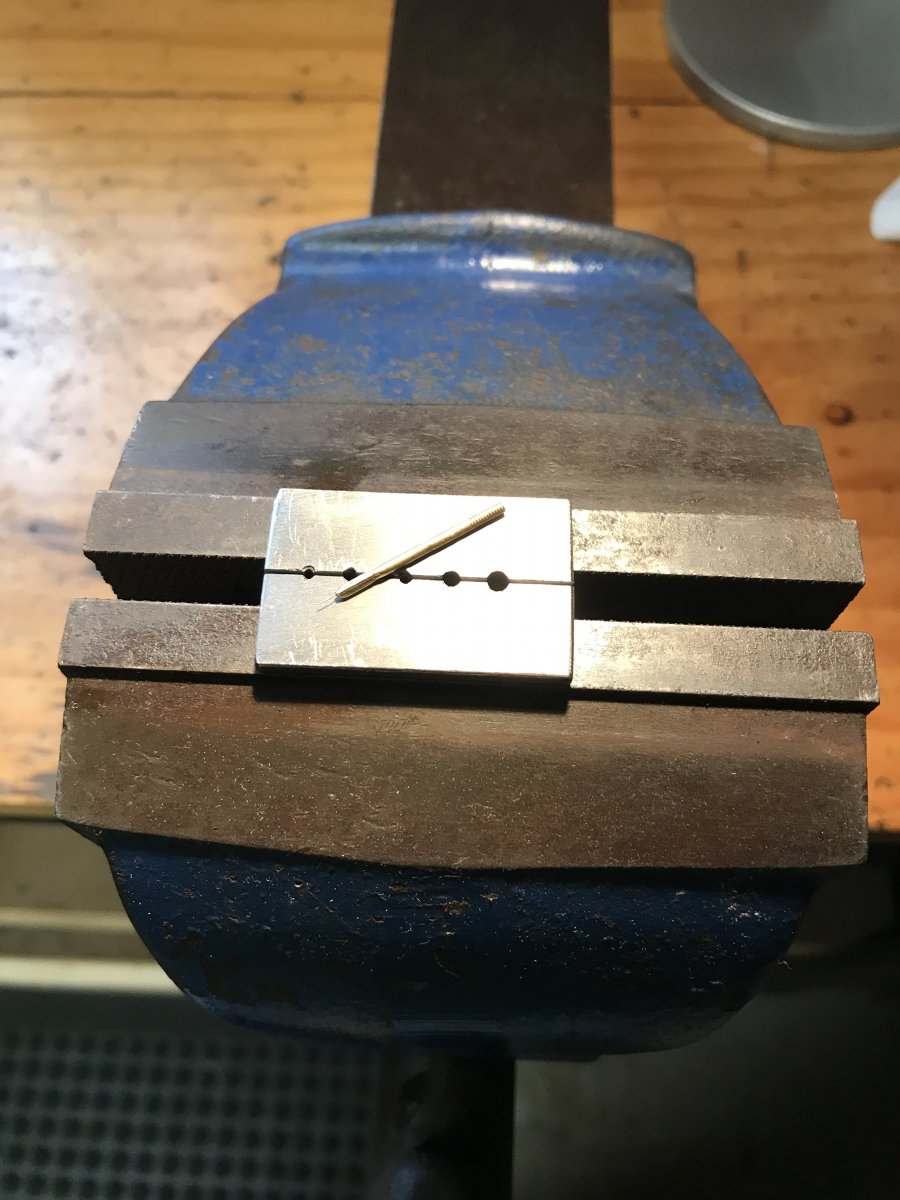

    The new 0.006” stainless steel pricker wire was crimped into the other end using my home-made for purpose crimping block.


    Pump Leather
    The original pump’s leather was very dry, however, it looked to be in good condition. I re-oiled it by soaking the leather in Neatsfoot Oil.

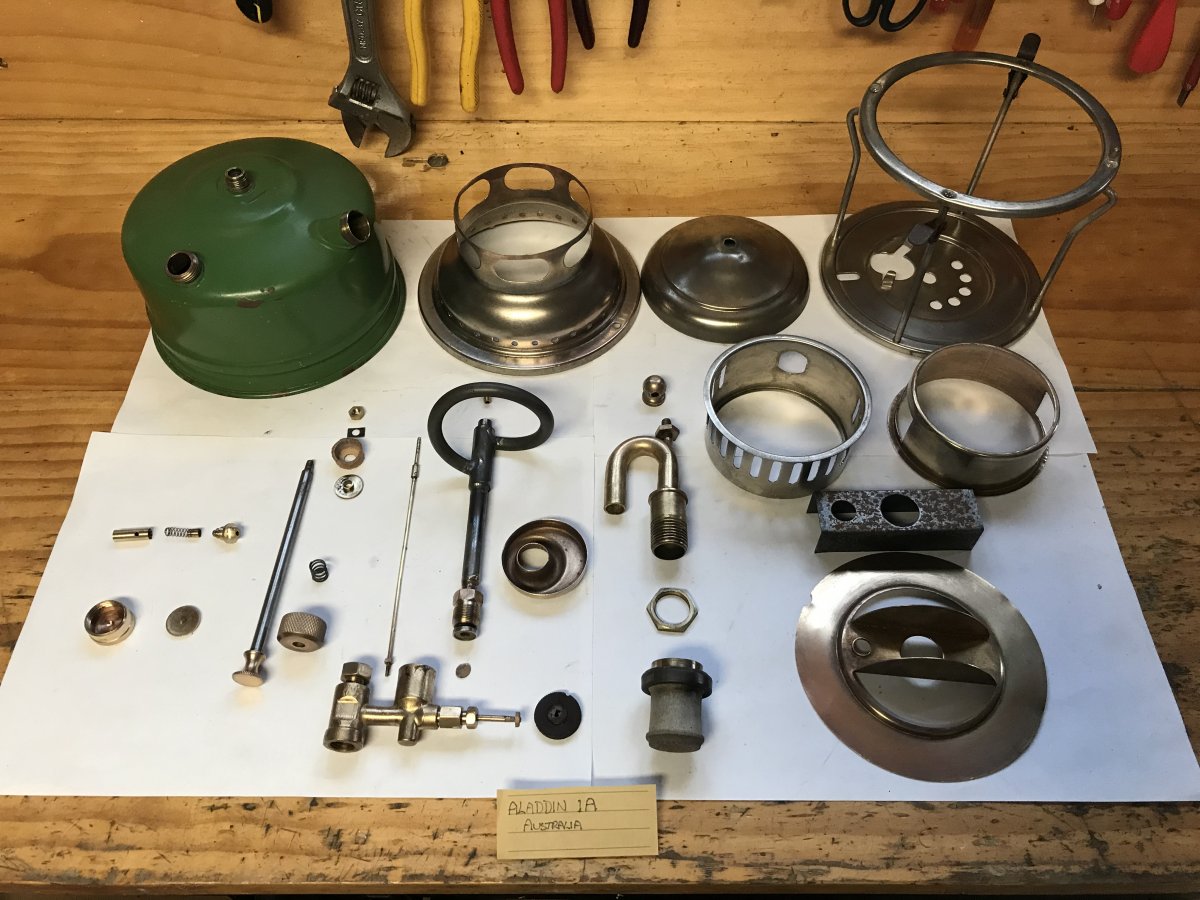

    The various components were gathered together for final assembly.


    Notes:
    The pump shaft is steel however the pump’s retaining brass ferrule is of a larger construction than those seen in the later versions of this model.
    The preheating pan is retained by 2 clips formed and bent to suit in the frame’s 1-piece base or heat shield.

    Assembly
    The Aladdin’s parts were reassembled into a lantern with a suitable mantel attached.


    The Money Shot

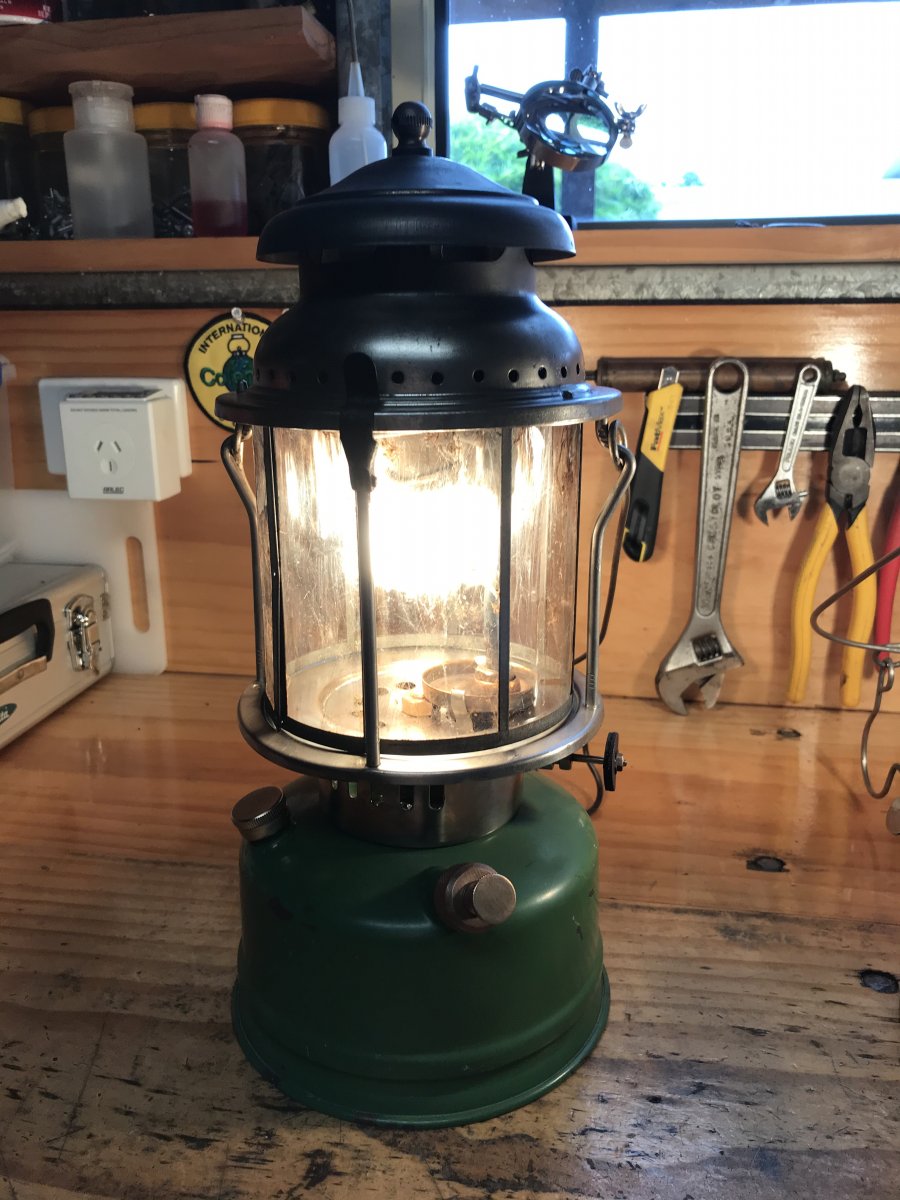

    The assembled Aladdin 1A was preheated using methylated spirits in the preheat pan and lit.
    After the methylated spirits was almost consumed, about 12 or so pumps of air were applied until the mantle was lit and glowing.
    Pumping a further 60 strokes on a near full tank of kerosene, the lit lantern settled down and ran flawlessly for over an hour.


    After the hour’s teat run the lantern was turned off by slowly releasing the fount’s pressure by unscrewing the fuel filler cap. I was delighted (intended pun).


    Further Information – The 3 Amigos

    I have 3 Aladdin 1A lanterns that are seemingly have slightly different variantions as follows:


    I believe I have the oldest version on the left moving to the latest version on the right.

    The left hand lantern, older version, the differences are as follows:
    · The fount is painted green.
    · A mica chimney, this may be an option selected at purchase.
    · The frame base is pressed to shape using a single plate.
    · The pre-heater’s pan is retained by 2 clips formed, and bent to suit, from the frame’s base.
    · The pricker control wheel is thinner and appears to be a fibre composition.
    · The Preston Loop generator is constructed of steel.
    · The pump’s shaft is steel and a slightly larger diameter than the later versions pump’s shaft.
    · The pump’s retaining ferrule is a heavier brass construction as opposed to the lighter plated versions found in the later lanterns.
    · The fuel filler cap and pump knob is unplated brass.


    The middle lantern, the differences are as follows:
    · The fount is plated with what appears to be chrome.
    · A Pyrex glass chimney, this may be standard on all versions.
    · The frame base is 2-piece consisting of a pressed frame base plate with a shaped insert fitting into a recess in the larger frame base.
    · The pre-heater’s pan has a hexagonal hole that snuggly fits the generator’s retaining nut.
    · The pricker control wheel is thicker and appears to be a reddish Bakelite composition.
    · The Preston Loop generator is constructed entirely of brass.
    · The pump’s shaft is brass.
    · The pump’s knob is construct of brass and plated.
    · The pump’s retaining ferrule is the plated lighter version found on the later lanterns.


    The right hand lantern, seemingly the latest version, the differences are as follows:
    · The fount is plated with what appears to be chrome.
    · A Pyrex glass chimney, this may be standard on all versions.
    · The frame base is 2-piece consisting of a pressed frame base plate with a shaped insert fitting into a recess in the larger frame base.
    · The pre-heater’s pan has a hexagonal hole that snuggly fits the generator’s retaining nut.
    · The pricker control wheel is thicker and appears to be a reddish Bakelite composition.
    · The Preston Loop generator is constructed entirely of brass.
    · The pump’s shaft is steel.
    · The pump’s knob is construct from a black Bakelite material.
    · The bail has been remodelled without the hanging hook.

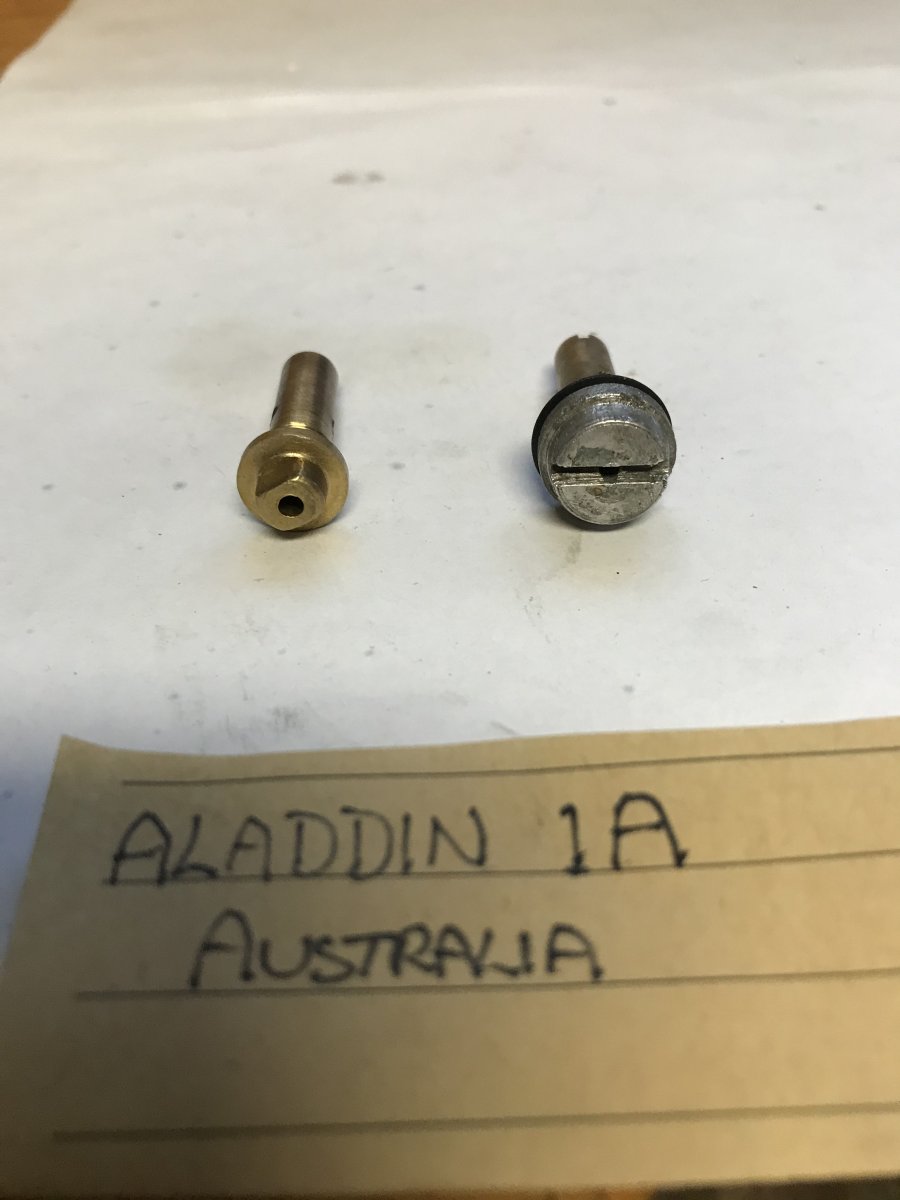

    · The NRV is now configured for a screwdriver removal and not the usual socket type removal. The head of the NRV is aluminium and not brass.

    IMG_1515 2.jpeg

    Summary
    In this fettled Aladdin 1A all the original parts, excepting the seals and pricker, were reused, including the generator’s jet.

    The fettled Aladdin 1A lit and ran flawlessly with an almost imperceptible hiss for its 1-hour test.
    I had a lot of satisfaction resurrecting and seeing this old performer strutting its stuff again.

    Thank you for looking.

    Cheers
    Pete


    Attached Files:

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,805
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent! That’s a very fine job. :thumbup:

    Your lantern has some interesting features. I’ve not seen that pump retaining ferrule before; I have seen mica chimneys on the Aladdin 1A but not in as good condition as yours; and I’ll check my 1As that have that clipped pre-heater, because I think all of mine have a winged filler cap.

    Nice work.

    Cheers

    Tony
    @AussiePete

  3. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,496
    Location:
    Toowoomba Australia
    Thanks @Tony Press
    Do you have a picture of the winged filler caps?
    Cheers
    Pete

  4. Emiel

    Emiel Netherlands Subscriber

    Offline
    Joined:
    Dec 5, 2019
    Messages:
    110
    Location:
    the Netherlands
    Wow @AussiePete. Well fettled and well documented as always. Enjoy your new toy.

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,805
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Pete

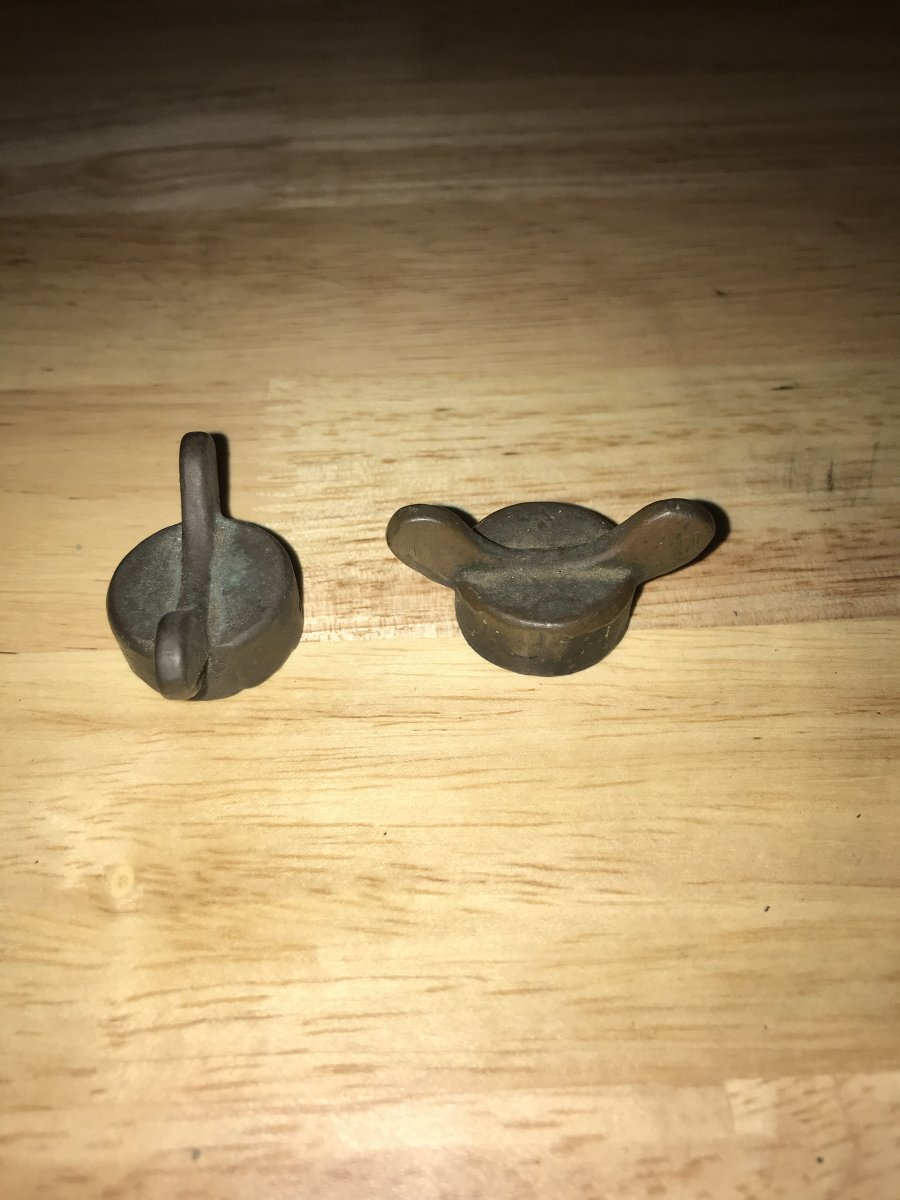

    From very early Aussie Aladdin 1As.

    Cheers

    Tony

    @AussiePete

  6. kero-scene Australia

    Offline
    Joined:
    Jan 23, 2013
    Messages:
    215
    Location:
    Australia
  7. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,496
    Location:
    Toowoomba Australia
    @Tony Press
    Wow, I’ve not seen these before, they must be very early.
    Thanks for the pictures.
    Pete

  8. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    968
    Location:
    Melbourne, Australia
  9. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    530
    Location:
    Midlands, UK
  10. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,664
    Nice work Pete. I love the fact that you're able to create prickers using your home made jigs and equipment - extremely impressive!

  11. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,078
    Location:
    Scottish Highlands
    @AussiePete Pete, a superb fettle with your always exceptional write up. An absolute pleasure to follow and read.

  12. Greenboy23

    Greenboy23 United Kingdom Subscriber

    Offline
    Joined:
    Aug 10, 2014
    Messages:
    35
    Location:
    Chester
    Top workmanship pete, well done.

    Lee

  13. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,900
    Location:
    USA
    @AussiePete
    Great job, Pete! Beautiful restoration!
    :thumbup::thumbup::clap:

  14. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    599
    Location:
    Whyalla. South Australia. Australia
    @AussiePete
    Great restoration job. I like 1A Aladdins, very cool lanterns, i too have noticed the suttle differences but no exact time dates.
    Pic 1 the push rod securing nut, most are hex but i have square
    I have two with steel fonts

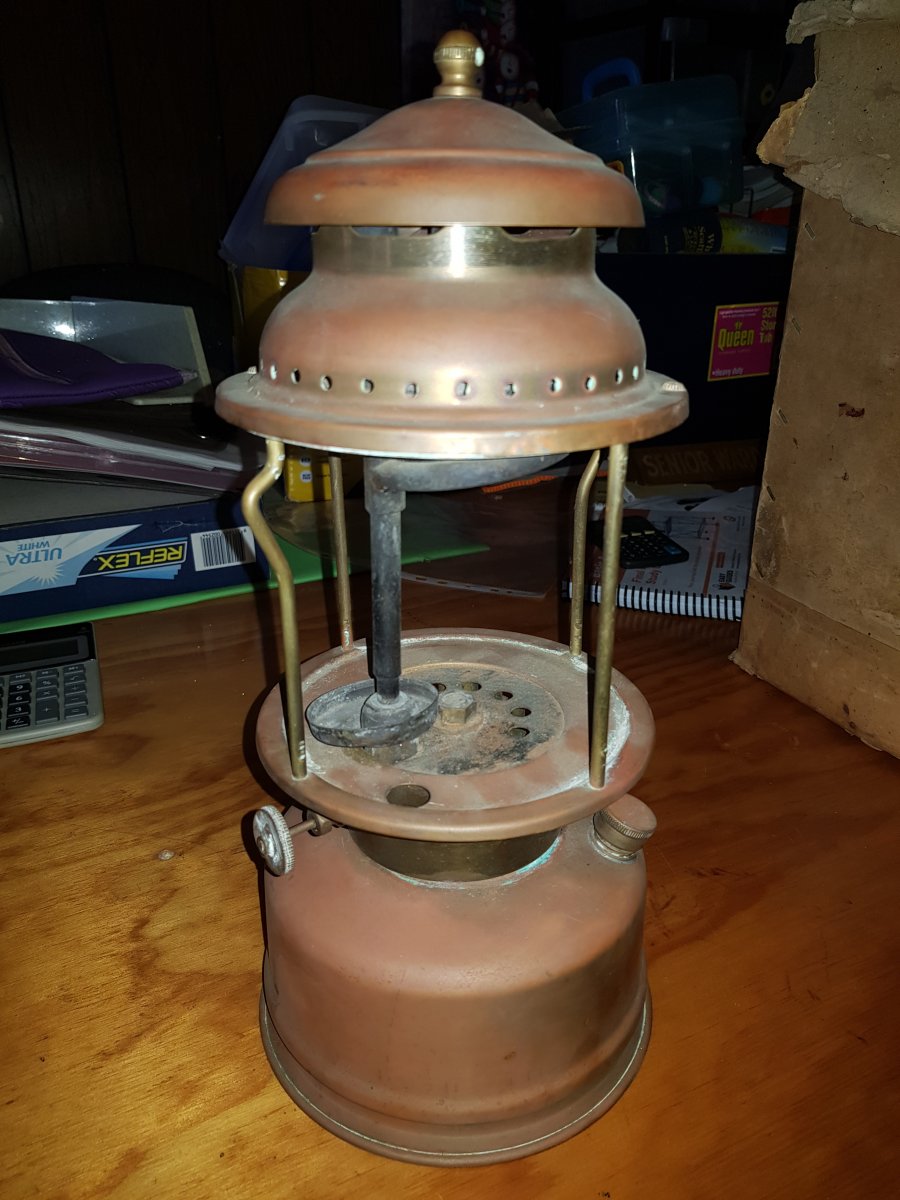

    This one is all brass 20190214_114547.jpg
    Ive noticed on the collars that they are no flange lip collar with 1A Aladdin stamped, then they have a smal flang then later a bigger flange.
    , brass and steel preston loops, , i have the butterfly fuel cap , either early or i got them on the steel fonts only and on one the pump cap was dome with a keyed slot for the pump rod.
    Over time i have bought a few of these lanterns but only to find the tanks have bad stress cracks and ive used the rest for parts on others.
    Some time i think i should have paid more attention to detail.

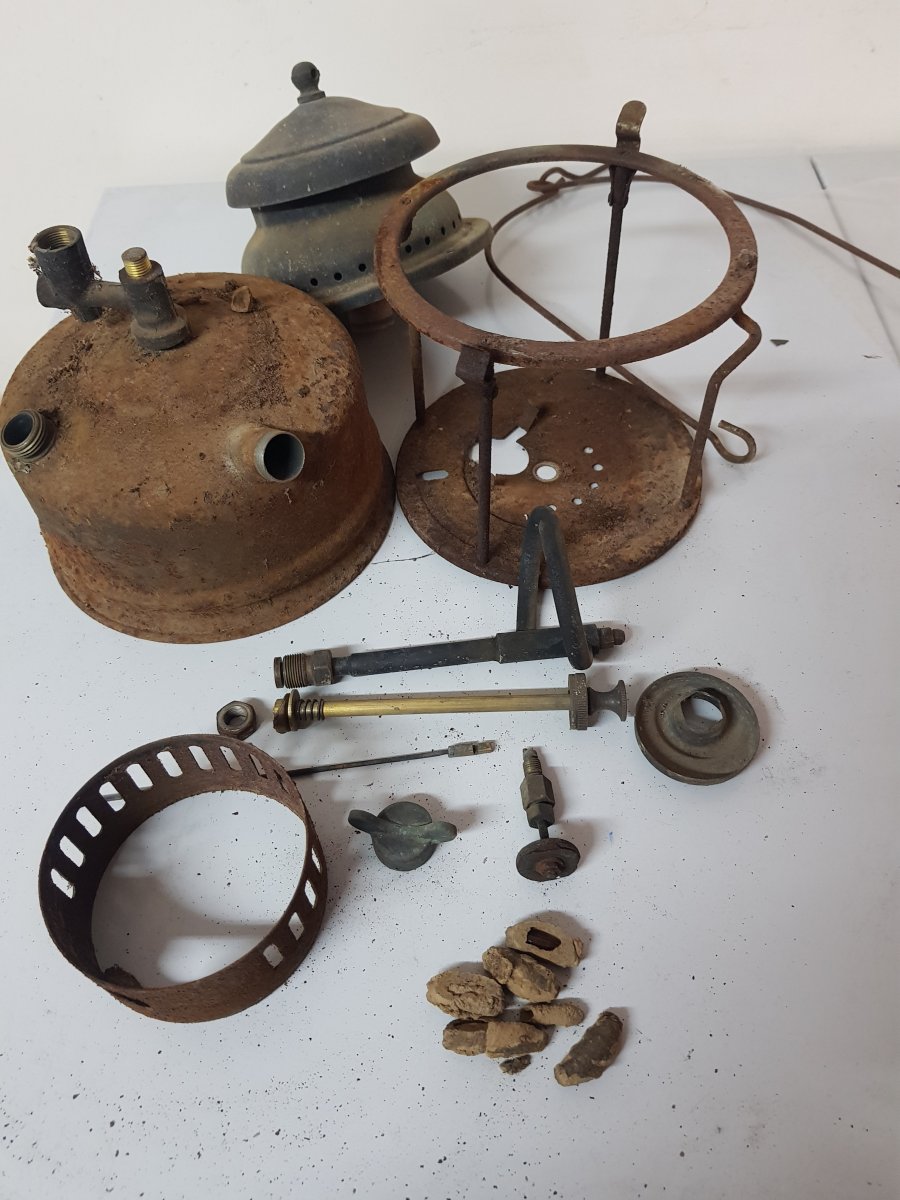

    This lantern is a steel font im working on, and now im going to find the original bits. 20200521_071610.jpg

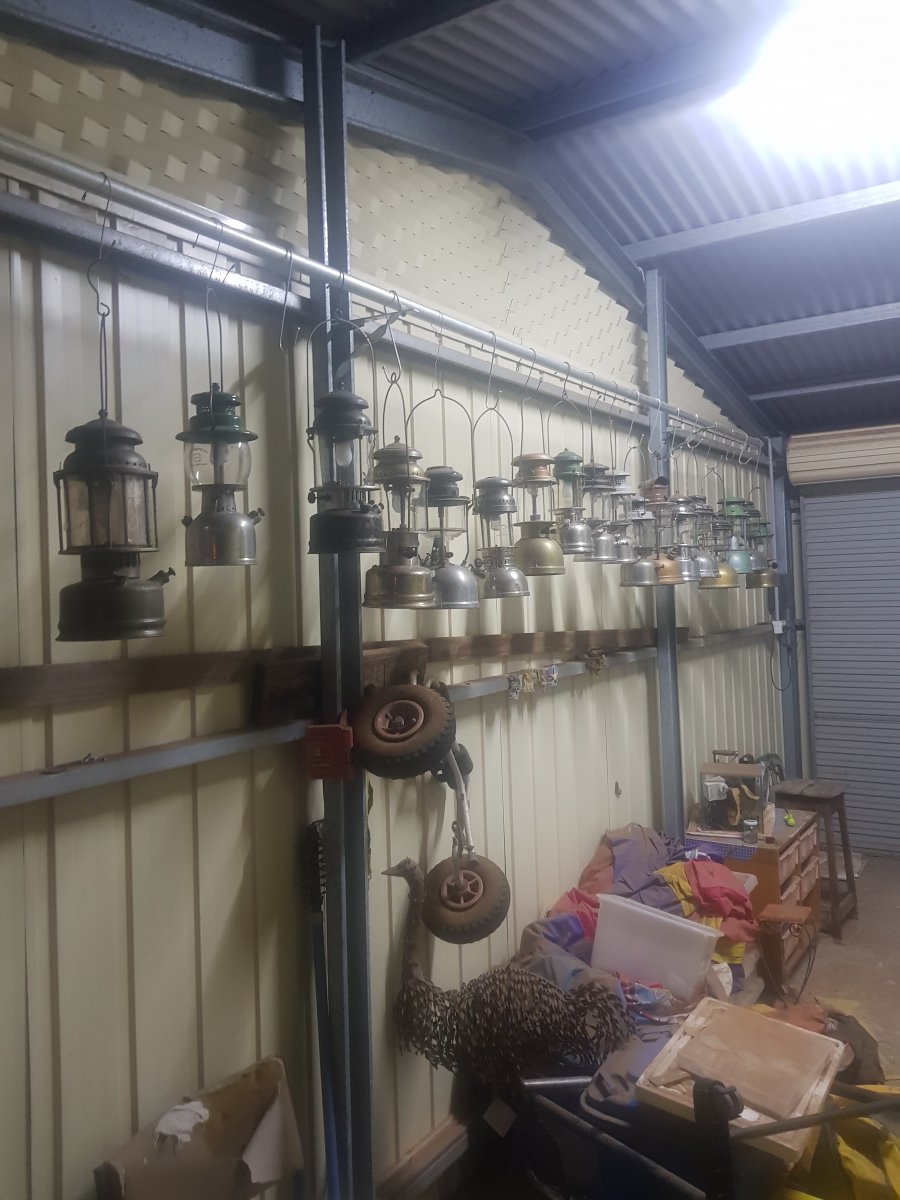

    I have 2 with the mica globes 20200410_194905.jpg
    The lantern closest is a mica globe Aladdin.
    Ill find or get some other pic.
    Thanks for sharing

  15. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,517
    Location:
    Shetland Islands UK..
    Well saved Pete!:thumbup::thumbup:

  16. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    599
    Location:
    Whyalla. South Australia. Australia
    @AussiePete

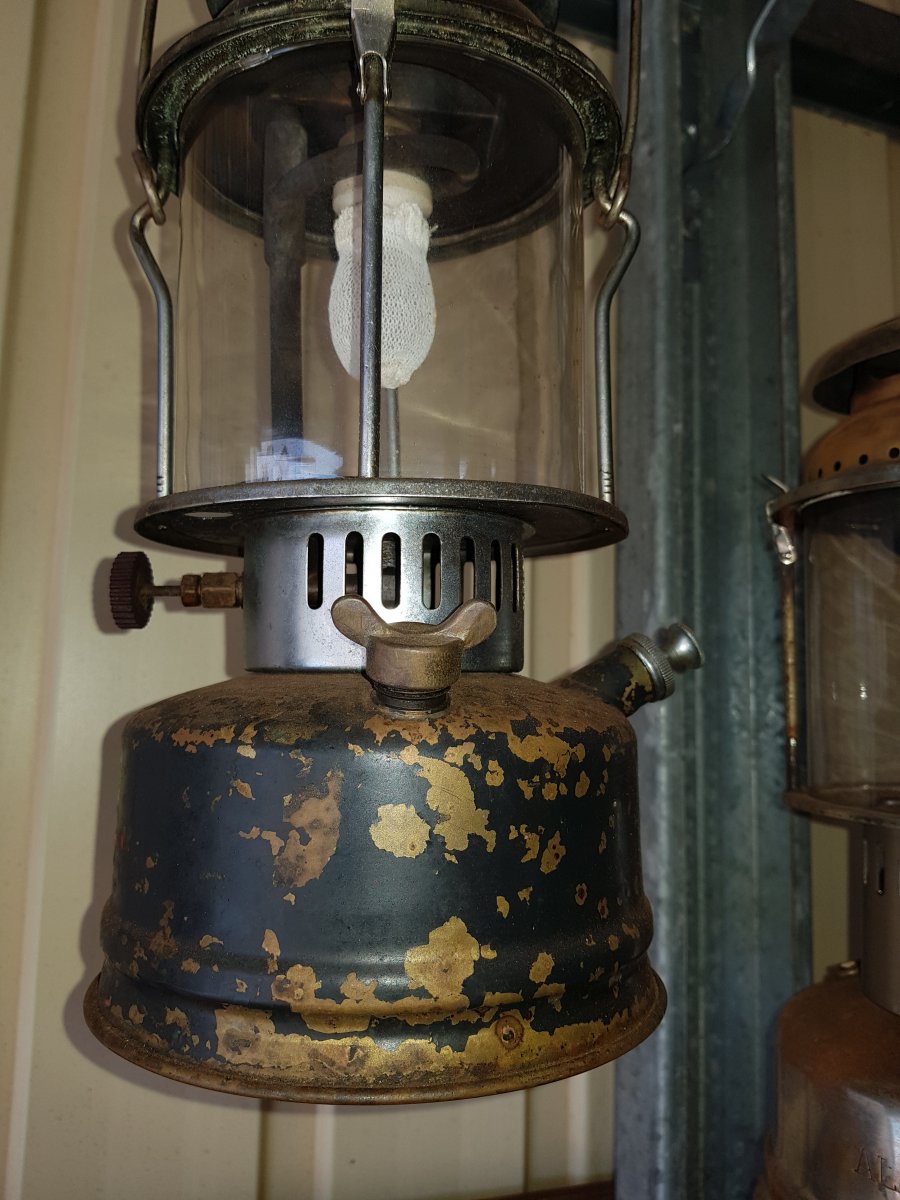

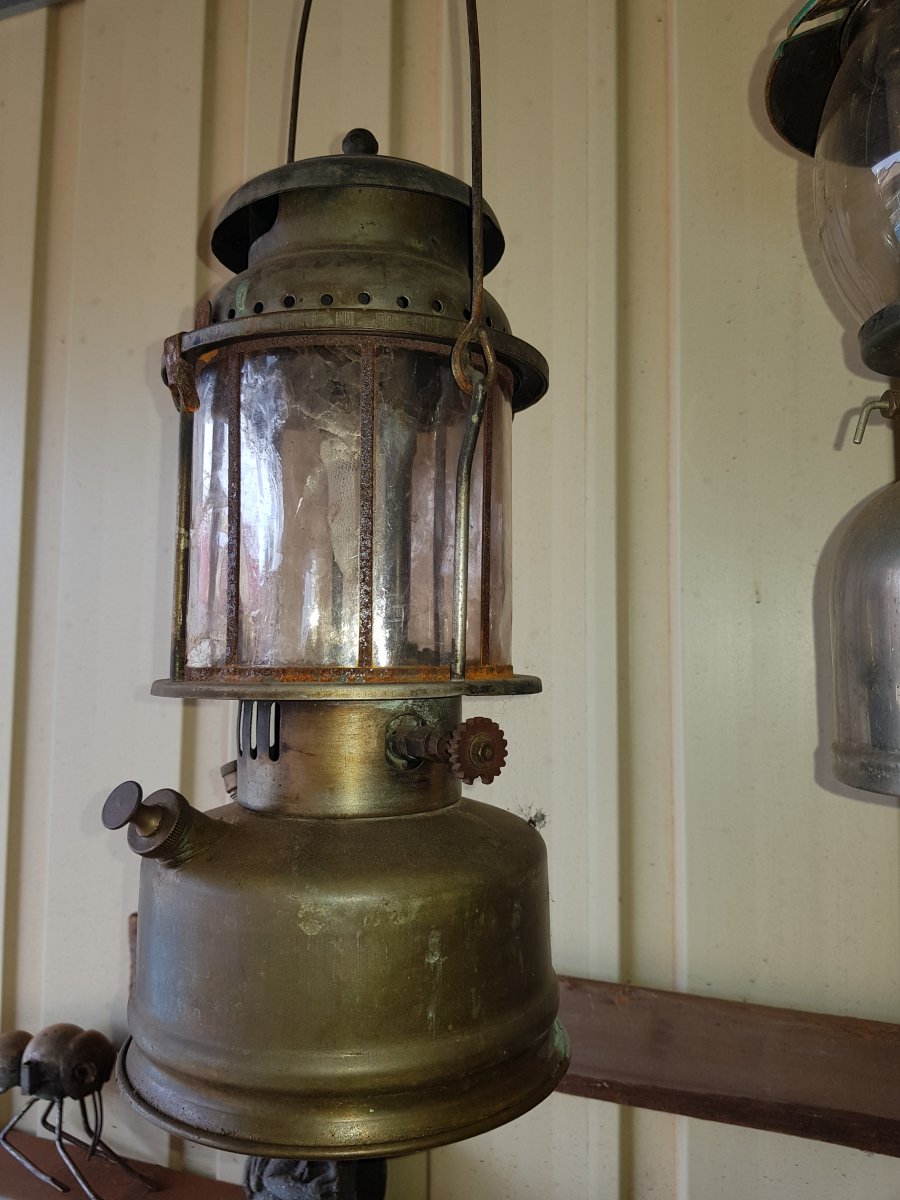

    Mica lantern as found original
    All brass fount. Has small lip on collar.the pricker knob is different thin but chunky
    All brass tank,lip collar thick control knob, butterfly cap. As found.
    No lip collar with 1A Aladdin stamped, steel tank.

  17. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,496
    Location:
    Toowoomba Australia
    Thank you all for your words of encouragement and thank you for the extra information @Darryl Durdin.
    Cheers
    Pete

  18. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,451
    Location:
    Copenhagen, Denmark
    From my experience with Aladdin 1A (which is not that much), I have only seen the winged filler on the steel tank version, all the others have the flat top one. Plain brass on the painted tank and nickel or chrome on the nickel or black painted tanks.

    I have never seen a pump cap like that before. My guess is that it's been changed at some time.

    I also have a couple with mica that looks original.

  19. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,496
    Location:
    Toowoomba Australia
    @Nils Stephenson
    The curious thing is that the pump shaft that fits the shown oddity pump cap is a slightly larger diameter than the other more usual Aladdin 1A pump shafts, and it will not fit into the usual type of cap’s hole. However, other than the diameter of the shaft, all other dimensions and threads are identical.
    Perhaps it’s a very well made replacement?
    Cheers
    Pete

  20. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,805
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson @AussiePete

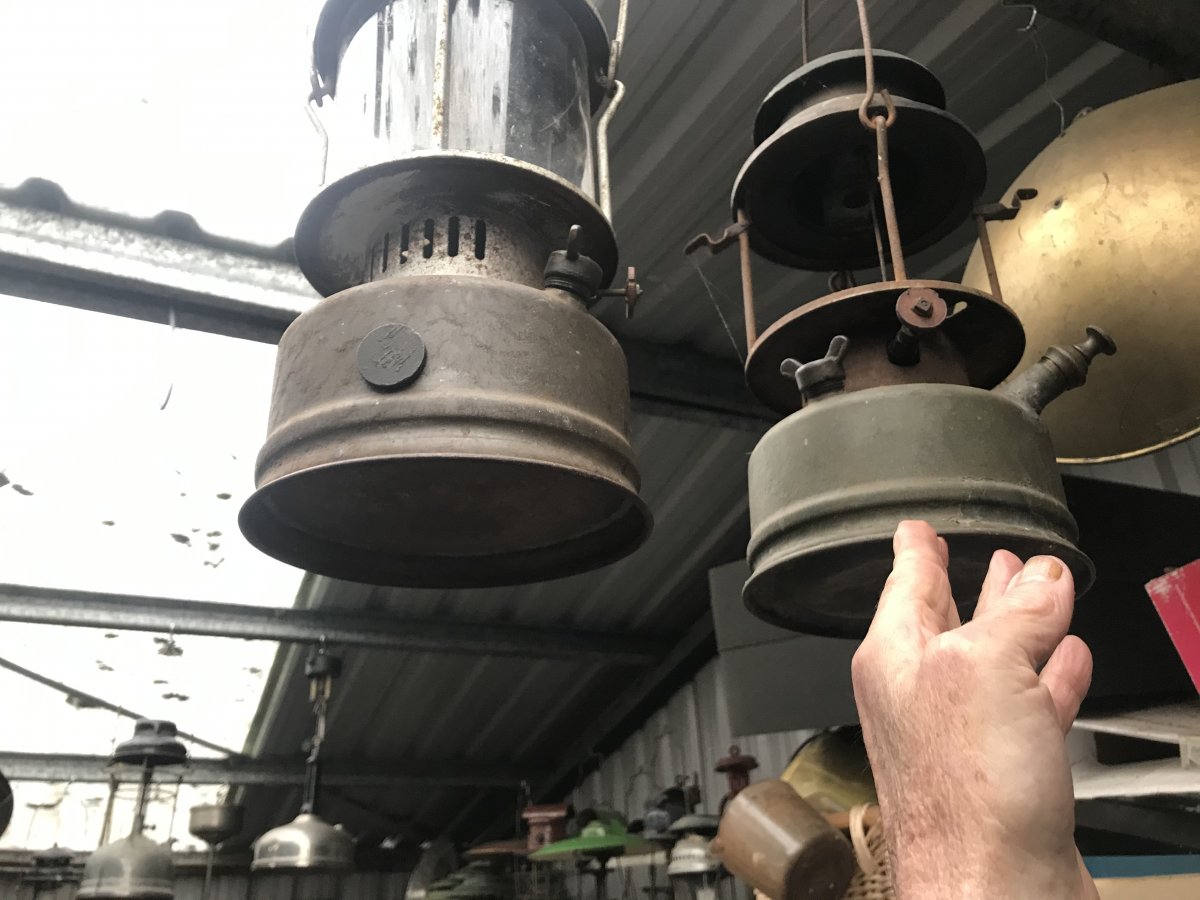

    One steel tank with winged fuel cap; one brass tank with winged fuel cap. Both tanks painted in green crinkle.


    Cheers

    Tony

  21. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,451
    Location:
    Copenhagen, Denmark
    @Tony Press
    Well I did say my experience was limited. :)

    The problem with filler caps is that they can be moved from one lamp to another. Another observation is that the winged filler cap 'usually' comes together with the different type of pump cap and the crinkle paint (as shown in your picture). It is possible that this was the first variation of the 1A before it was simplified with the flat filler cap and the more normal pump style. That is only a guess though.

    @AussiePete
    OK, I'm probably a bit slow here. So a 'normal' 1A pump will not fit the pump tube of the one you have? That is strange and not something I have ever seen before.

  22. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,805
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson

    I think you are right about the winged filler cap, crinkled paint, and the “old” pump cap. In my humble opinion, that is the first version of the Aussie made Aladdin 1A.

    Cheers

    Tony

  23. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,496
    Location:
    Toowoomba Australia
    @Nils Stephenson
    Sorry to confuse you Nils.
    On my example, the pump shaft or pump rod, is a larger diameter to the pump shafts/rods of the usual type. The oddity cap has a larger diameter hole to accomodate the larger diameter pump shaft/rod. Consequently, the pump rod, on my example, is too thick to use the usual standard cap. Other than the pump shaft/rods larger diameter, all the other dimensions and thread sizes are the same. The actual pump tube on my example is the same as the other examples.
    Hope this is a little clearer.
    Cheers
    Pete

  24. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    599
    Location:
    Whyalla. South Australia. Australia
    Hi fellas, i found my original pump that came with one of my steel 1a's. I did see the same pump on an1A in the lantern gallery, 20200525_191655.jpg
    The shaft is steel

  25. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,805
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Darryl

    That’s an old pump. It has the lugs on it to lock the pump into the pump cap.

    Tony

  26. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,496
    Location:
    Toowoomba Australia
    @Darryl Durdin
    That is an old pump, I’ve not seen one like that before.
    Cheers
    Pete

  27. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,451
    Location:
    Copenhagen, Denmark
    @AussiePete The penny has dropped.

    Could be a replacement of some kind, but it is unique so far.

    The two examples I have seen of the old pump and cap have both had the locking lugs on the pump shaft.

  28. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    599
    Location:
    Whyalla. South Australia. Australia
    Old pump in detail.
    The insert inside brass cap is steel. 20200526_064144.jpg 20200526_064136.jpg 20200526_064129.jpg 20200526_063143.jpg

  29. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,496
    Location:
    Toowoomba Australia
    @Darryl Durdin
    The insert being steel must be there for the wear factor. The steel pump shaft would wear the brass quickly if not for the steel insert.
    This thread has turn up some very interesting variations on the Aladdin1A.
    Good stuff.
    Cheers
    Pete

  30. Damien

    Damien Australia Subscriber

    Offline
    Joined:
    Apr 8, 2020
    Messages:
    123
    Location:
    NSW
    G'day fellas.... trying to get even close to a money shot still proving elusive. Pumped up, little spurt from nipple, filled pre heater, lit it, no flame from porcelain??? I know it's me, just can't figure out what. Photo attached of attempted light 20200531_141630.jpg


Share This Page
