any body know what this Arc Lantern is??

Discussion in 'Mystery Lamps' started by Bruce Kuda, Dec 6, 2018.

  1. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog

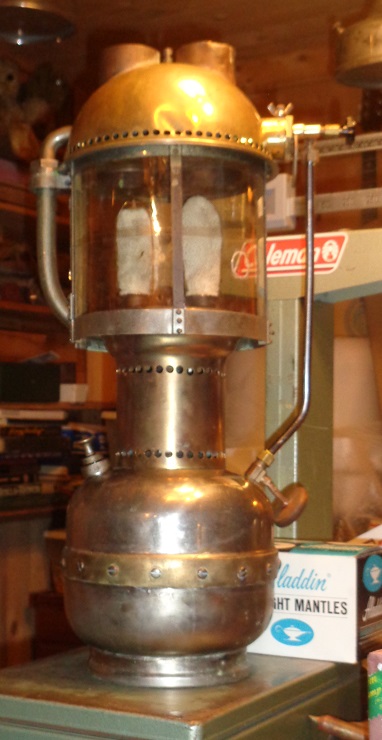

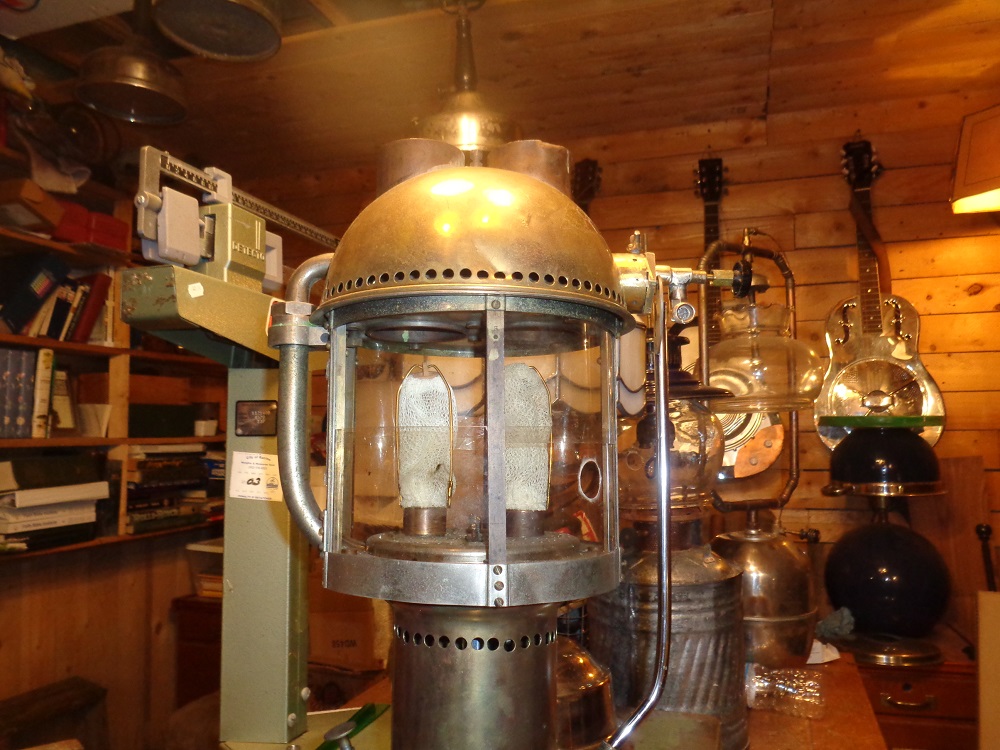

    Hi-- New here-- my Last hope-- I have been trying to identify this burner head for 15 years-- no luck ~~ some suggestions were a Nautical signal lamp, I got the head and had no idea what it was-- finally a few months I figured it was vapor pressure arc lamp/lantern~~~~~ I just had the head so I fabricated a font out of a couple orphan quick lites-- got some mica for the shade--- and use the generator off a Coleman 425 stove. I have had it fired and it burns very nicely ( torch light ) I used Aladdin mantles first try but they allowed a lot of gassing off at the top so I am trying some larger mantles I just got---- any help identifying this would be greatly appreciated ~~~ I have nick named it my Jules Vern 20,00leagues under the sea lantern

    Bruce in Wisconsin at Camp Wounded Dog

    julesvern lantern 001.JPG american mantle 001.JPG

    Last edited by a moderator: Dec 6, 2018
  2. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
  3. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,911
    Interesting! Could you post a few close-up pictures of the burners and working parts with the covers off?

  4. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    I'l lpost a you tube but it has to be approved I guess--the big copper hat is intergrel and does not come off-- but the video will show a lot-- I shot it when I was first trying to figure it out-- at the timeI thought it was some sort of natural gas heater-- but figured ot it a vapor arc
    Maybe you can just cut and paste in you r broweser


    Last edited by a moderator: Dec 6, 2018
  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,044
    Location:
    Shetland Islands UK..
  6. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    Thank you Jeff-- I did check that and one of the Lamps sure looked like it was in the same family-- and the designation Incandescent Oil Vapor lamp-- sure puts it in the vapor category-- that is going to be the direction of my research-- thank you !!

  7. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,044
    Location:
    Shetland Islands UK..
    Hello Bruce, you are welcome.

  8. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,044
    Location:
    Shetland Islands UK..
    This link shows a lighthouse lamp being lit.


  9. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,044
    Location:
    Shetland Islands UK..
  10. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    wow good stuff thanks !!

  11. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,559
    Location:
    Somersby, New South Wales, Australia
    G'day @Bruce Kuda , I can't help with information but had to say what a great looking lantern it is. And you have done a marvellous job getting it going. :clap::clap::clap:
    and welcome to CPL.

  12. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog

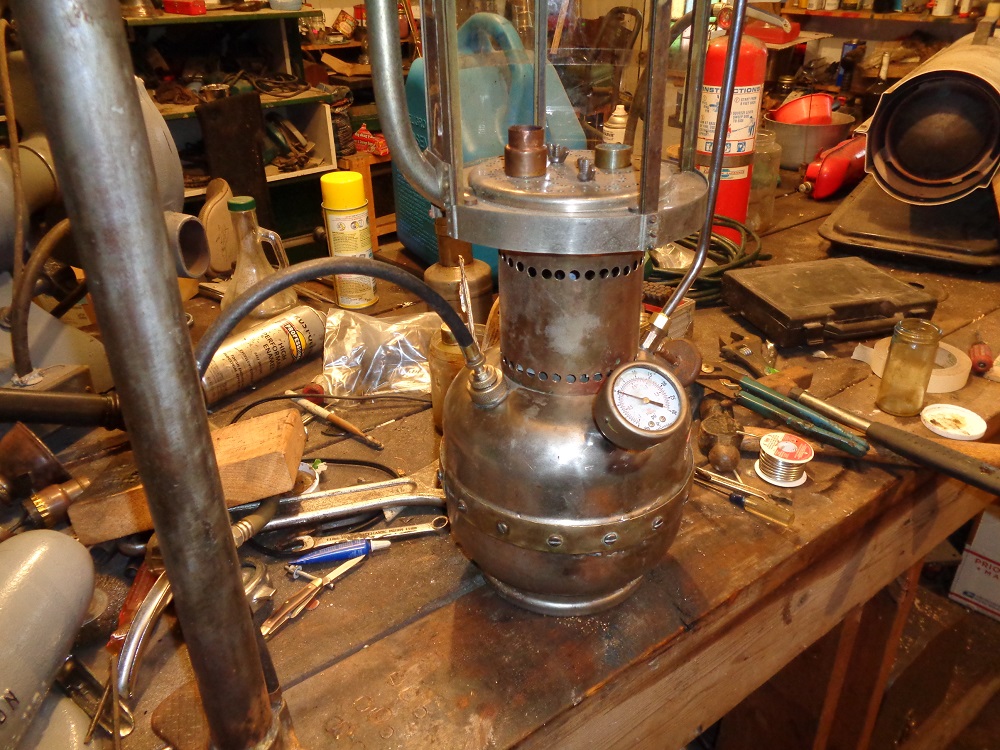

    thank you-- I am currently doing some modifications-- I removed the old pump pressurizer and installed an "Amish" nipple so I can pressurize with a bicycle pump-- and I added a vintage pressure gauge. the old pump had a slow back pressure leak I could not resolve-- tried all kinds of gaskets to no avail-- I gave up-- I frequently use the Amish nipple-- makes life so much easier~~
    jules vern amish nipple 001.JPG jules vern amish nipple 002.JPG

  13. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    I'm still tryinngto find out what my mystery lantern is--- I came across a picture of a Kitson Cluster Burner~~~~ mine looks very much like it--- can any one confirm or refute for me>> thanks in advance


    my girls an kiton burners 001.JPG

    Last edited by a moderator: Jun 14, 2019
  14. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,044
    Location:
    Shetland Islands UK..
  15. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    *Edit: posts below merged to the original, already exising thread about this lamp.

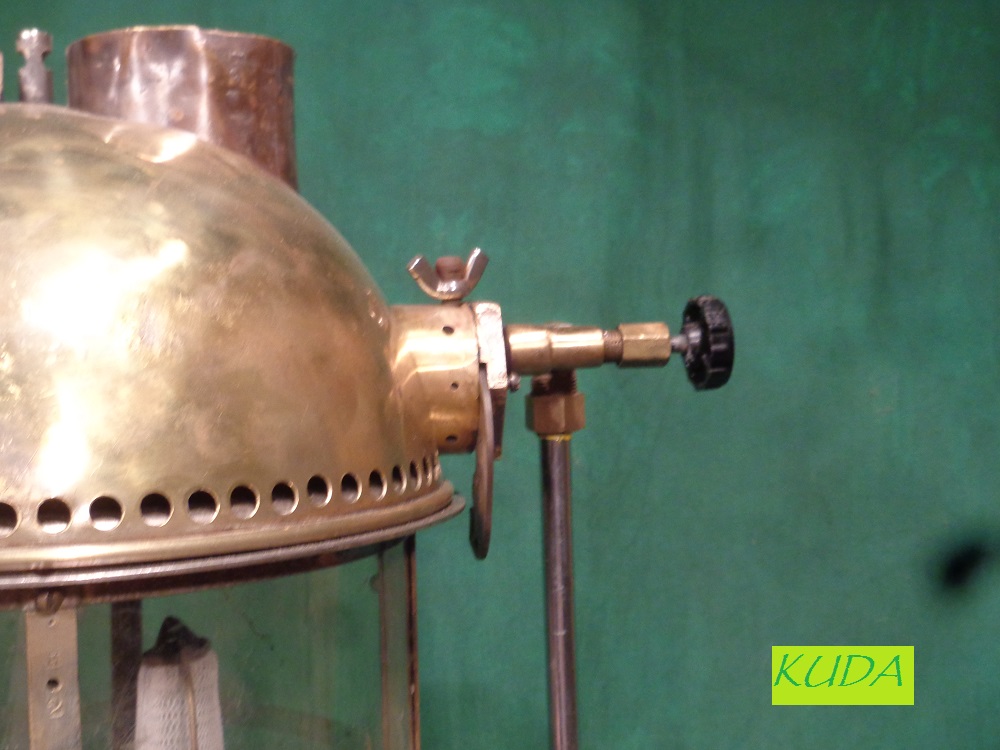

    okay- one last try to identify this burner head I've been trying to get a positive ID on it for almost 15 years-- got it burning last year-- one fellow in England said it looks like a Kitson IOV cluster burner-- Kitson holds the original patent for vapor lamps-- around 1890 - this pre dates Coleman, If any one can ID this please let me know

    kitson 002.JPG kitson 004.JPG kitson 005.JPG

    Last edited by a moderator: Jun 14, 2019
  16. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,869
    Location:
    Toowoomba Australia
    I can’t identify it, couldn’t even guess ..... but that’s some serious stuff. Looks like it come off of Jules Verne’s Nautilus.
    Cheers
    Pete

  17. KAB

    KAB Subscriber

    Offline
    Joined:
    Mar 27, 2016
    Messages:
    441
    Location:
    South East England
    I strongly believe it to be a lamp, using pressurized liquid fuel to produce light :whistle:

    A very nice example made by ?????????? with a look of early proof of concept. I like the shape and look of your lamp, although seems strange to have the vapouriser go through the hood where all the heat is, then have the mixing tube go outside and down to cool on the way :-k

    More details may come to light :D Is it time to light and let it shine?

  18. Erik Leger

    Erik Leger Germany Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    311
    Location:
    Right in the Middle of Nowhere, S. Germany.
    I read some infos on this a while ago. Can't remember if it was here or at the CCF.
    A few days later it popped up at ebay for a ridiculous price.
    If I find it again I will ad the link.

    Erik

    ...
    Unique Kitson? Nautical Gas Vapor Lantern Buoy? Pier? Lighthouse" Coleman parts | eBay

    ...
    Weirdnerd Jan 02
    I think it is from Bruce Kuda, he has posted about it since he found the top part ( also has a Youtube channel with it), he adapted the rest to make it functional, it is an interesting piece of equipment and he spent quite some time fabricating and adapting parts to make it work again, I believe someone said it was originally a pier light, but I may be wrong.

    Last edited: Jun 14, 2019
  19. kero-scene Australia

    Offline
    Joined:
    Jan 23, 2013
    Messages:
    207
    Location:
    Australia
    Thanks for sharing this, that’s one intriguing device!

  20. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,133
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  21. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,044
    Location:
    Shetland Islands UK..
  22. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    810
    Location:
    Melbourne, Australia
    @Tony Press I have no idea what it is :-k

    I had a look around last time Bruce posted it.
    Kitson is probably about right but only a guess.
    @Bruce Kuda I hope you get your answer sometime.

  23. Jones the lamp

    Jones the lamp Subscriber

    Offline
    Joined:
    Jan 3, 2012
    Messages:
    87
    Location:
    Narrabeen, New South Wales, Australia
  24. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    thank you-- me too!!

  25. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    thank you- very interesting history!!

  26. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    I have it posted on ebay-- hoping some one would see it and tell me more about it-- yes the price is ridiculous-- I really dont want to sell it and if some one did offer me the asking price I still dont know if I'd sell it-- there is something extremely satisfying knowing you have something no one else has-- -- but if you really like it and want it- I'll knocK 50 bucks off the price ! :-)

  27. Bruce Kuda

    Bruce Kuda United States Subscriber

    Offline
    Joined:
    Dec 6, 2018
    Messages:
    81
    Location:
    burlington Wisconsin at Camp Wounded Dog
    yes it does light and pretty well but getting it going is like some sacred druid ritual~~~~


    Last edited by a moderator: Jun 24, 2019
