Austramax 3/300 Lantern (Late Model)

Discussion in 'Austramax' started by ROBBO55, Oct 4, 2018.

  1. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    883
    Location:
    Somersby, New South Wales, Australia
    This is a late model Australian Austramax 3/300 Lantern.

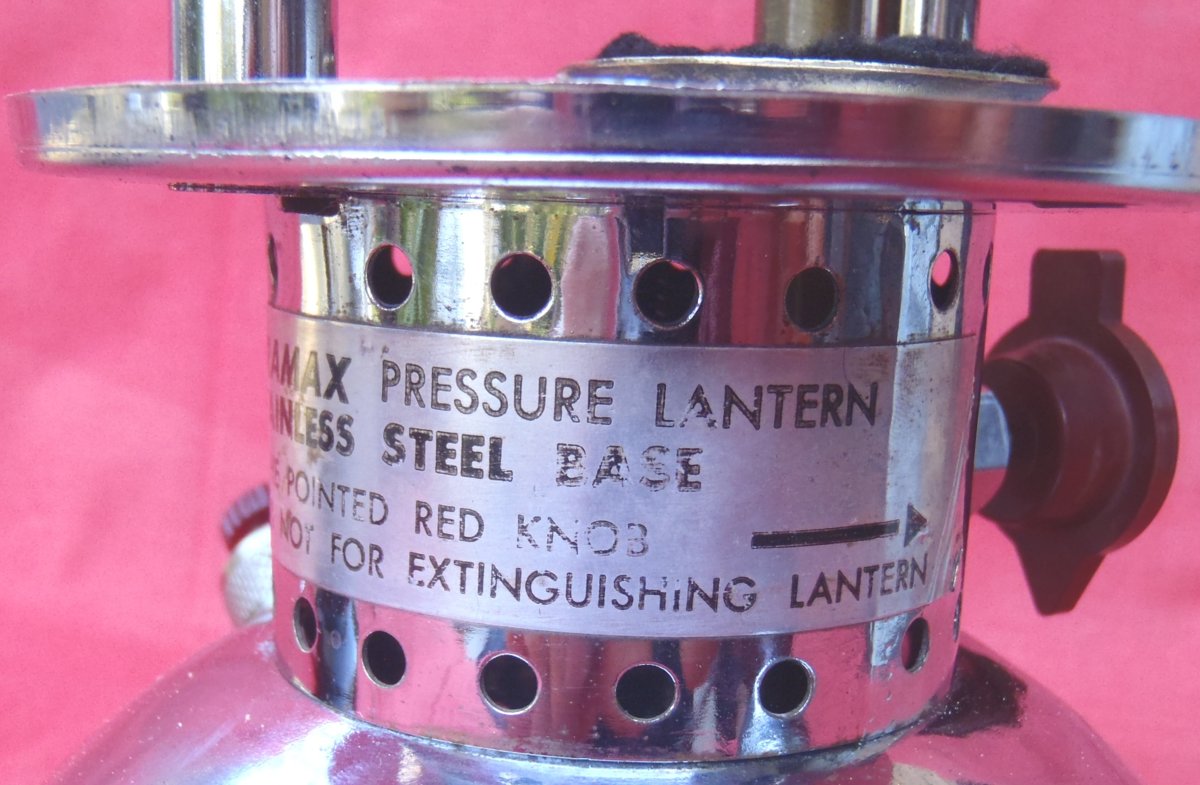

    The font is brass with a Stainless steel bottom

    The handle is the short square shape. It catches on the hood thus preventing the handle from folding down. These were redesigned and the handle modified to clear the hood on later model.

    The hood is black enamelled steel with four handle attachment holes

    The glass is bulbous and marked with Austramax. But I’m not sure this version should have had straight sides.

    1.JPG 2.JPG 3.JPG 4.JPG 6.JPG 7.JPG 8.JPG 9.JPG 10.JPG 11.JPG

    The knob on the pump is a type of hard plastic or resin

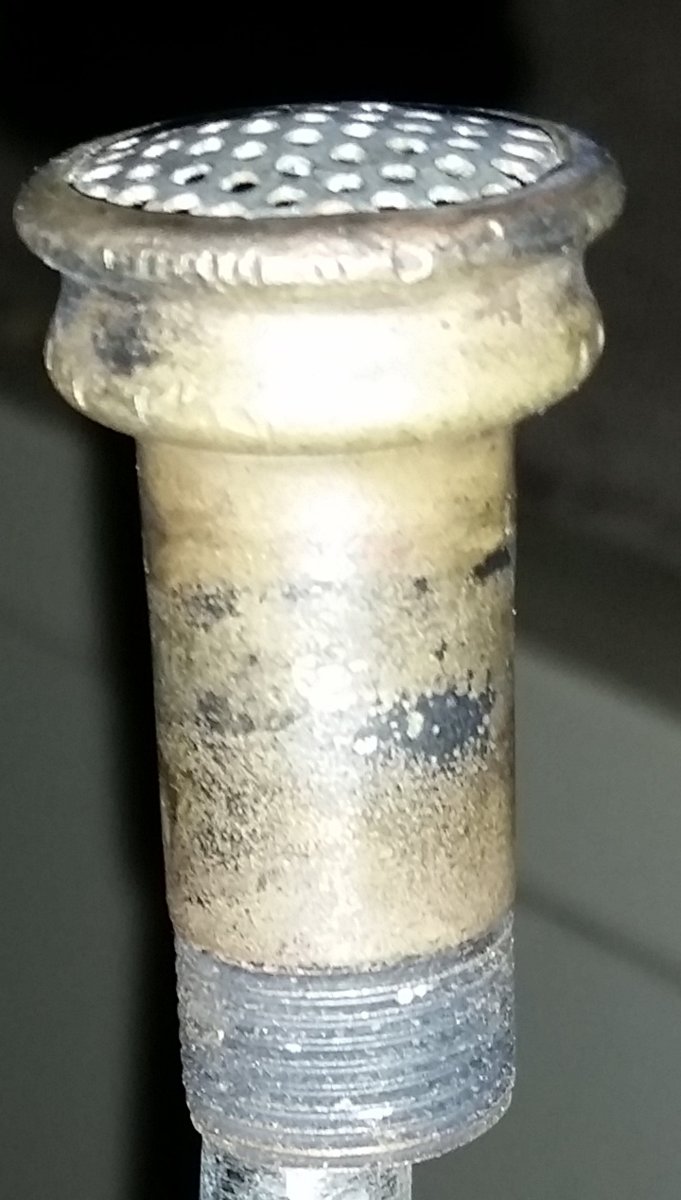

    The burner (nozzle) is a single piece with a pressed steel screen (original screen burnt out and had to replace the screen)


    The NRV is larger than the standard primus type and has a screwdriver slot rather than the raised 5mm head for removal. The body and PIP holder is made of plastic.

    13.JPG 14.JPG

    The pump piston is an ‘O’ ring design

    15.JPG 16.JPG 17.JPG

    The vapouriser and needle with brass mesh insert. (New nipple as the original was missing but the vapourised had very little use.


    The pressure bleed is plastic.

    19.JPG 20.JPG

    The control Knob is the later pointed style


    The hood nut is aluminium

    22.JPG 23.JPG

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    883
    Location:
    Somersby, New South Wales, Australia
  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    883
    Location:
    Somersby, New South Wales, Australia
    First I tested the lantern in the shed. The lantern is fitted with a Coleman 21 mantle and generic glass (didn’t want to risk original glass at this stage) . Then in the Garden whilst Barbequing dinner.

    I'm happy with the result :lol:

    26.JPG 27.JPG

  4. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,046
    Location:
    Copenhagen, Denmark
    Very nice. It doesn't look like it has had much use.

    I believe the glass is correct for this variant. The straight sided glasses turn up much later after the introduction of the wider handle.

  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    883
    Location:
    Somersby, New South Wales, Australia
  6. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    3,473
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  7. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    7,047
    Location:
    Shetland Islands UK..
    It's working well!:thumbup::thumbup:

  8. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    883
    Location:
    Somersby, New South Wales, Australia
    Thanks Tony and Jeff.

    They are a straight forward lantern but I do like my little Austramax's

  9. Titoo

    Titoo Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    221
    Location:
    FRANCE: 25 Franche Comté
    Perfect :thumbup:

    Regards,
    Titoo

  10. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    883
    Location:
    Somersby, New South Wales, Australia
    Thanks Titoo
