Austramax 3/300 Lantern with Red Hood and all brass font.

Discussion in '3/300' started by ROBBO55, Dec 14, 2017.

  1. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,087
    Location:
    Somersby, New South Wales, Australia
    This is an Australian Austramax Lantern and appears to be an early variation of the 3/300.

    The hood is red enamelled steel

    The glass is bulbous and marked with Austramax (in red letters).



    The font is all brass (not a steel base).

    The tank has the additional blocked-off port


    The font is stamped twice with the Austramax logo, once under the filler cap and the second under the pump tube.


    Frame and base plate is brass with nickel plating

    5.JPG 6.JPG 7.JPG

    Hood retainer and acorn nut (brass)

    8.JPG 9.JPG

    The pressure bleed and filler cap are brass

    10.JPG 11.JPG 12.JPG

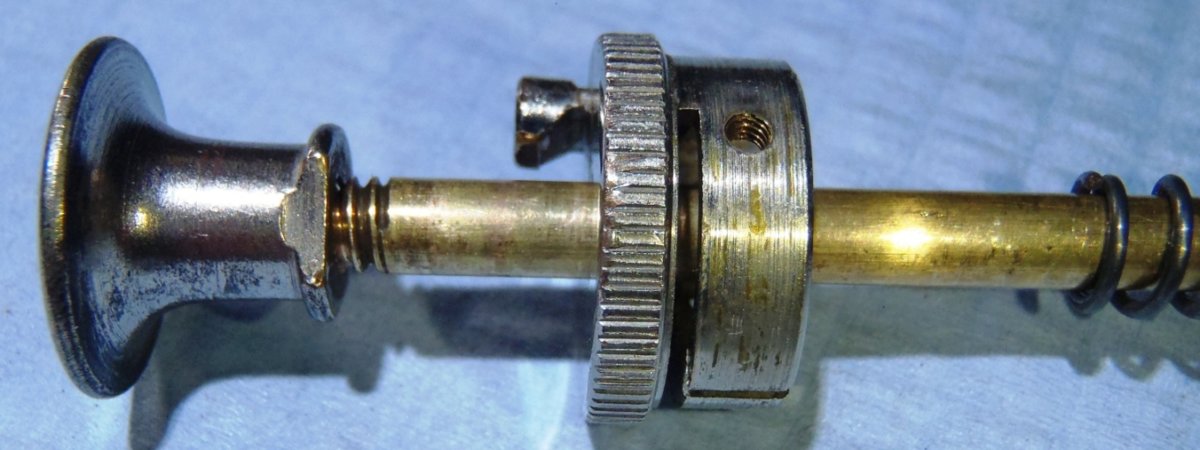

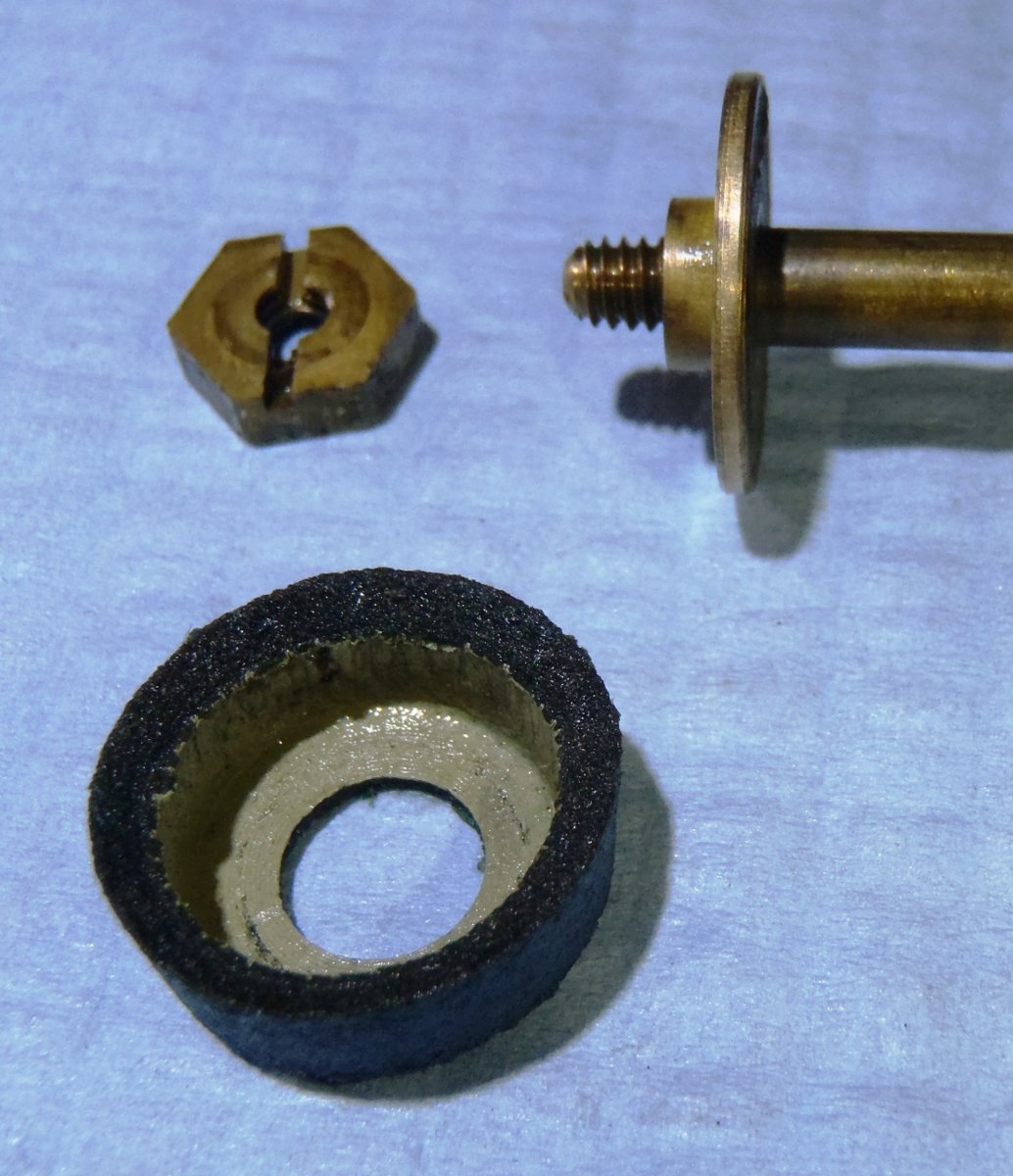

    The pump assembly and retaining screws

    13.JPG 14.JPG 15.JPG 16.JPG

    The control Knob is the round wheel type


    The vapouriser and needle with brass mesh insert. Note the pricker was broken and has been repaired with a new 0.15mm steel wire.


    The NRV is not original to this model. It had previously been replaced with the modern Austramax NRV.

    Note the nut on the screw is swaged on after the NRV was assembled. It would be better to replace the seal by prying the old one off rather than disassembling the NRV (like I did)

    19.JPG 20.JPG 21.JPG

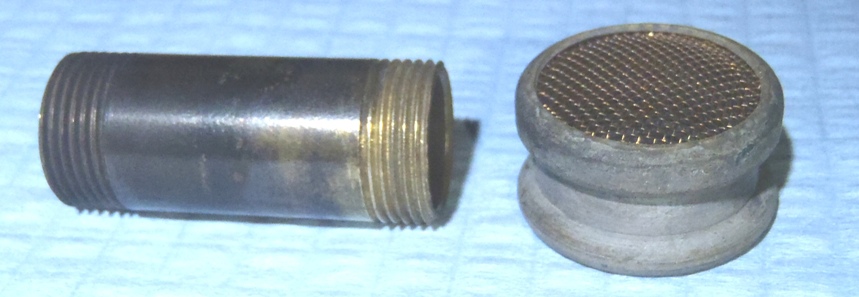

    The burner (nozzle) is in two parts with wire mesh.


    The burner came with a very fine mesh that looked like it came from a kitchen tap filter. I did get it to work when I increased the pressure significantly. But I still think it’s not right.

    I replaced the mesh with a larger stainless steel mesh from a kitchen strainer. The wires were 0.22mm Dia with approx 0.7mm between wires.

    22.JPG 23_0.22x0.7.JPG

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,087
    Location:
    Somersby, New South Wales, Australia
    Testing the lantern on the bench with no mantle.

    No underburn but there is still a little red in the flame. Good enough to give a mantle a go.

    I did flatten the gauze off a bit to get rid of the peak before fitting a mantle.


    Testing of the lantern in the shed. The lantern is fitted with a cheap oversize mantle and generic glass (didn’t want to risk original glass at this stage)

    With a mantle there was a nice bright light.


  3. phaedrus42

    phaedrus42 Subscriber

    Online
    Joined:
    Jun 14, 2014
    Messages:
    1,960
    A fine example of a very well made lantern, Martin. Thanks for the detailed photos. This model is still on my wish-list!

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @ROBBO55

    Thanks for the detail. It really helps when we’re trying to sort out the lineage of these Austramax.

    Great job on the lantern. :thumbup::thumbup::thumbup:.

    Oh! And thanks for showing us that “new” NRV and the advice about not unscrewing the nut. When you showed it to us at Ballarat, it was the first time I’d seen that variation.

    Cheers

    Tony

  5. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,642
    Location:
    Copenhagen, Denmark
    That's a very nice example Martin. Well done on the restore.

    This matches with what I call the 3/300 version 1. There is a difference from mine and that is the position of the logos.

  6. kerry460

    kerry460 Australia Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    305
    Location:
    Launceston Tasmania
    G,,day Martin .
    it looks bloody good .
    with my lack of knowledge it was nice to know about the new NRV .
    it definately looks nice and bright .

    cheers
    kerry

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,087
    Location:
    Somersby, New South Wales, Australia
    @Nils Stephenson
    Thanks Nils I thought it was the same as your version 1..
    Bugger! a copy error. :oops:
    The logos are opposite each other and between the filler cap and the pump. .

    Thanks @phaedrus42 , @kerry460 it is nice and bright. Great performers for their size.
    Thanks @Tony Press it was good to have Bernie at Ballarat to identify the NRV. Kerry was the only other one to have previously seen one.

    Last edited: Dec 14, 2017
  8. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,642
    Location:
    Copenhagen, Denmark
    Then it is the same as my version 1. :) Just in a lot better nick. You wouldn't happen to want to get rid of it by any chance. ;)

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson

    “Thou shalt not covert thy neighbour’s lantern”... (a failing I have often). ;)


    Cheers

    Tony

  10. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,087
    Location:
    Somersby, New South Wales, Australia
  11. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,642
    Location:
    Copenhagen, Denmark
    Now, now, just asking a civil question. :) But I really think you should look at your spelling. It's very stealthy, but still obvious. :)

    No, I'm pleased another collector has such a nice example and I'm sure one will come my way someday. We all probably have something that someone else "covets".

  12. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson

    Aaghhh!!! Twice in one week! Stealthy indeed. :lol::lol::lol:.

    I suppose you could covertly covet his lantern but you were out there with bells on!

    Cheers

    Tony

  13. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,642
    Location:
    Copenhagen, Denmark
    I like that. Covertly covet. I do that quite a bit actually. :)

  14. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,446
    Location:
    North-East England
    I also thought you'd made a spelling mistake by missing out a letter - “Thou shalt not convert thy neighbour’s lantern”. Nor your own for that matter... ;):lol:

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  16. Hanzo

    Hanzo Subscriber

    Offline
    Joined:
    Feb 2, 2016
    Messages:
    303
    Was the Austramax based on the Coleman 242, they look so similar?

  17. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Hanzo

    That may well be the case, but it’s been difficult to piece the history together as much information was lost some time ago.

    I’ve got a standing request to visit the factory, but the current owner has been unwell for some time.

    Best regards

    Tony

  18. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,642
    Location:
    Copenhagen, Denmark
    The basic design of the Austramax is quite similar to the Coleman 249, so maybe you could say it was inspired by it. Nothing is interchangeable so you can't call it a copy.

  19. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,537
    Location:
    Shetland Islands UK..
    A fine example!:thumbup::thumbup:

  20. scl

    Offline
    Joined:
    Oct 10, 2017
    Messages:
    157
    Location:
    united states
    i will be getting 2 budget allowing.
