Barnard Hanging Lamp

Discussion in 'Blanchard & Barnard' started by Anthony, Feb 18, 2017.

  1. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    999
    Location:
    Melbourne, Australia
    I don't know if this is a model 1215, 1217 or some thing else. I hope some one will sort that out for me.

    This lamp took more time and effort to get going than any other lamp I have worked on but absolutely worth every bit of it.

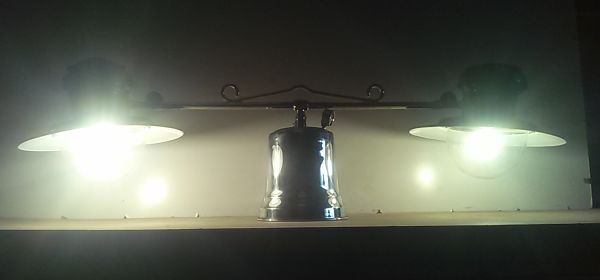

    Takes a bit to get going but once hot it is stable and bright.

    Absolutely, positively one of my favourites.


    1487416306-CAM03151_opt.jpg 1487416322-CAM03166_opt.jpg 1487416336-CAM03158_opt.jpg

    The pricker shown here did not work as the pointed bit was too long and folded over.
    I made up another with a shorter point every thing went perfectly.

    Last edited by a moderator: Apr 1, 2017
  2. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,211
    Location:
    Hertfordshire

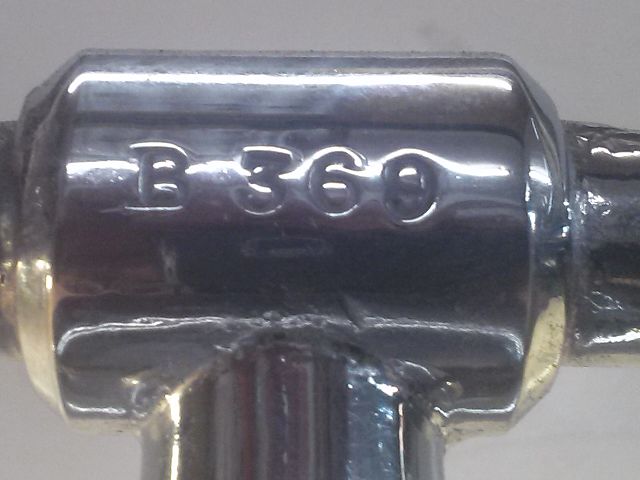

    We don't have model numbers for any Barnard lamps. They are sort of copies of Blanchard product and as such this is Walter Barnard's version of Blanchard 1215. Walter worked for Blanchard until 1925 and we think he began making his own lamps after Blanchard changed ownership then. As these are pretty well hand made lamps serial 360 is probably from the early 1930s.

    Always tricky lamps to fettle but such a good burner that they nearly always run well. ::Neil::

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,709
    Location:
    Shetland Islands UK..
    An excellent find! :thumbup:

  4. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    1,650
    Location:
    N E Scotland
    Very nice Anthony.

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,068
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    :thumbup: :thumbup: :thumbup: !

    That's very special.

    Cheers

    Tony

  6. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,819
    Location:
    Somersby, New South Wales, Australia
    Great work Anthony and worth the effort. :clap:

  7. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    1,050
    Location:
    56 France
    Very nice, I want one :-)

  8. Lamp_Doctor Australia

    Offline
    Joined:
    Jan 3, 2013
    Messages:
    600
    Location:
    Victoria /Australia
    Looks good now Anthony.
    Its come a long way since I saw it in pieces.
    Bob .

  9. James

    James Subscriber

    Offline
    Joined:
    Jan 5, 2011
    Messages:
    1,060
    Very nice. Not the easiest to fettle, well done!

  10. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    999
    Location:
    Melbourne, Australia
    To make life a bit easier for anyone else I thought I would add a few points.

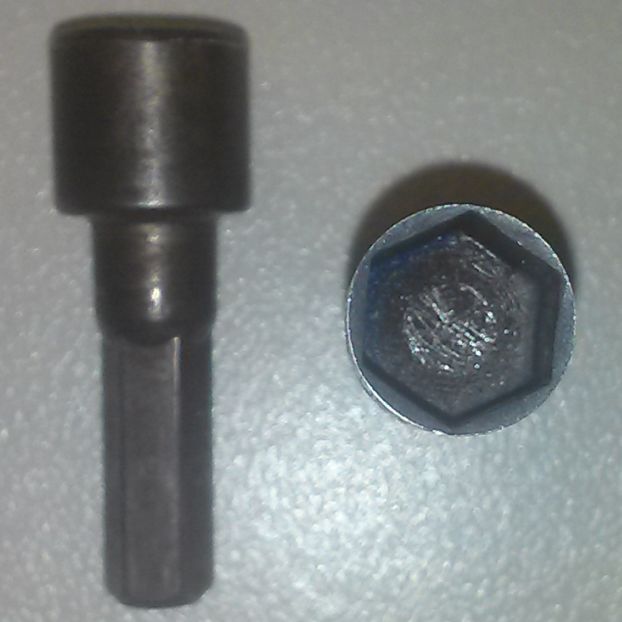

    To get the jet out I got a 9mm socket and turned it down to fit into the burner head. The wall of the socket got quite thin as can be seen in the pic and I wouldn't want to go any thinner.

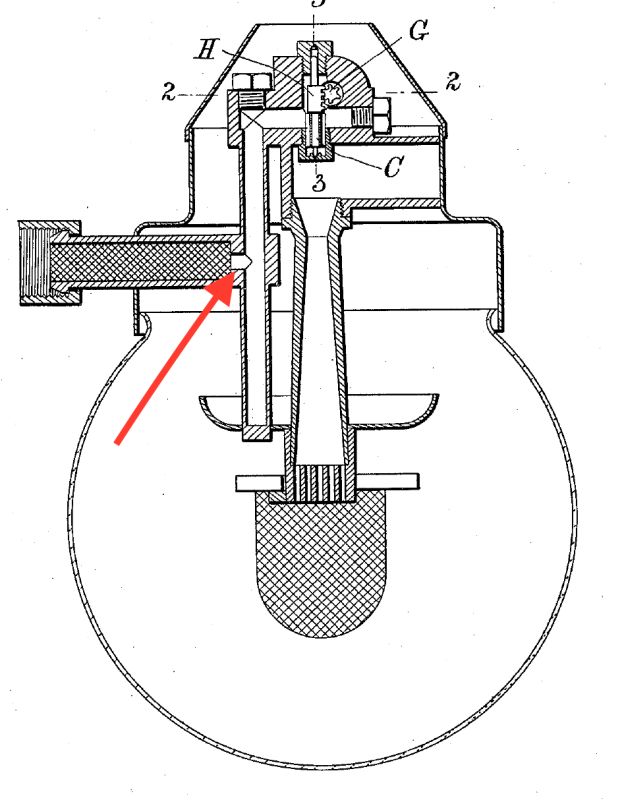

    The packing that came with it was a very course mesh and blocked. I tried the same mesh back in it but it roared like a flame thrower. I tried a few others but ended up with a very fine mesh poked into where the arrow is pointing. Making the wad long enough to be able to grab it with pliers of course.

    The fine mesh is I believe #80.
    Diameter of wire = 0.14mm
    Distance between wire = 0.18mm
    38% open space.

    The mantles on it are Butterfly 500/600cp tied onto the flame spreader.

    1487541391-blanch_pat_pic__opt.jpg 1487543227-CAM03180_opt.jpg

    Last edited by a moderator: Mar 31, 2017
  11. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,938
    A very rewarding end result of your hard work!

  12. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    999
    Location:
    Melbourne, Australia
    I have been informed by a very knowledgable Blanchard collector that this is indeed a Blanchard made by W. T. Barnard early in the 1930s before he started to add name plates to the fuel tanks and it is model 1217.

  13. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,068
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  14. taiwan_lei

    Offline
    Joined:
    May 13, 2015
    Messages:
    133
    Nice share.
