Bialaddin 1923 Hand Lamp

Discussion in 'Other Lamp Models' started by Mackburner, Jul 8, 2013.

  1. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,966
    Location:
    Hertfordshire

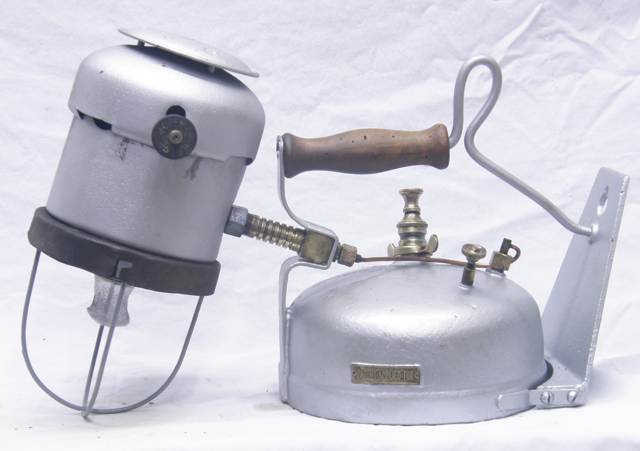

    OK I have now got this beast in better looking condition and after some serious grief actually working. Made in 1924 probably around the time the patent was granted. Made for Aladdin probably by Blanchard although there is the possibility that Aladdin made it and bought in the Blanchard parts. I think that is unlikely because the patent was by Malcolm MacFarlane and he gives his address as the Blanchard company office.

    This is a rare beast and as far as I know the only one in captivity.

    The grief was because the fuel filter inside the tank was blocked and it is not a removeable part so I chopped off the end of the fuel feed and then bent it back down to the base. The pump check refused to work and on inspection I discovered the orifice was damaged so I had to drill it out and then clean off the new leading edge. I tried to fit the pricker spindle from another lamp in it but found they were not the same size so in the end used the old one with a canibalised pricker carrier and a new needle. It actually works too even with three cogs missing from the pinion gears. ::Neil::


    1373250310-Bialaddin-1923-Hand_Lamp_02.jpg 1373250322-Bialaddin-1923-Hand_Lamp_03.jpg 1373250333-Bialaddin-1923-Hand_Lamp_04.jpg 1373250350-Bialaddin-1923-Hand_Lamp_05.jpg 1373250372-Bialaddin-1923-Hand_Lamp_09.jpg 1373250388-Bialaddin-1923-Hand_Lamp_10.jpg 1373250404-Bialaddin-1923-Hand_Lamp_11.jpg 1373292119-Bialaddin-1923-Hand_Lamp_13.jpg 1373292142-Bialaddin-1923-Hand_Lamp_14.jpg 1373292159-Bialaddin-1923-Hand_Lamp_15.jpg

    Last edited by a moderator: Apr 1, 2017
  2. Graham P

    Graham P Australia Subscriber

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    789
    Location:
    Albury area NSW AUstralia
    A very worthwhile fettle Neil looks great.
    Graham::

  3. Derek

    Derek Subscriber

    Offline
    Joined:
    Mar 1, 2011
    Messages:
    749
    Indeed, but with a glass in place, what was the manner of pre-heating? Was there provision for the sleeve above the glass holder to slide up revealing a spirit cup of sorts?

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,744
    Location:
    Shetland Islands UK..
    Great fettling! :thumbup: :clap: :clap: :clap: :clap: :thumbup:

  5. Conny C

    Conny C Sweden Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    653
    A very nice resto on that odd beast, Neil. Great work :thumbup: !

    /Conny

  6. Shed-Man R.I.P.

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    1,032
    Very, very interesting Neil, and what a good fettle :thumbup: :thumbup: . Please bring that one to the next meet or two, I would love to see it sometime. Well done! Steve.

  7. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,966
    Location:
    Hertfordshire
    The burner inside there is a Blanchard 150cp and if you look at the main picture you can see the slot to the left of the pricker wheel where you introdce the meth. I should perhaps have taken a shot with the cowling removed. I will do that and a have revised the original post above. You will see the underside of the meth cup above the mantle which is standard Blanchard configuration. I was concerned when lighting this that the angle of the burner head would be a problem when filling the preheater cup but in the event it all worked fine probably because Blanchard meth cups are filled with asbestos wicking so you don't get much spillage unless you over fill. ::Neil::

  8. James

    James Subscriber

    Offline
    Joined:
    Jan 5, 2011
    Messages:
    1,037
    Kinda looks like a doggie :D

  9. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,966
    Location:
    Hertfordshire
    Expensive hound but you are right. Clever design but making it of steel was a mistake. ::Neil::

  10. Derek

    Derek Subscriber

    Offline
    Joined:
    Mar 1, 2011
    Messages:
    749
    Thanks Neil. Good to have got it working. Must have been one of the early milestones in pressure lamp design.

  11. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,652
    Location:
    North-East England
    Excellent stuff, Neil!

    If I'd thought of it at all (which I don't really think I did), I'd have supposed Willis & Bates would have been involved somewhere down the line. That doesn't appear to have been the case at all. Clearly this lamp is a collaboration between Blanchard and Aladdin Industries. One presumes, therefore, that Aladdin Industries must have owned the brand-name or trademark 'Bialaddin' from the '20s and brought it back into use after the war.

    I'm now also pondering the exact nature of the agreement between Aladdin Industries and Willis & Bates from 1946 onwards. I'd assumed it was more-or-less an equal partnership (i.e. we'll make the lamps and you market them) but probably it was not. I assume now that Aladdin Industries simply contracted W&B to make lamps and lanterns for them which they sold to the public as Bialaddin - as they had previously done with Blanchard. For their part, W&B independently continued to produce Vapalux lanterns for the military. The fact that Bialaddin and Vapalux products were so similar probably wouldn't have occurred to the general public, who had far more weighty matters on the hands anyway.

    BTW - Interesting spelling of 'yachtsmen' on that advertisment...

  12. Jet-A

    Offline
    Joined:
    Mar 1, 2013
    Messages:
    21
    I'm confused. What is the intended use of that lamp? I saw the ad that was included but I'm not sure how it would be used on a boat.

  13. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,652
    Location:
    North-East England
    :-s :? The advertisment is quite specific about how it might be used on a boat - as well as a host of other situations...

  14. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,744
    Location:
    Shetland Islands UK..
    Hello David, the late Mr John Claypole informed me that the name Bialaddin was the telegraphic address for Aladdin UK., or at least part of it, Jeff.

  15. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,966
    Location:
    Hertfordshire

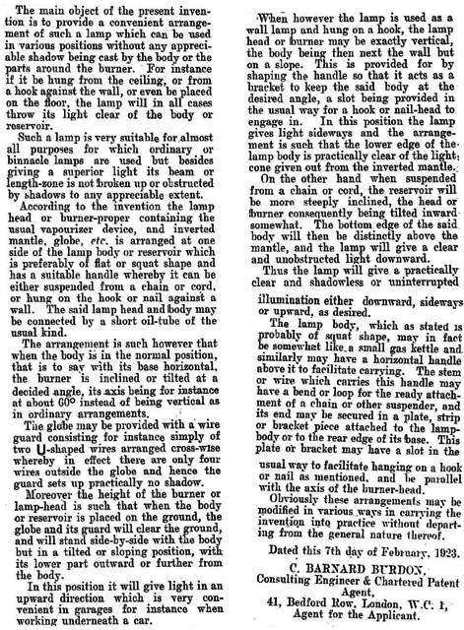

    The intended use is a little confusing as I would not normally expect a steel lamp to be used on a boat. Here is the text of the patent which at least shows what they were thinkiing at the time. ::Neil::
