Bialaddin 300x Air Ministry 1949.

Discussion in '300' started by DP2, Oct 11, 2019.

  1. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    203
    Location:
    Liverpool, UK, Europe.
    I bought this lamp some time ago as part of a job lot, at first I thought it was a standard early 300x which had been badly resprayed mid grey by the previous owner, on closer inspection I noticed it was stamped AM Ref No 21C/2503 1949 and bore the crowd foot stamp. Although not uncommon this made the lamp a bit special.

    As bought:

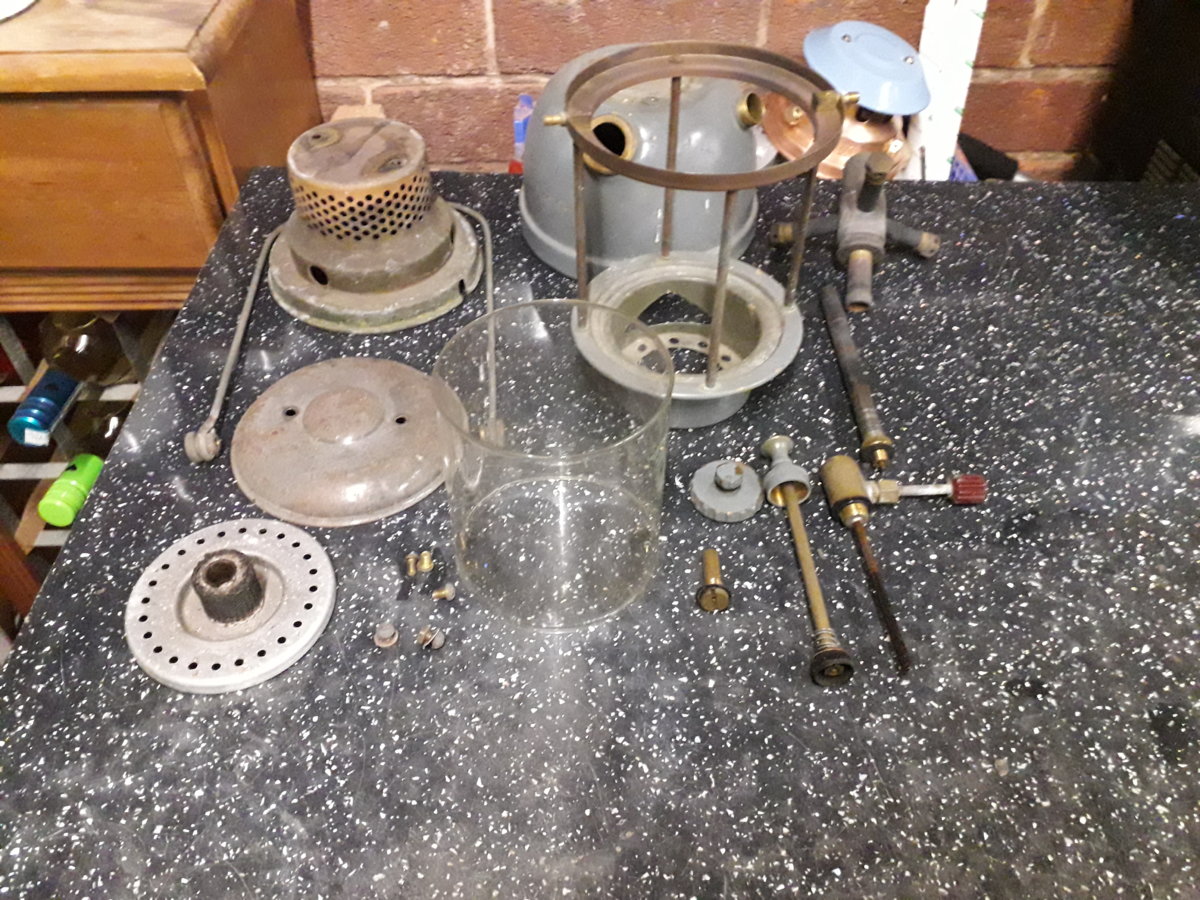

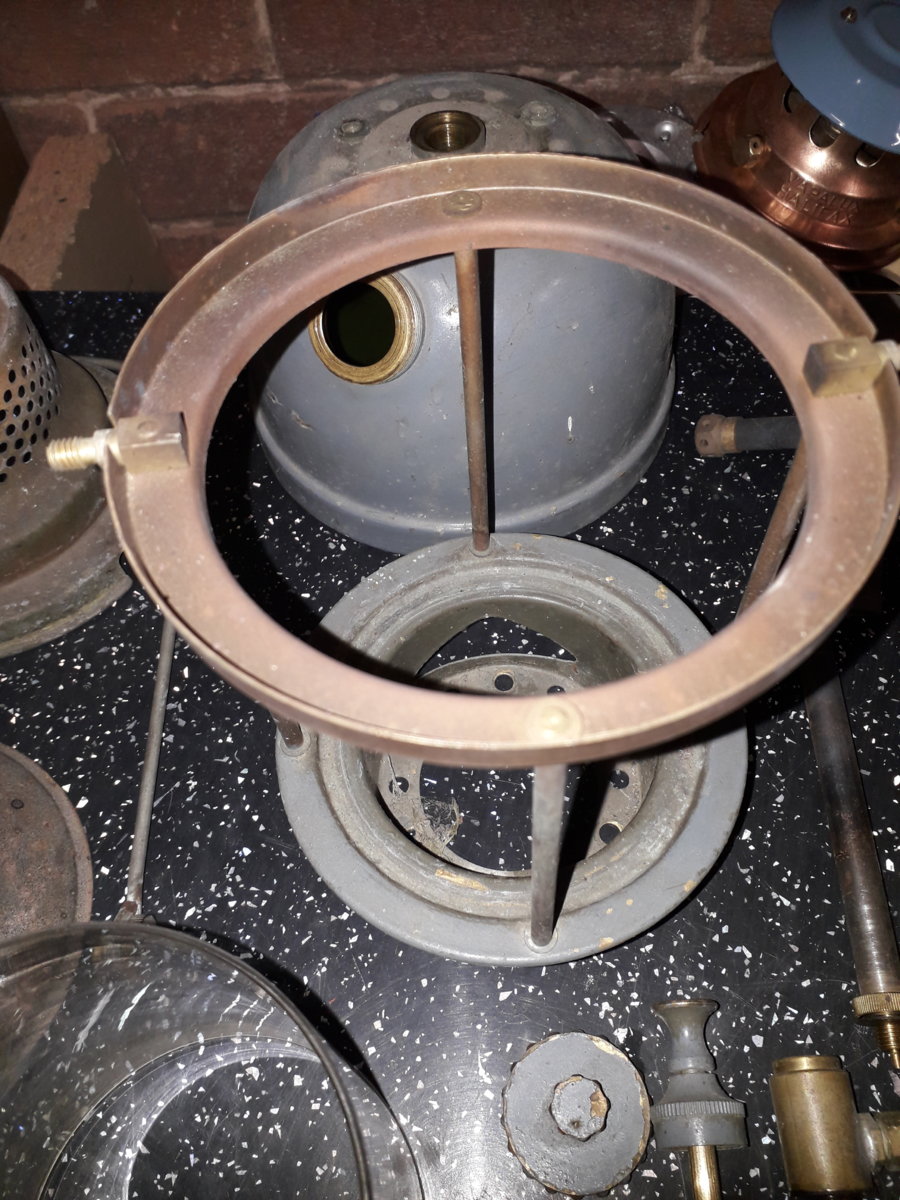

    The restoration was fairly standard and started with a full strip down.

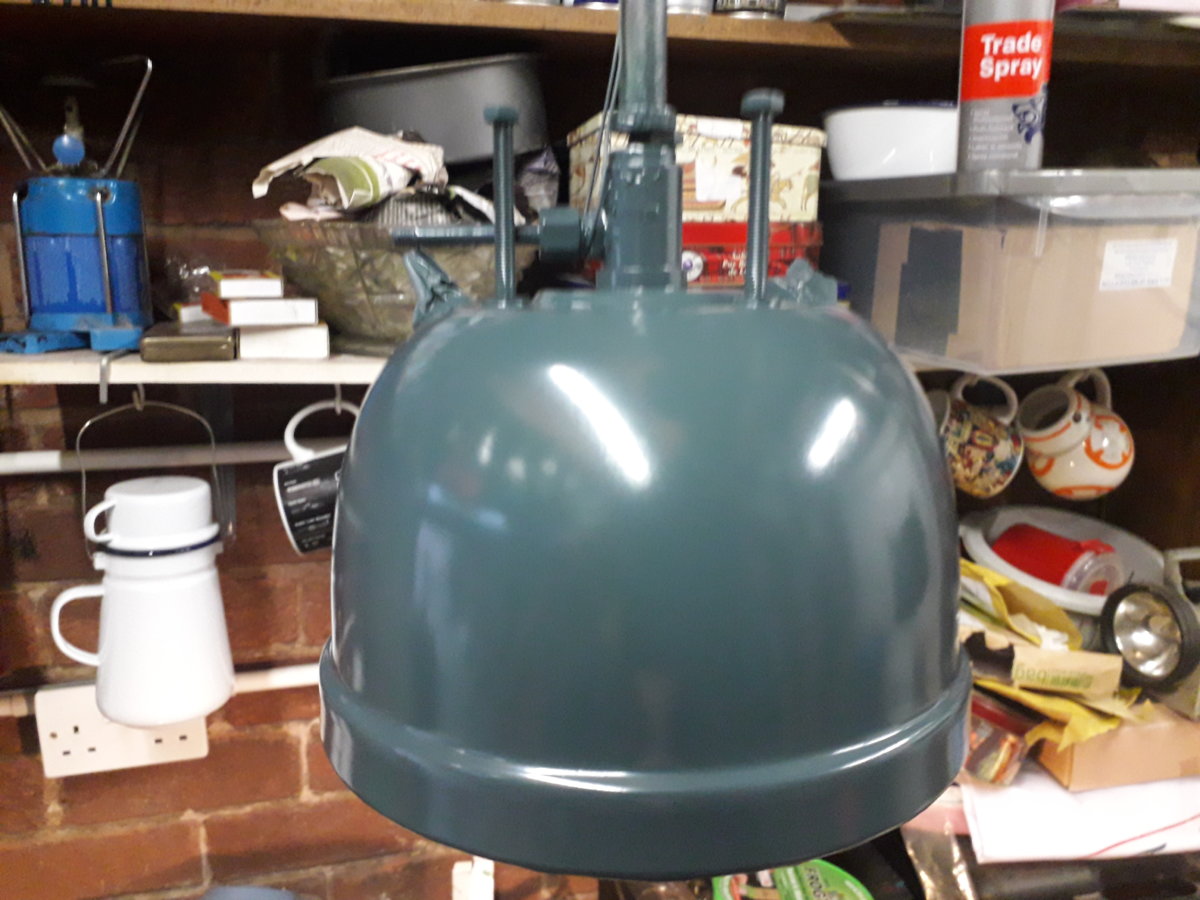

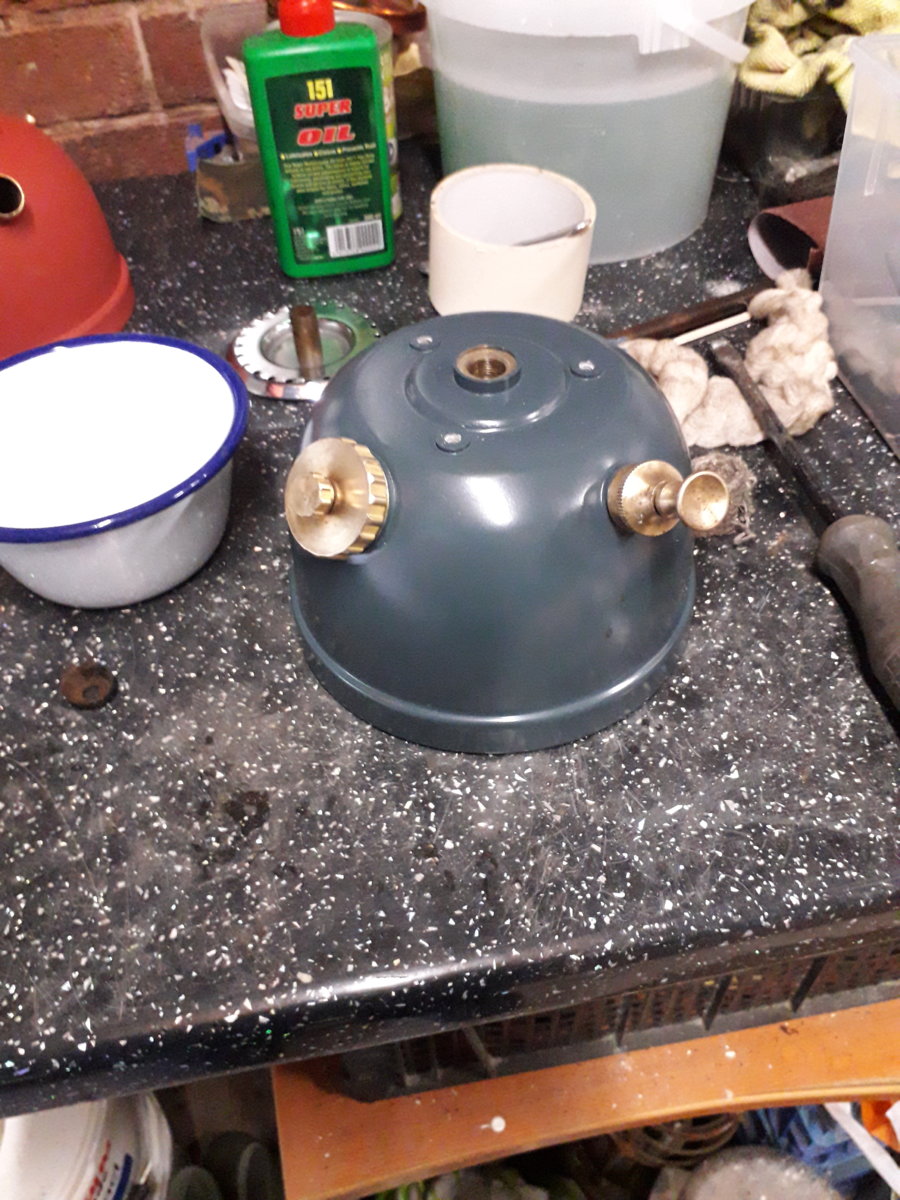

    The tank and cage were stripped of old paint and re-finished in BS381c RAF Blue/Grey semi gloss finish which I consider very appropriate given the lamps history.

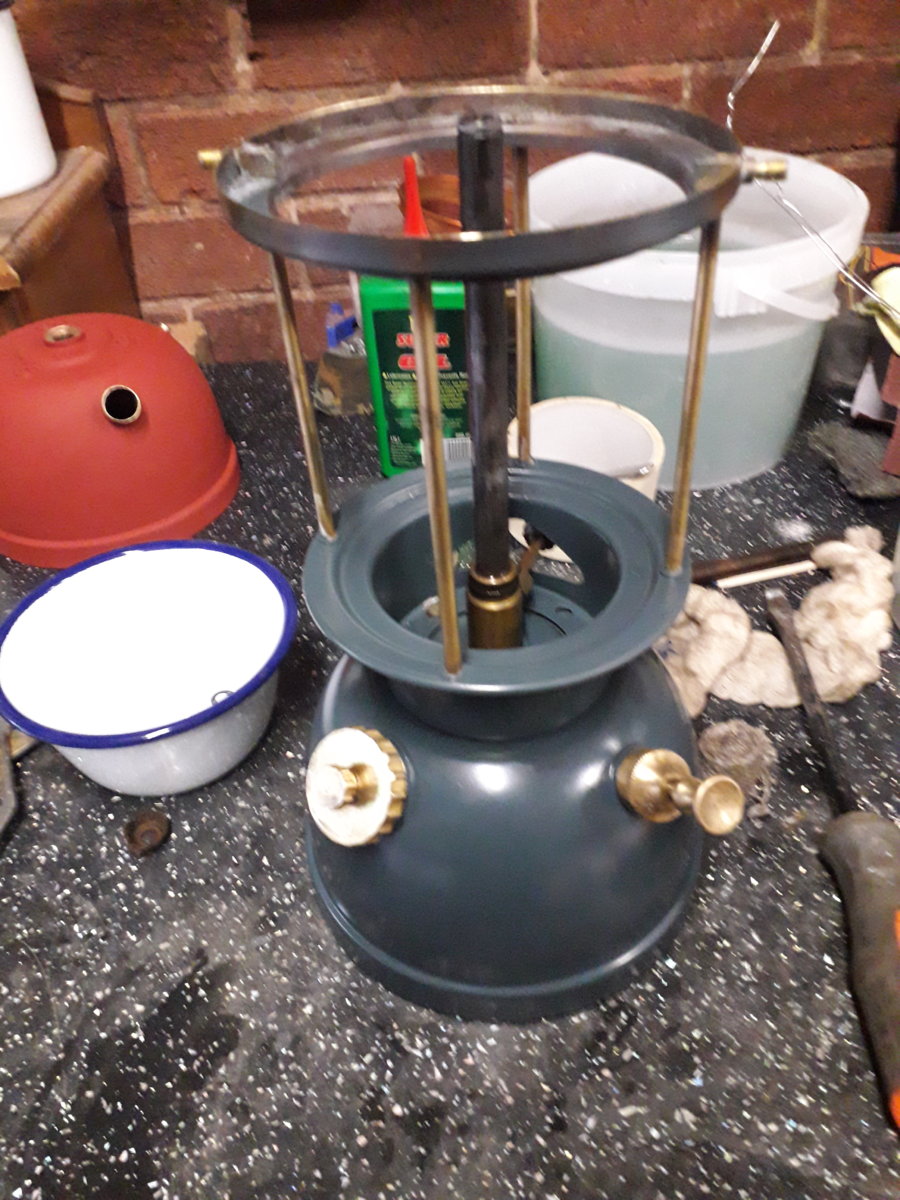

    I then let the paint fully harden for a few days, a few days turned into a week as life got in the way of my lamps! Finally got round to re-assembling this lamp using a new viton seal kit.

    A blue flame test to prove the vapouriser and burner before final re-assembly and fitting a mantle, I also fitted the correct plated spirit cup as the lamp had gained an incorrect aluminium type at some point in its life.

    Note the brass work, cleaned up but not highly polished which is how I like things.

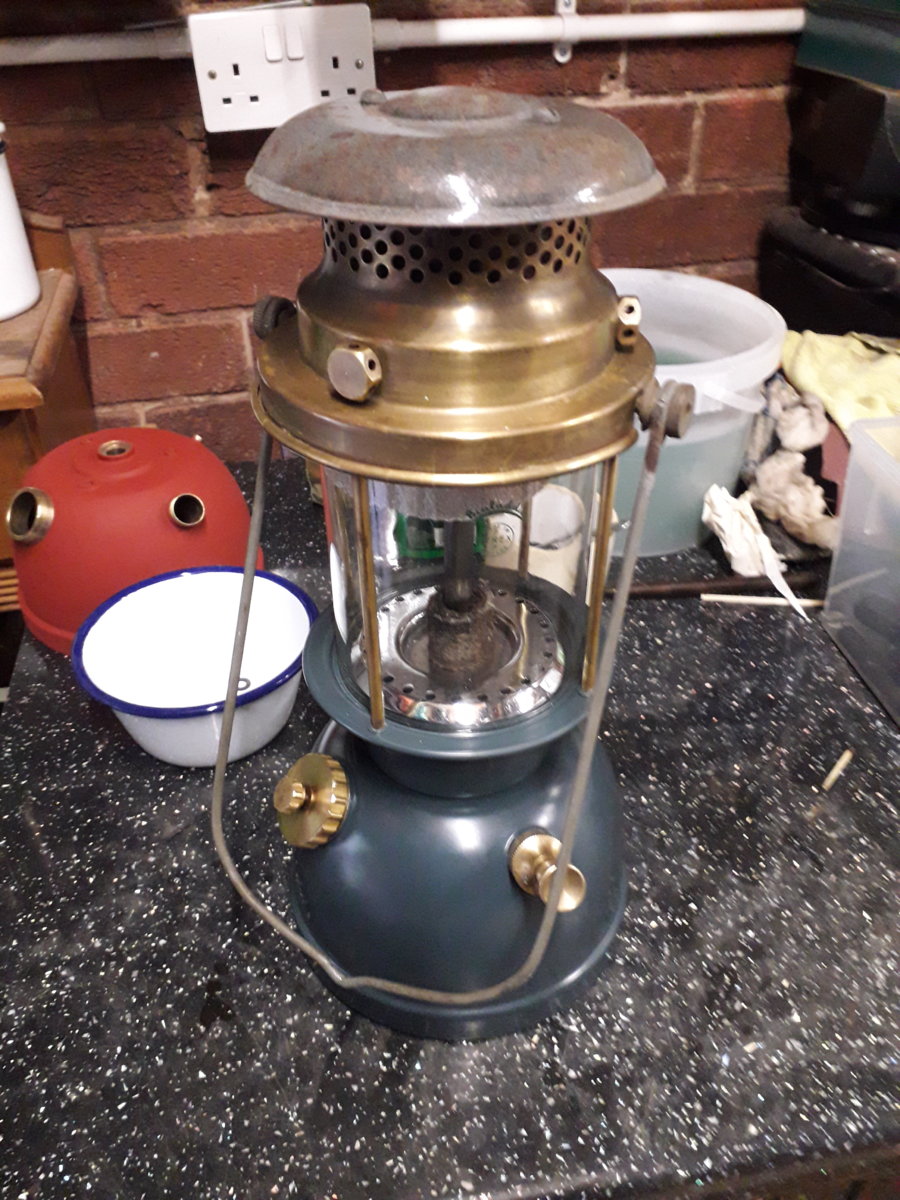

    Final re-assembly and a new mantle fitted.

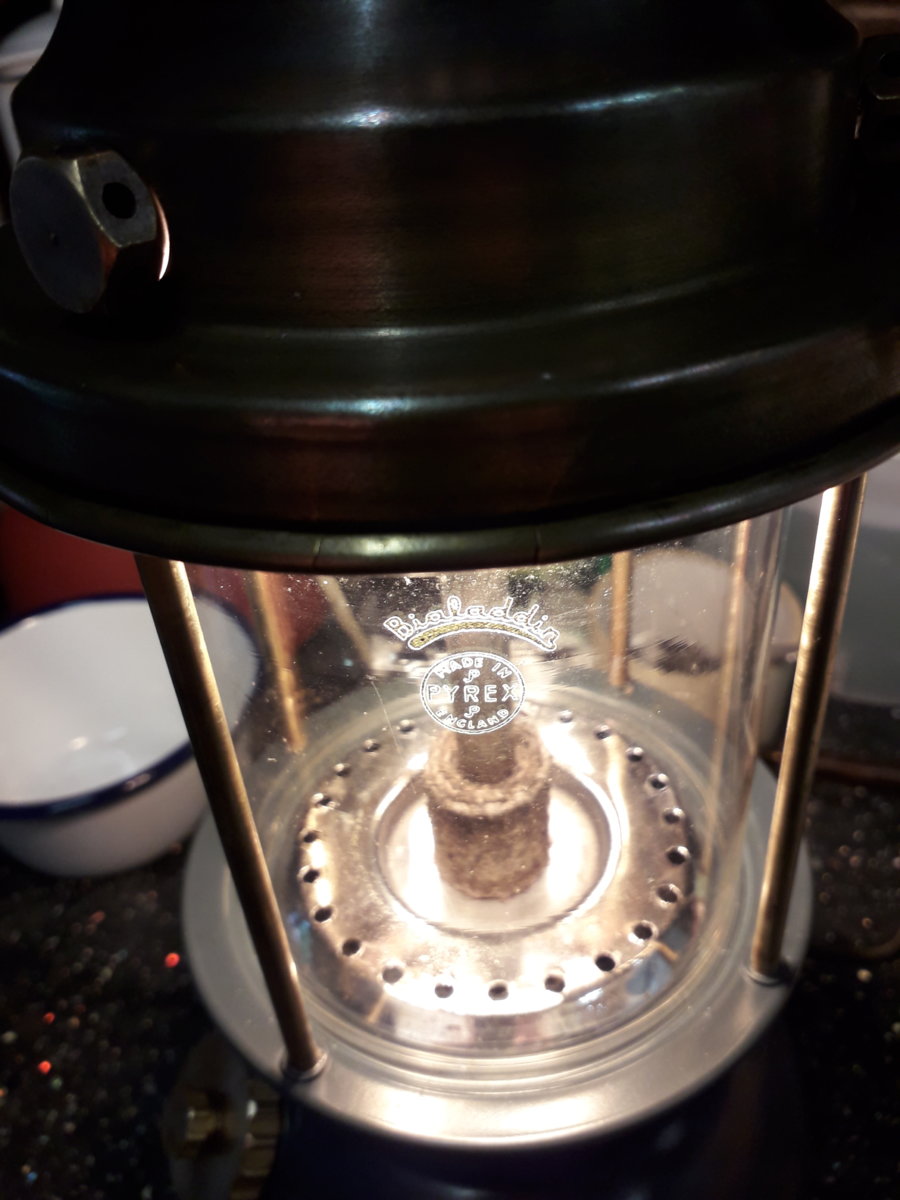

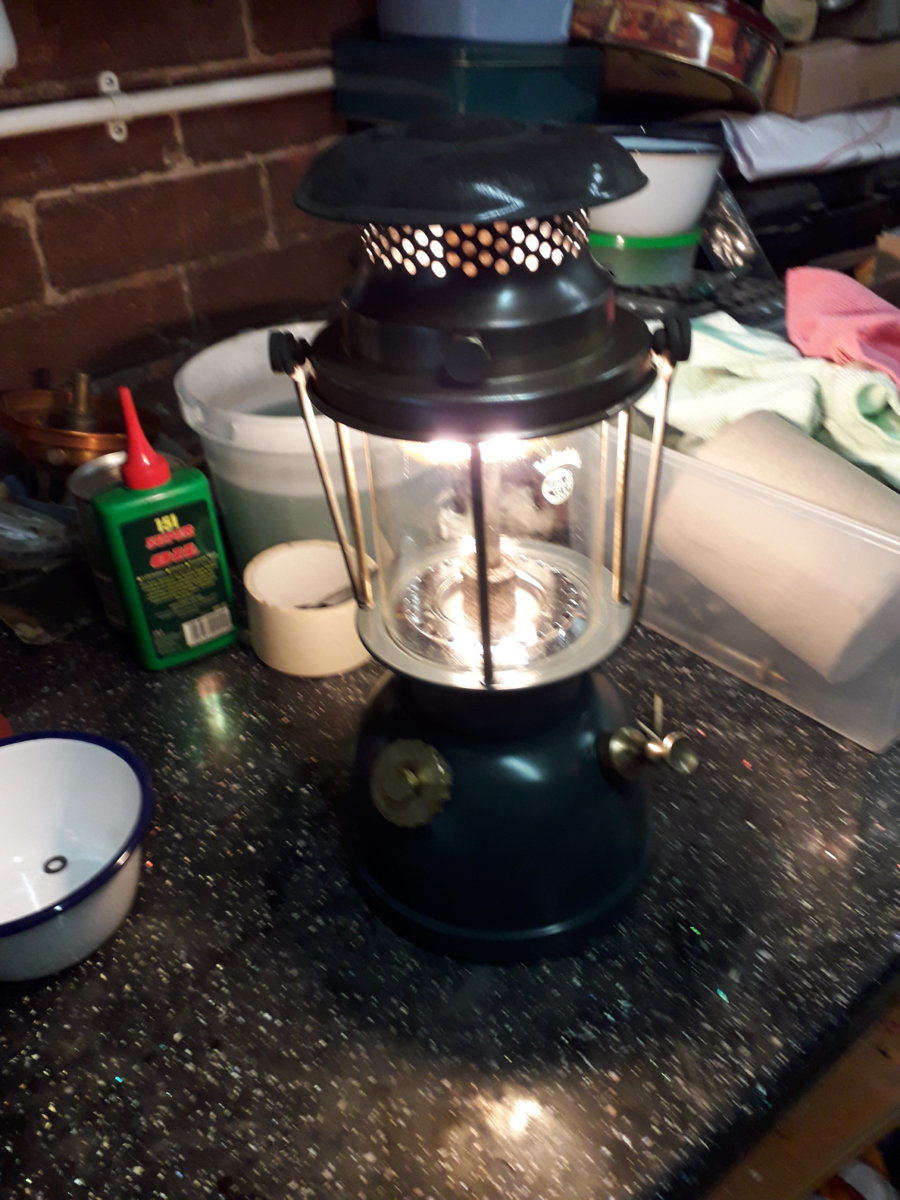

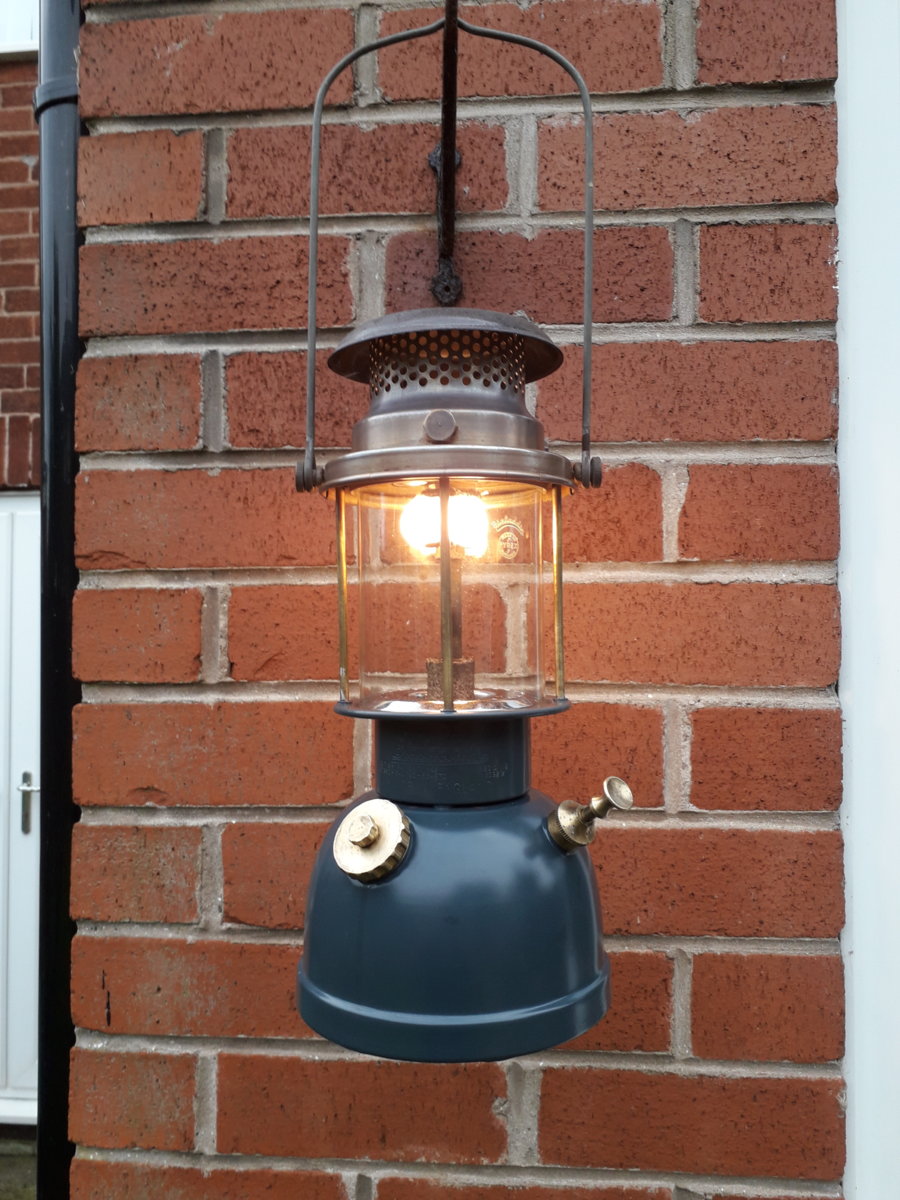

    I fitted a good Bialaddin marked glass to this lamp and lit it for the first time, it is running very well.


    Another completed lamp for my collection and one that I am very pleased with, I might treat it to a reproduction black hood cap as the original is missing much of its enamel.

    Last edited: Oct 11, 2019
  2. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,142
    Location:
    USA
    Great job, DP2!! Fine restoration.:D/
    :thumbup:

  3. ASHOK KUMAR

    ASHOK KUMAR India Subscriber

    Offline
    Joined:
    Jun 27, 2019
    Messages:
    161
    Location:
    India
    @DP2
    Dear Brother
    Congratulations & Very fine restoration, I am also trying to do of my own. Let see

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,756
    Location:
    Shetland Islands UK..
    A splendid restoration!:thumbup:

  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,480
    Location:
    Somersby, New South Wales, Australia
    It cleaned up nicely. Congratulations :clap:

  6. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    1,965
    Another fine old lantern ready for another 50 years! Well done!

  7. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    649
    Location:
    Scottish Highlands
    Looks so god in RAF blue, great job!

  8. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    649
    Location:
    Scottish Highlands
    God??? Good!

  9. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    A good fettle giving a really nice restoration of a fine lantern. You’ve documented the fettle very well @DP2.
    Well done.
    Cheers
    Pete

  10. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    314
    Beautiful !

    Very well fettled ! love to see the whole restoration on this one !

    Fred,

  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,866
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I just found one of these, in pretty rough condition, but complete, at Bungendore, a little town in New South Wales (Australia).

    @DP2

    Was the original glass on your lantern marked?

    Cheers

    Tony

  12. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    203
    Location:
    Liverpool, UK, Europe.
    I don't know about the original glass as mine didn't have one when I purchased it.

  13. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,047
    Location:
    Malaysia
    Very well fettled.:thumbup:

  14. Gareth Shepherd United Kingdom

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    32
    Location:
    Chesterfield
    Very nice restoration

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,866
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thanks, @DP2.

    I thought that the glass in the first two photos could have been the original glass.

    The glass in mine is unmarked.

    Cheers

    Tony

  16. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    203
    Location:
    Liverpool, UK, Europe.
    No, the glass came from a very rusty 305 that I bought cheaply for the glass and other useful spares.
