Bialaddin 300X swollen vapouriser

Discussion in 'Fettling Forum' started by TommiL, Nov 12, 2017.

  1. TommiL

    TommiL Subscriber

    Offline
    Joined:
    Mar 5, 2016
    Messages:
    41
    Location:
    Finland
    Hi,

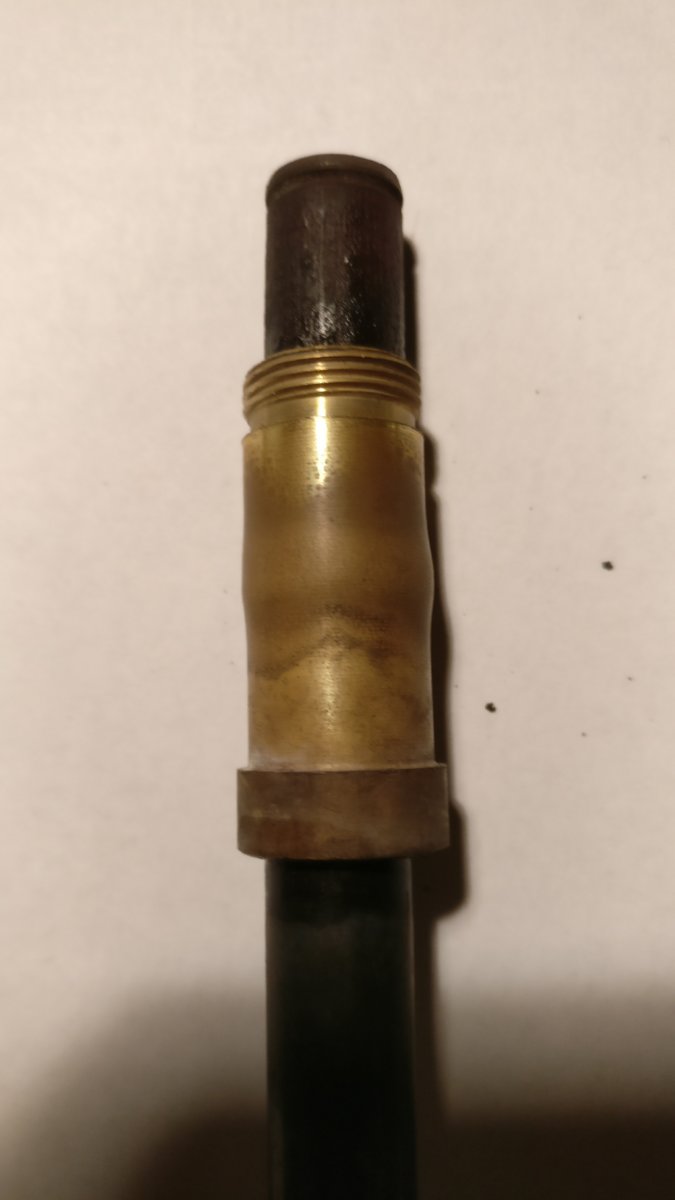

    I'm having a second time this problem: Vapouriser has got swollen resulting the spigot to stuck on the vapouriser permanently, see picure where the spigot is swollen from the middle. Stucked spigot means dismantling the whole frame just to get the glas out for cleaning. Lamp works otherwise OK. The spigot was definitely straight when originally installed. Also all storage crease was removed thoroughly from vapouriser before taken to use.

    As said, this is second time I'm experiencing this with my Bialaddin 300X. I think the spigot doesn't have enough air gap with vapouriser resulting overheating and swollen vapouriser due to pressure from tank. I've noticed the spigot has been glowing red after shutting down the lamp.

    If this is the root cause, what kind of gap there should be between vapouriser and the spigot?

    Cheers,
    Tommi


  2. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    3,381
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @TommiL

    Could it be that the vapouriser is clogged with carbon and the carbon is catching fire with prolonged burning?

    Tony

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,961
    Location:
    Shetland Islands UK..
    In my opinion, a new vapouriser and spigot are required.

  4. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Jul 17, 2011
    Messages:
    646
