Bialaddin 300x tank repair.

Discussion in 'Fettling Forum' started by DP2, Sep 8, 2018.

  1. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    60
    Location:
    Liverpool, UK, Europe.

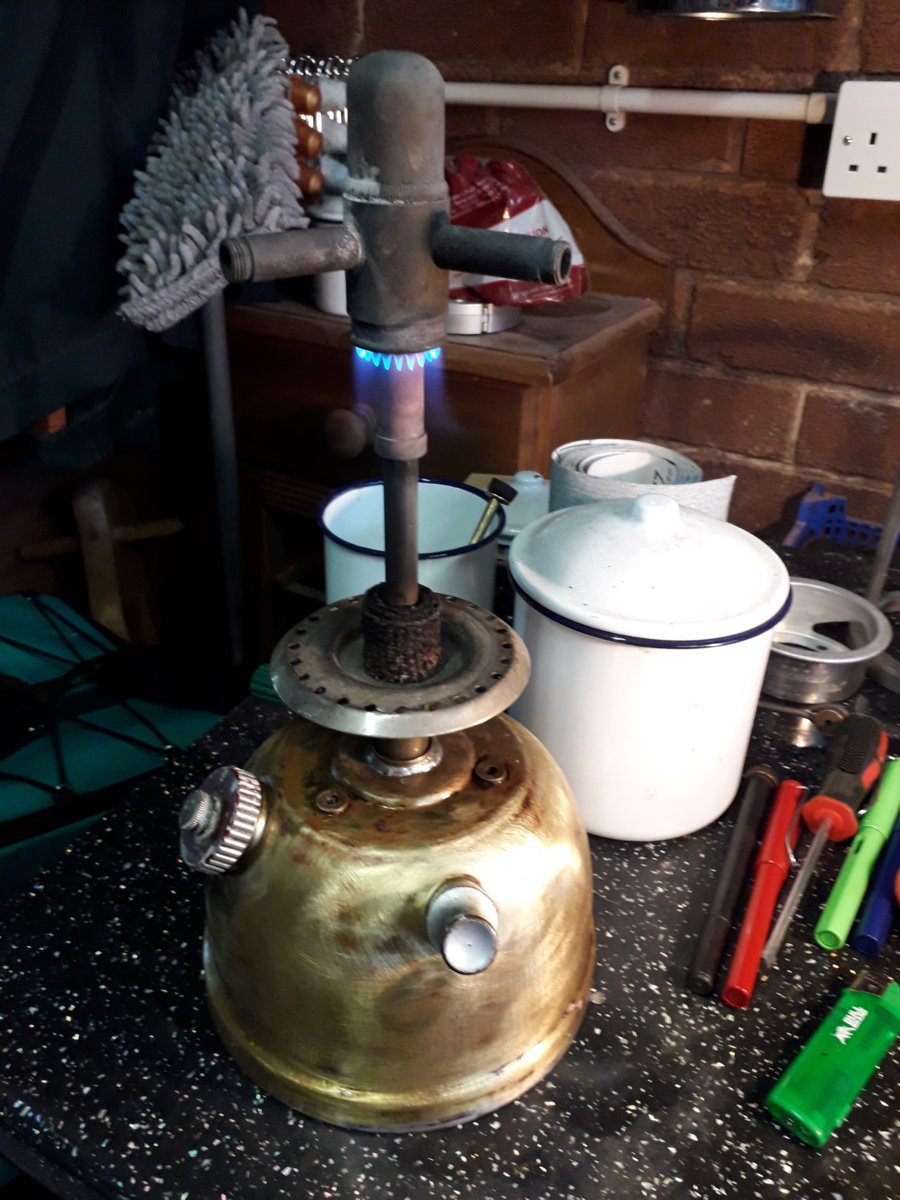

    I bought a Bialaddin 300x last year and discovered the tank had sprung a leak around the control cock boss, the previous owner had attempted a solder repair but unsuccessfully, the solder came away easily and paint / muck was visible beneath. I put the lamp to one side whilst I worked on other projects and rediscovered it last week, I cleaned up the tank top and boss thoroughly, heated the area using a gas blowlamp several times and applied flux, wire brushing each application with a small brass wire brush. Once I was happy the area was thoroughly clean I applied flux again,heated the area and ran a neat bead of solder around the joint. Lamp then loosely assembled and tested, I am pleased with the result a successful repair.

  2. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,589
    Good work! Please post again when you have completed the restoration too. They are fine lanterns.

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,953
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::thumbup:

  4. ROBBO55

    ROBBO55 Subscriber

    Online
    Joined:
    Oct 21, 2014
    Messages:
    839
    Location:
    Somersby, New South Wales, Australia
    Nice tidy repair. Along with a good method for preparing the fault for soldering. :thumbup:

  5. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    3,359
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @DP2

    :thumbup:.

    Cheers

    Tony

  6. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    60
    Location:
    Liverpool, UK, Europe.
    Now looking good after priming and first top coats.


    Just needs a light fitting and final top coat before it's finished then need to settle the rest of the lamp and put it back together.

  7. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    3,359
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @DP2

    That’s looking good.

    Tony

  8. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,223
    Location:
    North-East England
    Yeah, a 100 watt candle bulb in a bayonet fitting will look great - make sure you drill the tank for the flex!

    - only kidding ;) :lol: - you've done a great job so far... :thumbup::D/

  9. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    60
    Location:
    Liverpool, UK, Europe.
    I hate auto correct, should have said light filling.

  10. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    60
    Location:
    Liverpool, UK, Europe.
    Or even flatting!

    Must have thought this was my other discussion regarding repair is a vapalux 300 Steel tank with a bit of a dent.

  11. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,223
    Location:
    North-East England
    Remember, proof-reading is your friend... ;) :lol:

  12. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    60
    Location:
    Liverpool, UK, Europe.

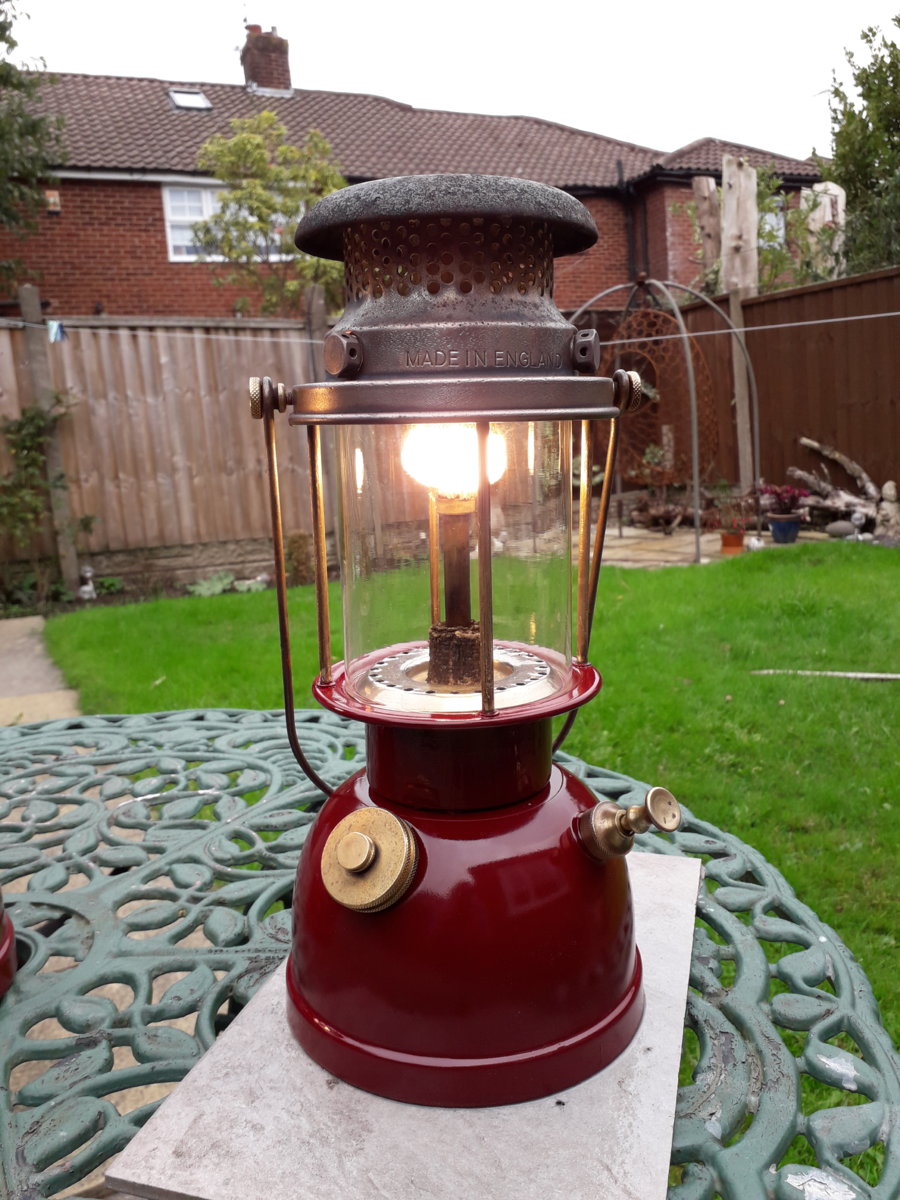

    Nearly finished lamp running with a hood from another 300x, just waiting for a new red enamelled cap, painted filler cap and painted pump assembly.

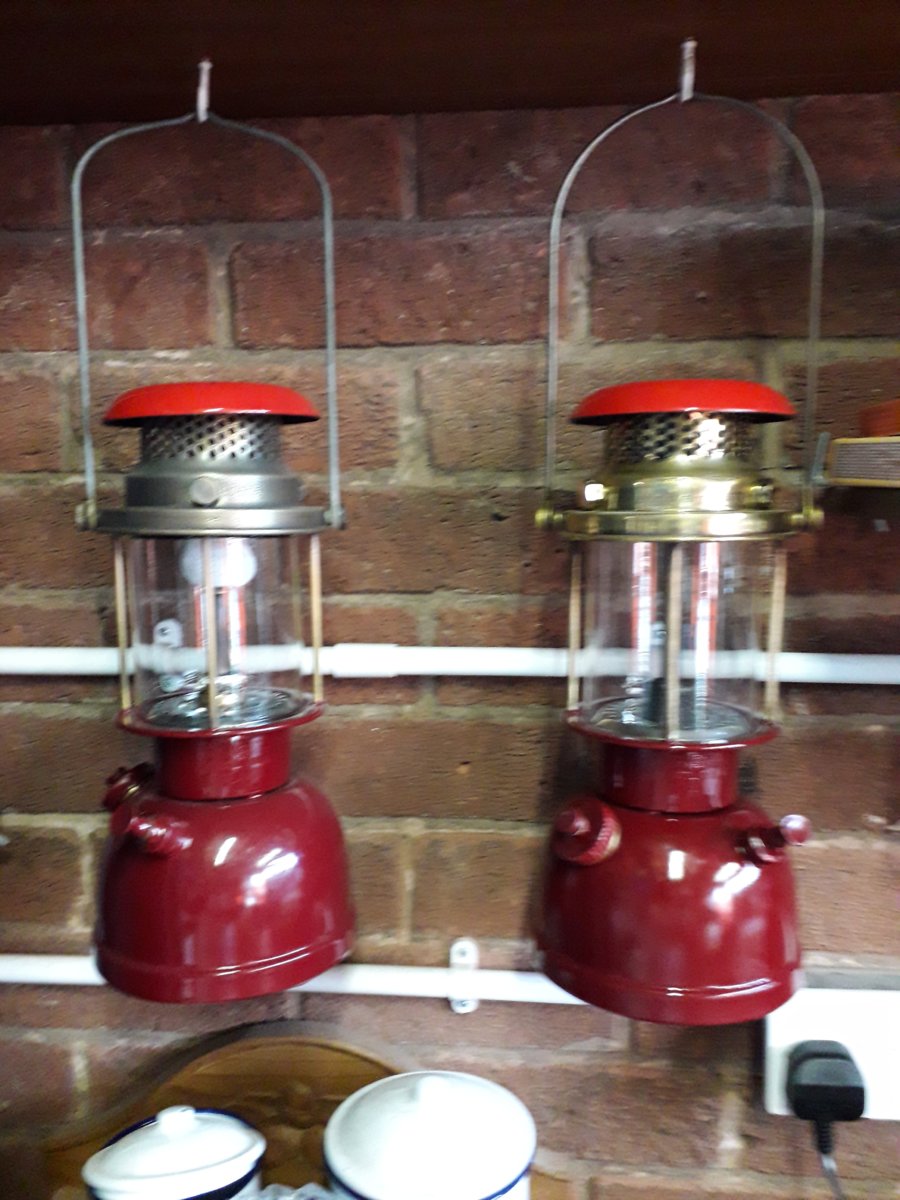

    Twins (almost)

  13. ROBBO55

    ROBBO55 Subscriber

    Online
    Joined:
    Oct 21, 2014
    Messages:
    839
    Location:
    Somersby, New South Wales, Australia
    Looks good. :thumbup:

  14. Matthew92

    Matthew92 Subscriber

    Offline
    Joined:
    Feb 13, 2012
    Messages:
    1,809
    You sound like most of my teachers from school, I forget how many of my reports included the sentence “needs to proof read his work”. Oh and also “needs to participate more in class discussions”, was there a book of these lines that teachers use for reports?:lol:

  15. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,223
    Location:
    North-East England
    Maybe not then - but there is now, apparently. Teachers have a 'bank' of approved comments and they choose the most suitable one for each pupil... :roll:

  16. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    888
    Absolutely true! I have taught at establishments where they do this.

  17. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    70

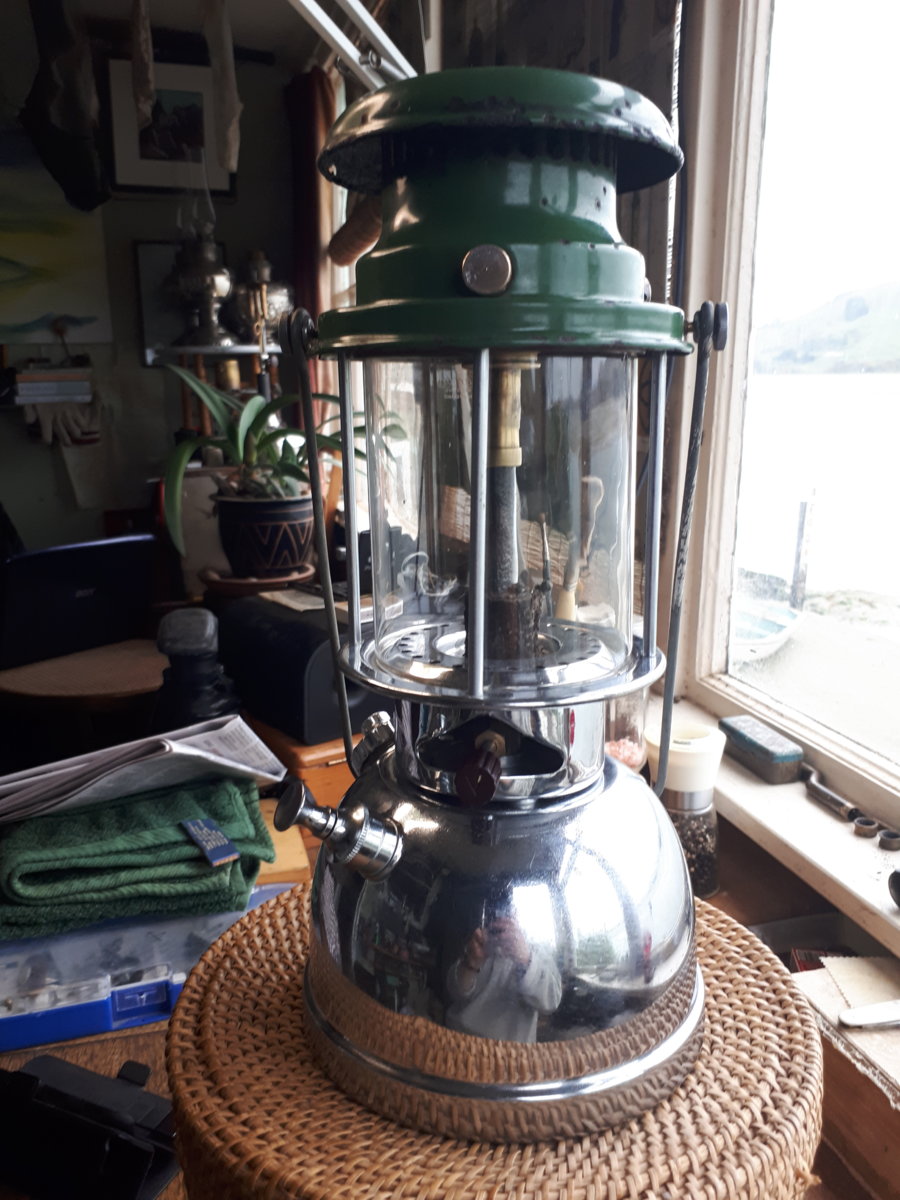

    Good job. I too have acquired a 300x from 50's chrome fount,green hood/ventilator what a work horse,I'm impressed (I take back all those rude things I said about Pommy stuff) Ha.No really seen this type about here in NZ,I'll try and post a shot, enjoy that Bialaddin and a great colour.
    toad

  18. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    60
    Location:
    Liverpool, UK, Europe.
    Does it look anything like this one?


  19. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    70
    Yes the very same, I thought I had posted a shot???Nice condition that one of your's,my one is not too bad can't figure out what happened to the pix I posted.

  20. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    70
    Not sure were I'm going wrong,will try again thanks David,my computer skills are,let's say rubbish.

  21. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    70
  22. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,223
    Location:
    North-East England
    Chrome lanterns were usually supplied with a black top but Willis & Bates (like other manufacturers such as Tilley) would often raid the parts pin when faced with shortages. Either that, or someone's replaced the top at some point. Either way, the difference is cosmetic only and the lantern ought to work fine - all else being in serviceable condition, naturally.

    I've seen and got a few of these where a chrome cage support has been used on a lantern with a green tank and hood. Again, I suspect that there was a temporary shortage of the usual green-painted part. Probably W&B felt the greater priority was to get orders out of the door rather than keep retailers waiting...

  23. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    70
    Cheers David,I may have mentioned not a lot about here in NZ so even more likely to have raided the spare parts bin for a few down under.
    this one works well, that shot had been taken before I made the mantle(from a bulk lot of petromax mantles,also good for my tilleys.
    regards Alex

  24. DP2

    DP2 Subscriber

    Offline
    Joined:
    Nov 29, 2016
    Messages:
    60
    Location:
    Liverpool, UK, Europe.
    Never seen a chrome 300x with a black hood, would look very smart. All the chrome 300x in the gallery have green hoods.

  25. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,223
    Location:
    North-East England
    Hmm, I thought all mine had black hoods. Maybe I've been dreaming again...


    Last edited: Oct 11, 2018 at 8:05 PM
