Bialaddin 300X

Discussion in 'Fettling Forum' started by Scott D, Nov 26, 2020.

  1. Scott D

    Scott D United Kingdom Subscriber

    Offline
    Joined:
    Aug 10, 2020
    Messages:
    160
    Location:
    Yorkshire, UK

    Hi all,

    Found this 300X on eBay and couldn’t resist for my second major fettle. The original paintwork was pretty shabby so decided to strip the paint and start again.

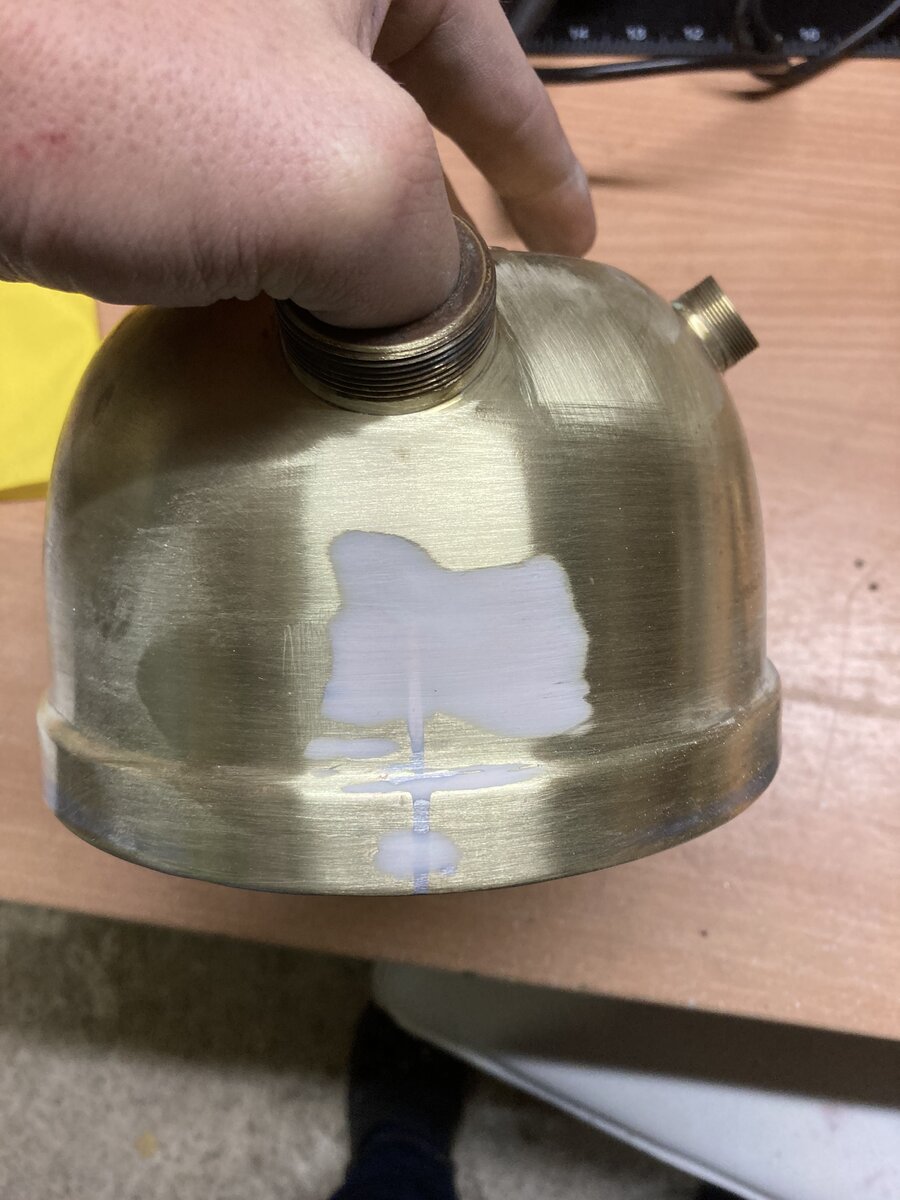

    However, on stripping the font I discovered a hairline crack running from the lip of the base halfway up towards the filler cap and a pressure test showed fuel seepage through the crack. Thought about buying a donor lamp to replace the tank but decided in the spirit of restoration to try my hand at soldering. Treat myself to a Dremel butane torch and watched a few videos on silver soldering. Opened up the crack a little going past the end of the visible crack and started soldering. Safe to say it was a fairly ropey first attempt and in the beginning a lot of the solder, somehow managed to miss the target entirely and ended up on the floor. Got to grips with the temperature and method a little and managed something vaguely tidy which then more importantly passed a pressure test. I filled the remaining indentation with body filler and sanded it back to what I thought was smooth (very slight tell tale marks though even after painting).

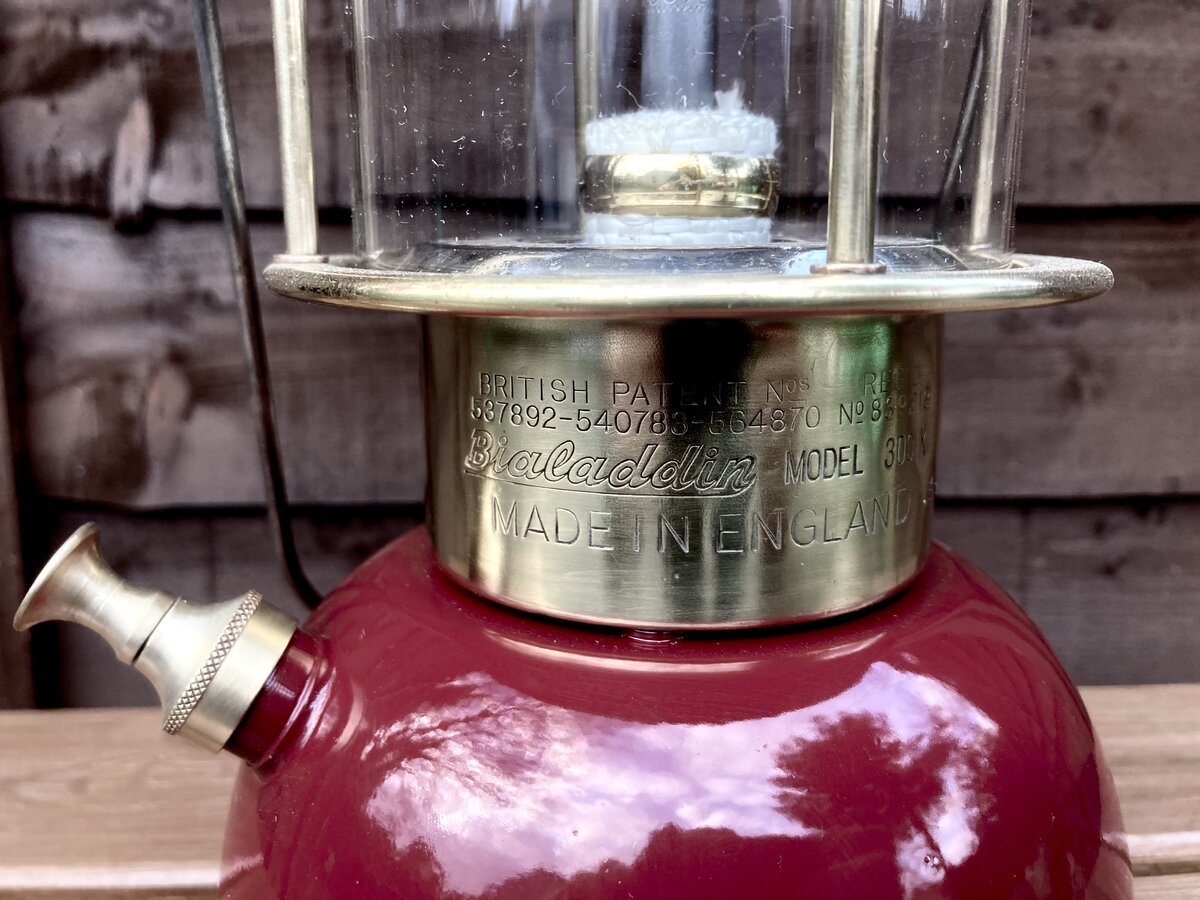

    Not being a purist for now at least, I made a couple of design choices. The first being that even being fairly colourblind I didn’t like the clash of reds between the original font and hood colours so I went for a replacement brass top instead. Though I still have the original red one so it can be put back if needed. I also decided to leave the frame bare as the Bialaddin lettering was too nice to cover up again.

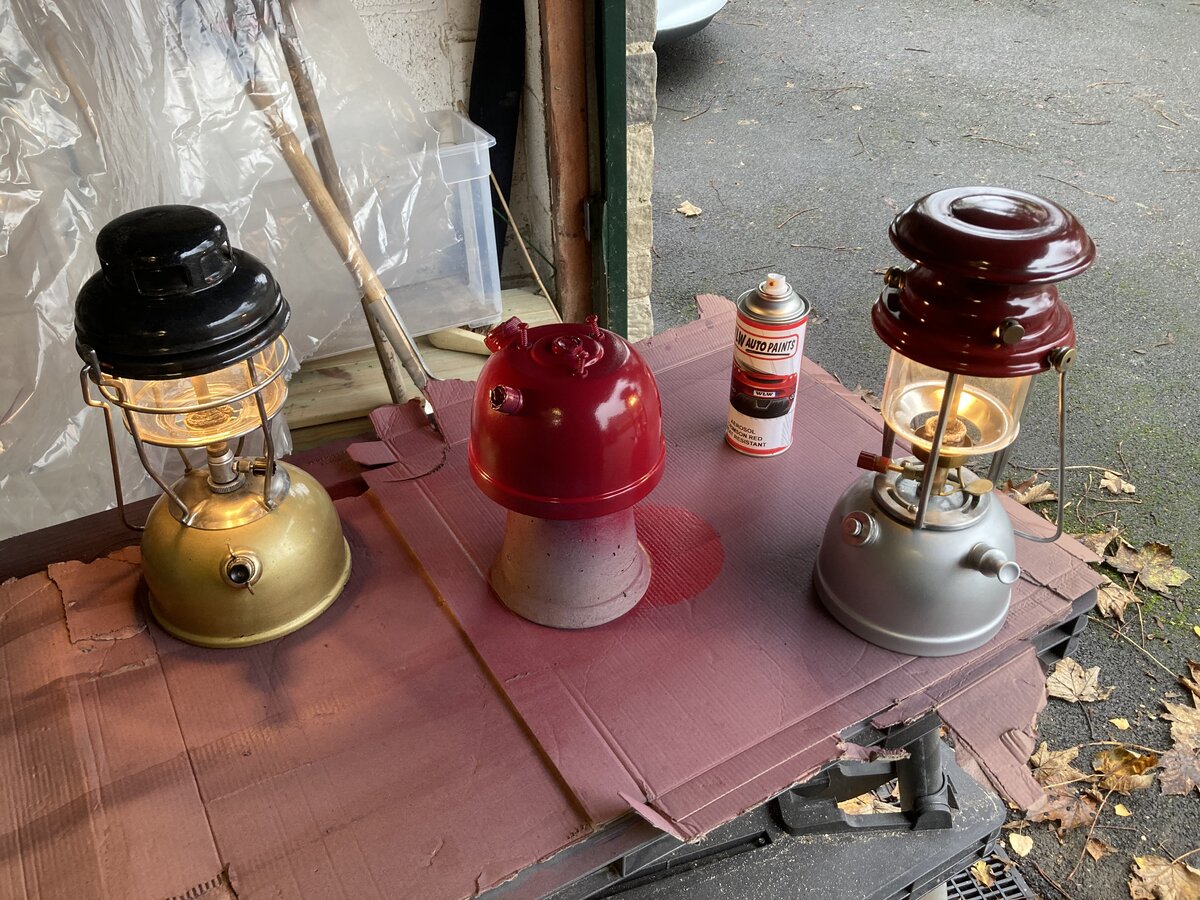

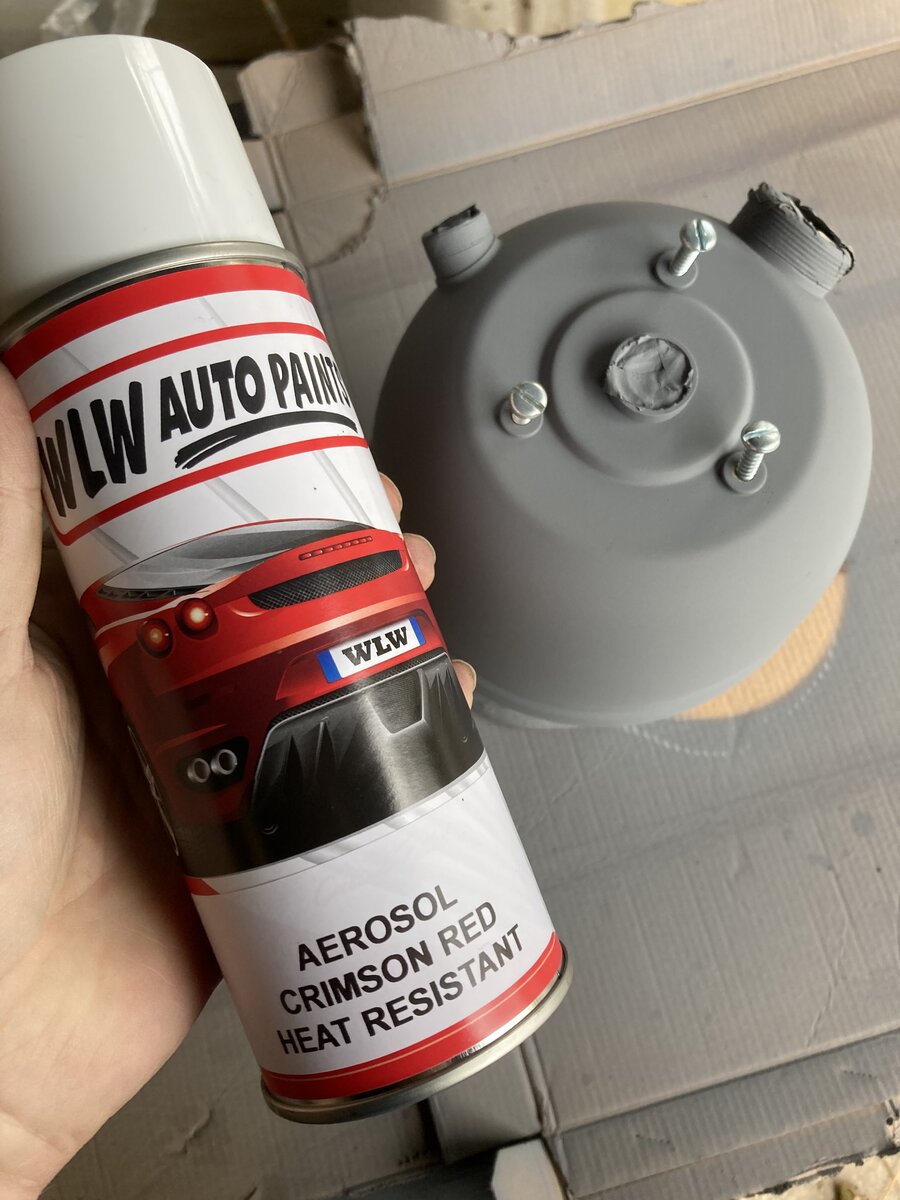

    The red was an Extreme Auto Crimson Red which in some lights is a decent match to the original and in other lights seems a shade or two too light and ironically would now probably match the original red hood top. Happy with how it came out after three coats of primer, three coats of the crimson and then three coats of an xht lacquer which I couldn’t bake as I still don’t have access to an oven suitable. I did leave it to cure for a fortnight though before reassembly. I was a bit worried about spraying in the cold below recommended temperatures so utilised a couple of other lamps to warm things up a little!

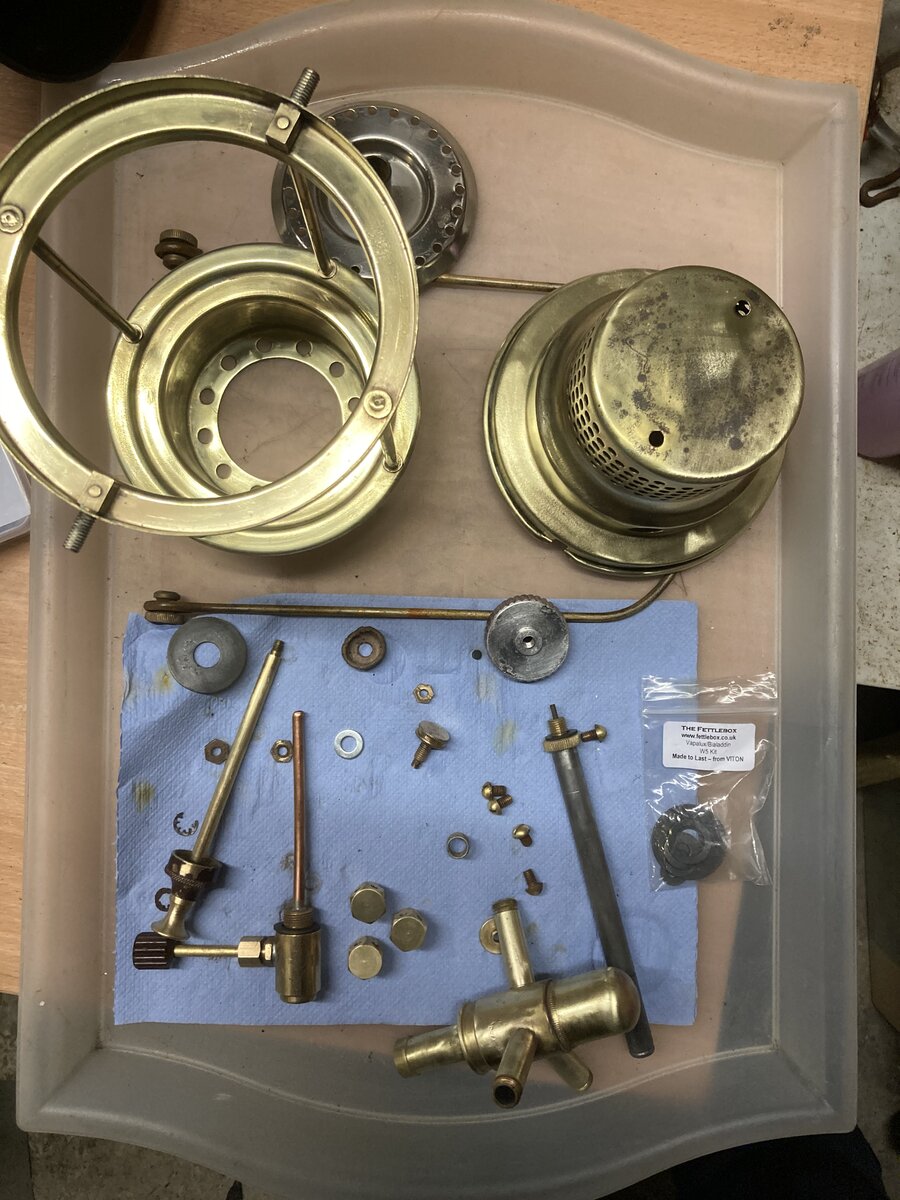

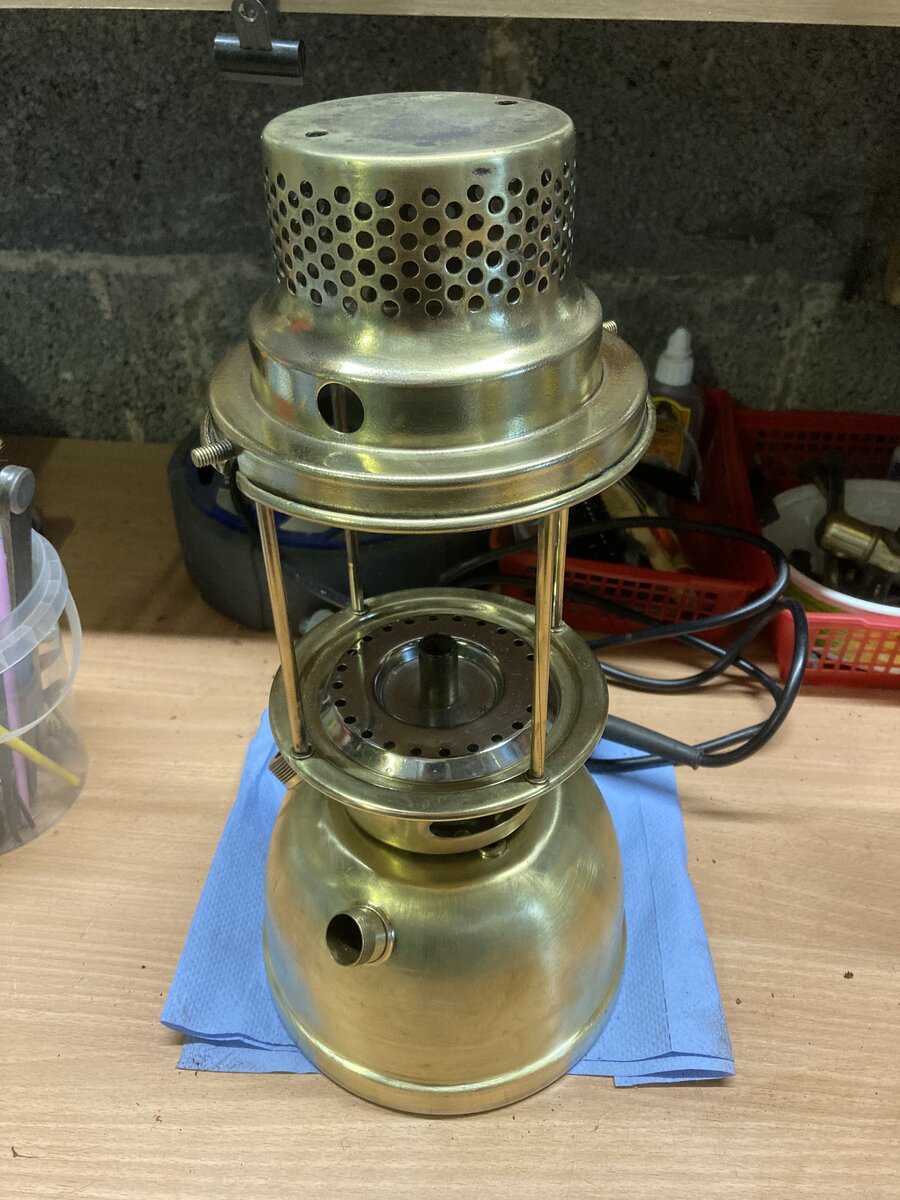

    Full clean of the components in a vinegar bath and then polished up with the Dremel and finished with Autosol.

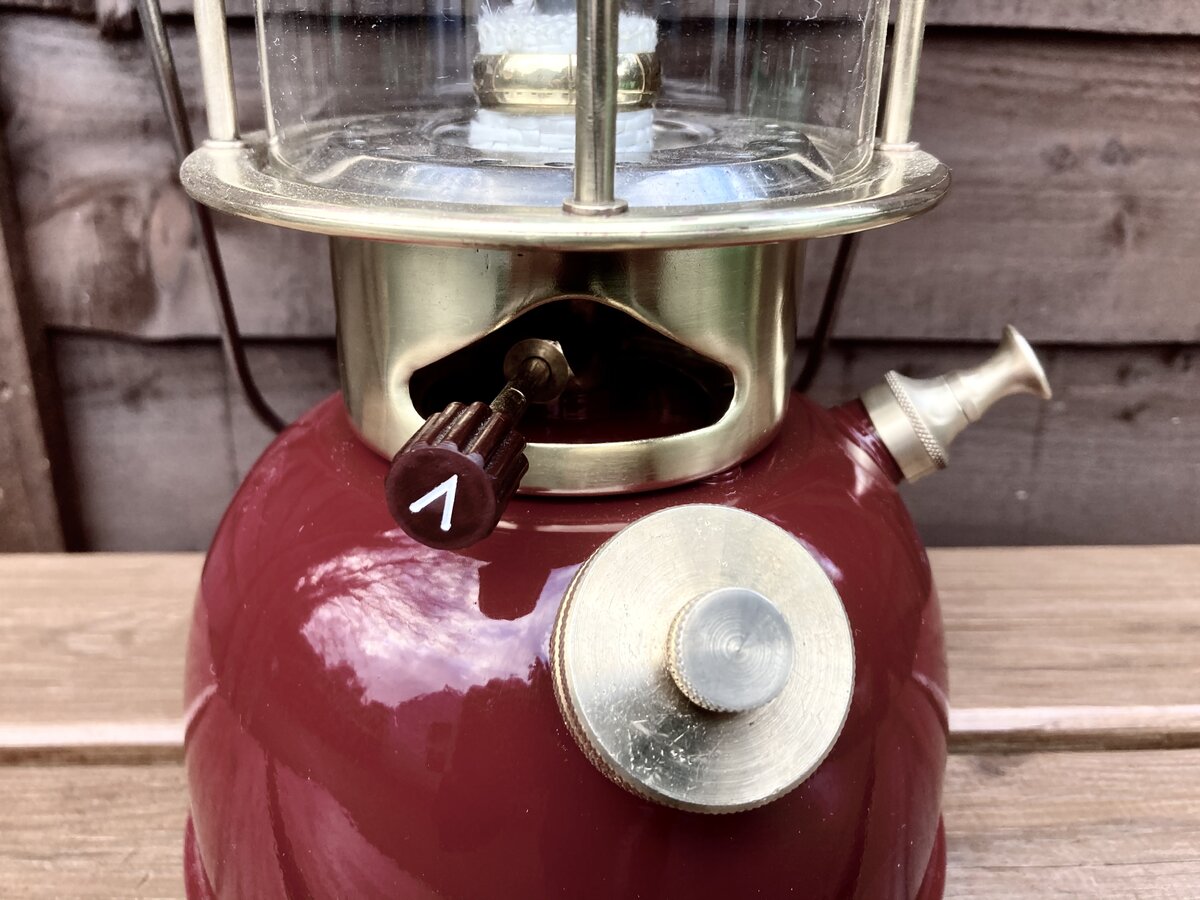

    Re-assembled and then realised it still had it’s original half brass half nickel filler cap that had been painted originally but now just looked odd so swapped it for an all brass cap. Very shiny finish for now but I’ve left all the brass bare so it will settle down soon enough.
    AF2B198D-1574-40AB-8CDE-A2F160CBD56E.jpeg F20841FD-5051-4E29-AFA5-5CE06D72C0A2.jpeg

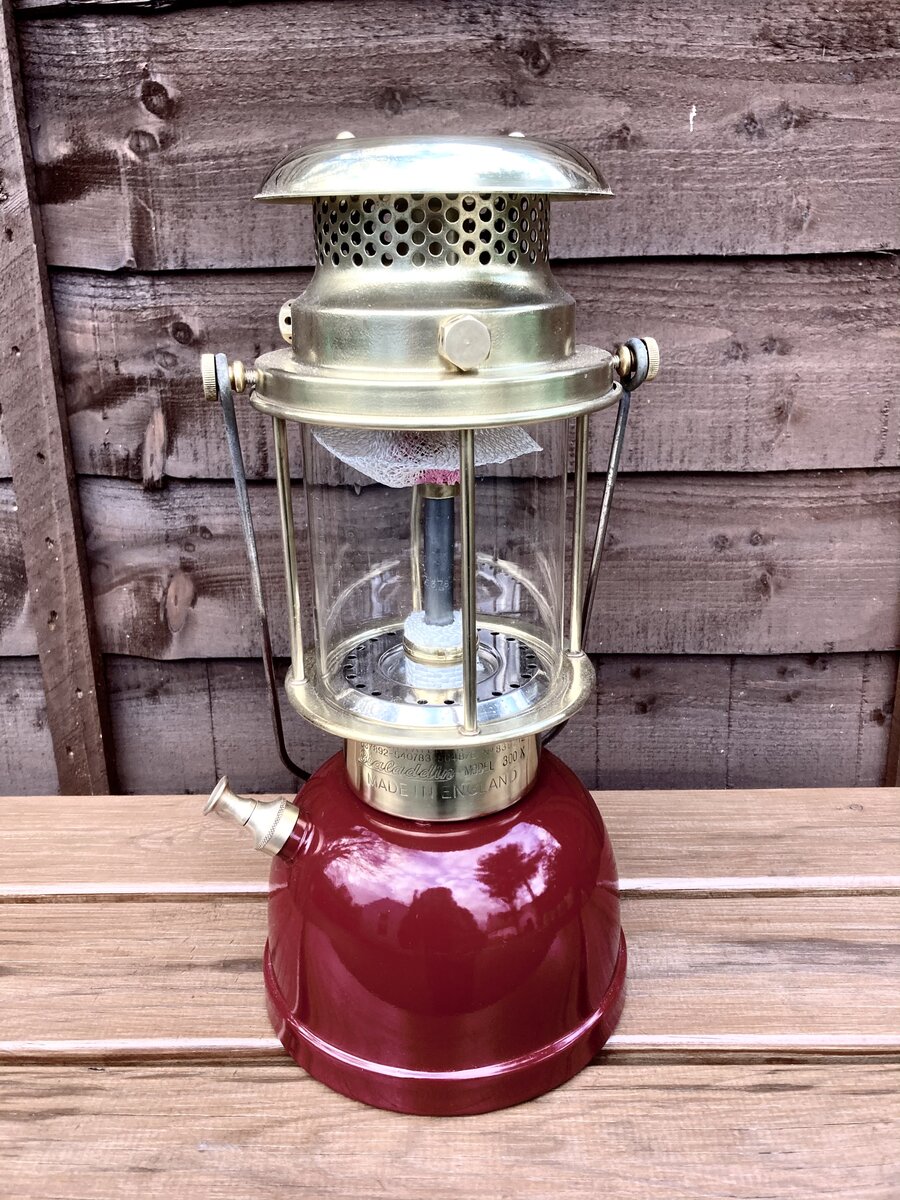

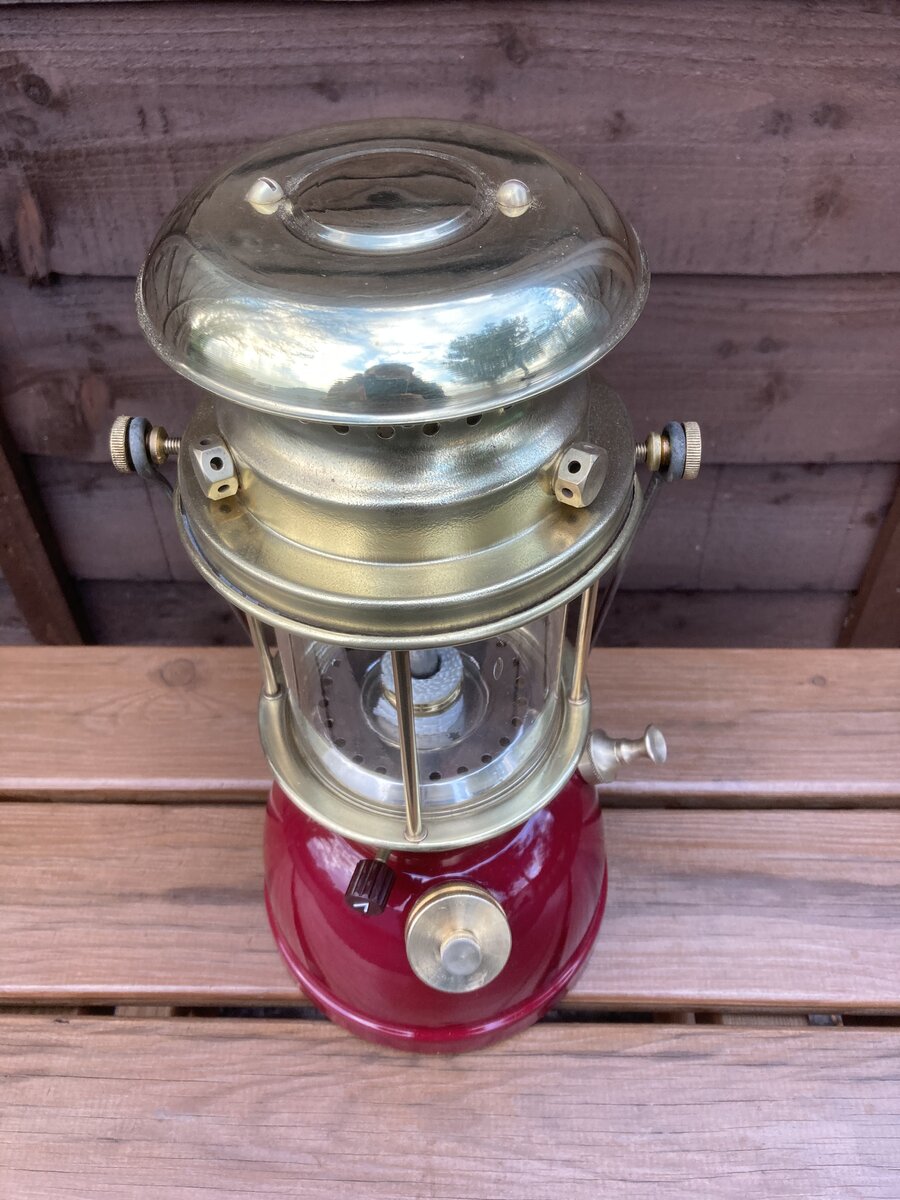

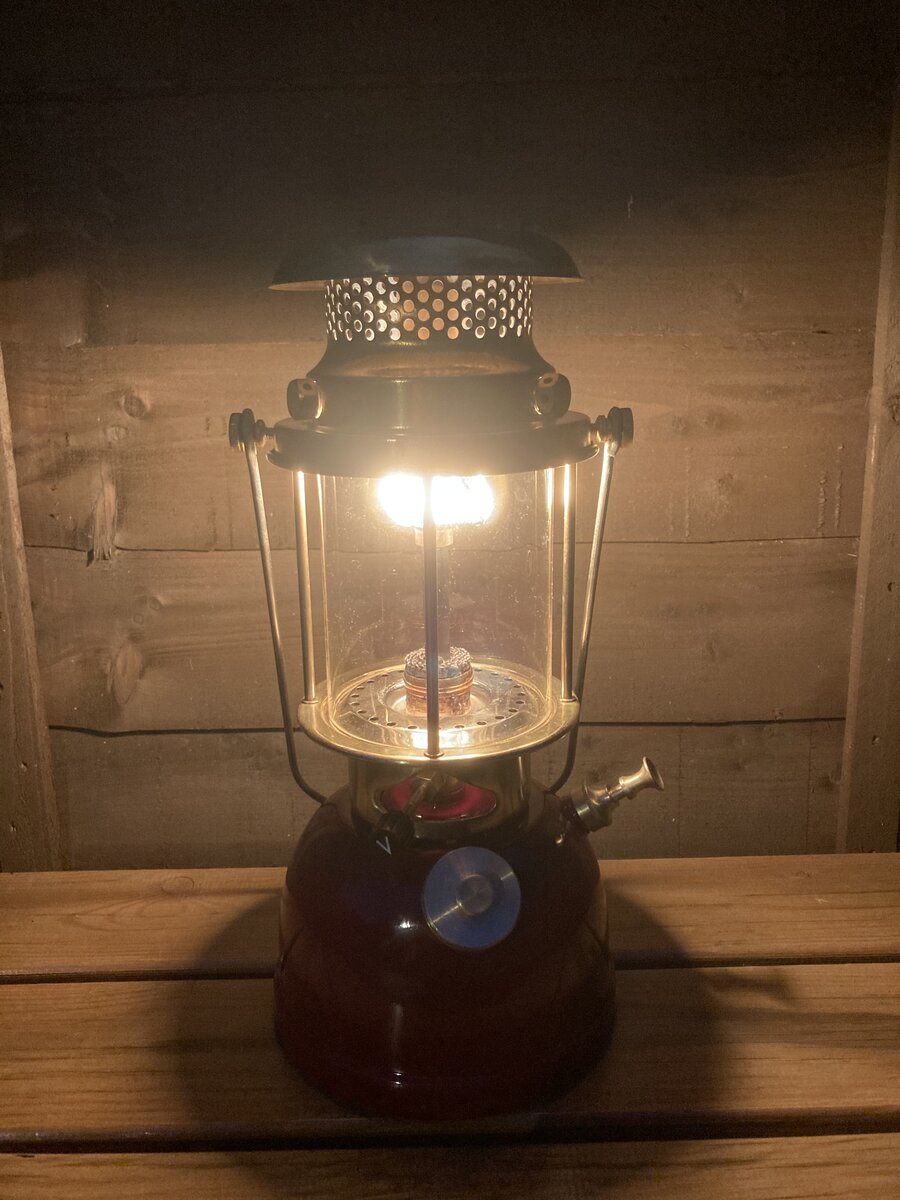

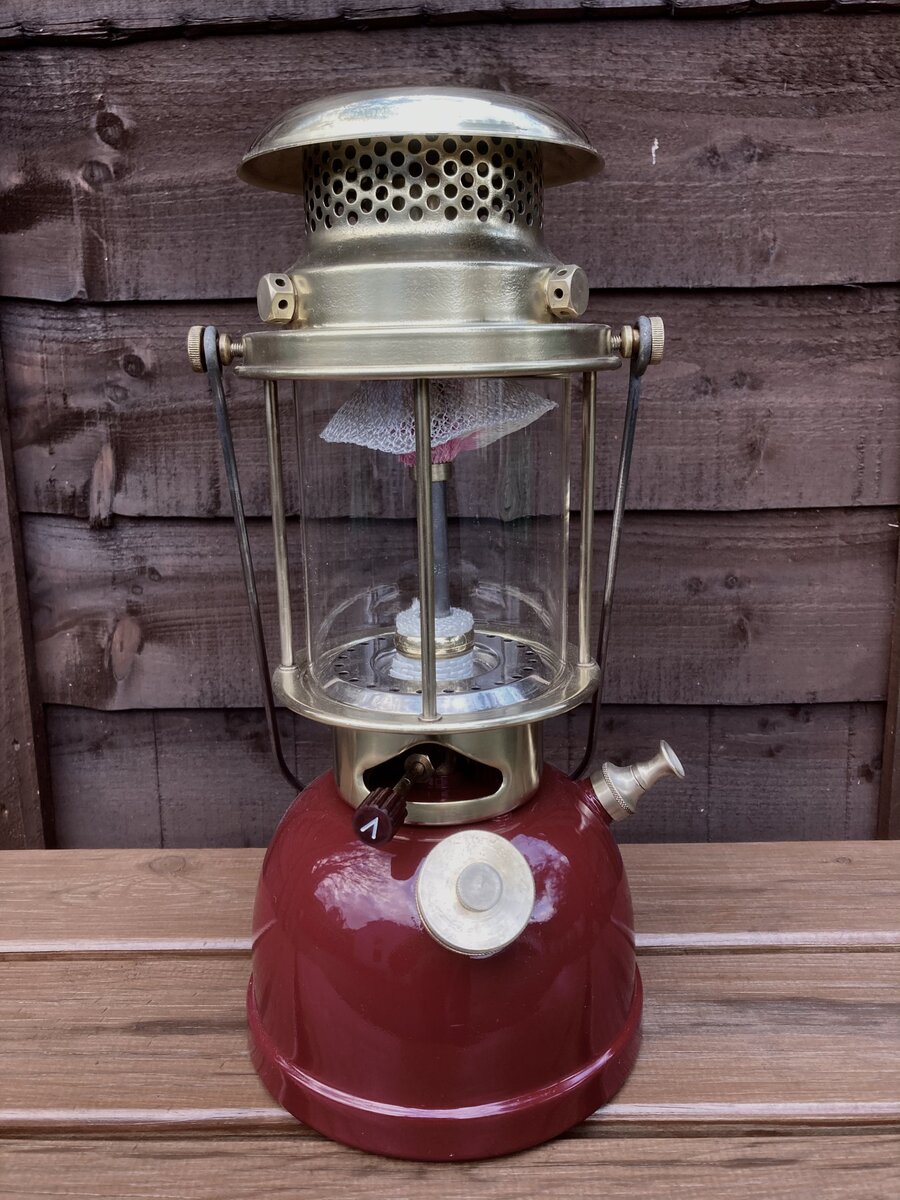

    4A89FBC9-A125-47DC-9F7D-8FFFA3F36E3B.jpeg C9EEEF76-C15F-40A4-ABE8-5DF0F3972833.jpeg CDB0F395-A81F-4173-8453-A612ACBDA501.jpeg Really happy with how it turned out for what is only my second major fettle. She’s been glowing beautifully for an hour now!


    Attached Files:

  2. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Online
    Joined:
    Jun 13, 2020
    Messages:
    554
    Location:
    Brighton UK
    Very pretty - and a new skill learnt too. A great restoration !

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,866
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::clap::clap::thumbup:

    When a tank has stress cracked once, it's likely that it will do so again, so my advice is to watch for seepage.

  4. Gary Waller

    Gary Waller Subscriber

    Offline
    Joined:
    Apr 3, 2018
    Messages:
    411
    Great Fettle good job with the tank...:D/....I had do the same recently with a 300X.

  5. Scott D

    Scott D United Kingdom Subscriber

    Offline
    Joined:
    Aug 10, 2020
    Messages:
    160
    Location:
    Yorkshire, UK
    Yes I was afraid of that Jeff. Hopefully a decent coat of paint might slow it down a bit.

  6. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,192
    Location:
    Somersby, New South Wales, Australia
    Nice work @Scott D , congratulations :thumbup:

  7. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    251
    Location:
    Bradford uk
    Great job, well done

  8. rayw

    rayw United Kingdom Subscriber

    Offline
    Joined:
    Sep 13, 2020
    Messages:
    187
    Location:
    North Yorkshire
    Looks excellent

  9. Scott D

    Scott D United Kingdom Subscriber

    Offline
    Joined:
    Aug 10, 2020
    Messages:
    160
    Location:
    Yorkshire, UK
    Thanks guys, I really enjoyed this one!

  10. ColinG

    ColinG United Kingdom Subscriber

    Online
    Joined:
    Oct 2, 2017
    Messages:
    3,118
    Looks marvelous! I might have been tempted to clean the original enamel cap and use that as it looked to be in pretty good shape.

  11. Scott D

    Scott D United Kingdom Subscriber

    Offline
    Joined:
    Aug 10, 2020
    Messages:
    160
    Location:
    Yorkshire, UK
    Thanks Colin, reckon there’s a good chance the red cap makes a reappearance once the new brass look has faded. Does match better than before given the font came out lighter than expected.

  12. Keith Warby

    Keith Warby United Kingdom Subscriber

    Offline
    Joined:
    Jan 17, 2020
    Messages:
    73
    Location:
    Holbeach England
    You've done a excellent job all round and now have a stunning lamp, have to agree with @ColinG regarding the hood but I'd still be happy with it either way.

  13. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    438
    Location:
    Faringdon, Oxon
    Just saw this post. Great restoration there. It’s amazing how deeply satisfying an old lamp fettling project can be. I guess it’s the same as a classic car restoration but for a fraction of the cost! No wonder the hobby is addictive. Well done Sir.

  14. Scott D

    Scott D United Kingdom Subscriber

    Offline
    Joined:
    Aug 10, 2020
    Messages:
    160
    Location:
    Yorkshire, UK
    Thanks Alex, reckon it will be scarily quickly how I surpass the cost of a classic car with this hobby. I’m barely a few months in and have already had lamps shipped from Spain and the US! Need to slow down a bit, which may happen when I can go places other than the garage after the lockdowns!!
