Bialaddin/Veritas NRV tool

Discussion in 'Fettling Forum' started by ColinG, Jul 23, 2021.

  1. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,848
    I've always used an adapted screwdriver to access the slot on a Willis and Bates NRV but I've never been entirely happy with this solution so I decided to make myself a special tool.

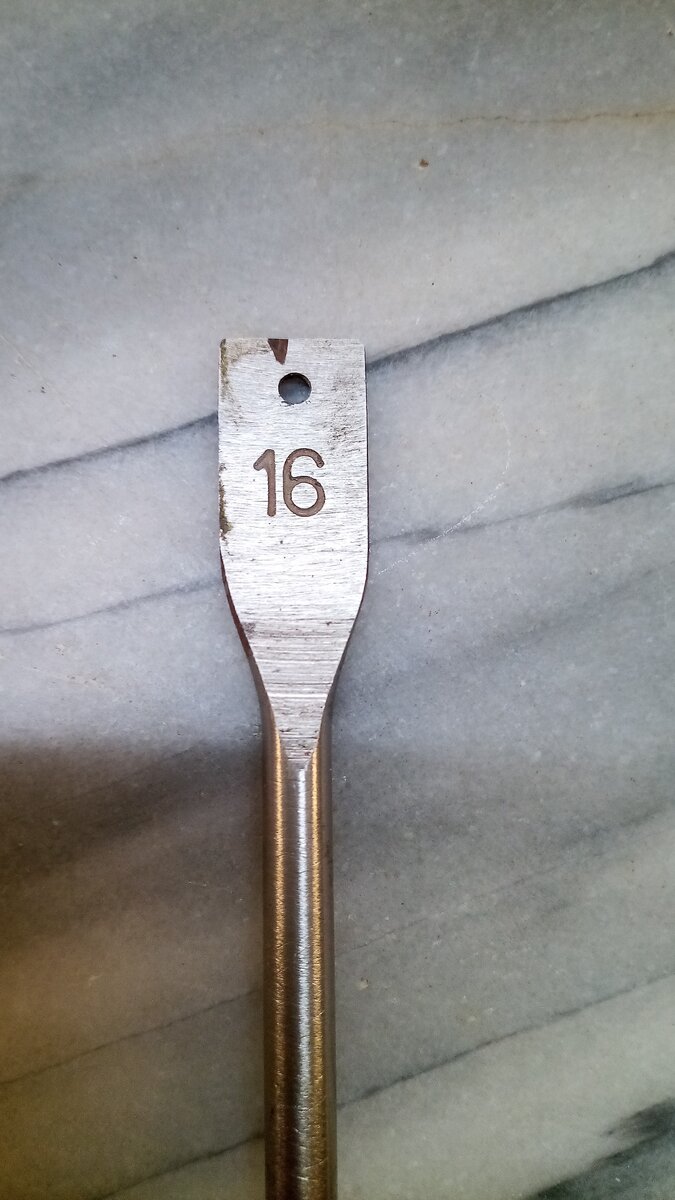

    I saw someone use an old flat bit for the blade so having a bunch of duplicates I set about grinding the point off the tip. Having done that I needed a cross piece but all I had was some 12mm threaded bar but it had to do.

    I drilled a 7mm hole in the threaded bar, cleaned the surfaces, applied flux and soldered them together. Admittedly, solder wasn't the ideal choice but I figured it should hold ok

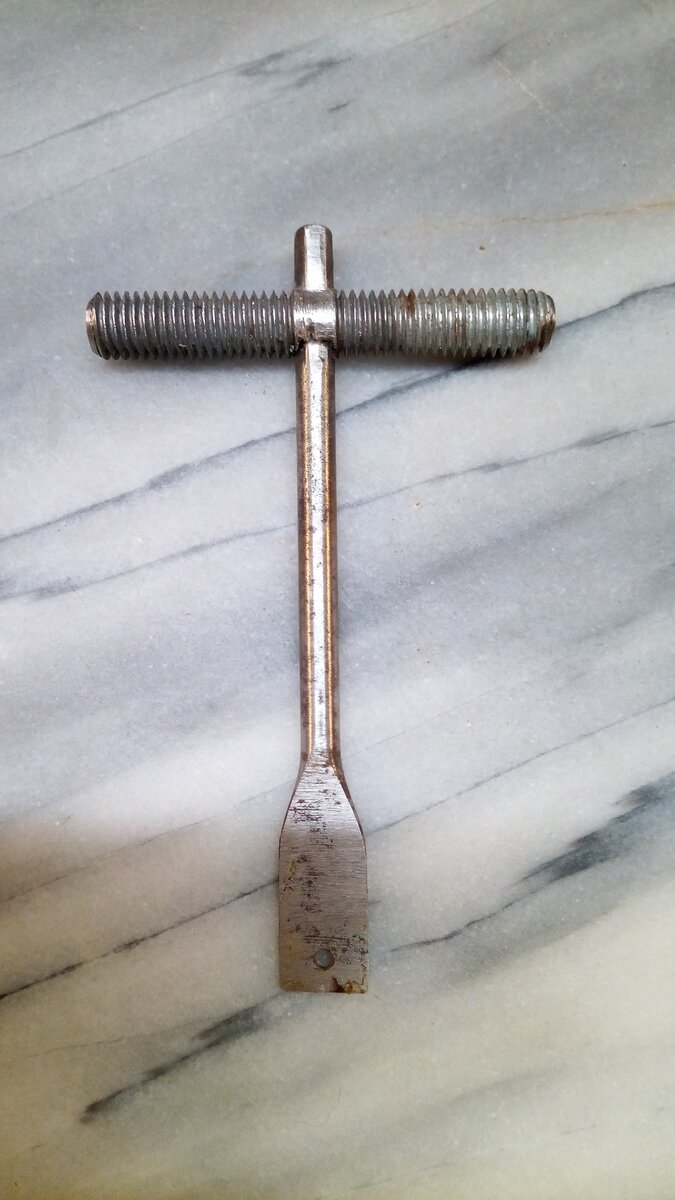

    Here's the result...



    I'll admit, it's not pretty but it does the trick!

  2. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,409
    Location:
    Toowoomba Australia
    @ColinG
    It looks the bee’s knees, it’ll do the job, just one question......
    Did you silver solder the tee piece on, or was it lead/tin type solder?
    Cheers
    Pete

  3. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,848
    It was soft solder only, Pete as I'm short on silver solder and it's blooming expensive! Hopefully soft solder will do the trick but if there's any movement I'll drill and pin it.

  4. Mr cod

    Mr cod Subscriber

    Online
    Joined:
    Jan 21, 2018
    Messages:
    284
    Location:
    Aylsham norfolk
    Nicely done colin, there could well be a few more variations made by members here now the seed has been sown, I might even have a go myself.
    Regards Ian.

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,285
    Location:
    Shetland Islands UK..
    That should do the job.

  6. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    858
    Location:
    Niers, Germany
    Nice tool.

  7. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,848
    I really need to stock up on various sizes of steel stock, both rod and bar. There are numerous small projects I can't get on with because I don't have the right materials.

  8. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    2,149
    Location:
    Malaysia
    Besides working as an NRV tool, I think that's the kind of device that might just get a surprising amount of other job's done.

  9. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,848
    Thanks guys.

  10. Tom Pedersen

    Tom Pedersen Denmark Subscriber

    Offline
    Joined:
    Nov 13, 2019
    Messages:
    173
    Location:
    Denmark
    @ColinG
    A good idea Colin.

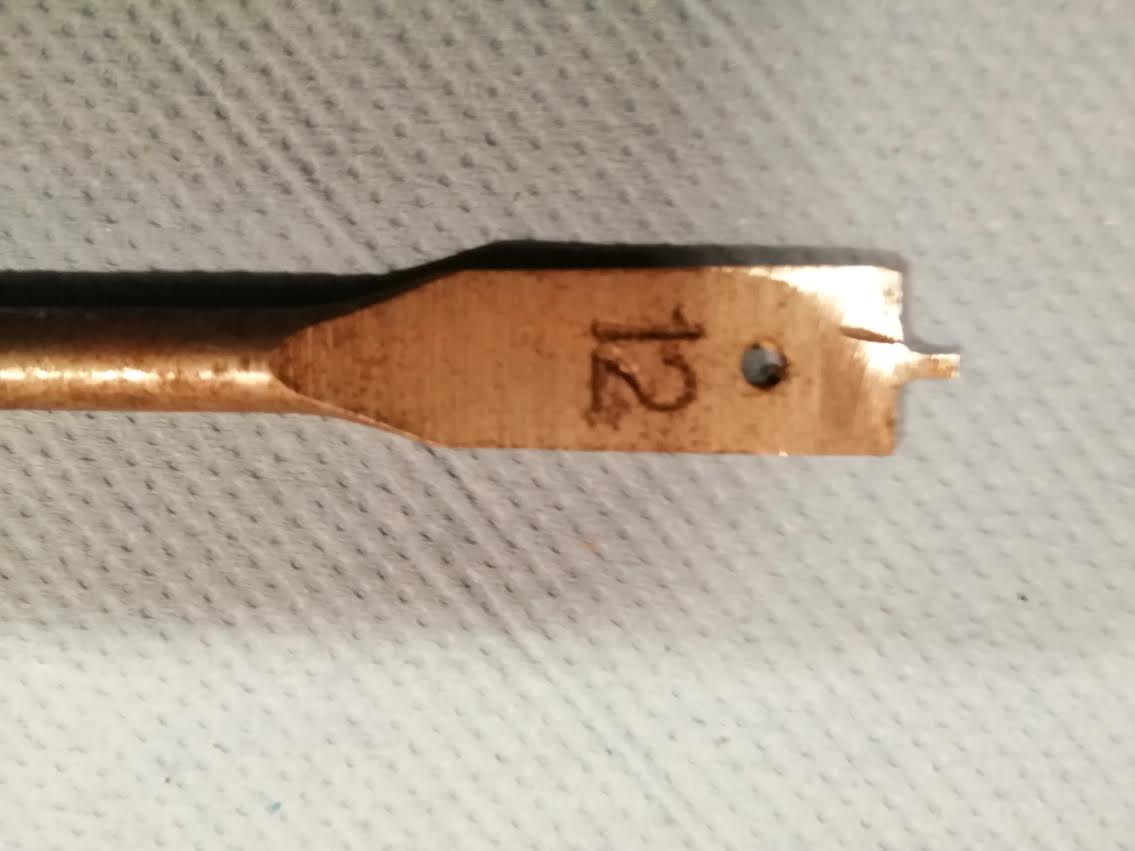

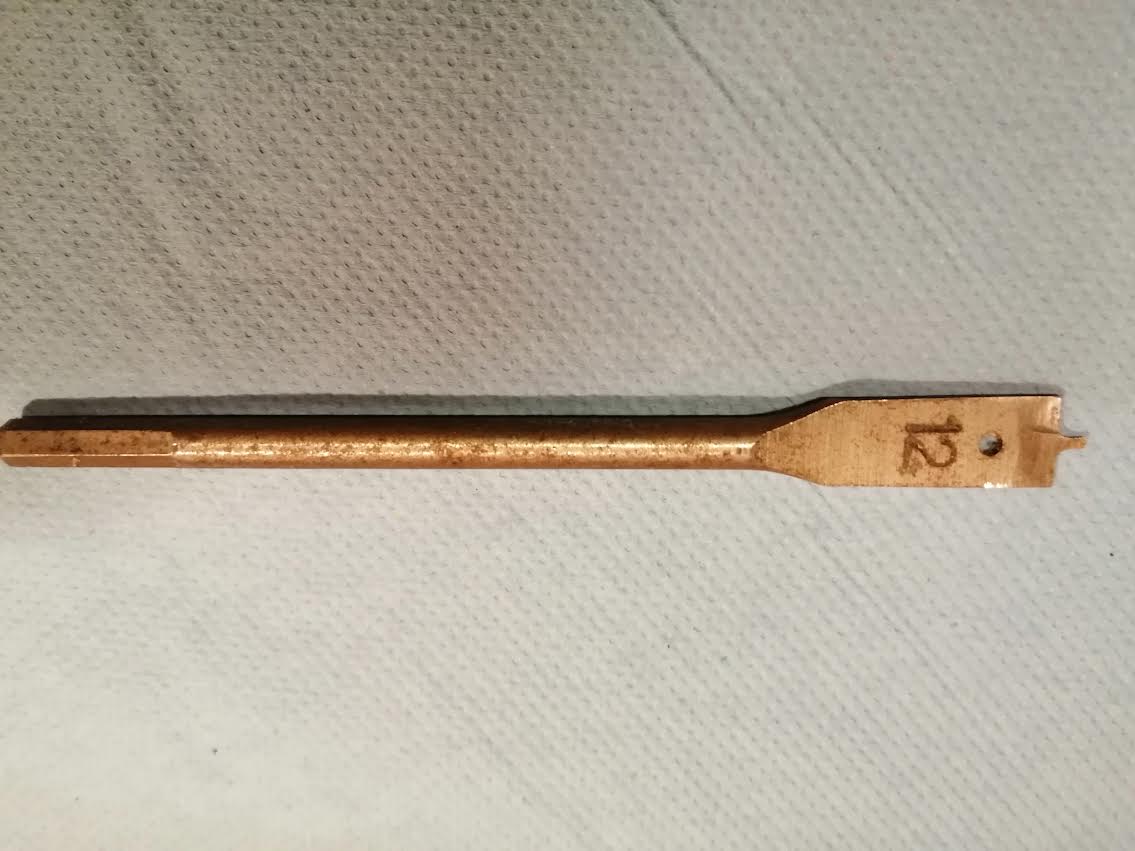

    If you sharpen the tip of the drill, it will always be centered.
    See photo.

    Tom
    0.jpg lcd32vf.jpg

  11. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,848
    I had thought idea of that but decided against it although I can't remember why!

    I might regrind the tip and add a small point this time.
