Blanchard 1000 from June 1920

Discussion in 'Blanchard & Barnard' started by Henry Plews, Aug 11, 2017.

  1. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    532
    Location:
    North Yorkshire

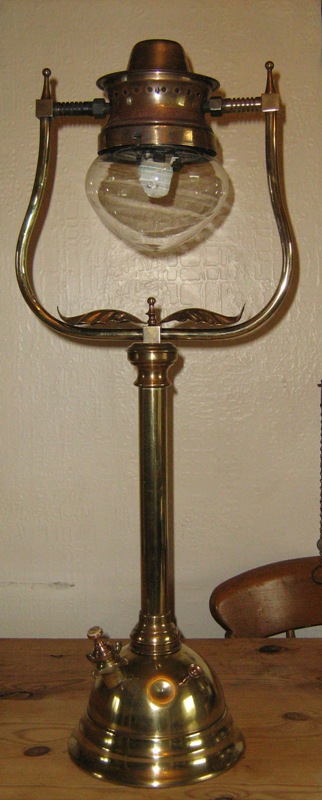

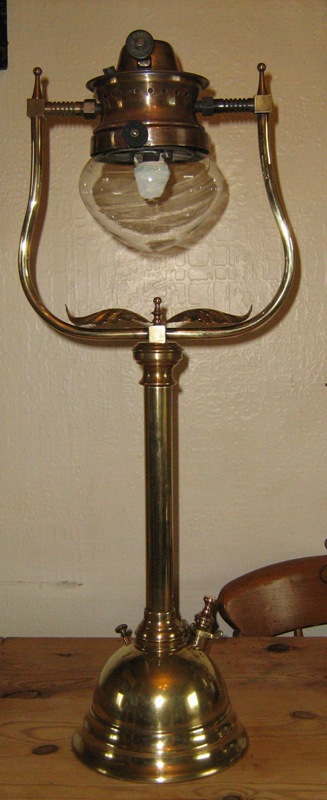

    Here's my Blanchard 1000 which has waited patiently for around 10 years for me to fettle the broken vapouriser tube on the burner.
    This example has an all brass tank and a porcelain insert in the pump knob. Note the small dent to the left of the pressure release screw.

    IMG_0592A.JPG IMG_0593A.JPG IMG_0594AA.JPG IMG_0581A.JPG Burner 01.JPG IMG_0589B.JPG

    Henry.

  2. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    792
    nice lamp henry looks to be running nicely now as well
    well worth the wait
    cheers pete

  3. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    532
    Location:
    North Yorkshire
    Hi Pete, yes it runs well though I have to build pressure slowly at first, otherwise it tends to flares a little even though I use 10 or 12 mils. of spirit to preheat it. Patience is definitely a virtue !

    I did have some fumes escaping from where the needle control shaft comes out of the burner - what a stink. Just as well "The Management" is away for the weekend.
    Not wanting to try and stretch the spring and risk breaking it, I used a horseshoe washer from a Tilley pump leather assembly as a shim between the spring and sleeve which the control knob fastens onto. Not perfect but much much better.

    Henry.

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,737
    Location:
    Shetland Islands UK..
    It's grand old lamp once again!:thumbup::thumbup:

  5. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    874
    Hi Henry
    very nice lamp
    even with the little dent, you can send it to me ;-)

  6. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    532
    Location:
    North Yorkshire
    Hi Michel,
    Perhaps not this one but if I find another, perhaps we could trade.

    Henry.

  7. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    874
    No problem for me, Henry
    if i own something to trade

  8. Jim Currie

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    71
    Henry, you can safely stretch the spring on the picker pin spindle with out fear of it breaking, just remove the spring and with the back of an old knife, just insert it between a few coil's and just give it a gentle twist. That should add all the tension you need to cure the escaping fumes, not to much or the spindle won't turn at all.

    If the worst was to happen, don't worry I've got springs hear.

    Jim

  9. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    532
    Location:
    North Yorkshire
    Hi Jim,

    Thanks for that tip, I'll give it a try.
    Since my last post, I've had a go at re-seating the needle control spindle using a light smear of fine valve grinding paste which I then cleaned out with cotton wool buds dipped in paraffin before doing the same with Autosol metal polish. Now, there isn't even an odour, let alone a "stink" and it burns much brighter too.

    Henry.
