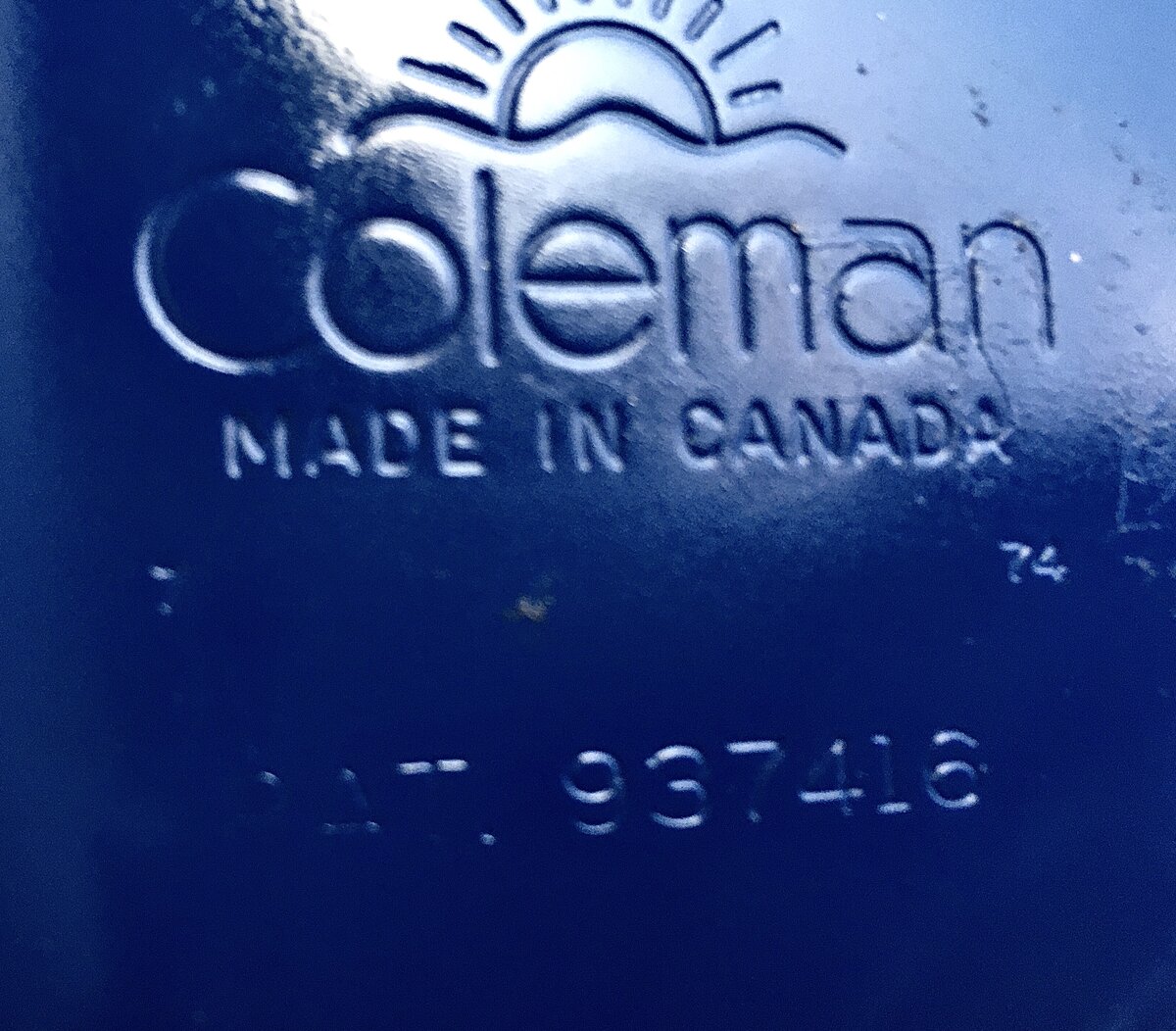

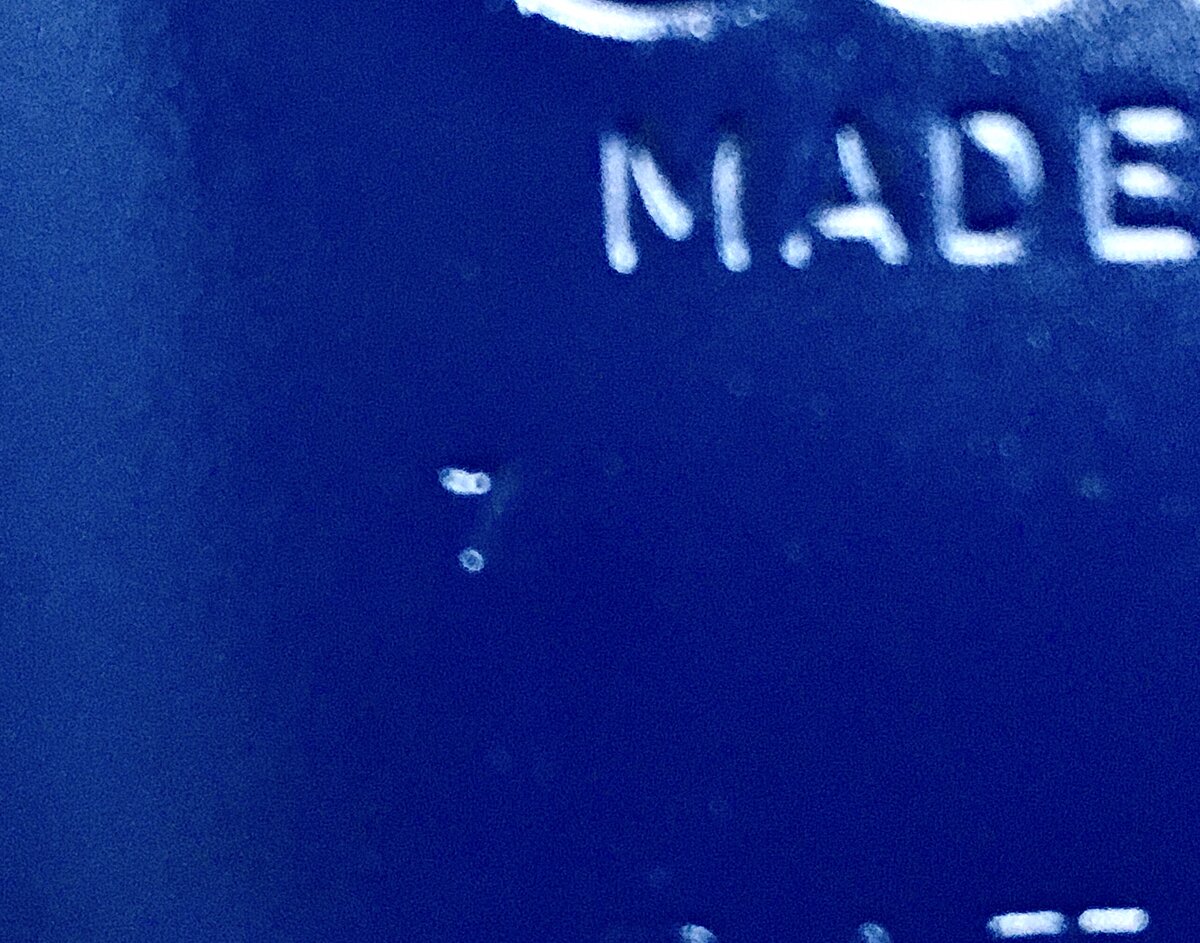

Canadian Coleman 321 Easi-Lite, dated 7-74

Discussion in '321, 321A, 321B, 321C' started by presscall, May 10, 2021.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    666
    Location:
    Lancashire, UK
    Ha! a second 321, while still basking in the warm glow of the one I already have.




    Not the original globe, but the Schott is a match, size wise.



    This one was missing the ID and operating instruction label on the tank, but before tackling that I checked and serviced the ‘internals’. A dunk in the ultrasonic cleaner tank and a smear of silicone grease on the control spindle O-ring and all was well.

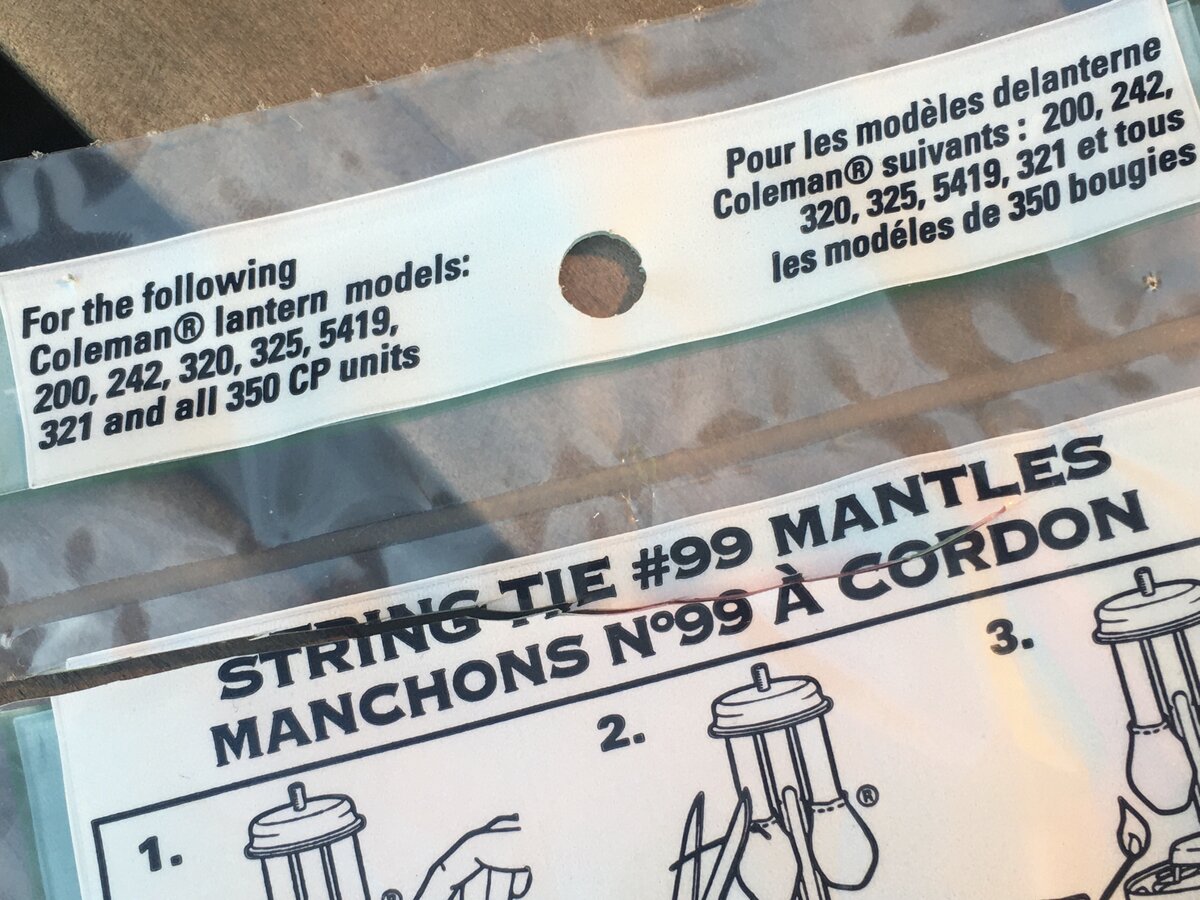

    I managed to get hold of some #99 mantles, correct for the model.




    So, replacing the missing label. Firstly, I photographed each of the five panels on my other 321 lantern. Obviously trying to get a shot of the label in its entirety would introduce extreme distortion and out-of-focus effects.

    48B9EAA9-2DD2-4C1F-9A5A-6655EADC3ED5.jpeg 17F7CC57-CF09-4521-9874-A136B213D1C8.jpeg 5B116B3B-439F-4B63-8606-483041269B92.jpeg C80DF8DD-CE2B-46E7-A752-241433F06C29.jpeg 636E353D-F8BA-4DE9-87BB-5ABEC89EAE38.jpeg


    I then assembled them, electronically, in a Word doc and printed the result (two of) on decal paper.



    I confess that before that successful example I got the colour balance wrong - too pale.



    Corrected on the final print.



    Waterproofing and durability of the label was ensured with a couple of coats of clear lacquer.



    They’re an excellent lantern, living up to the claim of ‘Easi-Lite’.


    John

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,582
    Location:
    Somersby, New South Wales, Australia
    Nice work, John. :thumbup:

  3. MrAlexxx

    MrAlexxx Subscriber

    Offline
    Joined:
    Nov 18, 2015
    Messages:
    129
    Nicely done, John. One of my favorite "newer" lanterns. The blue color is sweet!

    Alex

  4. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,498
    Location:
    Brighton UK
    Good works ! :thumbup:

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,149
    Location:
    Shetland Islands UK..
    That does the job.:thumbup:
