Coleman 2242 (Made in England)

Discussion in '242 & 246 letter variants, 2243' started by Jean J, Mar 12, 2015.

  1. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland

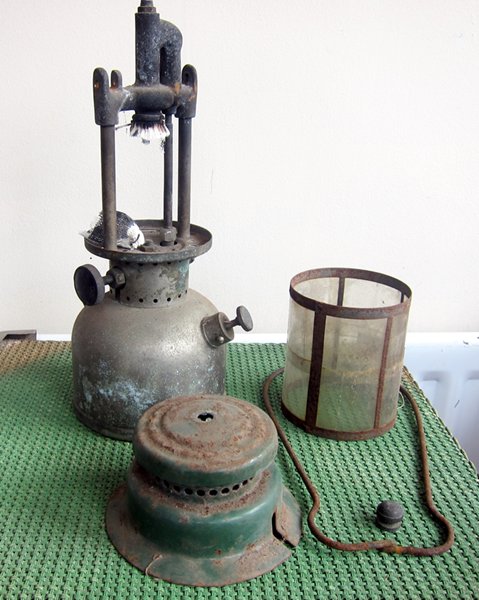

    I came home with this wee lamp this week. It has the Coleman Trade Mark with the number 2242 underneath and the words Made in England. Is this number the date and if so what is the model? Is the mica globe original or should it have one of these rounded Coleman globes?

    1426182182-n_IMG_0340.jpg 1426182216-n_IMG_0343.jpg

    I just gave it a bit of a spruce up and I really like this cutie!

    1426182238-n_IMG_0345.jpg 1426182274-n_IMG_0346.jpg


    Attached Files:

    Last edited by a moderator: Mar 31, 2017
  2. Matthew92

    Matthew92 Subscriber

    Offline
    Joined:
    Feb 13, 2012
    Messages:
    2,052
    That's cute Jean, I don't know what model it is, but I like it. Looks sort of 242 sized, so perhaps the extra 2 is a miss print. :lol:

  3. Lighthouse

    Lighthouse Sweden Subscriber

    Offline
    Joined:
    Jan 28, 2011
    Messages:
    184
    Location:
    Sweden
    The Coleman 242 No Letter. It looks like your's is misspelled. Probably a Friday afternoon job.
    Yes, this is the original mica shade.

  4. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland
    Thanks both, but what about the date, nothing on the base that I can see.

  5. Matthew92

    Matthew92 Subscriber

    Offline
    Joined:
    Feb 13, 2012
    Messages:
    2,052
    Is there nothing below the 2242? I thought I could see a couple of marks be they might be nothing.

  6. James

    James Subscriber

    Offline
    Joined:
    Jan 5, 2011
    Messages:
    1,127
    Shame collecting lamps isn't like collecting stamps or it would be worth a fortune :D

    Last edited by a moderator: Mar 31, 2017
  7. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland
    Matthew, the number is actually impressed slightly over the Made in England and really you can only see the 'and'.

  8. Gneiss

    Gneiss Subscriber

    Offline
    Joined:
    Oct 7, 2012
    Messages:
    1,588
    It's cleaned up pretty well, but does it run?

  9. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland
    Don't be silly - me try lighting a lamp? If you can tell me if everything is there, what it runs on, which mantle to use and how to light it, then, maybe, someday. possibly......

  10. Sedgman

    Sedgman Subscriber

    Online
    Joined:
    Nov 19, 2012
    Messages:
    783
    Location:
    Wimmera, Victoria
    I thought the slotted ventilator indicated a 242B, assuming originality. However I would have expected a bulging globe for a 242B, again if it was original. none of mine have such large stampings so I await with interest any further explanation.
    Iain Sedgman

  11. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,657
    Location:
    Hertfordshire
    This does look like a 242A but it is correct as model 2242. They were made in the 1930s as a kero version of model 242. Rare things as I only know of maybe another one or two. Even better is the Made in England stamp as the others are Canadian. This one has to be slightly later as it has the ball nut on top so probably contemporary with 242A rather than 242. As a later version it cold have had either the bulge or straight globe of 242 or 242A. The mica globe is probably not original although it might be old as Coleman fitted those to the 241 and 243 series of lamps in the late 1930s. ::Neil::



    Attached Files:

    Last edited by a moderator: Mar 31, 2017
  12. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    13,557
    Location:
    Shetland Islands UK..
    Hello Jean, that's a great find! :thumbup:

    It's a pity that part of the pricker control is snapped off, Jeff.

  13. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland
    Yes Jeff, I noticed that something was missing, can I do anything about that?

    Neil, what a great illustration, thanks for that. At long last a keeper, I'd almost given up hope of finding anything other than common TLs.

  14. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    8,775
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Good find, Jean. I hope you get it running.

    Tony

  15. Graham P Australia

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    982
    Location:
    Albury area NSW AUstralia
    That's a nice find may have had a knob or although not original an arm as on the Handi pricker would work or possibly a Coleman 242B or similar would fit
    G.P

  16. adelcoro

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    250
    Location:
    Canada
    Never seen one before
    this is really a great find!!
    Similar to a Canadian early 242A

  17. Lamp Doctor Australia

    Offline
    Joined:
    Jan 3, 2013
    Messages:
    622
    Location:
    Geelong
    Jean.
    Looking at yours the control knob is plain looks early and does the cleaning lever snapped off ,does it look like it had a thread on the end of it for a control wheel .
    Also the pump does it have a pin on shaft and slot to go into etc .
    Bob .

  18. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    13,557
    Location:
    Shetland Islands UK..
    Hello Jean, Stu may be able to fix it for you, Jeff.

    Last edited by a moderator: Mar 31, 2017
  19. adelcoro

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    250
    Location:
    Canada
    actually similar to a 242 Junior Canada but not quit.
    very nice piece

  20. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,657
    Location:
    Hertfordshire

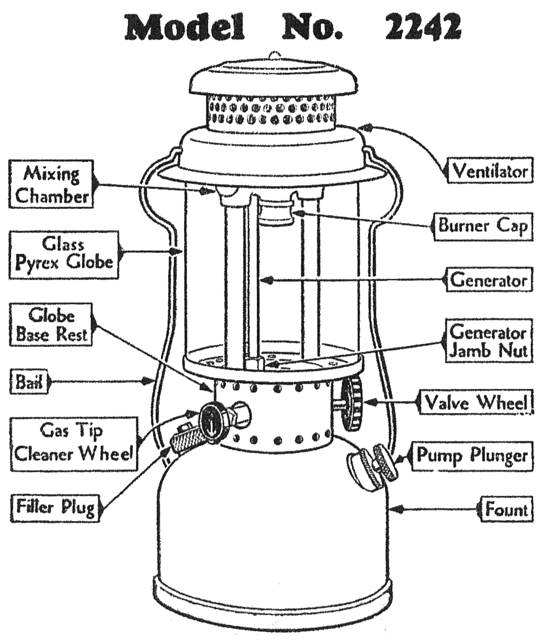

    The instruction leaflet shows it with controls like 242K. Oddly enough they do not show a pre heater alcohol cup. ::Neil::



    Attached Files:

    Last edited by a moderator: Mar 31, 2017
  21. Gneiss

    Gneiss Subscriber

    Offline
    Joined:
    Oct 7, 2012
    Messages:
    1,588
    I use the Coleman Goldtop 999 (Yellow) Fine Fine Weave Mantles on my coleman lamps including the paraffin one. Really pleased with them and they are exceptionally bright..

    Neil's ad calls it "paraffin lamp" and I guess that ties in with the British market.

    Was there a clip on spirit cup with these as I can't see one?

    Last edited by a moderator: Mar 31, 2017
  22. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland
    Good question - was there one? And who knows?

  23. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland
    All this interest in my wee lamp makes me want to actually get it going so watch this space!

  24. Matthew92

    Matthew92 Subscriber

    Offline
    Joined:
    Feb 13, 2012
    Messages:
    2,052
    That was the intention Jean. :thumbup: :lol: :lol:

  25. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,657
    Location:
    Hertfordshire
    These lanterns did not have a spirit cup. The instuctions say to insert a torch through the torch door in the frame base. ::Neil::

  26. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,657
    Location:
    Hertfordshire
    Changed my mind on this one. Not on what it is because that is clear but having searched my records I can't find another example in any collection. So it is not just rare it appears to be unique as far as I know. Got to have been more than one made of course and there may yet be more turn up. I hope one or two do because I suspect these were actually made in Canada and it would be nice to see one marked as Canadian. ::Neil::

  27. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,468
    Location:
    N E Scotland
    Bob and Jeff - pump has pin on shaft and slot on body. No sign of break on pricker control but may have had threaded end for knob as in Neil's second diagram.


    Sure the wording is 'Made in England' but can't quite get it clear on photo.


    Pic showing lighting hatch.


    Generator head showing number 3000



    Attached Files:

    Last edited by a moderator: Mar 31, 2017
  28. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    13,557
    Location:
    Shetland Islands UK..
    Hello Jean, your latest photos show some interesting details and that design of pump rod etc., means that the pump can be locked in position once there is enough pressure in the tank.

    Congratulations on a great find! :thumbup: Jeff.

  29. longilily

    longilily United Kingdom Subscriber

    Offline
    Joined:
    Jan 25, 2011
    Messages:
    1,450
    Location:
    Dungeness
    Has the threaded section snapped off ? Or is the pricker wheel attached via another method :-k guess the pricker wheel would be made out of that black hard rubber type material.

    Seems you have a great find there Jean :thumbup: well done 8)

  30. TomFetti

    Offline
    Joined:
    Jun 17, 2017
    Messages:
    52
    Has there ever been another found yet? I tried finding on CCF & not a single one there... ever get it running?? Very cool!
