Coleman 226

Discussion in 'Lamp Action Gallery' started by Henry Plews, Nov 28, 2021.

  1. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,149
    Location:
    North Yorkshire

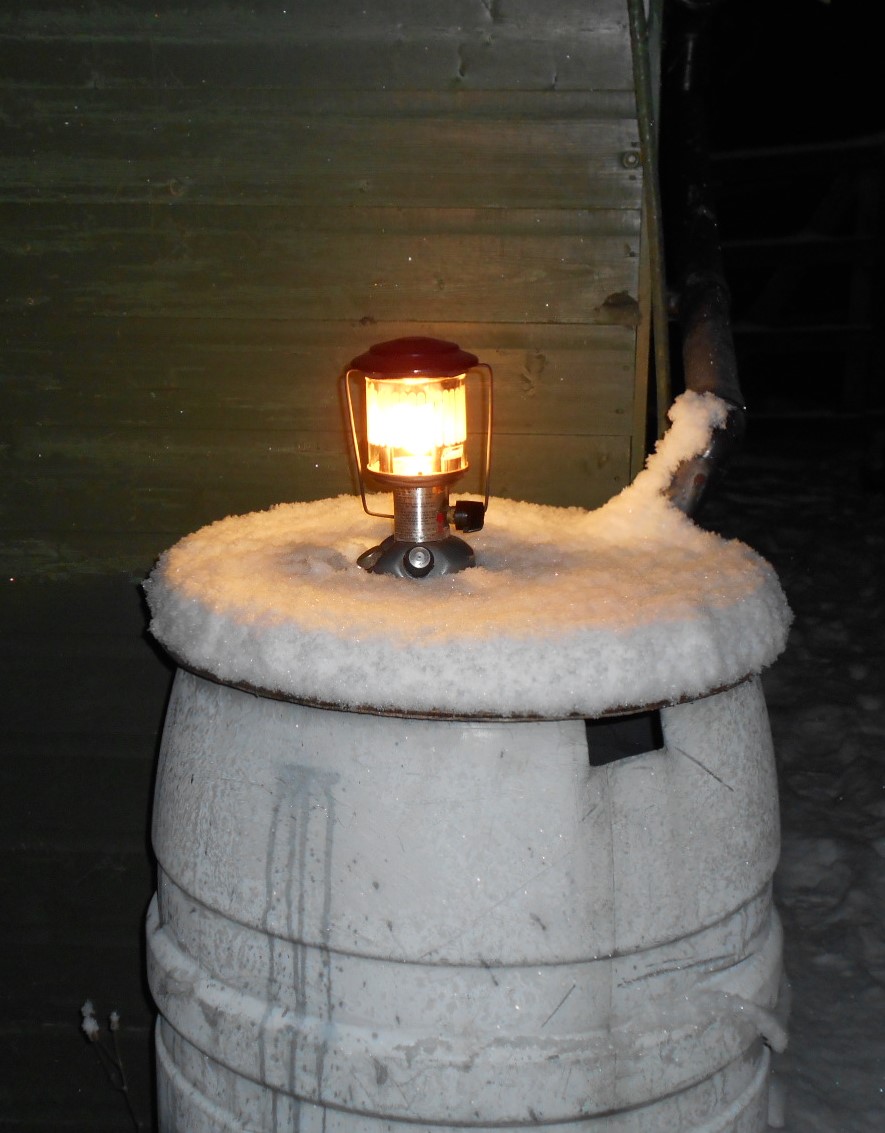

    A bright little lantern when it was working but even though there were no leaks, I had to add pressure every 10 minutes or so otherwise it would go out.
    DSCN1925 (2).JPG

    DSCN1926 (2).JPG
    DSCN1927 (2).JPG

  2. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    967
    Location:
    Niers, Germany
    Yes, the 226 keep pressure only in 1st hour when tank full. Afterwards continuous pumping. Annoying.

    I think of closing the upper hole in the pickup tube.
    But then it needs thorough. Pre-heat.

  3. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    468
    Looking good in the snow Henry.
    I am guessing this must preheat from the vapour in the tank.
    Does it have an air shut off spring you could make more springy?
    James

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,560
    Location:
    Shetland Islands UK..
    A well lit snowy scene.:thumbup:

  5. Alenstein Poland

    Offline
    Joined:
    Oct 3, 2019
    Messages:
    151
    Location:
    Ełk
    In the UK is snowing as well?

  6. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,779
    Location:
    Brighton UK
    I guess the combination of cold and a small tank is the cause. The price you pay for portability ?
    Nice pctures
    Chris

  7. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,149
    Location:
    North Yorkshire
    No. It's a very simple mechanism, it's either "on" or "off".

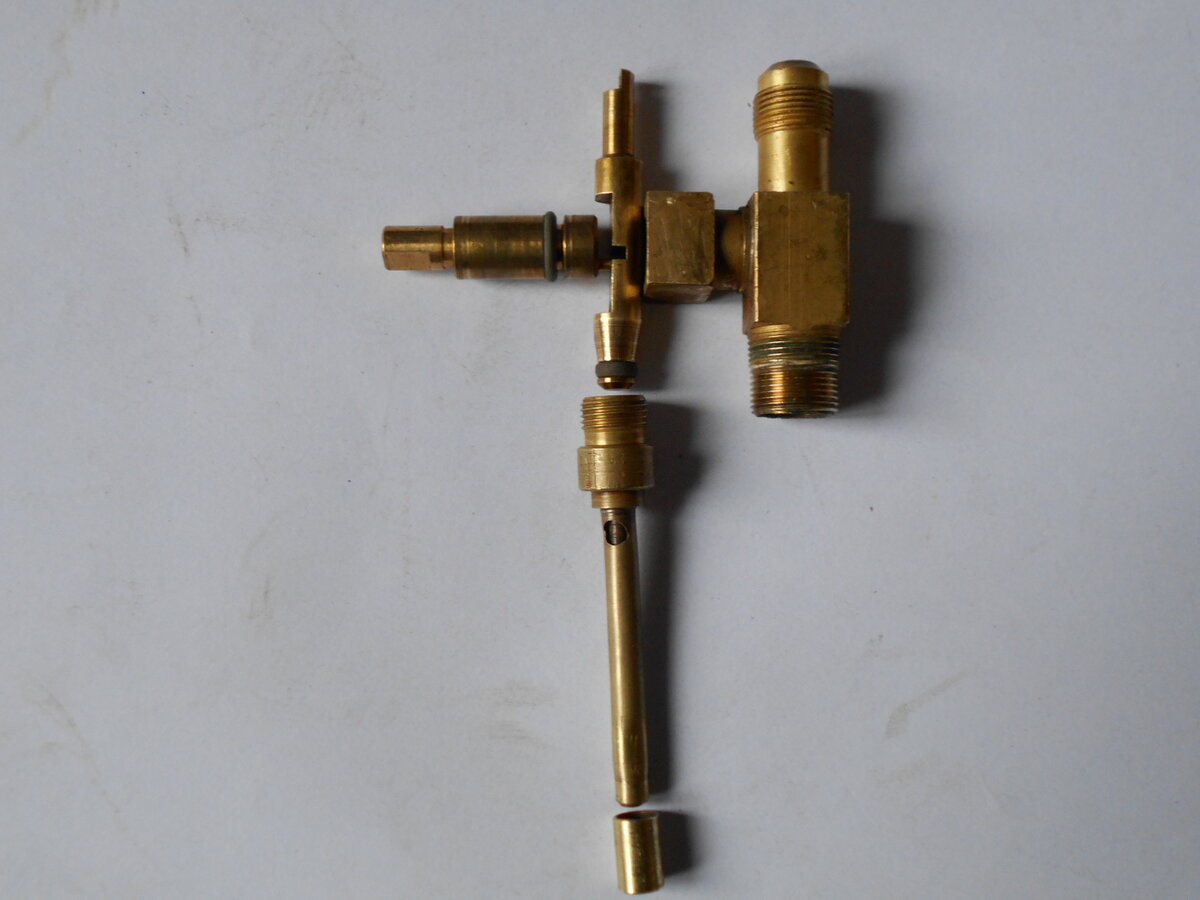

    I decided to strip down the lantern and give it a good clean. I put some ball bearings into the tank and added some clean kero then gave it a good shaking and drained the dirty fuel. I had to do this 7 or 8 times before the fuel came out as clean as it went in.

    This was the result
    I assume it's the ethanol in modern unleaded gasoline which has destroyed the tank lining used by Coleman during manufacture. Anyway, the lantern certainly ran better once I'd got all that stuff out of the tank.

    Time for observation. With a full tank (225ml.) of Holts brake cleaner I added 30 pump strokes (as per instructions) and lit the lantern after which, I added 10 pump strokes (instructions say 10 to 20).
    All that was at . . . . . . 14:20
    add 15 pump strokes at 16:00
    add 20 pump strokes at 16:50
    add 30 pump strokes at 17:15
    add 40 pump strokes at 17:40
    add 20 pump strokes at 18:12
    the lantern went out at 18:30

    Repeated attempts to re-light the lantern failed yet I still managed to drain approximately 75ml of fuel from the tank.

  8. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    468
    All that crud won't help it run well.
    You could plot a graph with all that pumping data, information is always handy though.
    Hope it runs better after a good clean up.
    James.

  9. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    712
    Location:
    Lancashire, UK
