Coleman 237 (England, October 1954)

Discussion in '237, 237A, 237B' started by Tony Press, Jul 30, 2018.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

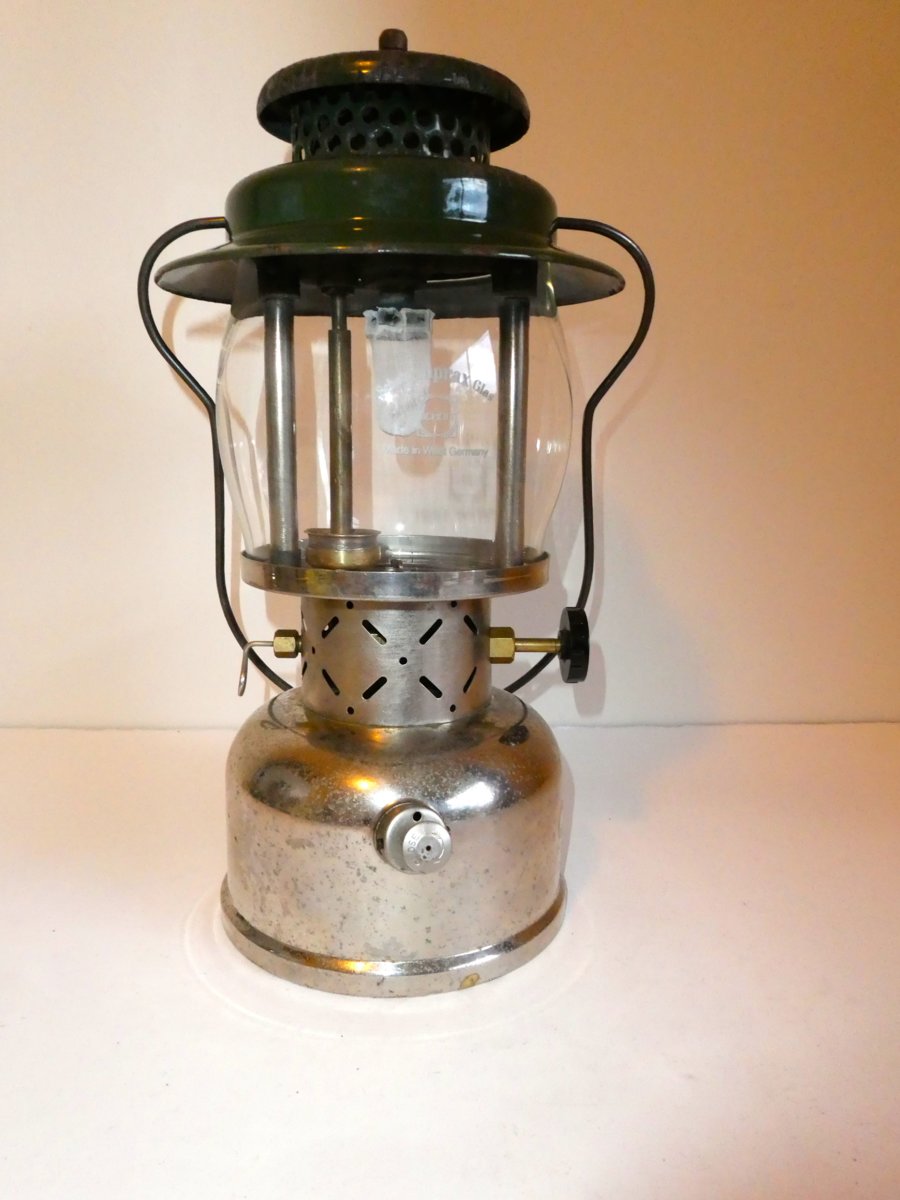

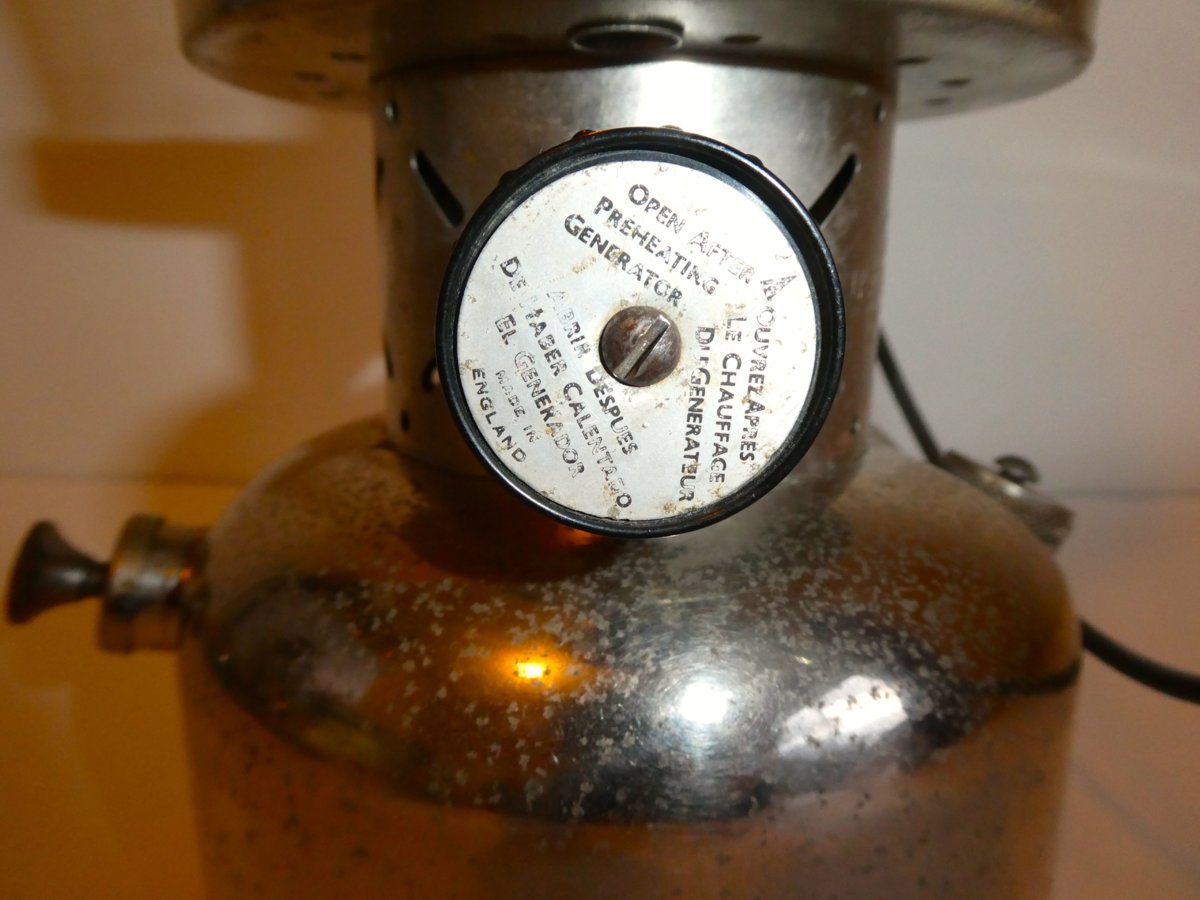

    Here's my made-in-England Coleman (10/54). It's a bit rough, but it works well.


    [ Thank you, @toad of the cape]

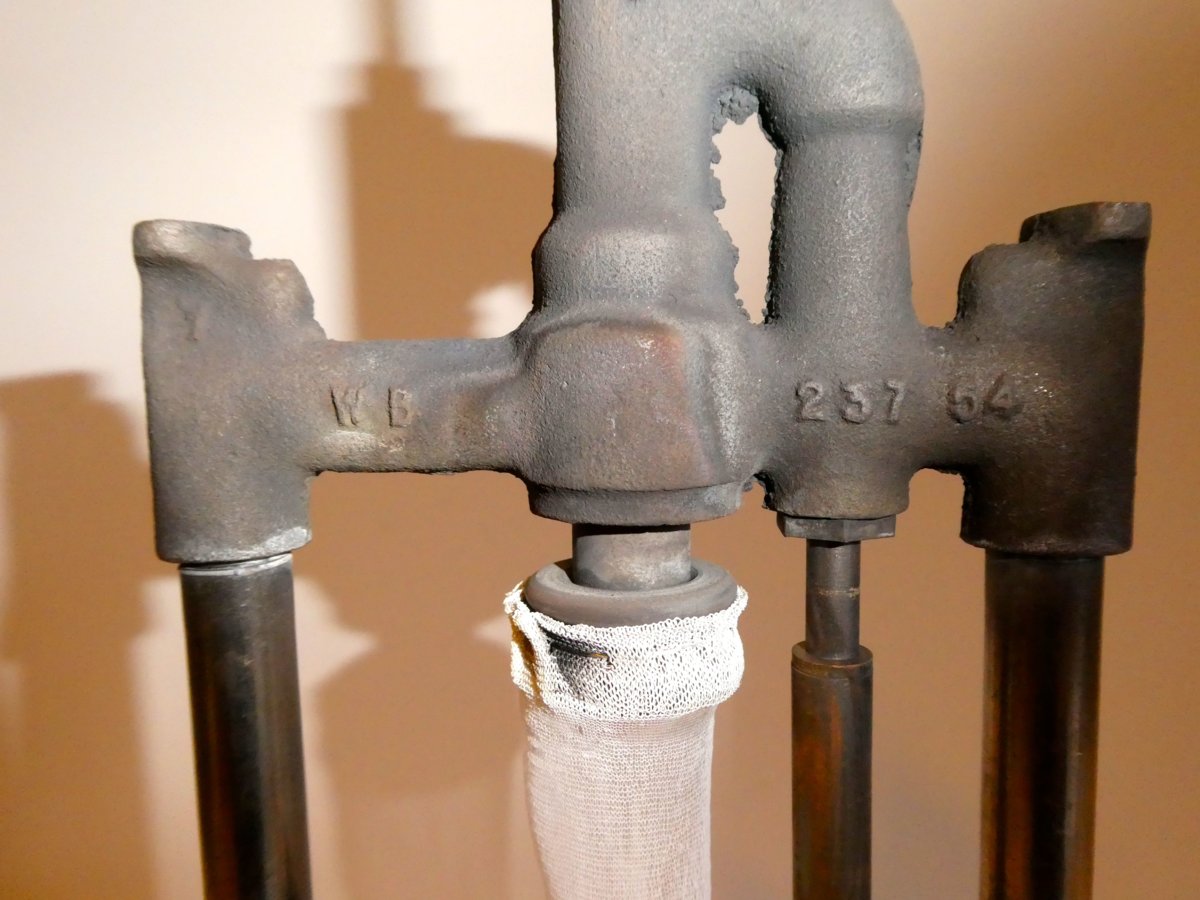

    "WB 237 54"

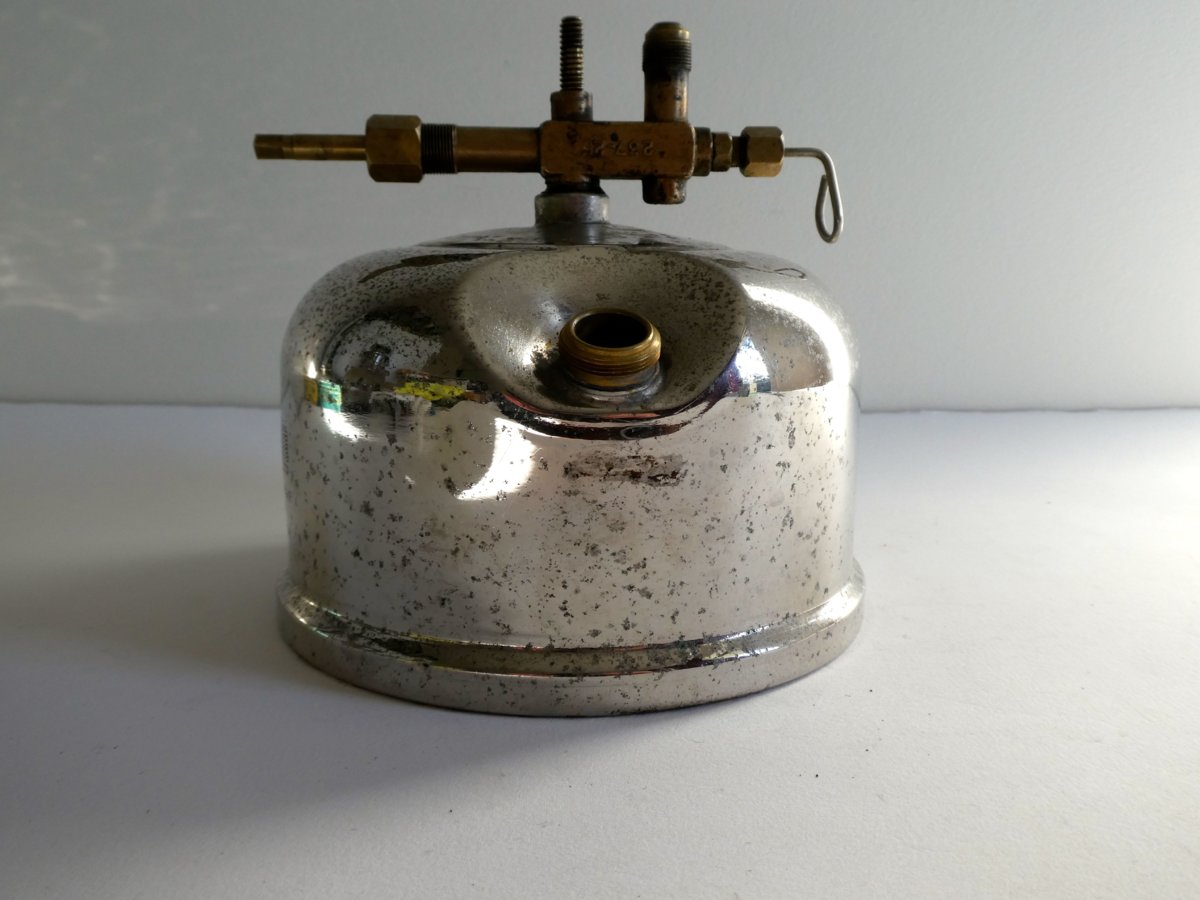

    This is my repaired pre-heater.

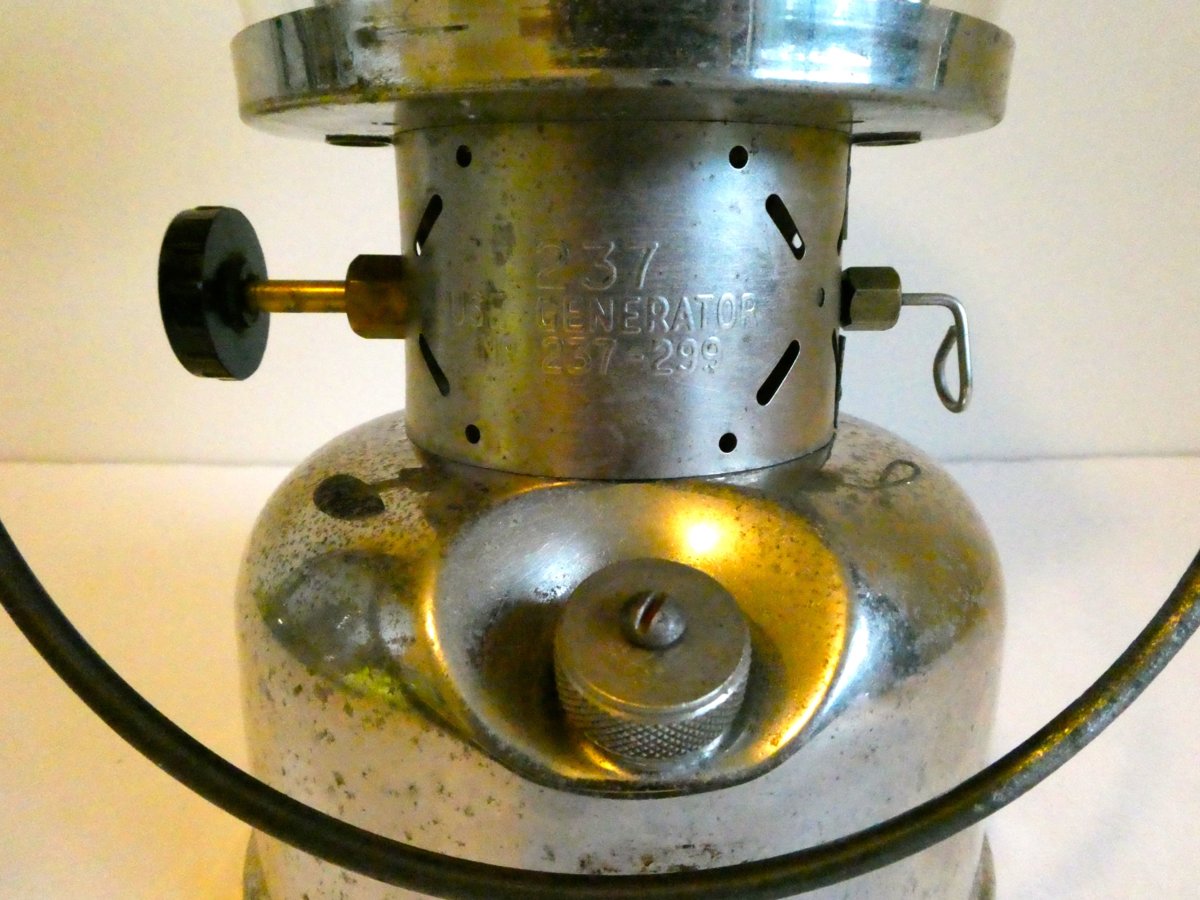

    This new generator was a kindly given to me by @phaedrus42




    Up and running.



    This was a pretty straightforward fettle, except for the pre-heater, that had been corroded through:

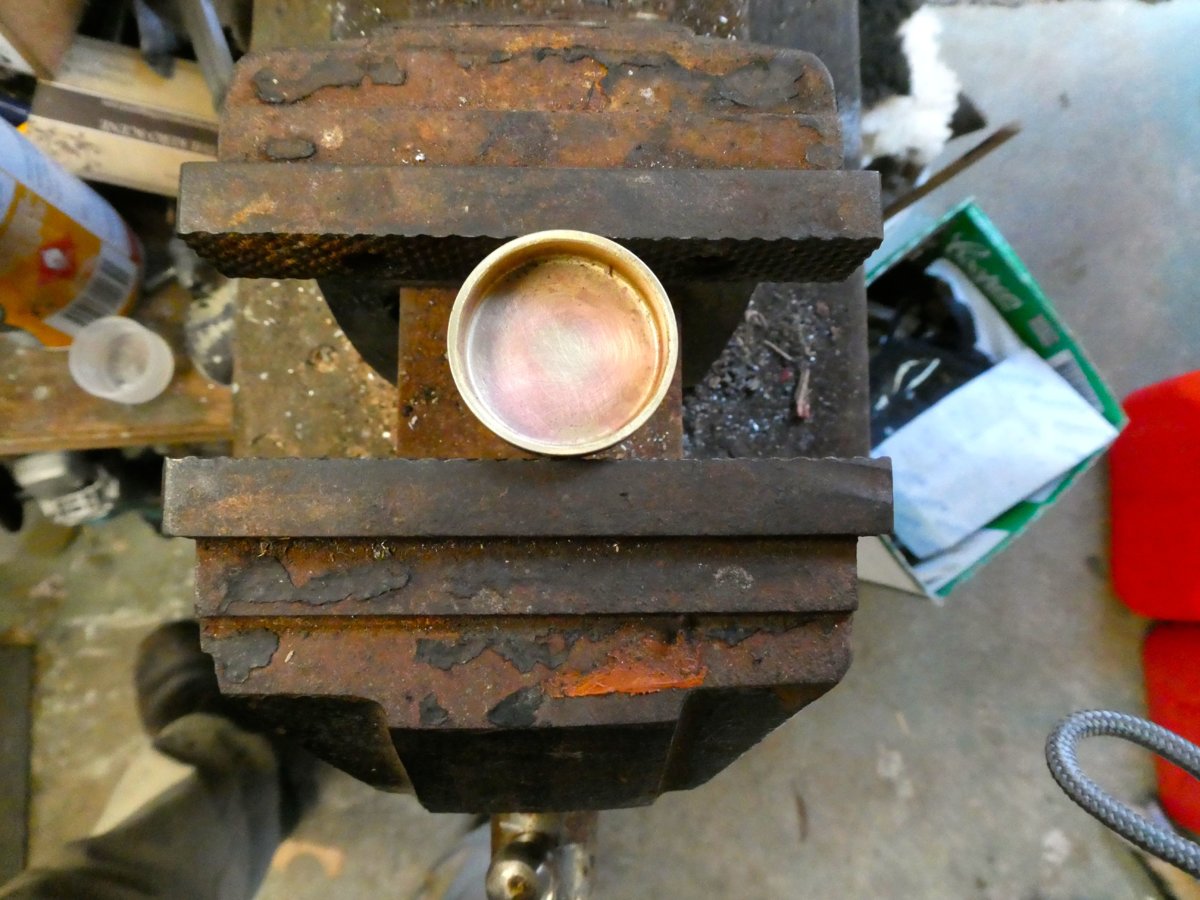

    I bought a brass welch plug that was about the same inside diameter (slightly smaller) than the sprit cup.

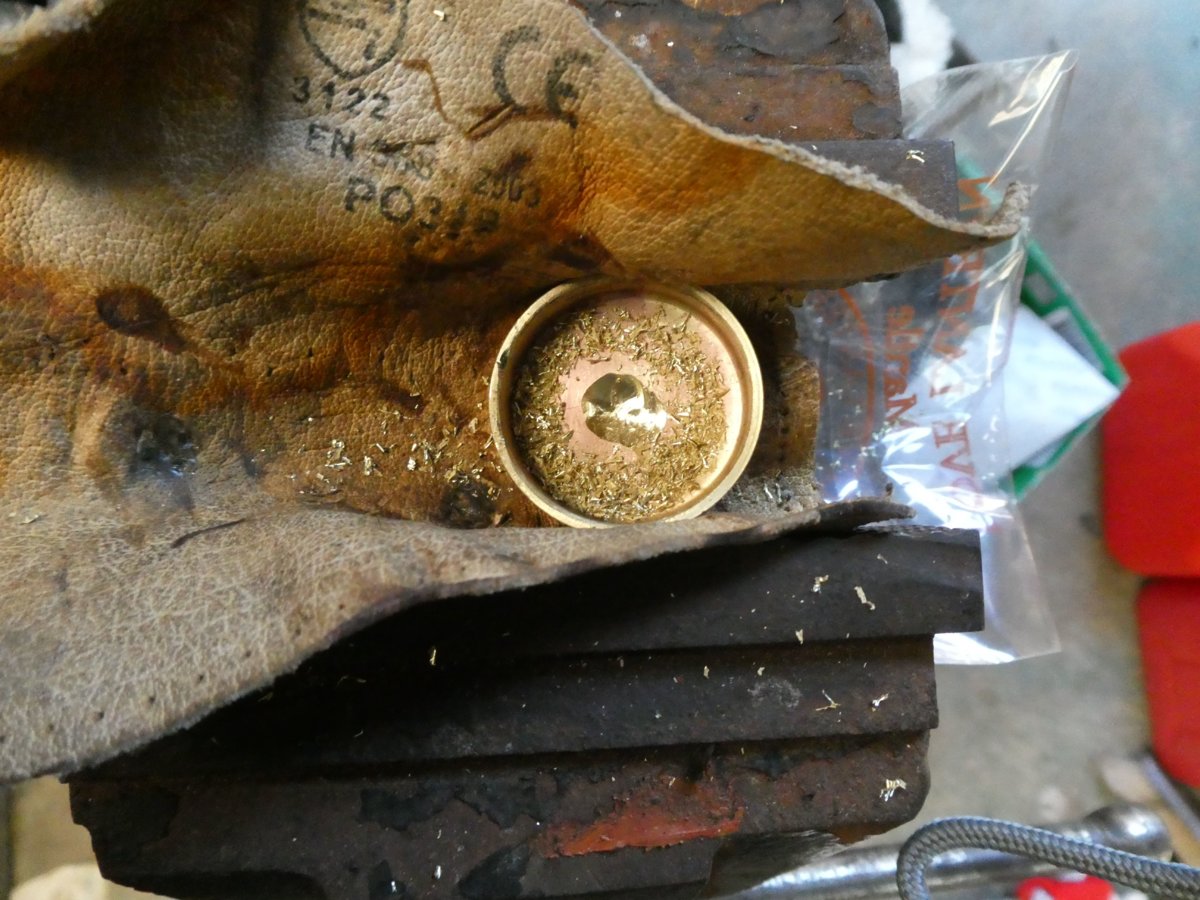

    I tapped the pre-heater into the welch plug to mark the centre then drilled the correct size hole (I saved the brass filings for future brazing repairs).

    I then soldered the spirit cup into the welch plug making sure all the rim, and the base was soldered and not leaking. I had to also fix, with solder, three small holes above the rim of the welch plug.


    Testing for leaks.

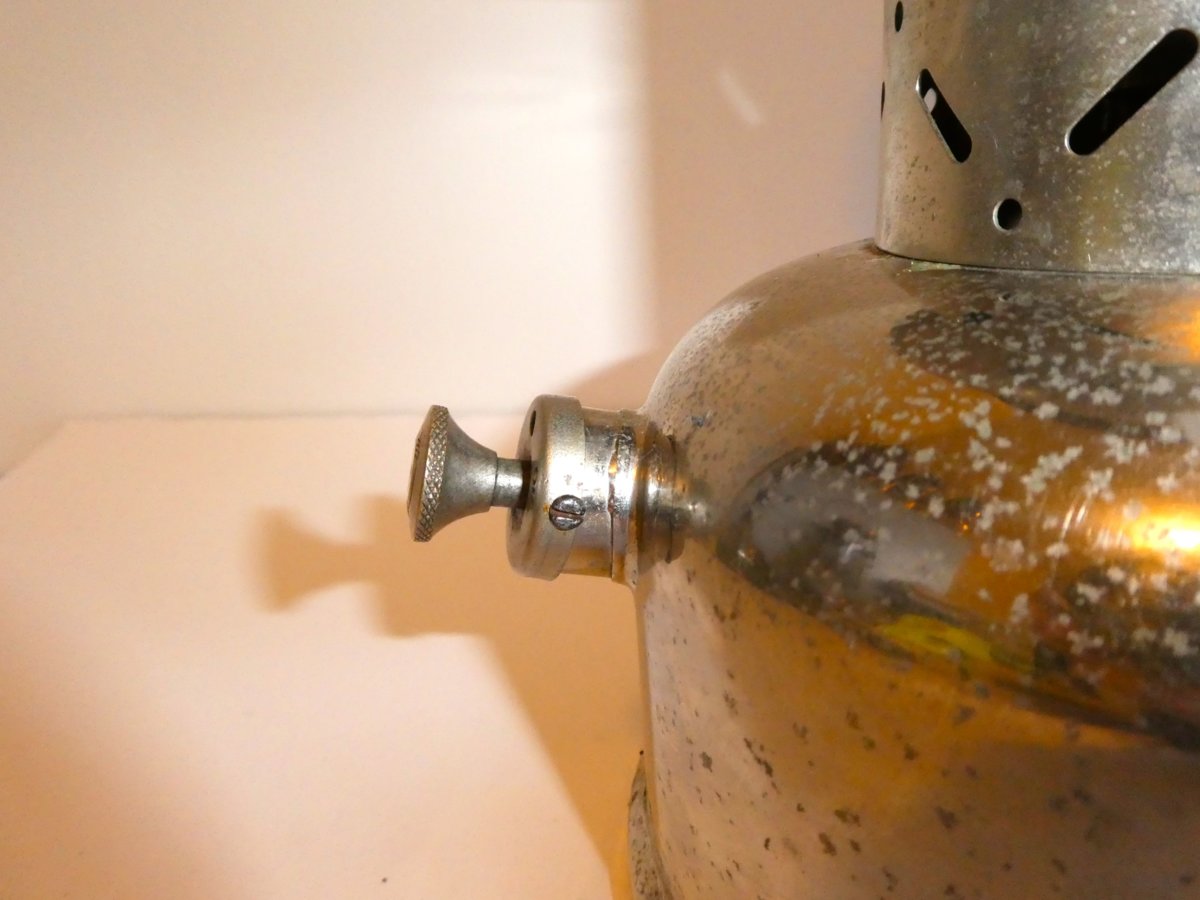

    I refitted the check valve after making sure the ball was clean and free moving.

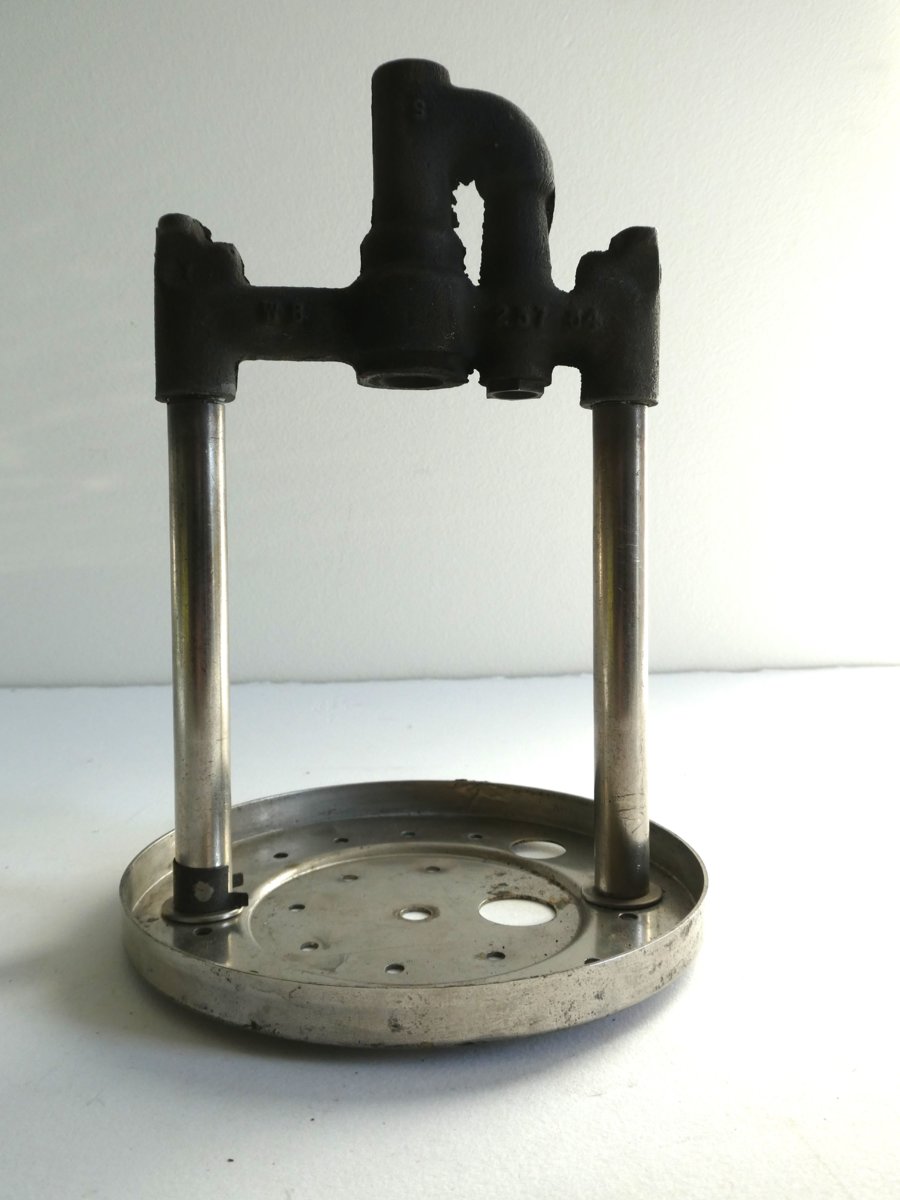

    "237-25"


    Test firing:




    The globe (chimney) is a Schott Suprax: one of a few I picked up from a camping store closing down sale in Hobart a while back.



    Not pretty, but an excellent, robust, high powered lantern. Good for working in the shed!


    There is some discussion of this lantern here.


    Cheers

    Tony

    Last edited by a moderator: Jul 31, 2018
  2. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    465
    Location:
    Gujan-Mestras - Gironde - France
    Great job Tony :thumbup:

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,692
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup:

  4. toad of the cape

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    87
    Bugger me Tony,I thought you wanted a colander with that not a chalice, good job their fella. You will note it burns hot and bright.Sadly as I had said it was running too rich and most likely needed a replacement jet so good to have that new generator (well done that chap).
    warm regards "by the light of a lantern"
    toad

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @toad of the cape

    Thank you, indeed, Mr Toad!

    By the way, did you find this one in NZ?

    Cheers

    Tony

  6. toad of the cape

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    87
    Sure,I had three all found in South Dunedin,Otago,NZ (Highlander country) That survey @phaedrus42 has conducted will need augmenting.
    toad

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @toad of the cape

    Thanks.

    South Dunedin in NZ is really not that far from Howden, Tasmania (as the albatross flies).

    I shall place this one on @phaedrus42’s list with the additional information you’ve given me.

    Cheers

    Tony

  8. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,937
  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    I shall enter this one in your spreadsheet.

    Cheers

    Tony

    Edit: I think I have successfully added the information about this lantern to your spreadsheet.

    Last edited: Jul 30, 2018
  10. Akeepsake

    Akeepsake Subscriber

    Offline
    Joined:
    Jan 11, 2016
    Messages:
    187
    Nice pickup Tony ! I’ve seen a couple of these turn up in Australia and a few 249 “English “ in New Zealand

  11. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,376
    Location:
    Malaysia
    This is great, Tony. You've really done some fine restoration here. The spirit cup on my 237 was made of steel and the rim has almost completely corroded off. I had to pack in some asbestos which serves as a wick for the spirit, since I could no longer fill it to the brim.

  12. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
