Coleman 238b manual

Discussion in 'Fettling Forum' started by Mantis, Nov 3, 2012.

  1. Mantis

    Offline
    Joined:
    Jan 18, 2011
    Messages:
    99
    Having not found anything on the forum, does anyone have a manual including parts diagram for a Coleman 238b. I'm currently fettling a 238b that is complete but would like to get an electronic copy of the manual. Any assistance will be much appreciated.

  2. Wim

    Wim Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    899
    Location:
    Dendermonde, Belgium
    Hi, I have a bi-lingual (French-Flemish) leaflet for the 238B lantern including a parts diagram. Being a complete illiterate re computers, I'll ask The Missus if she can spare some time to scan this for me. Might take a while as she's rather busy at the mo.
    Does your lantern have the bi-lingual text on it? As far as I know these were made for the Belgian army, don't know if they were sold to the public.

    Best regards,

    Wim

  3. Mantis

    Offline
    Joined:
    Jan 18, 2011
    Messages:
    99
    Hi Wim,

    This lantern does not have any lighting instructions on the collar other than stating that it is for paraffin. It did not have a metal instruction plate as there are no attachment holes. I shall post photos soon once I have finished fettling it and have fired it up. This model of lantern was sold in NZ and I have seen five so far over the last several years, but all sold for high prices beyond what I was prepared to part with.
    Cheers
    Clive

  4. dmacp

    Offline
    Joined:
    Jun 14, 2011
    Messages:
    108
    Location:
    Altadena, California
    I'm fortunate enough to own one of these beasts, mine came out of Canada and has the original box. I'm not sure but doubtful the original owners pamphlet is with it. I shall pull it out and check. Possibly the "dirty Coleman papers" web publication has one, otherwise I would certainly be interested in seeing yours.
    Very Best Wishes
    Dan M

  5. Mantis

    Offline
    Joined:
    Jan 18, 2011
    Messages:
    99
    Hi Dan,
    Had a look at the Coleman collectors site but no info for the 238b. Yep will post photos in the gallery once I have it finished and going.
    Thanks
    Clive

  6. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,670
    Location:
    Hertfordshire
    PM me with an email address and I will send you the leaflet. No instructions but it does have parts diagrams. ::Neil::

  7. Mantis

    Offline
    Joined:
    Jan 18, 2011
    Messages:
    99

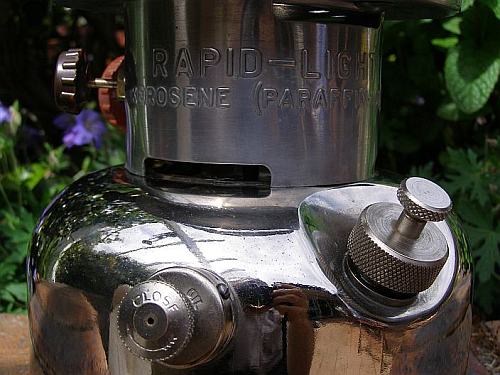

    Here is the reconditioned lantern, cleaned and pressure tested. I am waiting on getting some tank sealer as I want to prevent any chance of it rusting in the seams, not that there is any problem at the moment. Once this has been done I will fire it up.
    1352522427-238b.jpg 1352522457-238b1.jpg 1352522478-238b2.jpg 1352522545-238b3.jpg


    Attached Files:

  8. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    13,745
    Location:
    Shetland Islands UK..
    Excellent find and shiney too! :thumbup: :clap: :clap: :thumbup: Jeff.

  9. Erwin Germany

    Offline
    Joined:
    Jan 4, 2011
    Messages:
    18
    Location:
    Germany
    Hi all.
    I wasn't active here at all for quite some time but I hope I'll find the time to look more often. :D

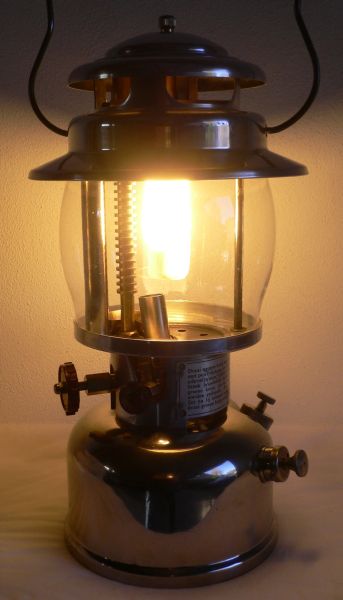

    I've a 238B as well, cleaned mine and put it to work a few weeks ago.
    The full story is HERE .
    A summary of the lanterns I know of (plus some speculation) is at the end of the thread.
    Happy collecting, Erwin. :)



    Attached Files:

  10. loco7lamp

    loco7lamp Subscriber

    Offline
    Joined:
    Sep 21, 2011
    Messages:
    773
    Hi Erwin :thumbup:

    Good to see you back here & glad your back in the swing of things 8) :D :thumbup:

    Very tasty lamp 8) :clap: :clap: :D :thumbup:

    Stu :D :thumbup:

  11. Flygt

    Offline
    Joined:
    Nov 8, 2012
    Messages:
    175
    Nice lantern Erwin, how is the upper part of the aluminum ventilator attached to the lower, spot welded or several short continuous welds ?

  12. Erwin Germany

    Offline
    Joined:
    Jan 4, 2011
    Messages:
    18
    Location:
    Germany
    Hia again.
    The upper part is riveted with 4 very small rivets to the vertical (and bent horizontal) supports.
    Hope this helps.
    Greetings, Erwin.

  13. Flygt

    Offline
    Joined:
    Nov 8, 2012
    Messages:
    175
    Thanks Erwin, yes that helps a lot. If you have time I'd like to see photos of the rivet setup, I guess the rivets go all the way through the upper vent section. Cheers, Ken

  14. Erwin Germany

    Offline
    Joined:
    Jan 4, 2011
    Messages:
    18
    Location:
    Germany
    Hi Ken.
    Here the details of the vent.
    Hope this is of help.
    Happy lighting, Erwin.
    1352970393-vent-1.jpg 1352970404-vent-2.jpg 1352970414-vent-3.jpg


    Attached Files:

  15. Sparkybr549

    Offline
    Joined:
    Apr 10, 2011
    Messages:
    23
    Can you send me a copy?
