Coleman 239E (Veritas Superb Rebadged) Fettle

Discussion in 'Fettling Forum' started by AussiePete, Dec 7, 2019.

  1. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
    Hi All

    Preamble
    Sometime in the 1950s, Coleman released an English made Veritas Superb after rebadging it the Coleman 239E and calling it the “Ranger”.
    There was obviously an agreement between Coleman and the Falk, Stadelmann Co., the manufacturers of the Veritas lanterns, however I have not been able to find any references to the agreement.
    So this Coleman 239E remains an enigma to me and I suspect to others.

    There appears to be very scant written evidence of the Coleman 239E Ranger however the fact remains, it does exist.

    In March 2019 via eBay, I purchased the Veritas Coleman 239E from an Australian collector.



    The Fettle

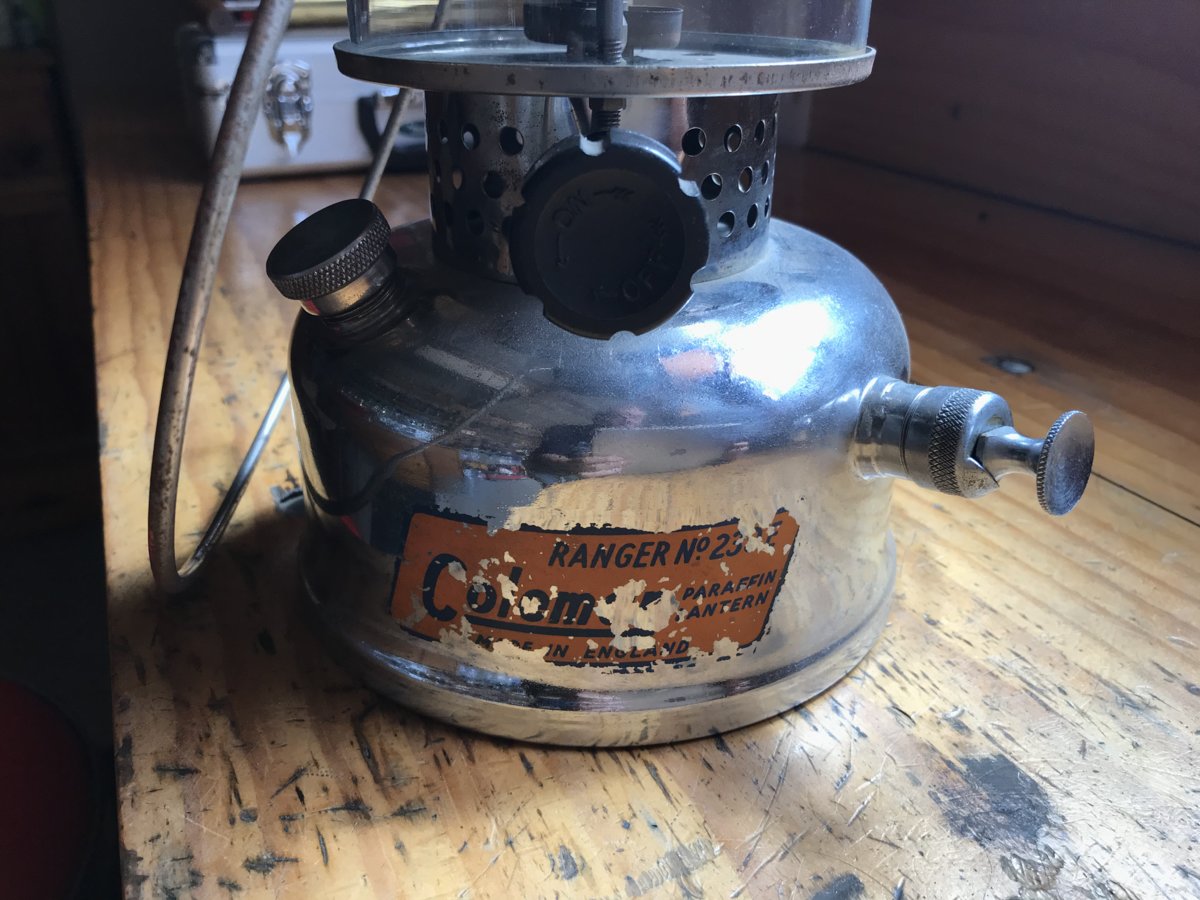

    The 239E, as bought, was in very good condition. It needed very little work to get it to operate.
    The following is the description of the lantern’s fettle.

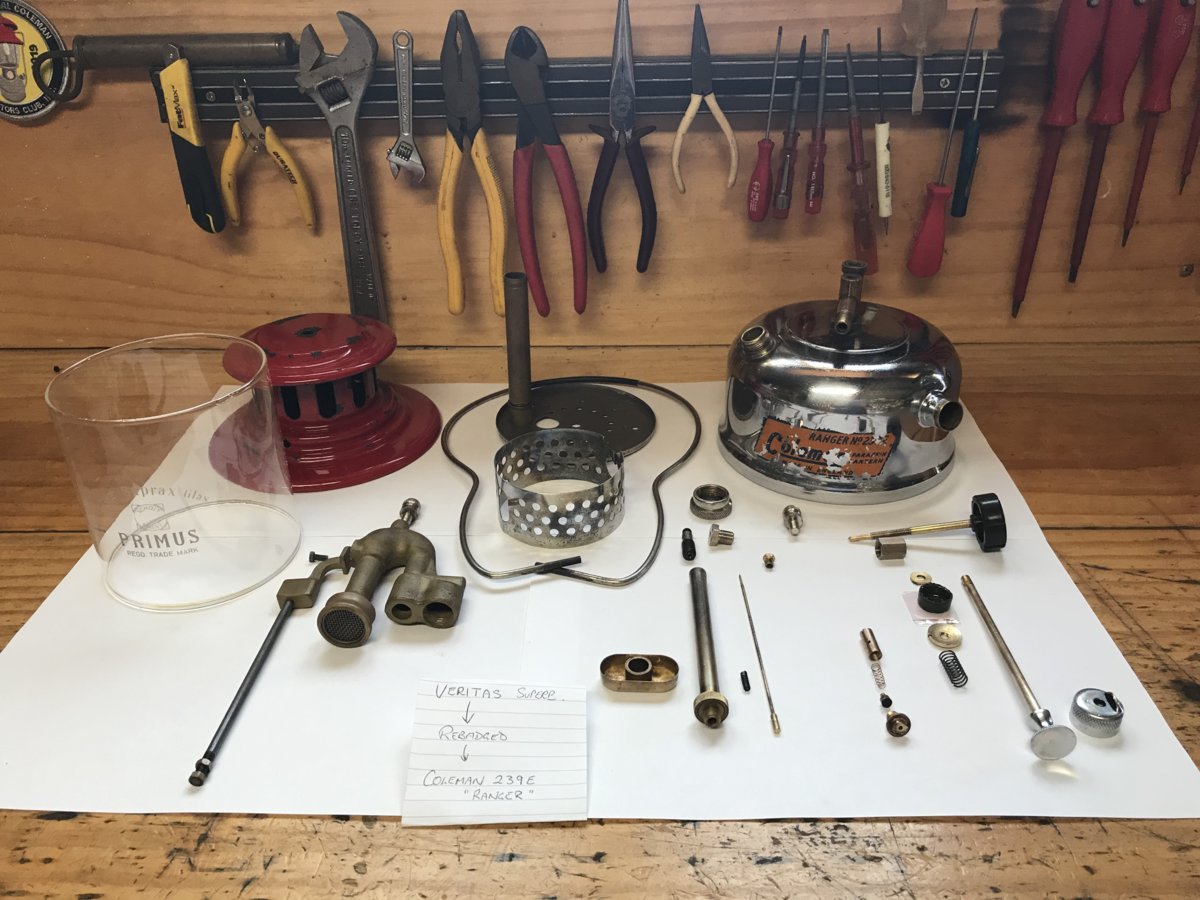

    The lantern was dissembled into its component parts.


    Other than the burner’s manifold, it being very clean and bead blasted, all the parts were given a clean in soapy warm water. The generator was dissembled and via the heat /quench method any coke was removed. I have to say, there was very little carbon build up evident. The pricker’s rod was cleaned from carbon residue. All the parts were subsequently given a clean in the ultrasonic cleaner.

    The bail was cleaned of surface corrosion and polished with Mother’s Mag cleaner.

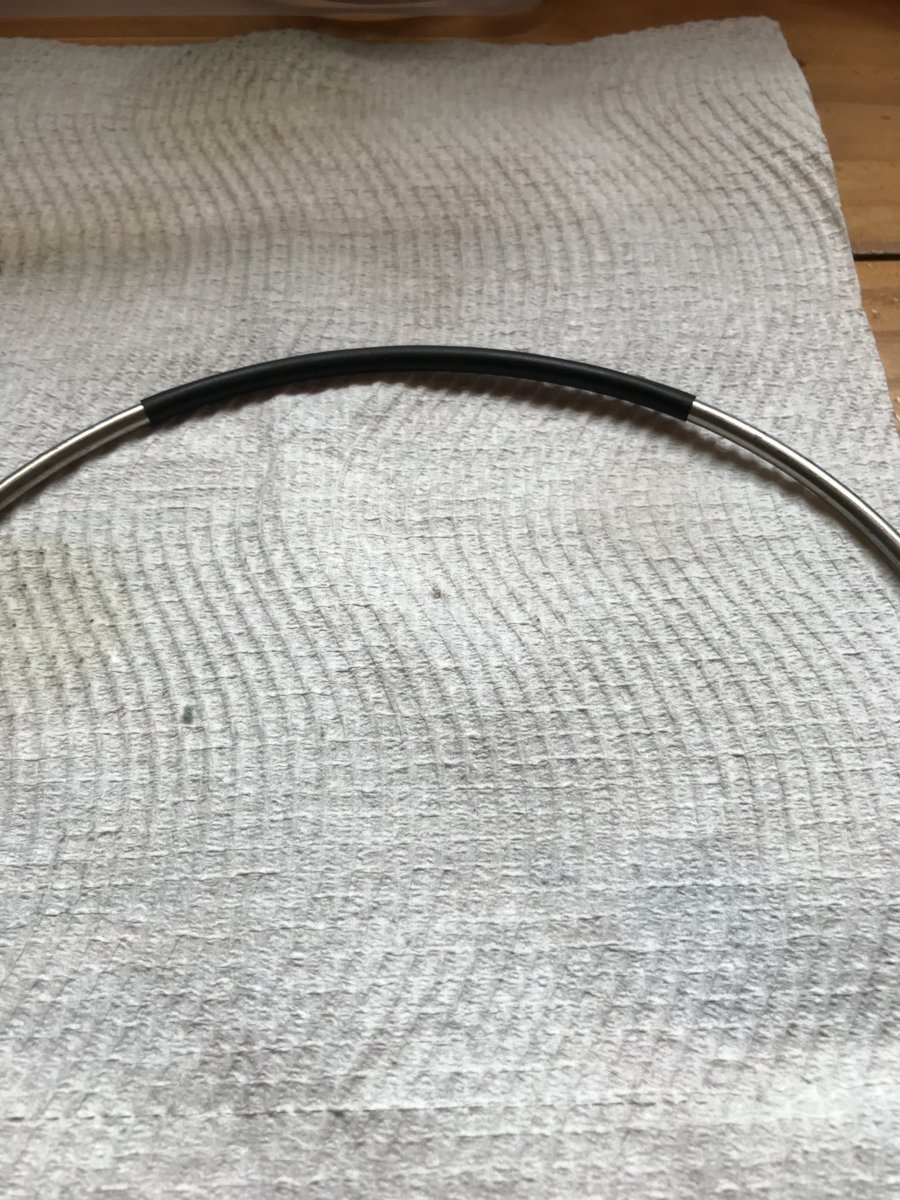

    To provide protection to the fount from the bail’s impact, I fitted black heat shrink to the bail.


    I like to use the no glue type heat shrink because it heat forms to the bail’s curve without wrinkles, remains in place and can be readily removed with a sharp blade whilst providing very good protection to the fount.


    The original Veritas bulged globe was missing however a straight sided Primus globe was provided with the original sale. This Primus globe fits and works well.
    Note: The original Veritas Superb globes appear to be very hard to procure ......... perhaps one day one will surface.

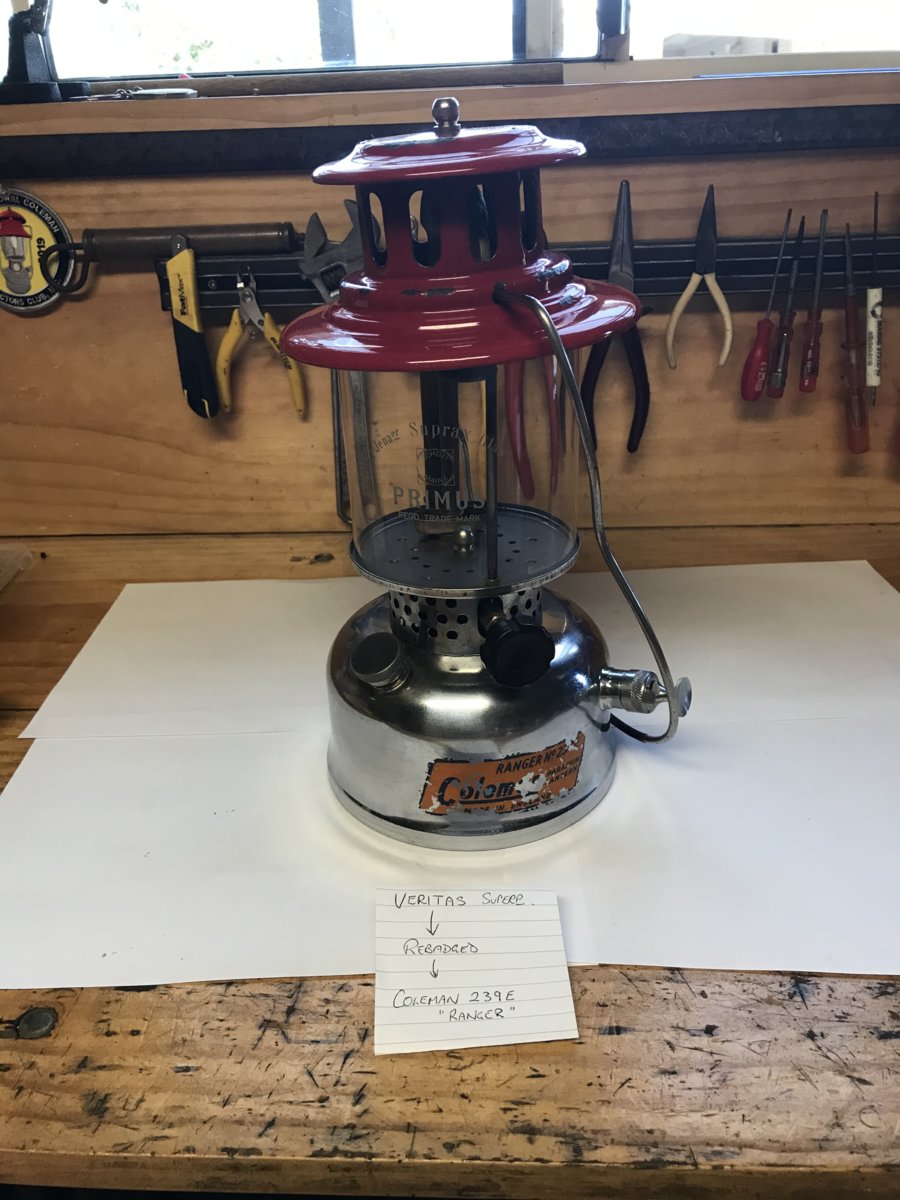

    The lantern was reassembled into the Coleman 239E Ranger. The generator seal to the fuel manifold was hard and brittle. I replaced it with a Tilley generator’s seal that fitted perfectly.


    The Money Shot

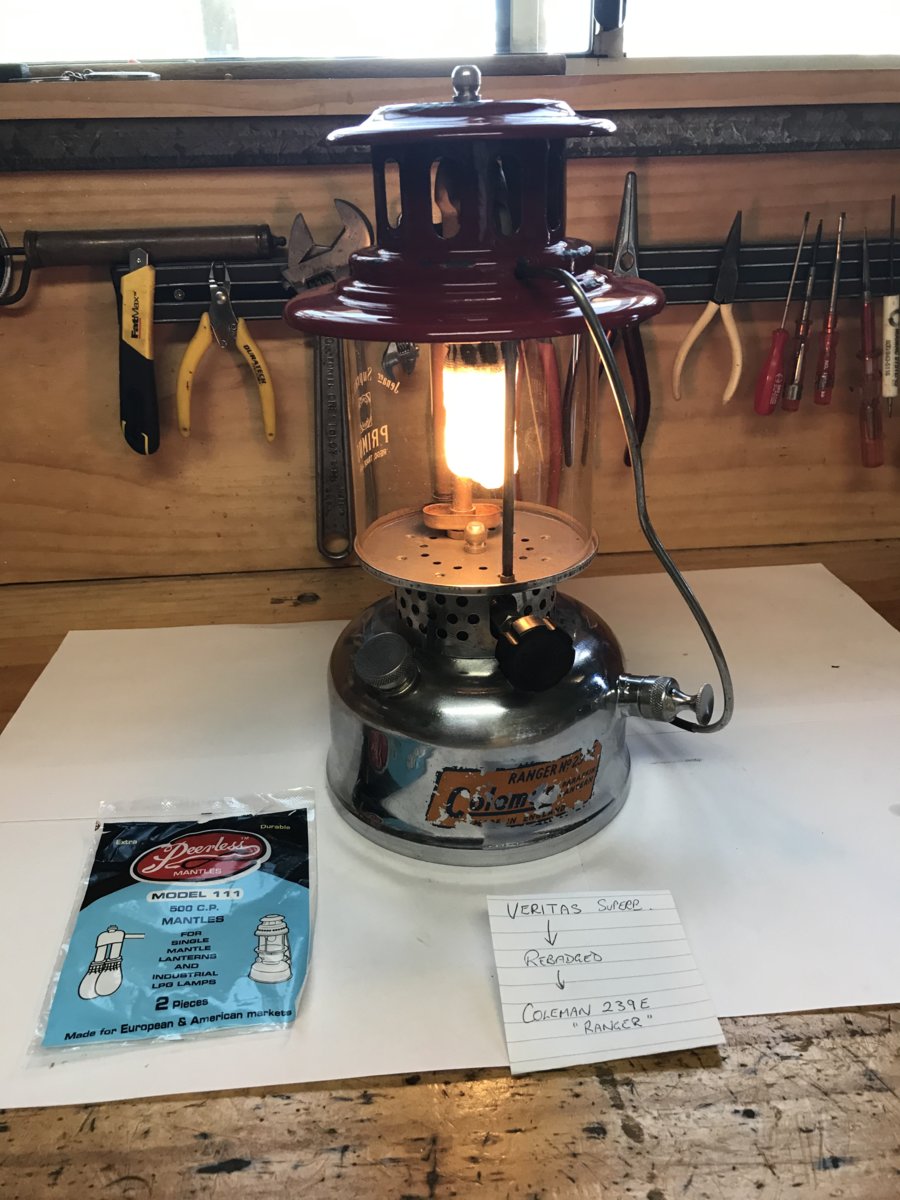

    I used a Peerless model 111 mantle. This mantle is a larger/longer mantle selected to provide adequate heat to the generator.

    I put about a litre of kerosene into the fount and applied about 20 pumps of pressure. I then filled the preheat spirit cup with methylated spirits, and lit it.
    Just as the remnants of the methylated spirit burnt off I opened the fuel control valve. The lamp lit into life.

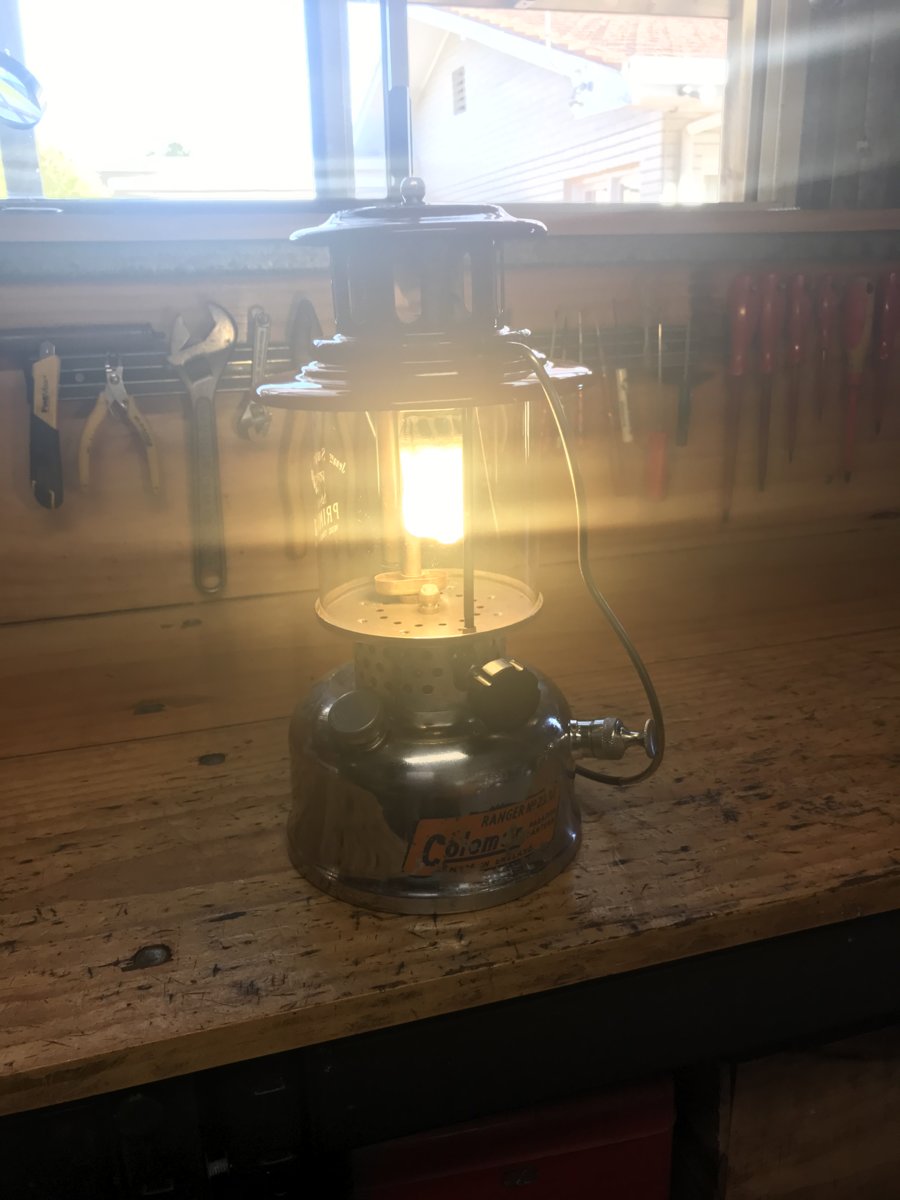

    After the mantle ignited I applied a 50 pumps worth of pressure to the fount and the following picture is the satisfying result.


    Summary
    The lantern is in very good condition. I found that this lantern lit very easily and with no fuss. It behaved like the lady she is.

    I’m aware that these Veritas lanterns have a reputation of being temperamental, however with this example, I found no evidence of this.

    It’s a rare lantern, it runs and behaves very well. It’s a keeper.

    Thank you for looking
    Cheers
    Pete

    Last edited: Dec 7, 2019
  2. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
    @ColinG and @Norman Well, with you both working on your Veritas Superbs I was motivated to get my Ranger up and running.
    Thanks for the motivation, I like this lantern very much.
    Cheers
    Pete

  3. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    176
    Location:
    Midlands, UK
    Pete, some inspirational fettling as ever! Good job. Regards, Alex

  4. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,969
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Great work, Pete.


    Cheers

    Tony

  6. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,519
    Location:
    Somersby, New South Wales, Australia
    Congratulations Pete, looks good. :thumbup:

  7. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,066
    Nice work, Pete. That's a looker!

    When I first got my Superb (thanks Norman!) I was struck by how similar the setup was to Coleman lamps so I guess it made sense from that perspective but wouldn't they have had a similar lamp of that general type? Anyhow, they work well in my experience and both my Superbs start extremely easily (even the one with a stress crack) and the mantles start to glow without me having to do anything and I think @Norman has found the same thing.

    Good luck finding a genuine globe - they're as rare as hen's teeth and I haven't found a pot-bellied alternative tat fits. There is a frosted globe that kind of fits but it's a about 10mm short. It's a shame Coleman never made a rounded 220/285 globe as that would have fitted.

  8. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,909
    Location:
    Shetland Islands UK..
    Well fettled Pete and I do like these detailed posts!:thumbup::clap::clap::thumbup:

  9. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    440
    Location:
    Spokane, WA
    Well done Pete. Thank you for the detailed and well documented presentation.
    She looks great and runs as she should.

    I light my Superb on a regular basis and run it for several hours without any problems.
    I use an Amish mix with my Superb but I'm sure she would run just fine on straight kerosene.

    Just in case you are interested there is an original glass globe for the Superb on ebay UK, but it is quite expensive.

    Cheers,
    Norman

  10. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
    @Norman
    Thanks mate.
    I just bought that Veritas Superb globe from England on eBay ........ I couldn’t resist it and who knows when another will surface. :?
    Thanks for pointing me to it.
    Cheers
    Pete

  11. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,066
    I'm glad it went to a genuine collector who will value it and as you say, who knows when another will turn up?

  12. JohanOptimus

    JohanOptimus South Africa Subscriber

    Offline
    Joined:
    Feb 6, 2018
    Messages:
    96
    Location:
    South Africa
    Well done Pete, and congratz on finding the correct globe. Good teamwork Norman.

  13. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    440
    Location:
    Spokane, WA
    Hi Pete,

    You're welcome.

    It is good this glass is going to someone that will take very good care of it.
    These Veritas glass globes do show up on ebay UK once in a while.

    Cheers,
    Norman

  14. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,249
    Location:
    USA
    Nice work, Pete! These lanterns are not easy to find. The only one I can remember seeing was on Terry Marsh's site.
    :thumbup:8]

  15. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
    @george
    I just had a look at the Terry Marsh site ...... and my lantern is the actual one displayed.
    I’m now the new owner, awesome. :D/
    Cheers
    Pete

  16. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,249
    Location:
    USA
    Great, Pete! I have numerous pictures of some of my lanterns on Terry's site. I thought that lantern was possibly yours; going by the decal/transfer on the fount.
    :lol::thumbup:

  17. Lant-ern

    Offline
    Joined:
    Jan 16, 2011
    Messages:
    22
    Peter I must say that lantern is awesome and may be {is } the rarest I've ever seen....
    Ernie

  18. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
    Thanks @george, I was surprised to see on Terry’s site and @Lant-ern thanks you, I’m honoured to be the current custodian.
    Cheers
    Pete

  19. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    127
    Location:
    Faringdon, Oxon
    That’s a lovely looking lantern. Well done!

  20. newfie

    Offline
    Joined:
    Jun 10, 2015
    Messages:
    59
    Location:
    Victoria, British Columbia, Canada
    Awesome work. It looks beautiful.

  21. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
    @ColinG and @Norman
    Look what arrived today from good old Blighty .......
    The genuine Veritas Superb globe. It certainly makes her look great. :D/

    Thanks again Norman for giving me the heads up on this globe.
    I’m as happy as a dog with 2 ........ male appendages :lol::lol:
    Cheers
    Pete

  22. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    440
    Location:
    Spokane, WA
    Hi Pete,

    You are welcome and might I add she looks great with the proper glass.:clap::thumbup::thumbup::thumbup:

    Pete I'm curious is a dog with two male appendages anything like a three peckered goat?:lol::shock:

    Cheers,
    Norman

  23. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,066
    That really finishes it off perfectly! It's a real shame Coleman never made a barrel shaped globe that size... actually, what globe did Coleman use on the re-badged Superb/Ranger?

  24. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,658
    Location:
    Toowoomba Australia
    @Norman yes I do think that these animal variants are closely affiliated, and by all dubious accounts, quite uniquely happy with their afflictions. :)

    @ColinG The original Coleman rebadged Ranger, I believe, used the Veritas Superb globe. However, I’m wondering if the Veritas logo etched on the globe remained on the Coleman rebadged lamp globes :-k There is no documentation to verify one way or the other.
    Cheers
