Coleman 295 'Powerhouse' kero conversion.

Discussion in 'Fettling Forum' started by ColinG, Apr 5, 2021.

  1. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313
    I've been meaning to do this for a while now so with no other lantern related projects on the go I went ahead and did it.

    1. Remove the old generator.
    2. Grind off the flared end and remove the jamb nut.
    3. Replace the generator for a 639 model.
    4. Add a pre-heater cup
    5. Reassemble everything.
    6. Fill tank with kero
    7. Fill pre-heater cup with meths and light.
    8. Wait until meths is almost used up.
    9. Open valve and away she goes!

    Apart from the potential safely issue with the Schrader valve when it eventually needs a new o ring, I have 1800 litres of kero in the central heating tank at any one time and it costs 50p per litre. It's a no brainier really, especially as the new heating fuels are now low sulphur.

    IMG_20210405_175553_3.jpg IMG_20210405_175608_9.jpg

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    11,472
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup::thumbup:

  3. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    724
    Location:
    Niers, Germany
    Well done.
    For my end,
    I have enought native kero lanterns to light slow with alcohol plus kero.
    So i keep the colemans with gasoline for quick light.

  4. Hanzo

    Offline
    Joined:
    Feb 2, 2016
    Messages:
    371
    The only issue is the one you probably know, the vent and how it might burnout with kerosene use?

  5. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    579
    Location:
    Lancashire, UK
    @bp4willi I agree with your logic. Charm and practicality of a Coleman gasoline lantern is the quick light feature. Clincher is they make burning gasoline safe to do.

    Economy’s less of an issue when light-ups are for the hobby/aesthetic appeal of liquid-fuelled lanterns.

  6. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313
    I still have 4x CF lanterns for instant use: 2 Coleman 220s and two AshFlash, a1020 and a 1010. The 220s are convertible but I have no plans to do so as I have 1 converted 220 already. The AshFlash will never be converted as a) it's really not easy to do and b) there may be less of them... and anyway I like them the way they are. As a matter of intetest, both have added pre-heater cups which negates the 'lively' (= terrifying!) start-up!

    As for the 295, the conversion has rendered it a great deal more useful to me personally, and as there must be millions of unaltered models in use around the globe, no harm has been done. Oh and I have a new 295 generator I can swap over should I need to.

    It's actually a ridiculously easy conversion and took me roughly 10 minutes including grinding the flare off the original generator to get the jamb nut off. I didn't even damage the mantles which was a bonus!

  7. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313
    Economy is always an issue for me!

  8. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,029
    Location:
    Brighton UK
    Interesting project. As an aside the 214 burns kerosene and only has a schrader assembly. I would argue still safer as you can vent pressure with impunity unlike white gas. I think that the same conversion to a 285 or 288 could be pulled off without grinding as the nut is not captive.

  9. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313
    I already converted my 285 to kero but I have to confess I can't remember what I did! It certainly works OK though.

  10. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    236
    Location:
    Bathurst, Australia
    With such a large amount of kero on hand such a conversion would be viable. Works well.

    I have a 295 but think I will leave it as is, have plenty of kero burners about.

  11. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,053
    Location:
    Toowoomba Australia
    Well done @ColinG
    A very practical and effective conversion indeed.
    Enjoy
    Pete

  12. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313
    Thanks Pete. I've used it more since it was converted than I've done in the last coupe of years!

  13. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    654
    Location:
    Spokane, WA
    Well done Colin.

  14. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313

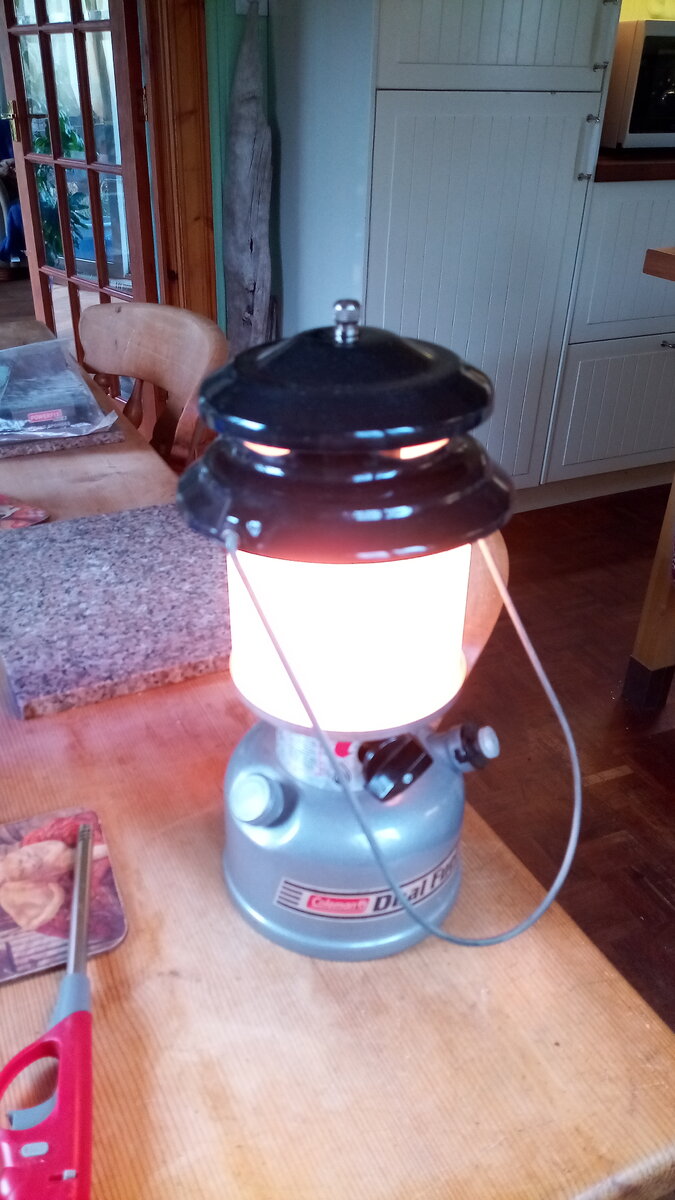

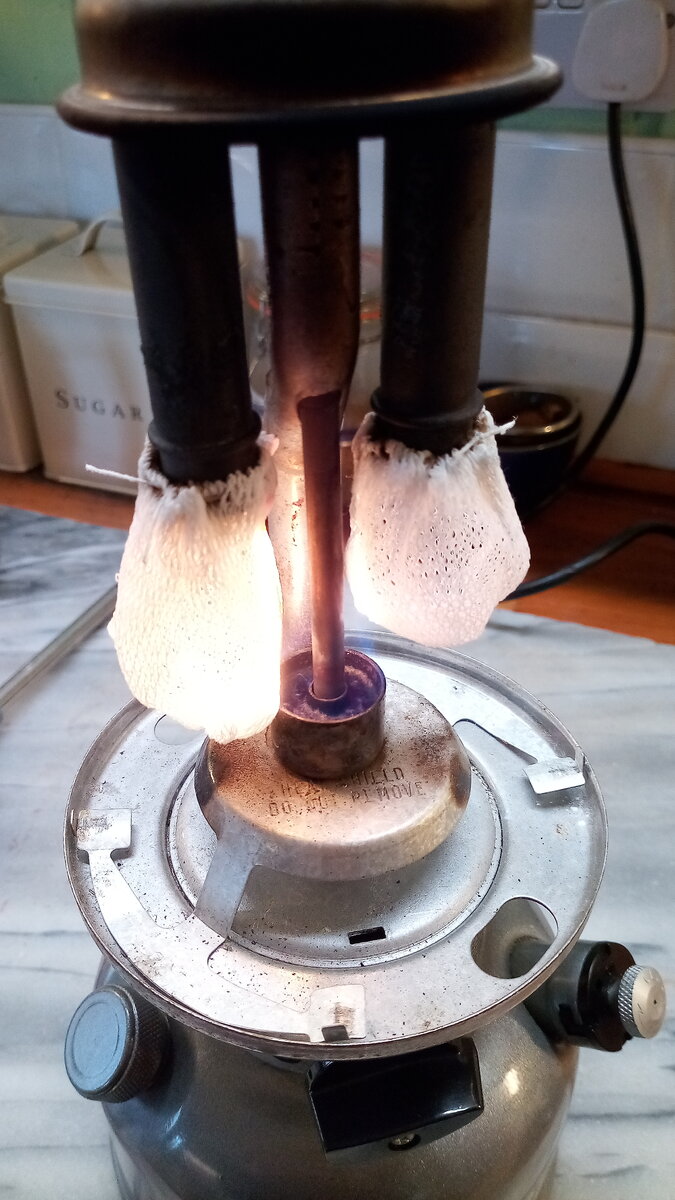

    Here's my 285 with a pair of odd looking mantles also running on kero. I seem to remember all I did was change the jet but it's a long time ago now and I didn't document it. I added a frosted globe which gives a nice diffuse light. When it cools down I'm going to put some new mantles on as these aren't brilliant.


  15. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,029
    Location:
    Brighton UK
    Comparing models it would seem that the 214 is the same as a 286 (single mantle version 285) except the generator but less the heatshield and plus a clip and pre-heat cup. The collar has different printing to reflect just on or off rather than the control possible with white gas. The 285 has a fatter generator than the 286 so the hole in the twin mantle burner is larger. Not sure if that will change things but probably not. The 288 has a thinner generator so could also be converted easily.

  16. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313

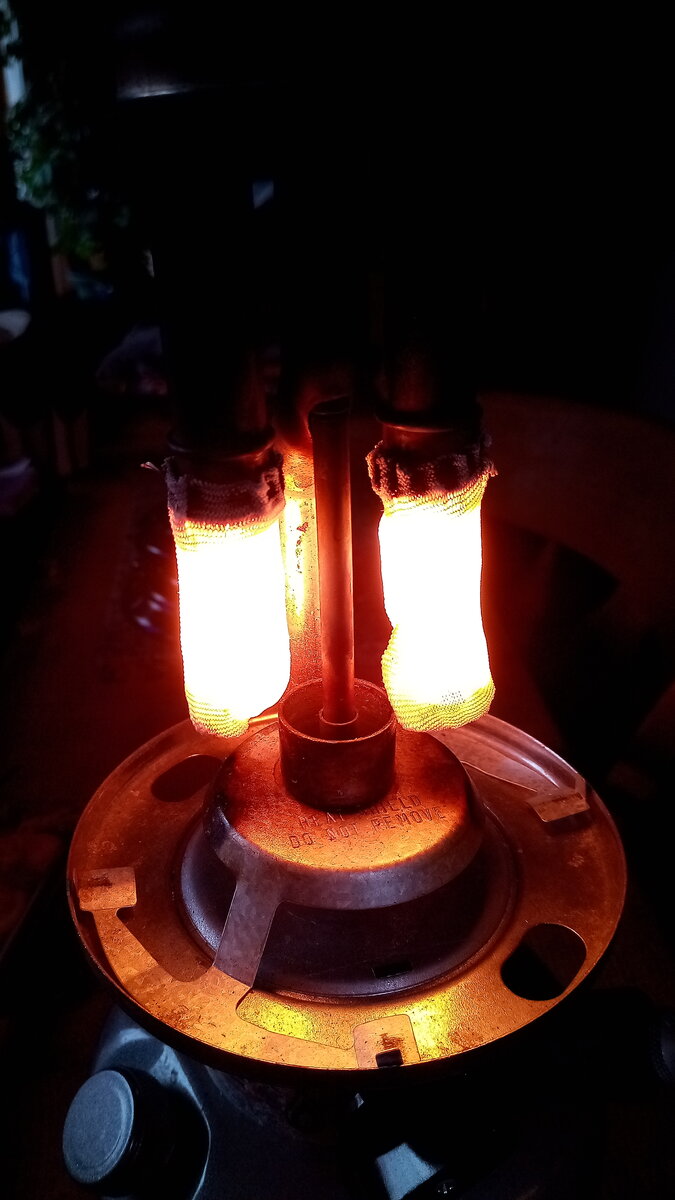

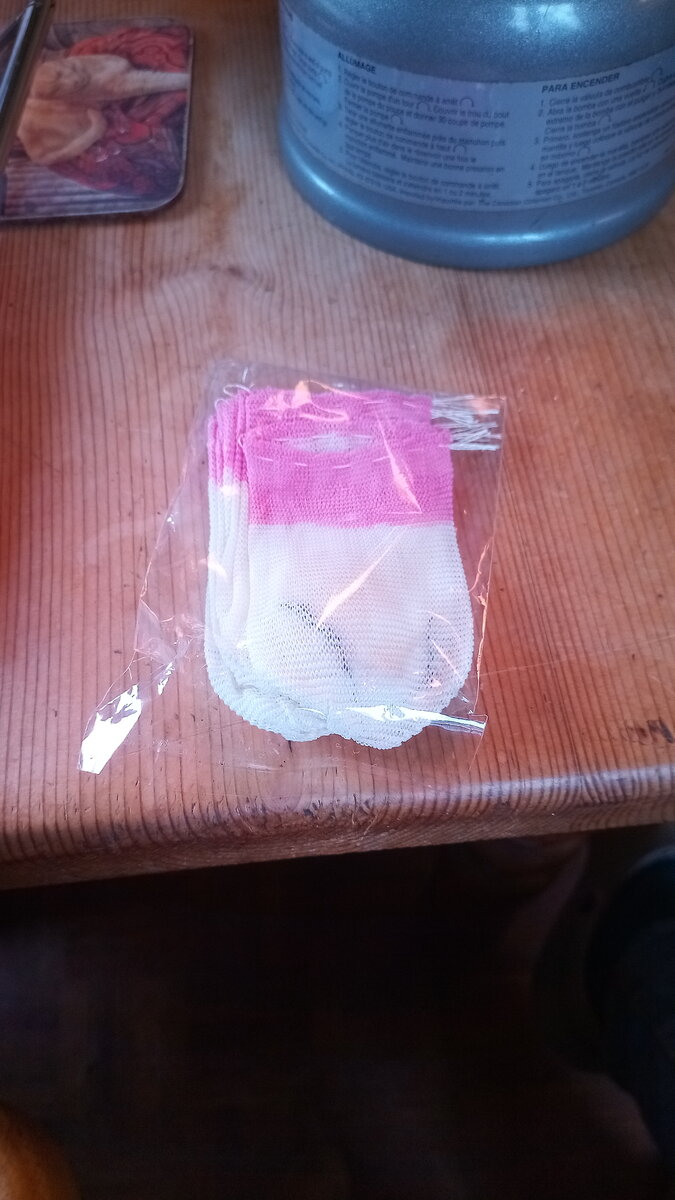

    So I've replaced the dodgy mantles with two pink top Chinese sock types that work well. I was lucky with this pair, often they split or form holes and the ties can be very fiddly to fasten but these are working well.

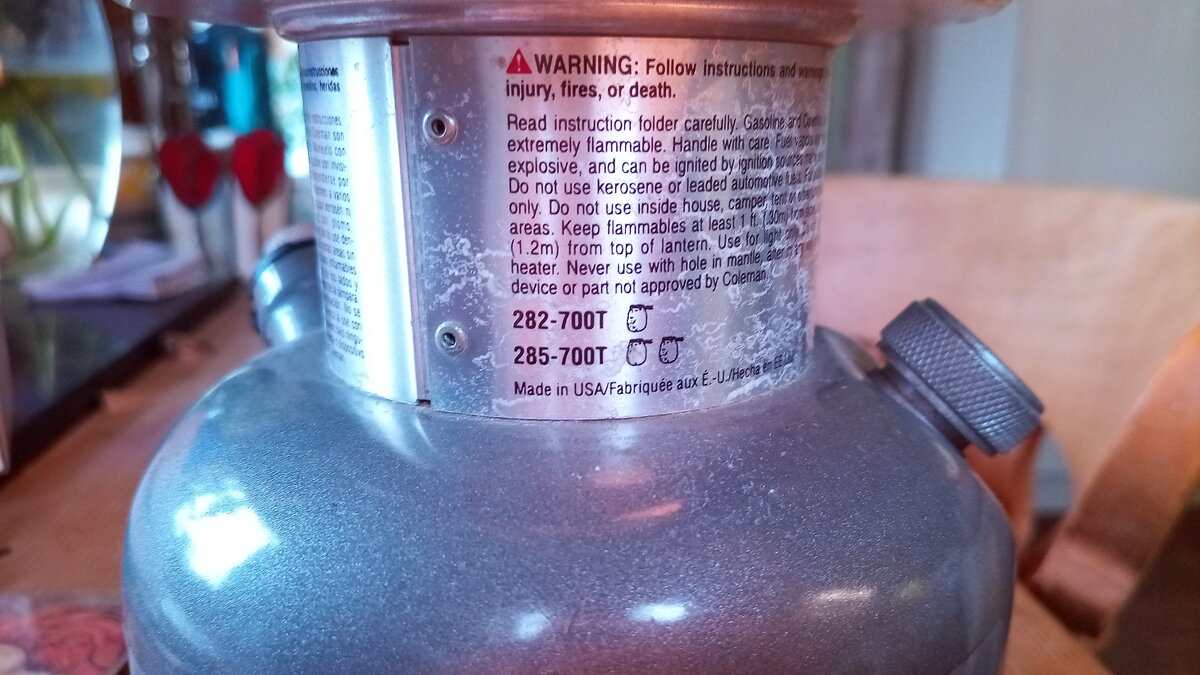

    2021-04-07 15.45.01.jpg

    2021-04-07 15.45.24.jpg

  17. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,029
    Location:
    Brighton UK
    They are the same ones I messed about with. Now consigned to the experiments/testing bin !

  18. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,313
    I agree, I've had so many failures with them but they are just the right size for a lantern like the 285 or 214. I took a chance this time and go to lucky but they are so variable. Norman in the US has had a much better experience with the pink tops whereas the green tops always fail for him. We decided there's probably a few different factories Making these with vastly different quality control regimes.
