Coleman 335 (kero conversion)

Discussion in 'Pressure Lamp Discussion Forum' started by ColinG, Nov 17, 2019.

  1. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,294

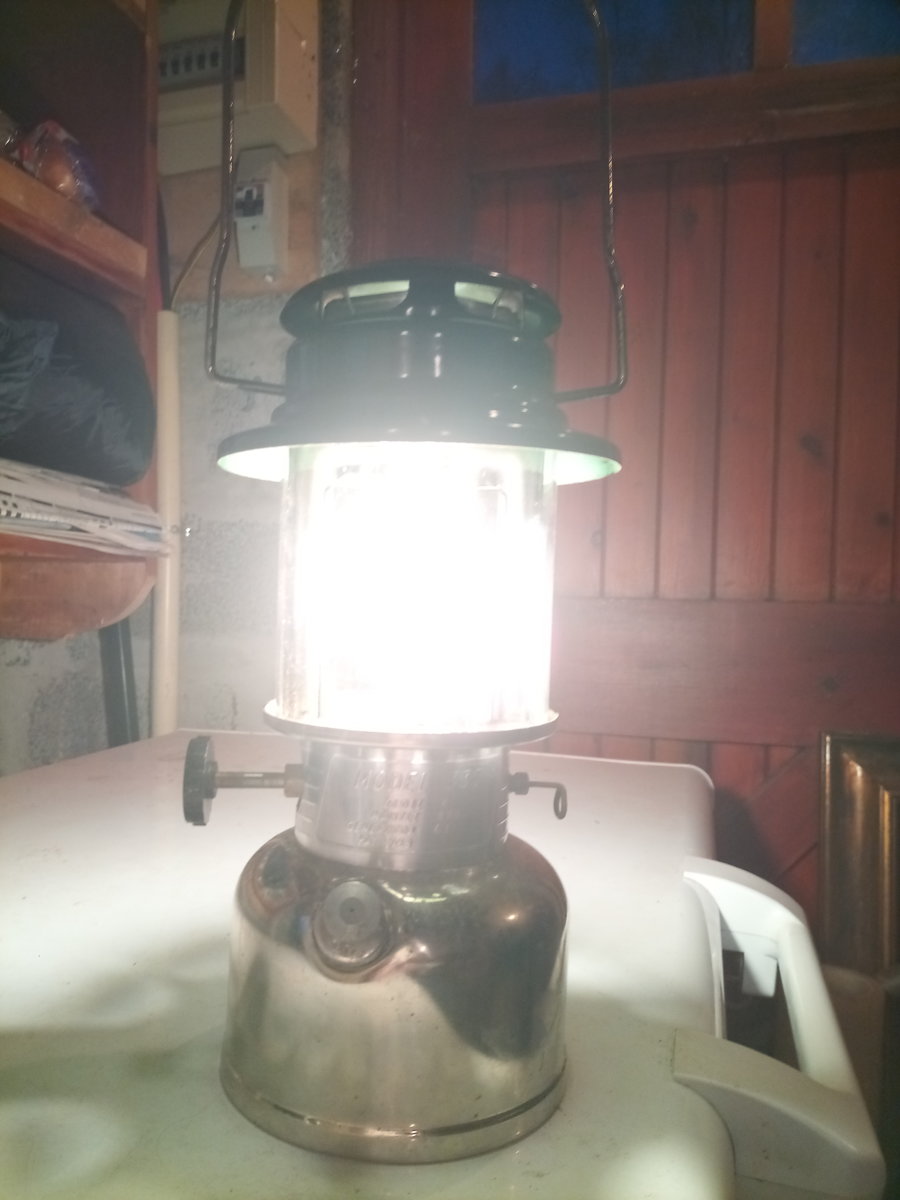

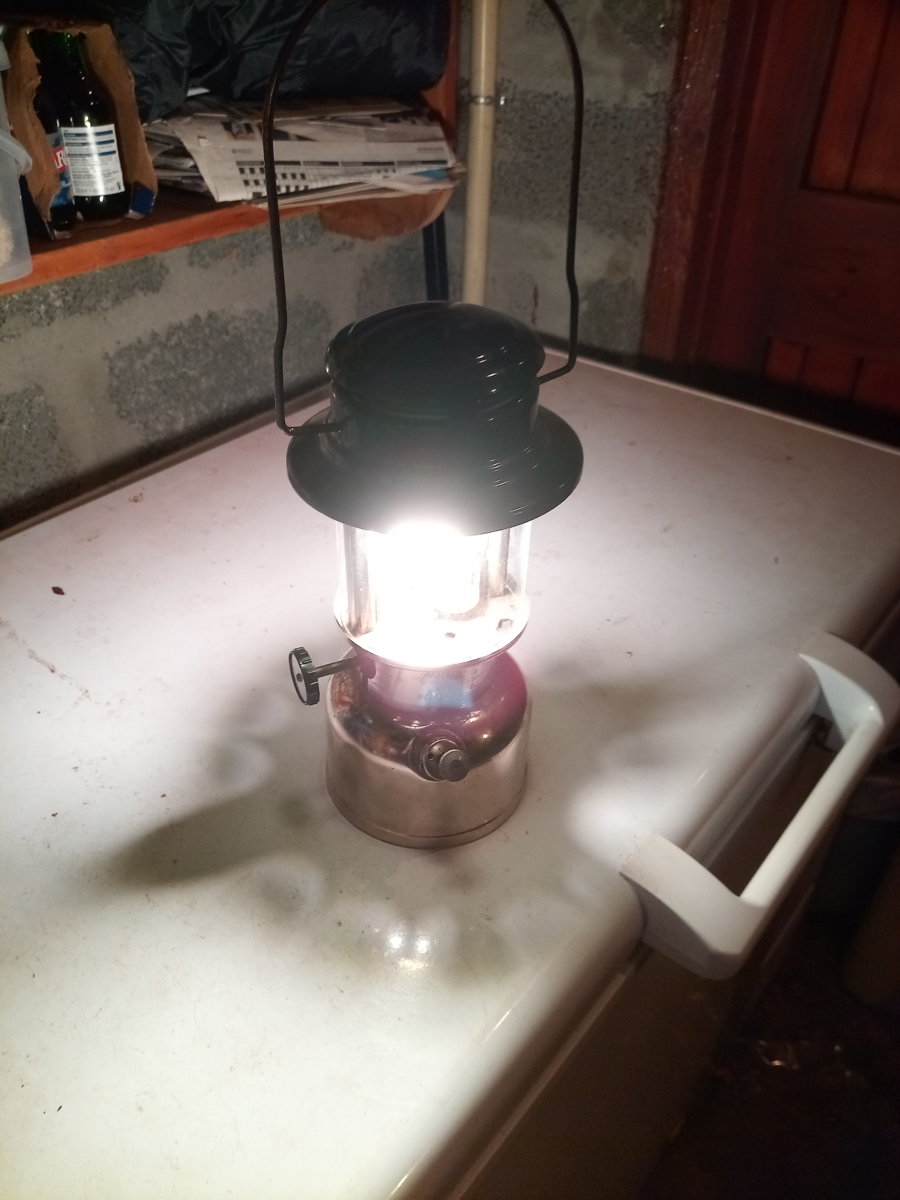

    I've had this for a few weeks but only today did I get round to finally finishing it.


    The fount was suffering from quite a few rust spots and once treated they left some pitting behind, but the collar, frame and hood all cleaned up nicely. The label has come off but I can reattach it easily enough.

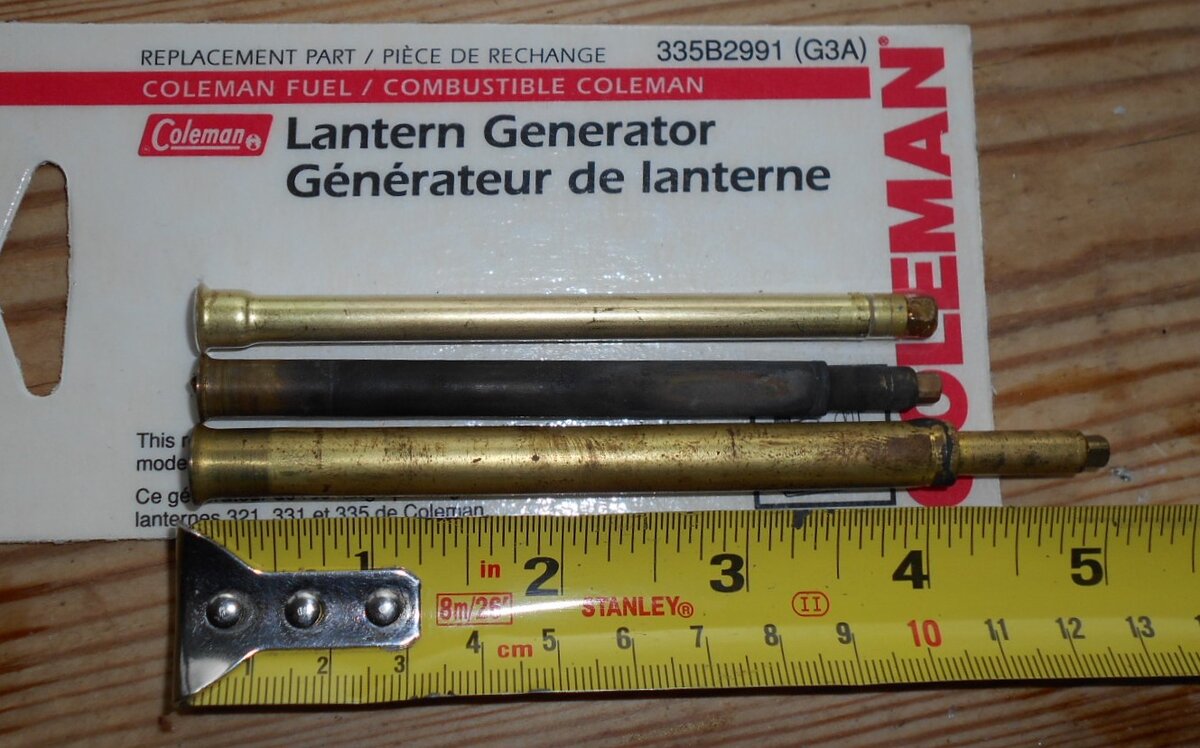

    I hadn't planned to convert it to kero but the first time I tried a test lighting I discovered that there was a blockage in the generator and the pricker needle had broken so I swapped it out for a 339 genny and a pre-heater cup and she roared into life. Thanks to finn-emm (that's his eBay handle because I've forgotten his CPL name!) for the lamp and replacement control valve and @Norman for the pre-heater and loads of other help.




  2. Andrew T

    Offline
    Joined:
    Mar 1, 2016
    Messages:
    262
    Location:
    Port Elizabeth South Africa
    That looks quite bright

  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,605
    Location:
    Somersby, New South Wales, Australia
    It's cleaned up nicely Colin. :thumbup:

  4. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,917
    :lol: @ColinG , I did almost the opposite: I traded for a green 335 that had been converted to kero and converted it back to CF. Although they are not particularly well regarded by the Americans, I've always rather liked the 335 and 339. Very quick to pre-heat, very bright, a nice compact size and a cheap/common standard globe make them great camping and travelling lanterns.

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,195
    Location:
    Shetland Islands UK..
    It's working well!:thumbup:

  6. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,996
    Location:
    Toowoomba Australia
    Lookin good Colin. She certainly runs bright. Well done.
    Cheers
    Pete

  7. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    497
    Location:
    Spokane, WA
    Looks great Colin.

    And as stated these little lantern are very bright.

    Cheers,
    Norman

  8. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,294
    It's very bright and starts after half a cup of meths - almost as good as my Veritas Superb!

  9. KAB

    KAB Subscriber

    Offline
    Joined:
    Mar 27, 2016
    Messages:
    451
    Location:
    South East England
    Running well.
    Out of interest, when lit, is it more of a gentle roar than a hiss? I'm working on a 339 and although bright, it is noisy in comparison to Tilley

  10. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,294
    Not really a roar... maybe a bit louder than a Tilley but most Colemans are a bit noisier... then again most are a lot brighter too!

  11. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,917
    So, what did you do about the 335 fuel-air tube in the fount , Colin?
    Also, did you know that the top end of burner tube on the 335 is restricted but on the 339 it is just a straight tube?


  12. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,294
    I did nothing apart from change the generator and it seems to work perfectly. It burns evenly, it's very bright and although it's noisier than a Tilley it's about the same as most other Colemans I've used.

  13. Alby

    Alby Subscriber

    Offline
    Joined:
    Apr 2, 2018
    Messages:
    176
    Nice conversion well done.. a gem , myself I converted a Coleman 295 dual fuel to run on kerosene by swapping the generator tube for a 639 tube .. an exact fit and adding a copper pre heat cup .. worked great .. but the glass suffered and was cracked with the heat. Now a Coleman 639 lantern has a bulbous glass piece a little further away we see from the mantle.. it was probably designed that way but hey ho just keep watch on the glass good luck:thumbup:

  14. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,294
    That's a great idea, Alby. I have a bulbous globe and a 639 generator as well I think, so this may well happen soon.
