Coleman 5A heater.

Discussion in 'Other Coleman Pressure Product' started by MrAlexxx, Jan 19, 2021.

  1. MrAlexxx

    MrAlexxx Subscriber

    Offline
    Joined:
    Nov 18, 2015
    Messages:
    126
    Apparently of 1930's vintage. Probably weighs in at around 30 pounds so it's not a lightweight. Found in the "wild" stored underneath someone's outside staircase. Exposed to the elements for a few months until it was decided that it had to go. Original paint suffered a bit because of that but all in all a real solid survivor. Was told by the PO that it had been in working condition when placed outside. Checked it over and had fuel in the tank and everything looked good so struck the match and followed the light up procedure on the tag inside the front cover and viola...it makes heat! Two of the radiants are broken on the bottom so not sure if I can do anything with them yet but burns and looks good. It really does put out some heat.

    Alex

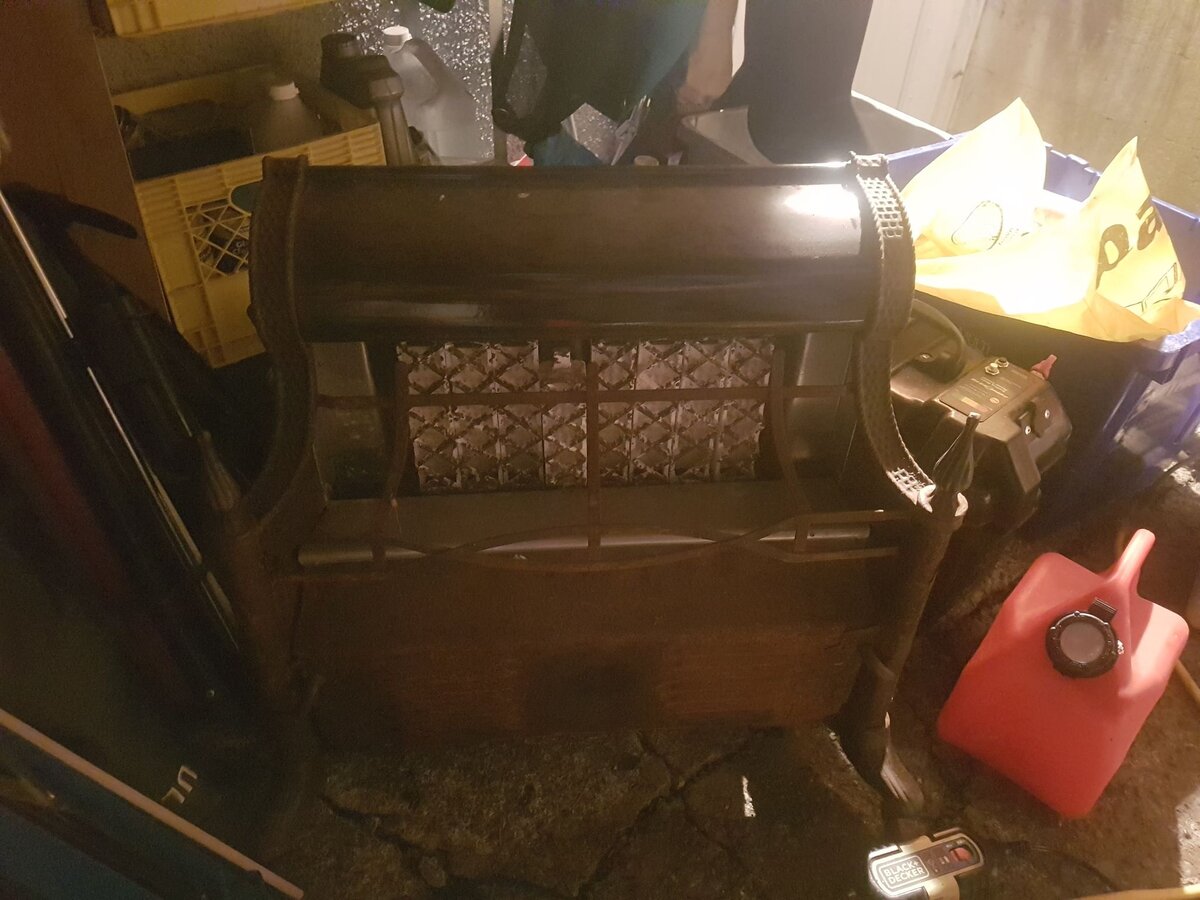

    As found.

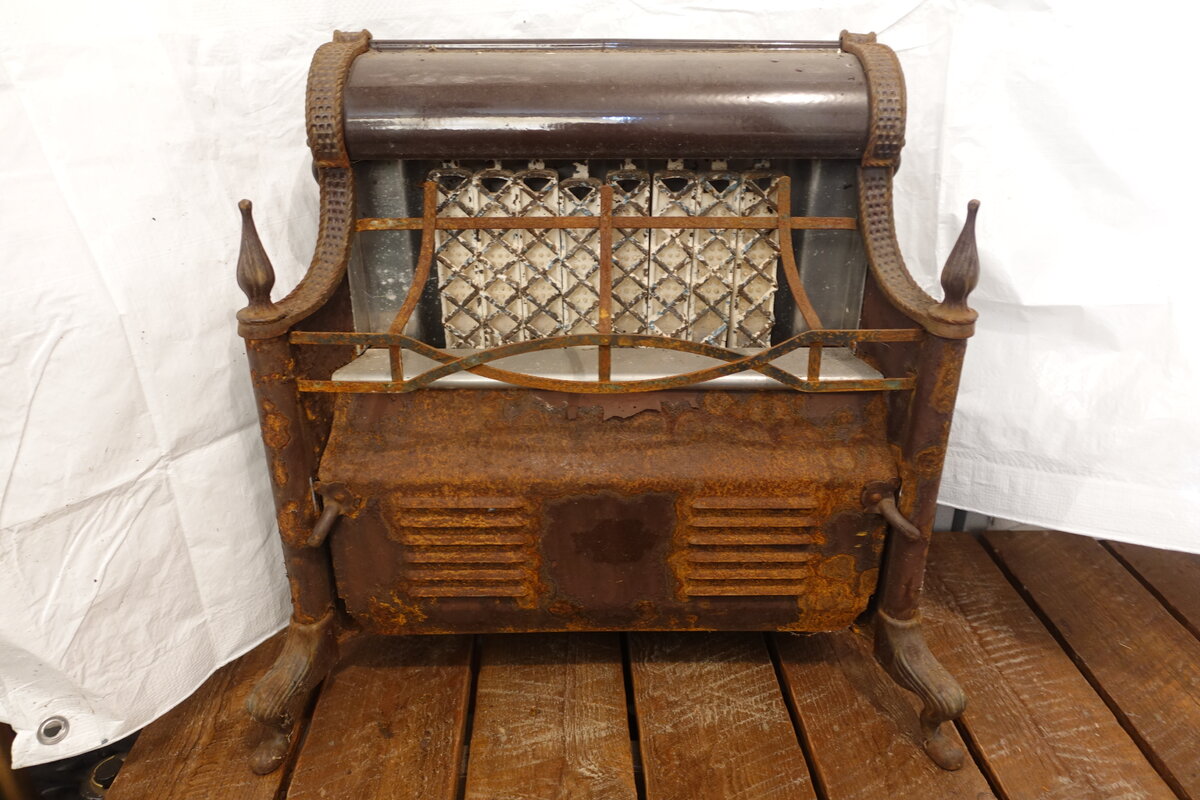

    At home. I sure hope it's all there as I'd imagine parts are probably made of unobtainium. lol

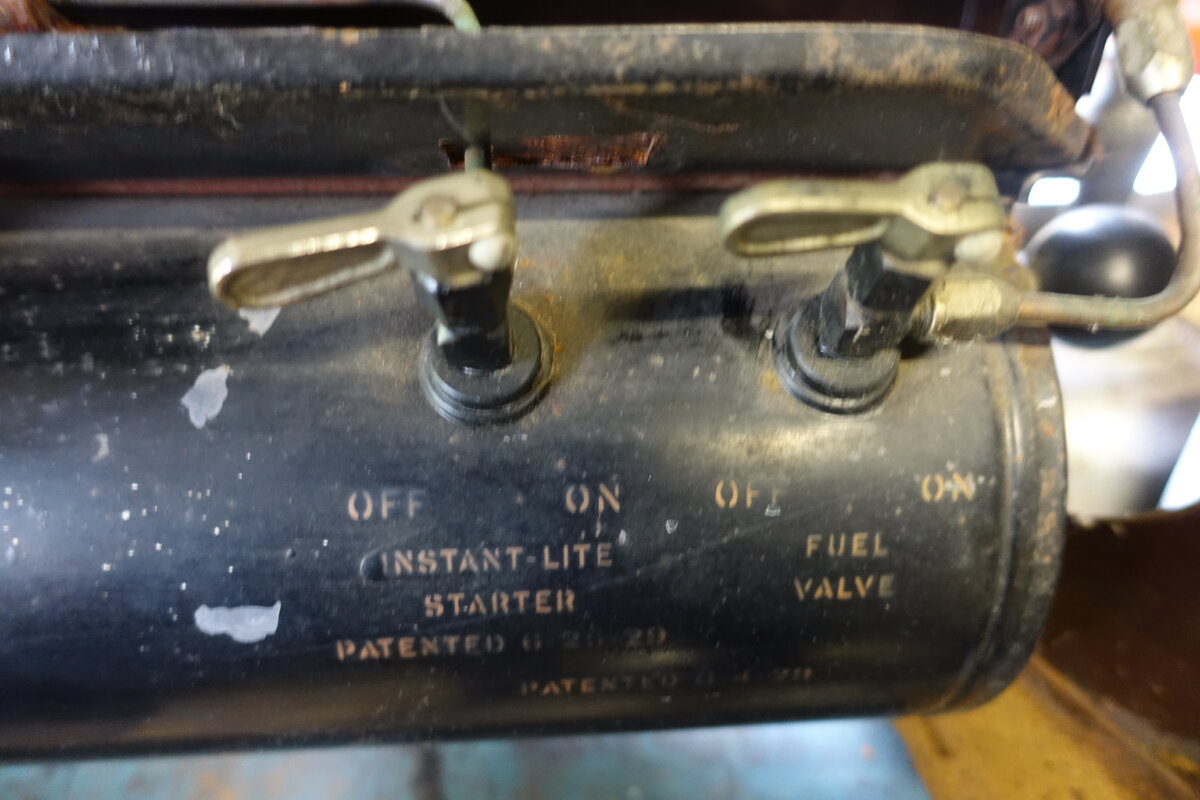

    Fuel tank INSTANT-LITE STARTER valve and main FUEL SHUT OFF valve.


    Fuel tank gauge.

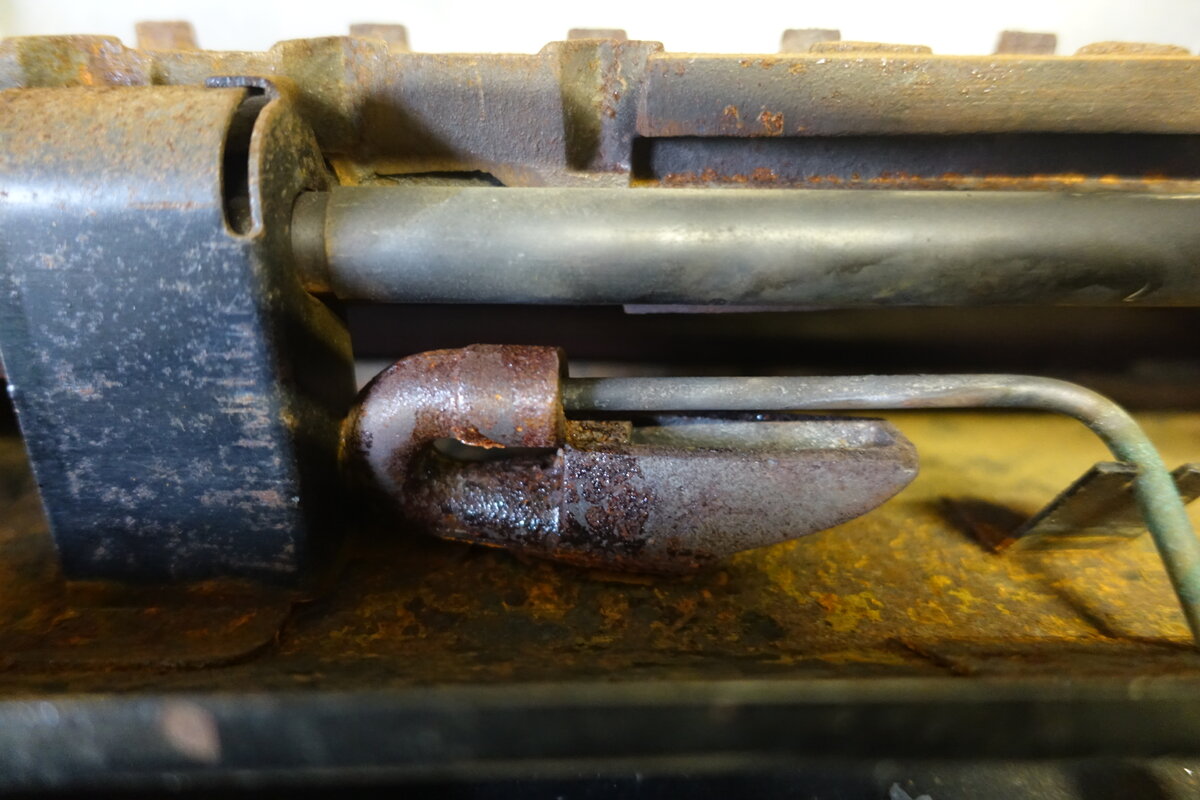

    HOT BLAST CUP. Heater has the hot blast feature for preheating the large generator. Much like the feature used on the early Coleman stoves. It makes for an exciting light up. :)

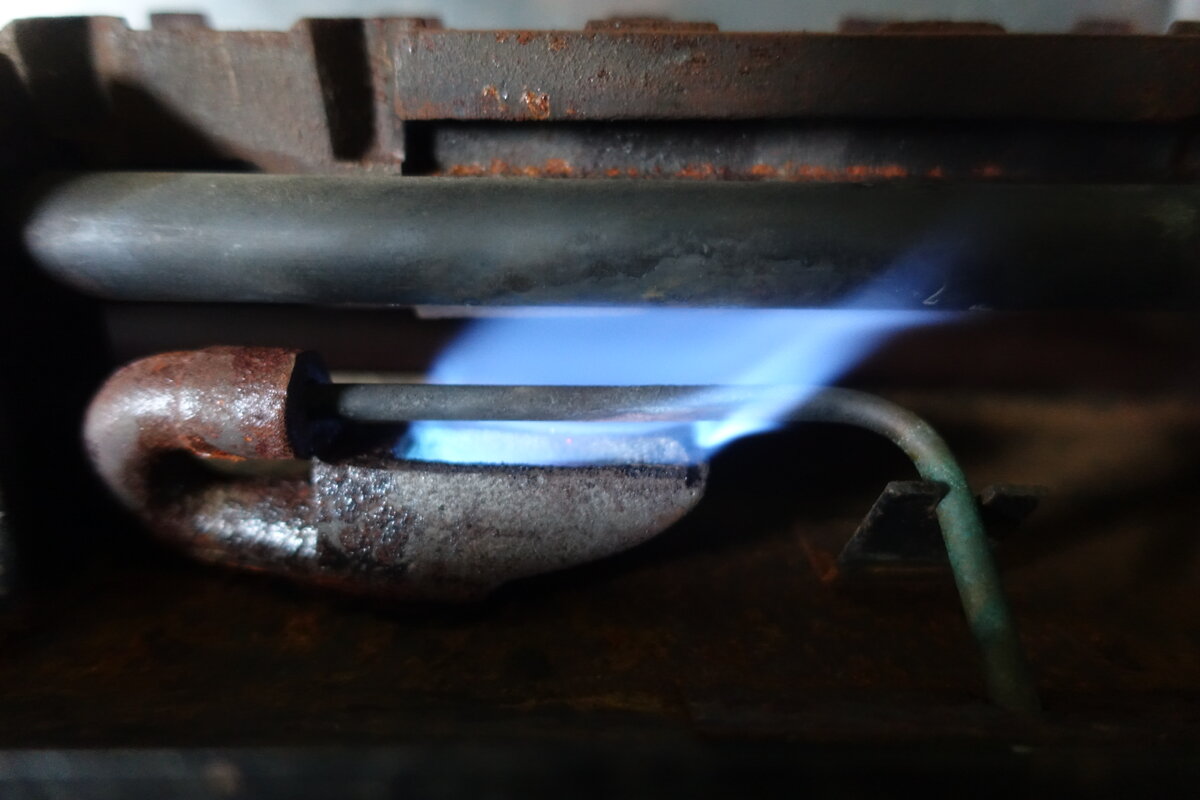

    Pump tank up to the correct operating pressure as on gauge. Light a match and place near the hot blast cup and open the INSTANT-LITE STARTER valve and the generator preheat ignites. Sounds like a small rocket engine. I hope it all goes as planned! lol


    Was told by a knowledgeable person that it came equipped with a THERMO-SAFETY generator that will not allow fuel to pass unless the generator has been preheated for the required time. On the start up procedure it says preheat for 1- 1 1/2 minutes before opening the main FUEL VALVE. Heater burners as well as the three generator heater burners on the side of the casting facing the generator will now ignite. Heater flame can be controlled by turning the regulating valve in or out. When the heater appears to be burning with a nice blue flame close the INSTANT-LITE STARTER valve.

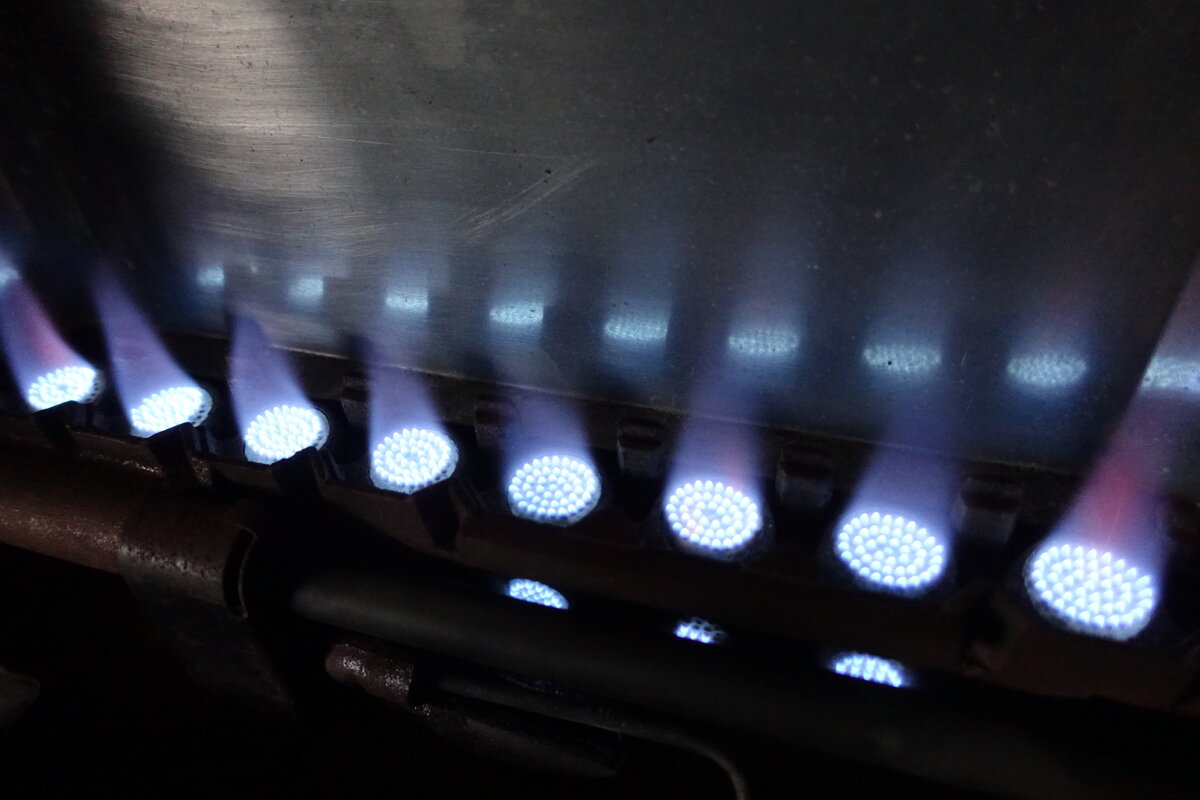

    Burning without the radiants in place.

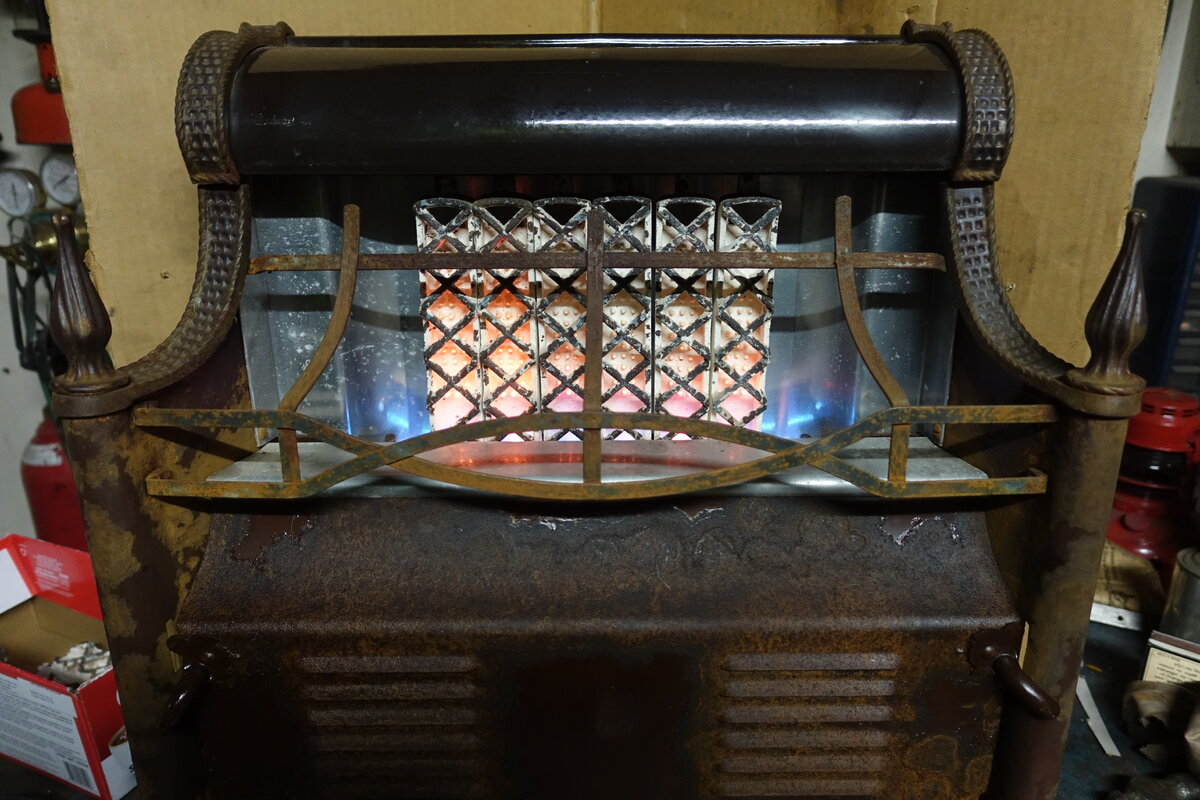

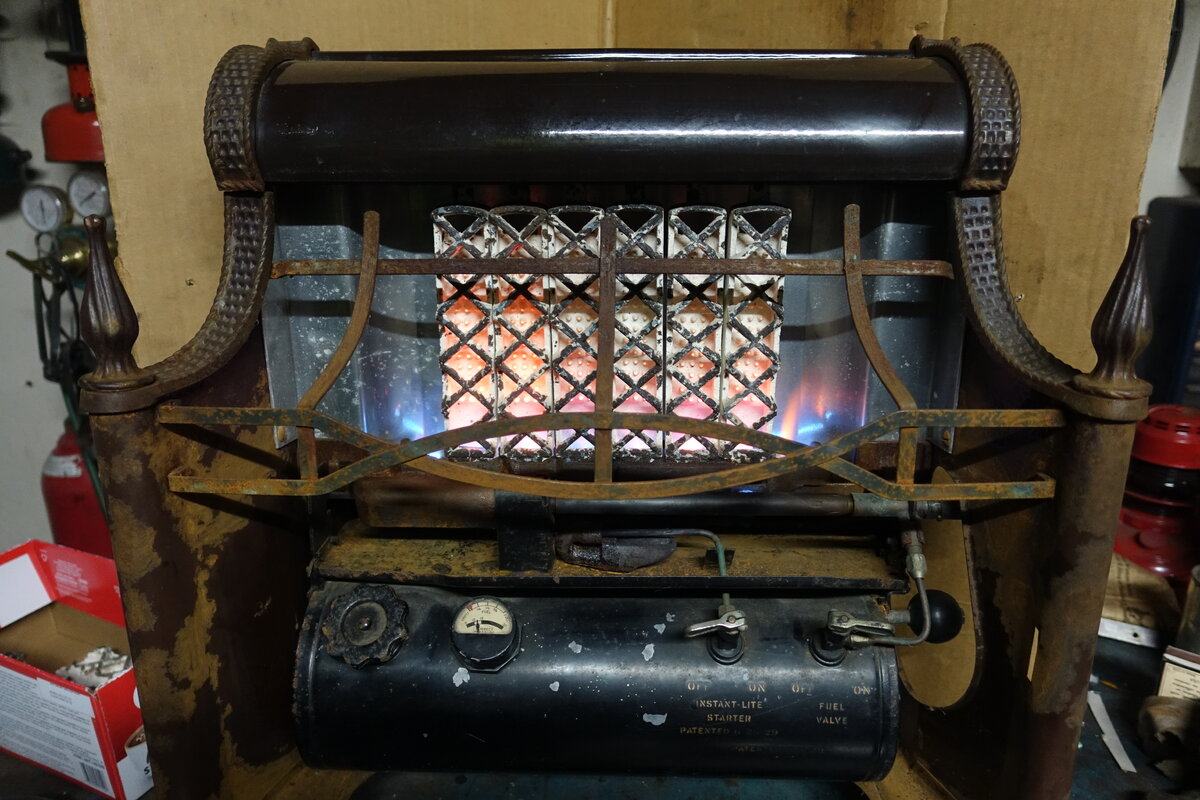

    Front cover open. Burning with only 6 radiants in place.


    Front cover closed.


    In the dark. I think it looks pretty cool and yes it does put out some good heat.


    Last edited: Jan 19, 2021
  2. MrAlexxx

    MrAlexxx Subscriber

    Offline
    Joined:
    Nov 18, 2015
    Messages:
    126
    Okay...apparently a 5B heater. Just how did I type that A??? Mod...please change to a B. Thank you. :)

    Alex

  3. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    547
    Location:
    Lancashire, UK
    @MrAlexxx Lovely bit of kit Alex and beautifully described, pictured and presented.

    I like the photo of it as found on location. It conveys something of the satisfaction of tracking it down and rescuing it.

    A fine heater indeed.

    John

  4. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    1,965
    Location:
    N E Scotland
    Could do with that one here this morning Alex, love it.

  5. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    427
    Location:
    Wimmera, Victoria
    Interesting and very functional piece of kit. :thumbup:

  6. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    11,190
    Location:
    Shetland Islands UK..
    Those were built to last!:thumbup:

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,278
    Location:
    Somersby, New South Wales, Australia
    A good find and it should clean up nicely . Congratulations :thumbup:

  8. rollschmidts

    rollschmidts Subscriber

    Offline
    Joined:
    Jan 8, 2011
    Messages:
    158
    I need my heart drops there. Congratulations on the very interesting part

  9. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    377
    A great find you must be chuffed with that and like a few others I could do with that here right now.

  10. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,743
    Location:
    North Yorkshire
  11. MrAlexxx

    MrAlexxx Subscriber

    Offline
    Joined:
    Nov 18, 2015
    Messages:
    126
    @Henry Plews Thanks for that idea I never thought of looking there. I do need 8 more radiants for another older heater so I will keep my eyes open on EvilBay. Actually was given two radiants from a fellow collector just yesterday that work. One is an original Coleman radiant and the other is different but looks ok. The oddball radiant is on the far right. I will say this...this heater puts out some serious heat.

    Alex


  12. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,743
    Location:
    North Yorkshire
    @MrAlexxx

    You're welcome.

    As well as eBay, you could have a look here

    Radiants
