Coleman BQ Bracket Lamp

Discussion in 'Wall brackets. PB, BQ, BQF. 102K' started by Tony Press, Apr 29, 2021.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

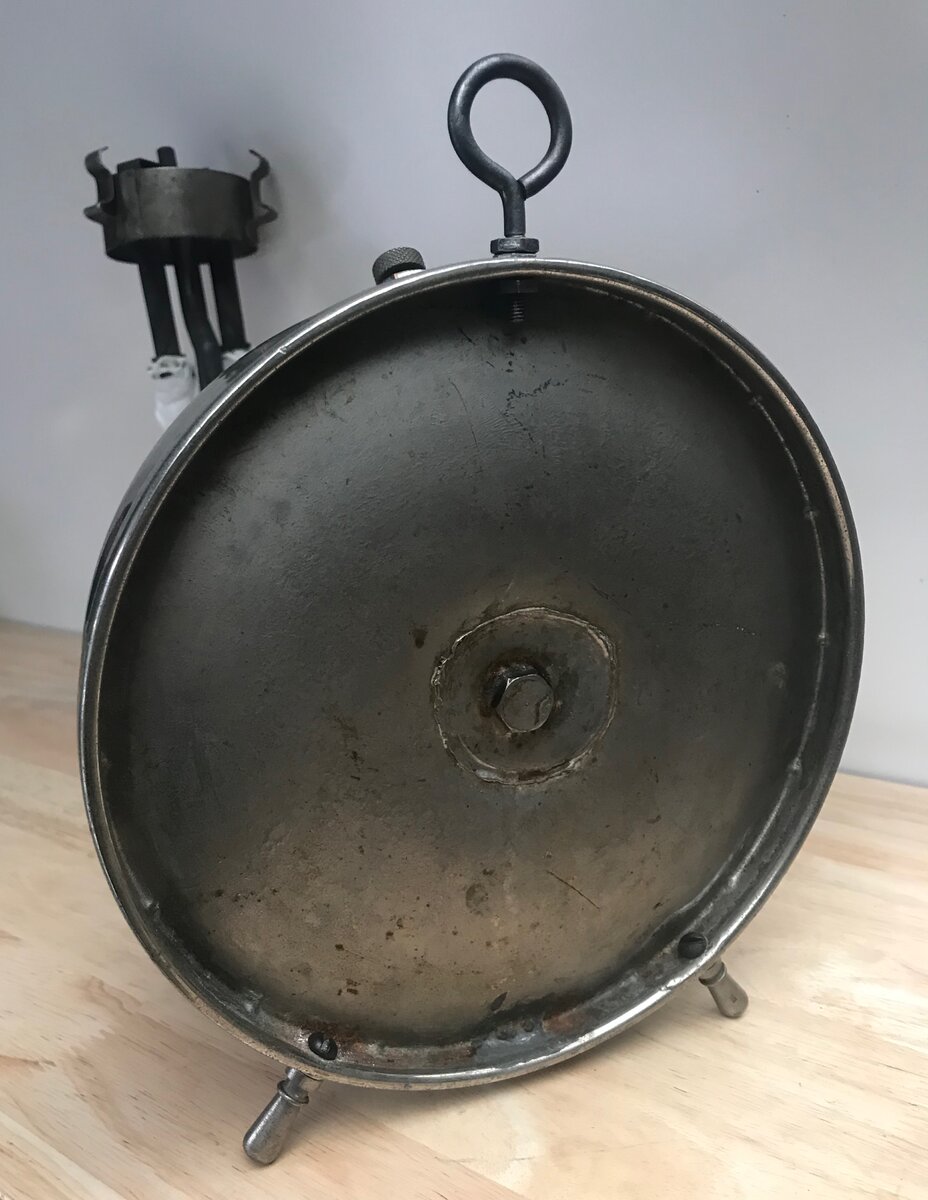

    This is a Coleman BQ bracket lamp. The tank is stamped with the a Coleman logo and 4 1 (April 1931; which make it 90 years old). The BQ bracket lamps were made from 1920 to 1932.




    Date stamp “4 1”.


    The lamp fitted with the Coleman “Universal” shade holder.

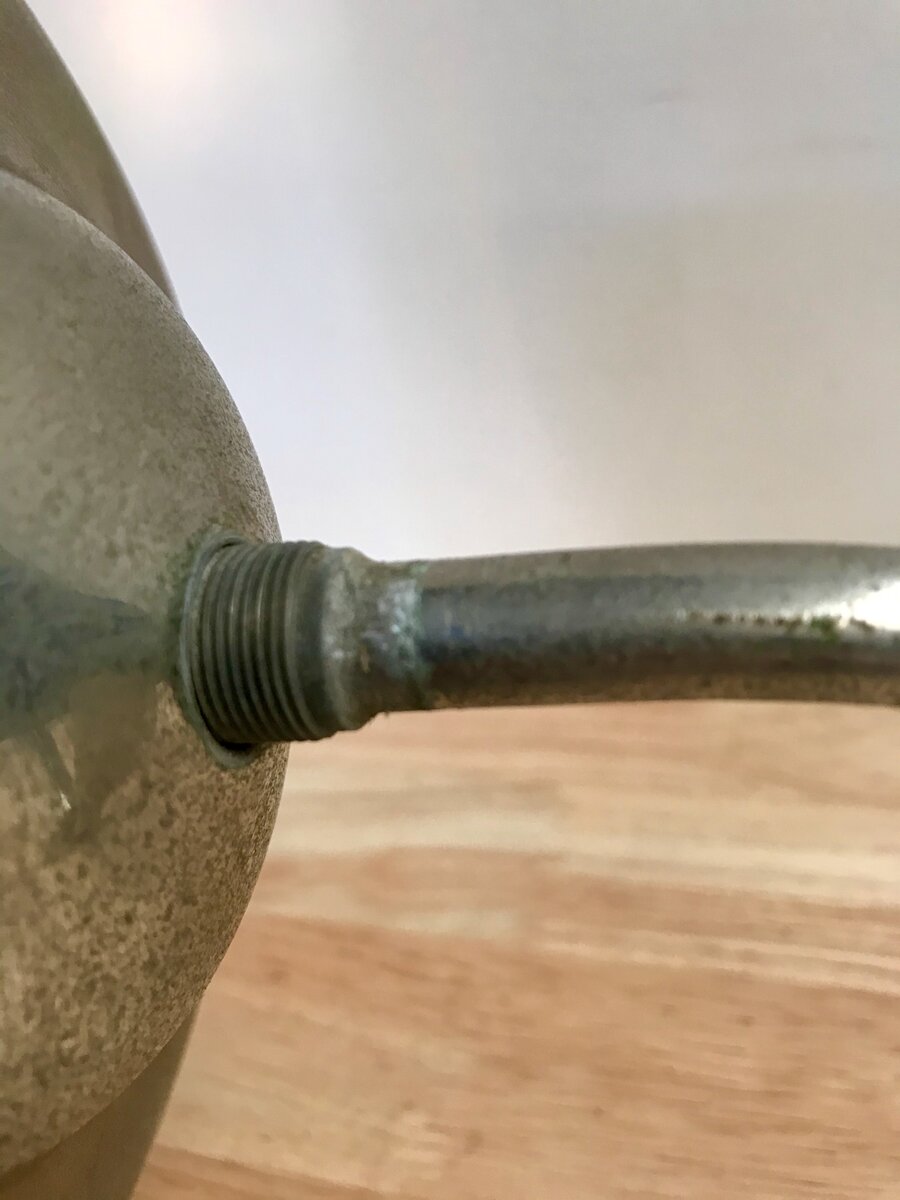

    I never did work out what the device on the bottom of the air tube was for.

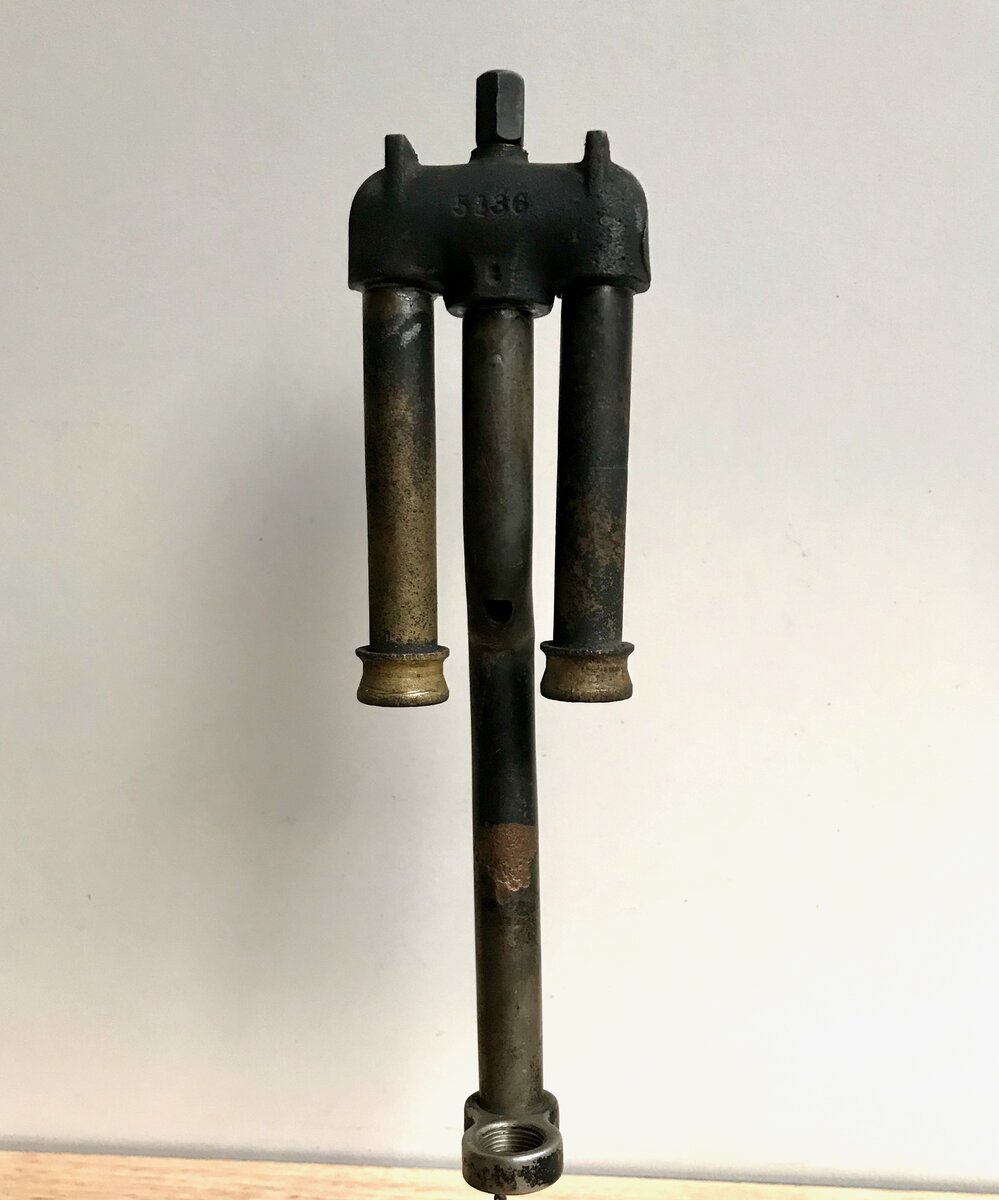

    “5136”

    “O”. Note the screw. Note also that one burner tube is longer than the other.

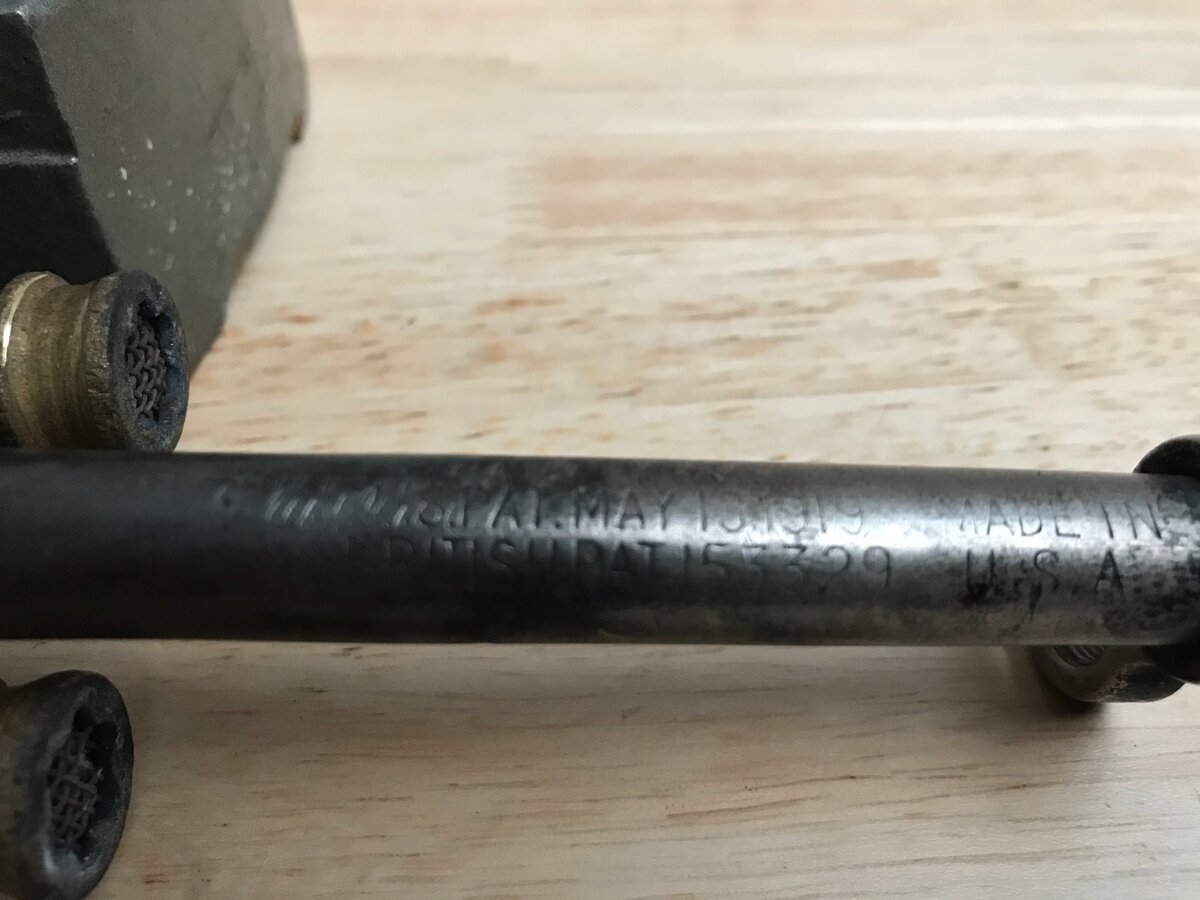

    “US Pt. May 13 1919/British Patent 153329/Made in USA”

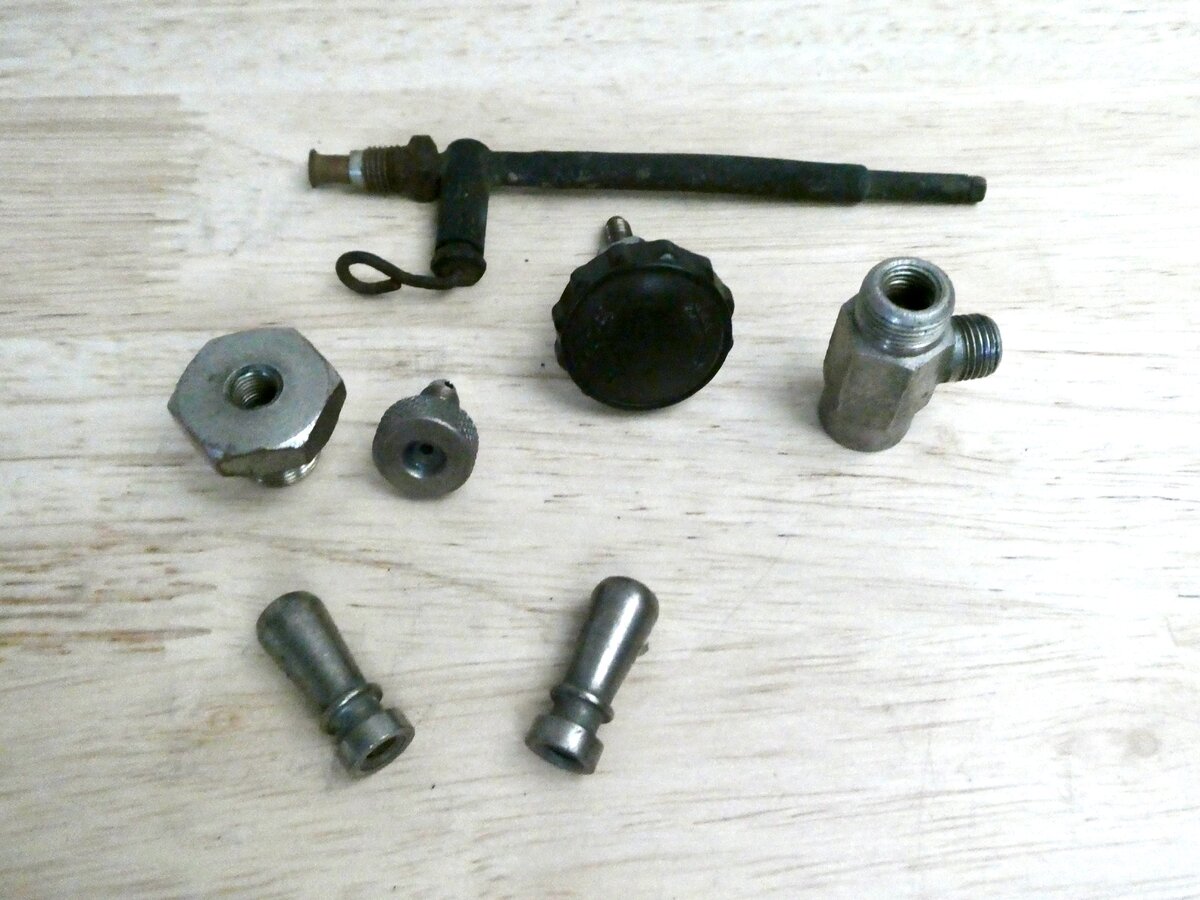

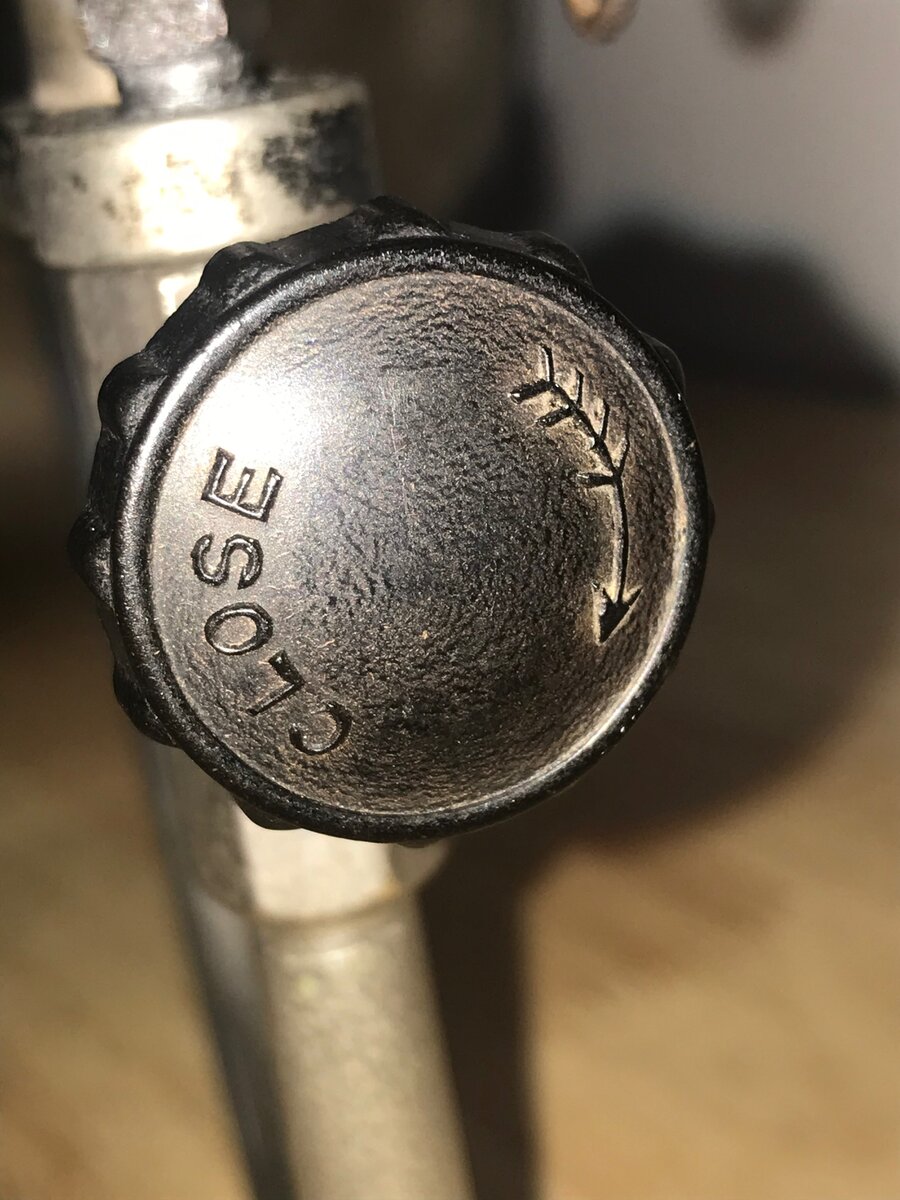

    The bakelite fuel control wheel has the curved arrow and CLOSE on front; and the curved arrow and CLOSE twice on the back.

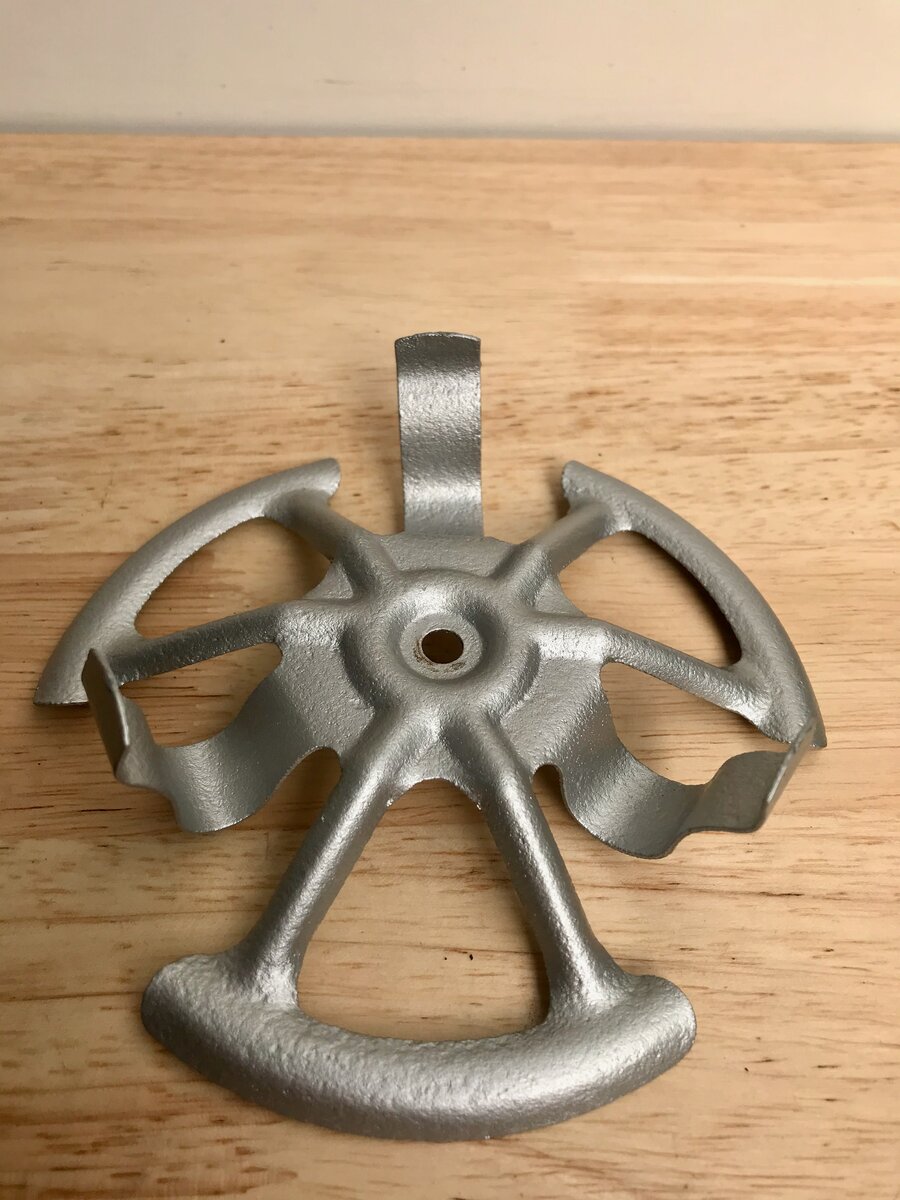

    This is the shade holder that came with this bracket lamp.



    Testing...

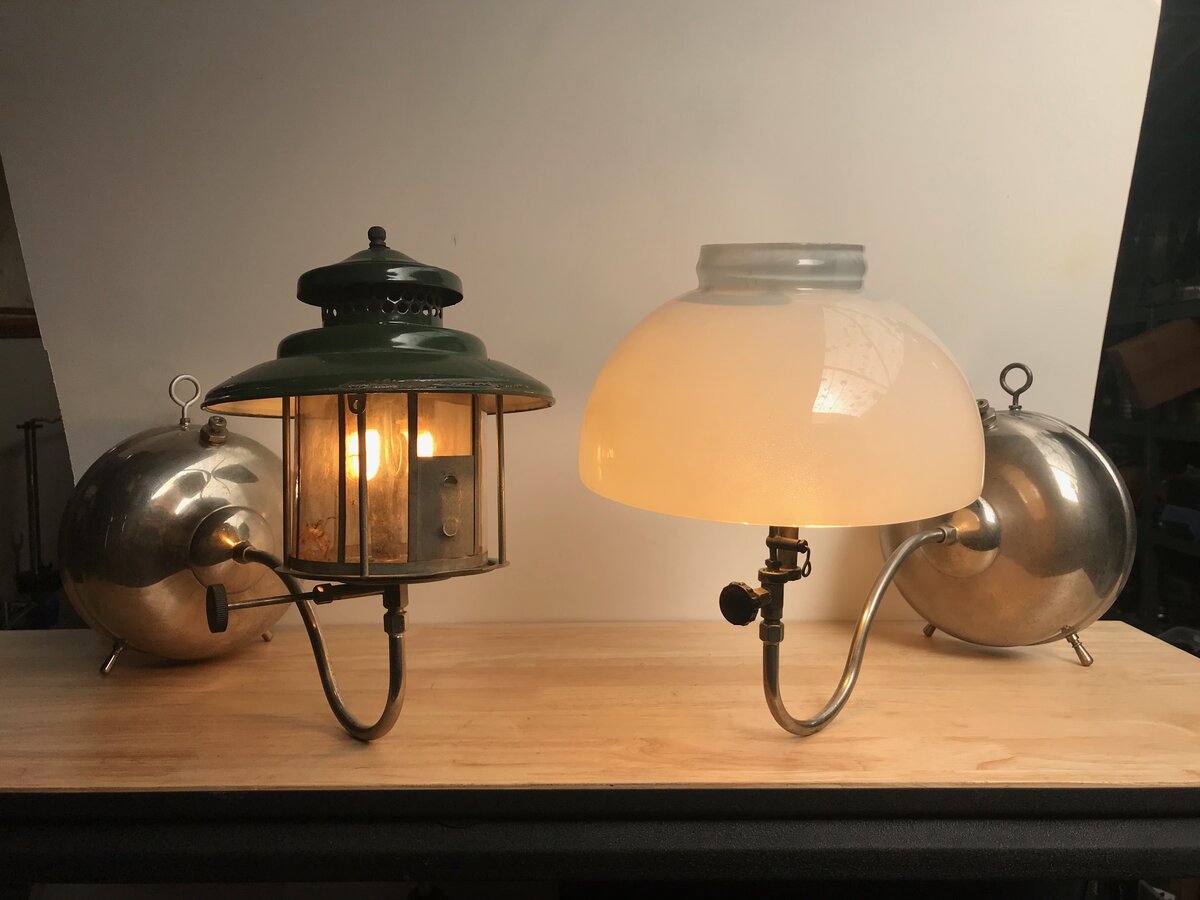

    My bracket lantern with this bracket lamp.


    Some aspects of this lamp are discussed here:
    What lamp is this from?


    Cheers

    Tony

    Last edited: Apr 29, 2021
  2. Fireexit1 United Kingdom

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    3,157
    Location:
    Brighton UK
    Great lamp Tony - thanks for posting !

  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,717
    Location:
    Somersby, New South Wales, Australia
    Excellent, Tony! :thumbup:

  4. coleman54

    coleman54 United States Subscriber

    Offline
    Joined:
    Jul 21, 2020
    Messages:
    231
    Location:
    Oklahoma, USA
    Nice job Tony.

  5. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    1,371
    Location:
    56 France
  6. Titoo

    Titoo France Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    624
    Location:
    FRANCE: 25 Franche Comté
    Very nice Tony :clap:

    Regards,
    Titoo.

  7. John

    John United States Subscriber

    Offline
    Joined:
    Jan 8, 2011
    Messages:
    770
    Location:
    Dallas, Texas; United States
    That’s a fine addition to any collection, nicely done.

  8. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,039
    Location:
    Shetland Islands UK..
    A grand old lamp which was built to last!:thumbup::thumbup:

  9. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    856
    Location:
    Bathurst, Australia
    Would have been in its day and still is a quite functional lamp.

  10. AussiePete

    AussiePete United States Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,643
    Location:
    Toowoomba Australia
    Nice example and well documented.
    Cheers
    Pete
    @Tony Press

  11. Akeepsake

    Akeepsake Subscriber

    Offline
    Joined:
    Jan 11, 2016
    Messages:
    271
    Nice one Tony! I’m still wondering about that of bracket on the air tube ??
    Obviously not factory ?

  12. ThosKiwi

    Offline
    Joined:
    Nov 7, 2011
    Messages:
    67
    Good day.
    Could that "contraption/bracket" possibly be the fixed support for an insect guard??
    Cheers

  13. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    The truth is, I’ve not found out what the bracket is for. It’s now in my “odd things found on lamps” box.

    Cheers

    Tony

  14. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I had this lamp running. I thought this photo was worth adding to the thread.


    Cheers

    Tony

  15. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,681
    Location:
    N E Scotland
    Just had a look at my one Tony and it’s stamped 1 7.

  16. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Jean

    Yours is not in the Reference Gallery: is it Canadian- or US-made?

    Cheers

    Tony

    @Jean J

  17. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,681
    Location:
    N E Scotland

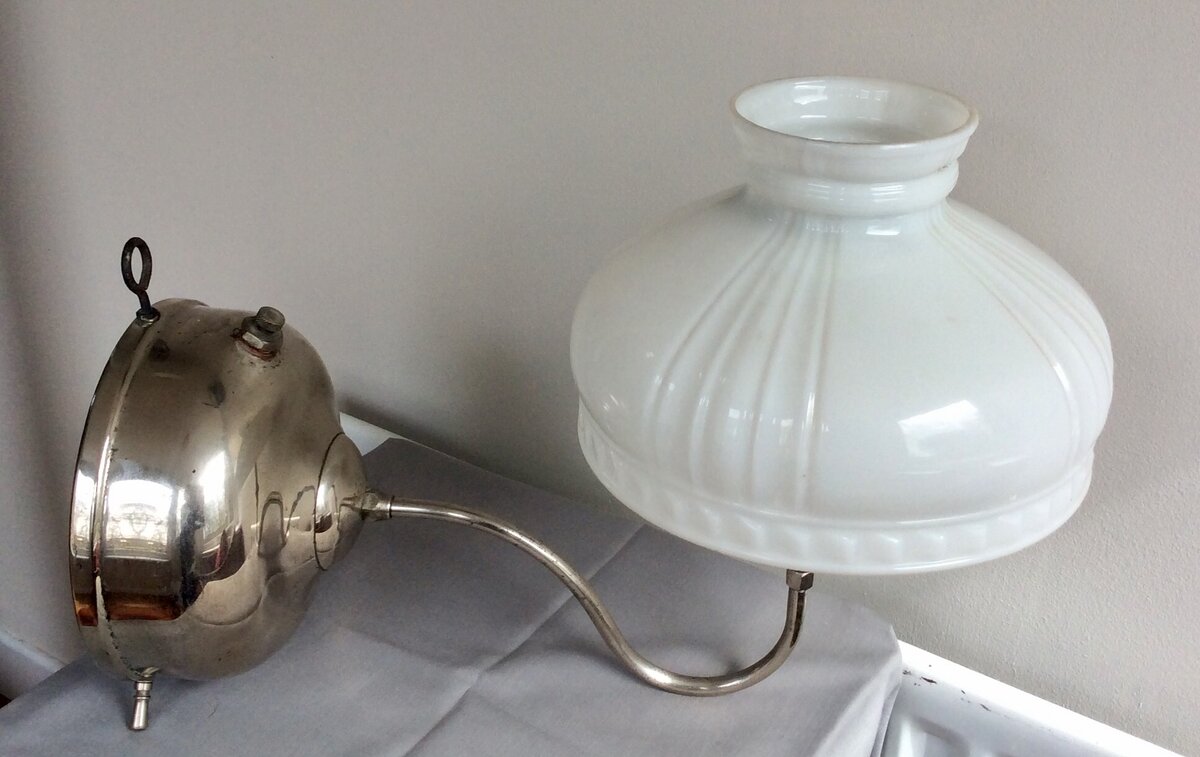

    Very faint Tony but definitely USA. A lot of my lamps aren’t in the gallery as I usually just put them into the Open Forum. Suppose I could add it now.

    E3B3190C-2718-49C3-BD2E-901AFE0092EF.jpeg F65F0041-C4C6-4524-AC05-96A6C1AB8532.jpeg

  18. bigredmf

    bigredmf United States Subscriber

    Offline
    Joined:
    Apr 29, 2020
    Messages:
    81
    Location:
    Between Detroit and Boston
    Tony
    Those are two nice lamps!
    Nice work!
    I’m curious if @Mackburner / Neil has any thoughts?
    Thank you
    Kevin
