Coleman PQ (1919 to early 1920s)

Discussion in 'Chandeliers. P, PQ, PQF, 103K' started by Tony Press, May 28, 2020.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    This is my Coleman PQ, restored with all the parts it came with (excepting the filler cap seal and the Coleman shades).

    The lamp was found in Australia.




    P1070084 (1).jpeg

    P1070083 (1).jpeg

    P1070086 (1).jpeg

    P1070079 (1).jpeg

    P1070081 (1).jpeg

    P1070080 (1).jpeg



    P1070078 (1).jpeg

    P1070082 (1).jpeg



    Each control wheel is marked "Close ---> A"




    One cast burner with "F"; the other with "H".

    "Patent May 13, 1919"

    The tank is not stamped.

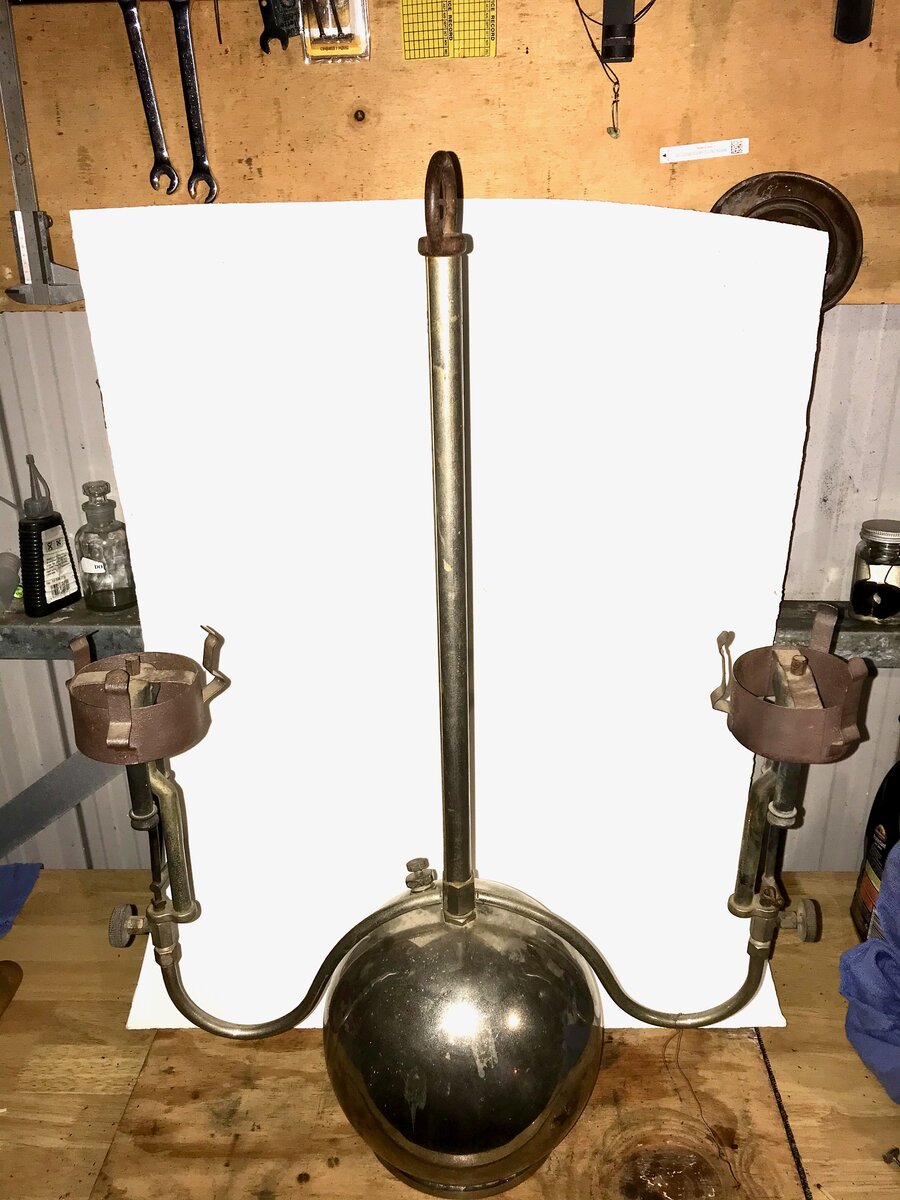

    As it came.
    IMG_8166 (1).jpeg


    The Fettle:


    The inside of the tank was cleaned with citric acid solution and the steel bottom of the tank was treated with "Evaporust".

    The R55 generators were cleaned and given a soak in acetone.

    The lead washer on the filler cap was replaced with Viton.

    The shade holders were first de-rusted by electrolysis, then treated in "Evaporust".

    The control wheels were cleaned then treated with car wax.

    The nickel was in reasonable condition, with some staining a small amount of nickel loss. The nickel was polished with Autosol.



    The fuel pick up


    When I first went to light the lamp I got very good 'hissing' through each of the generators... but no fuel.

    I took the hanger and arms off the tank and discovered that there was not a fuel pick-up tube on the lamp.

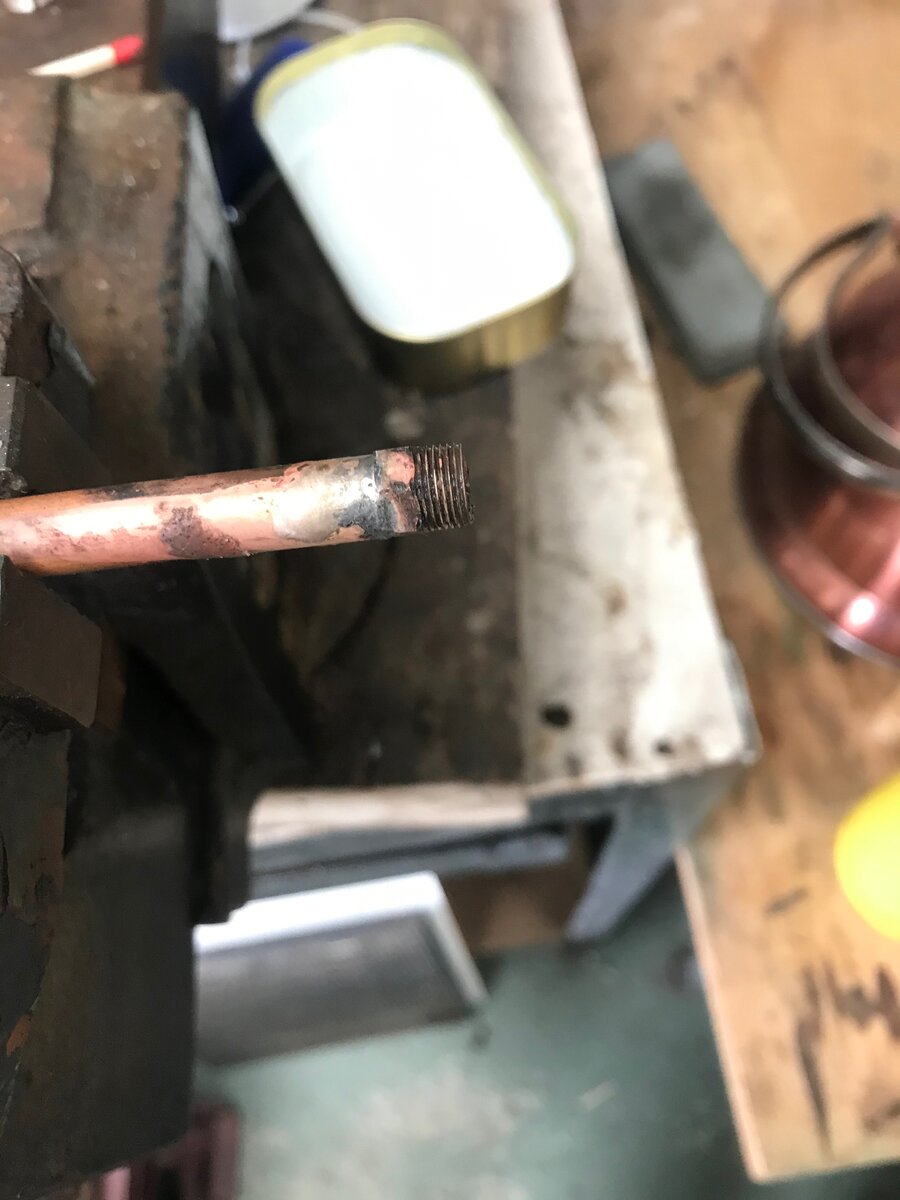

    So I silbrazed a 8mm diameter tube to the fitting nut.



    I cut the tube to the correct length and fitted brass gauze to the lower end, and drilled 4 1mm holes in the bottom of the tube to aid fuel flow.

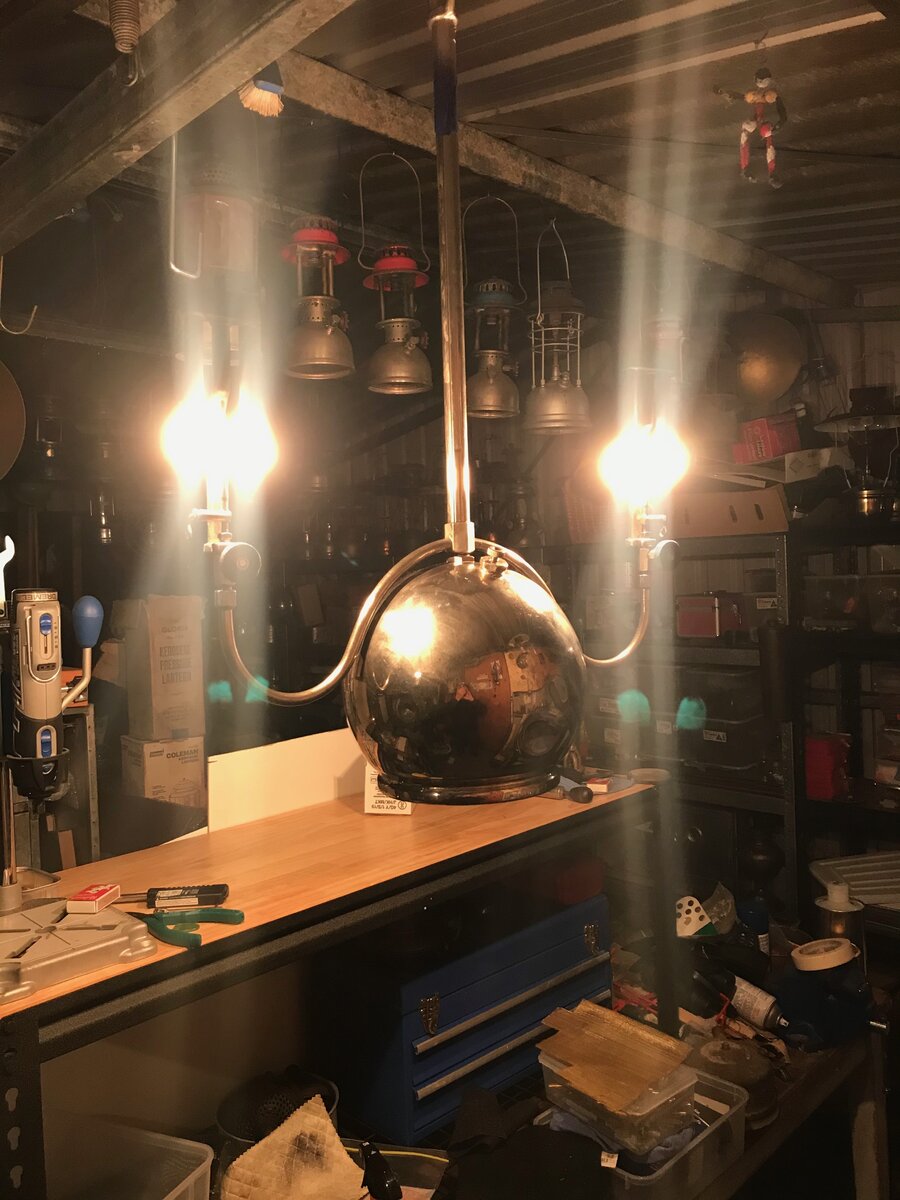

    Getting it going (this time with fuel pickup):







    This really is a beauty.


    Cheers

    Tony

    Last edited: May 28, 2020
  2. Lamp Doctor Australia

    Offline
    Joined:
    Feb 5, 2020
    Messages:
    19
    Location:
    Geelong
    A wonderfull restoration there Tony that would look good beside mine hanging up high ..Bob

  3. Wim

    Wim Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    800
    Location:
    Dendermonde, Belgium
    Beautiful! Congrats! :clap: I like the old Colemans a lot (but only have 3) as they are so simple and reliable. The R55 generators are later I believe? They are pretty handy!
    What mantles do you use? I bought a box of Coleman mantles (N°21 I believe, they were old stock and cheap...) but find about 1/3 to 1/4 develope little holes from the first burn.
    Looks like you still have a 'couple' projects waiting ;)

    Wim

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Wim

    I used Coleman No. 21 “Instaclip”
    mantles for testing (I have a box that I got for not much money); and for proper use (as in the photos), I used Peerless 2C-HG mantles.

    I used the R55s because they were with the lamp, and I wanted to get it going as it was found.

    There are a few very interesting projects in the shed...

    Cheers

    Tony

  5. peterthevet

    peterthevet Subscriber

    Offline
    Joined:
    Nov 18, 2014
    Messages:
    75
    Location:
    Australia
    WOW - stunning lamp and beautiful restoration. Are the shades repro or original? Either way they are also very nice!

    Cheers Peter

  6. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,601
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @peterthevet

    The shades are either Coleman originals or Coleman copies made in Australia many years ago from a Coleman mould.

    I am awaiting confirmation from someone who is an expert on these matters, but Covid-19 has intervened.

    Tony

    Edit: Note that the two shades are not identical. I have three shades of this pattern and they are all slightly different from each other.

  7. peterthevet

    peterthevet Subscriber

    Offline
    Joined:
    Nov 18, 2014
    Messages:
    75
    Location:
    Australia
    Based on the very thin/delicate bottom rim they are most likely original. Regardless they suit the lamp perfectly.

  8. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,087
    Location:
    Somersby, New South Wales, Australia
    Very nice Tony. :thumbup:

  9. Titoo

    Titoo France Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    436
    Location:
    FRANCE: 25 Franche Comté
    Here is again à beautiful restoration :clap:
    This lamp is very beautiful.
    Always a lots of pictures with details.
    Congratulations :thumbup:

    Thank for sharing !

    Regards,
    Titoo.

  10. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,888
    Location:
    Toowoomba Australia
    Excellent restoration and an excellent read of the process.
    She’s a real lamp of beauty.
    Enjoy
    Cheers
    Pete
    @Tony Press

  11. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,537
    Location:
    Shetland Islands UK..
    It's a grand old lamp now!:thumbup::clap::clap::D/:D/:thumbup:
