Day Lite lantern (Germany)

Discussion in 'Fettling Forum' started by adelcoro, Dec 23, 2011.

  1. adelcoro

    adelcoro Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    222
    I have a made in Germany Day Lite 500CP?
    The non return valve on the pump loses air.
    I tried to clean it with no success.
    Is there a replacement part for this model is Europe? The nitrile seal under the spring is very hard to remove.I don t want to damage the NRV.

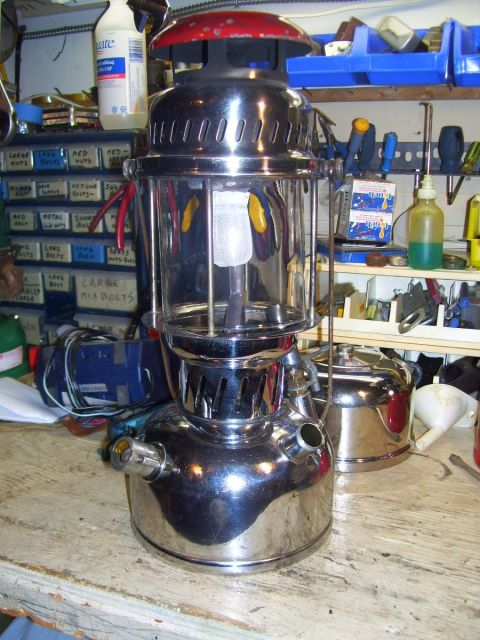

    This is the lantern.
    Day Lite (made in Germany)
    Any info on this lantern would be welcomed,

    Thank you

    Agostino



    Attached Files:

  2. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,568
    Hello Agostino,

    There are no Daylite replacements for sale in europe. But I guess that similair 500cp lantern parts will fit ? I guess it is the standard px type ?
    Also most pressure freaks over here make their own seals.

  3. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679
    Nearly every piece from the Petromax 500 will fit

  4. nagant

    Offline
    Joined:
    Mar 7, 2011
    Messages:
    66
    here is pic's of what i have , haven't looked at it in a while so don't remember details off hand. day lite lantern parts

  5. adelcoro

    adelcoro Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    222
    I installed a petromax NRV with no effort.
    Petromax parts fit this model perfectly.
    Thank you for your help.
    Agostino

  6. Jim McEnturff United States

    Offline
    Joined:
    Mar 7, 2019
    Messages:
    5
    Location:
    East Texas-Van Zandt County USA

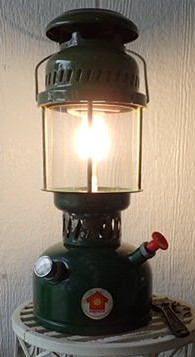

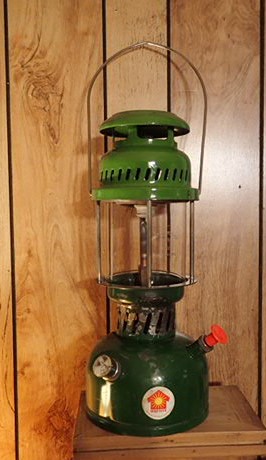

    I just got a green Day Lite. Does anyone have a clue about when it was made?


    Last edited by a moderator: Mar 7, 2019
  7. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,966
    Location:
    Hertfordshire
    1954 to 1970. I will send you the Instructions. ::Neil::

  8. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,034
    Location:
    Malaysia
    Those are nice.

  9. Reinhard Germany

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    262
    Location:
    Germany
    This lamp was manufactured by Meyer&Miss in Hamburg Bergedorf.
    This ist the last version.
    You can see it on the refined manometer.
    Patent No DE000001556064A
    Most parts are not compatible with Petromax parts.

    Regards Reinhard

  10. Jim McEnturff United States

    Offline
    Joined:
    Mar 7, 2019
    Messages:
    5
    Location:
    East Texas-Van Zandt County USA
    It's a great lantern. Had to change the pricker and tighten the generator nut. New mantle, fuel, and pre-heat. Fired right up.

  11. Jim McEnturff United States

    Offline
    Joined:
    Mar 7, 2019
    Messages:
    5
    Location:
    East Texas-Van Zandt County USA
    That would be great. Thanks.

  12. Jim McEnturff United States

    Offline
    Joined:
    Mar 7, 2019
    Messages:
    5
    Location:
    East Texas-Van Zandt County USA
    Hopefully I won't need to replace too many parts. It's working fine at the moment. Thanks for the information.

  13. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,740
    Location:
    Shetland Islands UK..
    Good finds!:thumbup::thumbup:

  14. Jim McEnturff United States

    Offline
    Joined:
    Mar 7, 2019
    Messages:
    5
    Location:
    East Texas-Van Zandt County USA
    Thank you. Much appreciated.

  15. Reinhard Germany

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    262
    Location:
    Germany
    It's called Meyer&Niss,not Meyer&Miss.
    I'm sorry.
    Regards, Reinhard
