Ditmar Maxim 501

Discussion in 'Austria' started by Anfeng, Nov 30, 2019.

  1. Anfeng

    Anfeng China Subscriber

    Offline
    Joined:
    Jun 1, 2019
    Messages:
    18
    Location:
    China

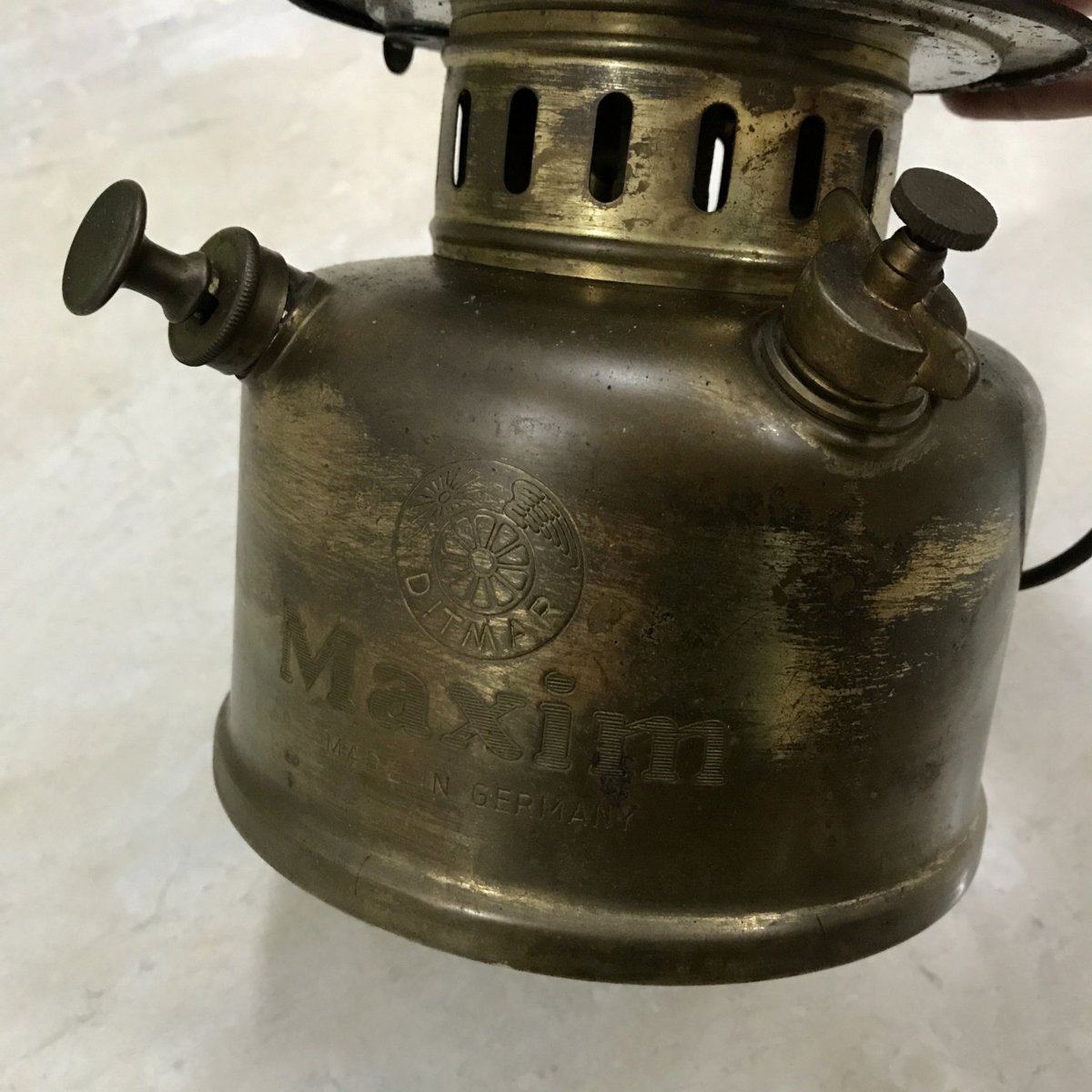

    This is a rare copper-colored version 501, which I found from ebay, Austria. The tank reads "Made in Germany," and it should be a product of Austria's occupation by Nazi Germany. 420BB418-C68B-4343-B776-E7BBD6844ECD.jpeg 546B839E-D29F-4009-8179-B84F627A6976.jpeg FEC28664-3645-43D9-A19C-D03DF79FAC3A.jpeg Made in Germany 14A1F6E7-FE16-4BB1-B4F4-3EBBC9326126.jpeg Fabriqué en Allemagne (French?) 36F42AF5-D655-42C9-A9E7-CDF1874D728E.jpeg This is how it looks when I get it 97F5336E-62B4-417D-98E4-973B870E9F25.jpeg 96B2985F-9B53-41CB-9172-8826322F5342.jpeg E147D2B2-B235-42C3-9270-72ECD1FB3EB3.jpeg The surface also retained the anti-oxidant coating sprayed on the factory 95742B38-E507-4291-BEDD-DF85D277B2D9.jpeg 196D9D69-394E-4512-9404-35B91303D6E2.jpeg 08414BCA-647B-4462-B408-E551C5524F5D.jpeg CFC4E777-7A83-443A-A364-61DF7EECA805.jpeg Dismantling and cleaning, and rust removal of iron parts 74CCF26F-0832-4A75-8835-4C06CCB7C25E.jpeg 46BBCEAB-F12B-41F9-BD6E-CFA9EAB3F0B4.jpeg A3C4A9C8-5FA0-4783-9AAB-B739E38BC4B3.jpeg E283A2D1-F4CF-40A6-B417-83CE837EE821.jpeg 8271EBC2-A3C0-497C-A53A-0FAB74A487E4.jpeg C9D735EE-17E9-4023-A245-614BBA245680.jpeg AD4CF227-4D5E-4079-A8D6-E42478A94ADA.jpeg 36CCA152-BD3E-4046-9C7D-3A115E78A49B.jpeg 06779C9B-B6A1-44F8-B266-77469FEC2572.jpeg The glass ball has a crack, but it should be pristine B91092BC-958C-4A86-974D-E62A29864E71.jpeg 5C018BF5-AF77-4476-AF68-A1ABFD6637B0.jpeg After assembly, I used kerosene for a test run, but the results were not good. There were many yellow flames around the veil. I quickly realized that it might be an alcohol nozzle. Next I measured the diameter of the nozzle, which is about 0.28mm, which is the same as the alcohol nozzle of radius 119. EC8E48ED-6E7D-40D8-B9B4-4C968ABC8D55.jpeg I emptied the kerosene in the oil tank, re-added anhydrous ethanol, and made air restriction on the air inlet. This time I succeeded and the flame status was perfect. 7467C774-F503-43E4-A565-02FDA4EC1759.jpeg The top of the lantern is flat and has three protrusions on the top, which is perfect for placing the teapot on top. AE847765-00EC-48E1-A1BA-DA34A3210764.jpeg There are two sets of numbers 03 and 4 at the bottom. It may be helpful for judging the production date. I read the other 501 CPL posts. It may be produced in March 1934 or March 1944. I think 1944 may be correct, please let me know if anyone knows the exact answer, or I can post your thoughts, I would greatly appreciate it!


    Attached Files:

  2. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,137
    Location:
    USA
    Very nice presentation! Love to see these restorations with pictures. Fine lantern. I thought the 501 used kerosene for fuel but if this lantern was made during the war alcohol could have been the fuel since kerosene would have been hard to find.:thumbup::D/

  3. Anfeng

    Anfeng China Subscriber

    Offline
    Joined:
    Jun 1, 2019
    Messages:
    18
    Location:
    China
    @george
    You are right. Alcohol was relatively easy to obtain during World War II. I know that many brands introduced alcohol versions or modified kits for burning alcohol during World War II.

  4. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    Congratulations on your fettle of such a nice lantern. The pictures and descriptions are both informative and a great read, well done.
    Cheers
    Pete

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,859
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Very nice job, @Anfeng.

    Thanks for the presentation.

    Cheers

    Tony

  6. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    132
    Location:
    Midlands, UK
    You have done a brilliant job. That is a real living piece of history from a turbulent period that you have managed to preserve. You must be very pleased, not only finding it, but restoring it to such great condition.

  7. Anfeng

    Anfeng China Subscriber

    Offline
    Joined:
    Jun 1, 2019
    Messages:
    18
    Location:
    China
    @Tony Press
    Hi Tony, I'm glad to see you here too. best regards
    AnFeng

  8. Anfeng

    Anfeng China Subscriber

    Offline
    Joined:
    Jun 1, 2019
    Messages:
    18
    Location:
    China
  9. Anfeng

    Anfeng China Subscriber

    Offline
    Joined:
    Jun 1, 2019
    Messages:
    18
    Location:
    China
    @Alex Smith
    thank you! I always try to get them back to where they were, and I'm very happy when they are re-ignited.
    best regards
    AnFeng

  10. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,480
    Location:
    Somersby, New South Wales, Australia
    It's cleaned up nicely @Anfeng . Congratulations :clap:
    Good detailed post. :thumbup:

  11. Anfeng

    Anfeng China Subscriber

    Offline
    Joined:
    Jun 1, 2019
    Messages:
    18
    Location:
    China

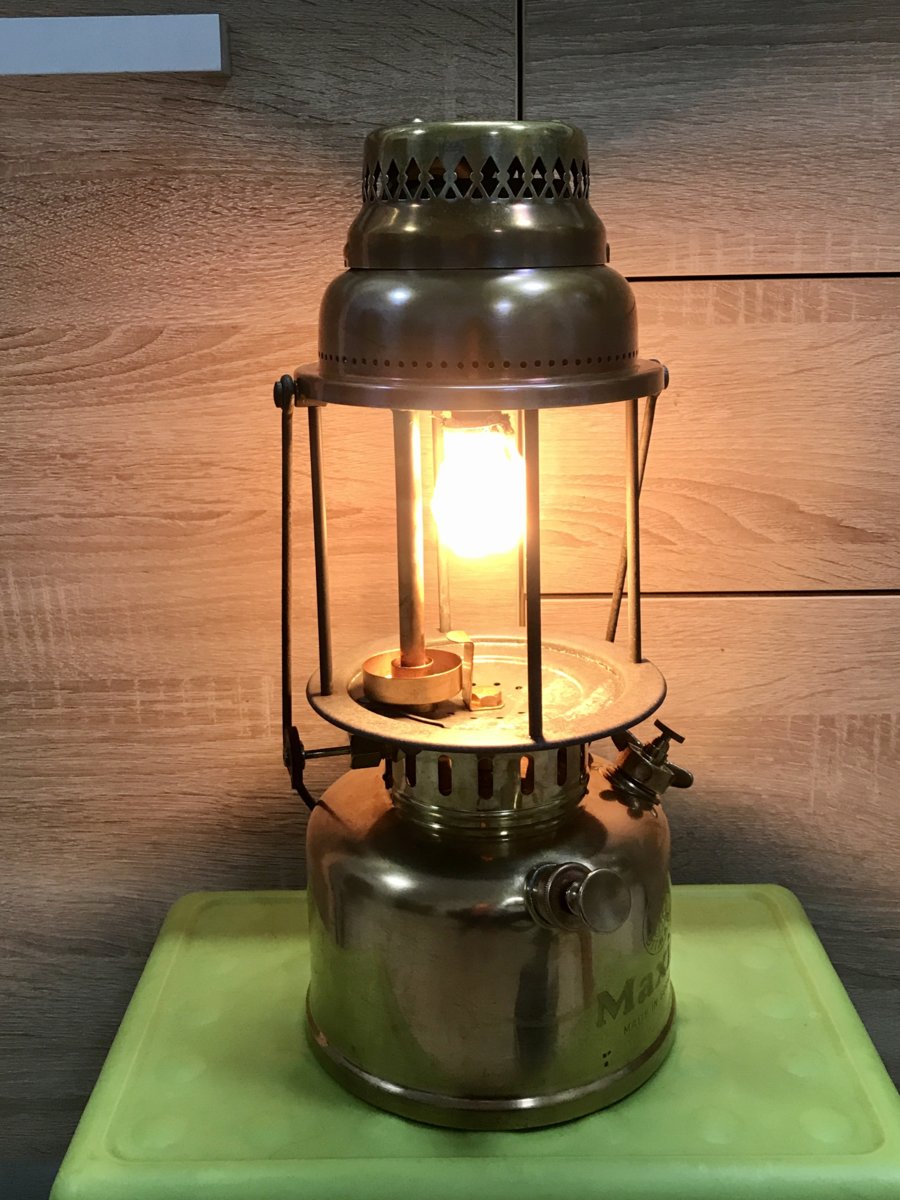

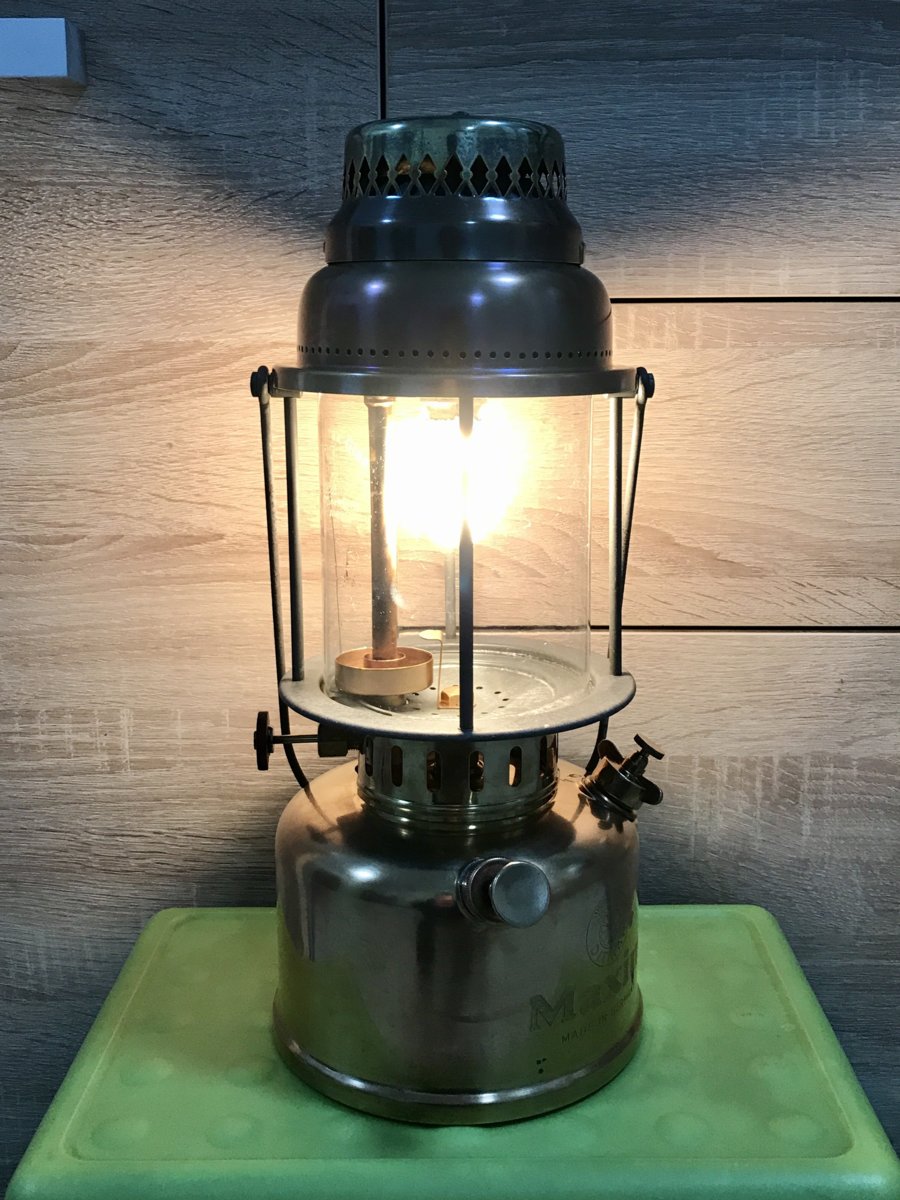

    Yesterday, a kerosene nozzle bought from South Korea came with a specification of 300cp and a hole diameter of 0.2mm. There is no problem using kerosene now, there is no smell when the lantern burns, and the air and fuel ratio is just right. BB8B49BC-CA4F-4DDC-8C8A-E9968B282F29.jpeg 644CB62C-BF73-4371-92B7-90F76DDF0F27.jpeg 2316F1C8-43B7-43F7-BBD1-AA8947CECC9D.jpeg DC245797-36BA-431A-A5CC-D617CE7E1344.jpeg

  12. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,748
    Location:
    Shetland Islands UK..
