FL6: Repair to 'air tube'

Discussion in 'Pressure Lamp Discussion Forum' started by Tony Press, Nov 12, 2017 at 11:00 AM.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    In preparation for the upcoming Ballarat FL6 light-up, I've been making sure my floodlights are ready to go; and fettling a fairly ordinary FL6 that needs a lot of work.

    It came, (with much help from @Lamp_Doctor - greatly appreciated!) missing the extension to the burner air tube.

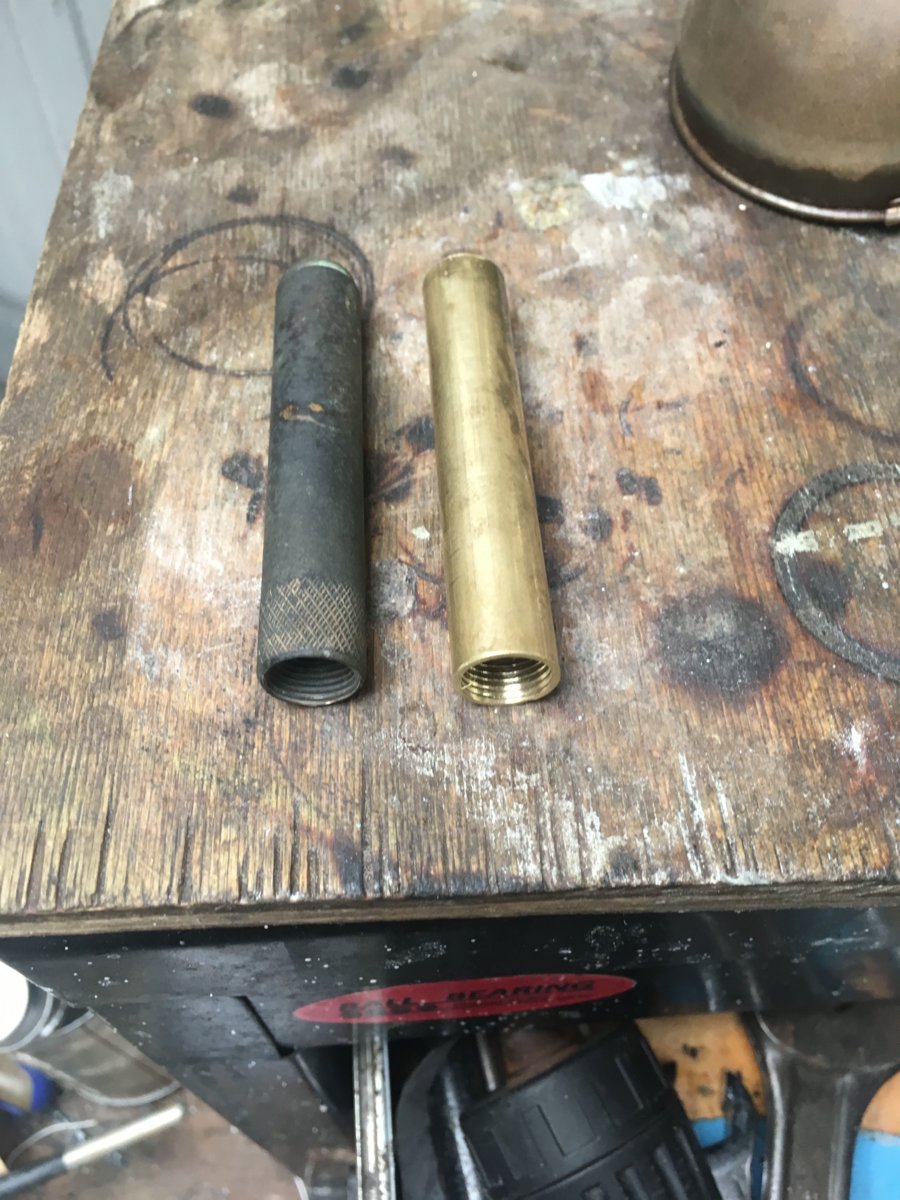

    I bought a metre of the correct brass tube and cut off a length:

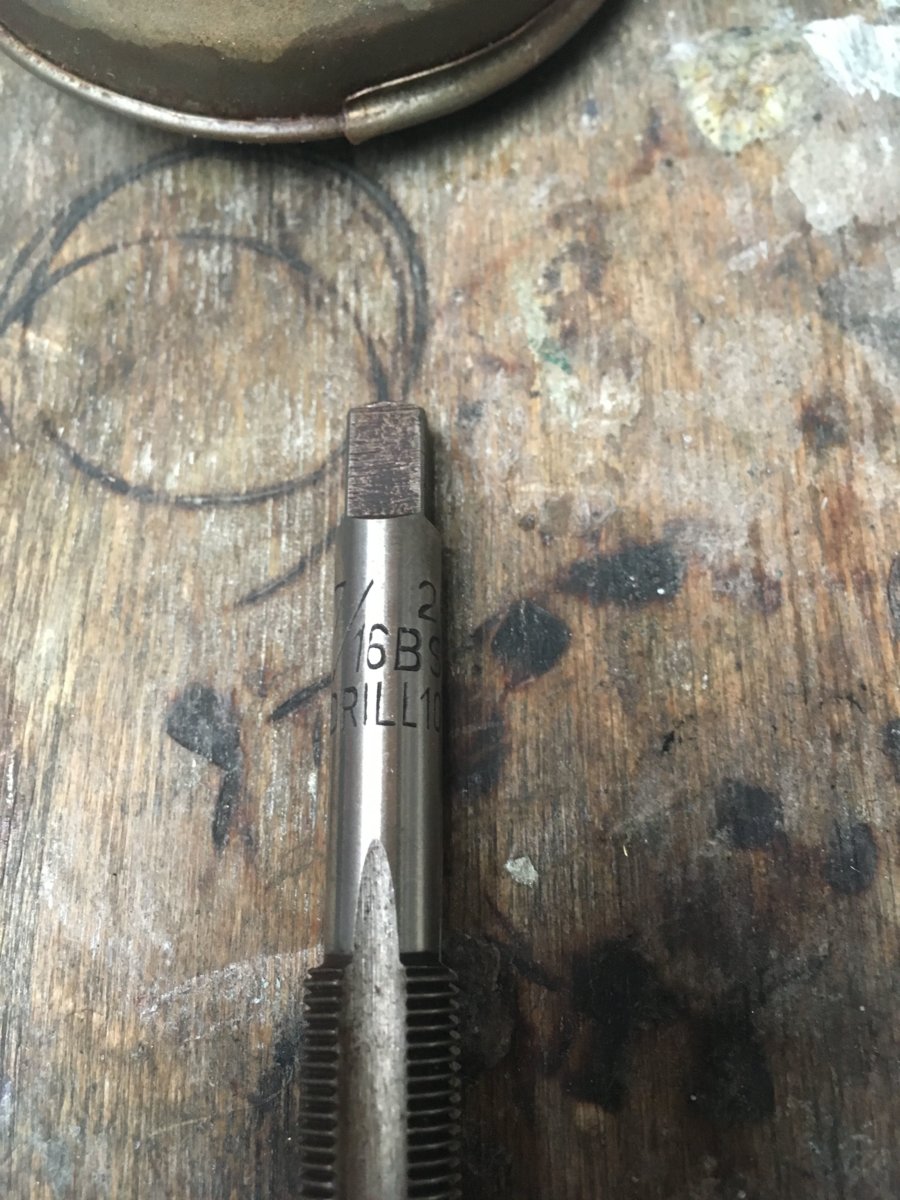

    I then tapped a thread. First, I looked at my taps and dies and thought... maybe it’s this one? And it was: I used a 7/16” 26tpi BSB tap that I had bought to fix a Svea 123R burner (see here; thanks @longilily).






    It worked a treat:

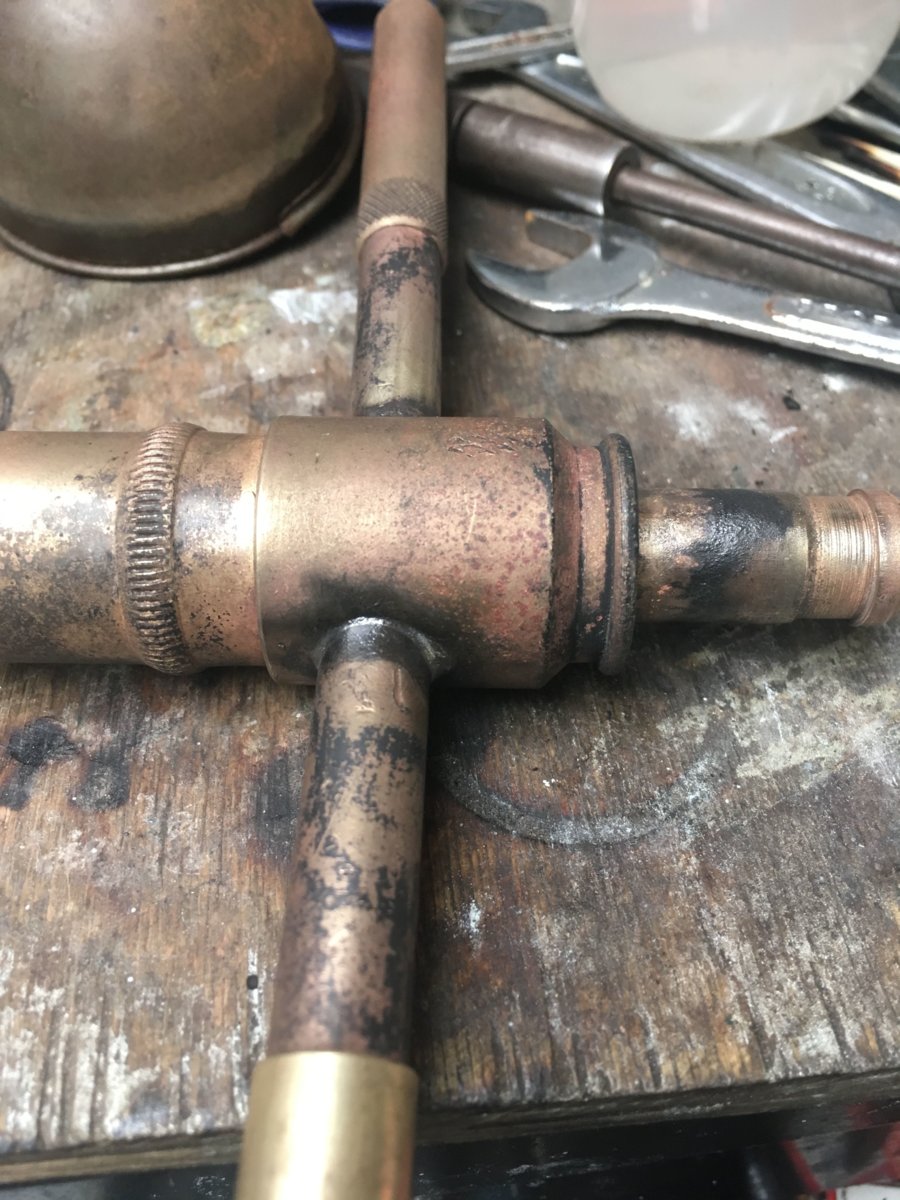

    Testing:



    Cheers

    Tony

    @Anthony, @kerry460, @ROBBO55

    Last edited: Nov 12, 2017 at 11:09 AM
  2. longilily

    longilily United Kingdom Subscriber

    Offline
    Joined:
    Jan 25, 2011
    Messages:
    1,415
    Pleased to help you Tony ;)

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,174
    Location:
    Shetland Islands UK..
    That will do the job!:thumbup:

  4. Lamp_Doctor Australia

    Offline
    Joined:
    Jan 3, 2013
    Messages:
    425
    Well Tony looks like you have done well on that old beast .
    You forgot to mention its a early FL6 with the small bore pump tube .
    Bob .

  5. ROBBO55

    ROBBO55 Australia Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    416
    Location:
    Somersby, New South Wales, Australia
    G'day Tony,
    Looking forward to seeing it fired up in the paddock. :lol::lol:

  6. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @ROBBO55

    I’m looking to bring three over the strait.

    Cheers

    Tony

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Lamp_Doctor

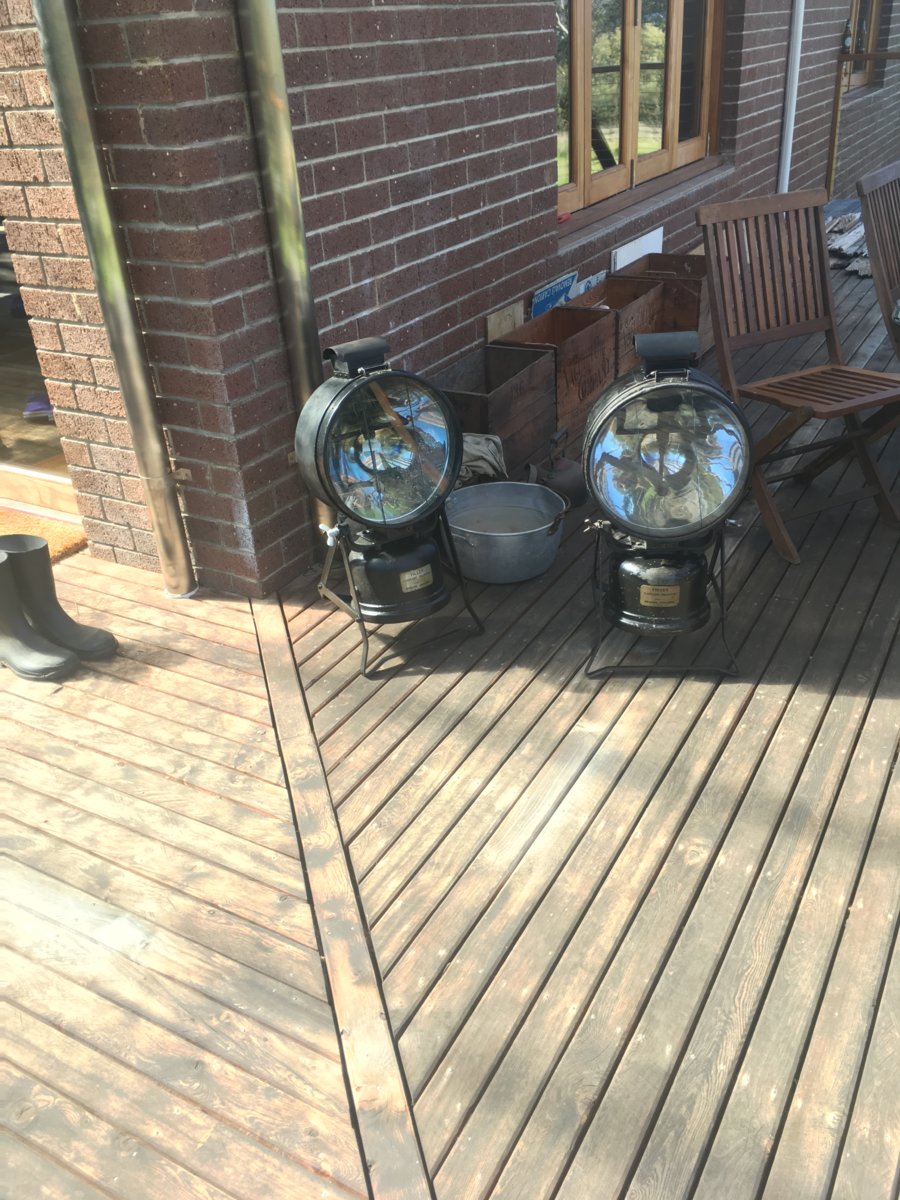

    You got the 1938 narrow pump FL6 - I got this one:





    I’m working through it now. It should be ready!


    Cheers

    Tony

  8. ROBBO55

    ROBBO55 Australia Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    416
    Location:
    Somersby, New South Wales, Australia
    @Tony Press

    Three FL6's ! Well if I was thin skinned I'd fee inadequate now. I don't have one to bring :cry:.
    Guess I'll have to bathe in the light of others :lol:.
    See you then.

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @ROBBO55

    One of the people I’ve talked to who may be coming to Ballarat, and who is not a Member here, once had 14 or 15 lit up at one time.

    Is there anything I’ve got that you might like to me to bring along? I have to empty the tanks (rule for the ferry crossing) and can’t carry kero or Shellite in the ferry (but they allow LPG to be loaded - go figure). So I’m preparing my lamps now...

    Cheers

    Tony

  10. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

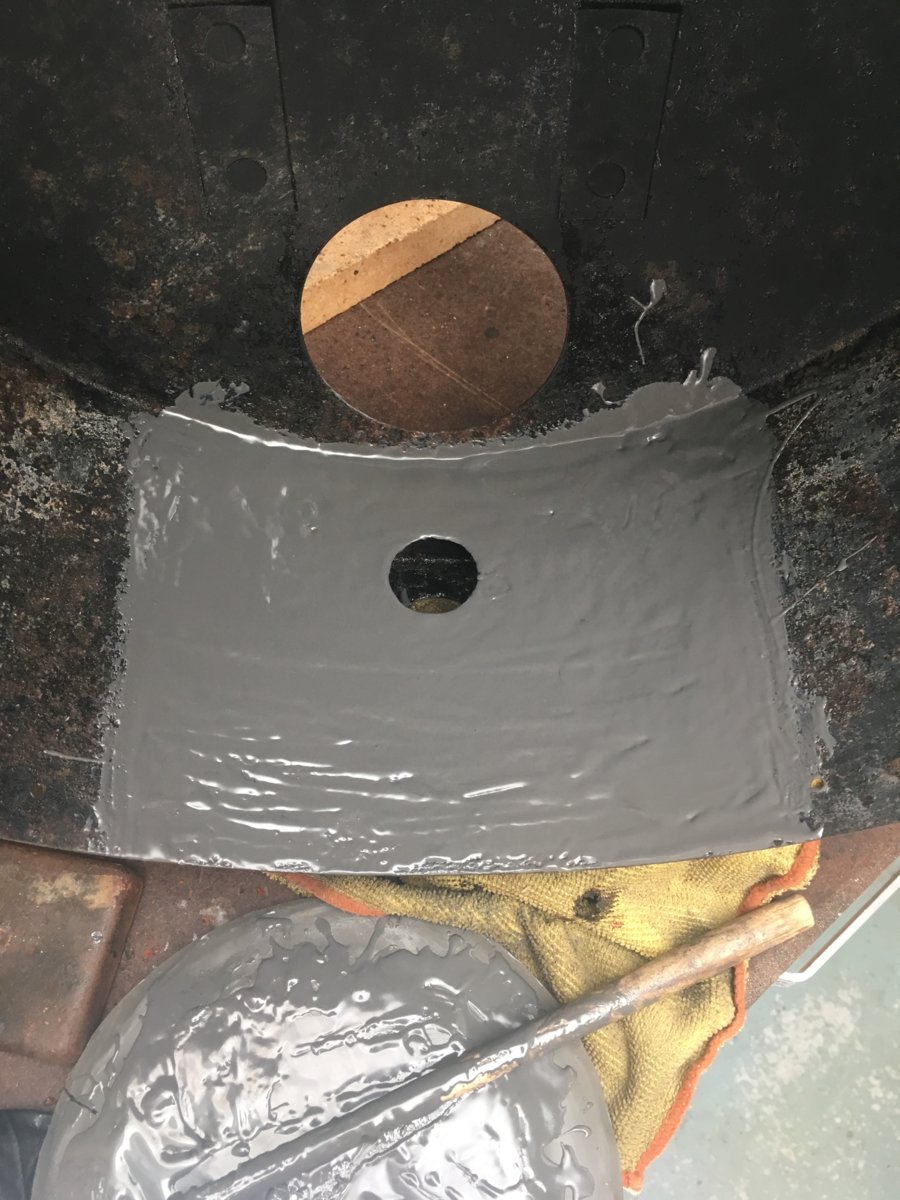

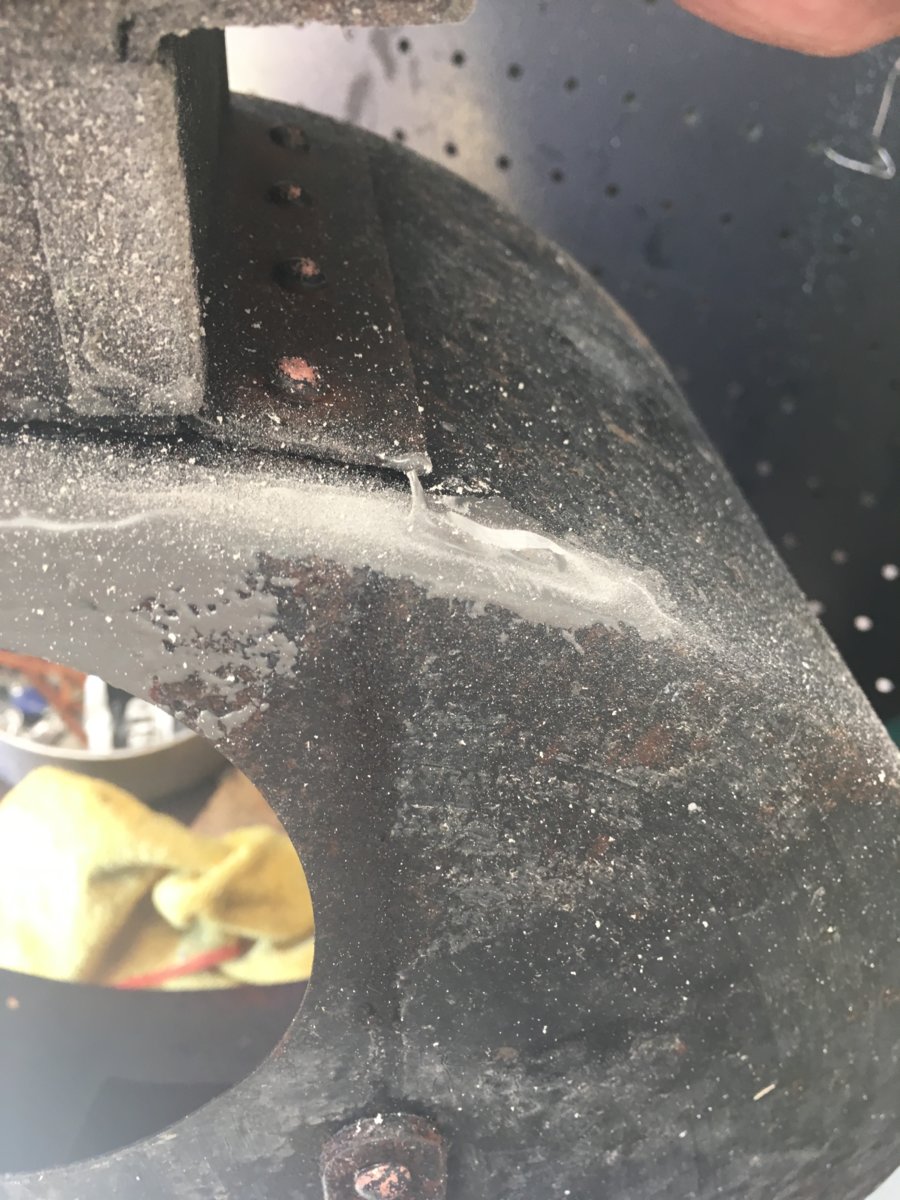

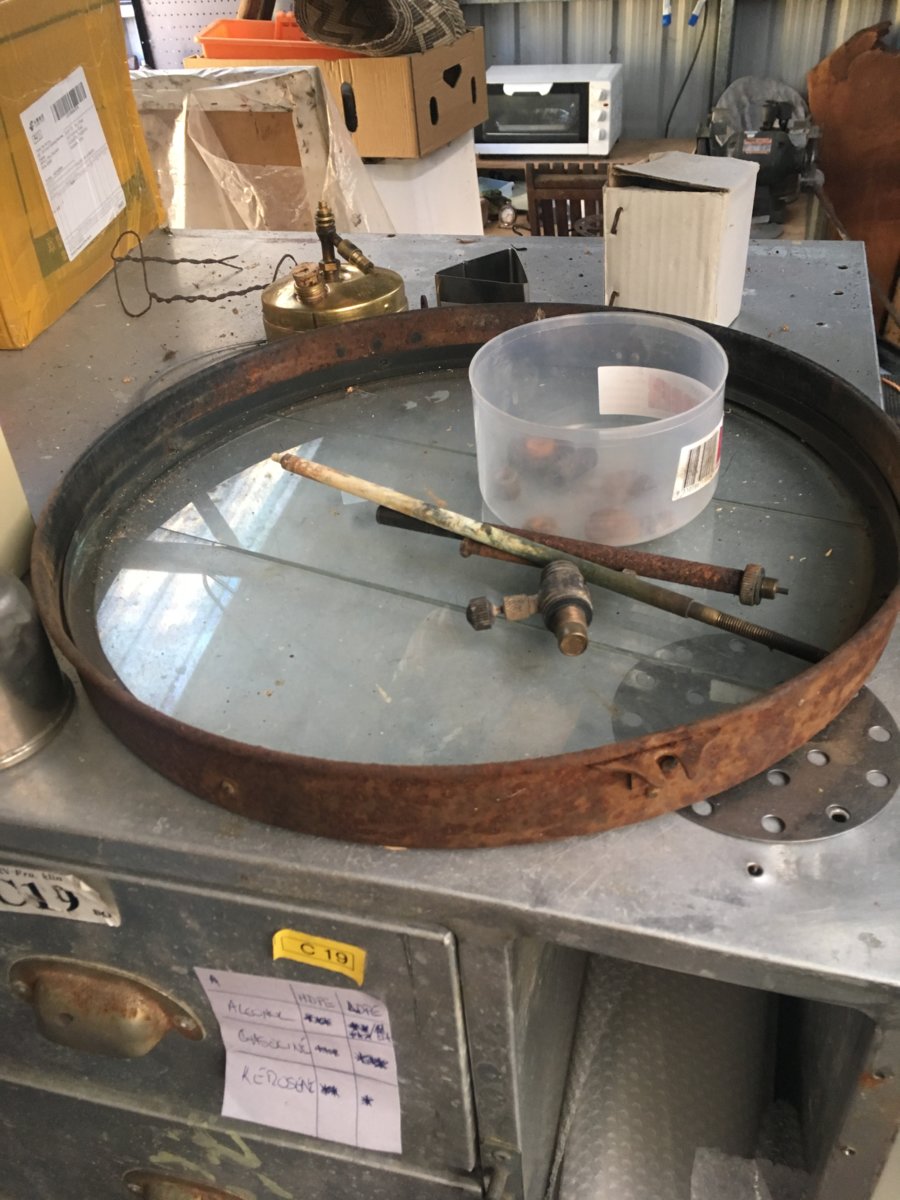

    Nothing too serious so far:



    ... although I’m not sure I’ll get these rusted bolts off without a drill. I’ve heated them with a MAPP torch and used penetrating oil. I will continue this a few times a day for a few days before applying force. If force fails, I’ll leave in situ until I have more time...


    Cheers

    Tony

  12. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

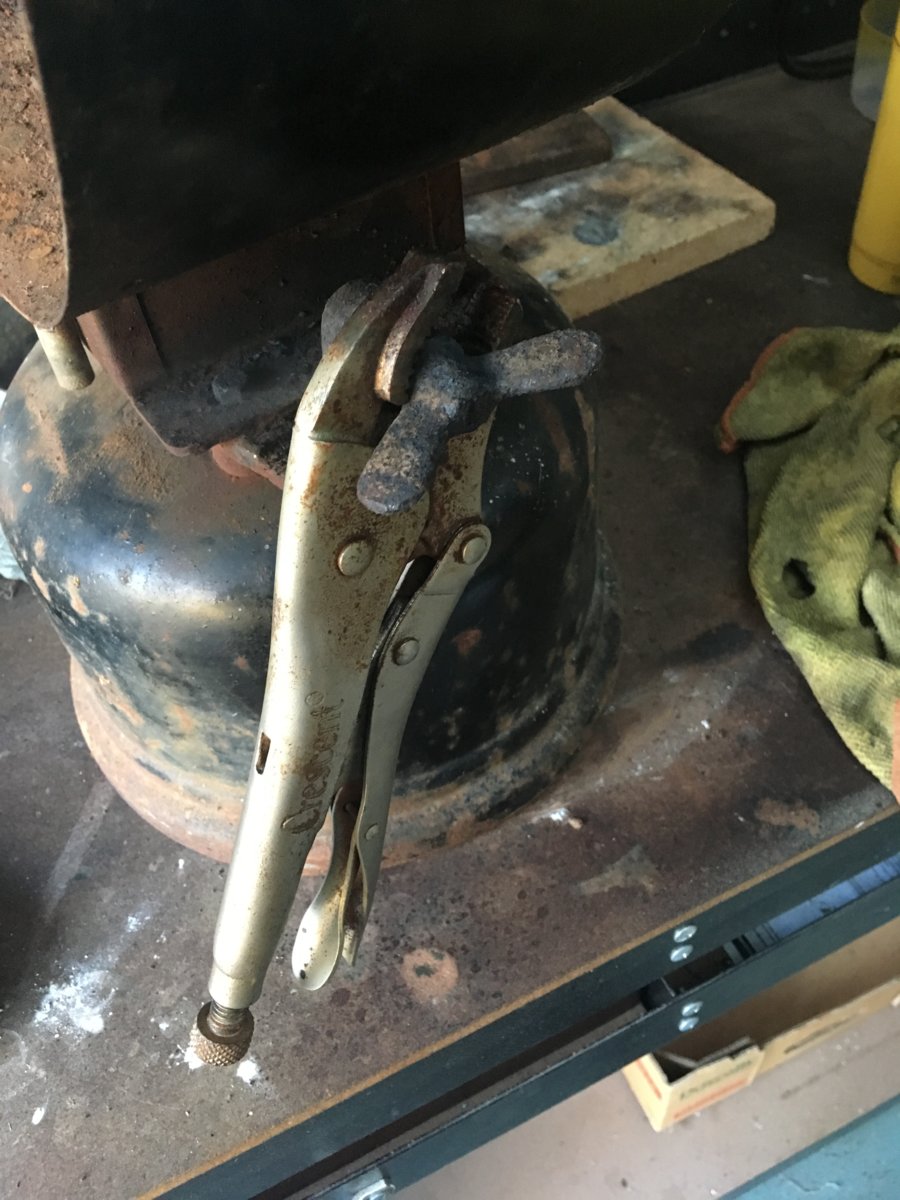

    I managed to get off the adjusting wing nuts that are used to set the tilt of the lamp by using heat, penetrating oil and brute force:


    I’m not sure I’ll be so successful with the smaller bolts (one can be seen behind the vise grips) that hold the reflector housing to the tank.

    If I can’t get them off without drilling, I’ll leave them
    in place until after the light up.

    I’m working patiently on the reflector - it won’t be anywhere near perfect (too much corrosion in the reflector plating), but it will look much better.

    I’ll take the rusty tank and reflector housing to the car wash tomorrow and spend a dollar using the high pressure hose to clean up the rust and accumulated dirt.

    Cheers

    Tony

  13. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,174
    Location:
    Shetland Islands UK..
  14. ROBBO55

    ROBBO55 Australia Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    416
    Location:
    Somersby, New South Wales, Australia
    @Tony Press
    I can't decide if 14 FL6s is impressive or just greedy :lol: but I hope he brings them along.

    If there not already on your bring list I'd like a closer look at your Evening Star and/or the Coleman LQ327

    Thanks

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @ROBBO55

    I’m not sure he still has 14... that was quite some time ago.

    I’ll bring those two lanterns along.

    Someone will need to bring Shellite as I can’t carry it on the ferry (I can’t carry kero, either, but it’s easier to get hold of).

    Cheers

    Tony

  16. Lamp_Doctor Australia

    Offline
    Joined:
    Jan 3, 2013
    Messages:
    425
    Tony will bring shellite for you .
    Bob .

  17. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  18. ROBBO55

    ROBBO55 Australia Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    416
    Location:
    Somersby, New South Wales, Australia
    @Tony Press
    I will also be bring Shellite seeing I asked for those two. Kerosene is a problem . There was a servo local that had clear kerosene on pump. But the suppliers won't deliver to him anymore (not a large enough customer). So I'm down to using Blue Kero unless I can find a pump on the way to Ballarat.

  19. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @ROBBO55

    I might have to go to a Bunnings to get kero; unless we can get Anthony or someone local to do a bulk buy.

    Cheers

    Tony

  20. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    394
    Location:
    Melbourne, Australia
    No problem Tony, I was going to do that :)

  21. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Anthony

    Ok! We will all chip in for the kero.

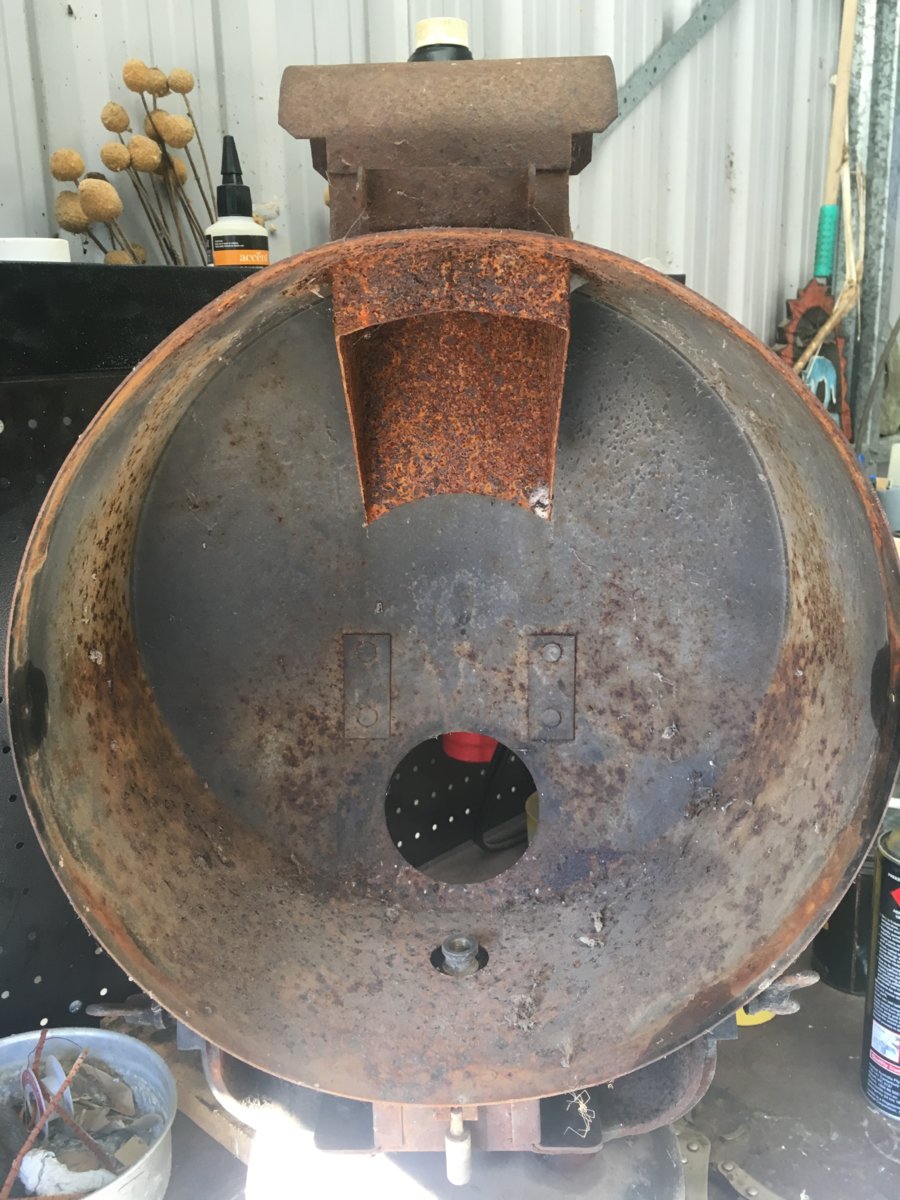

    Now! I’ve had more success with that old rust bucket:

    I managed to free the bolts holding the reflector housing to the tank, and disassemble the large components.

    Some time in the dim dark past someone had tried to unbolt this assembly, but failed (the bolt head on the left is significantly distorted.

    And I’ve got the reflector from crap to almost good.

    Before.

    After.
    A bit more work to go.

    I’m now getting the tank clean on the inside.


    Cheers

    Tony

  22. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,174
    Location:
    Shetland Islands UK..
    It's progressing!:thumbup:

  23. kerry460

    kerry460 Australia Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    250
    i watched an ad for a liquid chrome . do not remember the brand .
    it was brushed on and the brush marks vanished .
    looked good , may not tolerate heat but could be worth investigating for reflectors .

    kerry

  24. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @kerry460

    This reflector will probably need rechroming eventually as there is an area where all the plating is missing. It looks as if the lantern was burning with a hole in the mantles and the reflector was severely burnt in one area.

    Tony

  25. ROBBO55

    ROBBO55 Australia Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    416
    Location:
    Somersby, New South Wales, Australia
    @Tony Press @Anthony

    Sounds like a good plan to me.

    Tony, the FL is progressing nicely.

  26. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    2,424
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

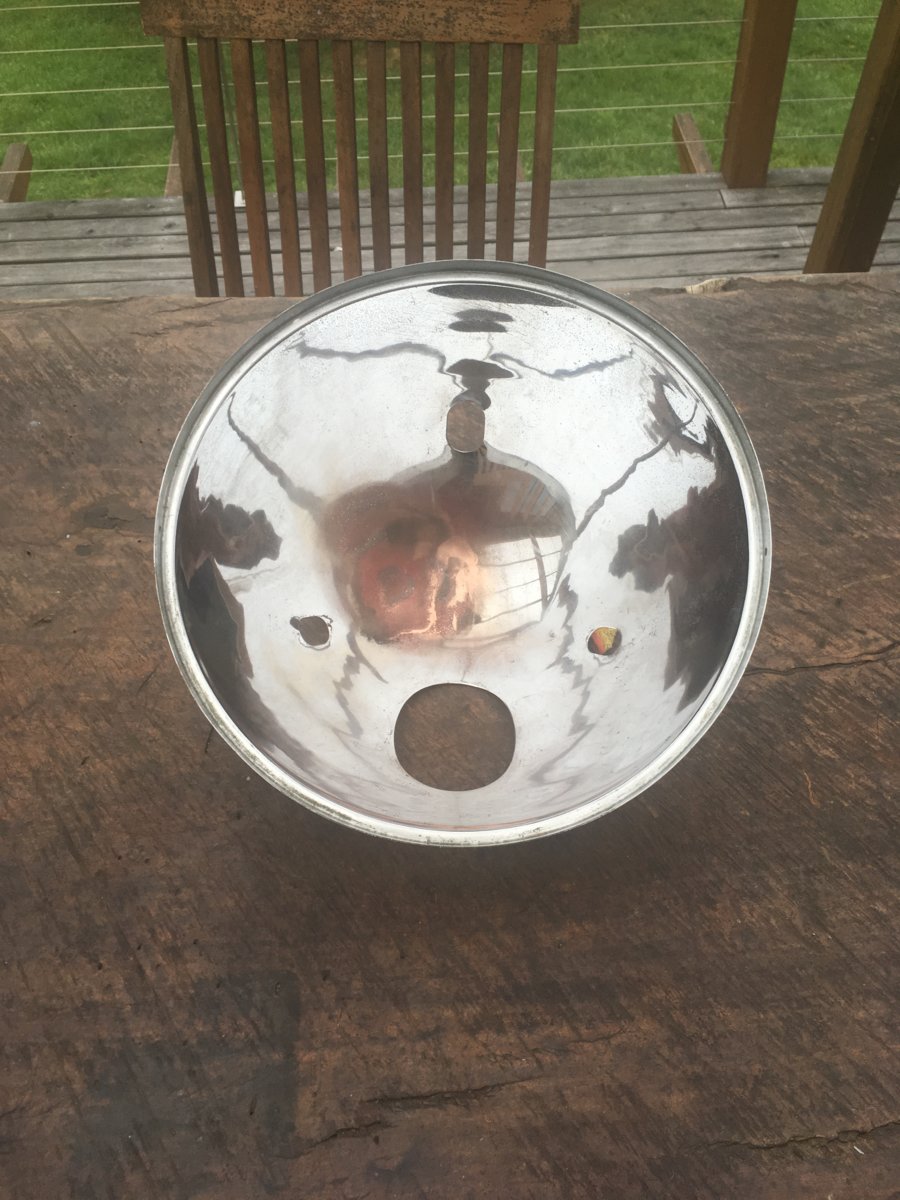

    I’ve cleaned the reflector as far as I’m willing to go - I don’t want to lose any (more) chrome.

    I used George’s (@kerophile over at CCS) mix of citric acid and wallpaper glue to remove the grime and corrosion (using a lot of careful elbow grease). I then gave it a polish with Autosol.

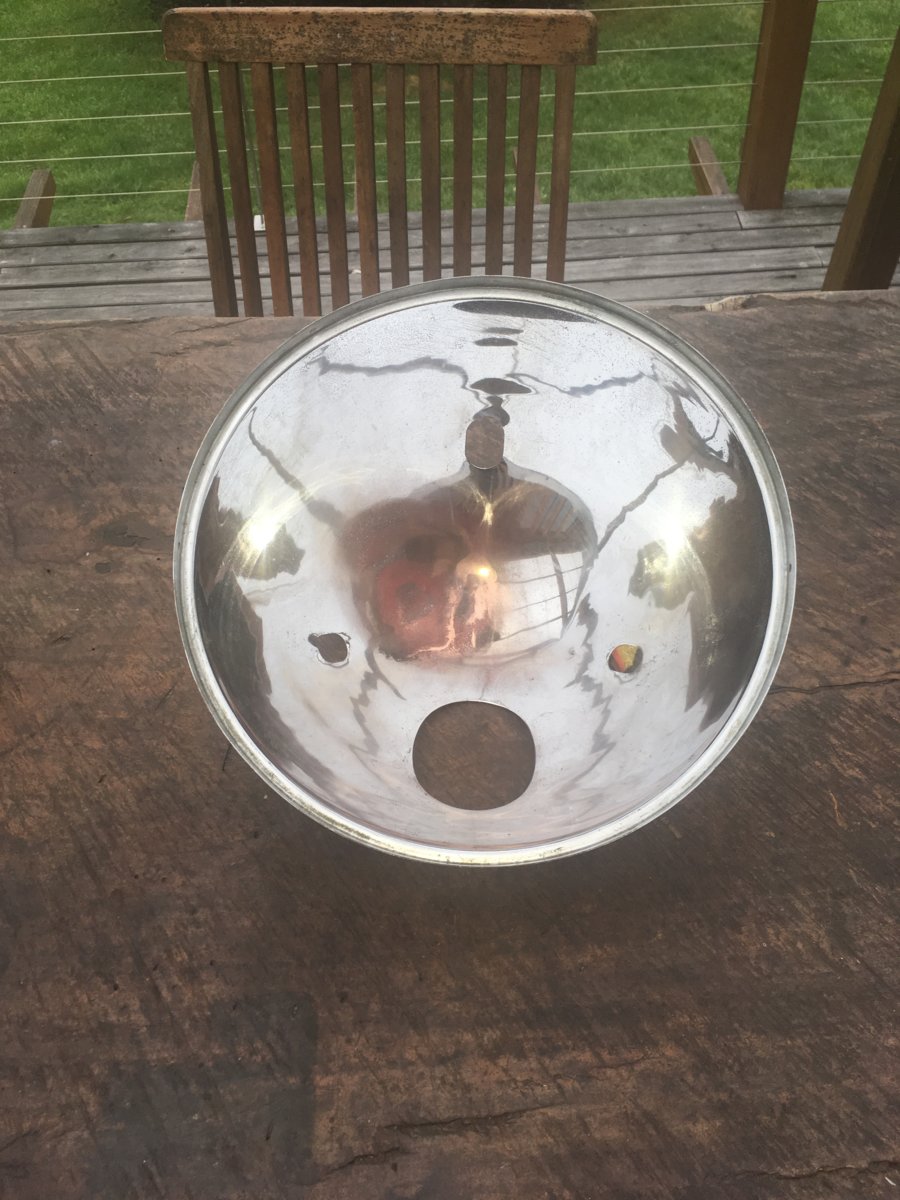

    After:

    After with flash in daylight.

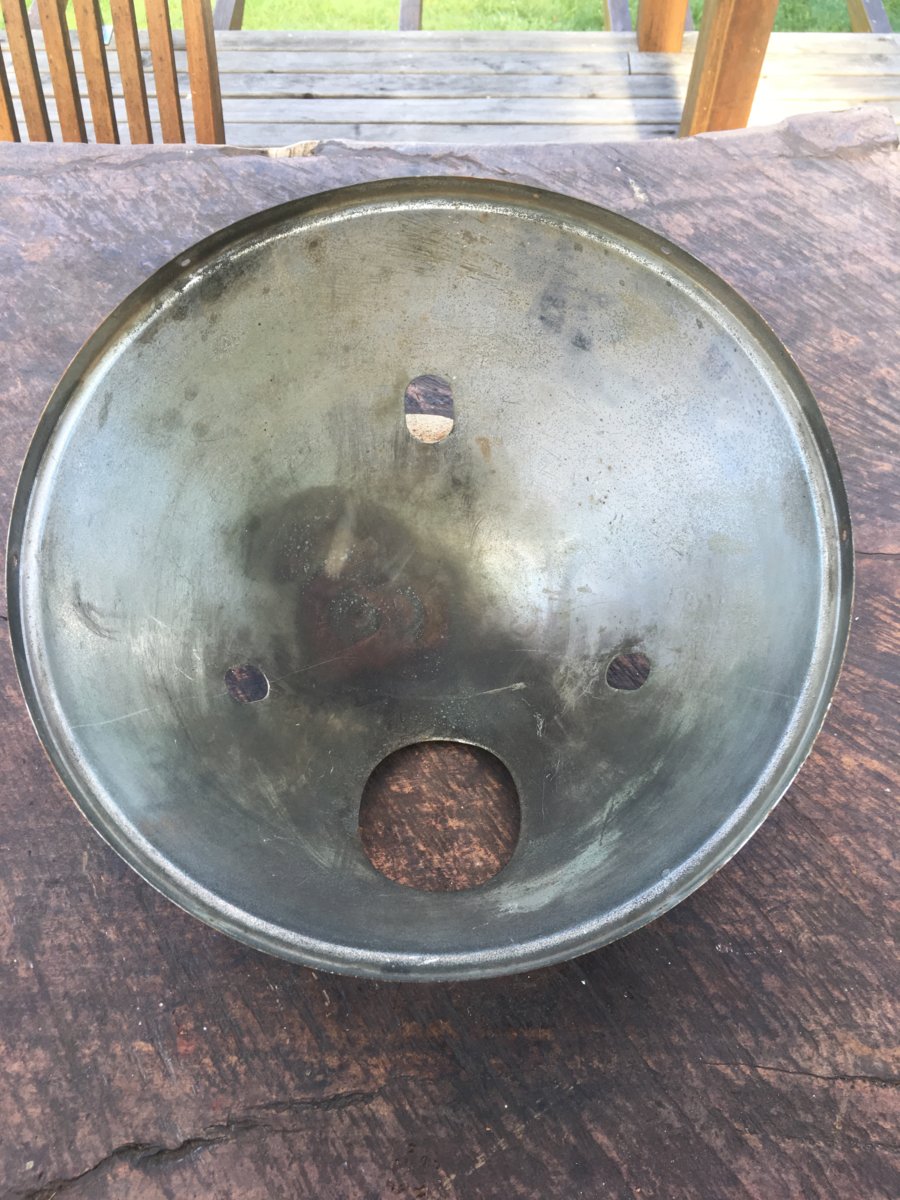

    Before:

    Cheers

    Tony

  27. phaedrus42

    phaedrus42 South Africa Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    880
    Location:
    Somerset West, near Cape Town, South Africa
    That certainly made a remarkable difference, Tony! You are inspiring me to start working on mine!

  28. KAB United Kingdom

    Offline
    Joined:
    Mar 27, 2016
    Messages:
    99
    Location:
    South East England
    Good shine on the reflector. Clearly shows the heat damage but should give a good output when rebuilt and lit.
