Focus - Spain

Discussion in 'Other Countries' started by Juan, Oct 8, 2012.

  1. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    I was in Barcelona, Spain, for vacation and at the flea market I bought these two lanterns for a good price.

    Neil says they are Focus, from Badalona (near Barcelona). Nice and rare lanterns. Both are very similar but not identycal as you can see. They are in the condition I found them. Almost complete, even with the working pricker one of them.

    Juan

    1349735078-P1030463_opt.jpg 1349735100-P1030465_opt.jpg 1349735118-P1030466_opt.jpg

    Last edited by a moderator: Apr 1, 2017
  2. John

    John Subscriber

    Offline
    Joined:
    Jan 8, 2011
    Messages:
    382
    Location:
    Dallas, Texas; United States
    Thanks for posting these Juan. What an unusual looking pair of lamps. I especially like the double looped vaporizer.

  3. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    I agree, John. First time I see such generator. Here there are some other images, low quality because taken with the phone camera.
    Juan
    1349740484-IMG-20121001-00137.jpg 1349740507-IMG-20121001-00138.jpg 1349740525-IMG-20121001-00141.jpg

    Last edited by a moderator: Apr 1, 2017
  4. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,270
    Location:
    Hertfordshire
    These two excited me as they are a pair of lamps I have not seen before. Focus seems likely to me but I am not certain of that ID. They do have a sort of Focus like chunky look to them and being found near where Focus were made reinforces that guess. Very strange burners and generators and we just got to see one working if possible. Super find Juan. ::Neil::

  5. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    Soon I'll post a picture to compare with other lanterns but they are as little as an optimus 930, just a little bit taller.

  6. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    Here you are!

    Last edited by a moderator: Mar 31, 2017
  7. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,270
    Location:
    Hertfordshire
    Neat little beasts then. Be interesting to see if you can make one work. ::Neil::

  8. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    I'm working on one of them, a step by day.

  9. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    Well, I could finally have one of them working but I have now to work again on it because I have a likeage on the pricker knob.

    This lantern seems to be made or at least finished by hand. Many pieces were finished using a file.

    The pricker rod works directly on the excentric, which is much bigger than a px type one. Hand finish here too. The pricker needle was to short but a Volcan one do the job very well.

    Another curiosity is that the generator nut is soldered to the generator itself so you cant adjust easily and you have to turn it clockwise to the right position.

    On the tank shoulder there is a device which seems a security valve but it does nothing: there is a lead gasket under it. Perhaps it was to fit a pressure gauge there.

    I don't know what to do with the second one as I haven't got the nozzles.

    I hope to solve the leakage during the week and to think about the globe...

    Finally, I forgot to upload an image of the top: pieces are soldered by silver.

    Juan
    1350257935-working_opt.jpg 1350257961-cage_opt.jpg 1350257975-handmade_opt.jpg 1350257989-checkvalve_opt.jpg 1350258001-cork_opt.jpg 1350258013-exc_rod_opt.jpg 1350258027-finish_opt.jpg 1350258038-generator_opt.jpg 1350258050-nothing_opt.jpg 1350258064-pricker_opt.jpg 1350258091-prickerrod_opt.jpg 1350258104-takeapart_opt.jpg

    Last edited by a moderator: Apr 1, 2017
  10. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    Wow! The images are too little. I'll try to post again better ones tomorrow. Now it's time to have dinner...

  11. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    Ok. Now it is working without any leakage and the tank keeps the pressure well.

    It is not as bright as you can see on the pictures and it doesn't burn even: one of the nozzles burns more than the other one.

    But is in working order.

    Juan

    Last edited by a moderator: Mar 31, 2017
  12. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,961
    Location:
    Shetland Islands UK..
    Hello Juan, it looks great, what a difference! :thumbup: :D/ :clap: Jeff.

  13. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    Thank you, Jeff.

  14. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    996
    Well done Juan !

  15. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,270
    Location:
    Hertfordshire
    Very good. It is always nice to see another rare and strange beast running again. Seems to be an od design with parts soldered together like that. Suggests a small "factory" perhaps.

    An uneven burn or Lazy mantle is common enough with any twin mantle lamp. The insides of the mixing and mantle tubes have to be clean and smooth. The mixed fuel/air is running at a relatively low pressure and any roughness inside the tubes causes friction. Even small diffeences can alter gas flow and make one side work better that the other. ::Neil::

  16. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,789

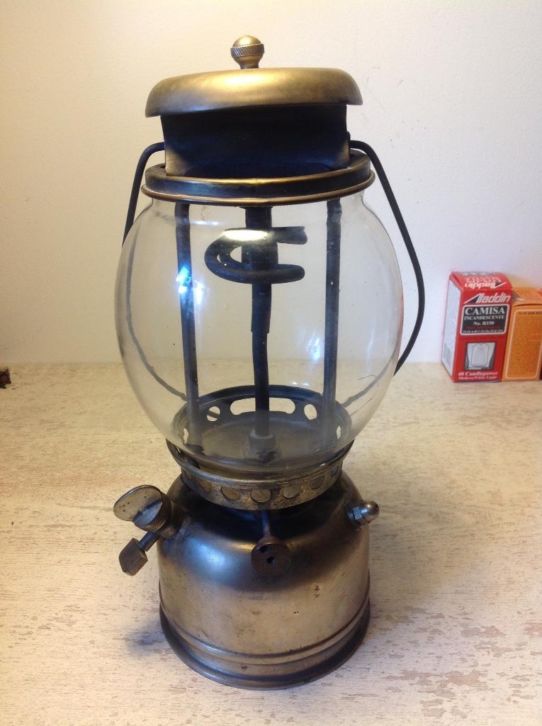

    As this is already sold I guess it is OK to link it up here. This is how the glass shall be on your lamps Juan - I think O:)

    http://www.marktplaats.nl/a/antiek-en-kunst/antiek-lampen/m912462795-geen-petromax-maar-focus.html?c=8c285449651fa109c354bbabe740c1b&previousPage=lr

    I secured more Photos and can send them to you by mail if you are interested.
    Claus C

  17. nep036

    Offline
    Joined:
    Feb 16, 2016
    Messages:
    170
  18. Lundo007

    Lundo007 Subscriber

    Offline
    Joined:
    Apr 15, 2017
    Messages:
    164
    Interesting lamps! If you stumpped Niel ,...you must of found something Unique! Me thinks glass hard to find?

  19. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702
    Not for me, Nicola, but perhaps for Neil. Thanks anyway.

    Juan

  20. nep036

    Offline
    Joined:
    Feb 16, 2016
    Messages:
    170
    Hi Juan,

    you're welcome. The foil isn't mine, it's for sale on that spanish website. When I saw it I remembered this lamp. In my opinion this isn't a Focus, who knows :)

    Best,

    Nicola

  21. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    702

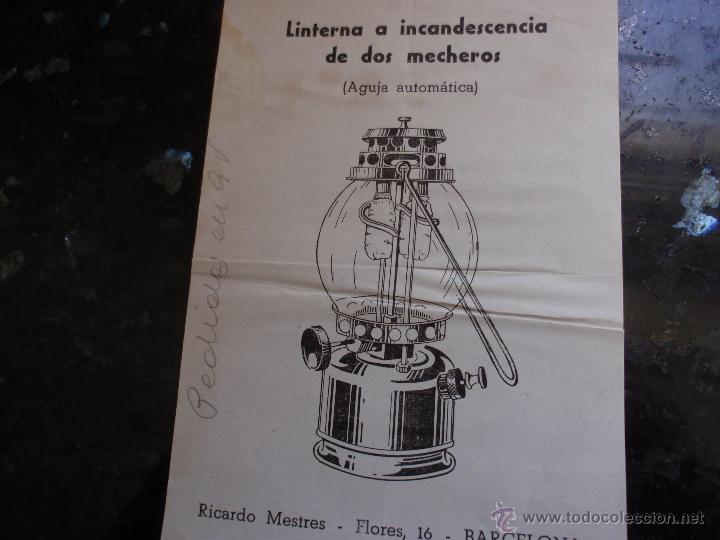

    So, no Focus. It seems they were made by Ricardo Mestres in Barcelona.

  22. nep036

    Offline
    Joined:
    Feb 16, 2016
    Messages:
    170
    Well, probably Ricardo Mestres was just a distributor... it could be a focus, but all focus lamps are well marked and numbered... it's strange that this doesn't have any marking... with so many spanish brands I think that without any real proof we're doing speculation.

  23. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,270
    Location:
    Hertfordshire
    When a lamp is unmarked there is always doubt. I have listed this as a Focus but that is subject to proof which I don't yet have. For now it is convenient to list it with Focus because it has Focus like features. Mestres will have to be listed as a possible maker but I suspect they were retailers. When someone proves me wrong I will re-list it. ::Neil::

  24. nep036

    Offline
    Joined:
    Feb 16, 2016
    Messages:
    170
    Hi Neil,

    sure, I think the same, Mestres must be a retailer. Unfortunately I don't own any focus lantern yet, so I can only judge by the images I have seen about Focus lamps. I don't see any aesthetic similarity honestly, this lantern looks old and if it was a Focus at least I was expecting that chubby wooden pump knob that seems to be a must for all the Focus lamps and stoves... but this is just an opinion based on my sensation, for me you will always have the last word on any subject regarding pressure lamps, I'm just a newbe :)

    Nicola

  25. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,270
    Location:
    Hertfordshire
    Newbie maybe but I always value other opinions. I agree there is doubt here but this is for now listed as Focus because it is clearly Spanish made and Focus is closer in design that any other company. Not quite right as you say but the best I can do for now. Prove me wrong and I will be delighted. ::Neil::

  26. nep036

    Offline
    Joined:
    Feb 16, 2016
    Messages:
    170
    I start to be almost sure that this lamps are made by Cimsa, I have 2 different cimsa lamps (mine are not marked anywhere but I have seen one marked cimsa on filler cap) and I see same parts and details that let me think that these unknown lamps are more close to cimsa than focus (I have 5 focus to make comparisons).

    Anyway, I will post some photos soon.

    Nicola

  27. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,270
    Location:
    Hertfordshire
    I don't have Cimsa listed at all. Not a maker I am familiar with. I need to see these lamps and any other details you have so they can be added to the PLC. ::Neil::

  28. nep036

    Offline
    Joined:
    Feb 16, 2016
    Messages:
    170
    Hi Neil, sure. In a few days I will receive the double burner lamp so I will make some photos with the other 2 Cimsa (that basically is always the same lamp but from different periods, so with just some aesthetical variations).

    Cimsa is 99,9% a spanish brand, that produced pressure lamps, stove and heaters, as well other wick lamps and stoves. On the spanish market is easy to find stoves and heaters in a quantity, lamps as well but they are a little more rare. The lamps use a stove nipple and they are built on the style of standad licht lamps.

    PS

    Bo listed a Cimsa heater, that is spanish and not from south america.

    Cimsa heater Colombia?

    Nicola
