Get another one, they said. It will be fun, they said...

Discussion in 'Fettling Forum' started by Ian Roll, Jun 6, 2020.

  1. Ian Roll

    Ian Roll United Kingdom Subscriber

    Offline
    Joined:
    May 25, 2020
    Messages:
    10
    Location:
    Bristol, UK
    G'day all..

    Following on from my earlier success, I went fishing on the Bay of E last week, and my latest Tilley catch arrived today.

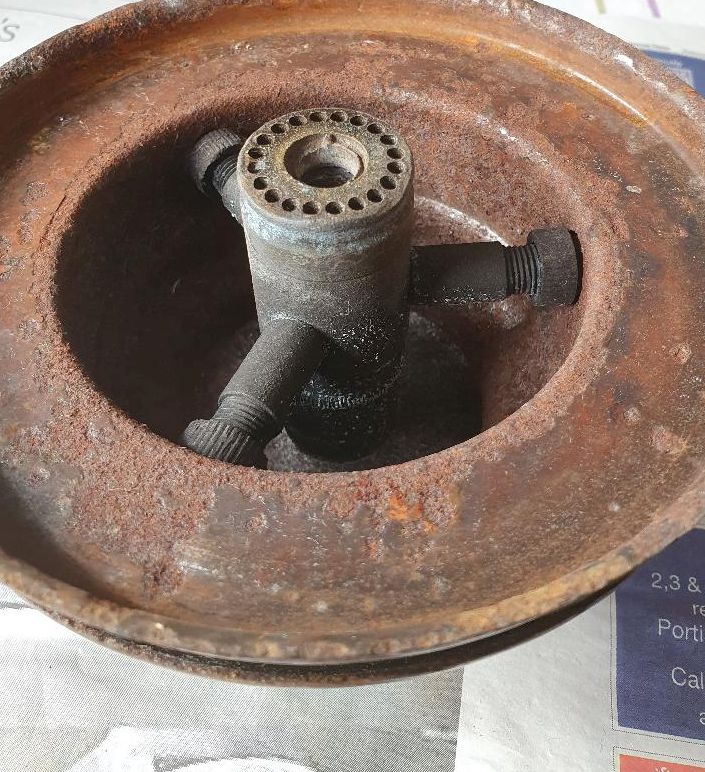

    I was fully expecting to replace all the washers, no problem, but as can be seen from the picture, the '707 Spigot' is missing from my lamp, it appears to have been sheared off.
    So, do I:-
    a) Regard this as a total disaster and throw the catch back again and hook another? or
    b) Treat this as a minor inconvenience and go see if I can remove the broken end in there?

    If your answer of choice is (b), then how do you suggest that I go about the task, please? - I'm quite happy about using large and small hand tools, but my array of power tools is limited..

    Many thanks

    Ian Roll
    Tilley 10a.jpg

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Online
    Joined:
    Nov 28, 2010
    Messages:
    9,707
    Location:
    Shetland Islands UK..
    That burner is most likely knackered, the threads which the spigot screws into look stripped, but you could take a junior hacksaw blade and cut whats left of the spigot out, but I would get another burner and submerge the old burner in a tub of vinegar for a while until it loosens enough to take apart, so that the dome and the mixing tube which is inside the dome can be salvaged and the air pipes and nuts can also be salvaged.

    Do let us know how you get on.

  3. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    650
    Location:
    Whyalla. South Australia. Australia
    Hello @Ian Roll , if you want to salvage the burner follow @JEFF JOHNSON directions, soak the burner in straight vinegar, pull it apart, if bits are very tight, suggesting heat and quench, try, repeat, the spigot may be removed with an easy out, like whats used when the bolt/stud has snapped off. The burner spigot can be bought on julians ebay or the basecamp.
    I hope this helps.

  4. plantpot

    plantpot United Kingdom Subscriber

    Offline
    Joined:
    Aug 2, 2019
    Messages:
    194
    Location:
    London
    Is the rest of the lamp OK, if so just get a new burner if you cant get the spigot out.

  5. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    636
    Location:
    Midlands, UK
    I'd be very tempted to take Option B - There are plenty of spares out there.

  6. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,574
    Location:
    Toowoomba Australia
    @Ian Roll
    Juliands on the bay of evil has complete replacement reproduction Tilley burners for under £20.
    I have used 3 of these and they work very well. So if you cannot find an original burner assembly and your lantern is as @plantpot has asked, then this may be an option.

    I find that I learn more when I restore disasters than when I restore easy ones in good condition.

    Good luck mate
    Cheers
    Pete

  7. Gary Waller

    Offline
    Joined:
    Apr 3, 2018
    Messages:
    234

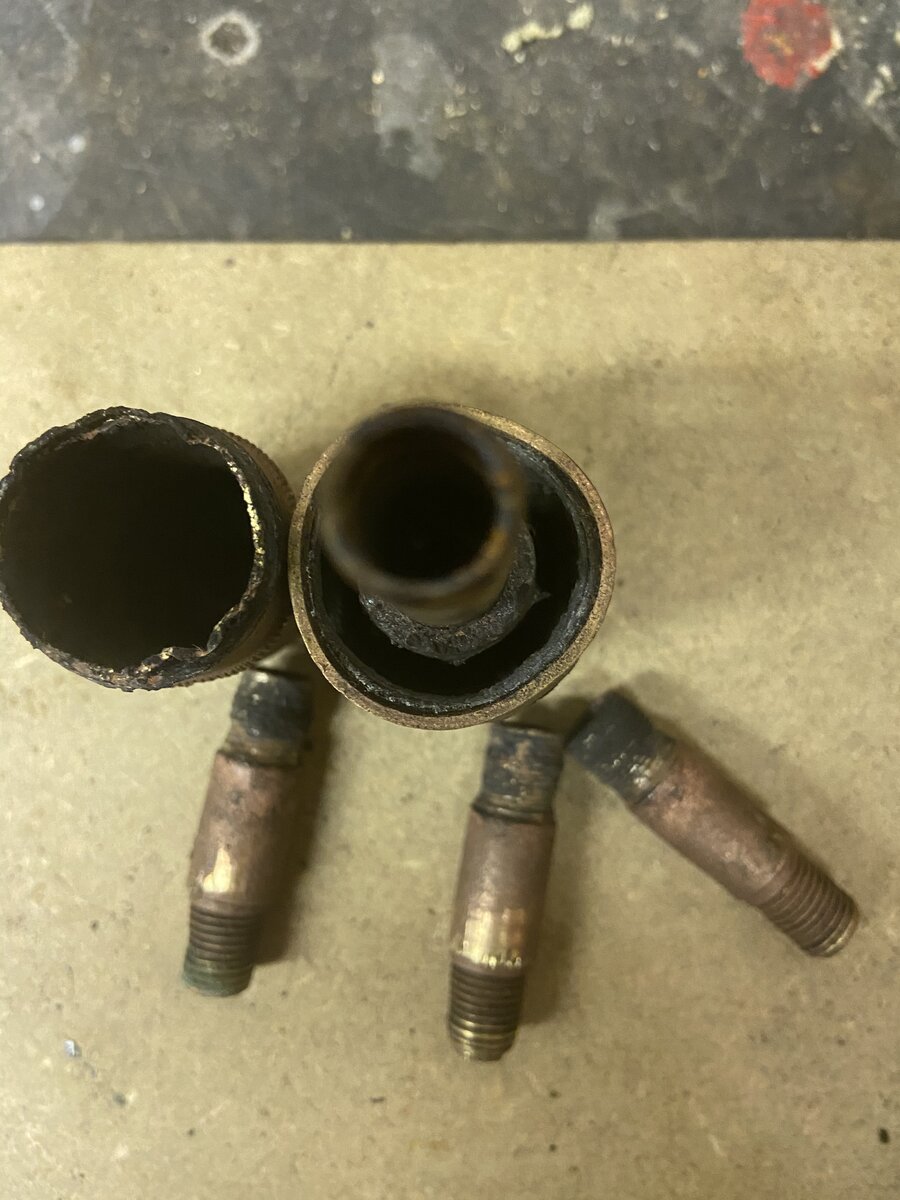

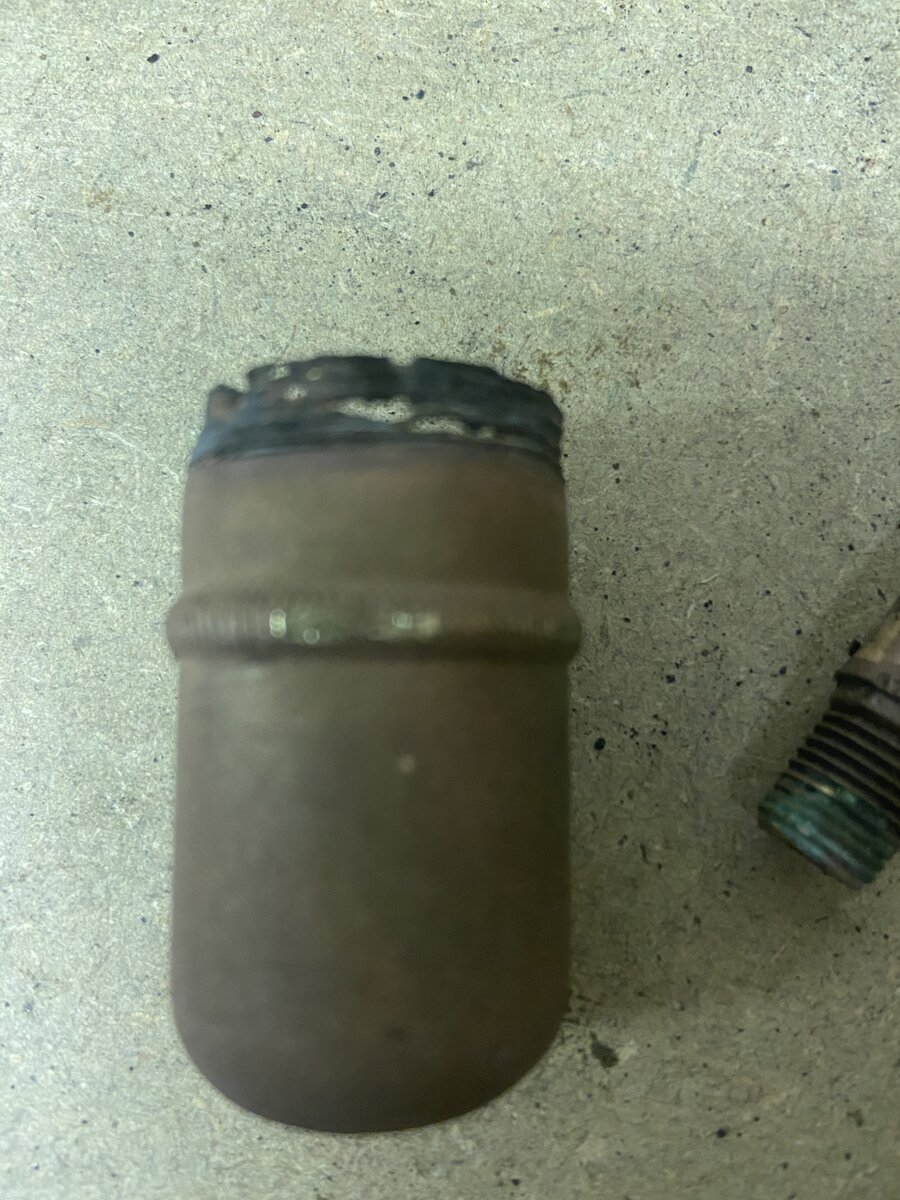

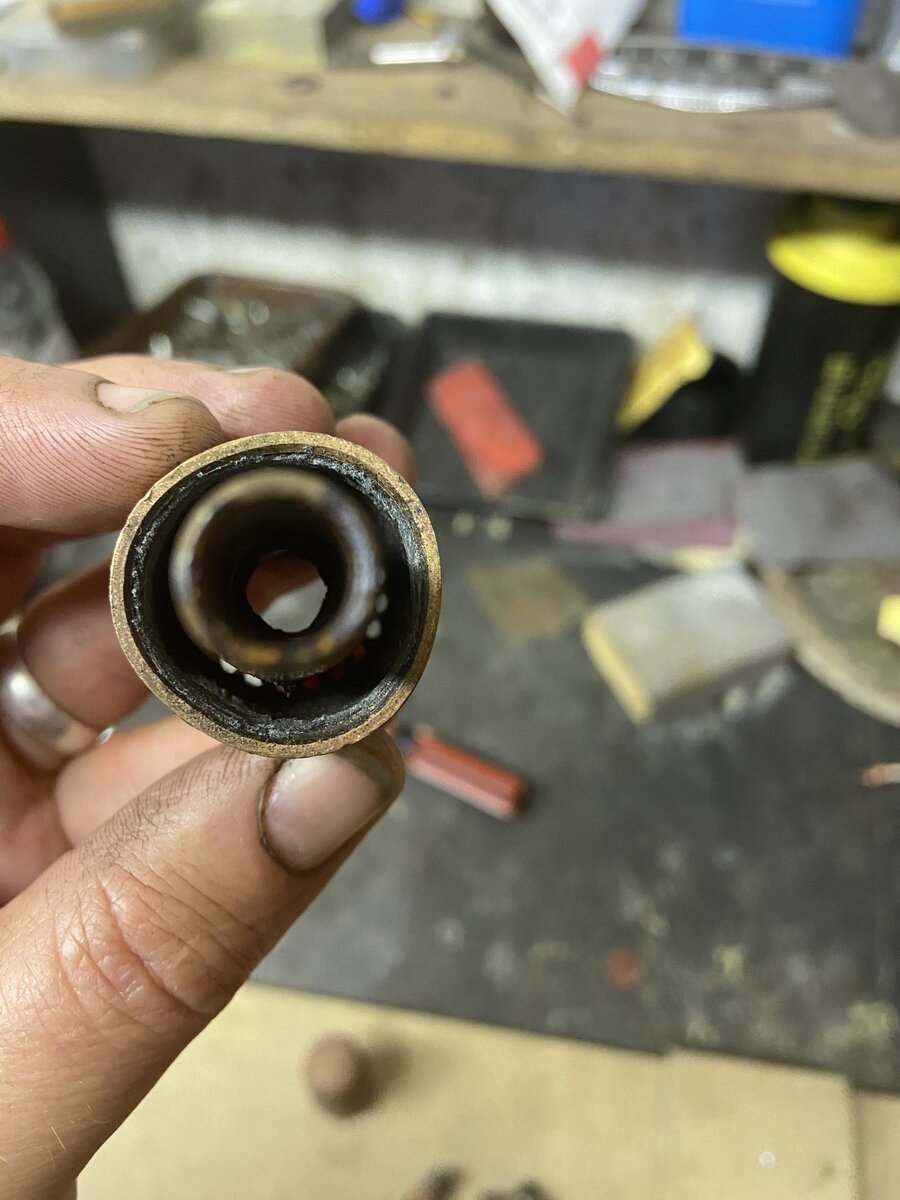

    Hi @Ian Roll looking at the deformation around the burner holes I’m afraid to say I think it looks pretty knackered. Burners like this will continue to work to a certain degree but as soon as you try and remove them they disintegrate. See pics below of one I did recently. Yours may not be as bad as this was but you get the idea. Vinegar works, I personally use 50g of powder citric acid in 500ml of water to clean all my brass burners, the crud literally falls off and this aids unscrewing the burner. However you may still find out after that it’s knackered. Good luck.
    501CD046-CDB6-448E-B278-C2CA0C7FAF27.jpeg BB985889-2561-4060-97C9-5D6AB6E00BF3.jpeg DA15E9F1-18F8-4300-8791-7C0FFC53674D.jpeg

  8. Ian Roll

    Ian Roll United Kingdom Subscriber

    Offline
    Joined:
    May 25, 2020
    Messages:
    10
    Location:
    Bristol, UK
    Thanks for the advice one and all.

    I'm now soaking the burner in white vinegar (I chance to have a gallon or so going spare, as you do.. !!), I'll leave it there for a week or two, brush it occasionally, and see how/if this thing comes apart.

    I'll report back on here with progress..

    Ian

  9. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,057
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Don’t leave it in undiluted vinegar for a week or two. Leave it an hour and check. And so on.

    Cheers

    Tony

  10. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,160
    Location:
    North-East England
    I agree with Tony - if you leave the burner in vinegar for too long, all you'll succeed in doing is preferentially leech out the zinc from the brass leaving a copper coating. In my mind, vinegar is for cleaning off the crap from the surface rather than freeing parts - use proper penetrating oil for that. By the way, WD40 isn't penetrating oil - you might as well save some money and just leave the burner in paraffin or diesel for a week as give it a few squirts of WD40.

    The other thing is, I'd be very reluctant to dismantle the entire burner. For a start, you don't need to and secondly, if it's worn as it appears to be, you'll probably not manage to get the three air intake tubes screwed back in. Then you really are in the clarts. Just my two penn'orth... :)
