Gloria (Model C) Table Lamp (USA)

Discussion in 'Gloria' started by Tony Press, Oct 3, 2021.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,938
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    This is an early US-made Gloria Table Lamp, listed in Neil McRae's Pressure Lamp Catalogue as Model C.

    It was found in rural Victoria (Australia).










    A bicycle valve was soldered to the air screw.












    Testing







    As found

    Gloria found.jpeg

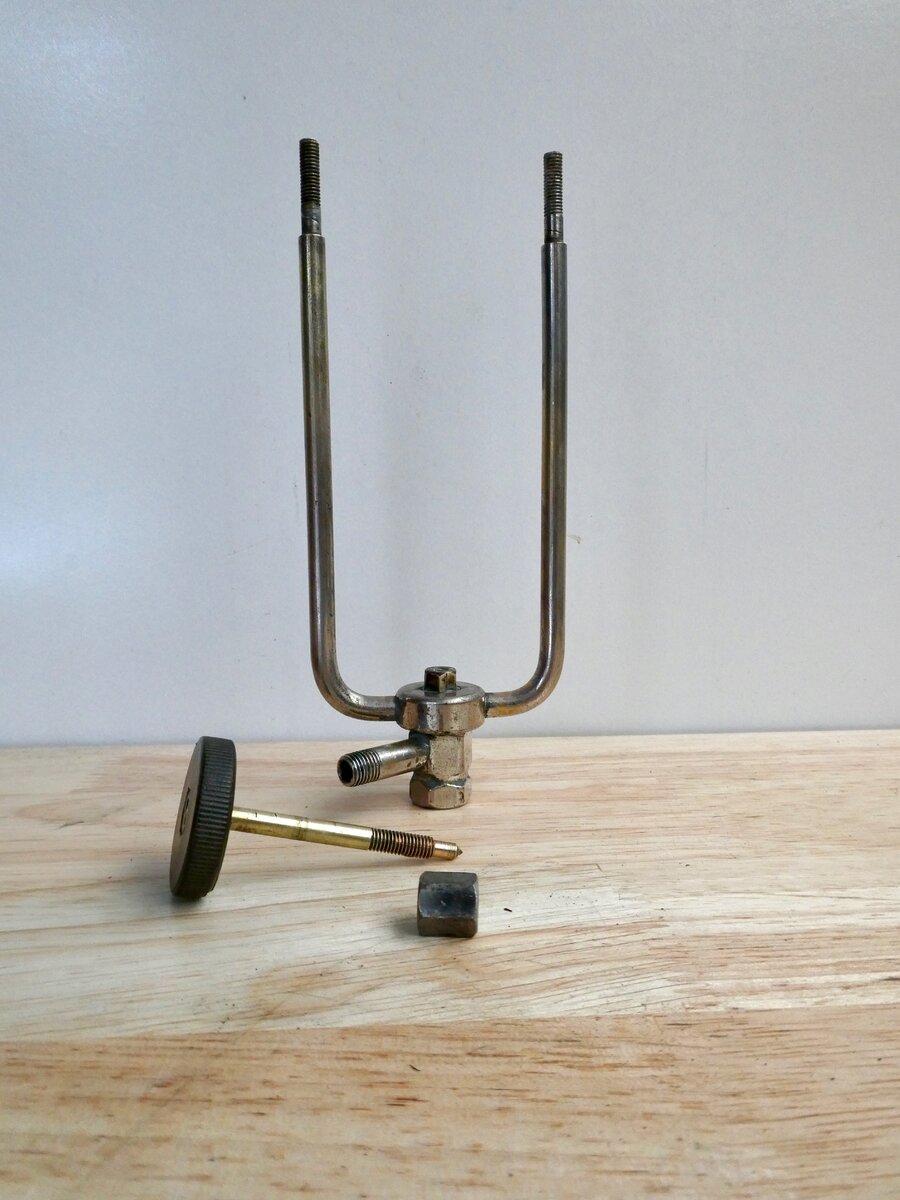

    Fettling the burner

    The burner was completely packed with mud wasp nests through every part, including the burner tubes. It was a matter of first soaking the burner in water, then carefully disassembling the burner (with much heat and penetrating oil), and poking out all the mud and insect carcassses.

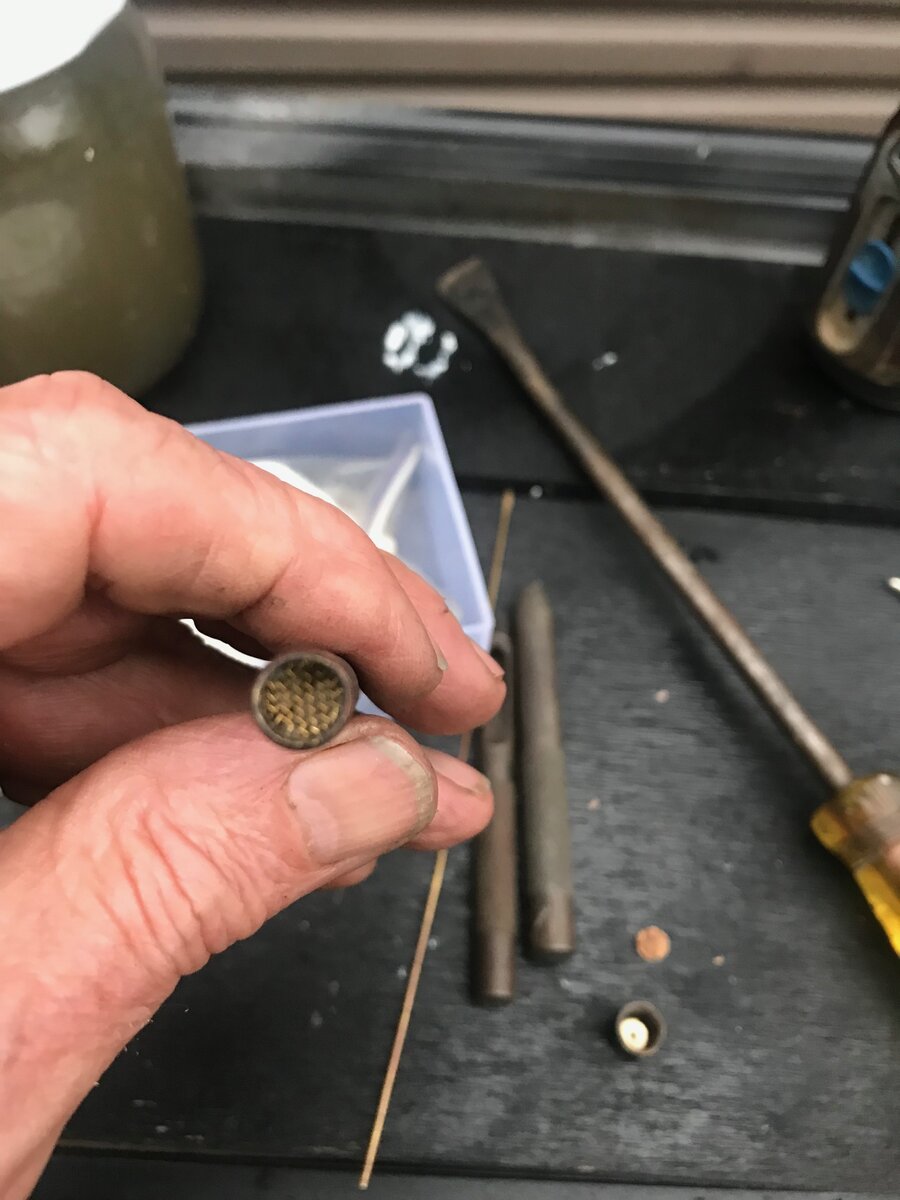

    The generator spent a few hours in acetone in the ultrasonic cleaner. I cleared the jet,

    then I removed the packing, and repacked the generator, putting brass mesh at the top and bottom of the new packing.



    I replaced the rusted mesh in the burner caps with stainless steel.


    The next hardest task was cleaning the palting. The lamp had been sitting somewhere where it was covered in birdsh!t and dust. Despite this, the lamp came up pretty well.
    IMG_7324 (1).jpeg




    This is an exceptionally good lamp, and it's over 100 years old .



    Cheers

    Tony

    Last edited: Oct 3, 2021
  2. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    450
    Location:
    Bathurst, Australia
    A splendid restoration and freely admit a job beyond my skills. Going well.

  3. Toby Garner

    Toby Garner United States Subscriber

    Offline
    Joined:
    Jun 13, 2021
    Messages:
    183
    Location:
    SW Missouri
    Great fettle and beautiful example Tony :thumbup:

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,370
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::clap::clap::thumbup:

  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,685
    Location:
    Somersby, New South Wales, Australia
    Very nice, Tony :thumbup::thumbup::thumbup:

  6. LanternTom

    LanternTom United States Subscriber

    Offline
    Joined:
    Apr 19, 2014
    Messages:
    279
    Location:
    Hebron, Indiana
    very nice

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,938
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  8. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,938
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

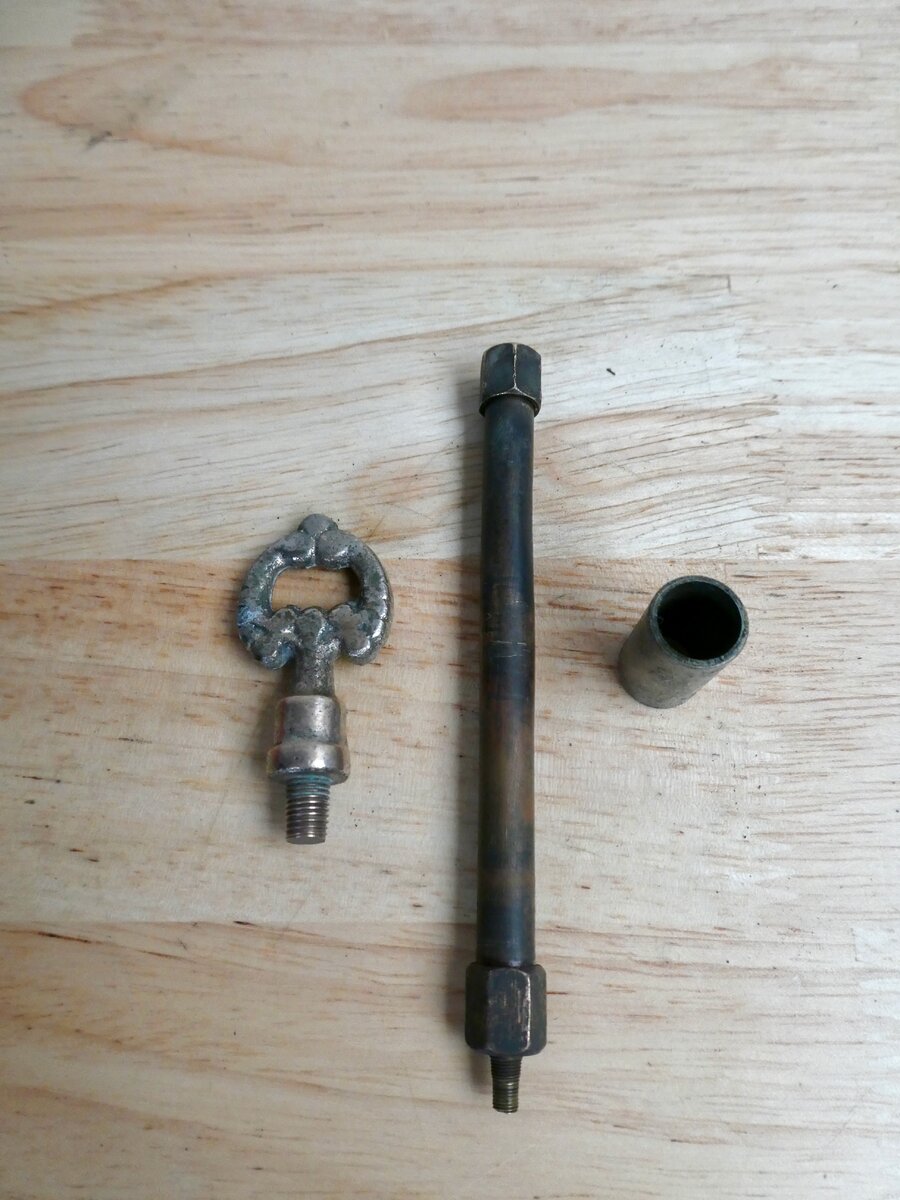

    … I repositioned the handle:


    Cheers

    Tony

  9. Dean D

    Dean D Subscriber

    Offline
    Joined:
    May 21, 2017
    Messages:
    63
    Location:
    Minnesota USA
    Nice find there
