Gloria No. 12 Hurricane Lantern (var. C)

Discussion in 'Gloria' started by Tony Press, Sep 30, 2020.

  1. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,507
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    This is my Gloria No. 12 Hurricane Lantern. It was found in Tasmania.

    Looking through the various advertisements and catalogues, I think this is the third variation of the Gloria No. 12 lantern. @Mackburner now considers this to be Variation C of the Gloria No. 12.

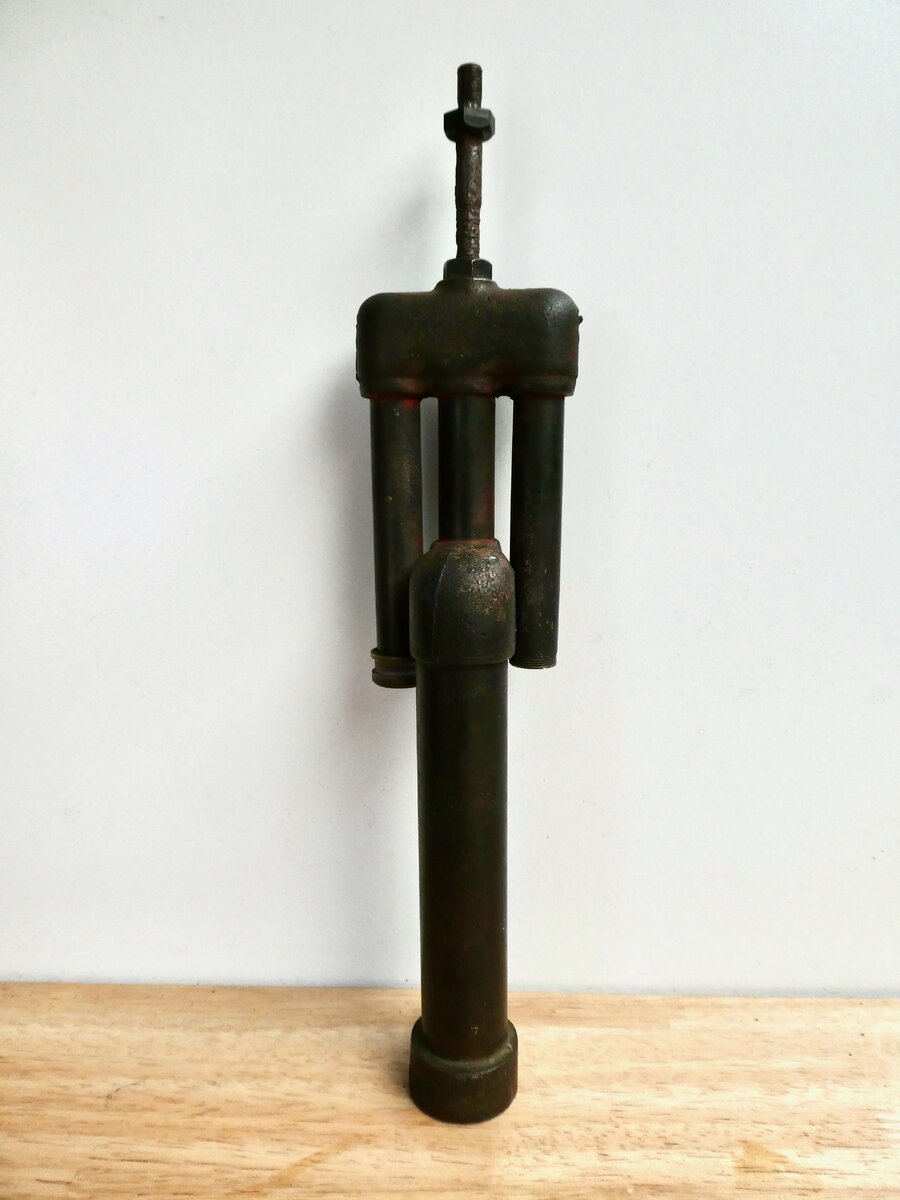

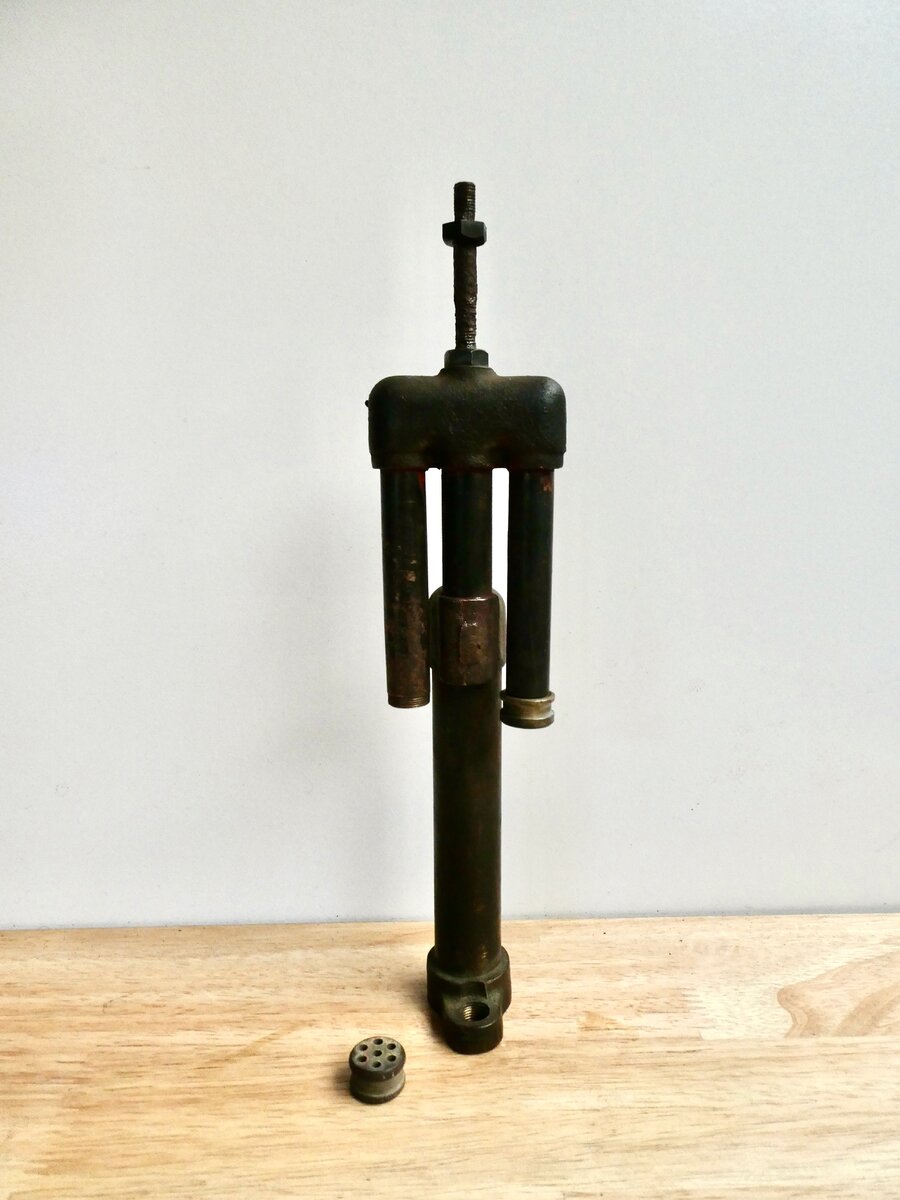

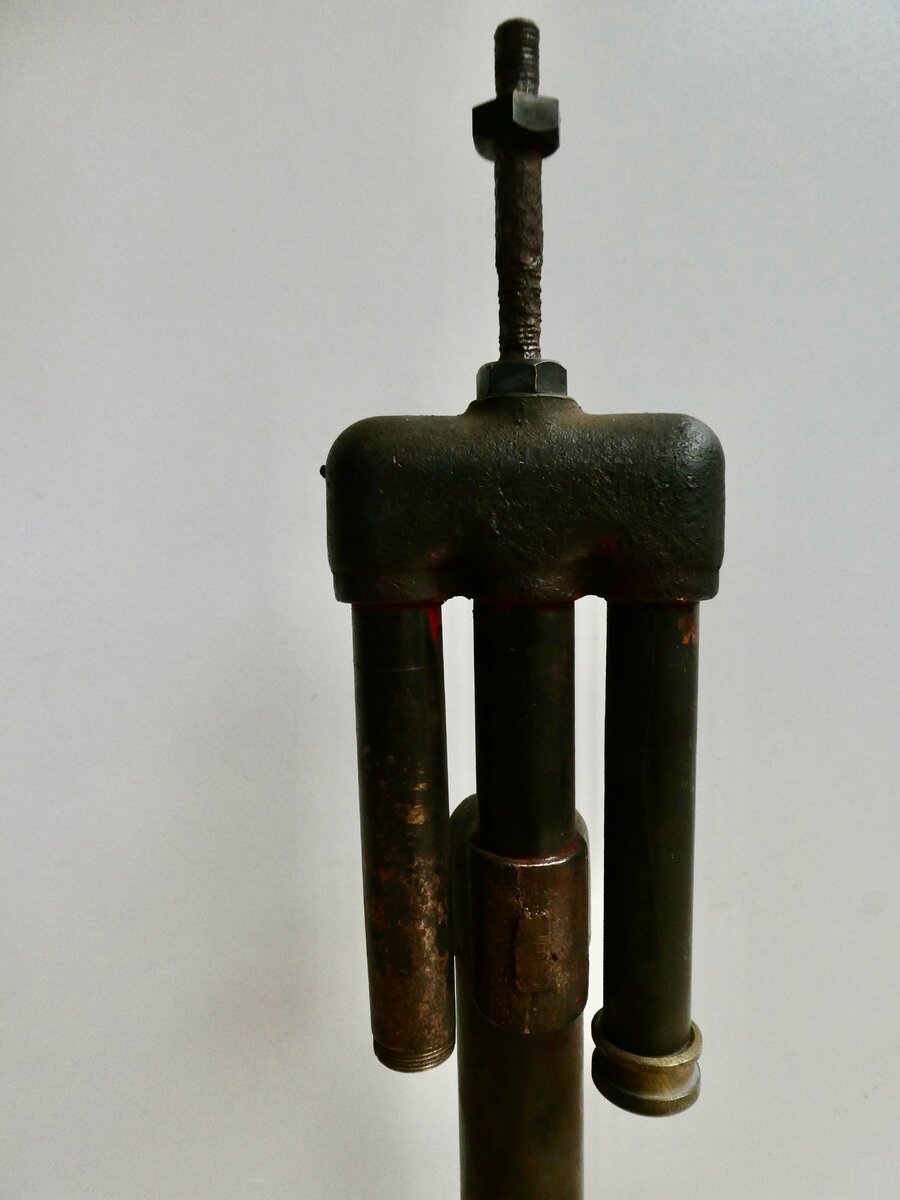

    This lantern appears in a 1916 Gloria (Chicago USA) Catalogue as Oxo-Gas Lantern No. 12 for kerosene or gasoline (see below). The burner on this 1912 lantern appears to have been used on three variations until at least the early 1930s. The advertisements are not very helpful for dating the lantern variations as the illustrations do not necessarily conform to the variations (see below).

    Australian advertising for Gloria hurricane lanterns of this style date from around the mid-1910s through to 1931. A similar lantern with a different burner configuration was made by Gloria in Australia probably in the late 1920s to early 1930s, possibly later (see here).

    The lantern is described variously as 300 or 400 cp. It is a very bright lantern.

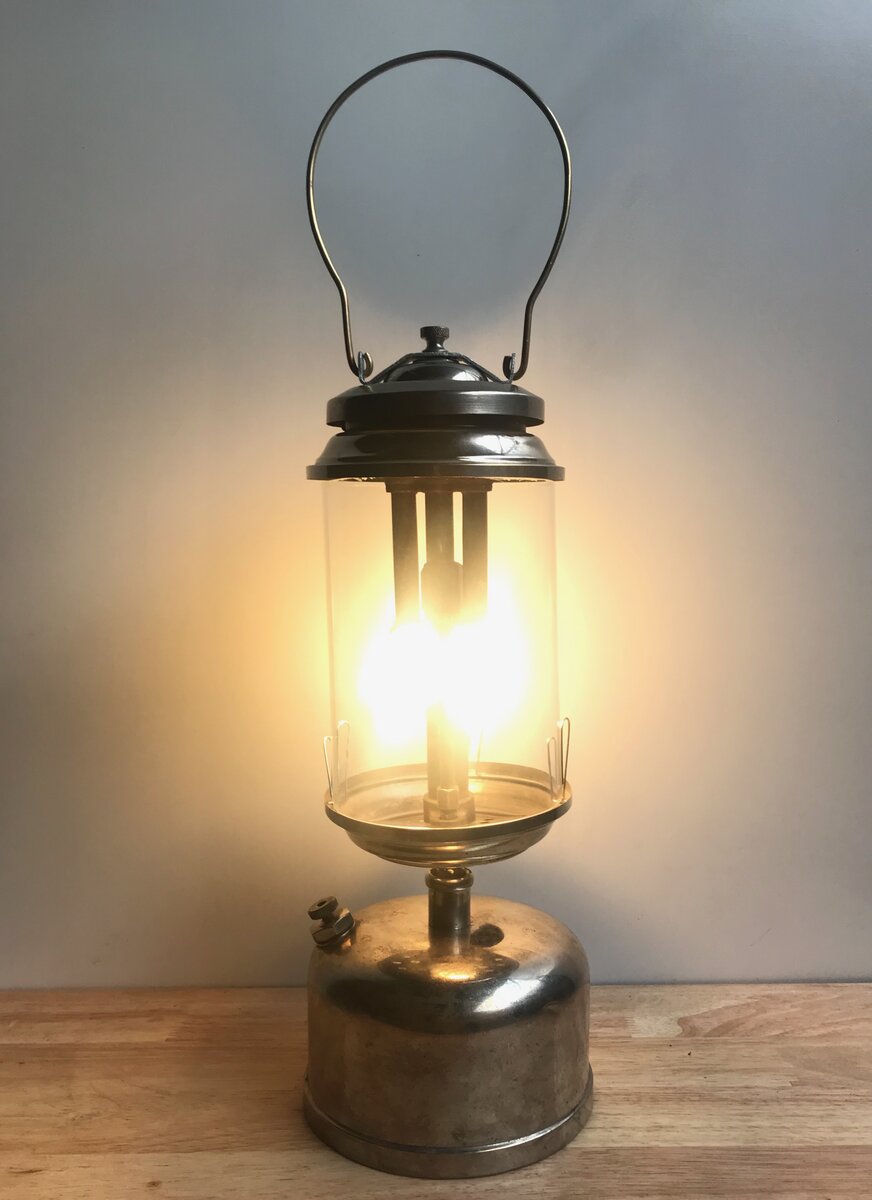

    Up and running

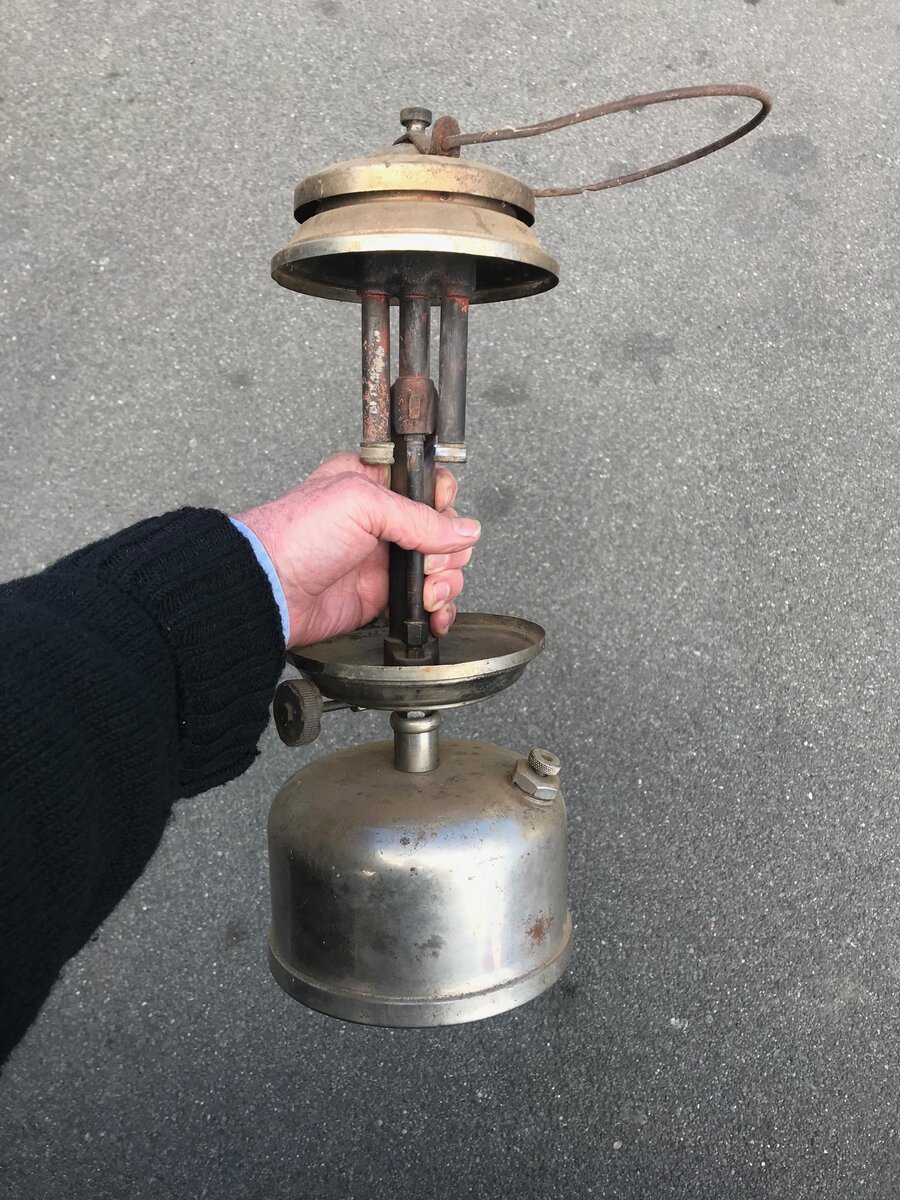

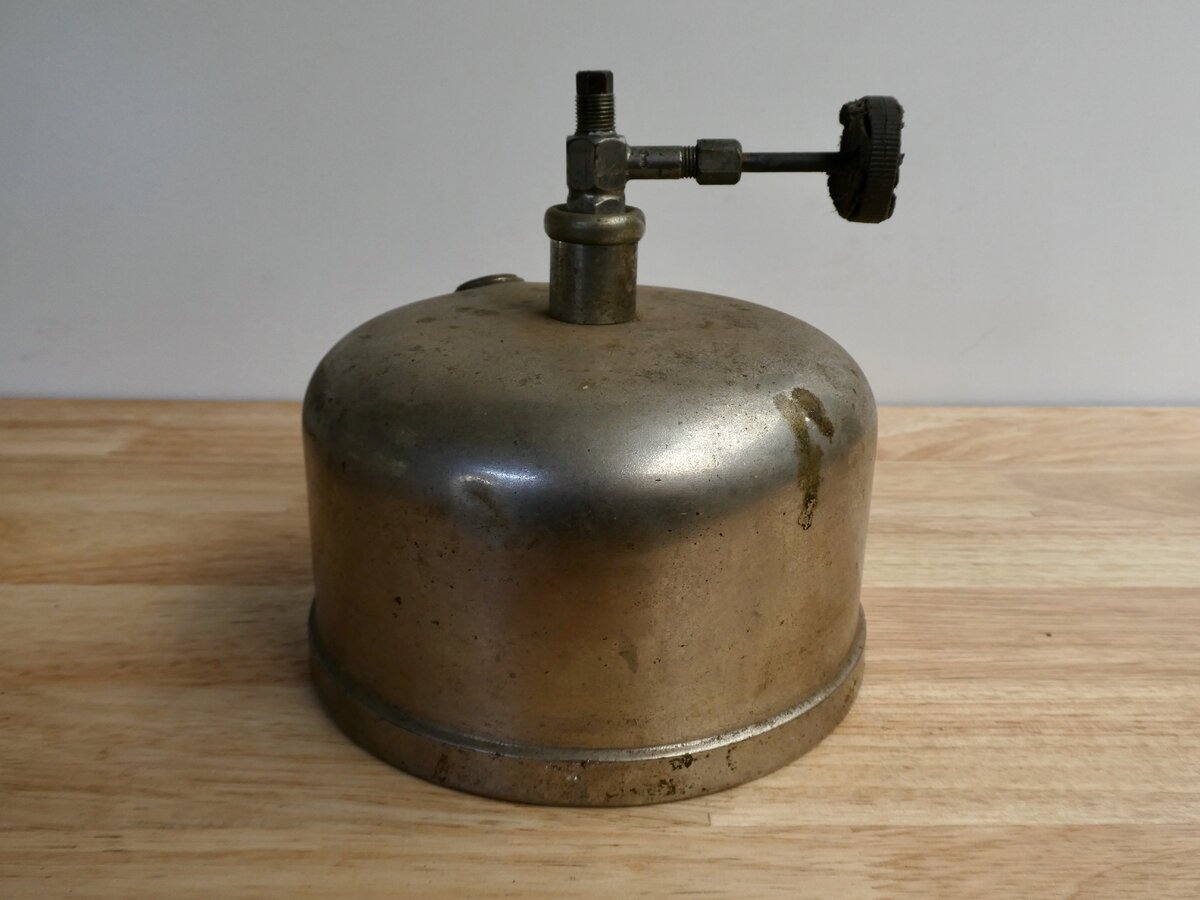

    As is came

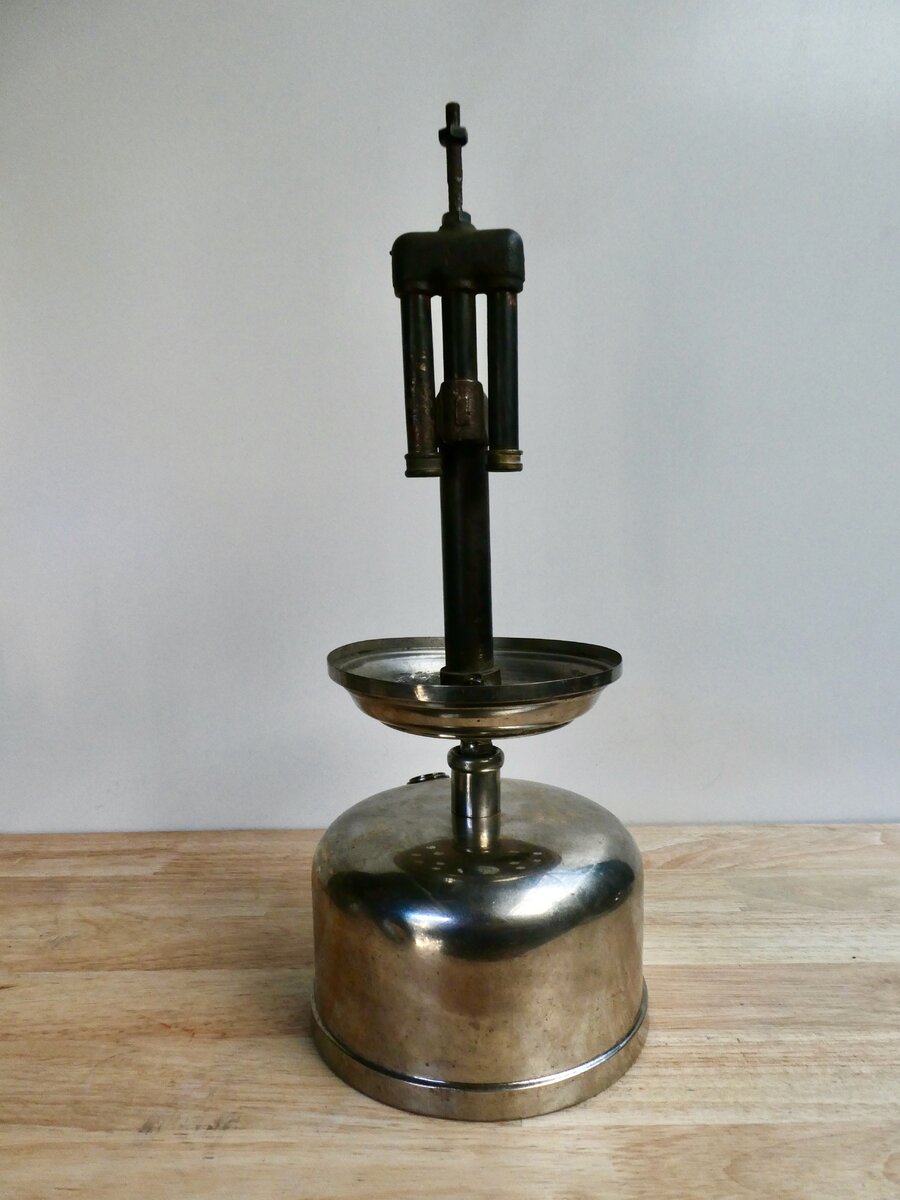

    Some fettling

    The steel bail (handle) had been damaged, probably by some cutting device, and with the rust it was easilt broken and unsafe to use as a handle. I made a replacement out of brass rod.

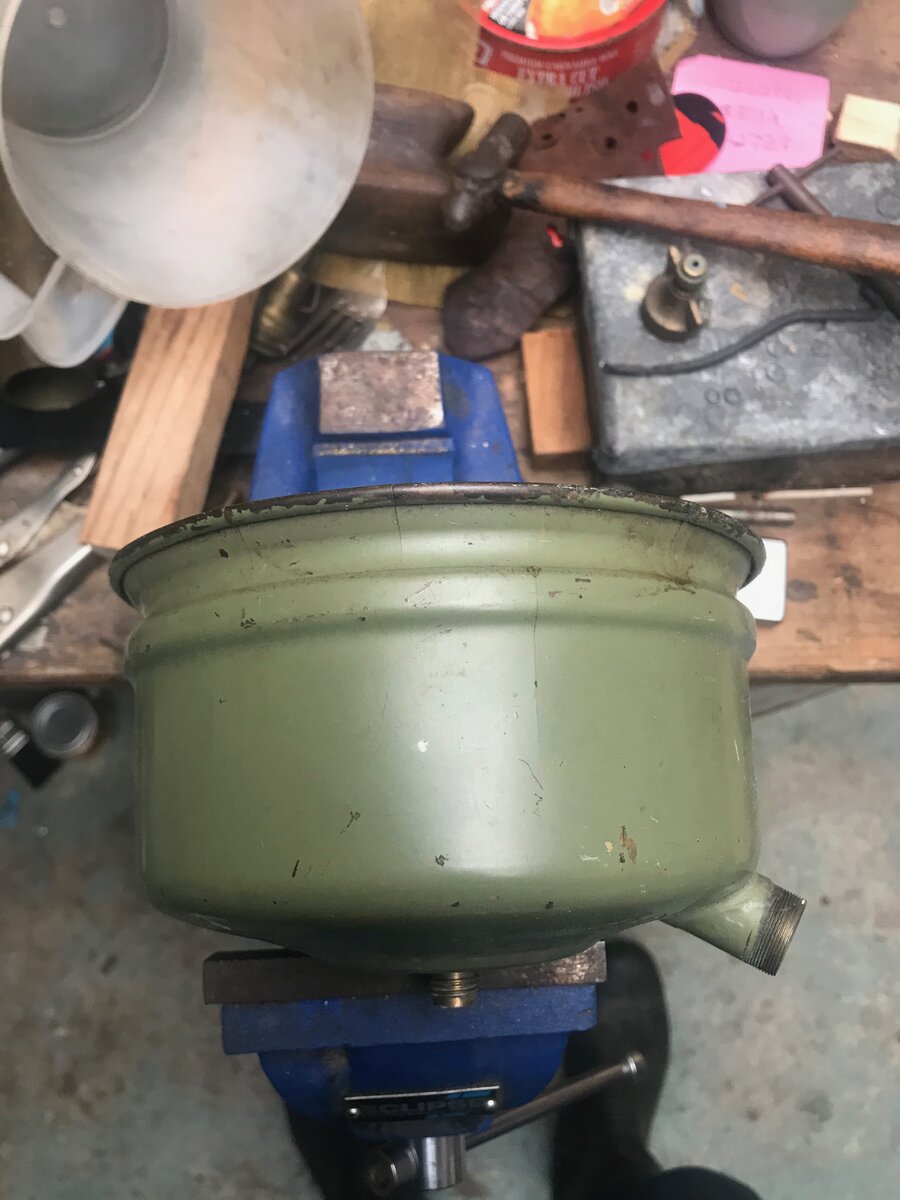

    A wrecked Aladdin 1A tank was the exact circumference of the rounded handle, so I used it to form the brass.

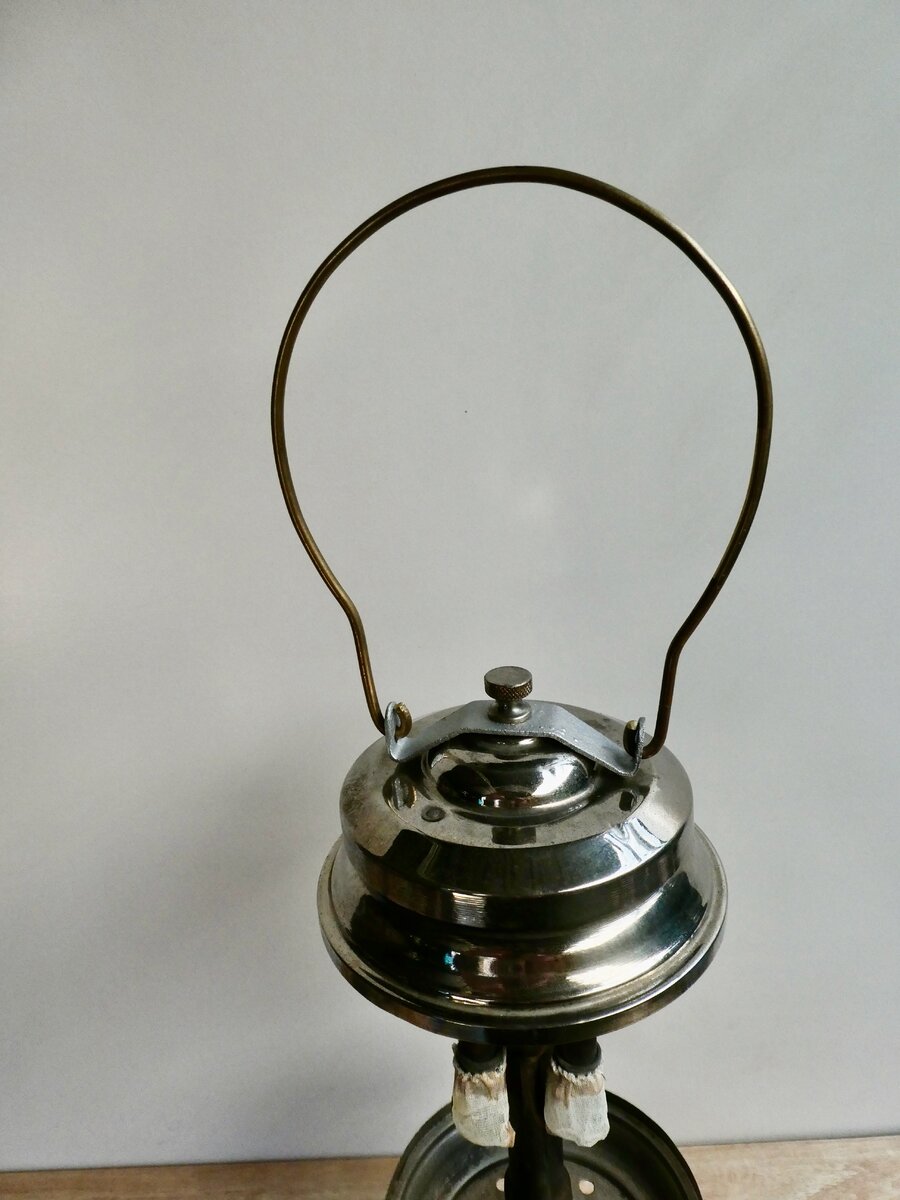

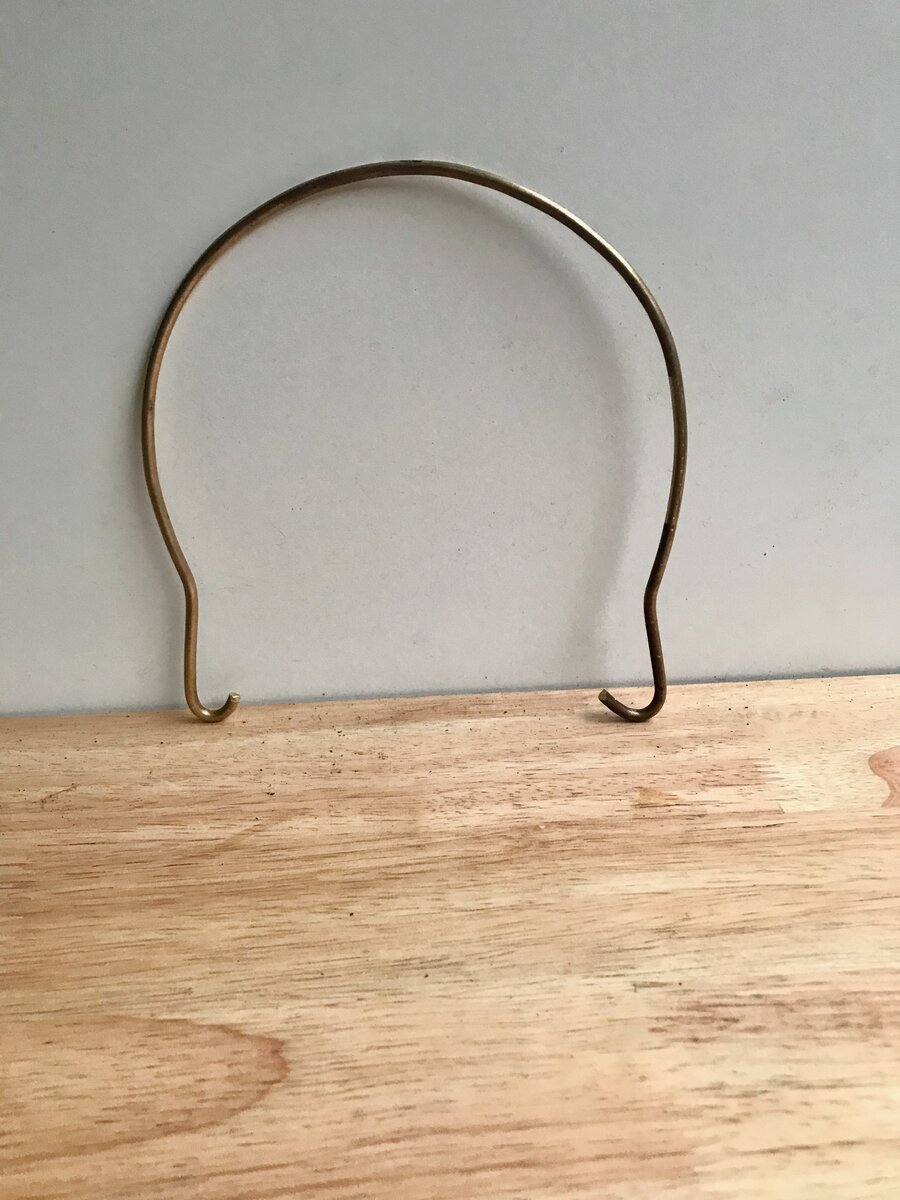

    The finished handle.

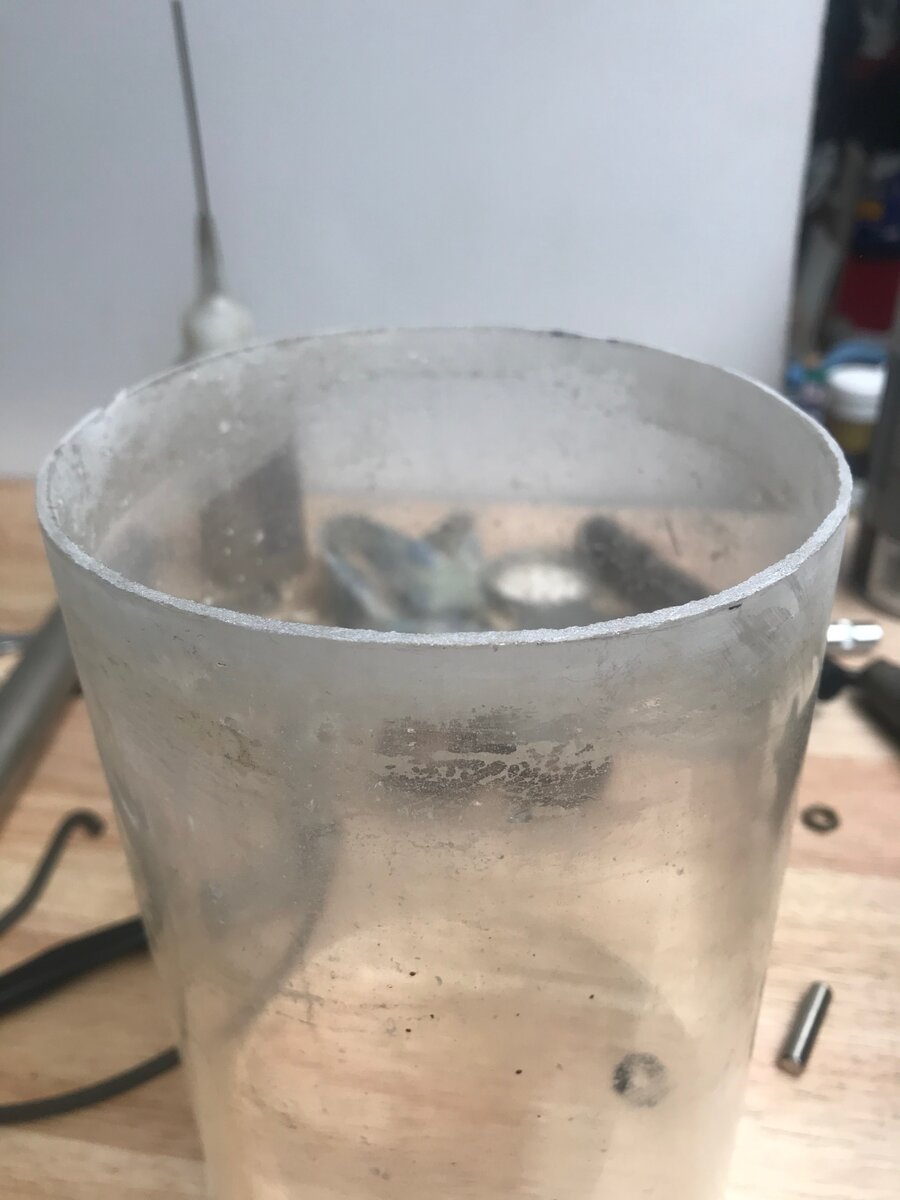

    Temporary glass chimney

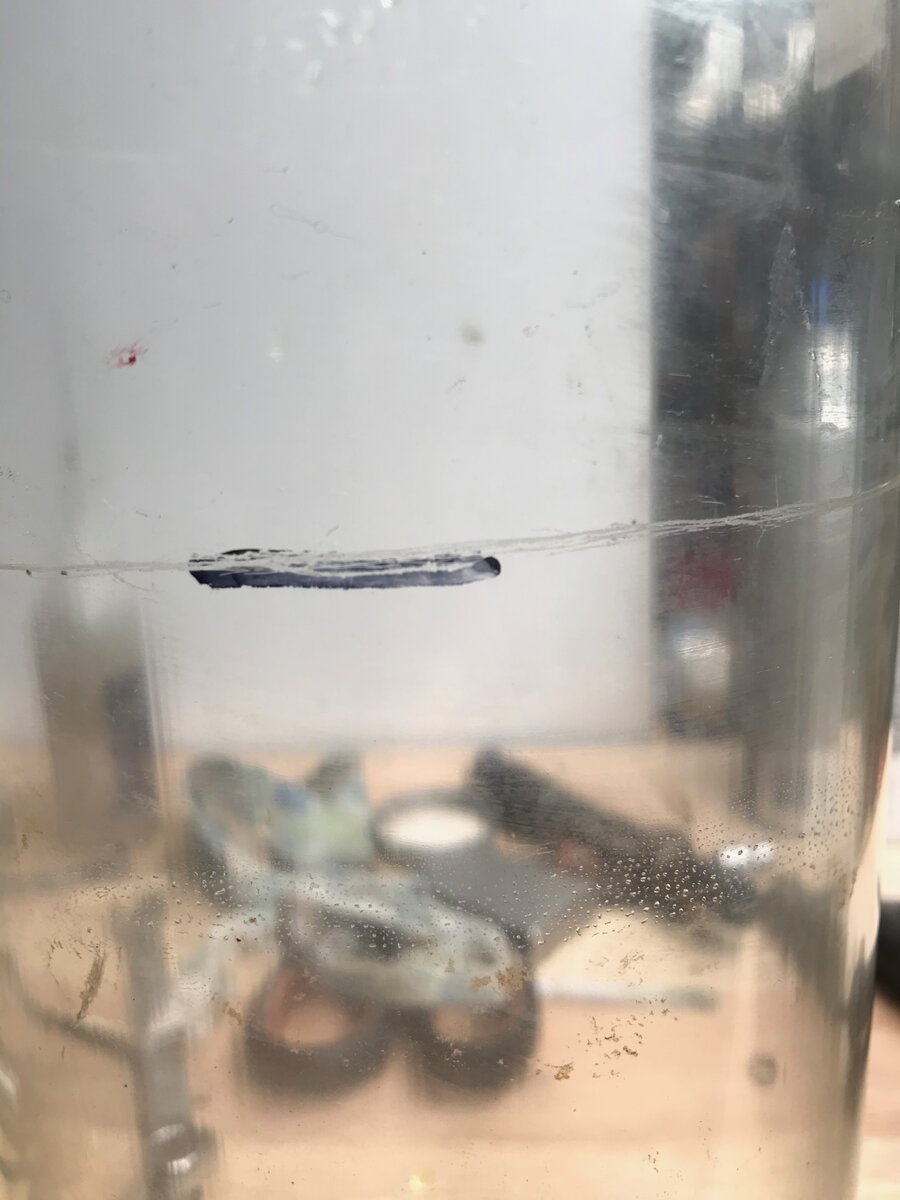

    I had a glass cylinder that was somewhat too narrow, but I was able to cut it to length with a Dremel diamond wheel and bodge it into service using bent paperclips.

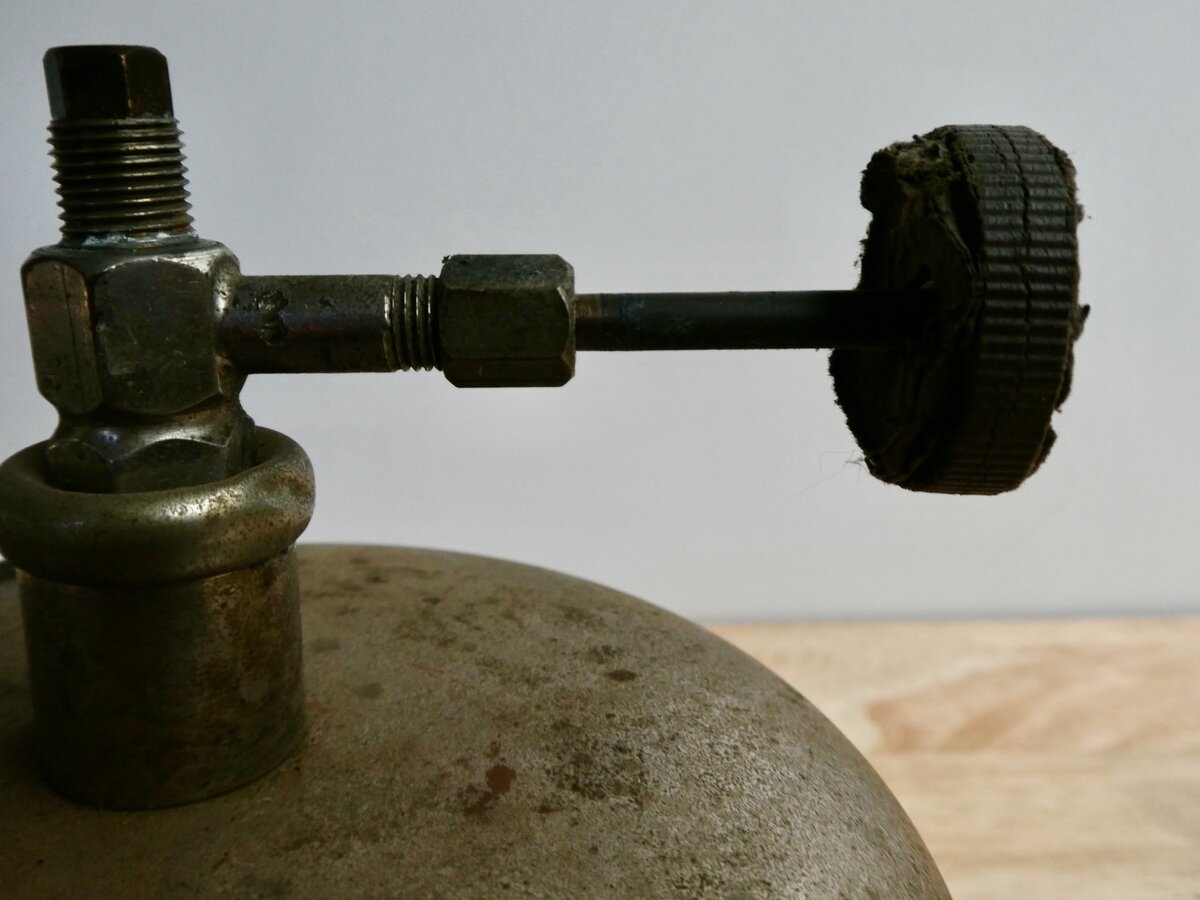

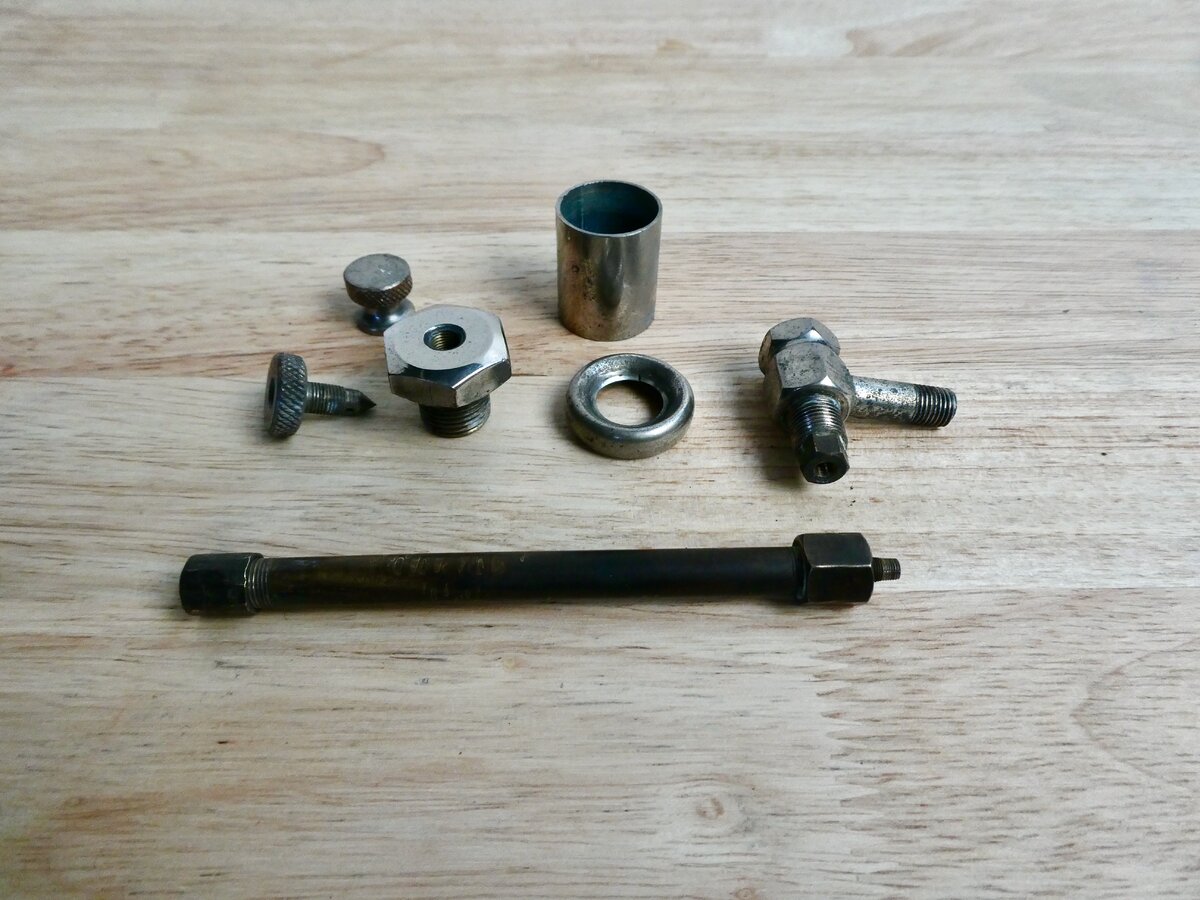

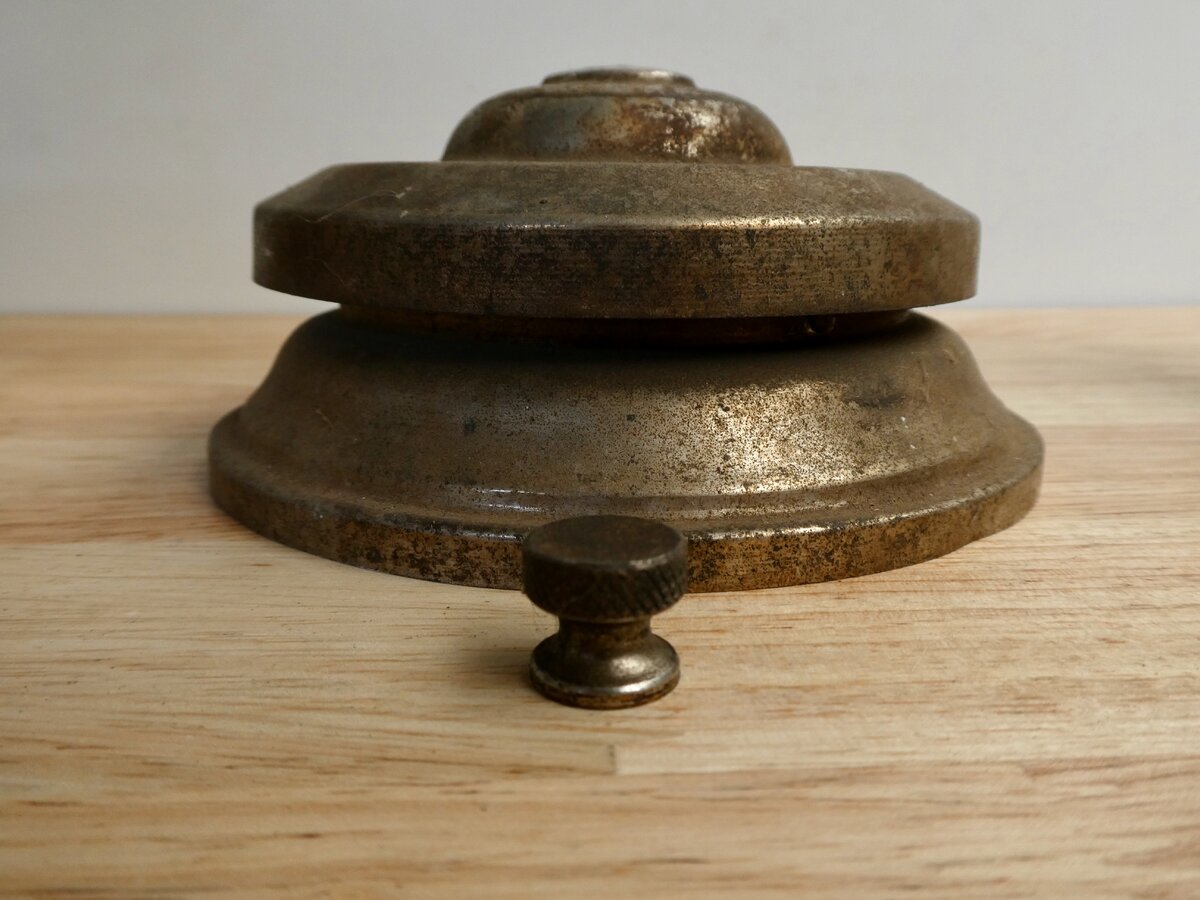

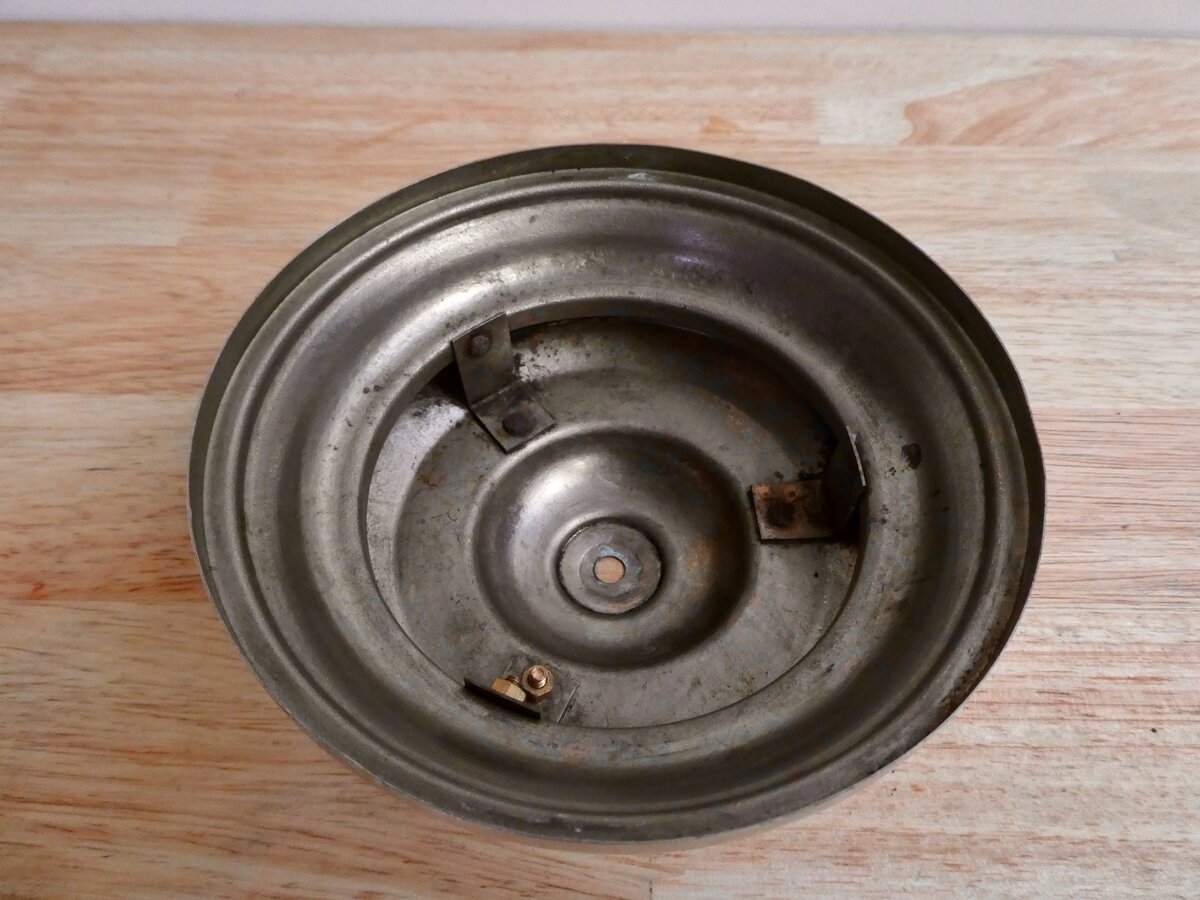

    The rest of the fettling was simply cleaning, de-rusting and painting the handle holder, and polishing.


    The Gloria No. 12 lantern through the ages

    1916 catalogue.
    Image 22-9-20 at 08.29.jpeg

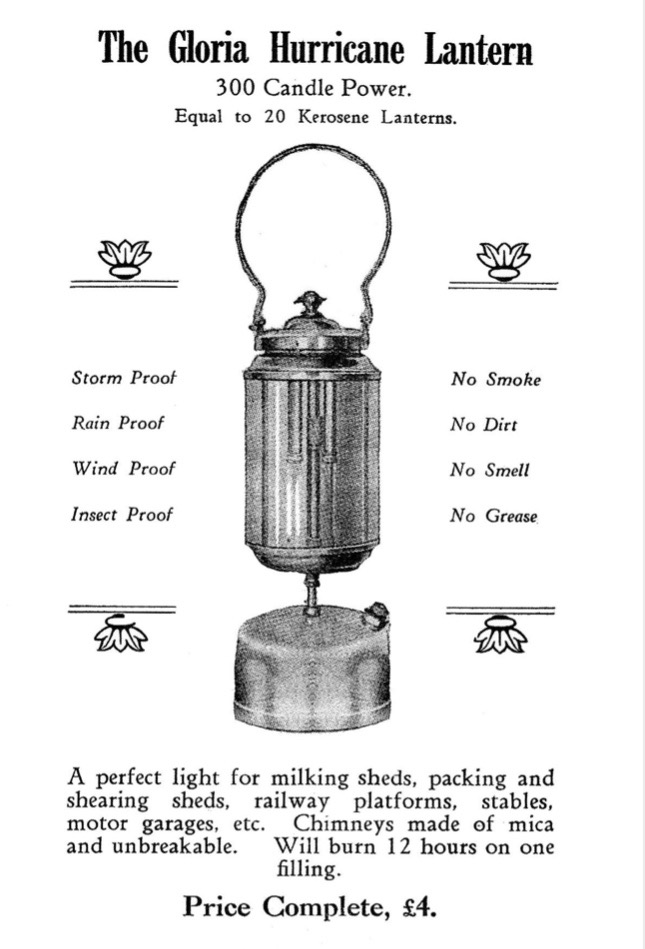

    1926 Gloria Light Co. of Australasia catalogue.
    Image 28-9-20 at 15.59.jpeg

    The ribbon advertisement that Gloria Australia ran from 1926 to 1931.

    Image 20-9-20 at 17.16.jpeg

    Detail from the advertisement (400 candle power).

    In the Pacific Islands Monthly in 1931.
    Image 21-9-20 at 10.27.jpeg

    Image 20-9-20 at 17.33.jpeg



    I like this lantern very much and it is very bright! Ive had it running on pure kerosene, and on 40:60 gasoline and kerosene.

    @Akeepsake has an example here; another is shown in this thread of Mick Emm here alongside the Australian variation; and @Graham P has one here.



    Cheers

    Tony

    Last edited: Sep 30, 2020
  2. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,474
    Location:
    Scottish Highlands
    What a lamp! What a fettle! You must be really chuffed Tony, thanks for the superb presentation. The handle really looks the part.

  3. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    102
    Location:
    Bathurst, Australia
    Never seen one and a amazing lantern. Obviously very bright and a tall lantern with a long gallery giving plenty of light dispersion.
    The advert claims it will run for 12 hours on one fill.
    Certainly not a lantern for the campsite but rather a worksite type light where filling every evening would be a bother.
    Nicely made bail.

    Thanks for the detailed description.

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,347
    Location:
    Shetland Islands UK..
    Well fettled and it's a grand old lantern now!:thumbup::clap::D/:D/:clap::thumbup:

  5. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    911
    Location:
    Midlands, UK
    Tony, thank you. A inspirational post, another fine lantern.

  6. george

    george United States Subscriber

    Online
    Joined:
    Nov 8, 2011
    Messages:
    2,464
    Location:
    USA
    That is one really neat looking lantern!!:clap:
    :thumbup::thumbup: I really like it!!:mrgreen:

  7. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,865
    Location:
    Toowoomba Australia
    Excellent fettle of a fine lantern. Well done on the handle.
    Cheers
    Pete
    @Tony Press

  8. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,031
    Location:
    Somersby, New South Wales, Australia
    Very nice Tony :thumbup:

  9. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    796
    Location:
    Whyalla. South Australia. Australia
    @Tony Press , wow that is really something for show and tell, love the lantern and the fettle and the advertising, well presented.

  10. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,507
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I note that I did not include a photo of the base of the tank, so here it is.



    I note also that the person from whom I received this lantern told me that he found it at a rubbish tip in Tasmania many years ago.

    Cheers

    Tony

  11. Titoo

    Titoo France Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    436
    Location:
    FRANCE: 25 Franche Comté
    Very nice lantern :thumbup:

    Regards,
    Titoo.

  12. kero-scene Australia

    Offline
    Joined:
    Jan 23, 2013
    Messages:
    232
    Location:
    Australia
    @Tony Press

    That’s an understatement, I think this one is ‘up and stunning’

  13. Akeepsake

    Akeepsake Subscriber

    Offline
    Joined:
    Jan 11, 2016
    Messages:
    209
    Nice work Tony and yes they are a bright lantern for sure and have a exceptionally large air intake tube
    And such nice proportions !!
    One of my favourites !

  14. James K

    James K Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    301
    That is a lovely lamp Tony, a real gem.
    As always really good pics and a most interesting post.
    Keep up the good work.

  15. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,297
    Location:
    Wirral
    Thanks for sharing and for all the work Tony!:thumbup:

    Look forward to reading your fettles, very thorough and the history side is always concise :)

    The Mica globe on these must be one of the tallest, surely? I suppose being so large it helps to spread the light?

    Just out of interest, what kind of volume/ noise level do they operate at? :-k

    Cheers!

  16. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,507
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @podbros

    The mica would be approximately 6 1/2 inches (165mm) tall and 5 inches (127mm) wide.

    With that very big air feed to the burner, it’s a quiet runner.

    Cheers

    Tony

  17. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,297
    Location:
    Wirral
    Nice! :thumbup::thumbup:
