Hipolito 150cp - spirit cup, no rapid heater

Discussion in 'Portugal' started by presscall, Jul 30, 2020.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    My first lantern of the Hipolito/Geniol/Petromax 150cp type and I was willing to go a bit spendy on ebay. I helped @Simes fettle his Geniol at Newark one year and that must have sowed the seed.



    Reading Matti’s efforts HERE to get his Santrax 150 firing right added the incentive of a possible challenge.

    Turns out the seller had done most of the work by replacing the Hipolito vapouriser with a Petromax 150cp one. Reason was a badly worn nipple and a replacement couldn’t be found. The Hipolito nipple threads aren’t a match for a Petromax’s so it wasn’t as simple as just swapping a jet. Fortunately, the Petromax vaporiser’s securing nut is compatible with the Hipolito valve’s threads.

    Hipolito vapouriser top, Petromax’s below.

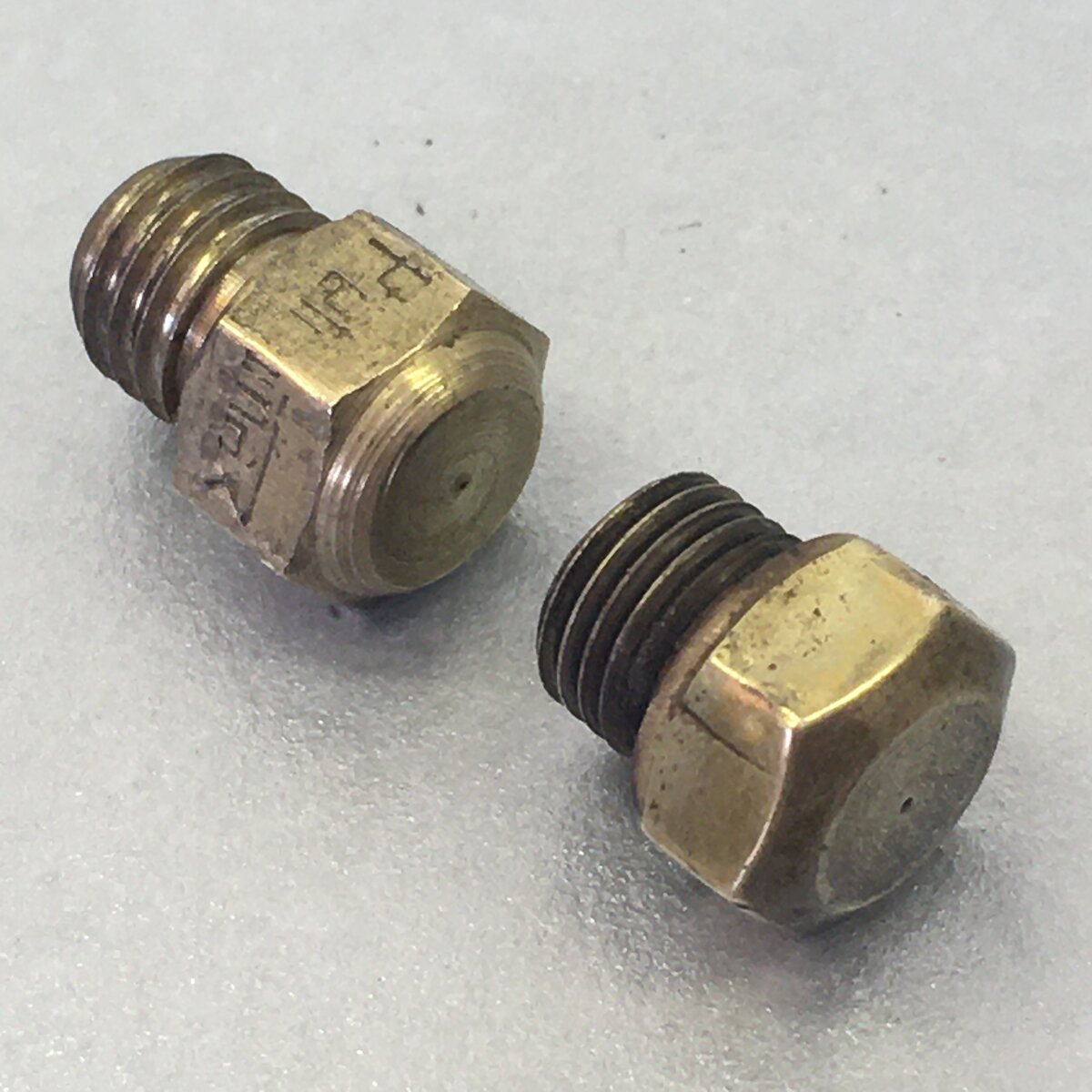

    Nipple comparison, Petromax top.

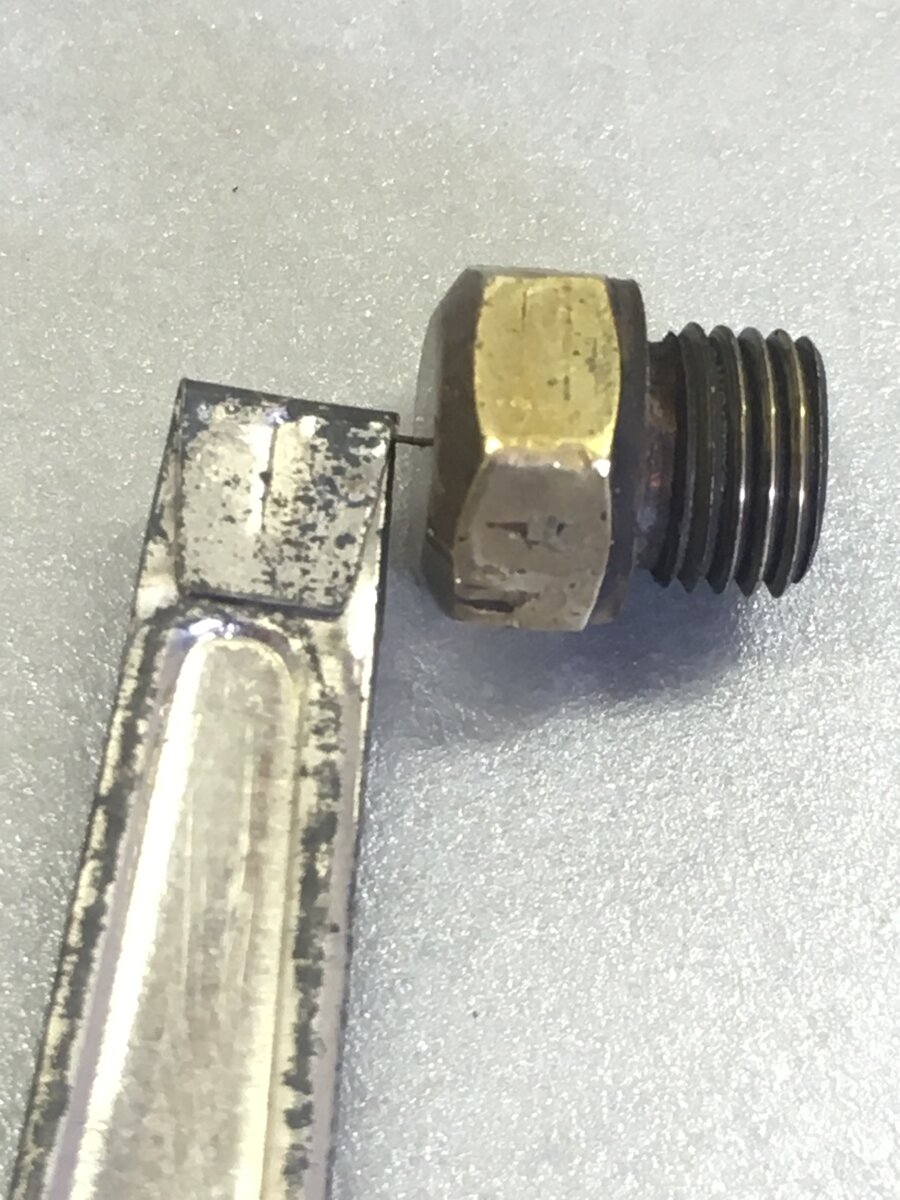

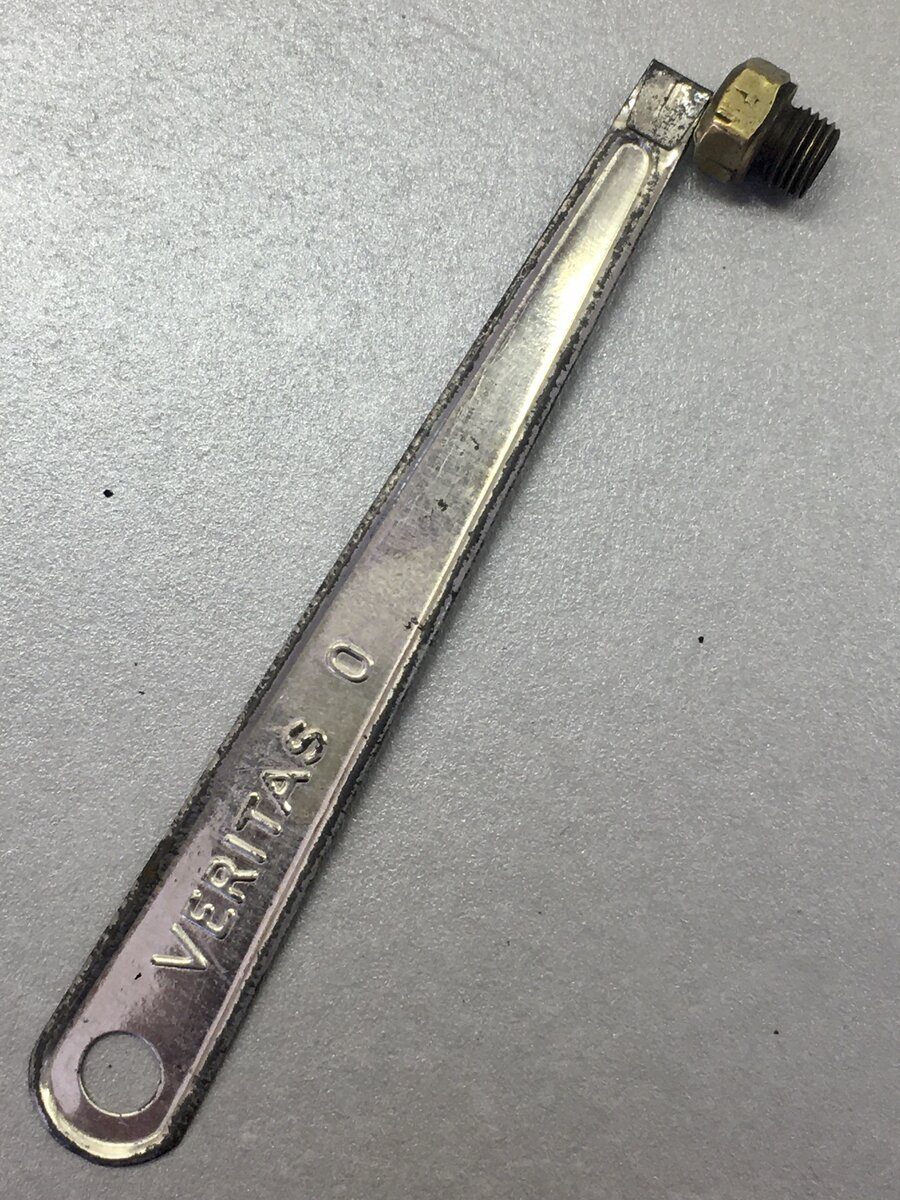

    Just how enlarged the Hipolito’s jet orifice had become can be seen here. It took a 0.23mm stove jet pricker. Should be 0.12-0.15mm I believe?




    The pricker control wheel would only move through an arc and not a whole 360 degrees, so I had to look into that. Stripped everything down to inspect/clean everything.

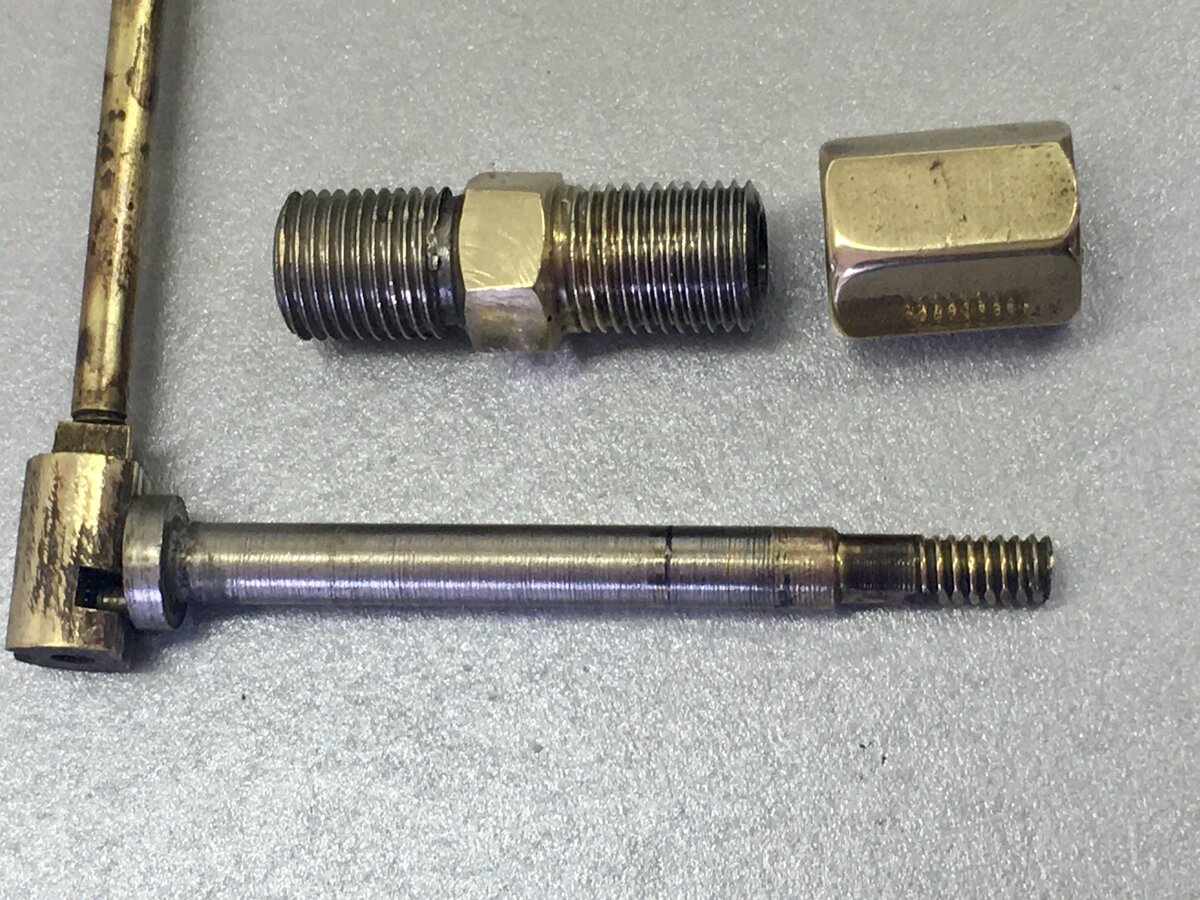

    In replacing the vapouriser the seller had screwed the pricker rod too far into the eccentric block, impinging in the slot and preventing the eccentric cam from moving more than half way, less than that in fact. I suspect that the Petromax pricker needle which he’d installed is longer than the Hipolito’s and he’d screwed the rod way too far into the eccentric block to compensate. I cut about 3mm off the rod threads, having ensured that if I ever resolve the worn Hipolito jet the pricker rod with Petromax needle will complement it, length-wise.



    Reading Geniol 150cp instructions, it’s evident there’s no J-tube air gap to set, unlike on larger lanterns and indeed, there’s no scope for adjustment.

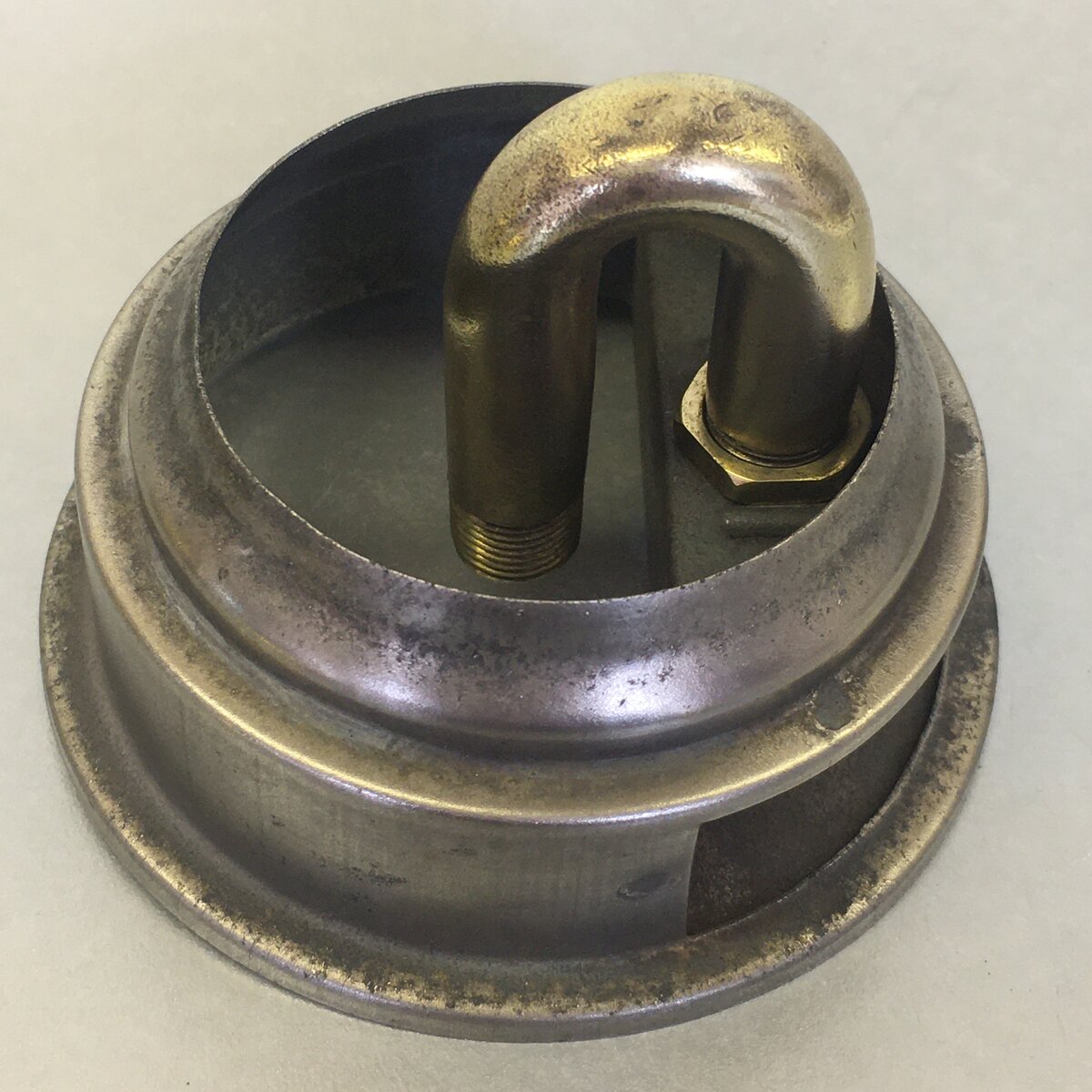

    I compared the air gap as it would have been with the Hipolito vapouriser and jet installed ...



    ... with that provided by the Petromax parts - no difference.

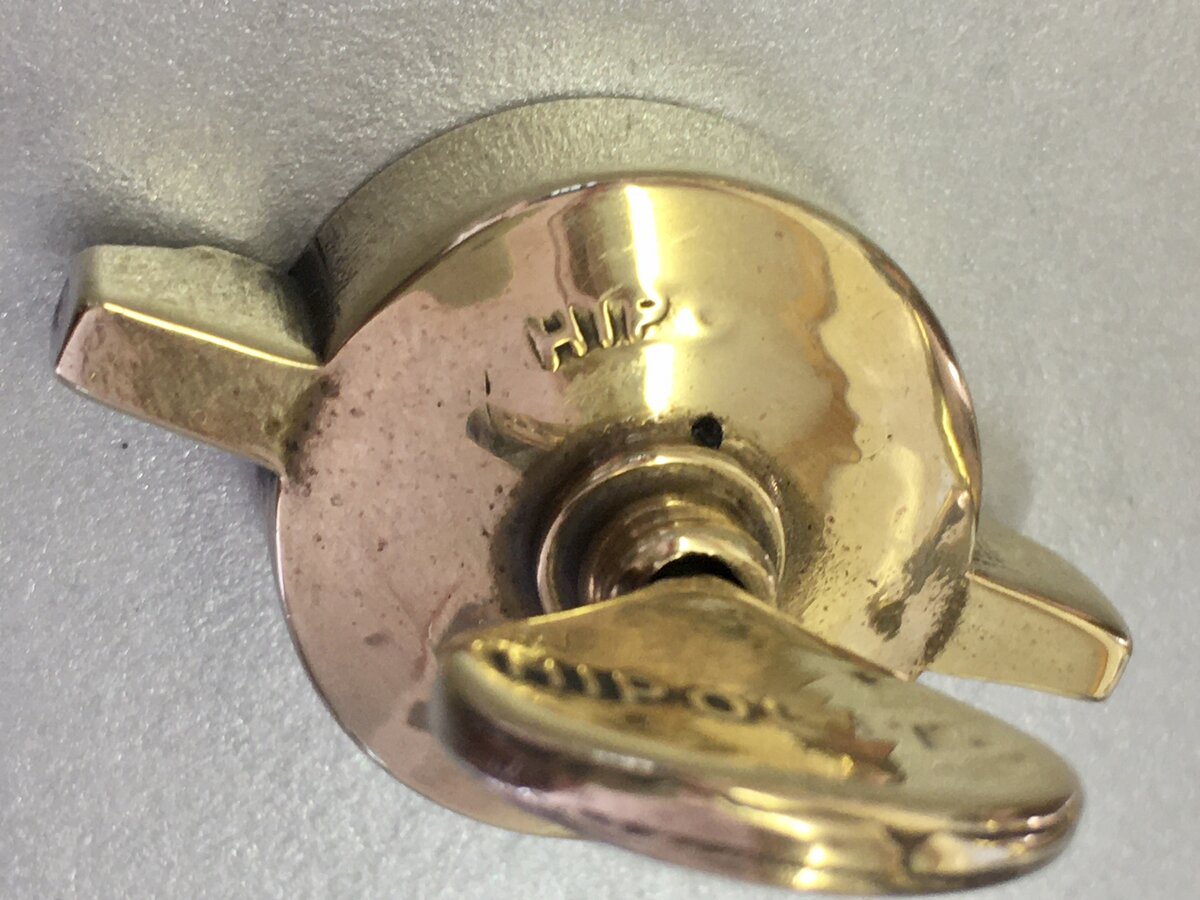

    As well as the worn jet, wear on the filler cap and air screw suggests the lantern’s seen a lot of use, and has probably been polished excessively to exploit its decorative potential.

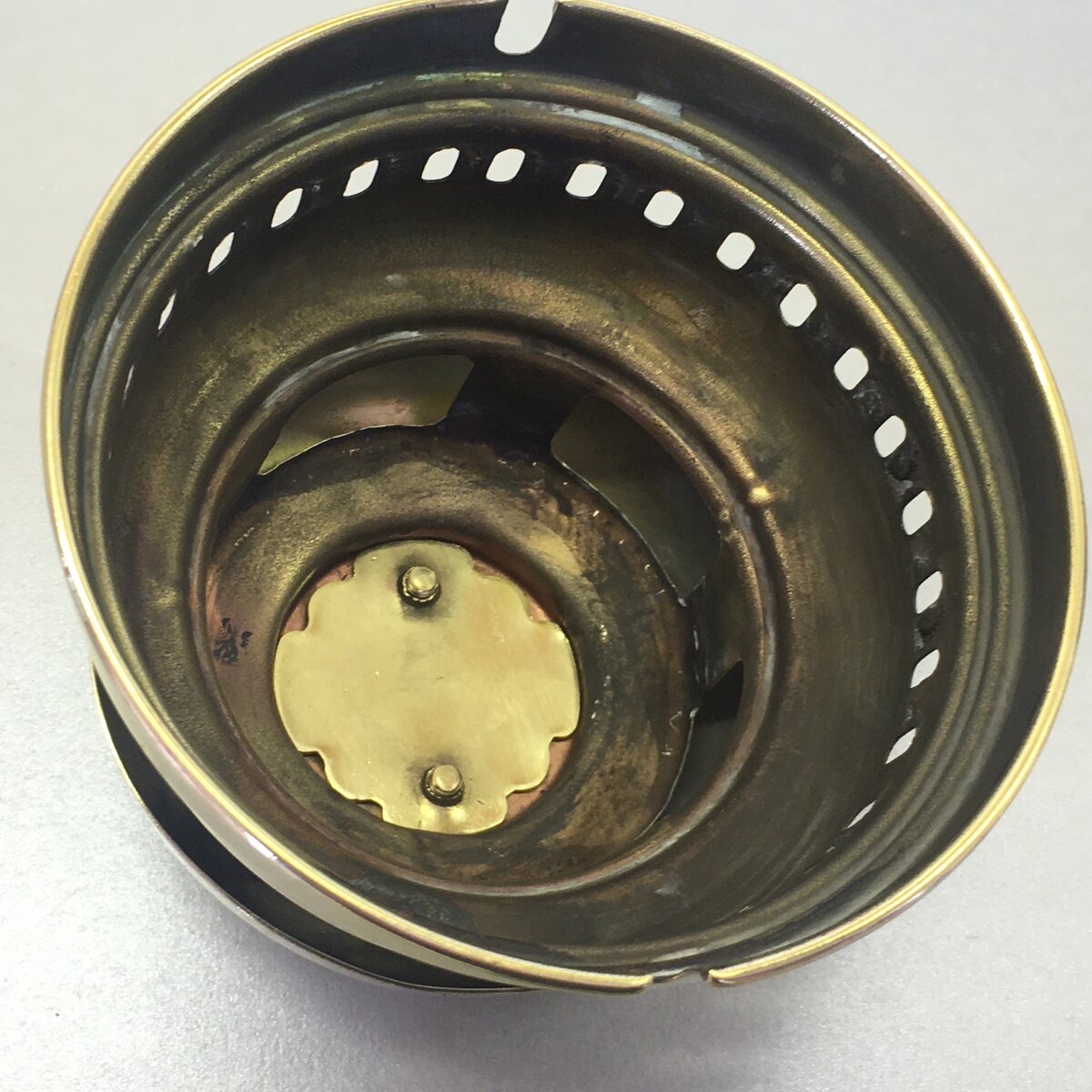

    Nevertheless, it’s largely come through unscathed. That’s down to good quality design and construction, typified by a thick-gauge backing plate with tapped holes for the cap screws and not just a couple of nuts.

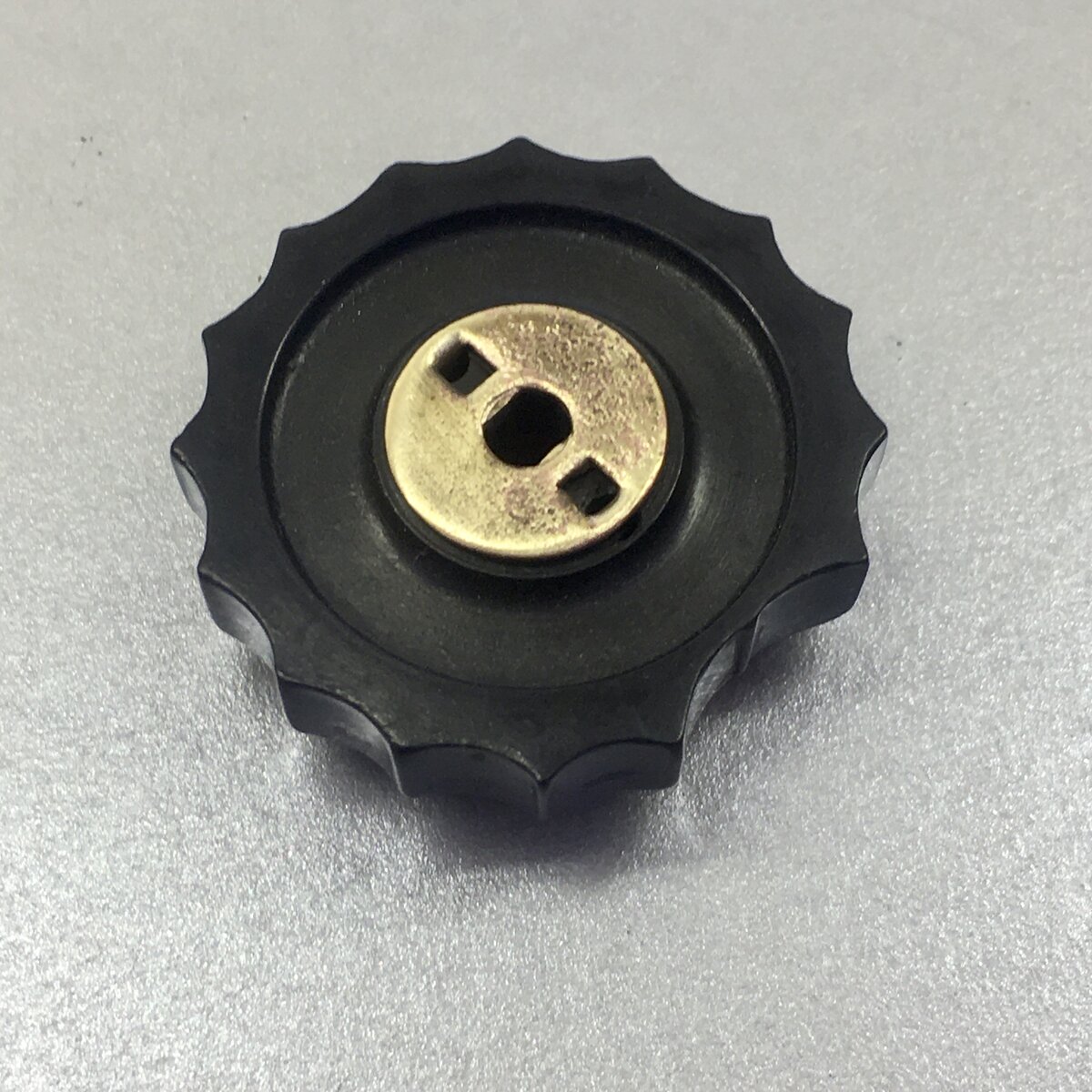

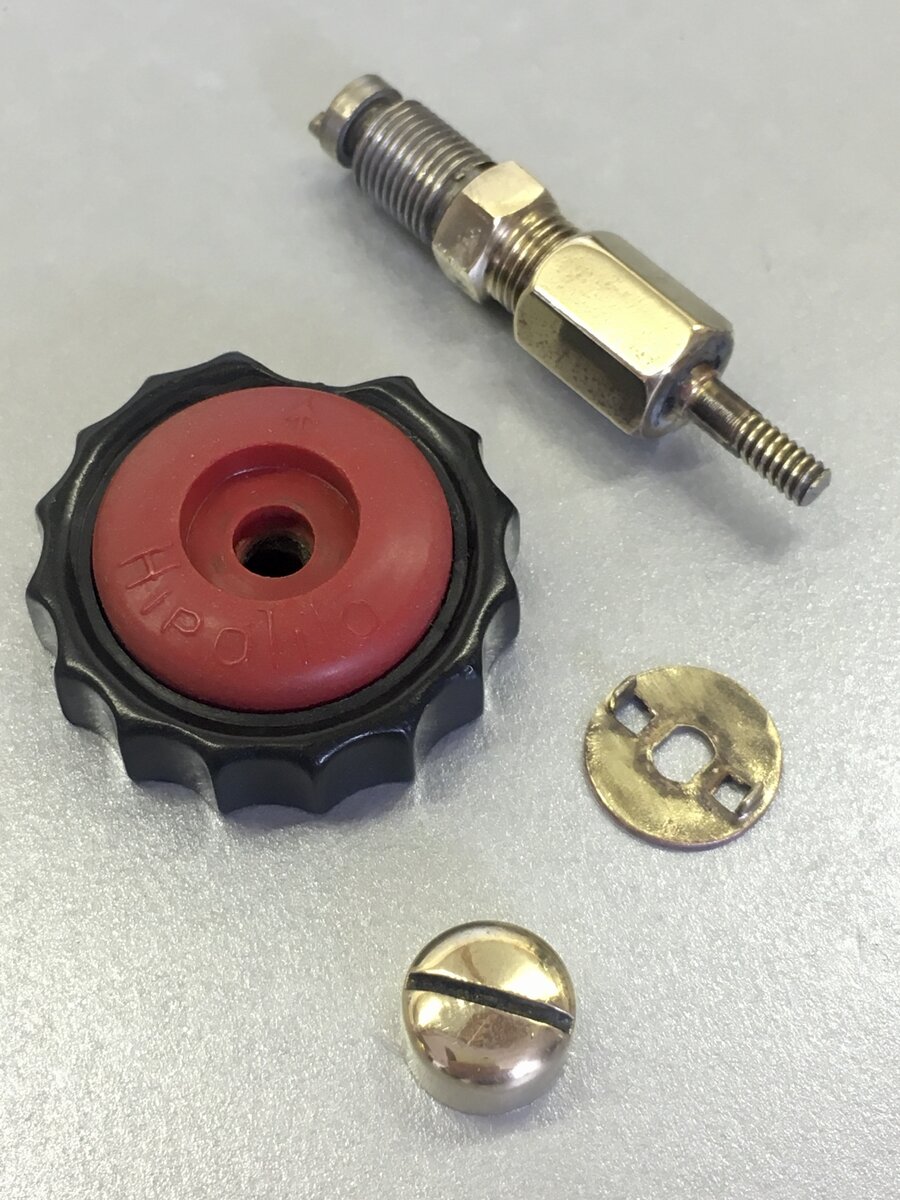

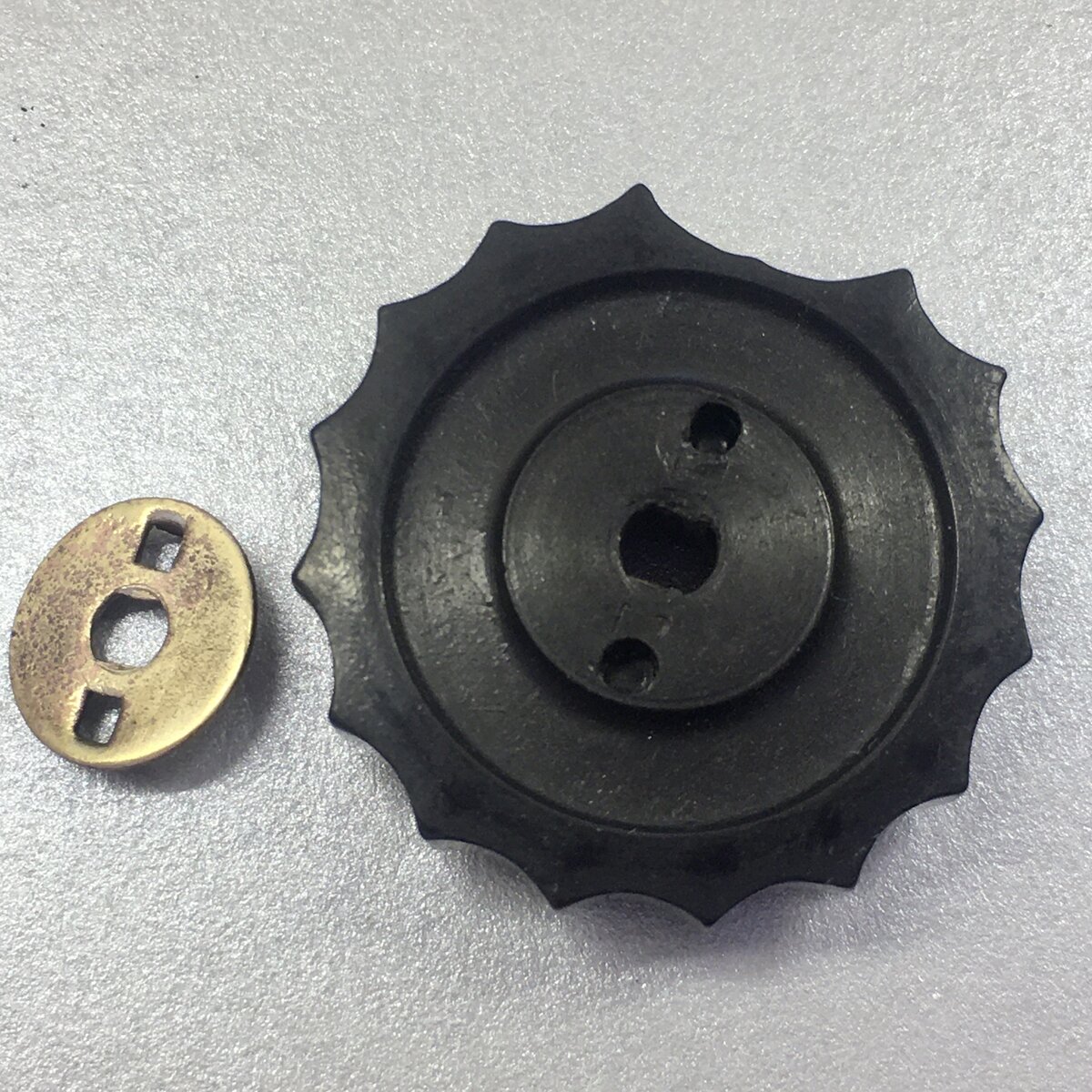

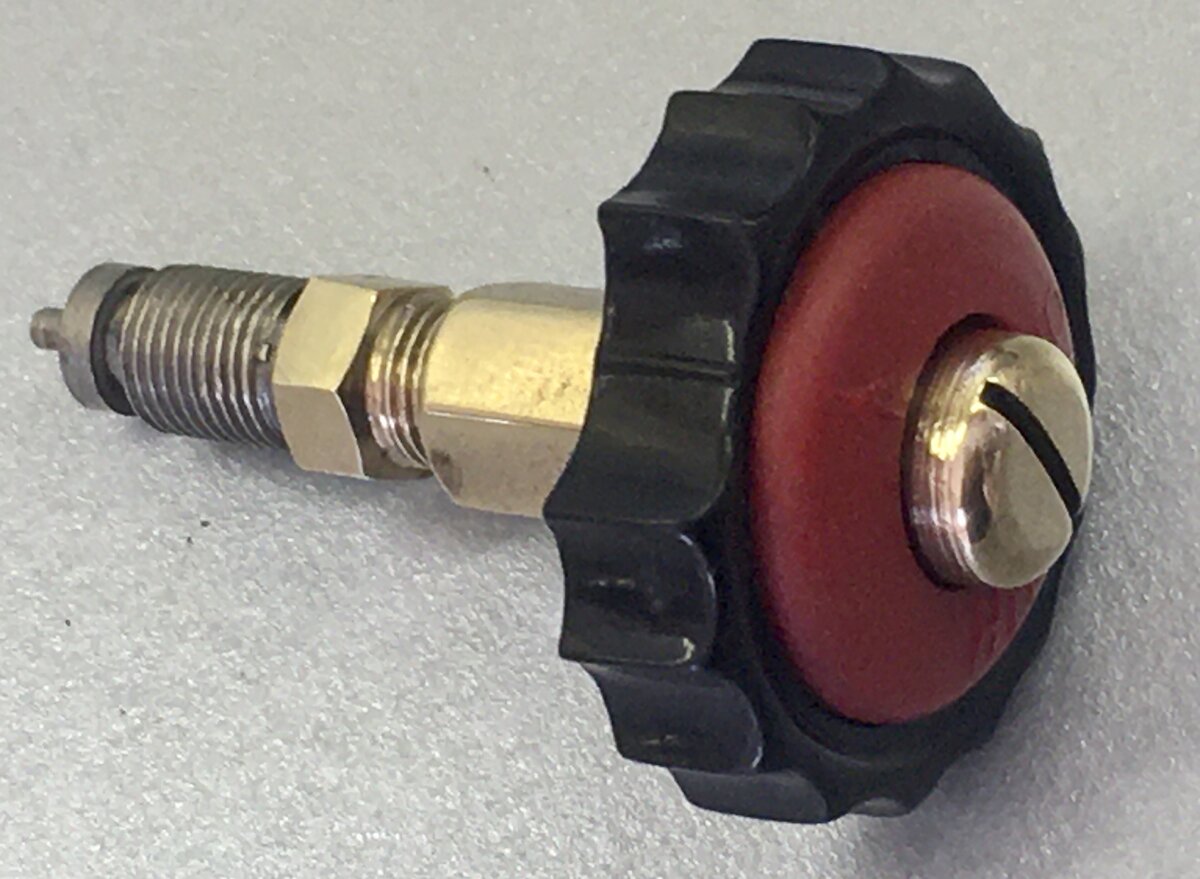

    Pricker control knob and mounting arrangement is sturdy, stylish too.

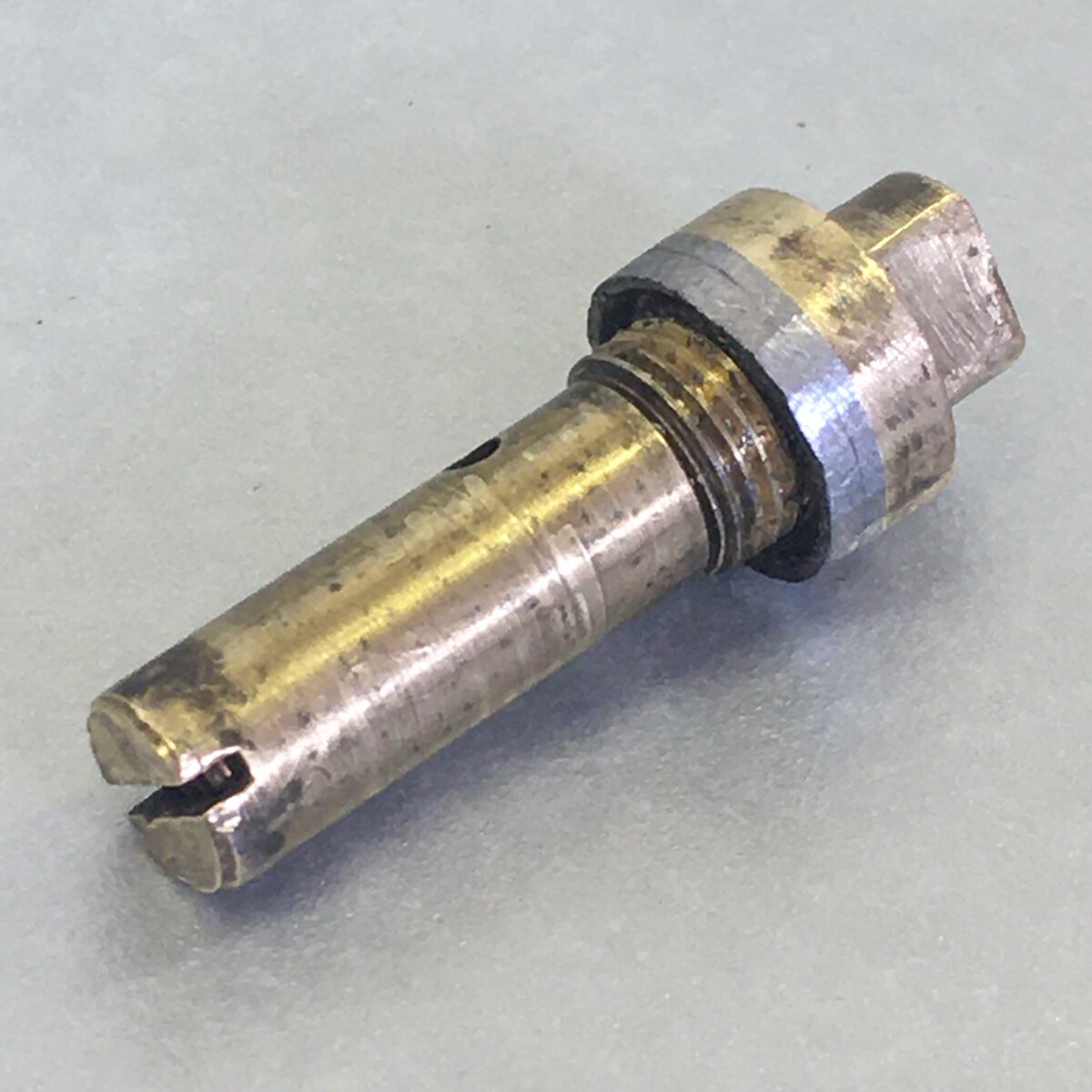

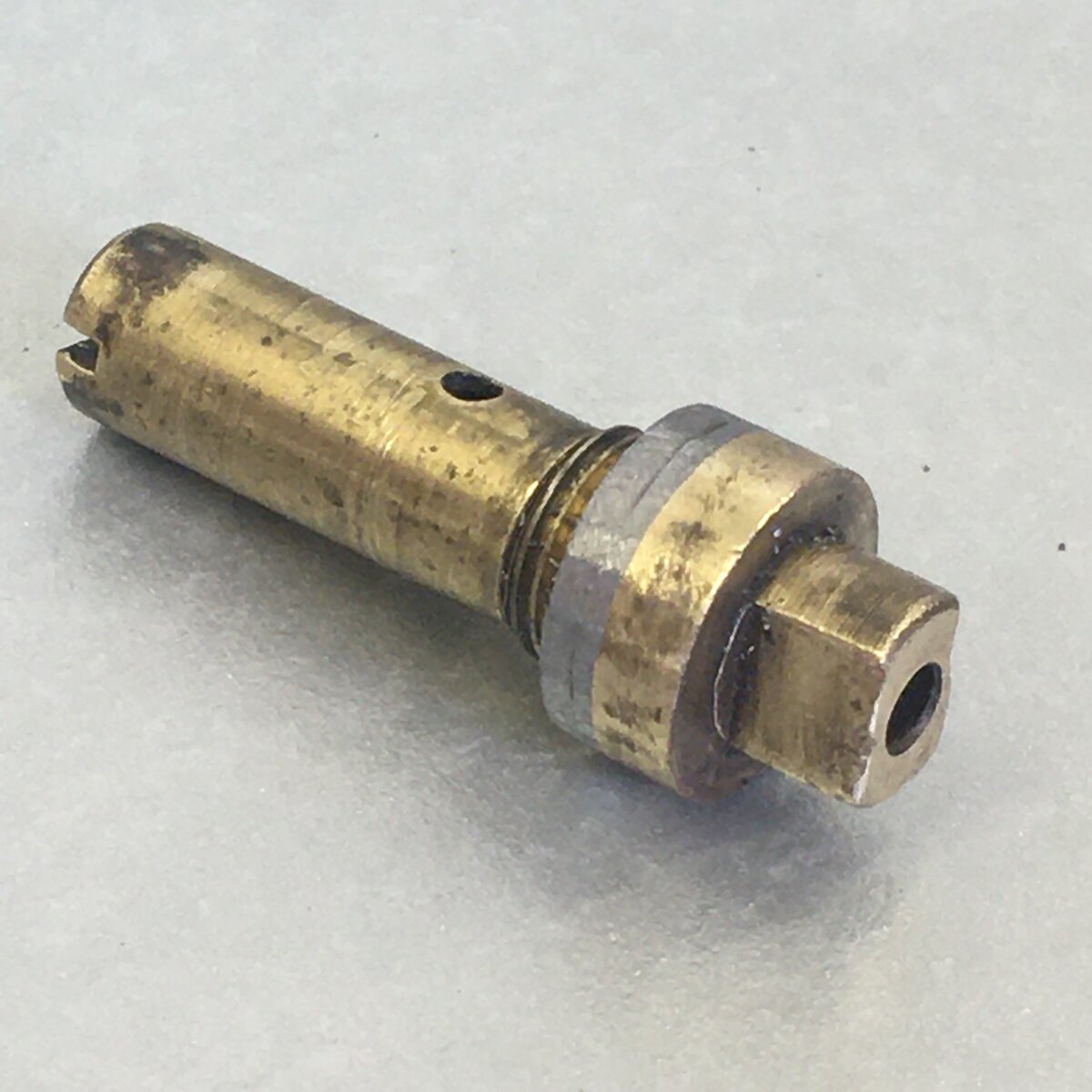

    Non-return valve is of a paraffin stove pattern, though with an unusually deep ‘shoulder’. Lead washer installed prior to fitting, cork ‘pip’ seal replaced with a Fettlebox viton one.

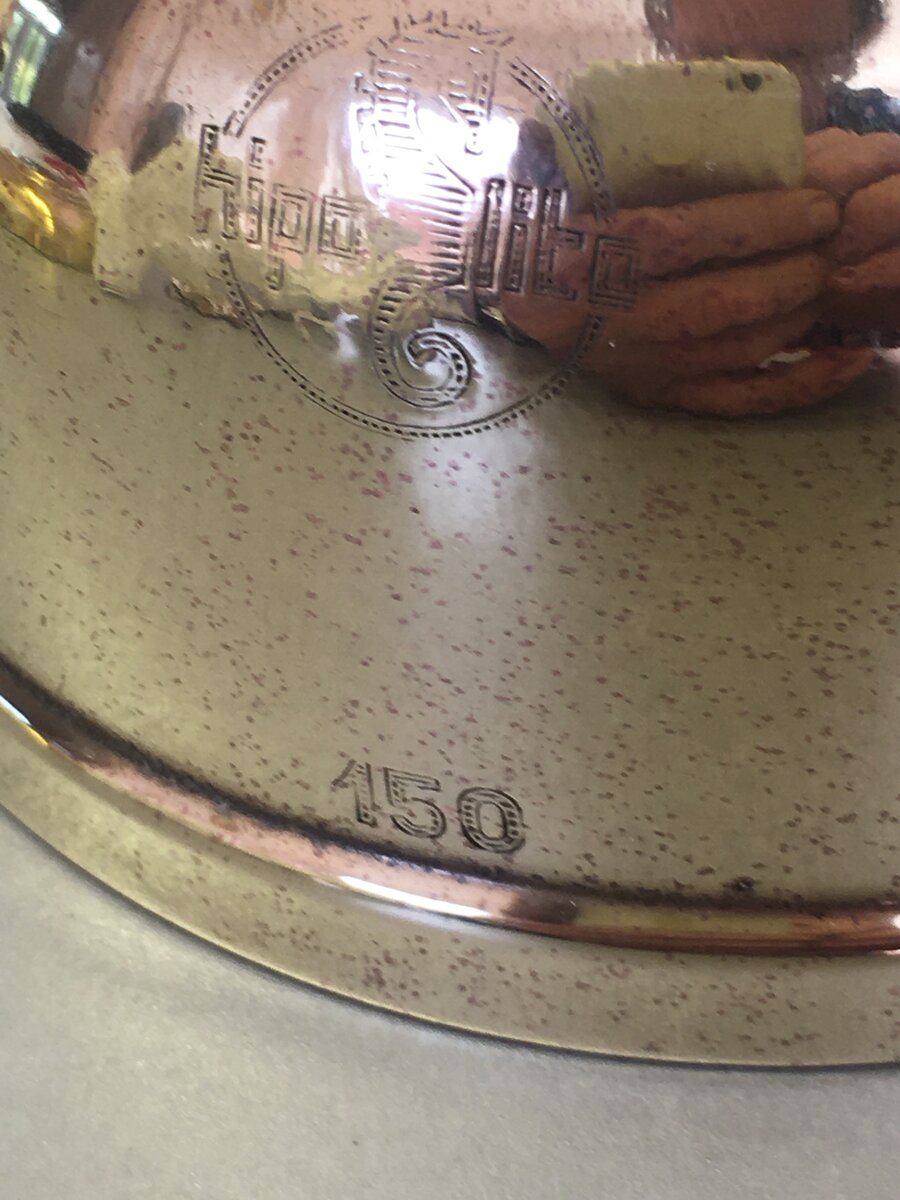

    Font details. No idea what the ‘brass rash’ is. It’s cosmetic and not pitting and is only obvious at eye-boggling close-up distance. Only in that part too.

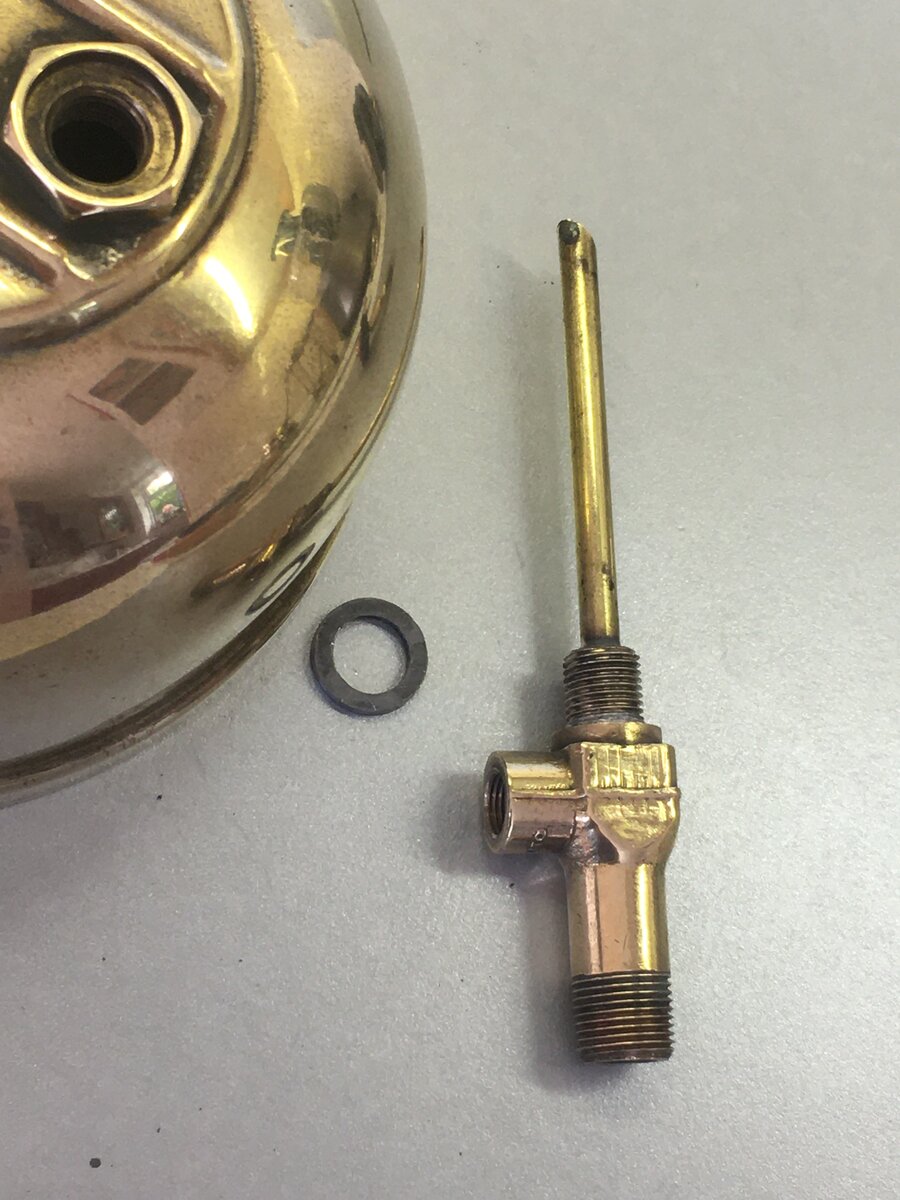

    Re-installing the valve/fuel pickup. I used a combination of a lead washer (enabled me to orientate the valve where I wanted it to be) and Loctite thread-lock (kept it there).

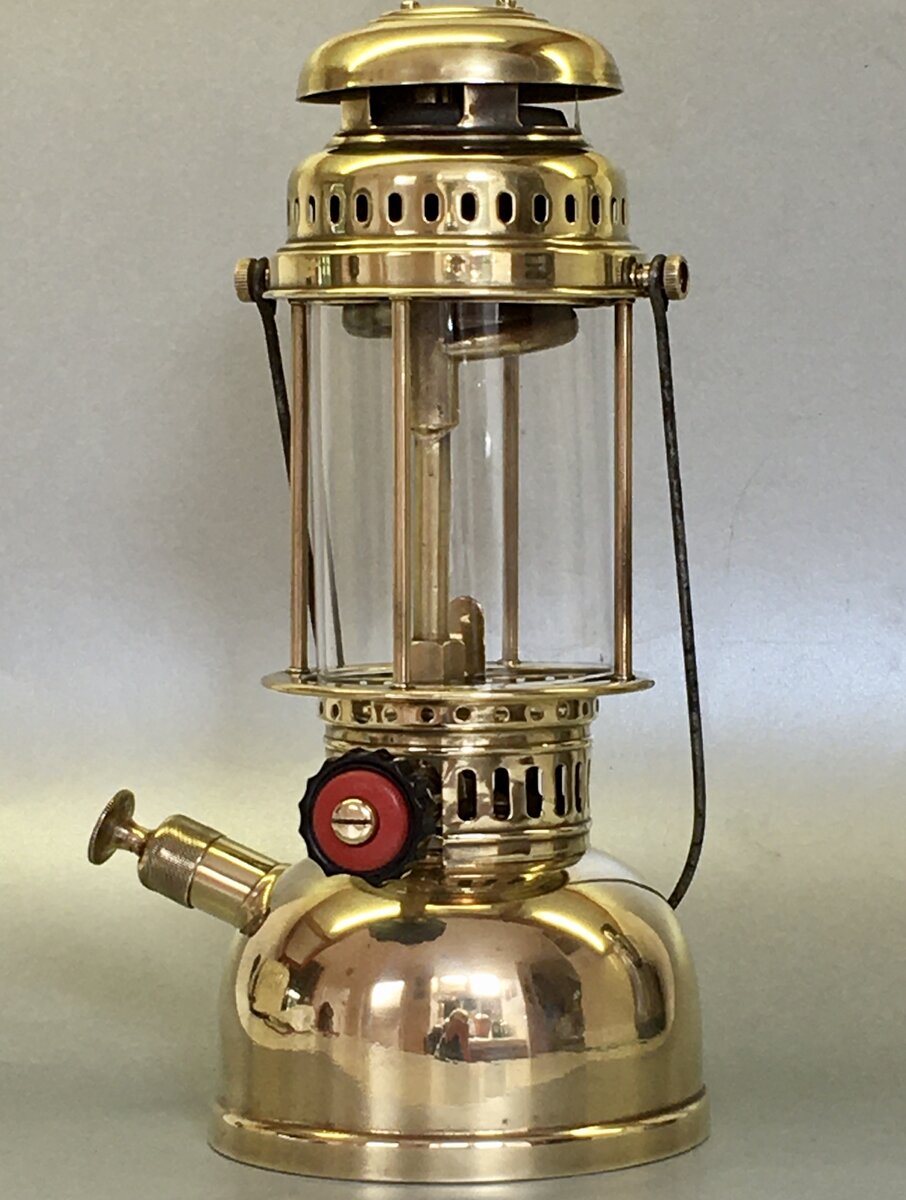

    Pose for the camera ...

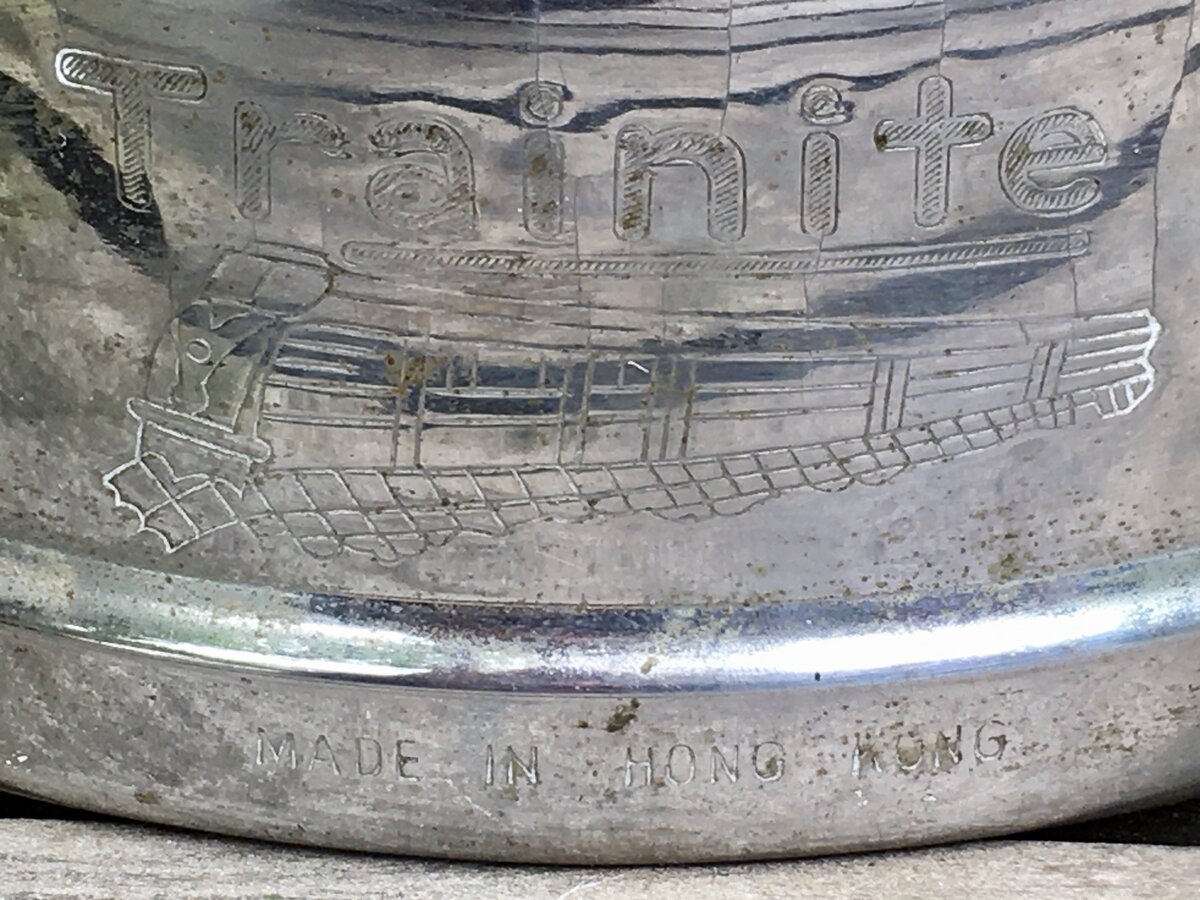

    Quite how small these 150cp lanterns are is evident from this comparison with a Petromax 350/500cp clone, a Trainite, made in Hong Kong.



    That’s my next project, with its brass font riddled with stress cracks.




    I bought POR15 to help keep THIS pork-pie Tilley with a porous, soldered font fuel/pressure tight. I’ll be giving the Trainite and a John Shaw & Sons ‘New Governor’ paraffin stove fuel tank the treatment too.

    John

  2. paul m

    paul m Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    498
    Location:
    lancashire. UK
    Blimey, there's some elbow grease gone in to that to make it shine....good effort for the little one

  3. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK

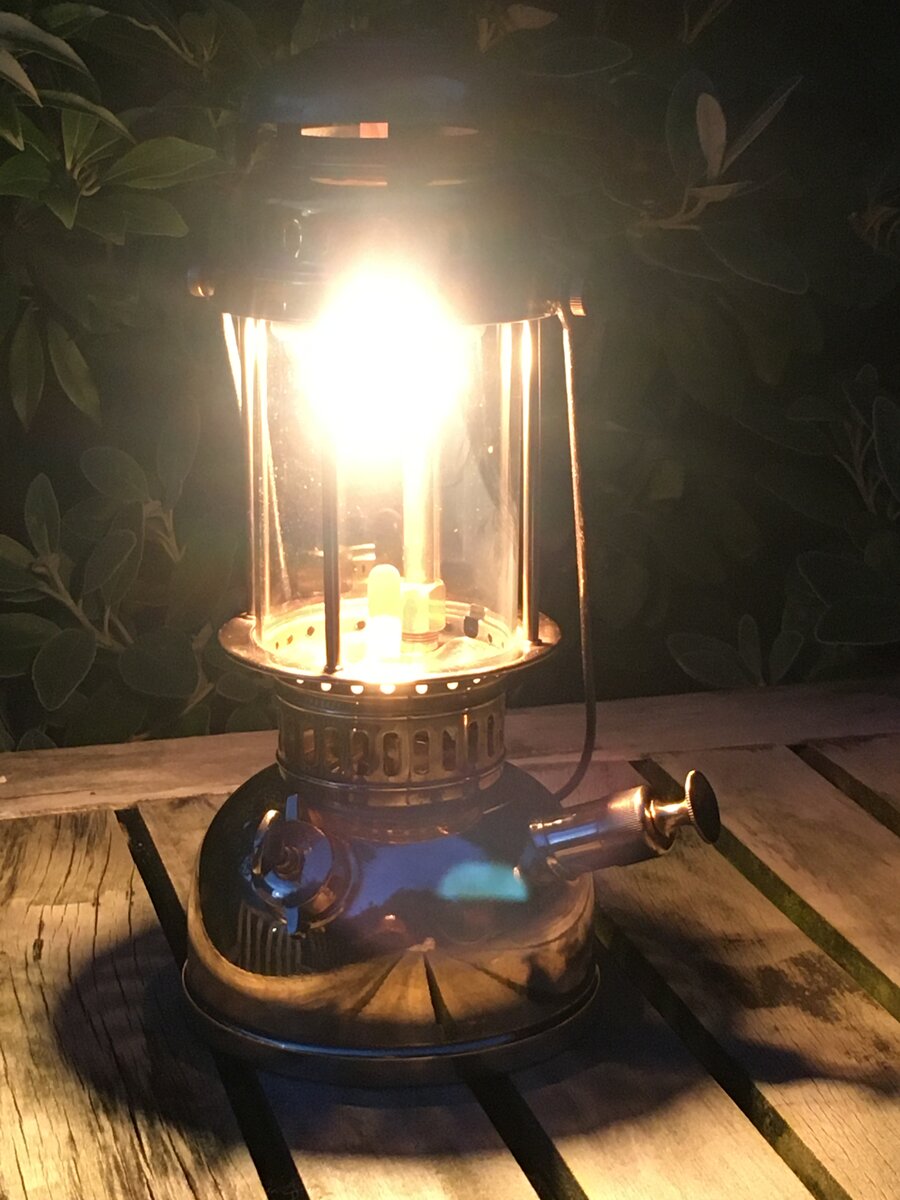

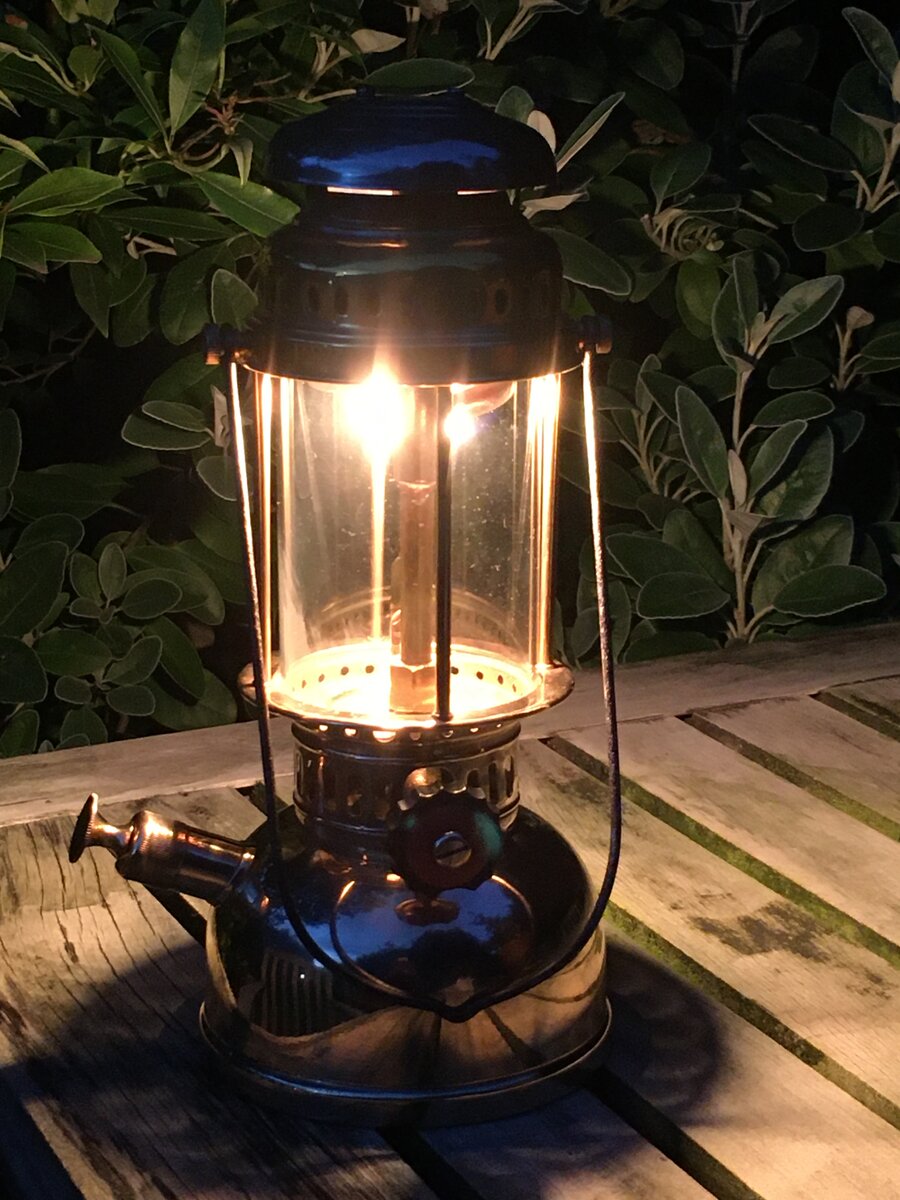

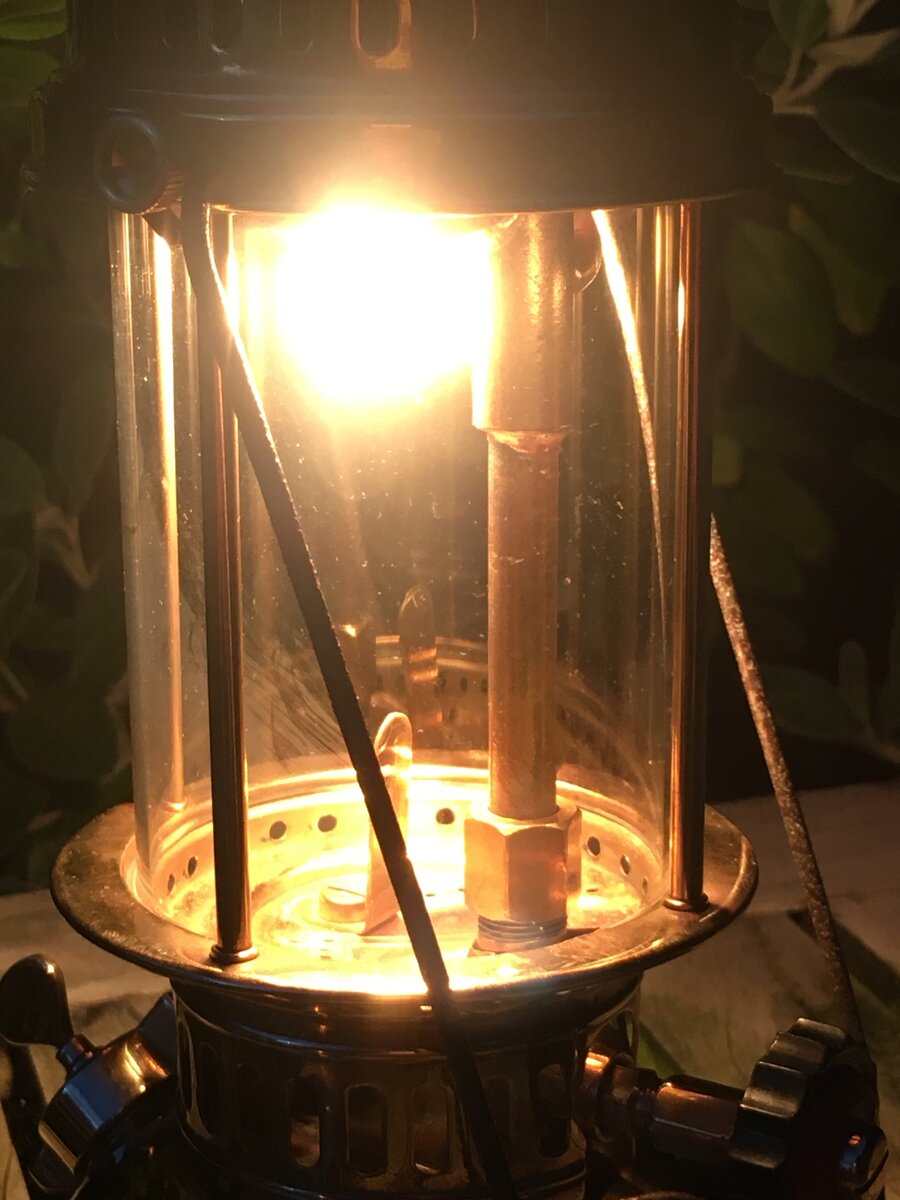

    Night fell ...





  4. george

    george United States Subscriber

    Online
    Joined:
    Nov 8, 2011
    Messages:
    2,155
    Location:
    USA
    WOW!! Beautiful Hipolito! Congratulations on such a nice find!:thumbup:O:)

  5. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    @george Thanks George. I’ve admired the gems in your collection many a time.

    John

  6. george

    george United States Subscriber

    Online
    Joined:
    Nov 8, 2011
    Messages:
    2,155
    Location:
    USA
    @presscall Thanks, John, this is one to be proud of. It's a real beauty! :D/

  7. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    I’d been told the ‘little guys’ run hot - font too hot to touch after a while.

    Well, on a mild evening in the UK, and having had the Hipolito running for an hour (2/3 full of fuel to begin with) that wasn’t the case.



    Glass of Old Poultney to hand to calm the nerves, another demonstration of a font that was but warm to the touch.


  8. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    190
    Location:
    Sweden
    I must agree to that. Really pretty. And thorough step by step report of your efforts. Nice

  9. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,507
    Location:
    Malaysia
    That was a fantastic fettle and the results show.

  10. isfuzzy

    isfuzzy Subscriber

    Offline
    Joined:
    Feb 13, 2014
    Messages:
    124
    Location:
    Singapore
    The 150cp really are adorable once they behave. Oh yes! the tank can be real hot. I only light mine in windy nights. Hipolito ones looks way cool than the more modern Pmax 150 which is also now EOL.
    Ever wonder when Britelyt will reissue the 150? :roll:

  11. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
  12. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    778
    Location:
    Midlands, UK
    @presscall Lovely job, you must be pleased. Nice to see your 150 in such good condition and running so well.

  13. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,886
    @presscall , yours is rather unique since it has no rapid.
    This makes it way more "proportional" then the 150cp lanterns with rapid.

  14. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,897
    Location:
    Somersby, New South Wales, Australia
    Very nice,John. :thumbup:

  15. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    Yes, I suppose visually it’s a lot to cram into that small space above the collar.

    @ROBBO55 Cheers Rob.

  16. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,870
    Location:
    Shetland Islands UK..
    A very smart looking lantern!:thumbup::thumbup:

  17. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    Update on this Hipolito.

    The Petromax vapouriser wasn’t in fact suitable, the Preston loop at 60mm outer diameter giving only 5mm clearance from the inner surface of the globe - 9mm clearance in the case of the Hipolito vapouriser’s loop. Consequence was scorching of the glass, fortunately not breaking it.



    Solution was to adapt the Hipolito vapouriser to take the Petromax nipple, a silbrazing job to attach the Petromax jet mount threads to the Hippolito vapouriser, having removed its jet mount threads. Details of the procedure are HERE.

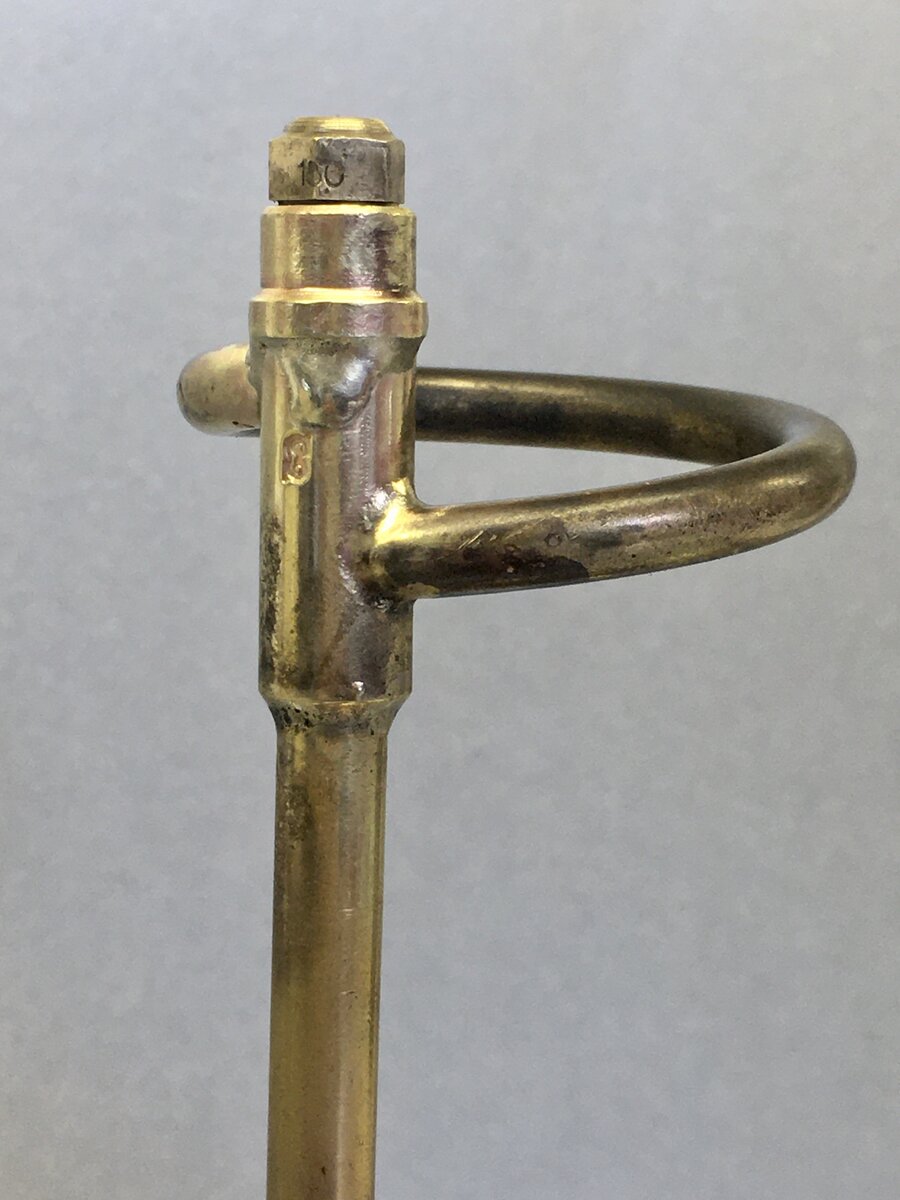

    Here’s the Hipolito vapouriser able now to accept a Petromax 150cp nipple (and Petromax 150cp needle).



    Here it is installed in the lantern, working well and not scorching the globe!

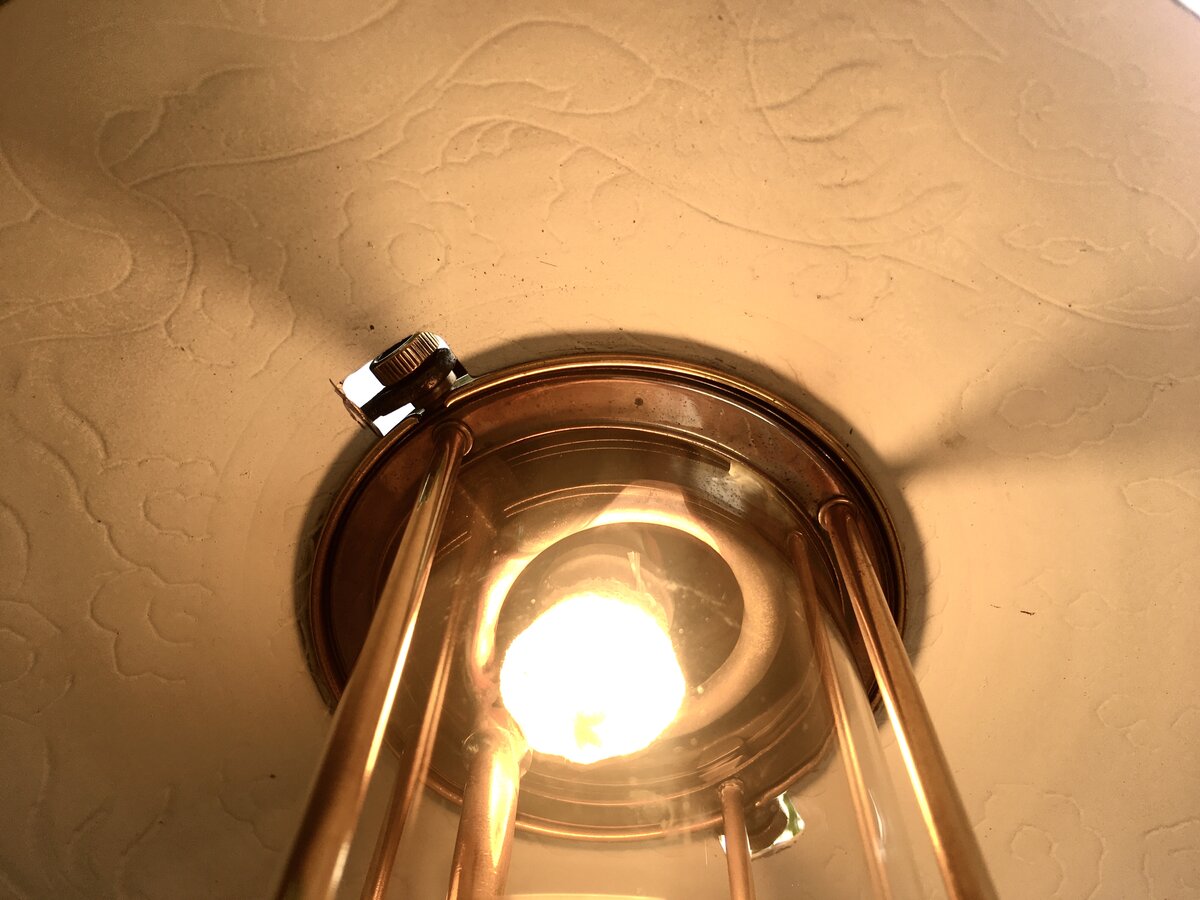

    Reflector fitted ...






    ... actually a shallow brass dish, now painted white on the underside, incised design still visible.


    John

  18. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,507
    Location:
    Malaysia
    It appears to be working great. I hope the scorched glass remains intact. I've had some that do while others somehow shattered after a while.

  19. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK

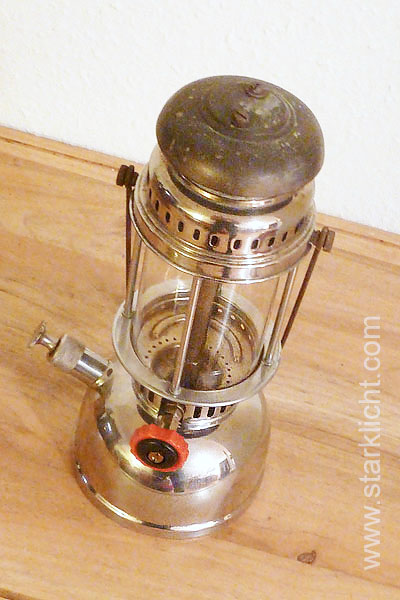

    Just noticed something, looking again at Luminator’s chrome 150cp lantern in the Lamp Reference Gallery.

    @Luminator ‘s photo.



    The colours of the control knob are reversed to those on mine.


  20. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,897
    Location:
    Somersby, New South Wales, Australia
  21. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    @ROBBO55
    Thanks for directing me to that. I’d never have guessed it ties in to dates.

  22. isfuzzy

    isfuzzy Subscriber

    Offline
    Joined:
    Feb 13, 2014
    Messages:
    124
    Location:
    Singapore

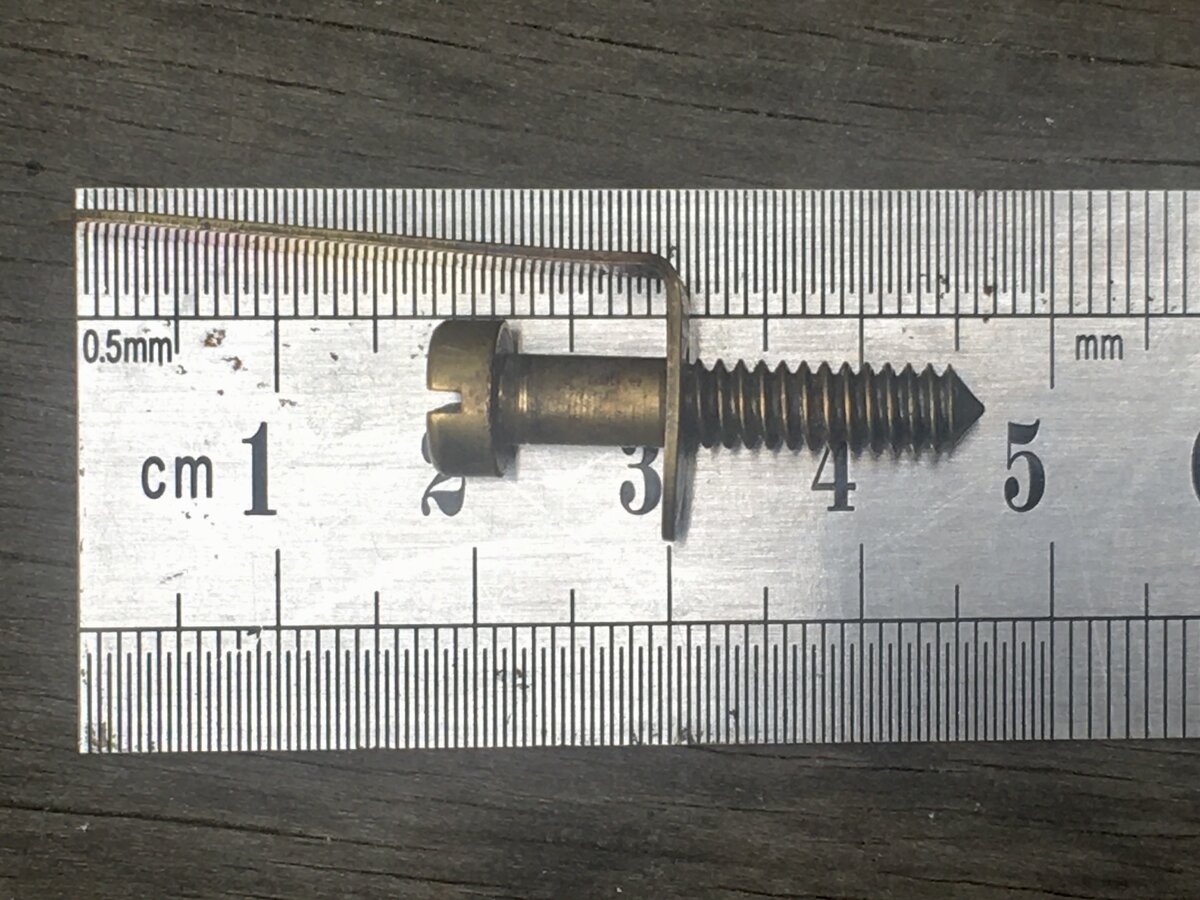

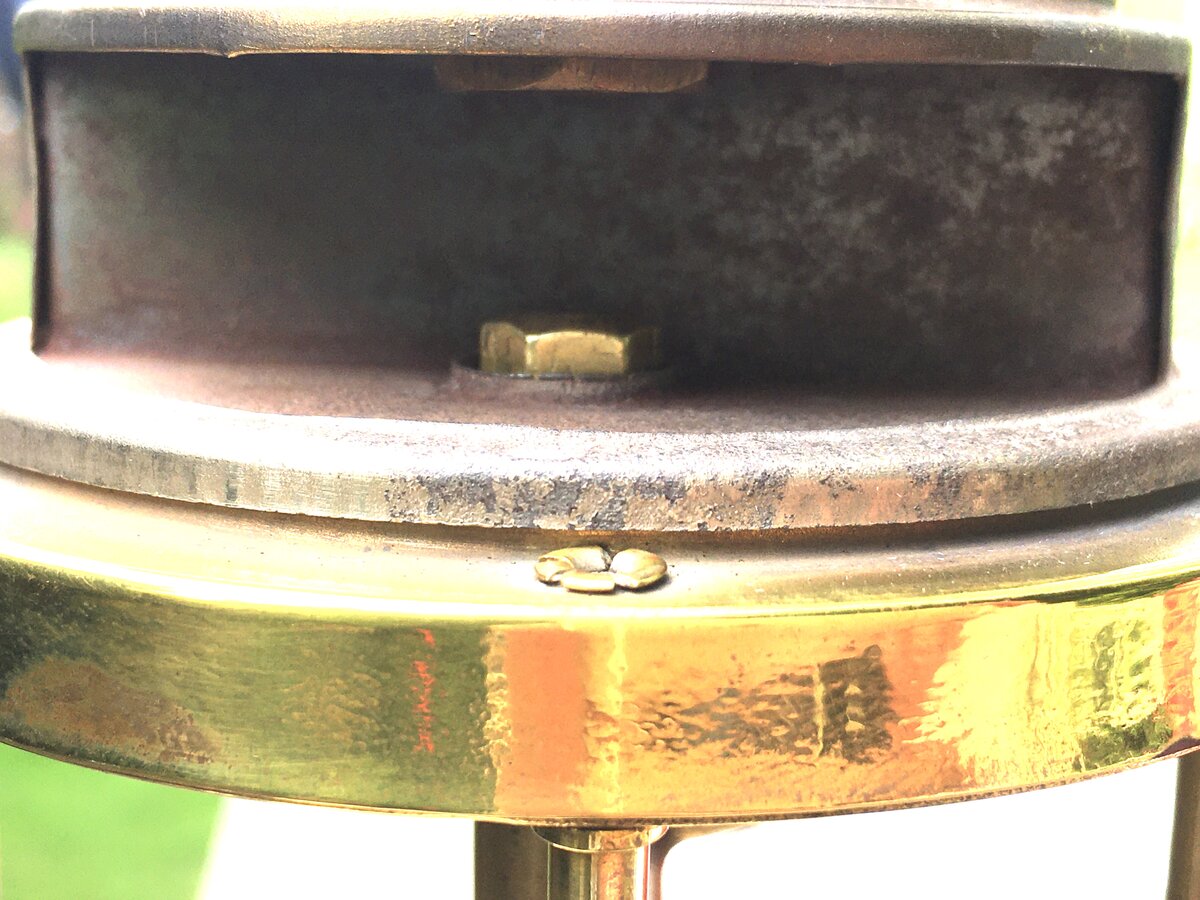

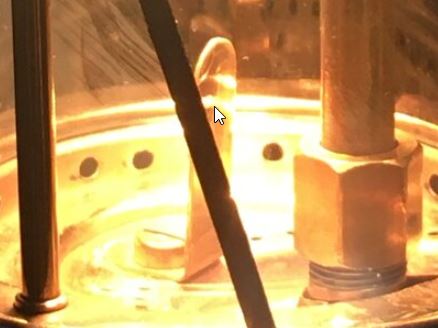

    @presscall May i know what does the tab at the alcohol plate? What is the main purpose of that being there?
    150 tab screw.jpg
    I might want to make perhaps make some of my 150s if it does something? Does it like aids the alcohol burning more upwards? :-k

  23. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,897
    Location:
    Somersby, New South Wales, Australia
    @presscall

    Your welcome John, I was working on a Hipolito 250 at the time so it was of a particular interest to me.

  24. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK

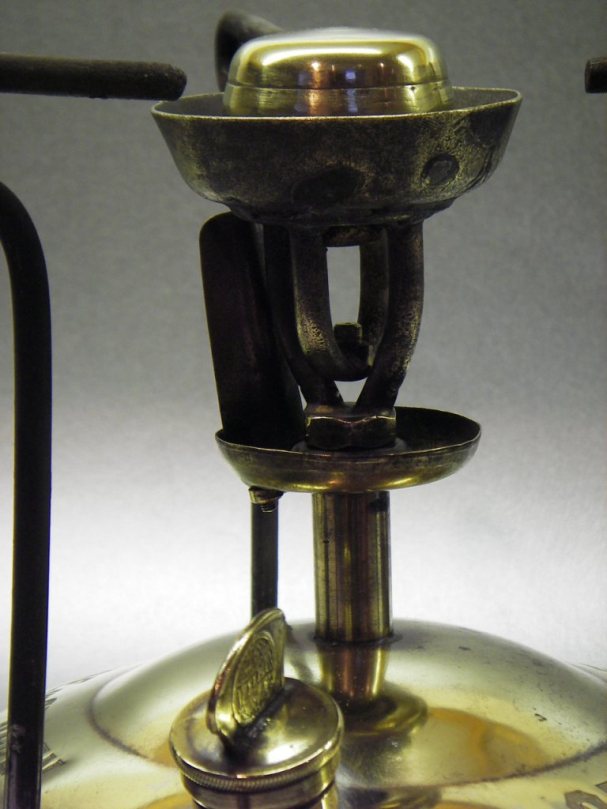

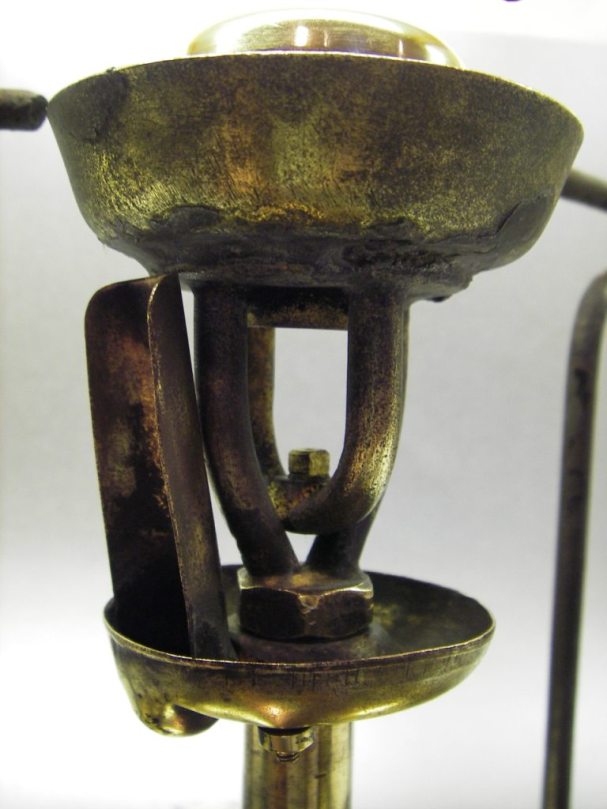

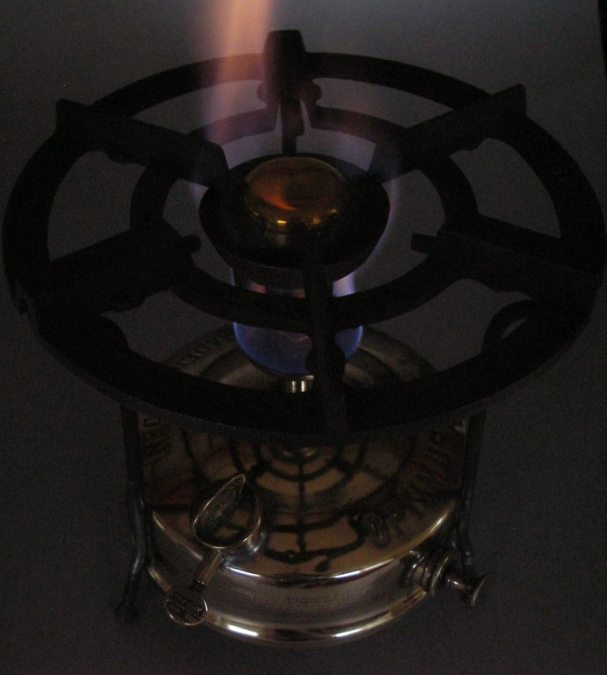

    I believe that’s the idea, yes. It works reasonably well. It’s an old idea, seen in a more elaborate version on this early Optimus kerosene stove in my collection.




    During priming the component can be seen to send a ‘spike’ of flame upwards, which at the right moment can be used to ignite the burner - by closing the air screw and pressurising the fuel tank with the pump.



    On the stove, the spirit cup has a depression at the base of the priming device in which the last residue of burning alcohol collects. This gives the user a last few moments’ warning to pressurise the tank and ignite the burner.


  25. isfuzzy

    isfuzzy Subscriber

    Offline
    Joined:
    Feb 13, 2014
    Messages:
    124
    Location:
    Singapore
    Perhaps i will try making one, i do have some leftover brass shim stock from the Out-D frame. From the photo, the tab stands at 2x the nut height. I do have to say the heating of 150cp is not very effective as it is. I am also tempted to install the tube like jet thingy like on the larger lamps. :-k

  26. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    Yes, 30mm, with a slight tilt towards the vapouriser.
