Interesting repair for Tilley Hood #449

Discussion in 'Fettling Forum' started by Tony Press, Nov 6, 2023.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,407
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    This is a very good repair to a Tilley part 449 hood (the one that fits EX4 and EX100 and the Kayen AP2 lanterns).

    It came on a Kayen AP2.

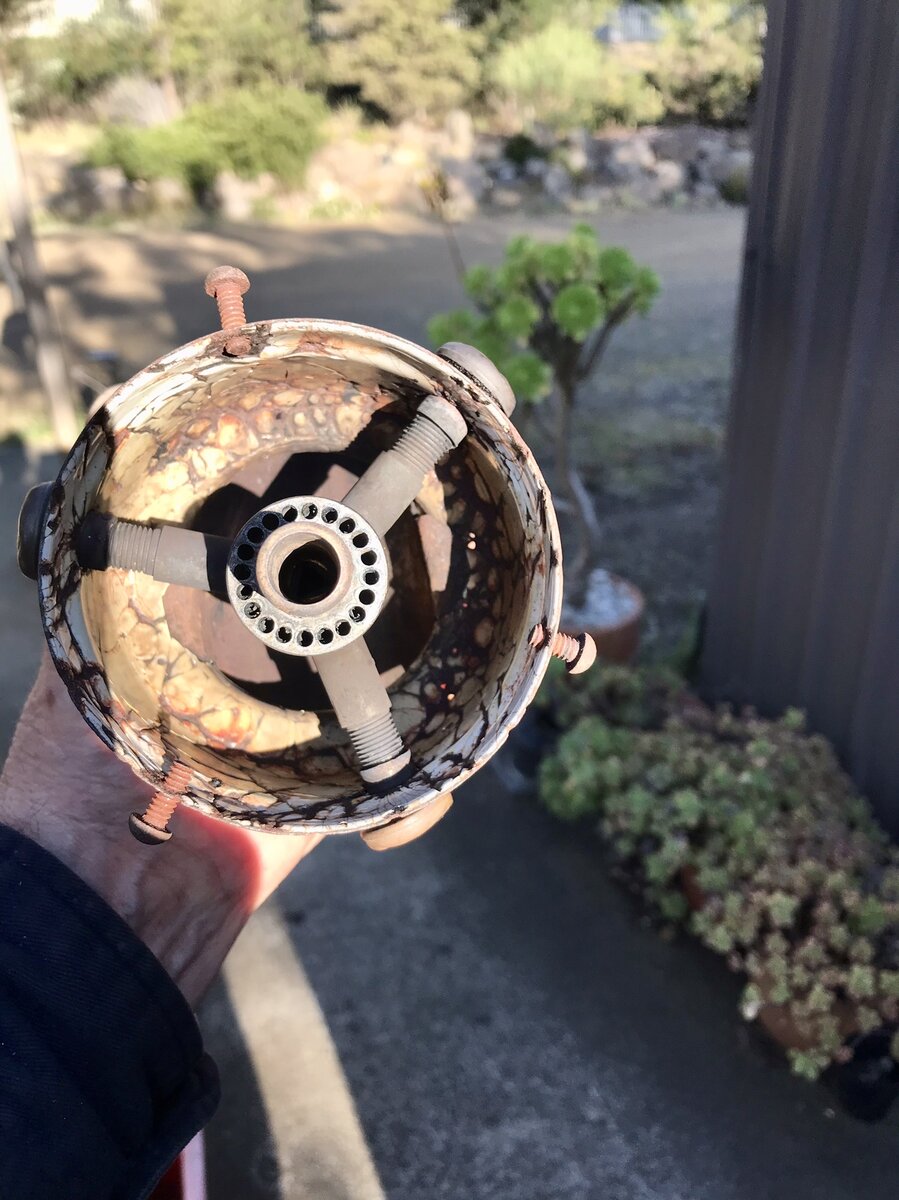

    The hood had obviously had a hard life and lost its domed top section, as well as the hook for the wire globe holder. The latter was replaced by the use of three screw in holes drilled into the hood.

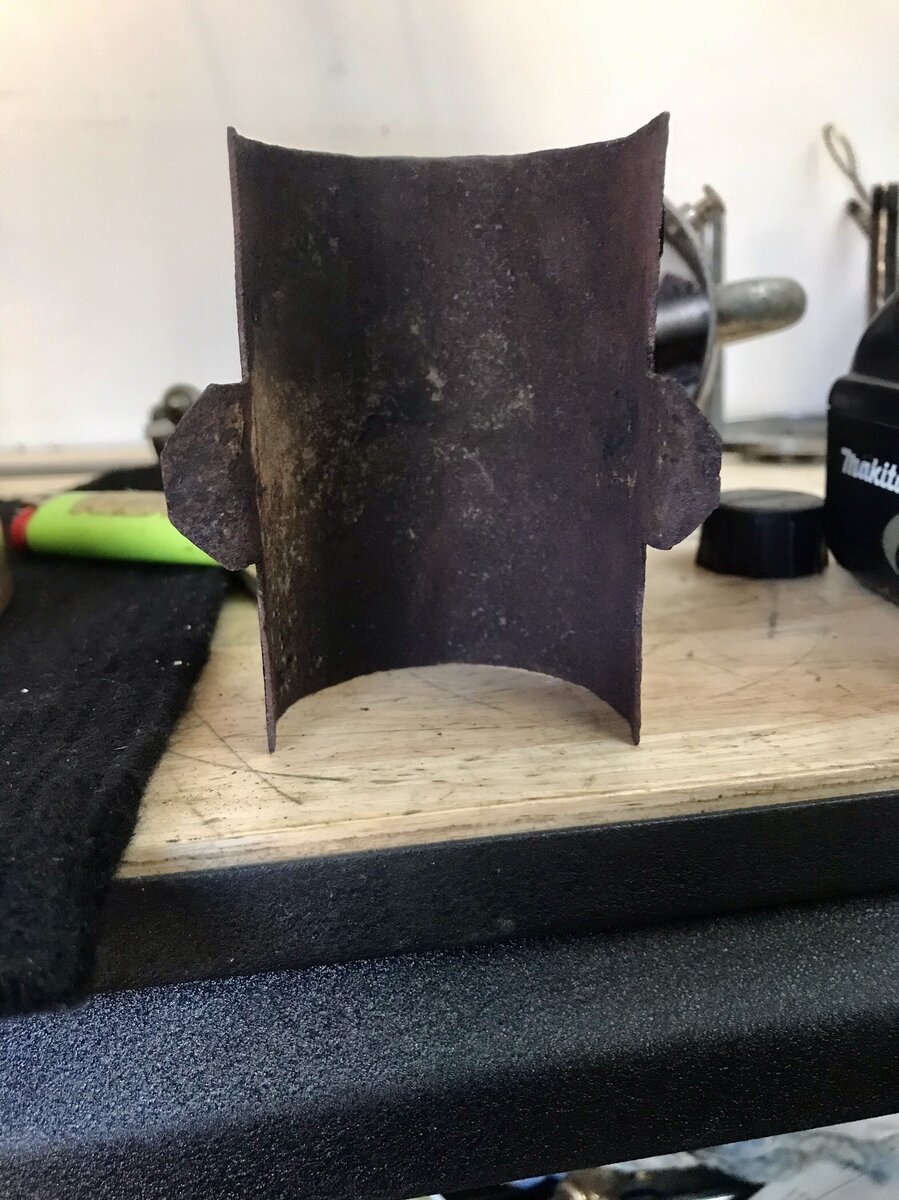

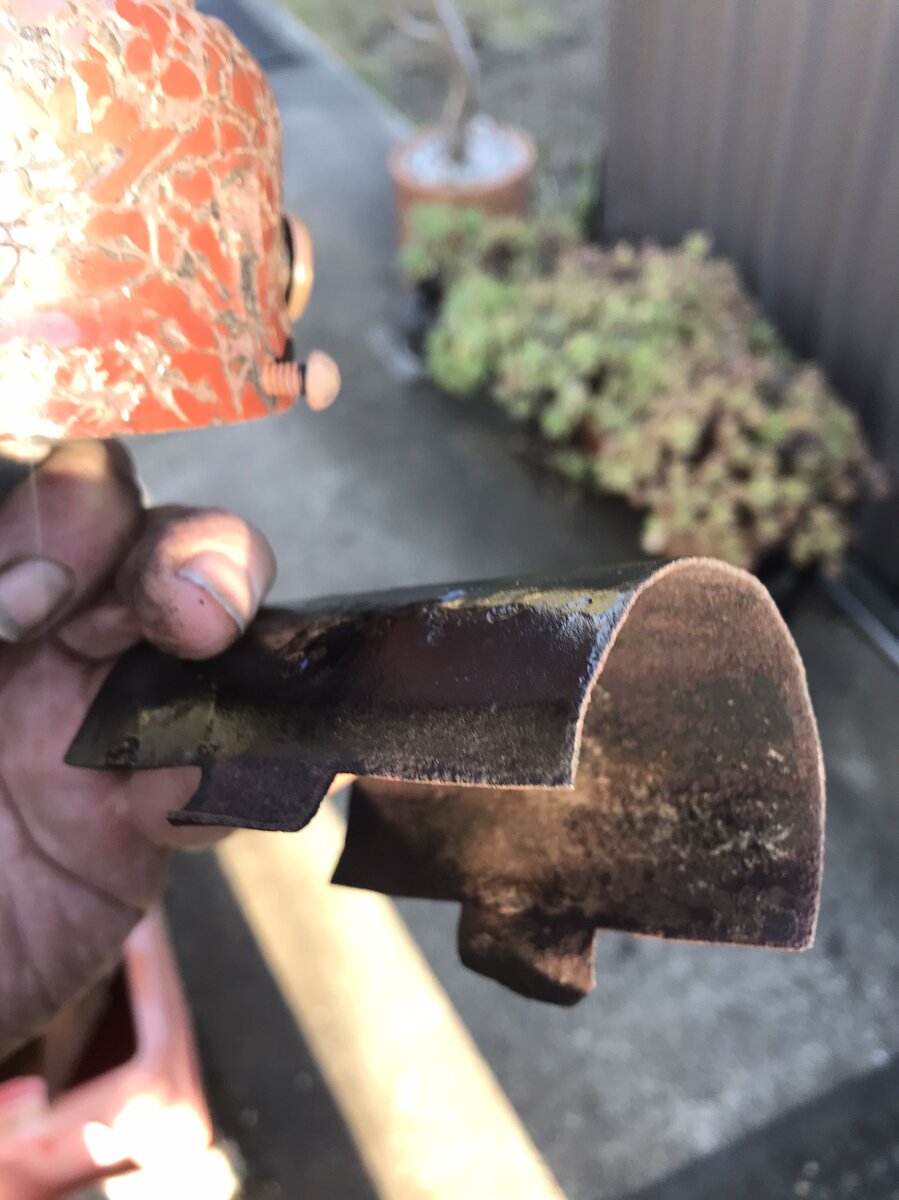

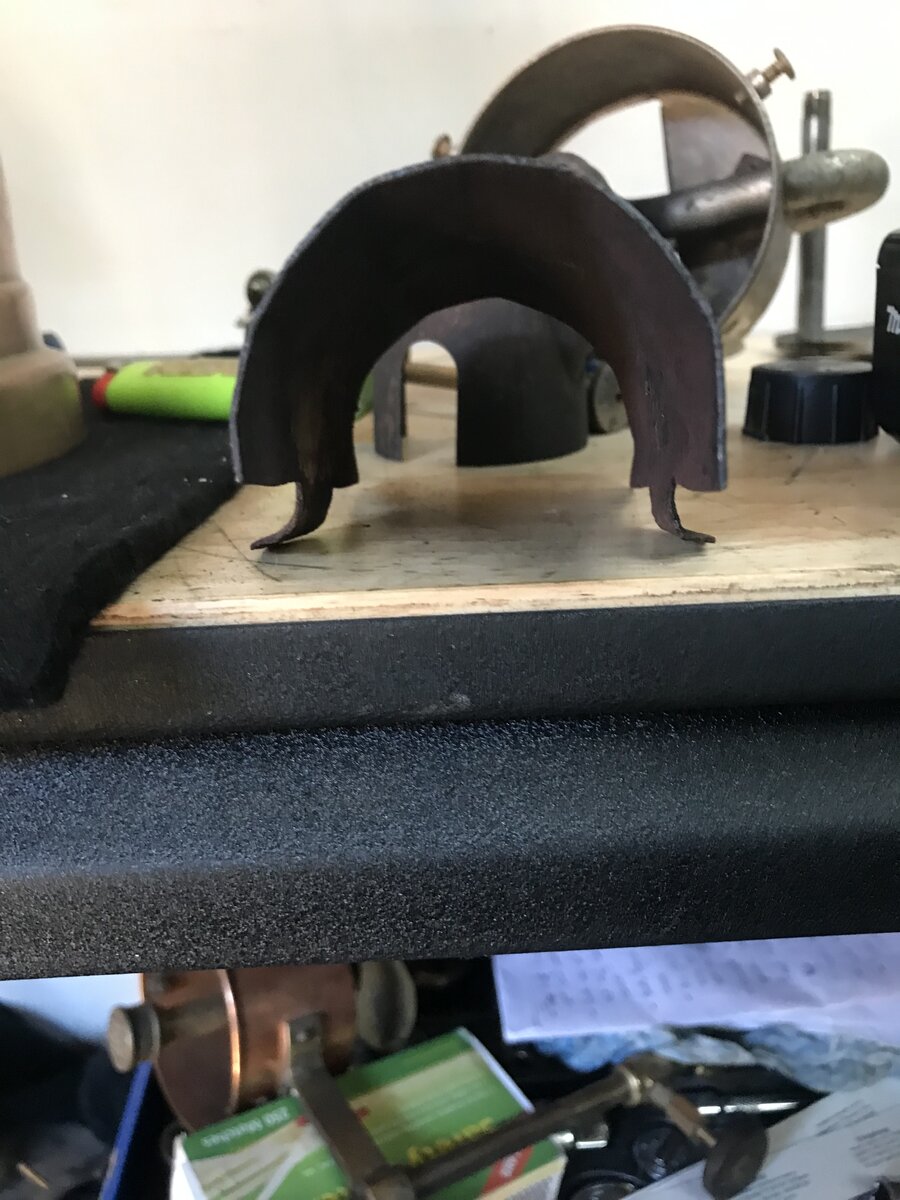

    The top domed part was replaced by a curved piece of steel which appears to be quite springy. It was cut so that it had two tabs that would hold the piece hard onto the lower part of the hood:








    It works well.



    Cheers

    Tony

  2. Twoberth

    Twoberth Subscriber

    Offline
    Joined:
    May 28, 2018
    Messages:
    37
    Excellent!

  3. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    2,202
    Location:
    Australia Melbourne
    Ingenious.:thumbup:

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    14,743
    Location:
    Shetland Islands UK..
    That does the job!:thumbup::thumbup:

  5. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    925
    Location:
    Wimmera, Victoria
    They are worth saving, so a good and well thought out solution. :thumbup:
