June 1939 827 Rapid

Discussion in 'Lanterns' started by Tive, Mar 24, 2020.

  1. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Hello,

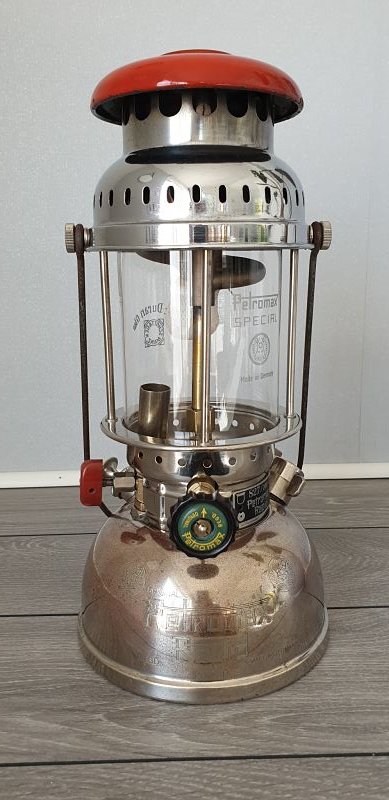

    This one came to me from Finland, i believe it was manufactured back in June 1939, going by the scratches in the bottom.

    827 Front.jpg 827 left.jpg 827 Rear.jpg 827 Right.jpg 827 Wheel assembled.jpg 827 Wheel appart.jpg 827 Gauge appart.jpg 827  Date.jpg 827 layout.jpg 827 inner hood.jpg 827 labeling.jpg 827 Gauge assembled.jpg 827 air valve.jpg 827 glass cylinder.jpg

    Struggling to light this one with the Rapid heater, but appart from that it runs real nice and bright.

    Regards / Frederik

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,212
    Location:
    Shetland Islands UK..
    It's in fine condition!:thumbup:

  3. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,533
    Location:
    USA
    @Tive Beautiful! It looks like my 821 Nov 1939. But it should since the only difference is the rapid lighter and the red top. Very nice find!
    :D/

  4. Reinhard Germany

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    280
    Location:
    Germany
    Very nice :thumbup::thumbup:
    The Petromax 827 with a rotary preheater was the first Petromax of the 827 type.
    It has become very rare.

    Regards Reinhard

  5. Alex Smith

    Alex Smith United Kingdom Subscriber

    Online
    Joined:
    Jun 18, 2019
    Messages:
    366
    Location:
    Midlands, UK
    Lovely Lantern.

  6. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    434
    Location:
    Niers, Germany
    Wow. Incredible good condition
    For this make and age.
    Congrats.
    Pls show it lit.

  7. Martin K.

    Martin K. Subscriber

    Offline
    Joined:
    Sep 20, 2013
    Messages:
    624
    @Tive
    Congrats to this beautiful find!
    According to most of the documents that I have got it would even be more likely that it is from Sep. 1936. This 827 with the red enamel cap model can be found, for example, in catalogue numbers 151d, 170p, 524, and several others from that year. We (Neil, Jörg W. and I) did extensive research in December 2019 and in January 2020 and found many documents that can confirm this. Unfortunately we have only a few documents from 1939, and this model could not be found in them.
    Martin

  8. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,220
    Location:
    Malaysia
    Looks nicely cleaned up. Excellent condition.
    Why was struggle?

  9. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Hello Guys,

    On the date, maybe it could be one from 36, but i doubt it, i do have one marked 6 7 here 1936 827 Rapid The thread states 1936, as i posted this one before i knew about the scratches. anyways, the one marked 6 7 has the model number imprinted on the fount, nickel hood, fibre wheel and much darker (bakelite ) rapid heater turning knob.
    therefore i lean more towards 1939, i actually have two of these red tops, and they both have considerable worse nickel plating, than the older one, which make sense as the war efforts starts to come in to effect on rare metalls.

    Fred

  10. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Hello, well the pre heater works, but it is not very strong, and it cuts out all the time.

  11. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Some photos from the one marked 6 7

    827.jpg Close up.jpg 6 7.jpg

    Fred

  12. Alenstein Poland

    Offline
    Joined:
    Oct 3, 2019
    Messages:
    32
    Location:
    Ełk
    Nice lamp, I have got one with old style preheater but 500 CP, problem in first lamp was gallery, was cracking...What about your gallery?

  13. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    what do you mean with gallery ? the cage ? i have one small crack in the cage on this one but not serious.

  14. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Hi again, you might notice that the lantern lacks a plastic window inside the gauge, here Making New plastic window for gauges. you can read on how to fix this issue.

    Regards / Fred,

  15. Alenstein Poland

    Offline
    Joined:
    Oct 3, 2019
    Messages:
    32
    Location:
    Ełk
    Yes, I mean cage, first cages were very thin.

  16. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Yes, this is a common problem, on many different lanterns, most of the time they still work though, On the Radius 119 the whole cage ring often falls appart.

    regards / Fred,

  17. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Some more info on this, i have one more lantern just like this one, same tag on the cage, same red hood, same wheel, same problem with the nickel plating, this one is scratched 1 9 on the bottom, if reading from the other way it would not make sense as it only will read 6 L so i do believe this one to be from January 1939, the only difference between these two is the fact that the one i believe to be manufactured in June 1939 (6 9) came with steel parts such as pump rod and pump knob, and a aluminium pump cap. this also makes sense, since the war is comming closer by June 1939.

    Worst fount 1 9.jpg 1 9.jpg

    Not saying i'm right, just what i believe.
    regards / Fred.

  18. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,220
    Location:
    Malaysia
    Could a little clogged? Or perhaps pressure's too low.

  19. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Yes probably clogged slightly

  20. Reinhard Germany

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    280
    Location:
    Germany
    Hello,
    I also have 3 Petromax 827 from the time. Left to right:11 7,12 9,4 41.November 1937,December 1939,April 1941.The Petromax from 1941 already has a Zinc cast lever.
    The older Petromax from 1937 has a one-piece enameled hood. And this hood is a little lower.
    The hand wheel on the second lamp was missing.
    Regards Reinhard IMG_20200326_160235.jpg


    Attached Files:

  21. Reinhard Germany

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    280
    Location:
    Germany
    The tanks of the older 827 were labeled with a large 827.
    Reinhard

  22. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    And these are my Petromax 827s and one 821, the oldest one is the 827 on the left, ( 1 7) then we have the 821 (1 8) and the 827 from 1939 (6 9) and the 250cp 827 from 1955 (5 5) sicke lantern.

  23. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355
    Ok buddy ! here its up and running. 20200328_134711_opt.jpg

  24. Alenstein Poland

    Offline
    Joined:
    Oct 3, 2019
    Messages:
    32
    Location:
    Ełk
    It looks great...

  25. Reinhard Germany

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    280
    Location:
    Germany
    Very beautiful:thumbup:
    June 1939 is correct.
    Do you have a preheater installed?

    Regards Reinhard

  26. Tive

    Tive Sweden Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    355

  27. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,033
    Location:
    Toowoomba Australia
    @Tive
    Nice one mate, very nice.
