Kitson D4 donut

Discussion in 'Kitson' started by pete sav, Dec 7, 2022.

  1. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,099
    Location:
    West yorks

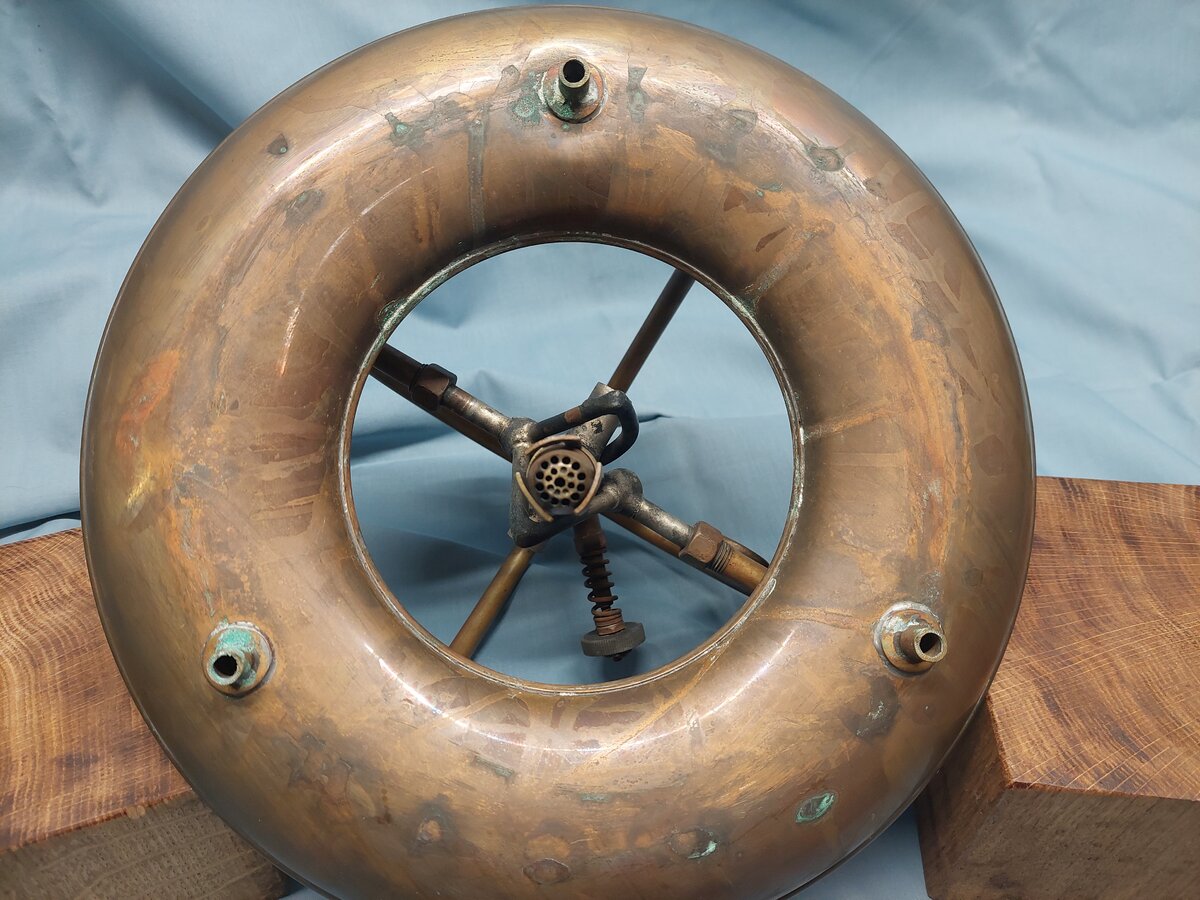

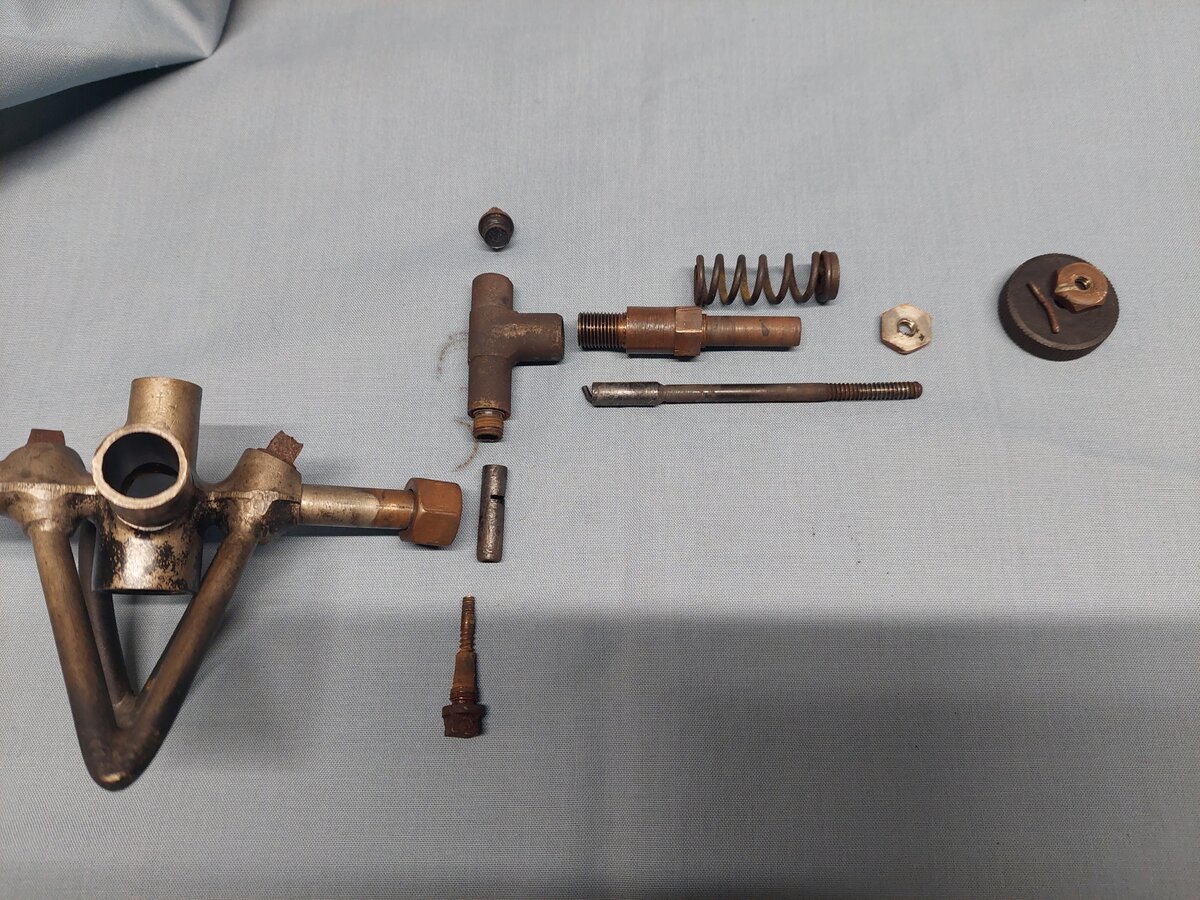

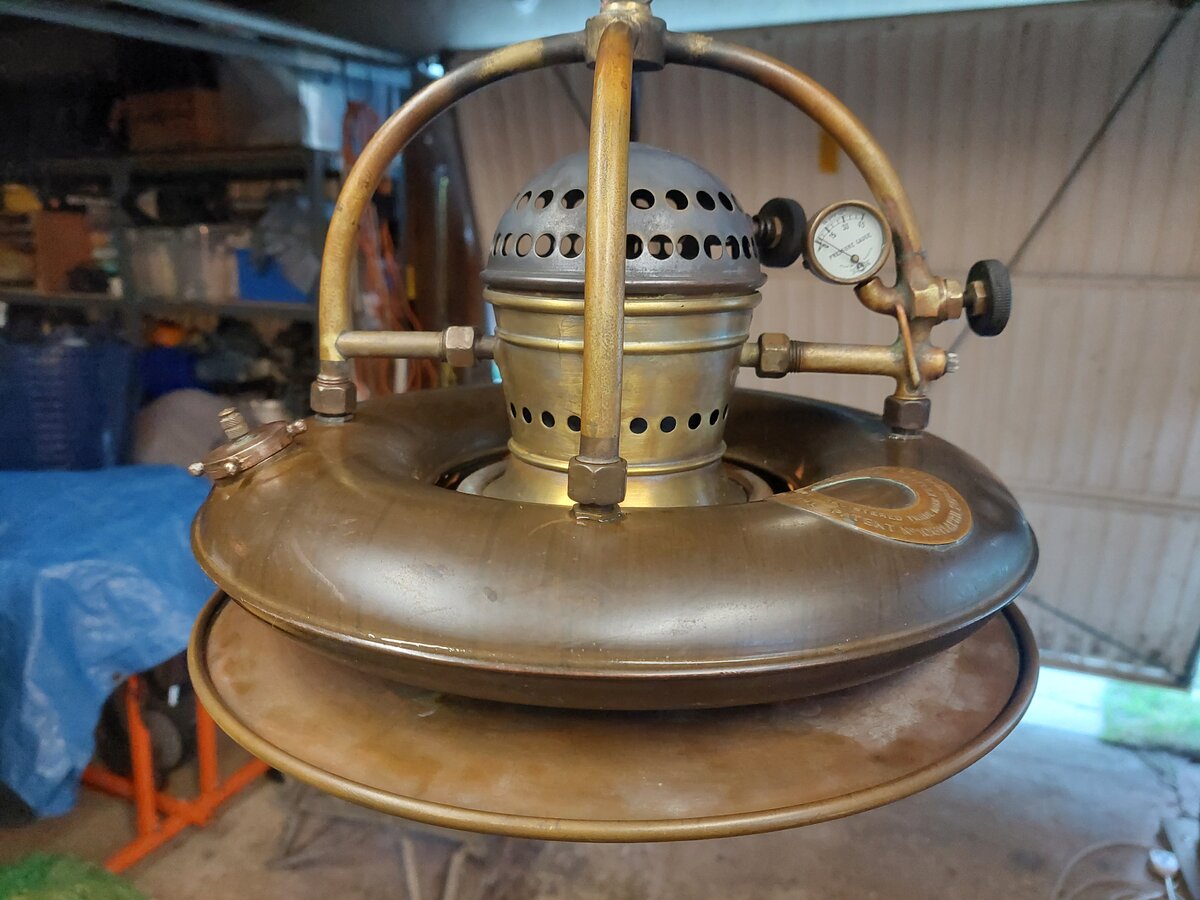

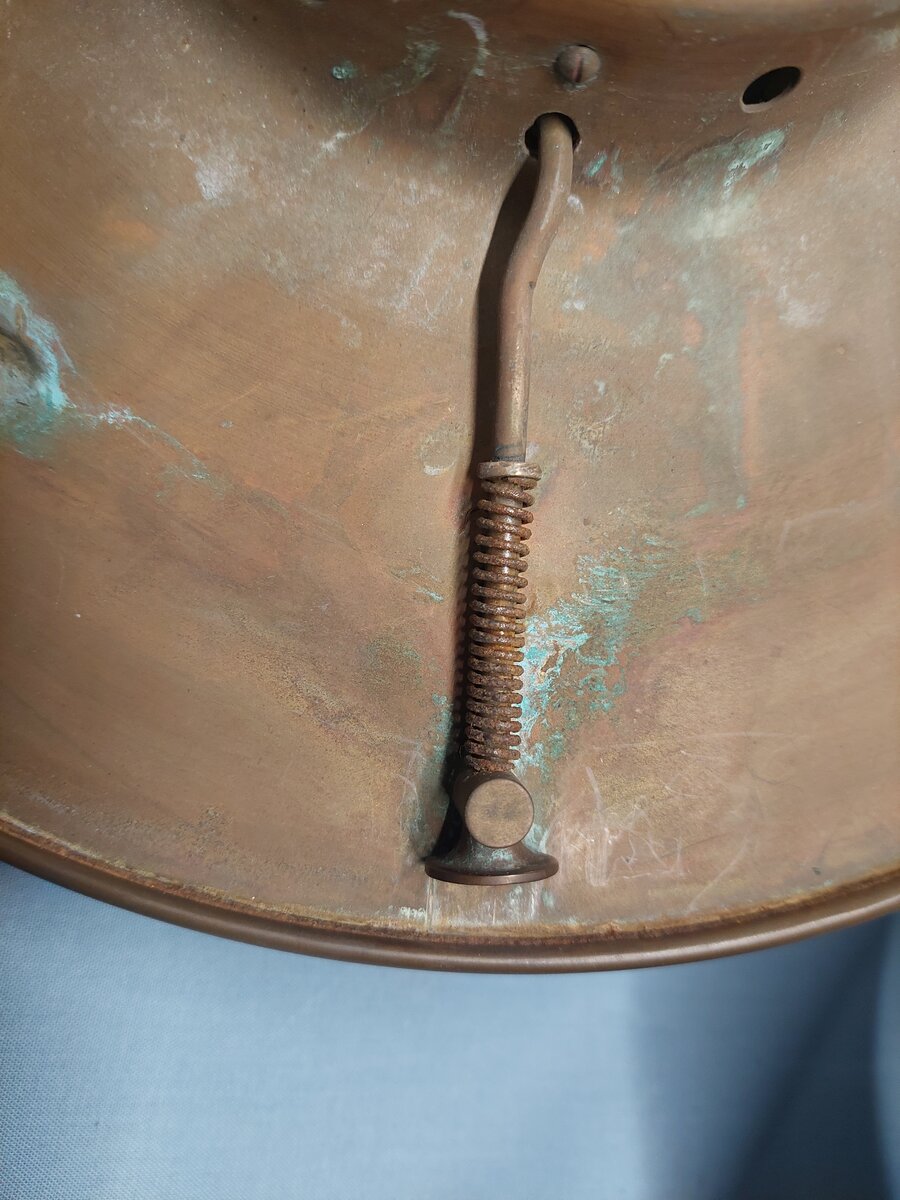

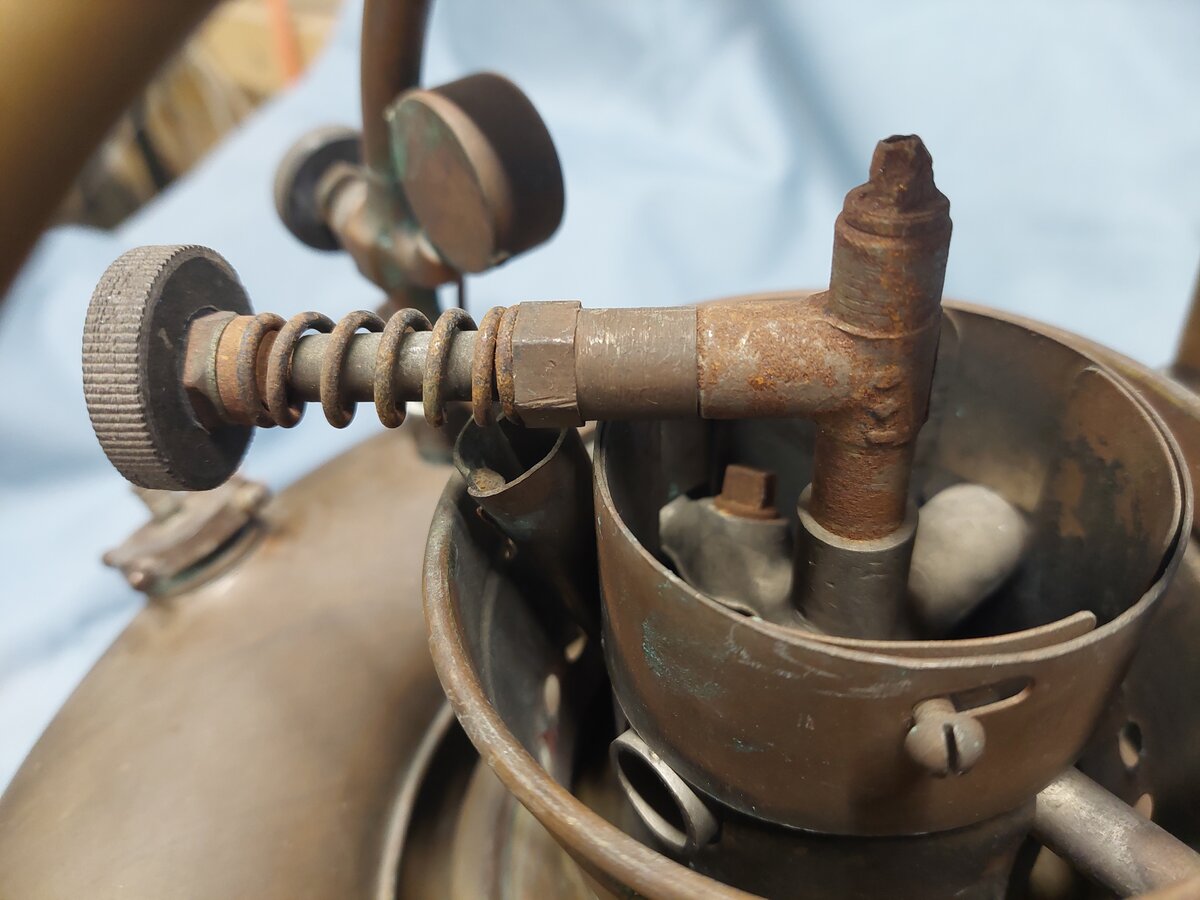

    Here is a very early kitson that has landed here to fettle. Not my lamp only here for some tlc. It is unusual as it has a inbuilt pricker mechanism not seen in later lamp or in adverts post 1915. Some pictures here of my initial stripping down nothing too scary but the jet and pricker will most likely give me some grief

    20221207_122701.jpg 20221207_122728.jpg 20221207_122711.jpg 20221207_122801.jpg 20221207_123110.jpg 20221207_123135.jpg 20221207_124608.jpg 20221207_123230.jpg 20221207_123252.jpg 20221207_123917.jpg 20221207_123936.jpg 20221207_124235.jpg 20221207_124442.jpg 20221207_132426.jpg 20221207_132339.jpg 20221207_133701.jpg

    Last edited by a moderator: Dec 7, 2022
  2. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    944
    Location:
    Gujan-Mestras - Gironde - France
    Awesome lantern :D/

  3. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,298
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent!

    It’s in good hands, Pete. Keep us posted with your progress.

    Tony

  4. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,869
    Location:
    North Yorkshire
    A rare lamp, the owner is one lucky person !

  5. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,884
    Location:
    Hertfordshire
    This is a truly old lamp which looks to be complete and in great condition except for the globe and its clamp perhaps. The earliest ad we know of with the four tube arms is from 1912 but by 1915 they were illustrating the same lamp with just two tube supports so this has to be pre WW1. ::Neil::

  6. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,099
    Location:
    West yorks
    Yes it's a fine old lamp this I think it's all original with it's nickel plate been taken off somehow. The plating can be seen on the spirit dish and the globe clamping system Neil. There are 2 fixed pegs and 1 spring loaded one not like the usual globe ring on later models.
    Had little time on it today but it was so cold in the garage I left it till tomorrow.
    Jet is rusted out way oversize and the pricker gone so that's a task for tomorrow rest of it looks really good for a lamp of this age. A previous owner has had it in bits and cleaned it up some time ago but not damaged it in any way unlike a lot of these old lamps so high hopes of a runner here watch this space
    Cheers pete

  7. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,645
    Location:
    Shetland Islands UK..
    A splendid fettling project.:thumbup::thumbup:

  8. Pchamp

    Pchamp Japan Subscriber

    Offline
    Joined:
    Jan 9, 2015
    Messages:
    34
    Location:
    Canada
    This will be a great thread to watch as the restoration takes. Pete, looking forward to your updates and progress.

  9. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    650
    An absolutely beautiful piece of kit!
    One of these has been on my wish list since the moment i saw one running at Ipswich, I can't describe it but these have definitely got it going on.
    Wishing you great success with your fettle, James

  10. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,884
    Location:
    Hertfordshire
    That would have been this one Kitson Do nut which I have shown running a few times at Ipswich. Mine is the two tube type which will be post 1914 I guess. I did have a problem with the jet which is steel and was very rusty which made the burn erratic. I cured it by flatting of the face on an oil stone to clean the hole profile and now it runs perfectly. ::Neil::

  11. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,099
    Location:
    West yorks
    Had a play with this lamp yesterday made a new pricker and swapped the jet for one that looked in better shape.
    The nrv looks strange cap soldered on surely that cannot be right now this should have set alarm bells ringing but it didn't
    Any way reassembled the lamp felt pretty good about how it had gone but thought I would leave it till this morning for a light up. 20221212_155958.jpg
    Nrv ?

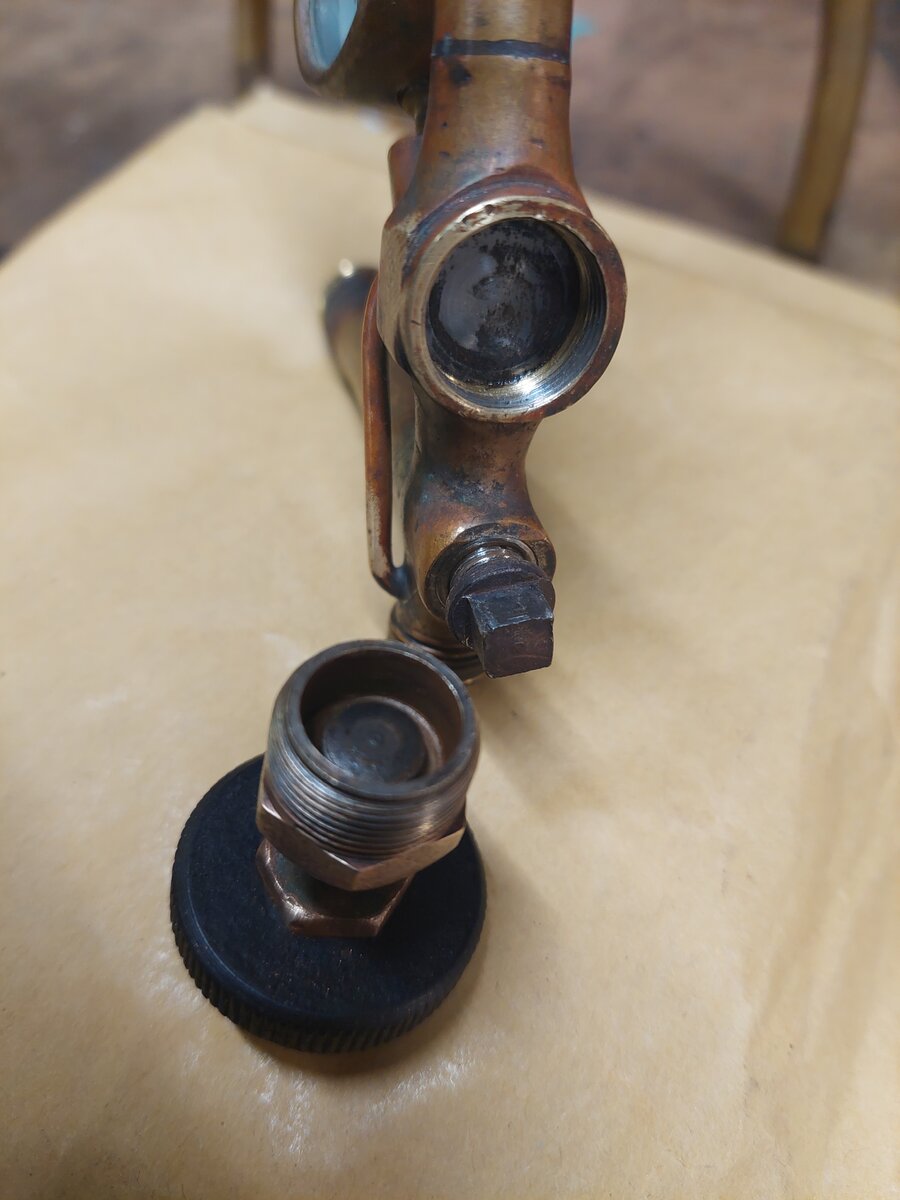

    Shut off valve is different to what I have seen before too
    The control knob presses on a metal diaphragm to shut fuel off bit odd but works well
    20221212_155852.jpg 20221212_155917.jpg

    Anyway I got the lamp filled with fuel this morning hung it up pumped some air in and it's all looking good.
    In goes the meths for the preheat and let it warm up
    Next thing bang the whole bloody lamp crashes to the concrete garage floor give me a shock.

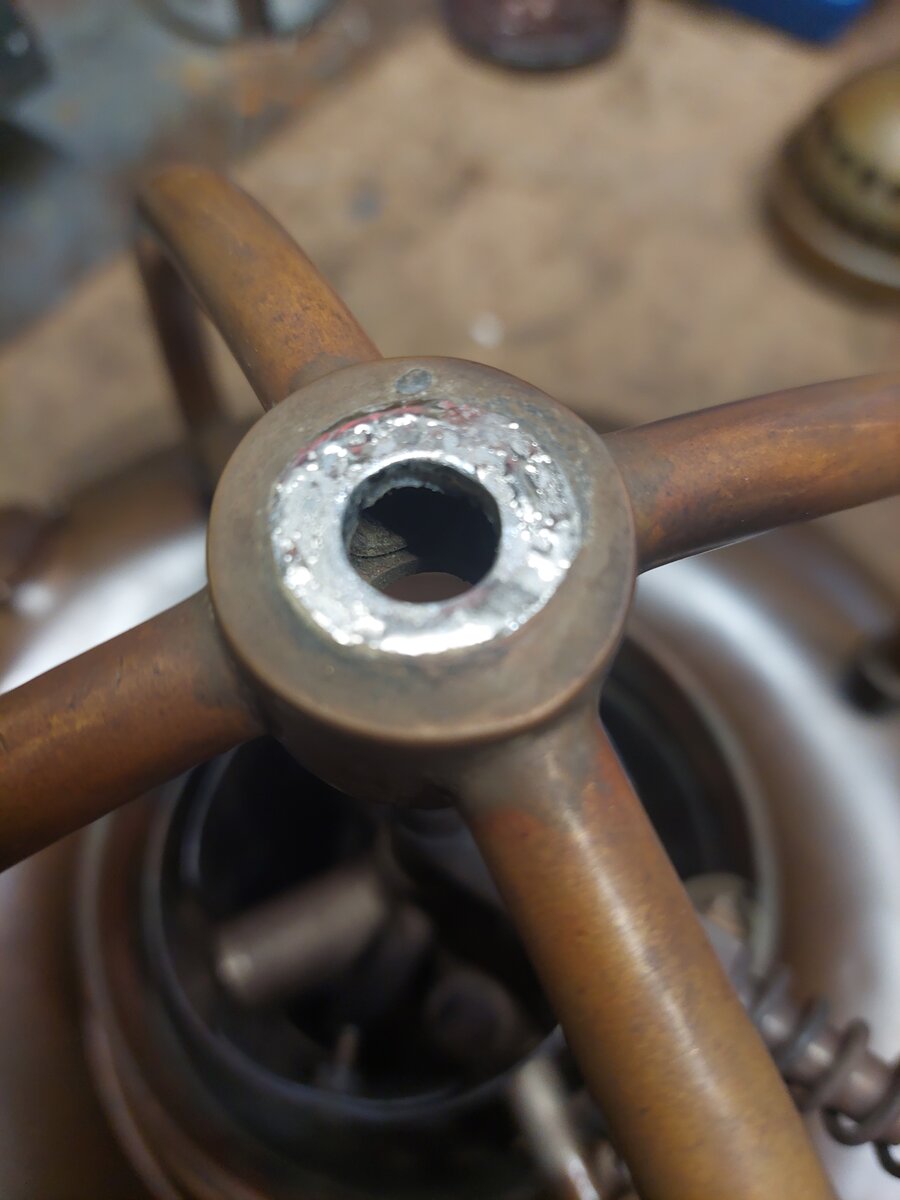

    Now someone a previous owner must have soft soldered the top ring to the hanging frame now thats a new one on me never saw of that coming.
    20221213_104131.jpg 20221213_104122.jpg 20221213_104122.jpg 20221213_104233.jpg

    So spent today repairing the carnage as best I could have another go tomorrow
    Why do we do this stuff?
    Cheers pete

  12. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,869
    Location:
    North Yorkshire
    Ouch ! I hope the carnage wasn't too severe. A good job you have the skill to sort it out.

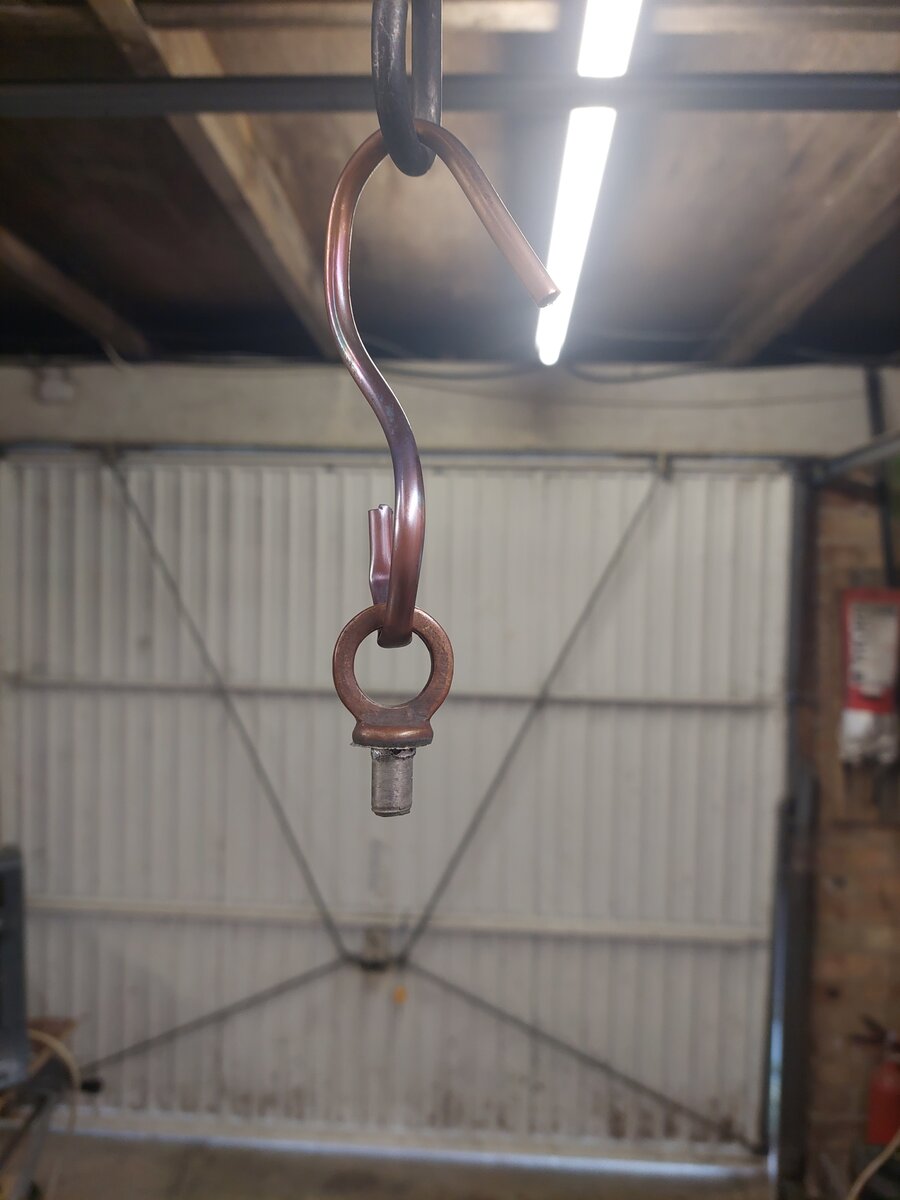

    It looks like that top ring started life as an eyebolt and someone sheared the end off trying to loosen the nut.

  13. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,099
    Location:
    West yorks
    This old stuff catches you out at times henry, yeh I reckon it was a eye bolt now it's silvered soldered to the frame spent 5 hours doing repairs straightening pipes fixing broken metal most of the damage was inside the cowls so it won't be seen , still I could have done without it.
    Cheers pete

  14. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,869
    Location:
    North Yorkshire
    A lot of extra work
    I can well imagine.

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,298
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Ouch! I'm sorry to hear about the crash, Pete. Lucky it's in good hands. I hope the rest of the repairs go well.

    Tony

  16. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,099
    Location:
    West yorks
    I was gutted when it fell Tony its fixable and hanging in the garage on two chains from now taking no chances now
    Another lesson learned
    Cheers pete

  17. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,099
    Location:
    West yorks

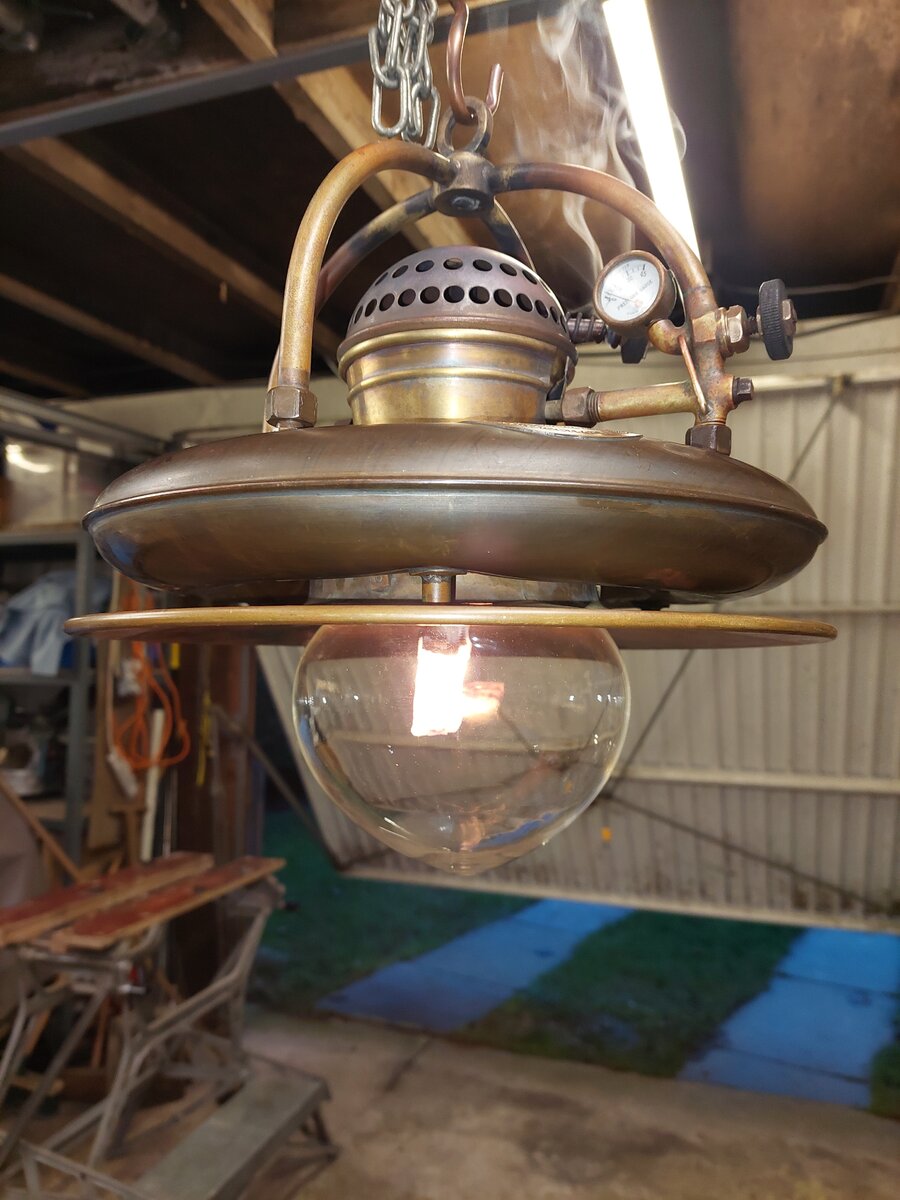

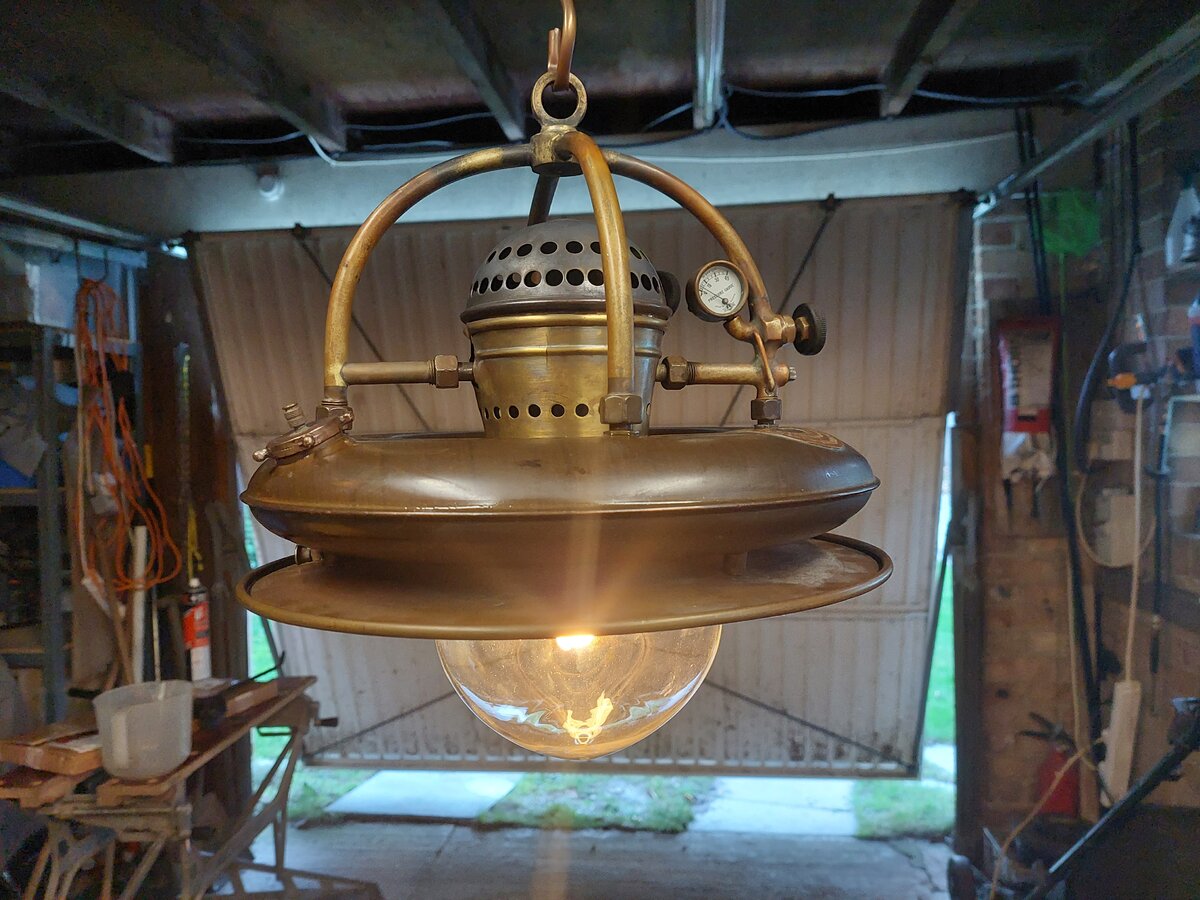

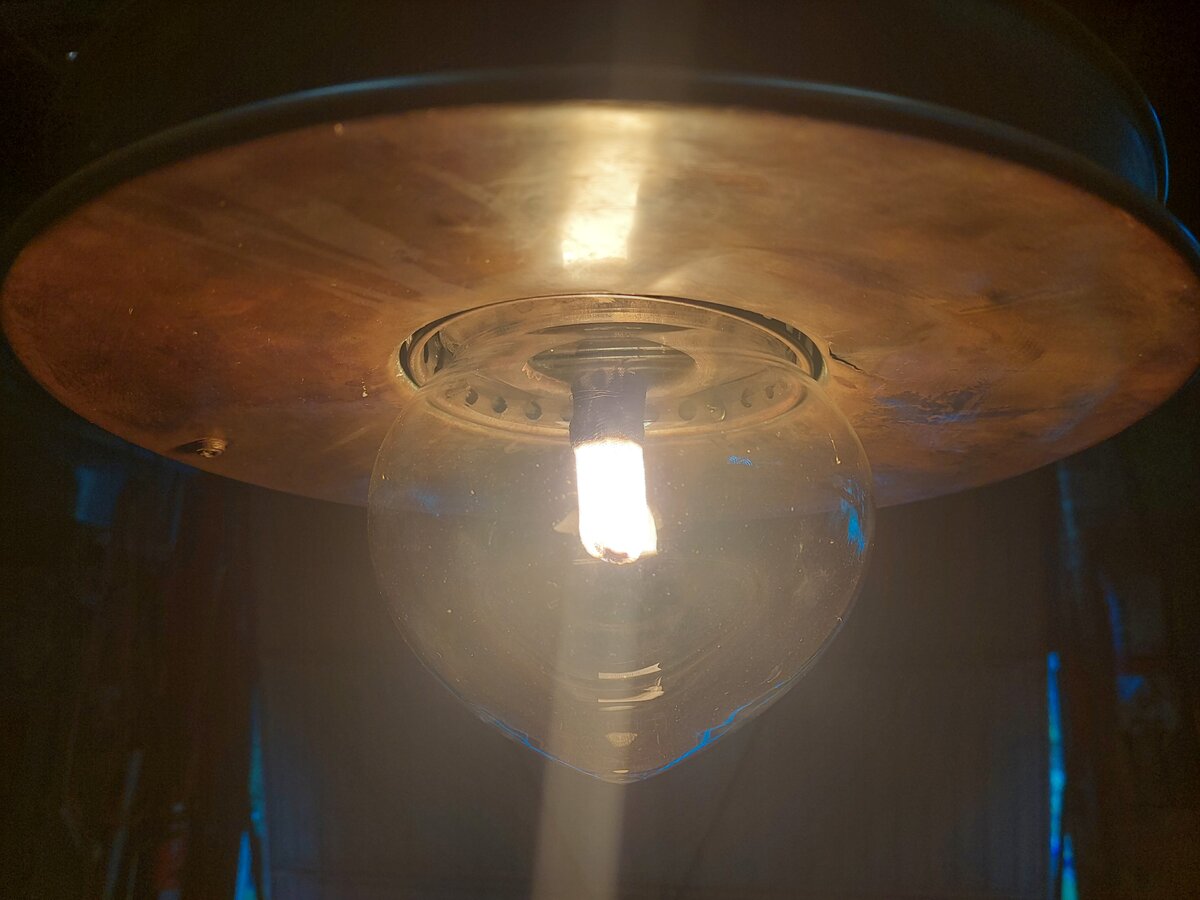

    Well finally managed to sort this donut out at last. All repairs done and it runs quite well for a lamp of this age. Had problems with the jet and pricker as usual with old lamps.
    The shaft that moves the pricker smoked really bad so I put loads of copper slip on the shaft and once it got hot it appears to have helped the smoking reduce.

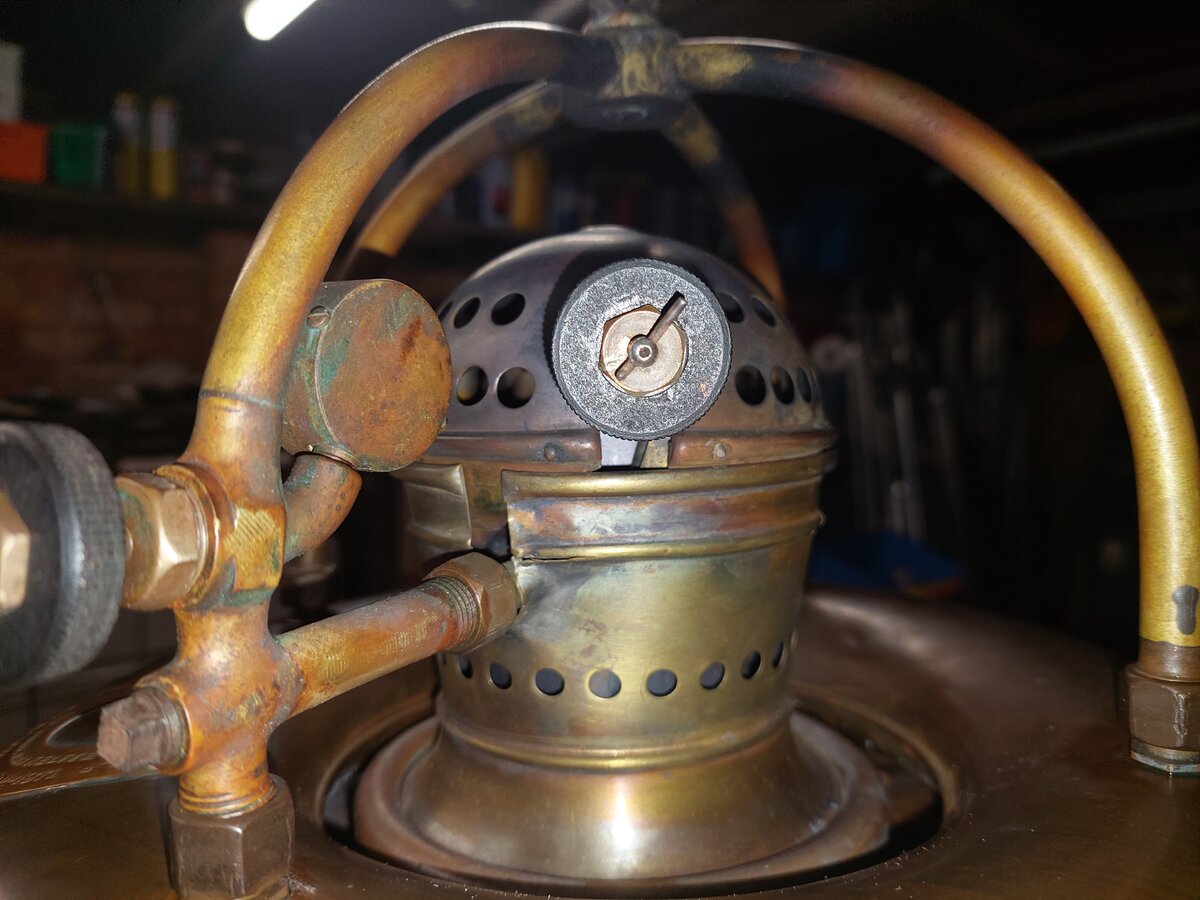

    One nice little touch on this lamp is the pin on the pricker control knob it shows the position of the pricker before you light it good idea.

    20230106_160800.jpg 20230112_153421.jpg 20230112_153448.jpg 20230112_153548.jpg 20230112_153558.jpg 20230112_153632.jpg 20230112_153715.jpg

  18. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,298
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Excellent!

    Great work, Pete.


    Cheers

    Tony

  19. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,099
    Location:
    West yorks
    Thanks Tony
    Cheers Pete

  20. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,645
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::clap::clap::thumbup:

  21. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,869
    Location:
    North Yorkshire
    Fantastic job, well done.

  22. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,985
    Location:
    Somersby, New South Wales, Australia
    Congratulations Pete ,it looks wonderful :clap::thumbup::thumbup::thumbup:
