Kynoch lantern 1920 - 1922

Discussion in 'Kynoch' started by Henry Plews, Sep 17, 2017.

  1. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    869
    Location:
    North Yorkshire

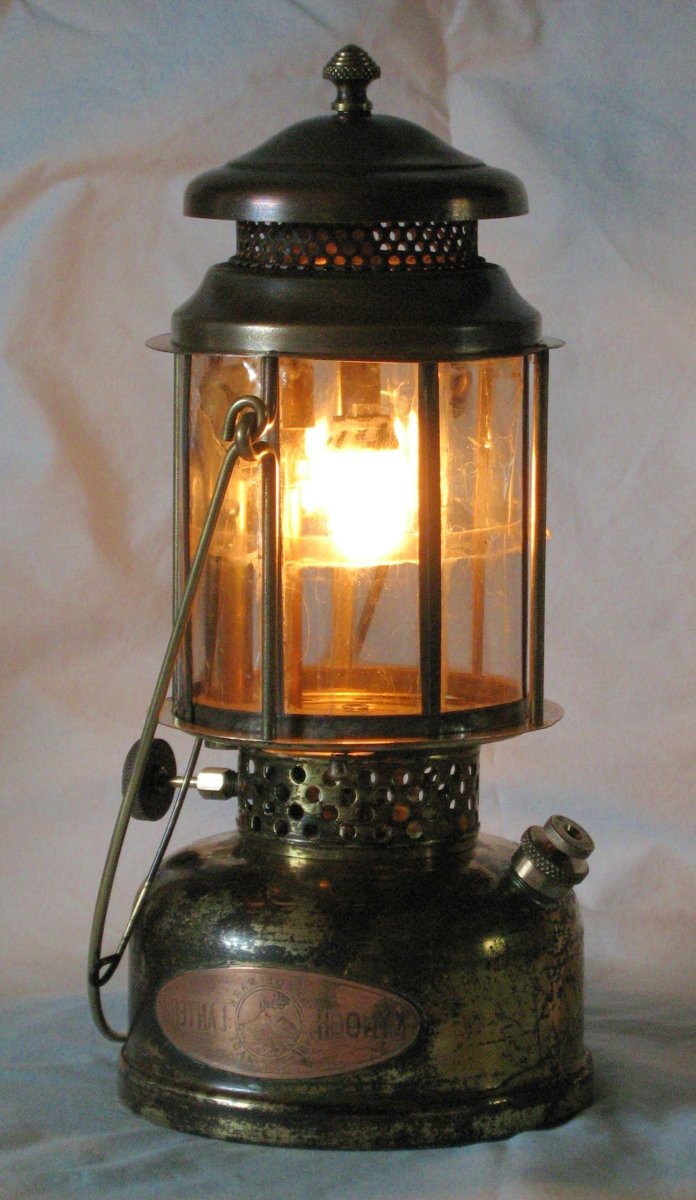

    This example retains much of the original clear lacquer which although scratched, has helped to prevent too much oxidation of the all brass fount.
    A new seal in the filler cap and a good clean both inside and out, was all that was needed to get this lantern burning brightly again.
    Kynoch 01A.JPG Kynoch 01A.JPG Kynoch 02A.JPG IMG_0744A.JPG IMG_0746A.JPG IMG_0748A.JPG IMG_0754A.JPG IMG_0755A.JPG


    Attached Files:

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,650
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::clap::clap::thumbup:

  3. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    756
    Location:
    Norfolk, England
    @Henry Plews. Nice, will it be on display at Ipswich this October?

    Regards, Jeremy

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,452
    Location:
    Somersby, New South Wales, Australia
    Looks good cleaned up. :clap:

    @Henry Plews . How did you get the mica and it's cage clean?

  5. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    869
    Location:
    North Yorkshire
    @X246A, Yes, I'll taking it to Ipswich.

  6. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    869
    Location:
    North Yorkshire
    @ROBBO55 , A soak in citric acid (1 teaspoon of crystals in 1 litre of warm water) followed by washing in soapy water. Then, for the tinwork, I remembered a tip given to me by the late Bob Willard, who I met at the Coleman convention in 2004 (Wheaton Illinois). When the bristles on the wire wheels for rotary tools such as a Dremel are almost worn out, don't throw them away, use them for cleaning the tinwork on mica shades. When there's only about 1 mm. (or less) of bristles left, there's still enough to clean the strips of tin and you greatly reduce the risk of scratching the mica panels.
    You still need a steady hand and lots of patience though.
    Once I'd done that, I used Autosol metal polish on both mica panels and the tinwork.

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,452
    Location:
    Somersby, New South Wales, Australia
    Thanks @Henry Plews . I have a couple of mica globes in need of cleaning but wasn't sure how. Also haven't been game enough to try. :(
    I have several Dremel brushes that are very worn. :content:

  8. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    869
    Location:
    North Yorkshire
    @ROBBO55 , For the tinwork, make sure to use wheels and not cup brushes. It helps if you can remove the rivets and open the mica cylinder a little, that way, you can get the wheel running lengthways along the metal strips.
    For the outside of the mica, lay it on something like an old towel (folded over two or thee times) and hold it loosely so that it can roll a little as you make your way across each panel. Support the inside with the folded cloth when polishing the outside. Where the panels overlap, "go with the grain" as it were, if you go side-to-side, you risk getting polish between the mica panels which is difficult to remove and discolours when it gets hot.
    Note : I've always used Autosol so don't know if a liquid polish e.g. Windex will discolour the same as a cream.

    edit: IF you can get away with it, just put the mica through the dishwasher. I've seen the result - it's impressive.

    Henry.

  9. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,948
    Location:
    Hertfordshire
    The problem with dishwashers is normally female. You generally need to make sure there are none within range when washing mica globes. Works very well though. ::Neil::

  10. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    756
    Location:
    Norfolk, England
    @Henry Plews

    I can't wait to see it in operation. I am bringing mine still in unfettered form.

    Regards, Jeremy

  11. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    869
    Location:
    North Yorkshire
    @X246A , That will be good. As you probably know by now, they have very few moving parts and the general construction is quite simple but there is a knack to dismantling. We can go through what, how and why I did with my example.

    Looking forward to seeing your example,
    Henry.

  12. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,452
    Location:
    Somersby, New South Wales, Australia
    Thanks @Henry Plews for the additional advice.
    The dishwasher sounds good but at home I am the dishwasher :roll: :lol:

  13. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    869
    Location:
    North Yorkshire
    Same here.

  14. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    756
    Location:
    Norfolk, England
    Well, if you want a job done properly (without any multi-tasking).....

  15. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    756
    Location:
    Norfolk, England
    @Henry Plews I think you will find it in much the same condition as purchased. Your input and information will be of great help. Regards, Jeremy
