Maroon font Bialaddin 300X project

Discussion in 'Fettling Forum' started by presscall, Jul 13, 2020.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    Not so grand a ‘time capsule’ find as Jeremy’s house clearance Primus 1050 but this Bialaddin had immediate appeal as unrestored, put away and forgotten about maybe, but dry stored and not decayed.

    ‘Honest’ is the term often used to describe a bygone in this condition I think.

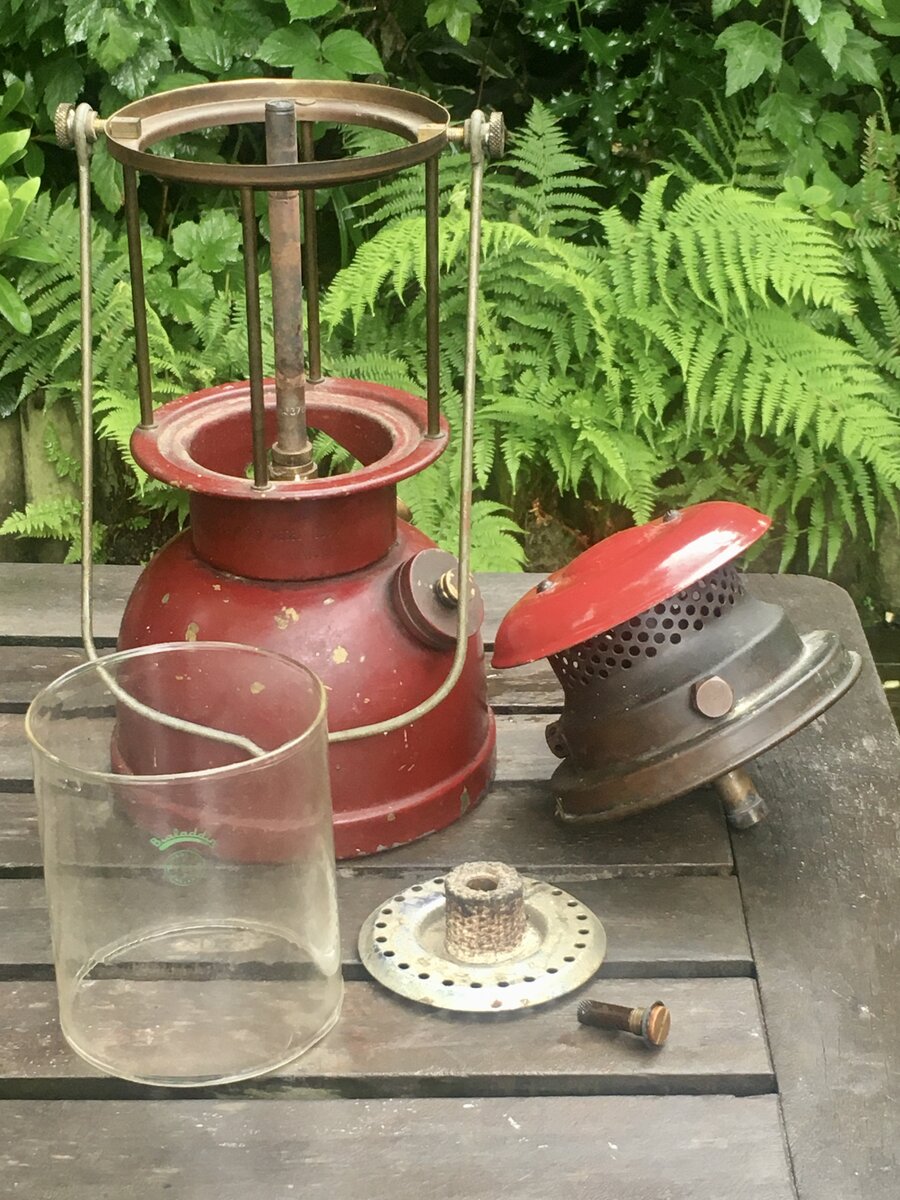

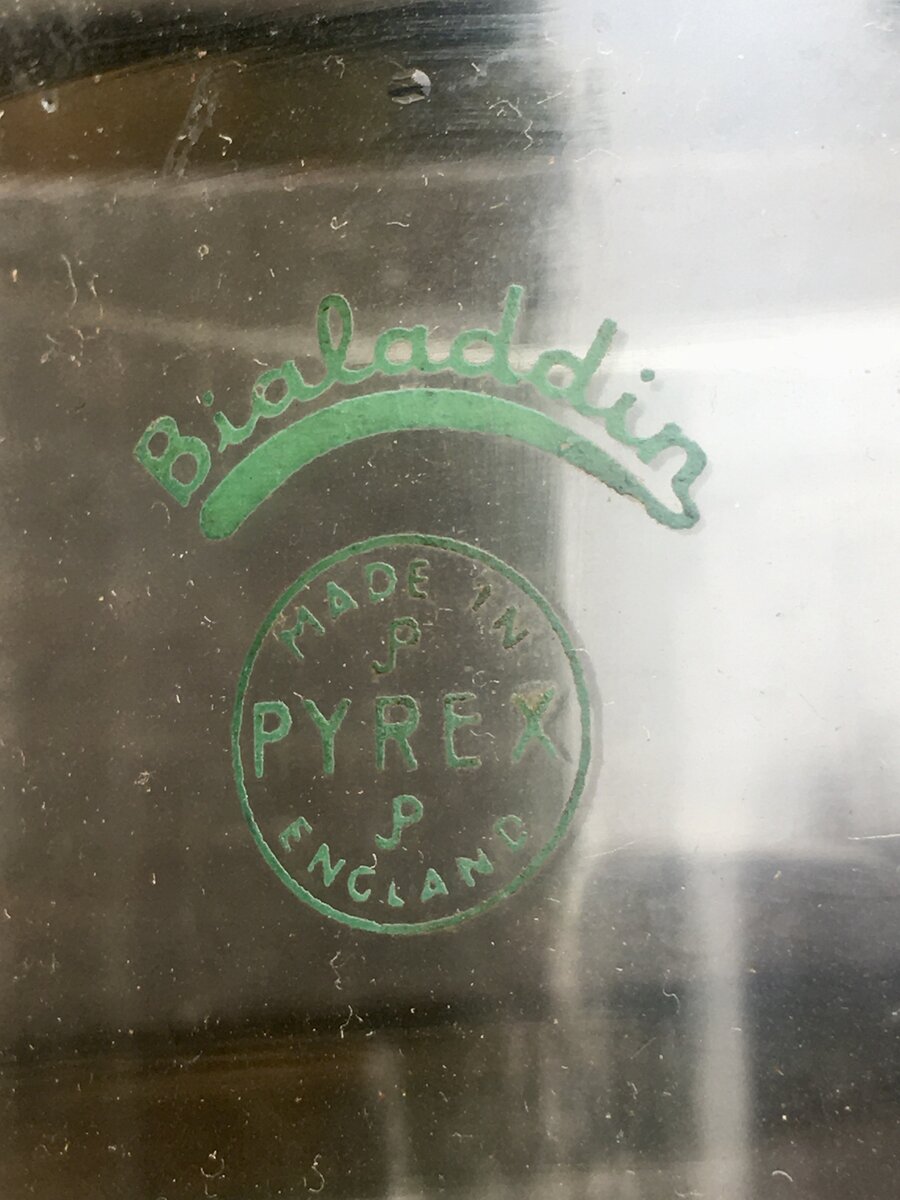

    Globe is sound and original.



    Dust, cobwebs, screw slots not mangled - encouraging details.

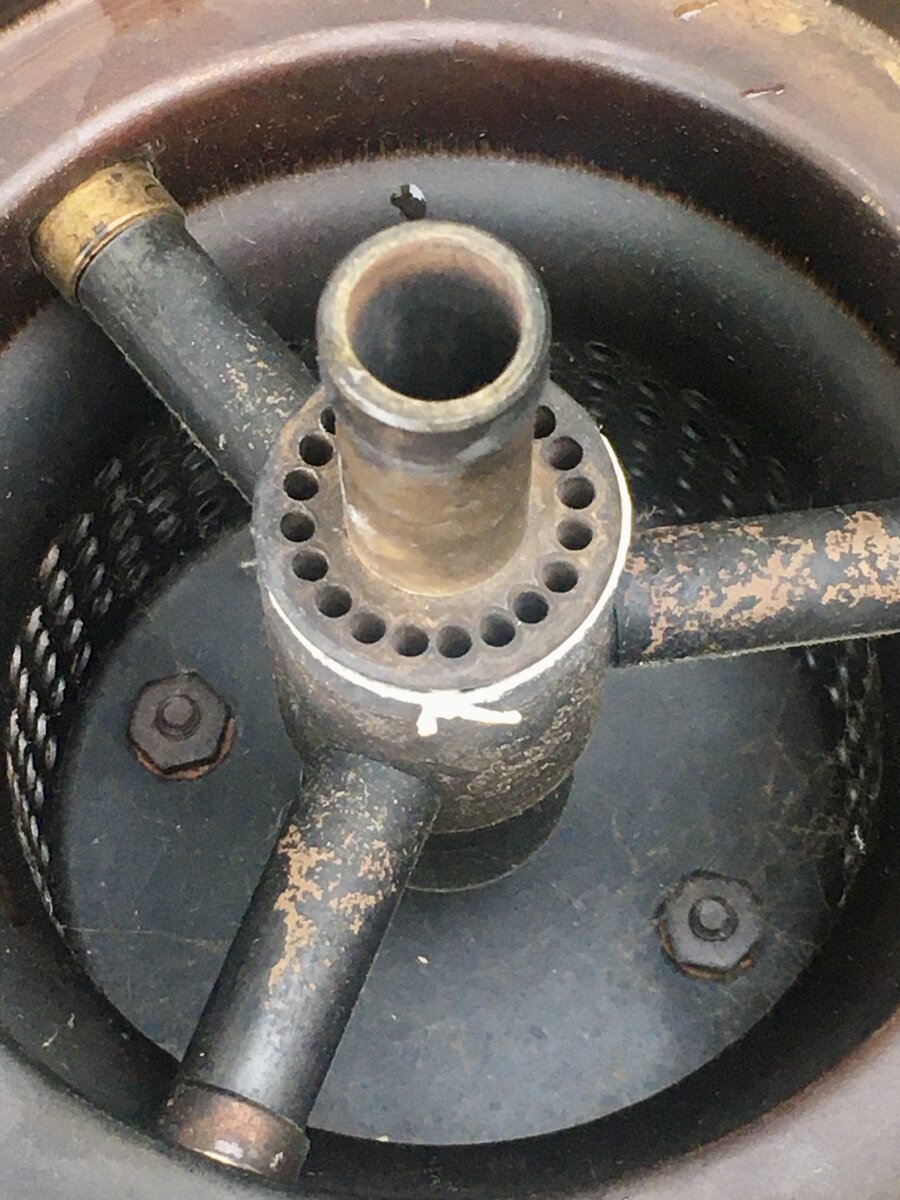

    More dust and cobwebs. Those nuts are going to unscrew, no bother. The hexagonal air buttons unscrewed effortlessly. Remains of its last mantle still present.

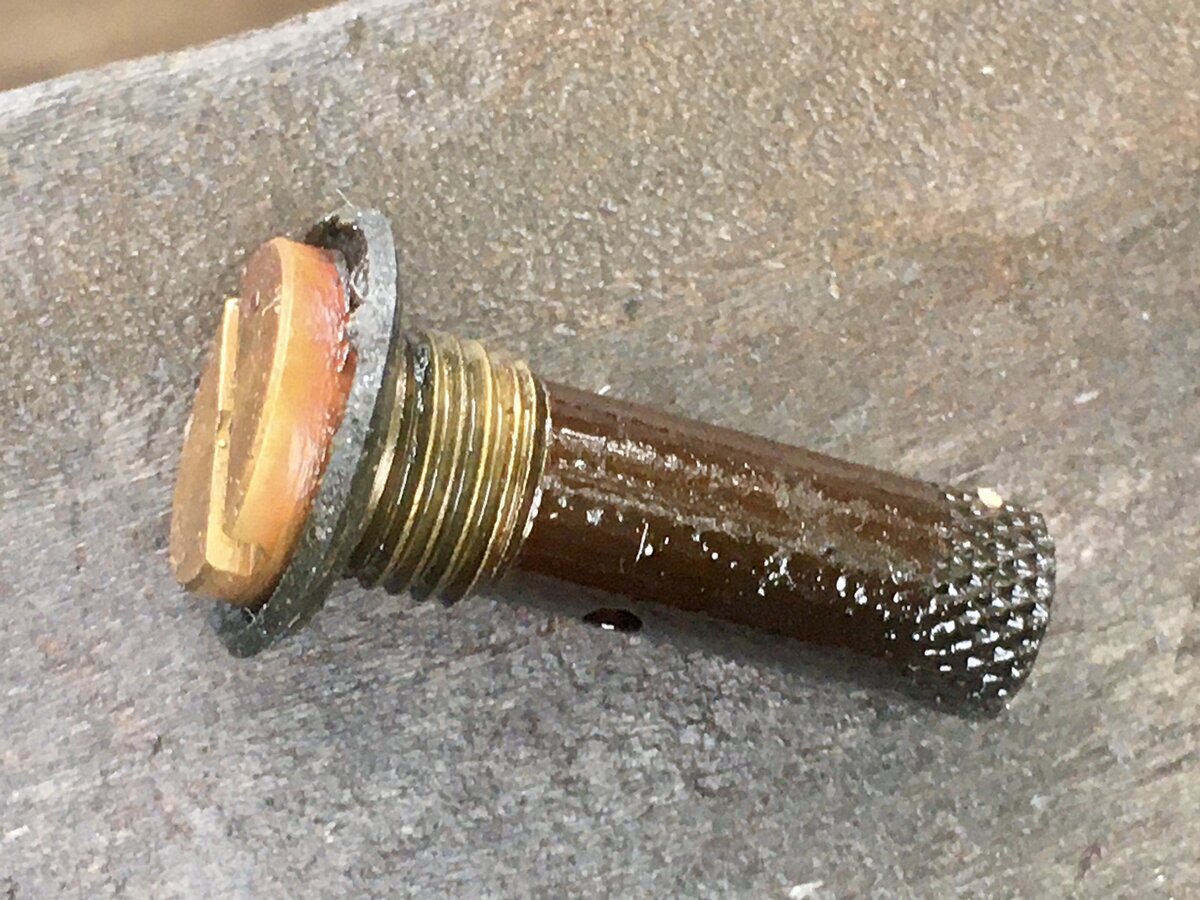

    Non-return valve covered in varnish.

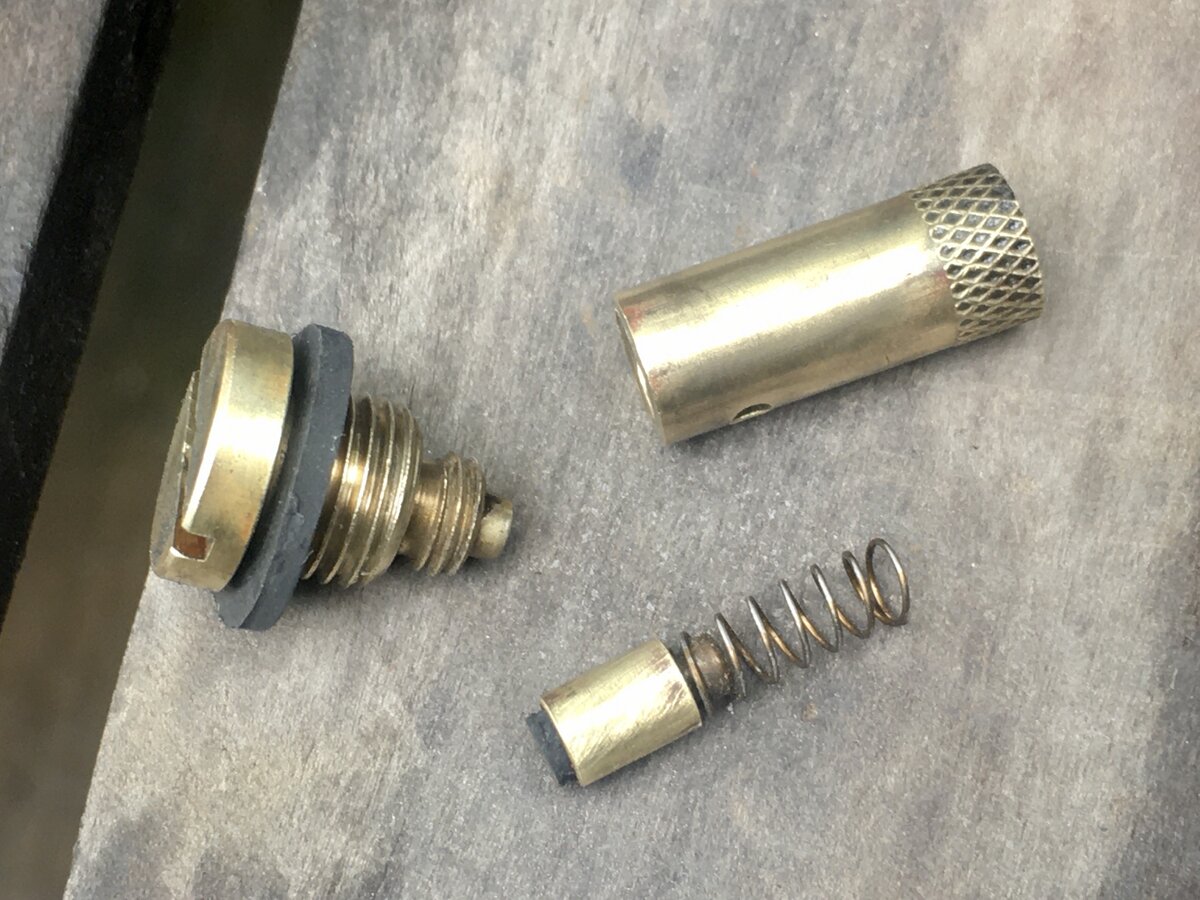

    I cleaned that off, but more importantly off the internal bore of the NRV and the seal ‘pip’ holder to ensure free movement.

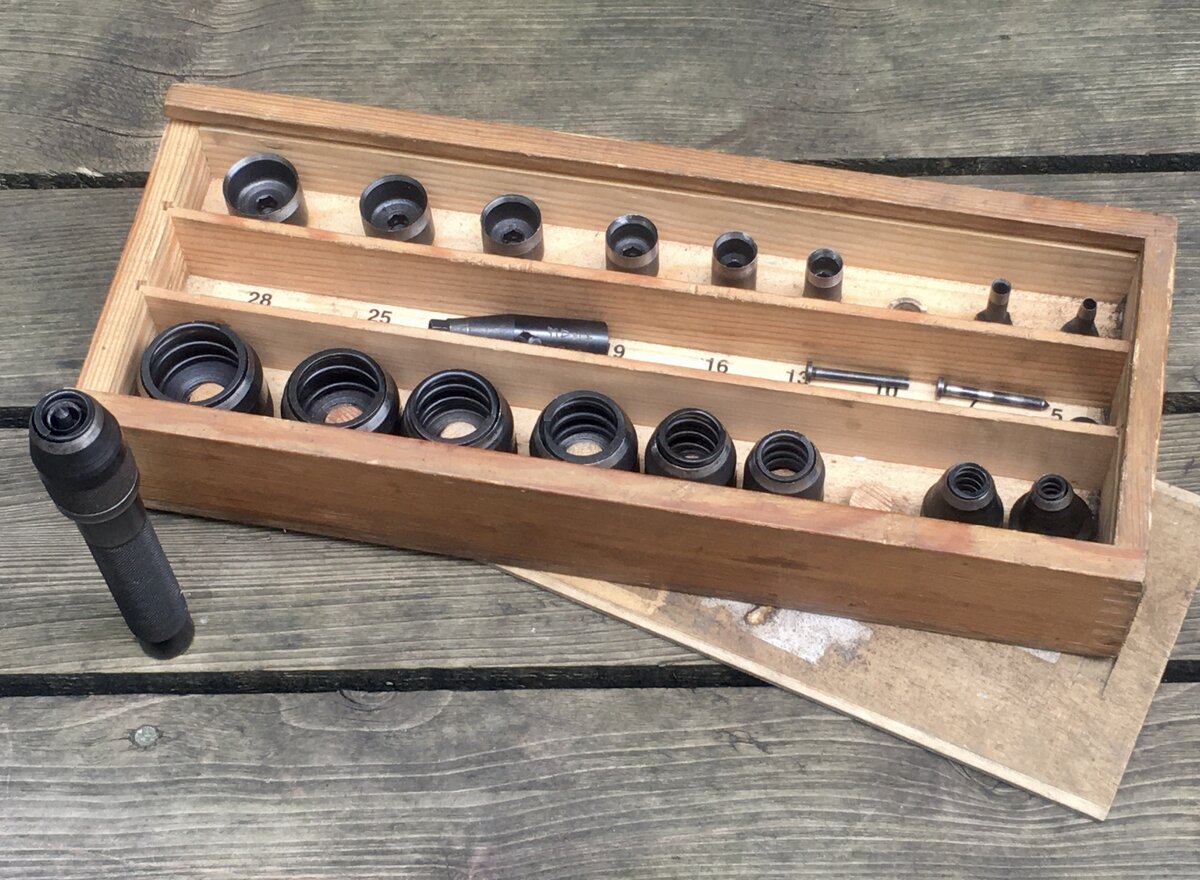

    New NRV-to-pump seal stamped out of viton sheet, a job for my Måby punch set.



    New NRV pip too.

    ... more to follow.

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,886
    Location:
    Shetland Islands UK..
    A fine fettling project!:thumbup:

  3. Gary Waller

    Gary Waller Subscriber

    Offline
    Joined:
    Apr 3, 2018
    Messages:
    261
    The hood looks really good, probably not had a lot of use.

  4. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    2,804
    That's a very satisfying find! Lovely to see the original paint in such good condition!

  5. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK

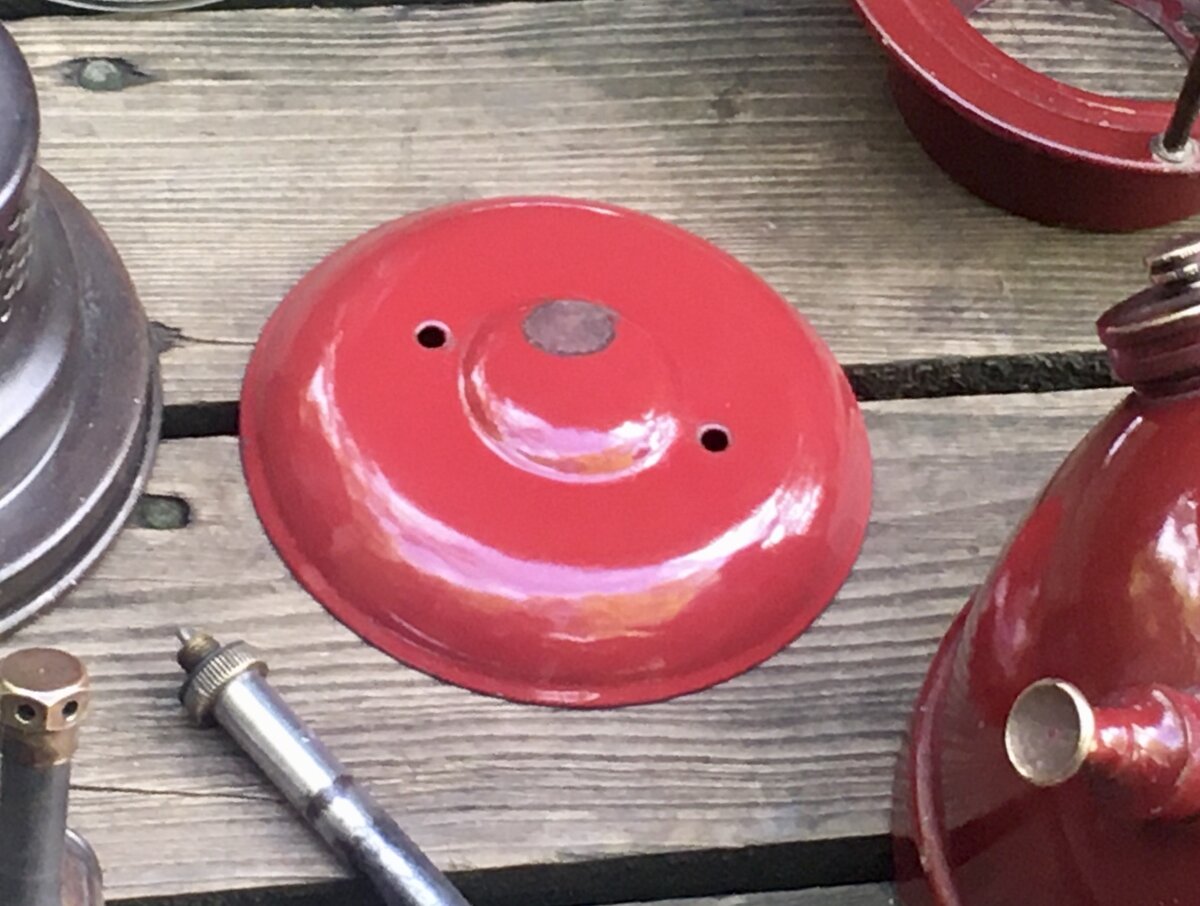

    Yes, pretty good, a patch of enamel gone though.



    Good backing enamel.


  6. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK

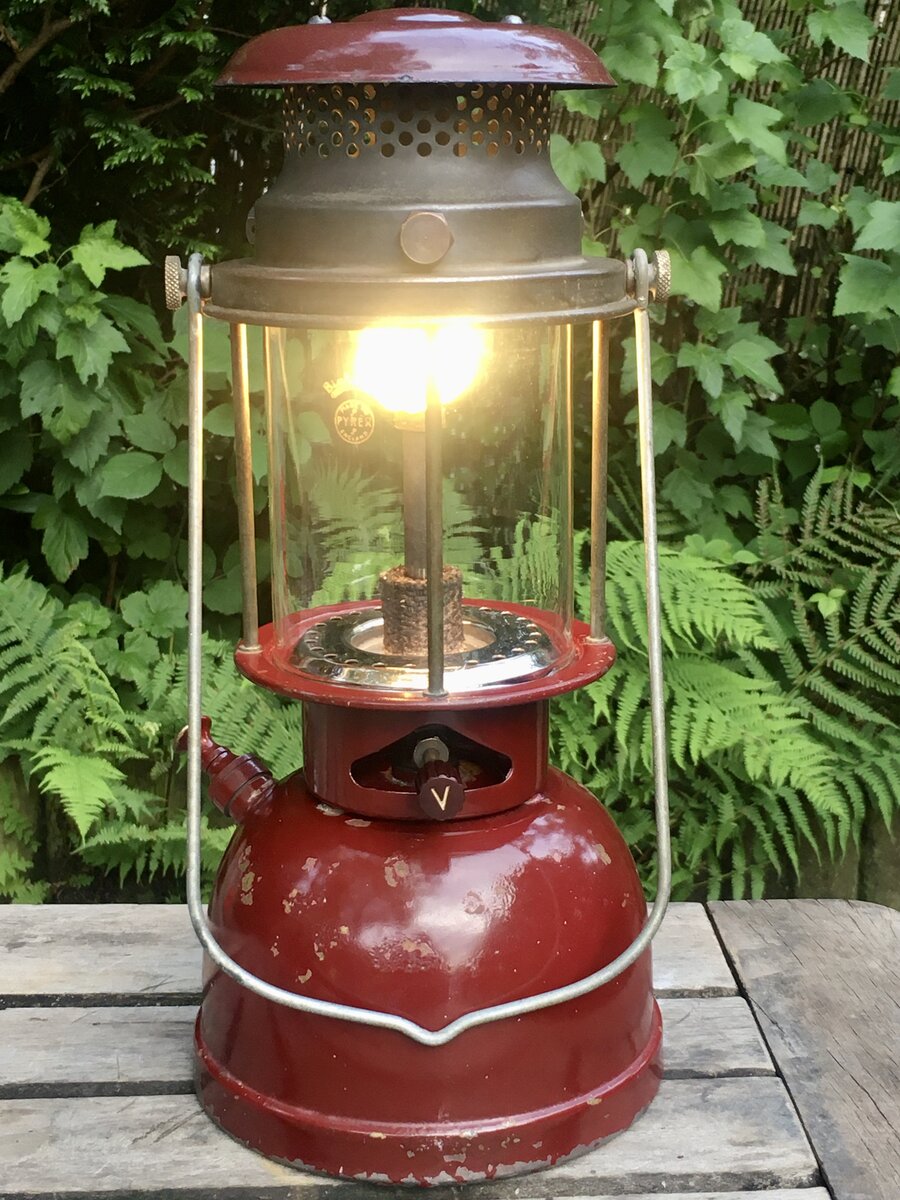

    Fettle completed HERE, lantern posted in the Stove Reference Gallery.


  7. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,070
    Location:
    Wirral
    Nice!

    I had an idea that these were black on the inside/underneath so that confirms it :thumbup:

  8. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,901
    Location:
    Somersby, New South Wales, Australia
    Thanks John :thumbup:

  9. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    148
    Location:
    Bradford uk
    Great job John, and a reference for me when i get that maroon fount version of mine sorted

  10. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,194
    Location:
    North Yorkshire
    The orientation of the needle control and handle is not only practical but adds symmetry as well. I find it very pleasing to the eye.

    Henry.

  11. Gareth Shepherd

    Gareth Shepherd United Kingdom Subscriber

    Offline
    Joined:
    Oct 6, 2019
    Messages:
    62
    Location:
    Chesterfield
    Nice fettle @presscall I really enjoy following the restoration pictures

  12. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,224
    Location:
    North-East England
    Yes, they're about still...
    1946-51 Bialaddin 300X
    ...even if the seller wasn't quite as honest as the lantern! :doh::)

    John, are the two patches of enamel loss on either side of the hood in the same place? :-k

  13. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    @Gareth Shepherd Thanks Gareth!

    @David Shouksmith Yes, I’d previously read your post on that one and the use of a shagpile carpet by the seller to mask the loss of paint around the font base rim!
    Correct, David. I suppose a breach in the enamel top surface allowed water penetration and rust taking hold would lift more enamel top and bottom.

    I’m tempted to seek a better colour match of enamel powder than the red I already have and have a go with the tripod-and-blowtorch enamelling technique. Not so much for the appearance, but it’d be good to weatherproof the patch. Should be easier to do the detached cap, if only for access, than the caps of the one-piece hoods I’ve ‘torched’ so far.

    John

  14. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,275
    Location:
    Scottish Highlands
    @presscall

    Looking good! I do like an original lamp...

  15. Alex74

    Alex74 United Kingdom Subscriber

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    309
    Location:
    Faringdon, Oxon
    That is a lovely lantern in original ‘unmolested’ condition, as some sellers refer to these days. Well done. I wonder if you can be prosecuted for ‘lamp molesting’ these days....?

  16. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    If the crime were ‘re-purposing’, ‘up-cycling’ by drilling a hole in the font for electrocution, that’s the punishment I’d wish on the perpetrator to fit the crime.

  17. JonD

    JonD Subscriber

    Offline
    Joined:
    Apr 15, 2014
    Messages:
    771
    Location:
    Hertfordshire, England
    Yes! Do you mean drill a hole in their "fount"?
    Let the punishment fit the crime. The Mikado - Gilbert and Sullivan.

  18. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    Fount/font. As the song goes,
    “You say to-MAY-to, I say to-MAH-to ...”

  19. JonD

    JonD Subscriber

    Offline
    Joined:
    Apr 15, 2014
    Messages:
    771
    Location:
    Hertfordshire, England
    • Something like that John. For my money a font is definitely found in a church for Christenings or it is a style of text. It's a fount on a lamp or stove or come to that a person who needs punishment for those misdeeds! :lol:

  20. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,224
    Location:
    North-East England
    I thought of two other possible explanations:-
    1. There was some impurity/inclusion in the metal there, or;
    2. surface contamination of the metal e.g. the hood top fell on the floor and someone picked it up with bare finger and thumb
    Either of these -as well as your explanation, of course - might result in the enamel failing to adhere to the metal substrate

    Whatever, it's strange in my experience to have enamel loss at exactly the same place on both sides of the metal...

  21. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,070
    Location:
    Wirral
    Could it have had an impact that was enough to crack the enamel but not enough to show?

    But a few light ups later...?

  22. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,224
    Location:
    North-East England
    Thanks, Tony. That kind of thing is ubiquitous on Bialaddins which have the two-piece, welded hoods. I presume the weld metal and substrate metal have different expansivity (is that a word or have I just made it up?) so when they heat up they expand by slightly different amounts which sets up stresses in the enamel. This then cracks, water gets in, rusting starts and the enamel comes off. I suspect that's why W&B went on to using (true) one-piece hoods...

    IIRC, one of my less-than-superb Superbs has four such areas... :doh:

  23. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,203
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    In case you are all wondering, I accidentally deleted my post. It said:

    @David Shouksmith & @presscall

    I have an enamelled hood somewhere that has enamel loss in 4 spots at 90 degrees from the centre. I think it is a Gloria. I’ll look tomorrow.

    Cheers

    Tony
