Mundus II alcohol donut lamp

Discussion in 'Gravity Lamps - all makes' started by Conny C, Feb 25, 2020.

  1. Conny C

    Conny C Sweden Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    677
    Hi all,

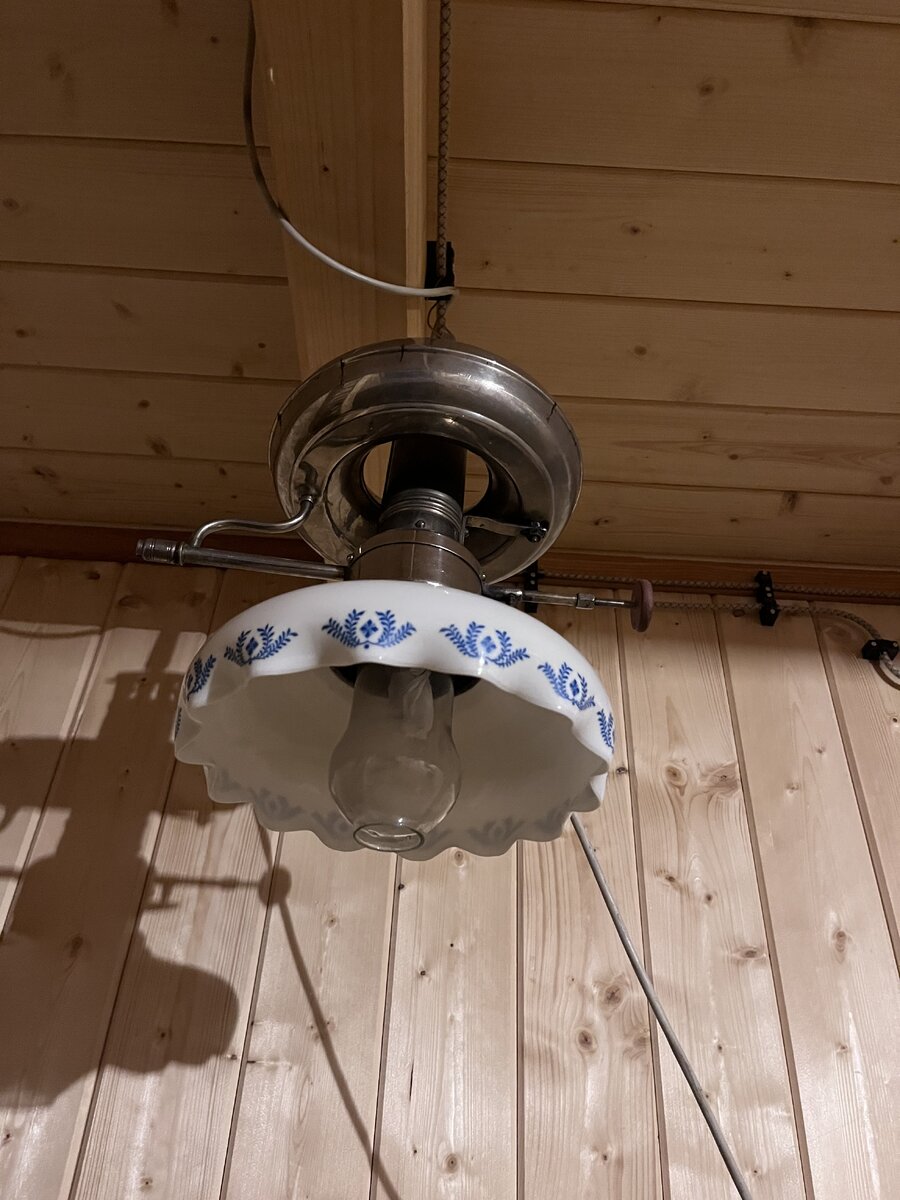

    Here is a 100 CP alcohol gravity donut Mundus II lamp. Unknown maker, but probably the Czechoslovakian "Elektra" company, (Antonin Fridrich "FRIDRICH & PIŠVEJC"). It uses the same burner design as several other Elektra gravity lamps and also my O. Karlin stand lamp. I can't find any patent for this type of burner, but I believe there is one original patent as the source of all these lamps.

    From papers of a Czech stove site, I found catalogue images (very low resolution, I'm sorry) of this Mundus II lamp, and also of the smaller Piccolo I and II donut lamps in the same style. In one catalogue, dated May 1939, there are also several Wiktorin lamps displayed, so my guess is mid 1920,s into the 30,s ( Elektra patent for a height adjustable fuel tank, working as an on/off fuel device, comes 1920).

    Although much simpler built quality overall and in burner design, this lamp match the Hugo Schneider Lipsia lamp, both as a user and in performance.

    /Conny

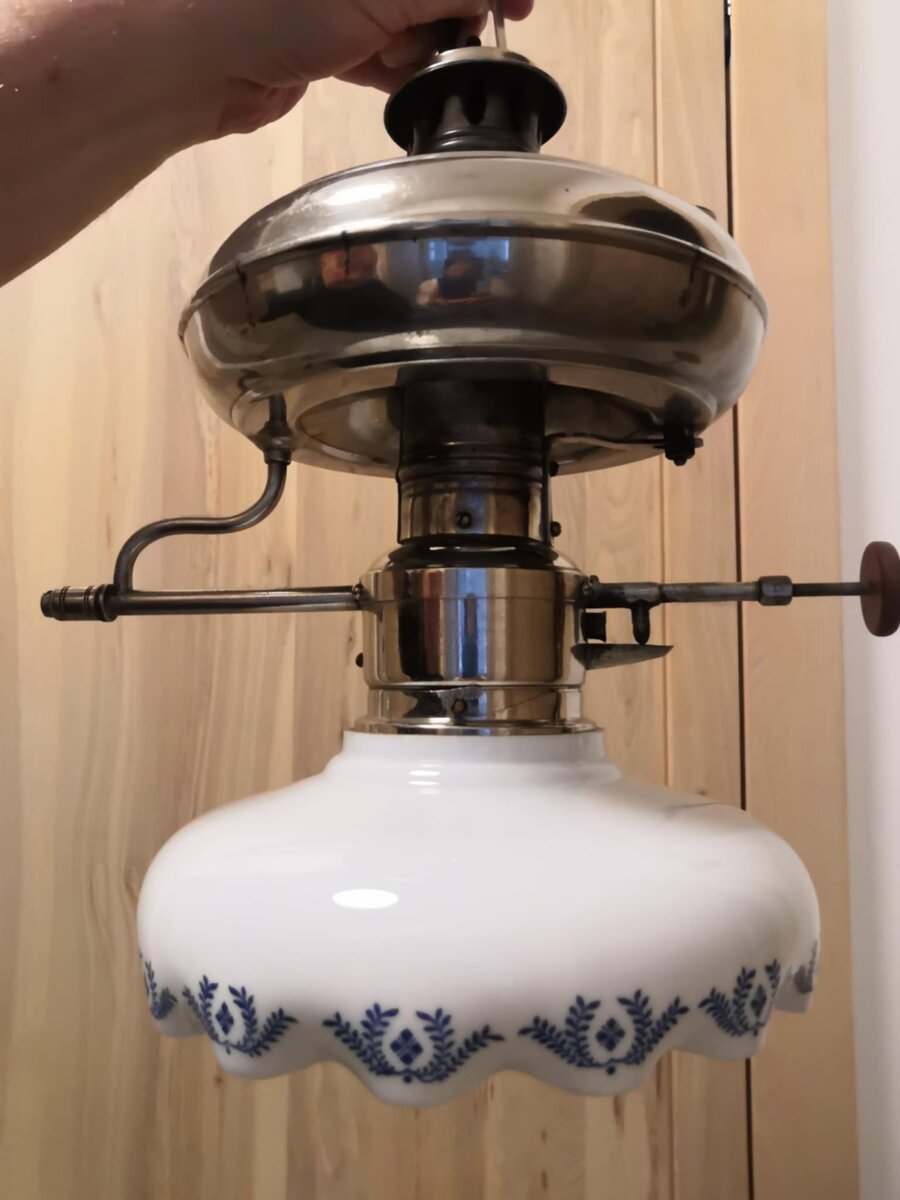

    Mundus lamp.jpg


    parts.jpg Mundus lamp with tankvent and hanger.jpg Mundus lamp with mantle and chimney.jpg Mundus lamp with geneartor and fuel valve control.jpg Mundus lamp with geneartor and fuel fed tube.jpg Mundus lamp with jet and valve control.jpg Mundus lamp without chimney.jpg Mundus lamp Bunsen flame.jpg Mundus lamp lit mantle.jpg Mundus lamp lit.jpg

    ….before…. Mundus lamp before.jpg

    catalogue images of the Mundus II (sorry for low resolution) ….
    catalogue image of Mundus II.jpg Second catalogue image of Mundus II.jpg

    ….side by side the HS Lipsia lamp…. Mundus and Lipsia lamps.jpg

    Last edited: Feb 25, 2020
  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,212
    Location:
    Shetland Islands UK..
    Another grand old lamp saved!:thumbup::clap::clap::thumbup:

  3. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,033
    Location:
    Toowoomba Australia
    An exquisite restoration @Conny C
    Your restorations are an inspiration to all.
    Thank you for sharing.
    Cheers
    Pete

  4. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,736
    Naah way to clean.








    no I am not jealous !

  5. Conny C

    Conny C Sweden Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    677
    Thanks all!

  6. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    738
    Location:
    Wirral
    .. Phew!...Awesome ....

    Well done!

  7. Mendoza603 United States

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    37
    Location:
    USA
    One more done ✅

    That is excellent work :D/:D/:D/
    Like always.

    ///Fernando

  8. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,300
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Very, very nice, @Conny C!

    Cheers

    Tony

  9. Titoo

    Titoo France Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    374
    Location:
    FRANCE: 25 Franche Comté
    Very nice lamp :clap:

    Regards,
    Titoo.
